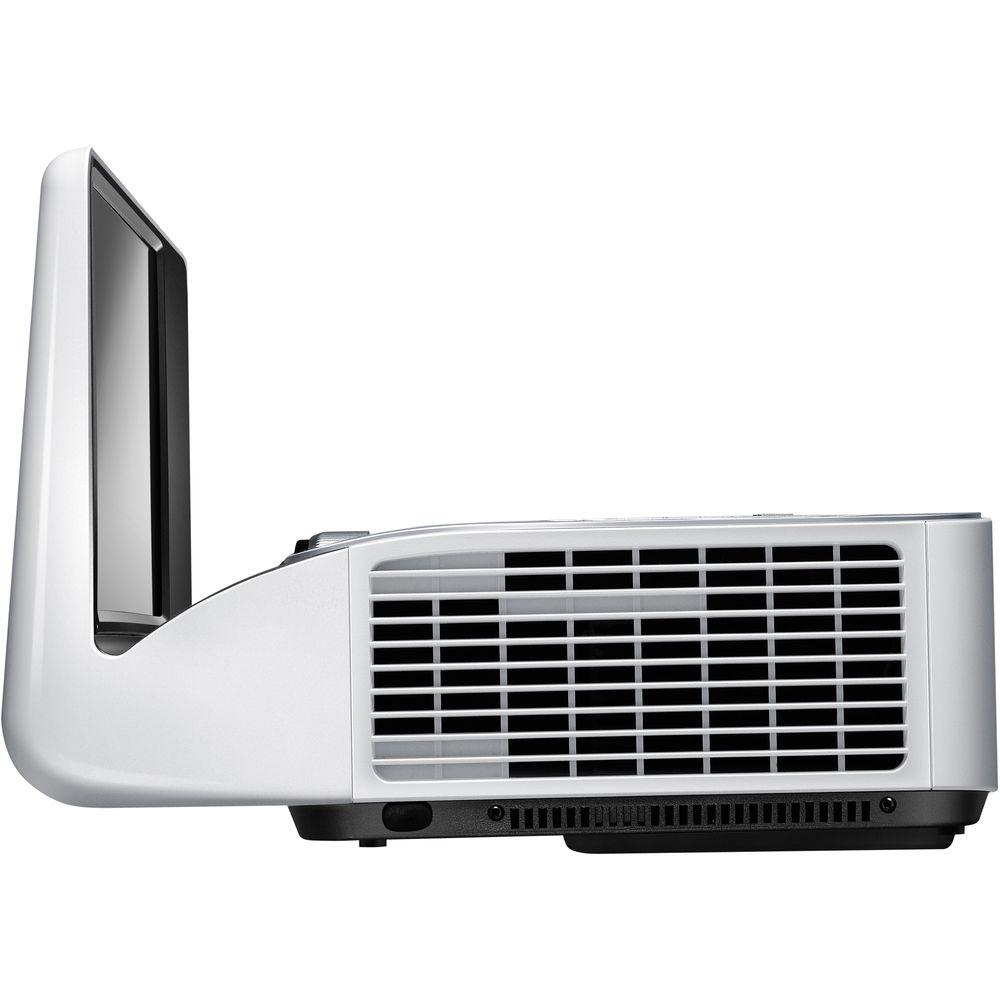

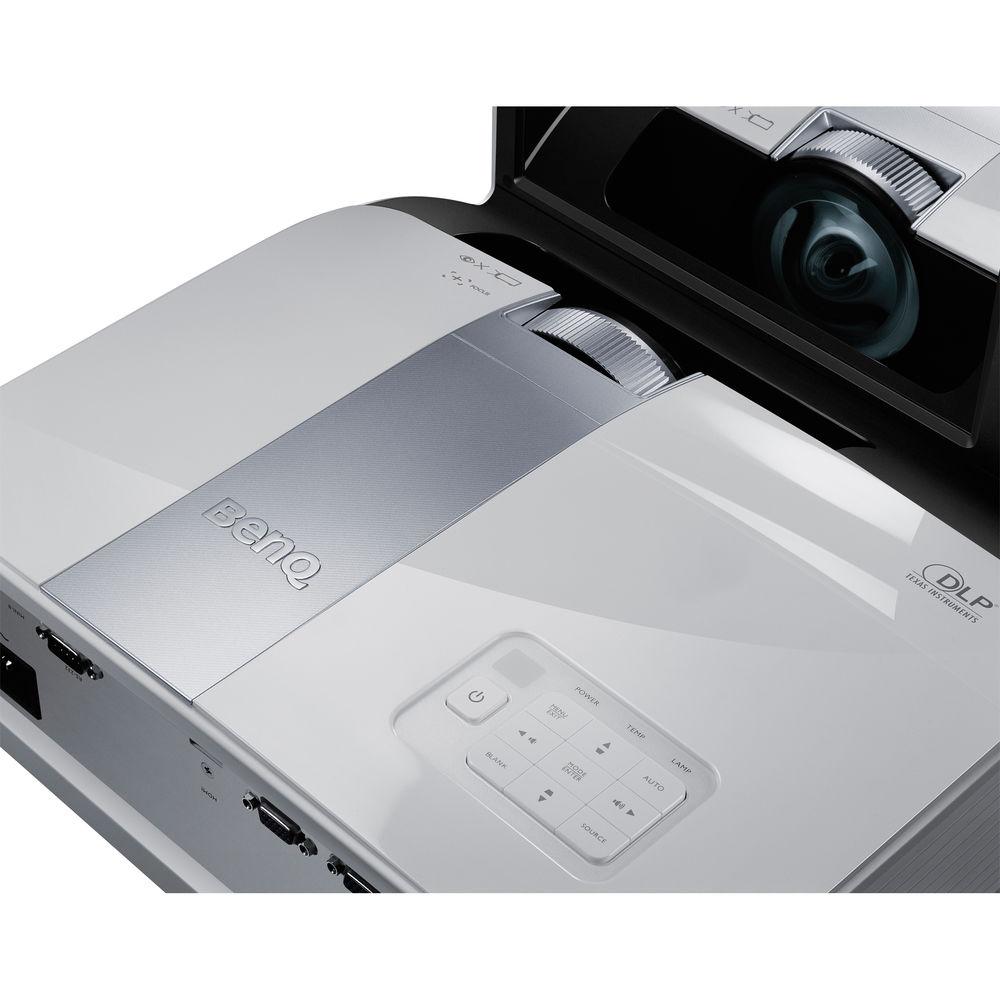

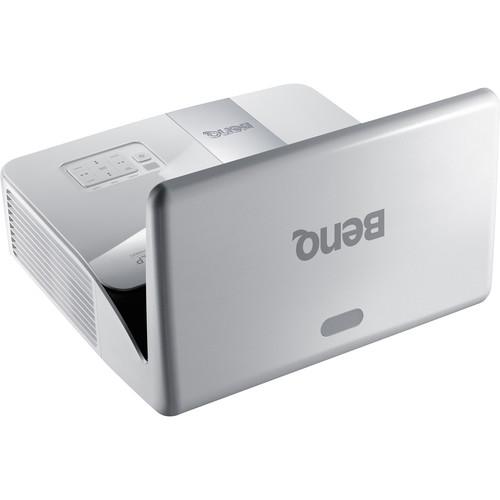

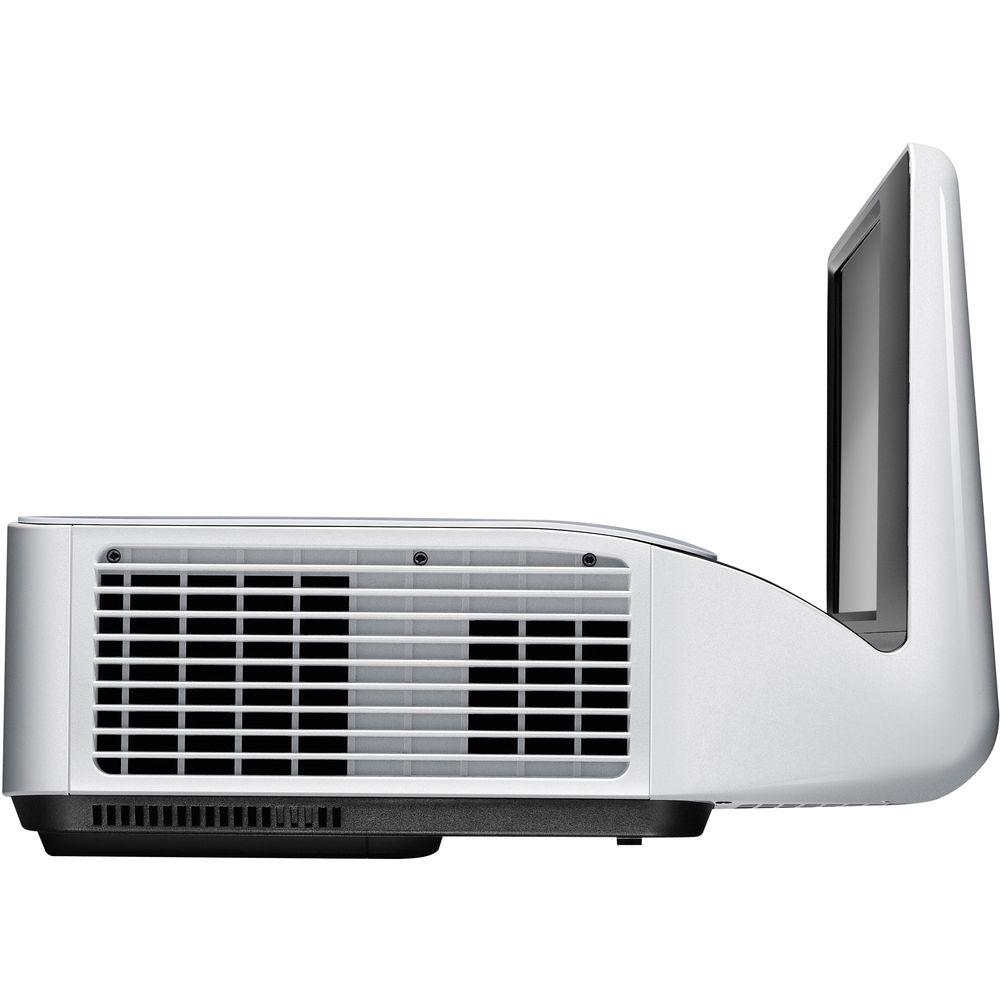

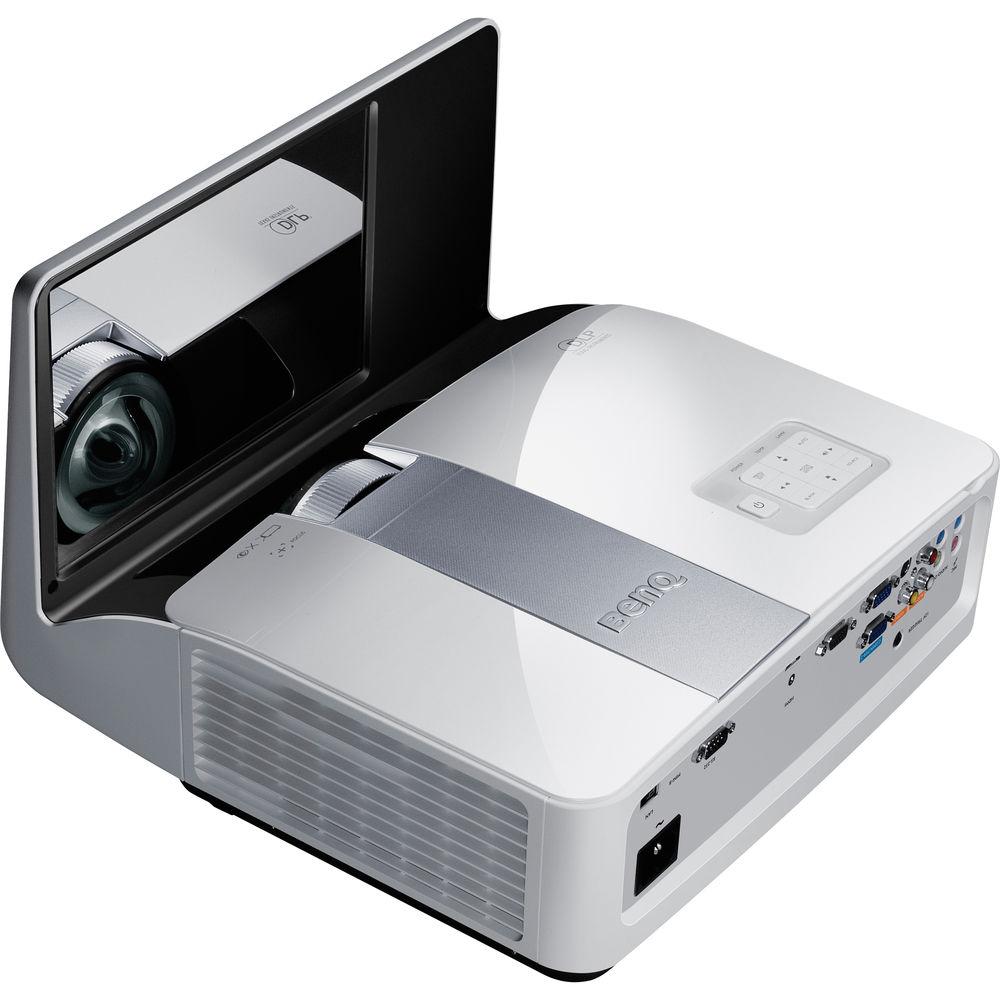

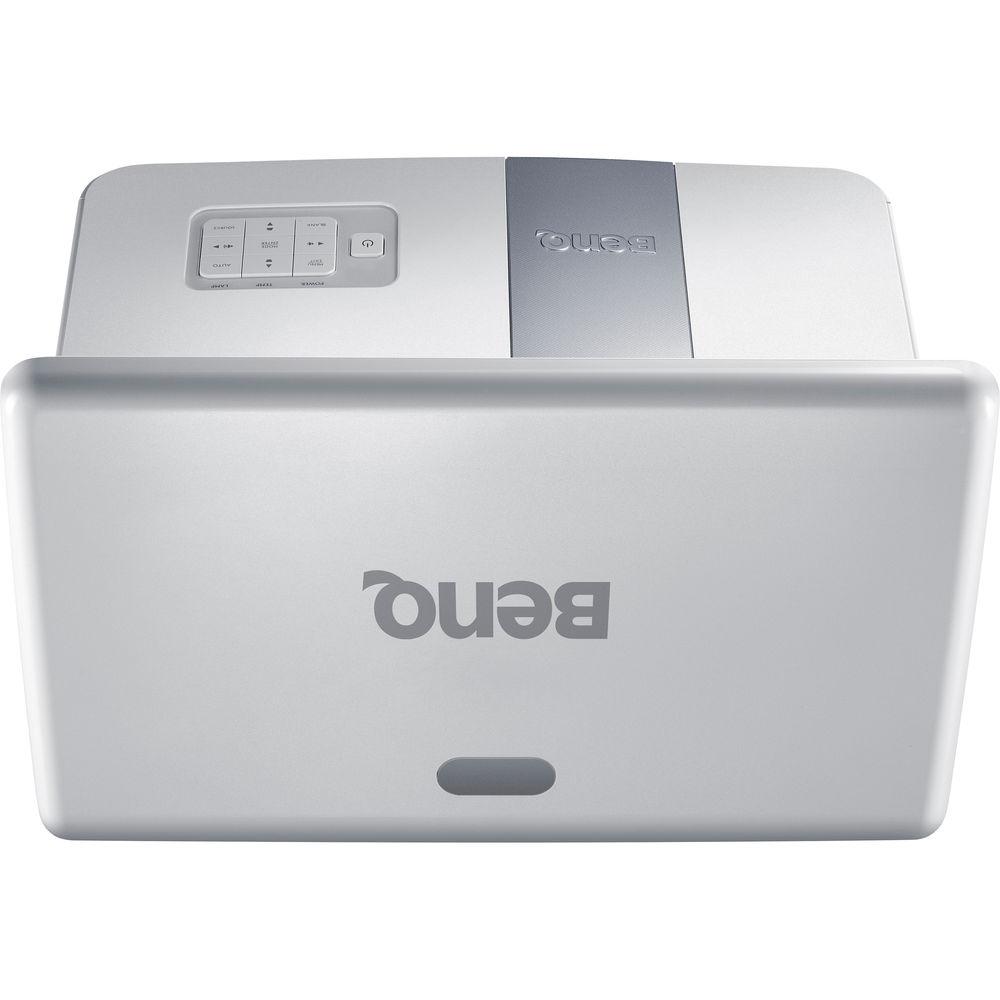

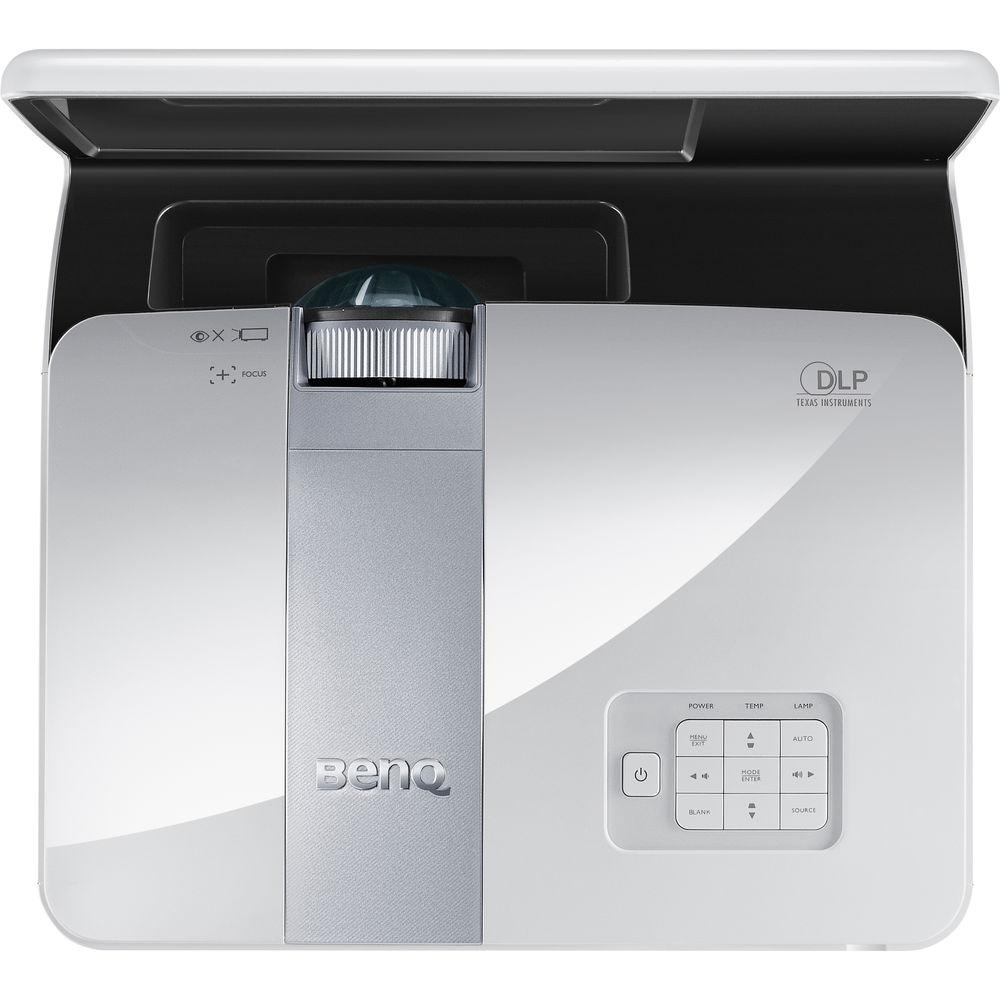

User Manual for BenQ MW843UST 3000-Lumen WXGA Ultra-Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ MW843UST 3000-Lumen WXGA Ultra-Short Throw
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ MW843UST 3000-Lumen WXGA Ultra-Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description With a 0.37:1 throw ratio MW843UST 3000-Lumen WXGA Ultra-Short Throw DLP Projector from BenQ is optimized for classroom and other applications where the projector is to be mounted or placed very close to the screen. A single lamp provides 3000 ANSI lumens brightness in Normal Mode, and a single-chip DLP imaging device renders a 1280 x 800 (WXGA) resolution, 16:10 aspect ratio image. Through scaling the projector can also support a range of non-native resolutions, up to Full HD (1920 x 1080) for video and UXGA (1600 x 1200) for computer sources.

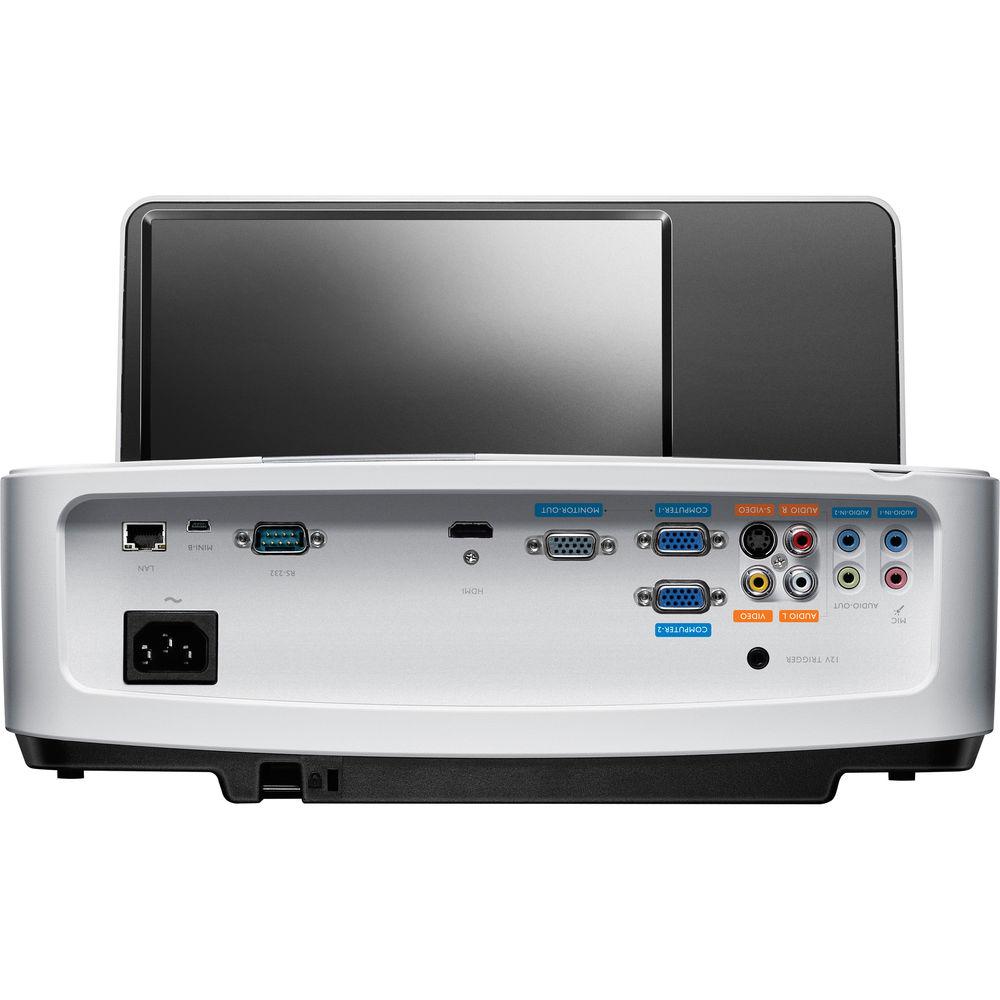

Multiple ports allow the MW843UST to receive video from a variety of sources, including computers, Blu-ray Disc and DVD players, document cameras, and more. It features two VGA ports which also support component video sources when using a separately available component to VGA adapter, an HDMI port, an S-video port, and a composite port. A VGA output mirrors the selected VGA input so that you can connect a computer monitor or pass the video along to a second downstream device without a distribution amplifier. There are also two analog audio inputs and a single analog audio output to loop audio through to a sound system or amplified speakers. Providing direct audio output there are two built-in 10-watt speakers.
An IR remote is included for local operation. The projector can also be managed centrally via RS-232C or Ethernet. This means you can use automation systems such as Crestron or even access settings from a Web browser running on a computer that is sharing the same network. A unique IP address means multiple projectors of the same or similar model can reside on the same network and be managed independently.
Because of the close throw distance (35" maximum recommended), the projector is designed primarily for wall mount installation. A wall mount kit is included. - Ultra-Short Throw Design
- With a 0.37:1 throw ratio it is possible to render a 100"-diagonal image with the projector mounted 37" away from the screen. By wall mounting at such a close distance the risk of shadow interference and dazzling specular reflections is greatly reduced.
- 3000 Lumens Lamp
- A single lamp provides 3000 lumens brightness in Normal mode, and is estimated to last 3500 hours (up to 7000 hours in the lower brightness SmartEco Mode). To determine the ideal brightness level for your application, you will need to take into account the screen width, distance from the projector to the screen (throw distance), amount of ambient light near the screen, and the reflectivity (gain) of the screen surface used.
- 16:10 Native Aspect Ratio
- This projector features a 16:10 native aspect ratio. This is considered a widescreen format, and comes very close to the 16:9 standard of HDTV. This format is ideal if you plan to show HD video, and can still be used for presentations - though in the case of PowerPoints some extra space may be leftover on the sides. The projector can show 4:3 too; however black bars (pillaring) will have to be applied, or the image will have to be stretched or cropped to fit.
- Single Chip DLP Technology
- Uses a combination of a chip covered in millions of micro-mirrors and a color wheel to produce an image. DLP features less spacing between pixels and better contrast than many comparable LCD-based systems.
- SmartEco Power Saving Mode
- By detecting the input content to determine the amount of brightness required for optimum color and contrast performance, the SmartEco Mode is designed to reduce lamp power while maintaining consistent image quality.
- Eco Blank Mode
- Allows teachers or presenters to blank the projection screen whenever they need to direct focus back on them and not the image - or simply to save power when the projector is not in use. This mode can be configured to kick in automatically after three minutes of inactivity and the projector can automatically power off completely after 30 minutes of inactivity.
- BrilliantColor Technology
- Enables up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with primary Red, Blue, and Green to help provide more accurate color reproduction.
- RS-232 and Ethernet Controllable
- An RS-232 port means the projector can be controlled from a computer running custom software or via automation system such as Crestron. Meanwhile an Ethernet port allows it to be controlled across a local network using a Web browser.
- Picture Modes:
-
- Dynamic
- Presentation
- sRGB
- Cinema
- 3D
- User 1
- User 2
UPC: 840046022266 In the Box BenQ MW843UST 3000-Lumen WXGA Ultra-Short Throw DLP Projector RCE012 Remote Control with Batteries Power Cord VGA Cable Wall Mount Kit Limited 3-Year Warranty on Projector Limited 1-Year / 2000-Hour Warranty on Lamp (Whichever Comes First) User Manual PDF 5.9mb More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MW843UST 3000-Lumen WXGA Ultra-Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ MW843UST Specs | | | Display System | -Chip DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA - 640 x 480
UXGA - 1600 x 1200 Supports a range of VESA computer resolutions from 640 x 480 (VGA) up to 1600 x 1200 (UXGA). | | Max Brightness | 3000 Lumens | | Offset | 147% ± 5% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 13,000:1 | | DLP Link 3D | Yes | | Scan | Horizontal: 15 - 120 kHz
Vertical: 23 - 120 Hz | | | | Lens | f/2.53 (f = 5.38 mm) | | Throw Ratio | 0.37:1 | | Projection Size | 64 - 120" / 162.56 - 304.80 cm | | | | Keystone Correction | -Vertical: ± 15° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x HDMI Audio/Video (Input)
1 x Composite (RCA) Audio (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Mini-USB Type-B Female
1 x Ethernet (RJ45) Control
1 x RS-232C (Unspecified Connector) Control (Input) | | | | Lamp Power | 240 W | | Expected Lamp Life | Medium Brightness: 3500 Hours
Low Brightness: 5000 Hours
Low Brightness: 7000 Hours | | Fan Noise | Medium Brightness: 36 dB
Low Brightness: 30 dB | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | Power Consumption | Medium Brightness: 330 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 13.3 x 9.3 x 12.7" / 339.0 x 236.9 x 322.8 mm | | Weight | 11.9 lb / 5.4 kg excluding wall mount base plate | | | | Package Weight | 28.2 lb | | Box Dimensions (LxWxH) | 23.0 x 21.0 x 14.0" |
