User Manual for BenQ MW855UST 3500-Lumen WXGA Ultra-Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ MW855UST 3500-Lumen WXGA Ultra-Short Throw
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ MW855UST 3500-Lumen WXGA Ultra-Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description Project bright, high-resolution images from short distances in educational environments with the BenQ MW855UST 3500-Lumen WXGA Ultra-Short Throw DLP Projector. It features 3500 lumens of brightness and a 10,000:1 contrast ratio. Additionally, this projector has a WXGA 1280 x 800 native resolution, and supports up to UXGA 1600 x 1200 video signals. The MW855UST is powered by a DLP chip system, and the lamp features a long life of up to 6000 hours in EcoSmart mode. Furthermore, you can use the MW855UST to project up to 100" images from just 32" away thanks to its 0.35:1 ultra-short throw ratio.

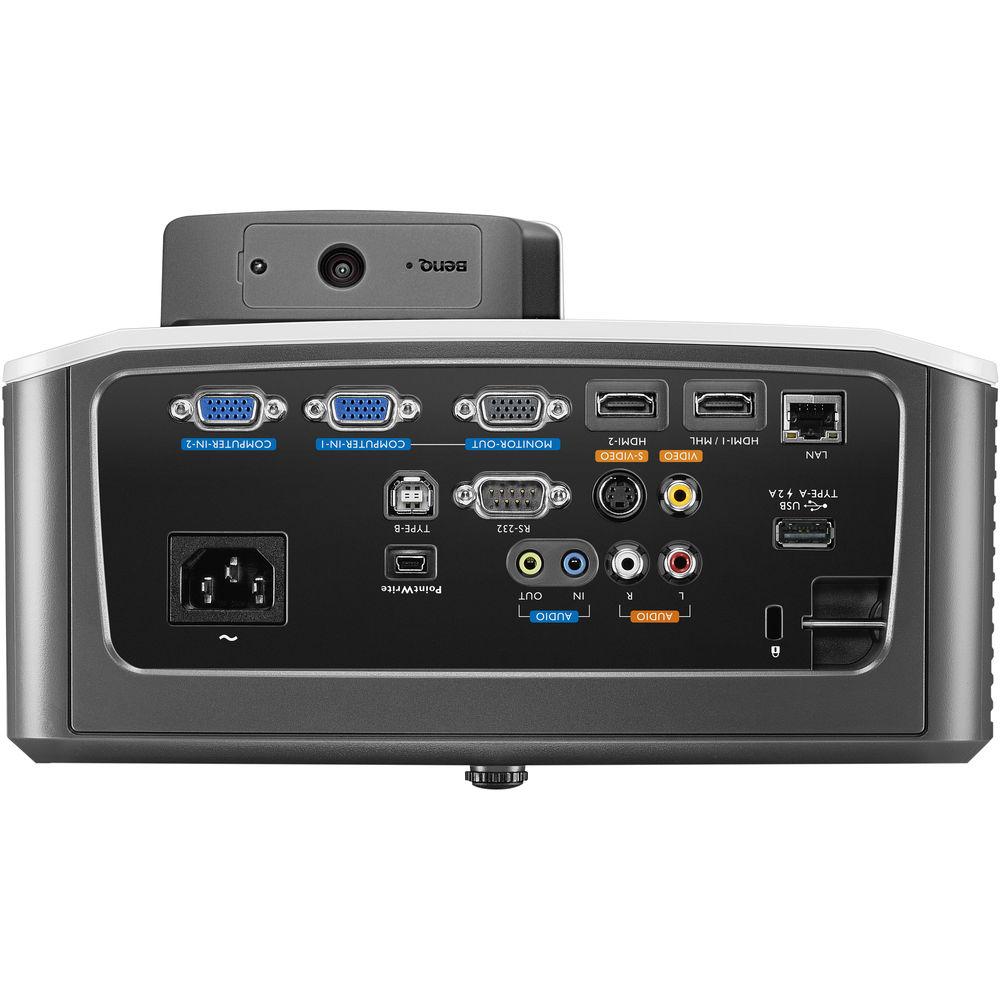

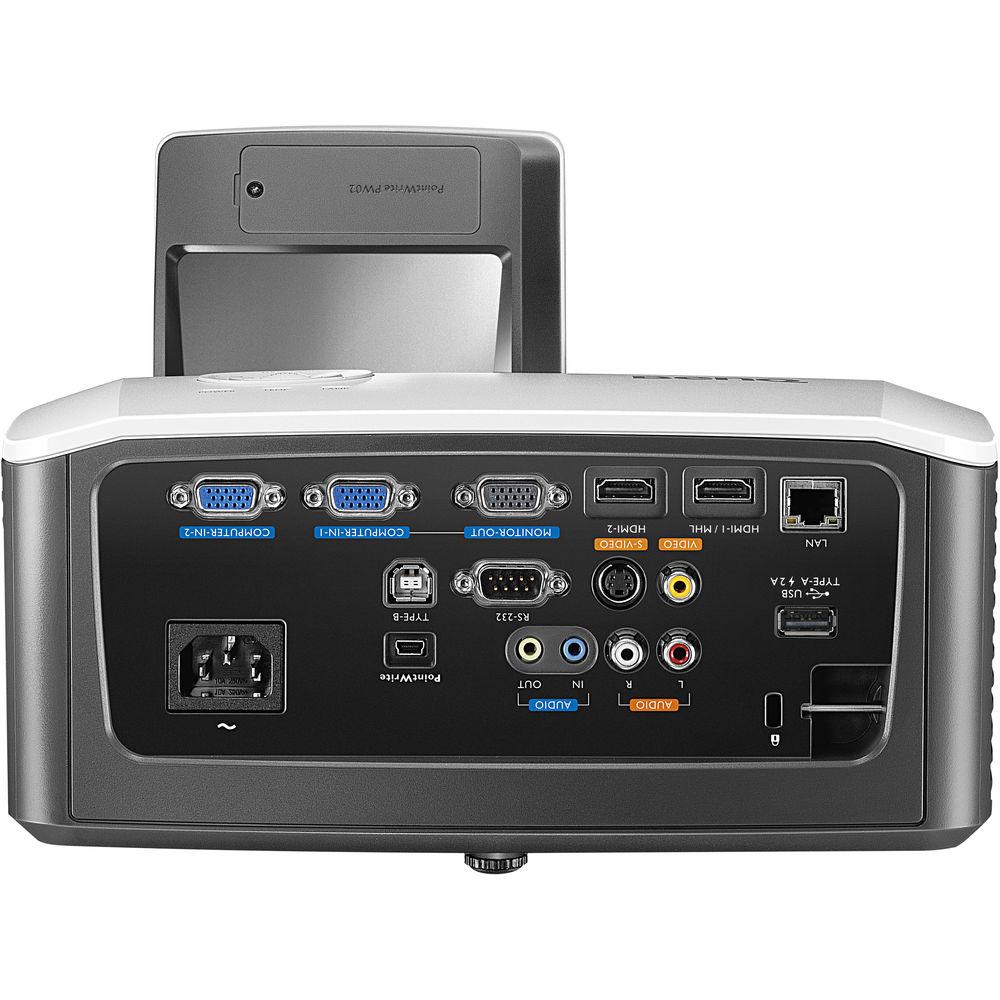

With S-video, RCA composite video, two VGA inputs, and two HDMI inputs, this projector is well-equipped for external video sources. It also supports MHL connections via HDMI. MHL allows you to mirror and charge compatible connected devices. The MW855UST features 3D support when paired with sold separately 3D content and glasses. Additionally, dual 10W speakers are built into the projector for powerful audio playback. For streamlined installation and control, this projector includes a wall mount and IR remote. - Lens Shift for Installation Flexibility
- This projector offers additional installation flexibility by enabling installers to optically shift the image up or down up to 4% to overcome minor miscalculations during projector installation.
- Included Wall Mount

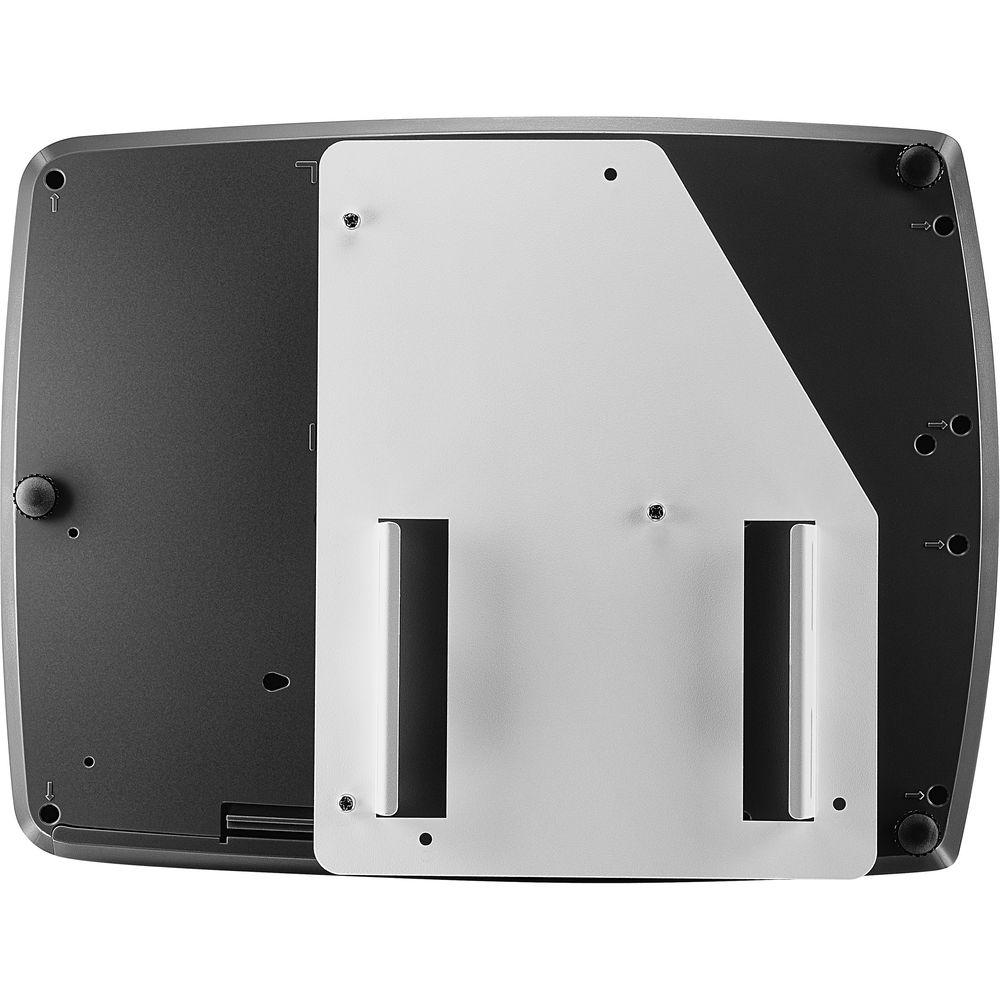

- The included wall mount offers Easy Slide rails for fast and secure projector mounting, an installation template to provide precise, easy-to-follow installation guidance, and front-of-mount control knobs to provide precise final image alignment.
- Corner Fit Correction
- Provides the ability to correct vertical and horizontal keystone errors introduced when the projector is placed off center from the screen. This is suitable for use during quick setup tabletop presentations. The MW855UST features ±5° corner for keystone correction.
- SmartEco Lamp Saving Technology
- The SmartEco mode dynamically adjusts lamp power to maximize power savings while delivering the optimized contrast and brightness performance using only as much light as needed.
- Eco Blank Mode
- The Eco Blank feature allows users to blank or mute the projected image on the screen, affording privacy to search for files or documents while the desktop is not projected to the entire audience. When activated, Eco Blank automatically dims lamp power, therefore lowering total power consumption by up to 70%.
- No Source Detected Mode
- No Source Detected mode lowers the projector's lamp brightness to 30% after the projector has remained unconnected to a display source for more than three minutes
- Projector Management Through LAN Control
- LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks by affording full access and control over every projector directly from their workstations. The MW855UST offers seamless support for the Crestron and AMX LAN Control system.
- Optional PointWrite Support
- Optional PointWrite support allows educators to turn any flat surface into an interactive whiteboard and get up to 4 students to simultaneously collaborate using sold separately PointWrite pens or plain fingers. PointWrite offers fast setup with 1 second auto calibration, ultra-fast 0.016-second response time for a smooth, natural writing experience, and Windows 8 native multi-touch and gesture support.
- Optional Dual Screen Support
- The optional Dual Screen feature allows teachers to create an immersive learning experience by joining two PointWrite interactive projectors to generate an ultra-wide, multi-touch, and interactive image.
- Supports Full HD 3D Blu-ray
- When paired with sold separately 3D glasses and content, this projector allows you to enjoy immersive 3D images.
- Colorific Technology
- This BenQ projector uses Colorific technology to optimize images for specific color balance effects, which is suitable for diverse applications such as presentations, movies, spreadsheets, and photographs. This projector generates more than one billion colors by combining up to seven different colors to create vibrant, true-to-life images.
- BrilliantColor Technology
- This projector is designed to achieve the optimal balance of brightness and color accuracy. BrilliantColor contributes to this by enabling up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with the primary Red, Blue, and Green colors.
- Additional Features
-
- Filter-free engine design
- 5 selectable aspect ratio modes
- Supports component video connections via VGA
- Fixed zoom ratio
- Front IR receiver
- ecoFACTS label
UPC: 840046032838 In the Box BenQ MW855UST 3500-Lumen WXGA Ultra-Short Throw DLP Projector Wall Mount Kit Power Cord Remote Control with Battery VGA Cable Limited 3-Year Warranty for Projector Limited 1-Year or 2,000-Hour Warranty for Lamp Guides & Manuals More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MW855UST 3500-Lumen WXGA Ultra-Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the BenQ MW855UST 3500-Lumen WXGA Ultra-Short Throw DLP Projector can be downloaded in PDF format at the link stated below.
Technical parametersBenQ MW855UST Specs | | | Display System | 1-Chip DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: UXGA - 1600 x 1200 | | Max Brightness | 3500 Lumens | | Offset | 140% ± 5%
148% ± 5% | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 10000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Vertical: 23 to 120 Hz
Horizontal: 15 to 102 Hz | | | | Lens | f/2.5 (f = 5.1 mm) | | Lens Shift | Vertical: ± 8% | | Throw Ratio | 0.35:1 | | Projection Size | 80 - 100" / 203.20 - 254.00 cm | | | | Keystone Correction | Vertical: ± 15°
Horizontal: ± 15° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 20W | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x HDMI Video (Input)
1 x HDMI with MHL Support Video (Input)
1 x Ethernet (RJ45) LAN
1 x Mini-USB Type-B Female
1 x USB Type-B Female
1 x USB Type-A Female
1 x RS-232C (Unspecified Connector) Control
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RCA Stereo (L/R) Audio (Input) | | | | Lamp Power | 240 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 6000 Hours | | Fan Noise | Medium Brightness: 34 dB
Low Brightness: 29 dB | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 320 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 14.6 x 5.1 x 11.3" / 37.1 x 13.0 x 28.7 cm Without Mirror
14.6 x 7.9 x 11.3" / 37.1 x 20.1 x 28.7 cm With Mirror | | Weight | 11.0 lb / 5.0 kg Without Mount | | | | Package Weight | 35.4 lb | | Box Dimensions (LxWxH) | 22.0 x 21.5 x 18.0" |
