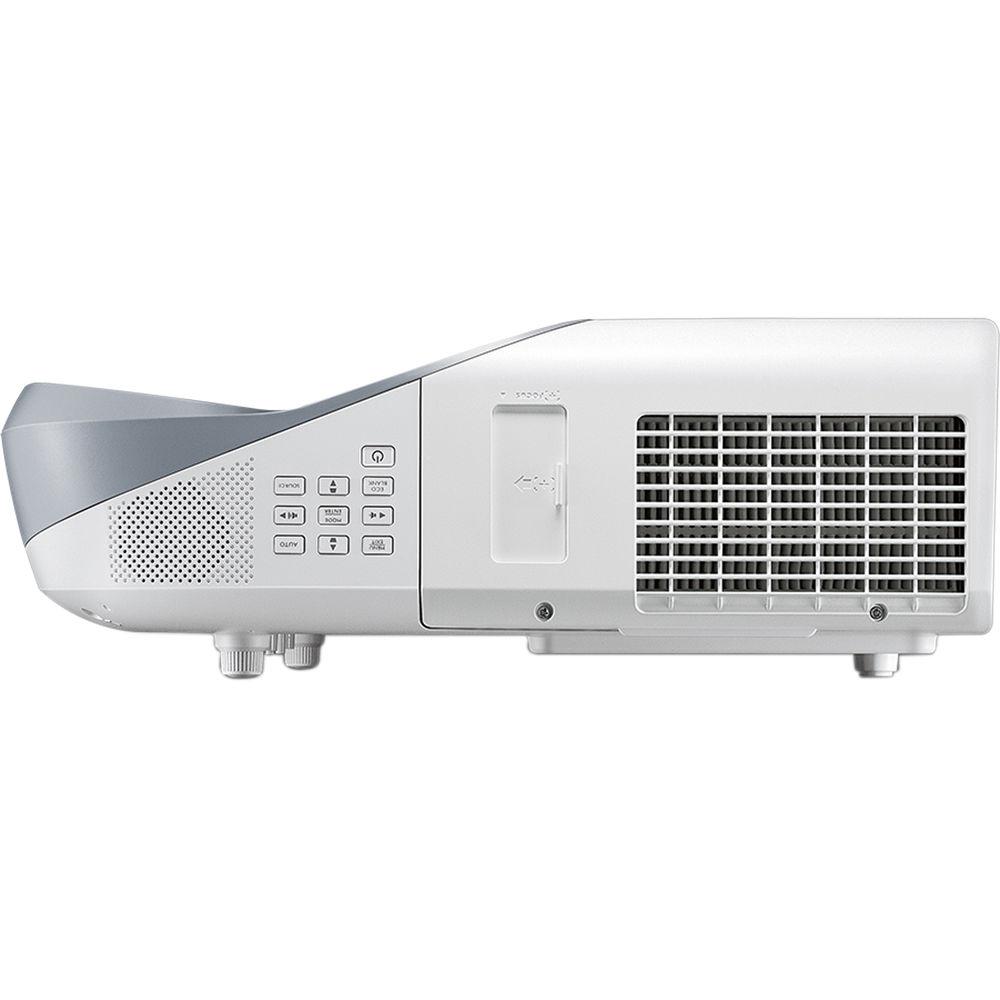

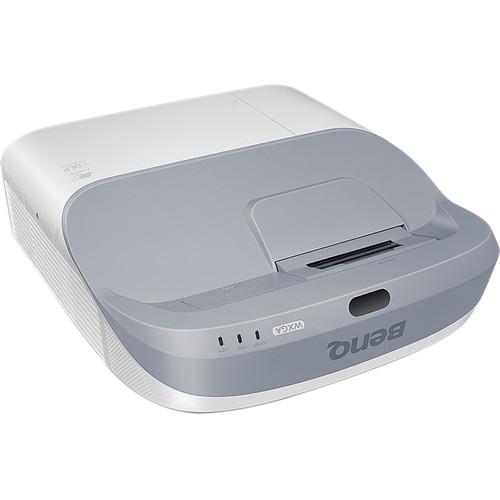

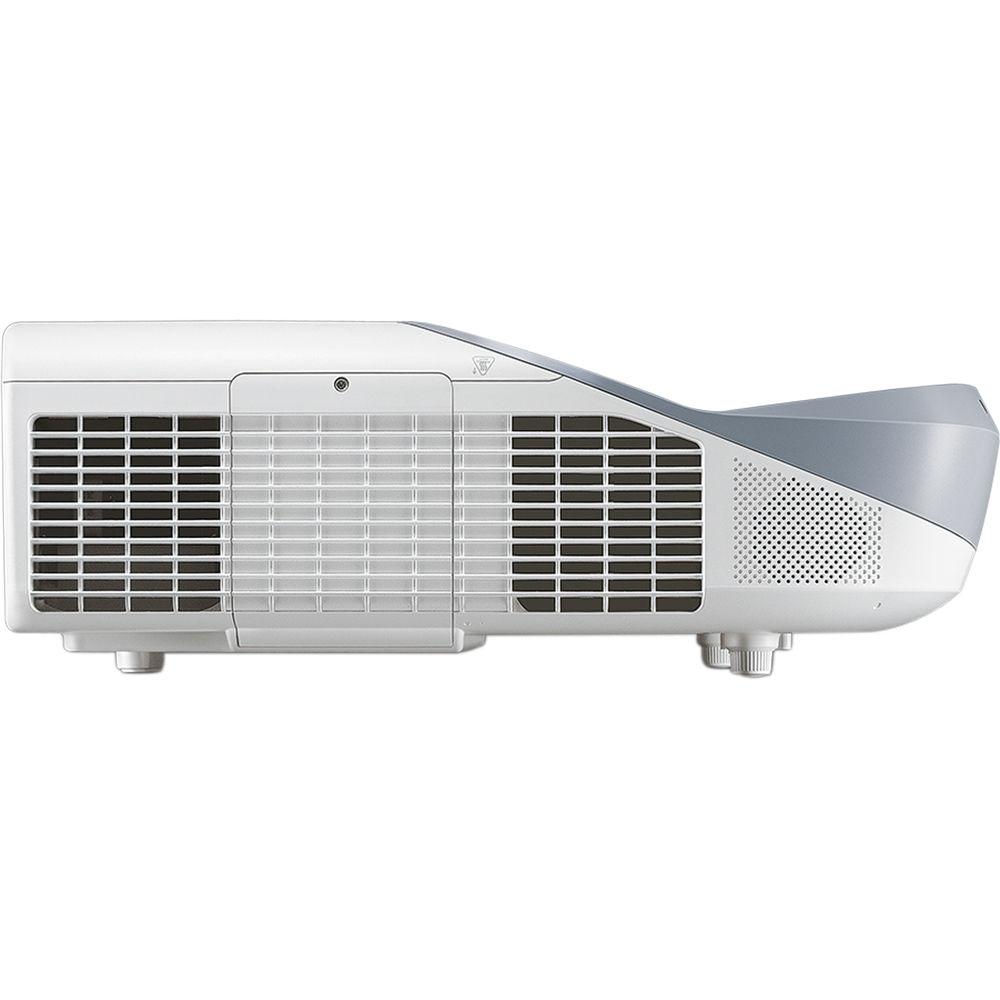

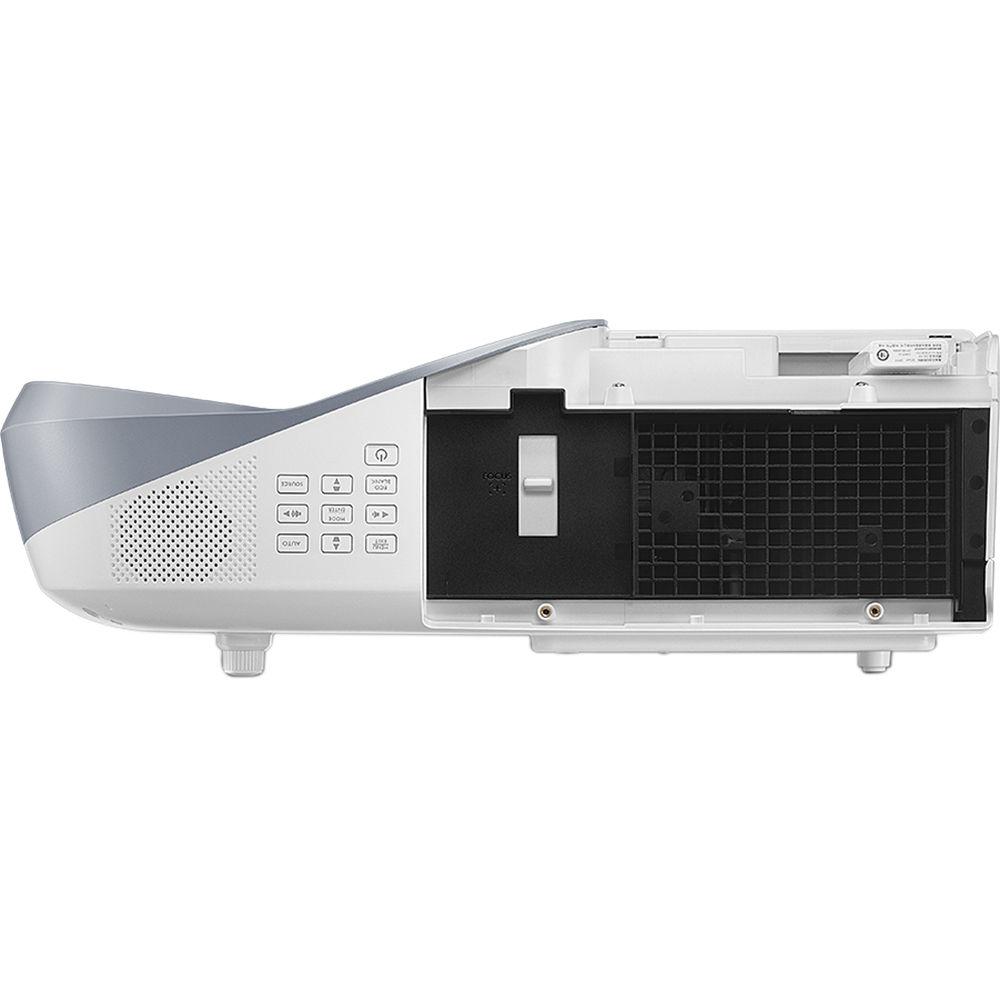

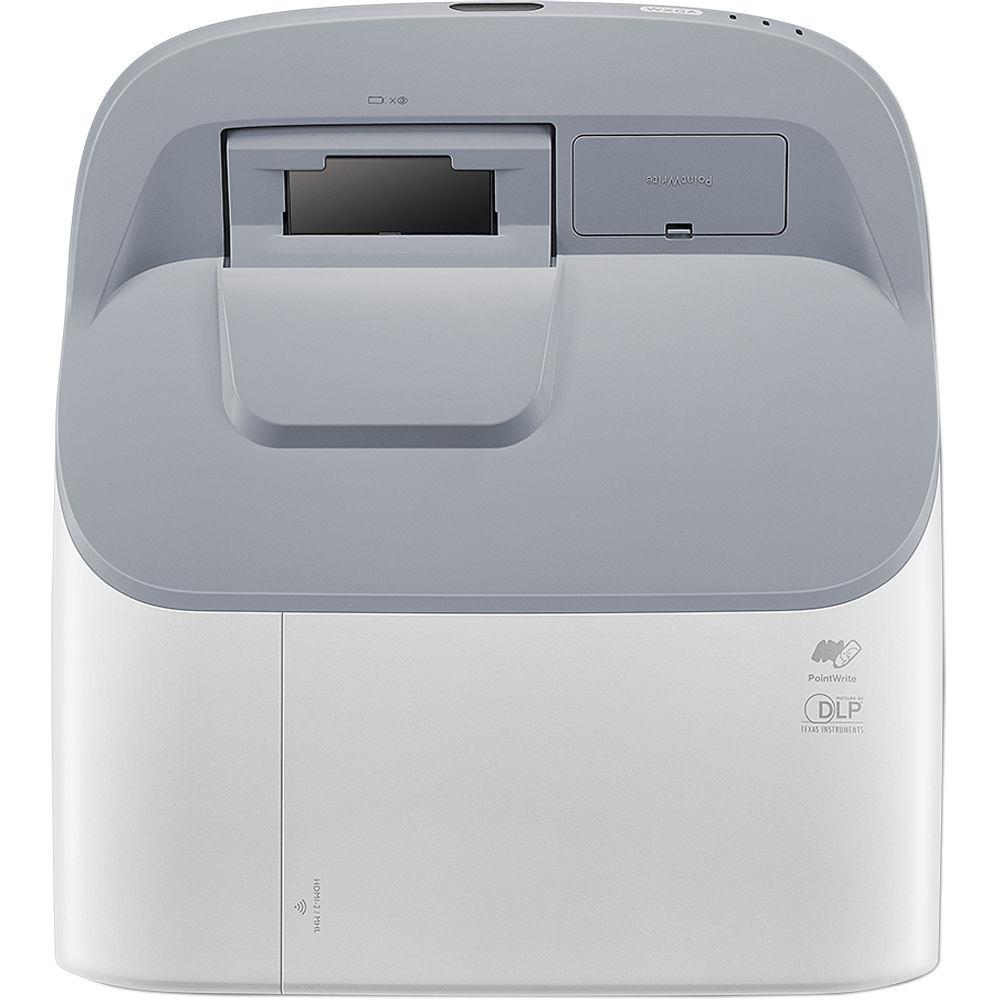

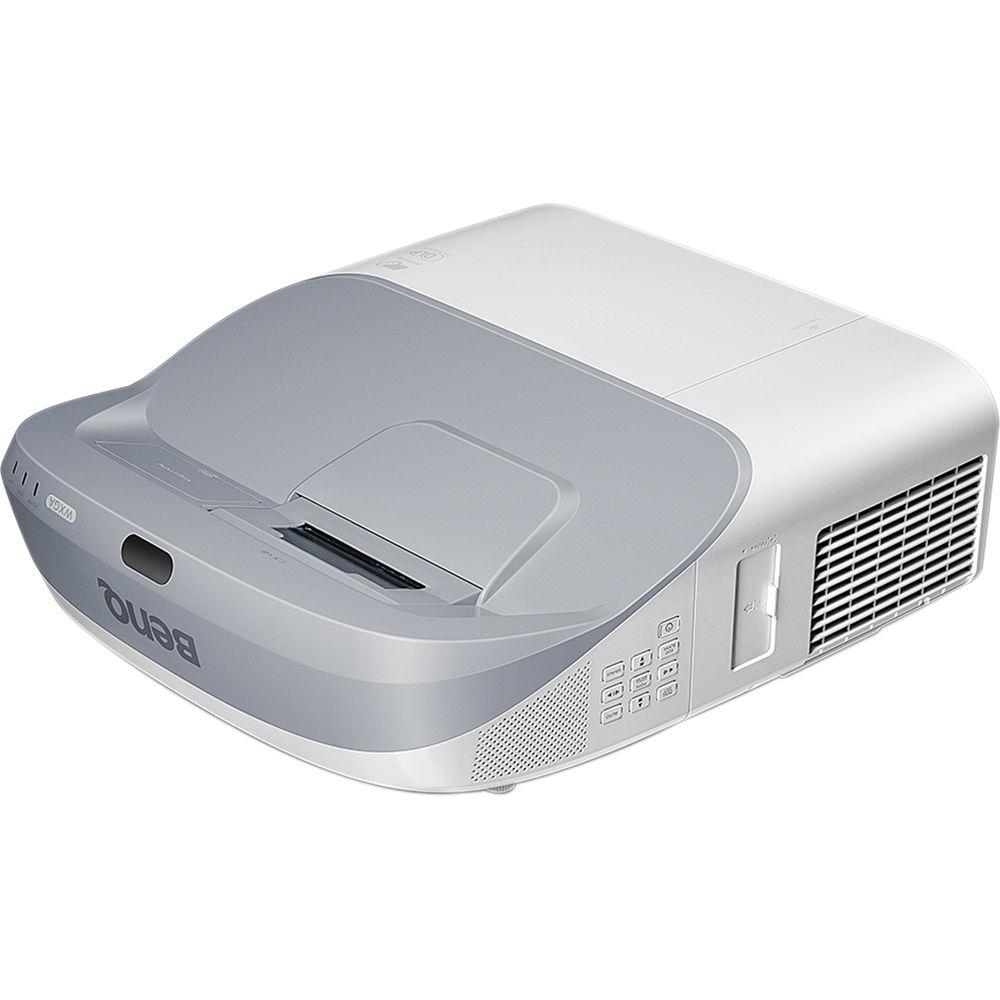

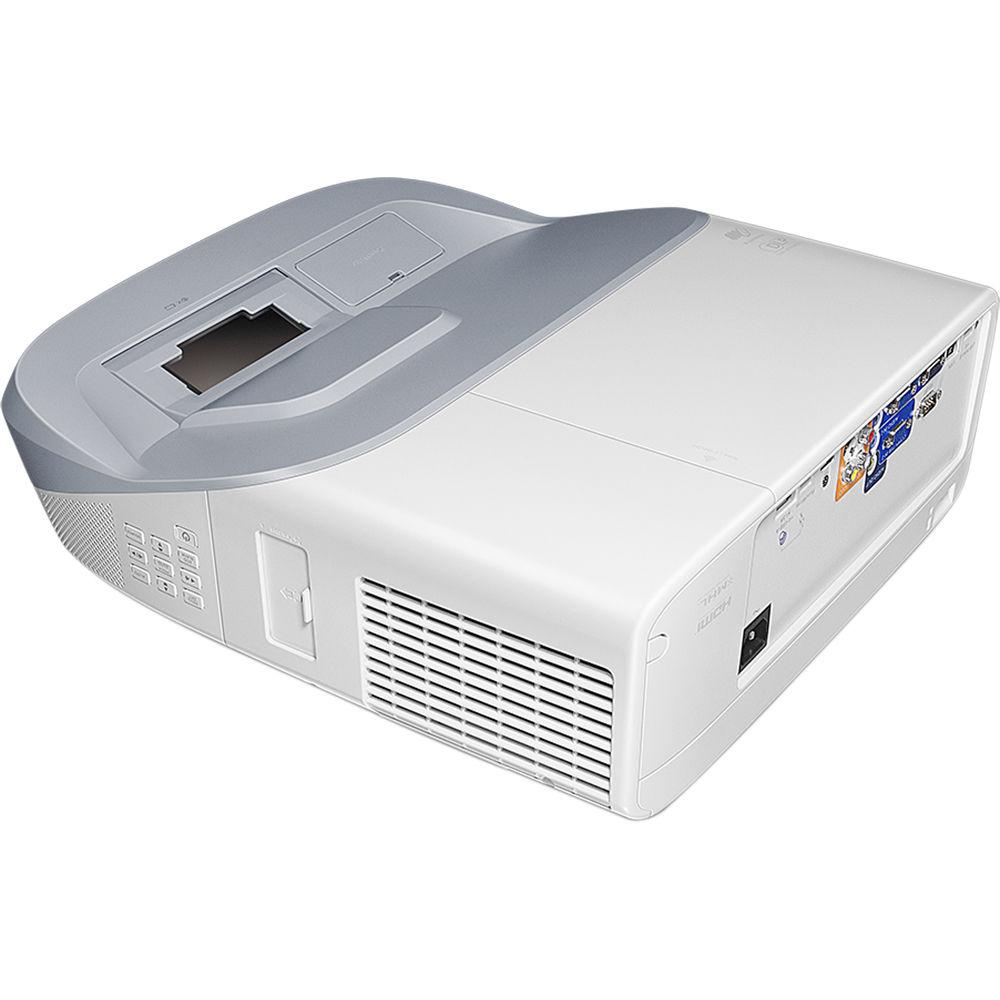

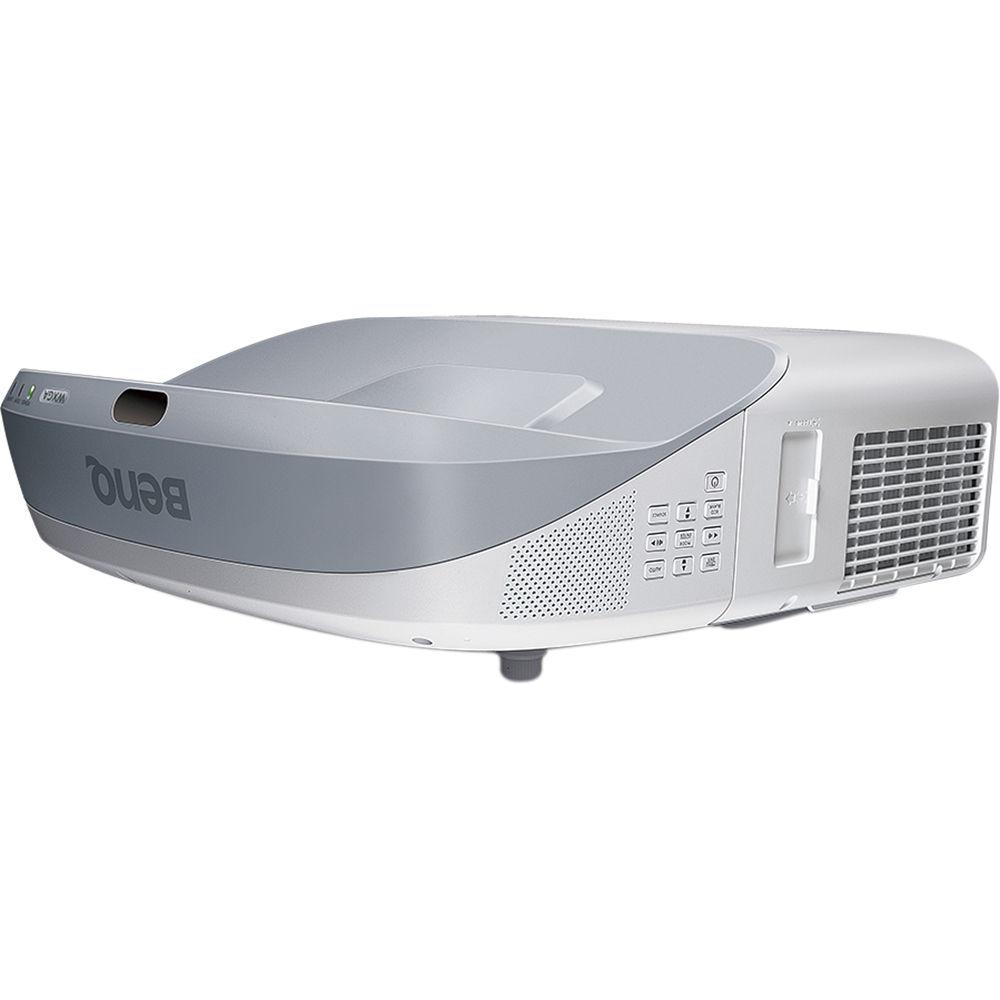

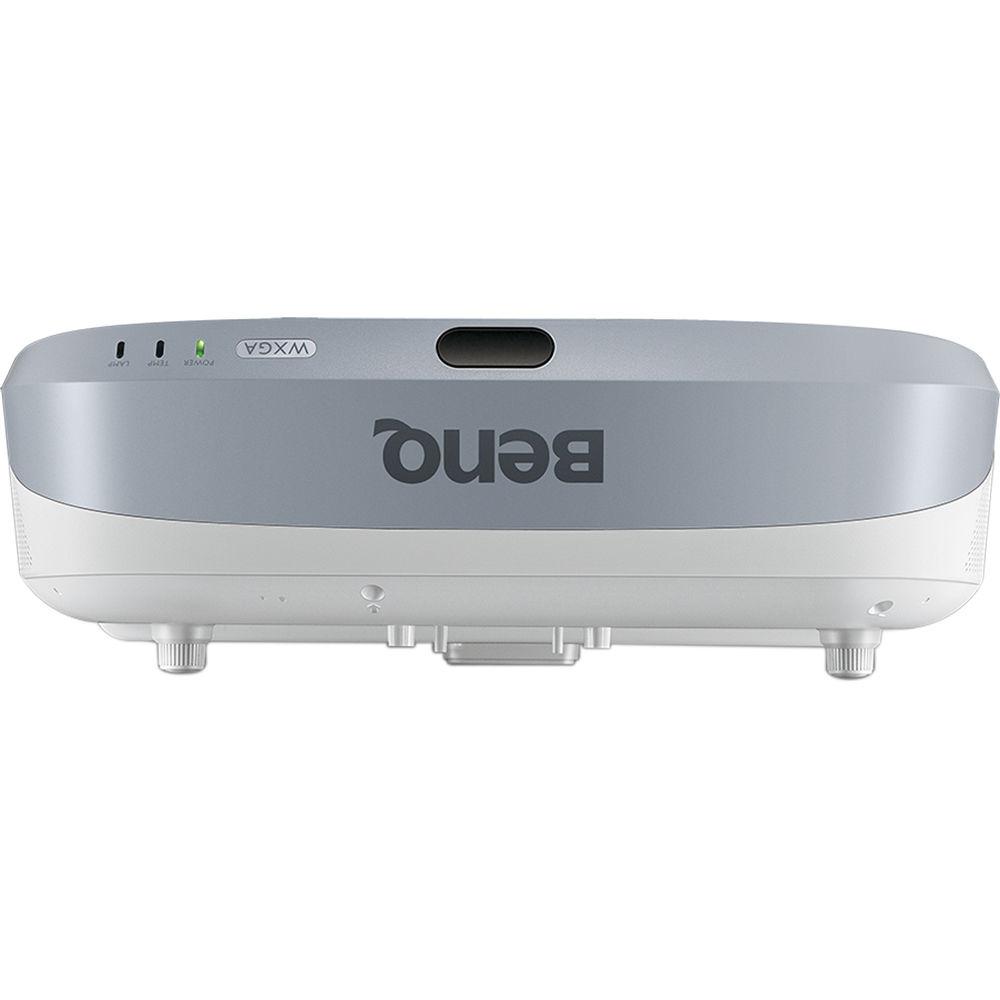

User Manual for BenQ MW864UST 3300-Lumen WXGA Ultra-Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ MW864UST 3300-Lumen WXGA Ultra-Short Throw
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ MW864UST 3300-Lumen WXGA Ultra-Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description Designed primarily for classroom environments, the BenQ MW864UST 3300-Lumen WXGA Ultra-Short Throw DLP Projector features 3300 lumens of brightness and a 13,000:1 dynamic contrast ratio. It has a native WXGA 1280 x 800 resolution, and supports up to WUXGA 1920 x 1200 video signals. The projector is powered by a DLP chip system, and the lamp features a life of up to 6000 hours in smartEco mode. Furthermore, you can use the MW864UST to project up to a 120" screen size, and it features a 0.23:1 throw ratio.
With S-Video, RCA composite video, two VGA inputs, and two HDMI inputs, one of which supports MHL, this model is well equipped for external video sources. It also supports loop-through via the VGA output for daisy-chaining multiple projectors together. It features two 10W speakers and is controllable via LAN, RS-232, or the included IR remote. Additionally, the projector includes a VGA cable and a wall-mount kit. - Unobstructed Instruction Without Space Constraints
- Requiring as little as 3.15" projection distance for an 87" screen, the MW864UST can be mounted inches from the wall and directly above the screen, eliminating distracting shadows and glare so students and teachers can engage and collaborate freely in front of the board.
- Bright, High-Resolution Images
- For enhanced performance, the MW864UST produces 3300 ANSI lumens and 1280 x 800 resolution for clear images and text, even in bright classrooms. The high brightness allows lights to be kept on during lessons, and the high resolution augments readability for expanded content.
- Image Uniformity Enhancement
- The TIR (Total Internal Reflection) optical architecture of the MW864UST is designed to eliminate the uneven brightness distribution of conventional projection. The optical engine focuses the center and corners of the image, enhancing corner uniformity by up to 30%, and evens out brightness uniformity for a smooth viewing experience.
- Interact on Nearly Any Surface
- PointWrite technology is designed to work on any flat surface, so no additional equipment is necessary. With the PointWrite module, images can be projected onto a desk or table for multiple students to share and write on the same screen, creating new opportunities for classroom interactivity for the digital classroom.
- Multi-Touch with Pens or Fingers with Multi-Screen Drawing
- PointWrite offers multi-user capability, and two PointWrite projectors can be used to double the projection surface size. With QWrite Whiteboard Mode, teachers can run different applications or display, view, and annotate across two screens.
- User-Friendly Design and Auto Calibration
- PointWrite is designed to auto-calibrate and save its settings as soon as it's plugged into a computer's USB port. PointWrite then remains ready with no manual configuration or complicated training for teachers. The projector's interactive sensor helps guarantee reliable auto-calibration in nearly any ambient lighting.
- Windows Gesture Support
- PointWrite projectors support Windows gestures such as zooming in and out or scrolling while browsing web pages, pictures, or Google Maps. All multi-touch commands and gestures are supported for Windows 8 and above.
- MHL Support
- With MHL, teachers and students can share content from Android devices on the big screen, conducting the entire lesson from their smart device.
- Dust-Proof Engine
- Severely dusty environments can damage sensitive electronics. To minimize service costs and downtime, the MW864UST features a sealed engine designed to protect the DLP chip and key components of the light path.
- Instant Power-On
- The MW864UST can turn on as soon as an HDMI or VGA source is plugged in, reducing setup time.
- LAN Control Compatibility
- To help IT managers perform day-to-day maintenance effectively, the MW864UST is compatible with Crestron, AMX, PJ-Link, and BenQ MDA for network control via a LAN. BenQ Multiple Display Administrator (MDA) software enables centralized monitoring, control, and power-scheduling across a school's projector network from a single computer, offering full access and control over every projector directly.
- Streamlined Wall Mount Alignment
- For efficient installation, the included wall mount features an installation chart and ruler for simplified screen alignment and image positioning in the classroom. A three-way adjustment knob located in front of the projector helps square off your screen.
- Corner Fit Correction
- Corner Fit provides individual adjustment of each corner to help you achieve a perfect fit and alignment onto restricted or uneven spaces.
- Quick Install Hotkey
- Press the Quick Install hotkey on the remote control to set up the projector. This is designed to save time for managers performing initial projector installation work.
- Optional QCast Wireless Adapter
- The optional QCast wireless adapter fits into a concealed compartment and streams documents, images, and Full HD videos from smart devices and computers to the projector without cables.
- Eco-Friendly Features
-
- SmartEco Mode analyzes input content to determine the brightness required for optimal color and contrast performance, conserving up to 70% of lamp power without compromising image quality.
- Eco Blank Mode automatically activates after three minutes without source content or activity to eliminate distractions and save energy. It can also be manually activated via the remote control.
- Auto Power Off powers down the projector after 15 minutes of inactivity to reduce energy waste and concerns of leaving equipment on.
UPC: 840046036768 In the Box BenQ MW864UST 3300-Lumen WXGA Ultra-Short Throw DLP Projector Remote Control with Battery VGA Cable Wall-Mount Kit Power Cord Limited 1-Year Warranty on Projector Limited 90-Day or 500-Hour Warranty on Lamp, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MW864UST 3300-Lumen WXGA Ultra-Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ MW864UST Specs | | | Display System | 0.65" DC3 DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3300 Lumens | | Offset | 115% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 13,000:1 | | DLP Link 3D | Yes | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz | | | | Lens | f/2.4 (f = 3.35 mm) | | Optical Zoom | None | | Throw Ratio | 0.23:1 | | Projection Size | 87 - 120" / 220.98 - 304.80 cm | | | | Keystone Correction | Vertical: ± 30°

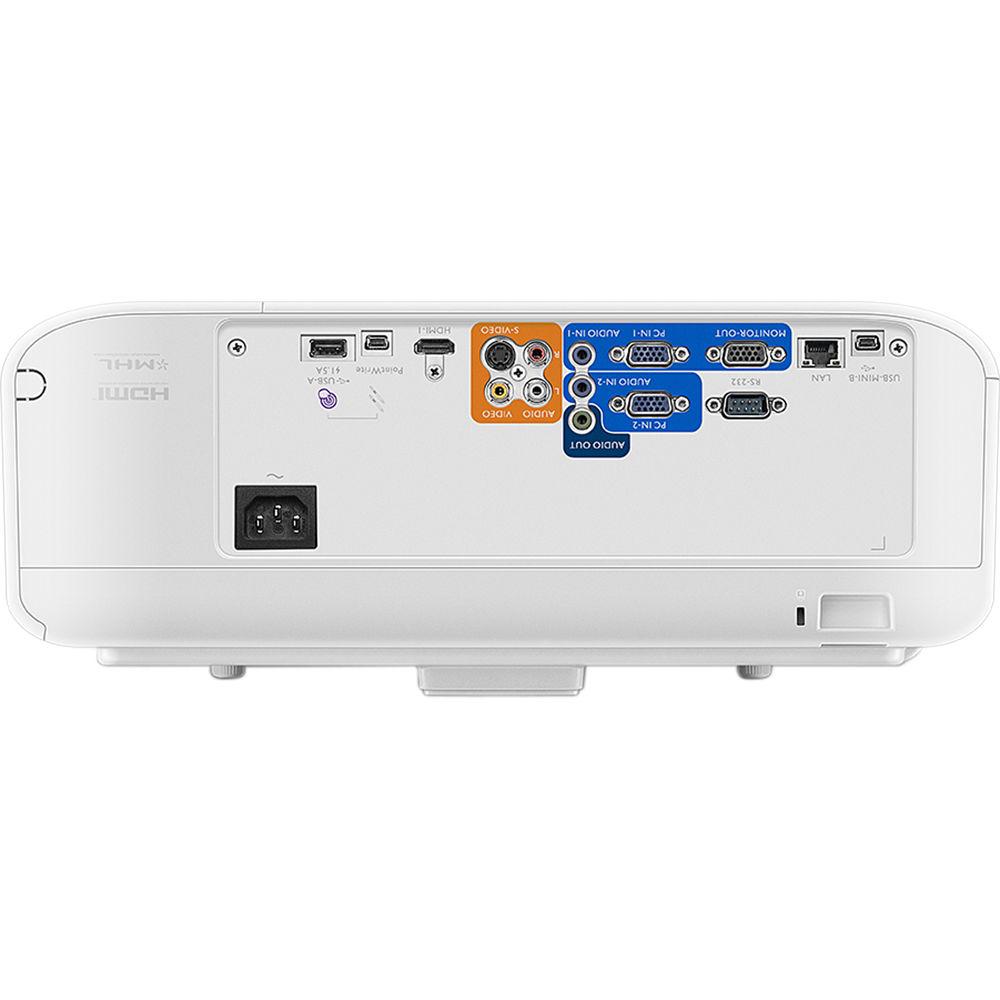

Horizontal: ± 25° | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 20W | | | | Inputs/Outputs | 1 x HDMI Video (Input)
1 x HDMI with MHL Support Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
2 x USB Type-B Female (Input)
1 x USB Type-A Female (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 3000 Hours
Medium Brightness: 4000 Hours
Low Brightness: 6000 Hours | | Fan Noise | Full Brightness: 35 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Security Bar | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 410 W
Medium Brightness: 353 W
Low Brightness: 252 W
Standby Mode (Lamp Off): <2 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 15.0 x 5.7 x 17.1" / 382.0 x 145.0 x 435.0 mm | | Weight | 13.7 lb / 6.2 kg | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 23.0 x 20.5 x 19.0" |
