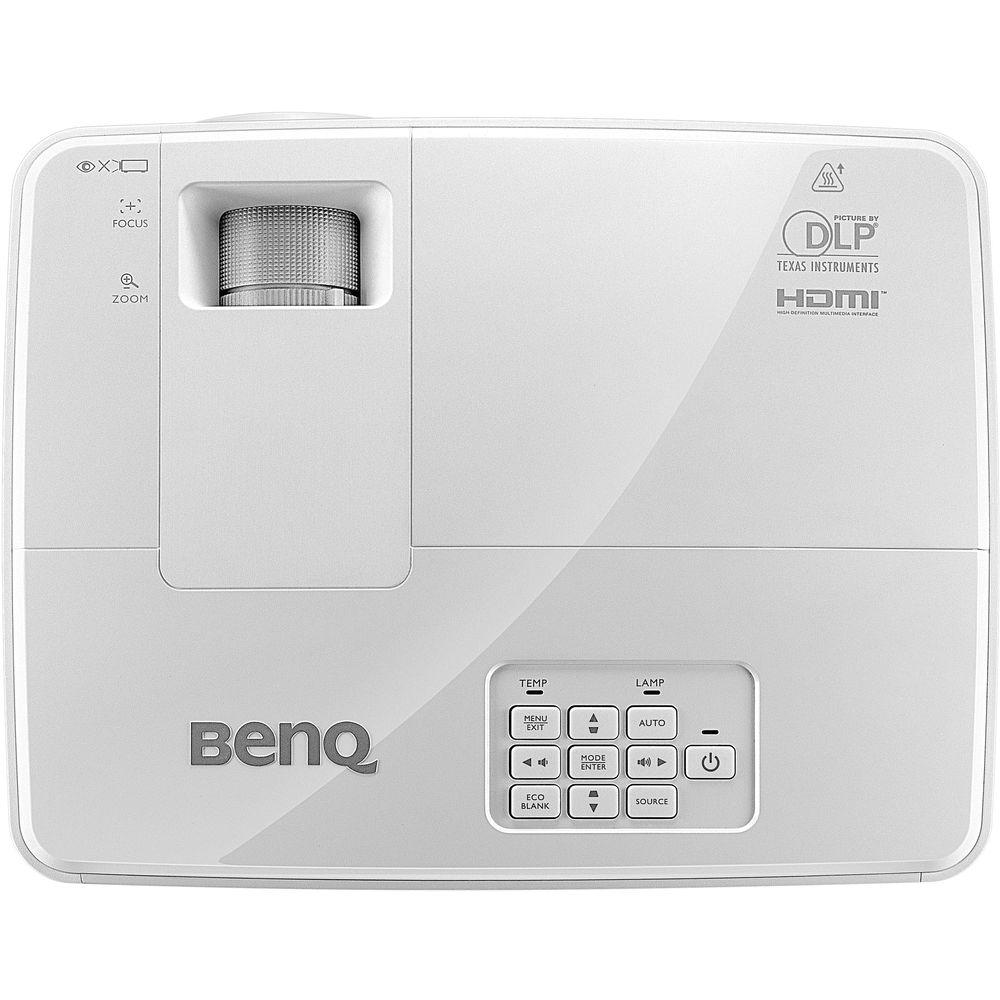

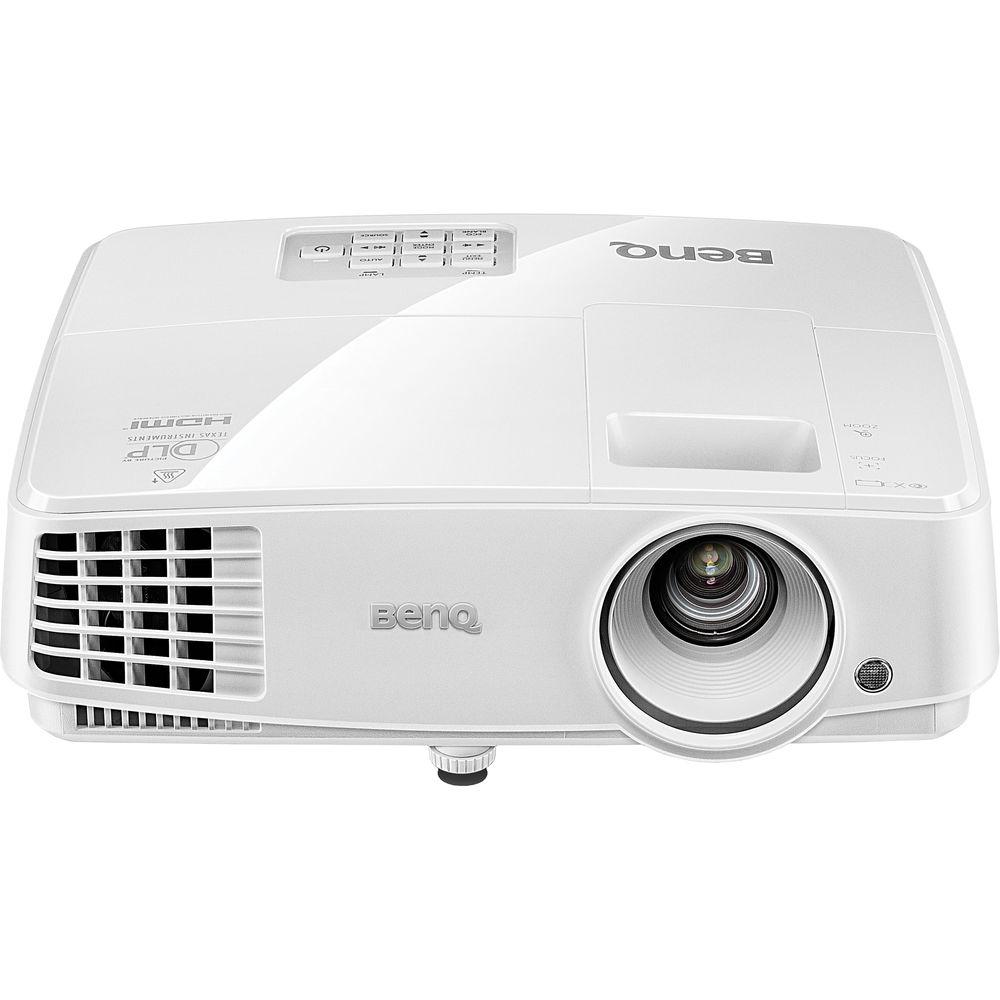

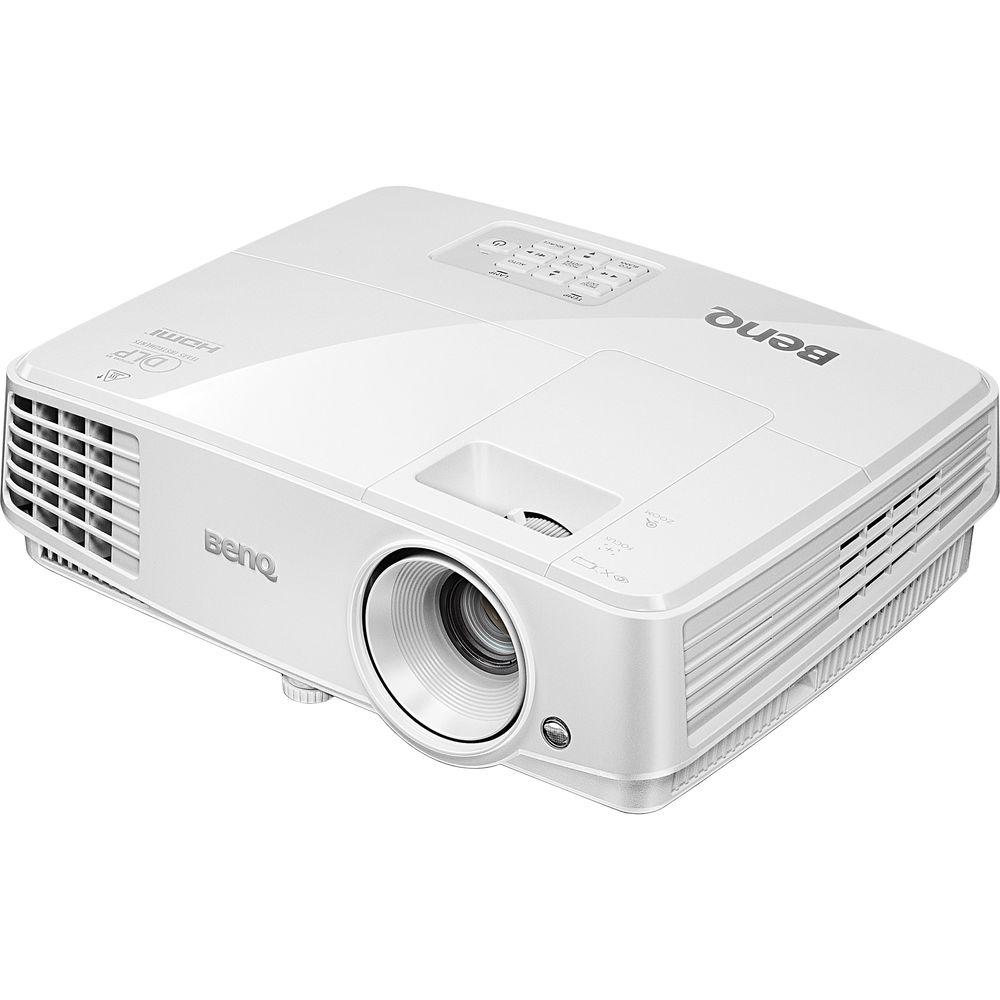

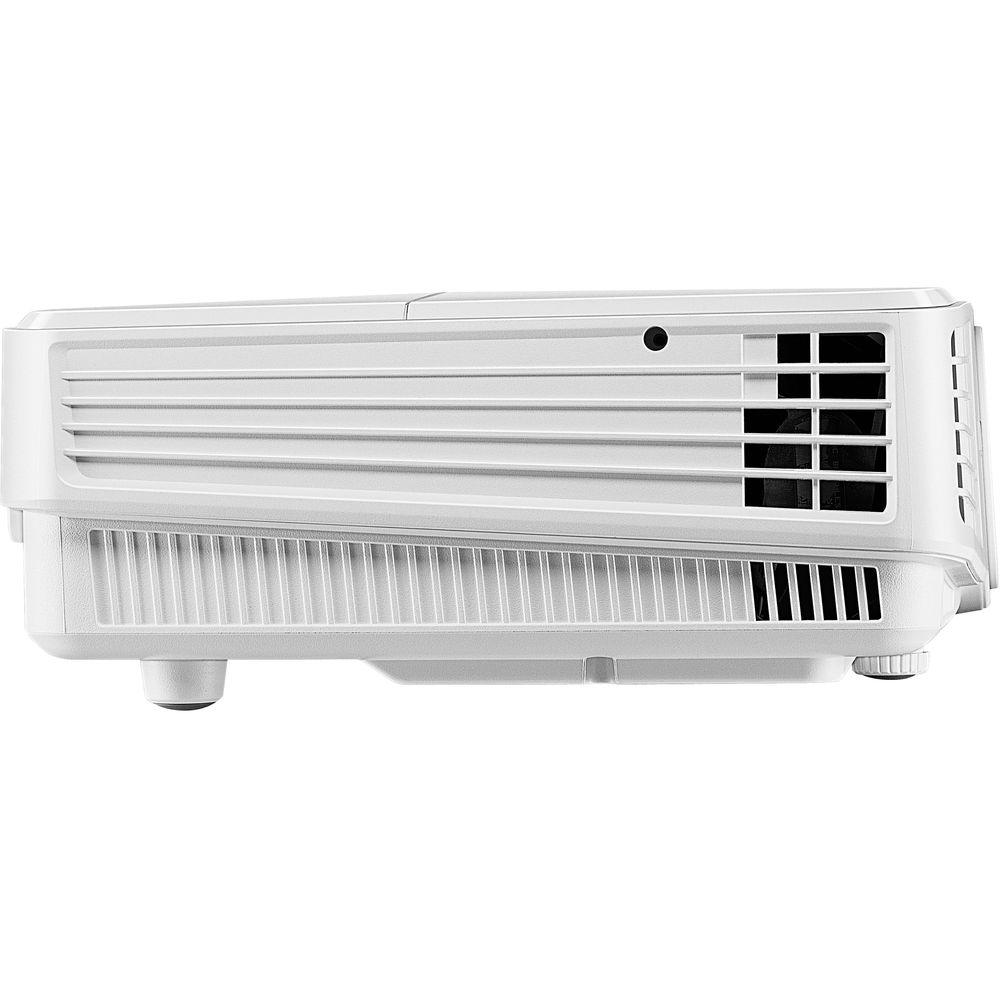

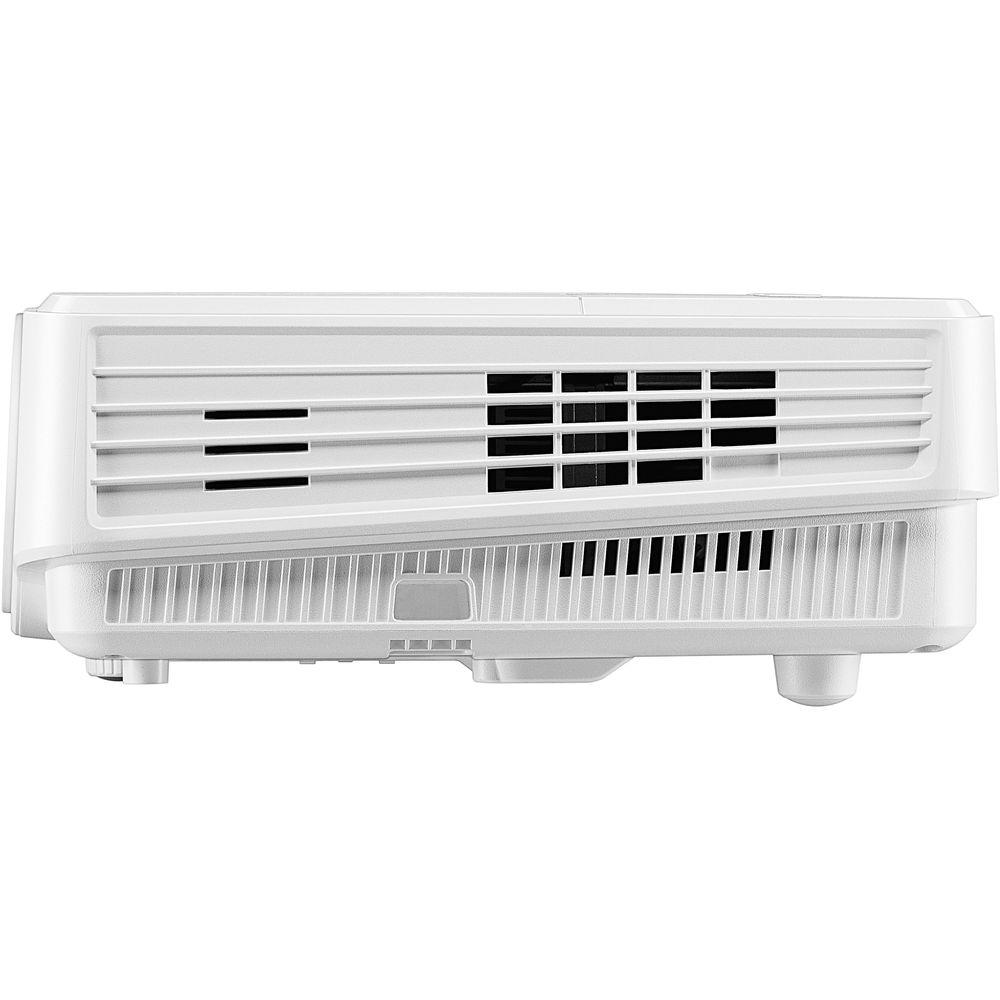

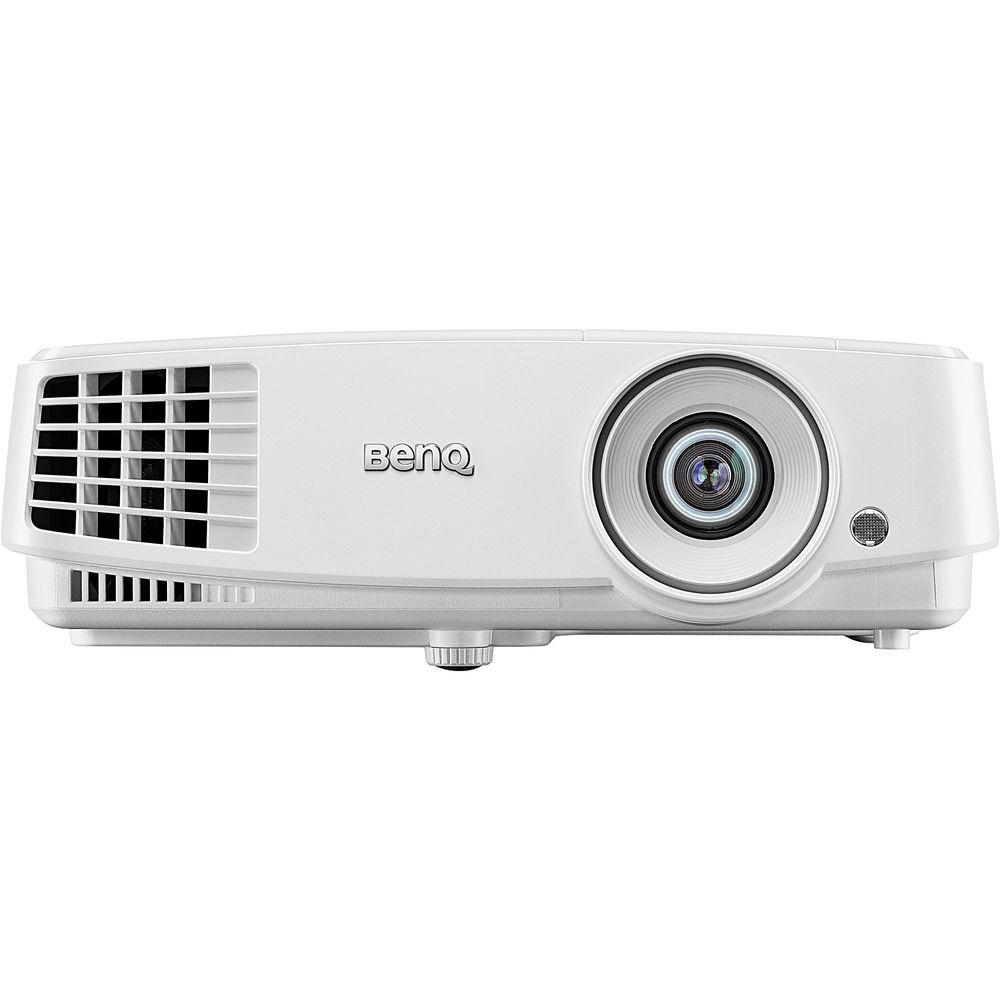

User Manual for BenQ MX570 3200-Lumen XGA DLP Multimedia Projector Click to enlarge the picture
Contents of the user manual for the BenQ MX570 3200-Lumen XGA DLP Multimedia
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ MX570 3200-Lumen XGA DLP Multimedia contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description Enjoy detailed high-resolution images with the BenQ MX570 3200 Lumen XGA DLP Multimedia Projector. It features 3200 lumens of brightness and a 13,000:1 contrast ratio for easy viewing in virtually any environment. It has an XGA 1024 x 768 native resolution for viewing content in detail. The MX570 is powered by a DLP chip system, and the lamp features a 4000 hour life. The projector is also equipped with SmartEco technology, which will extend the life of the lamp by matching its power requirements to the needs of the displayed video without sacrificing brightness, color, or contrast. Designed to conserve power, its standby power consumption level is 0.5W.
This projector is well-equipped for a multitude of video sources with two VGA, one HDMI, one S-video, and one composite video input. You can use the MX570 to project images up to a 300" diagonal screen size, and it features a 1.51 to 1.97:1 throw ratio to allow for a wide range of placement. Plus you can control it via LAN through Ethernet or RS-232C with Crestron or PJ-Link. Other features include 1.3x manual zoom and a 10W speaker. - Blu-ray Full HD 3D Supported
- The MX570 is built with DLP technology to support 3D functionality, allowing schools to bring an immersive learning experience to their students with a simple setup of 3D glasses and 3D content.
- Sharp Clarity
- Enabling a 96% fill factor, the DLP technology in the MX570 situates its pixel circuitry behind the pixel, eliminating the thick dark bezels around individual pixels, which diminish color and detail. A higher fill factor and less of a black border translate to noticeably purer, more intense colors, and smoother image quality.
- Enhanced Readability
- The MX570 features a 13,000:1 contrast ratio for enhanced rendering of small text, fine lines, and dark scene details. Blacks are deep, and overall image quality is focused and clean. Your presentations will be easily readable and highly effective.
- Lifelike Colors
- BrilliantColor Technology is designed to present lifelike colors that captivate. It enables up to six-color processing by incorporating the secondary colors yellow, cyan, and magenta along with primary red, blue, and green.
- LAN Control with Crestron and PJ-Link
- LAN Control will help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively - offering them full access and control over every projector directly from their workstations. The MX570 offers seamless support for the Crestron and PJ-Link LAN Control system.
- SmartEco Mode
- By detecting the input content to determine the amount of brightness required for optimum color and contrast performance, SmartEco Mode is able to reduce lamp power while maintaining image quality. With SmartEco Mode enabled, you can save at least 70% of power based on the projection content level.
- LampSave Mode
- Less lamp replacements and maintenance translates into an overall lower cost of ownership. The LampSave Mode does exactly that by adjusting the lamp power dynamically by content level to extend projector lamp life by up to 50% as compared to normal mode.
- Eco Blank Mode
- The projector automatically switches to Eco Blank Mode after being turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the lamp.
UPC: 840046030957 In the Box BenQ MX570 3200-Lumen XGA DLP Multimedia Projector VGA Cable Remote Control with Batteries Power Cord Limited 3-Year Warranty on Projector Limited 90-Day Warranty on Lamp User Manual PDF 4.6mb More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ MX570 3200-Lumen XGA DLP Multimedia Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ MX570 Specs | | | Display System | 1-Chip DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3200 Lumens | | Offset | 115% ± 5% vertical | | Aspect Ratio | Native: 4:3
Supported: 16:9
Supported: 16:10 | | Contrast Ratio | 13000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential (up to 720p)
Frame Packing (up to 1080p)
Side by Side (up to 1080p)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz

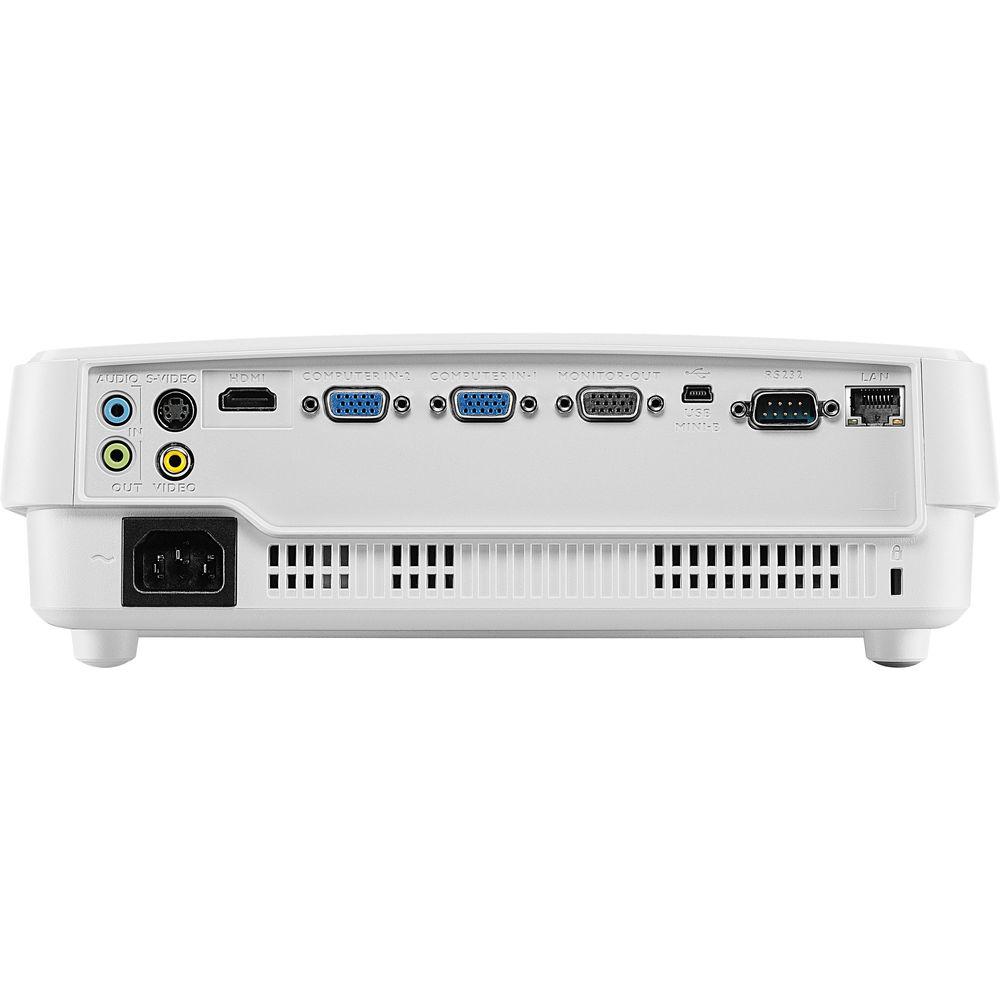

Vertical: 23 to 120 Hz | | | | Focus | Manual | | Lens | f/2.59 - 2.87 (f = 16.88 - 21.88 mm) | | Optical Zoom | Manual: 1.3x | | Throw Distance | 5.906 - 20.013' / 1.8 - 6.1 m | | Throw Ratio | 1.51 - 1.97:1 (65" @ 2 m) ±3% | | Projection Size | 60 - 300" / 152.40 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Picture-in-Picture | None | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x Mini-USB Type-B Female (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Internal Storage | None | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 190 W | | Expected Lamp Life | Medium Brightness: 4000 Hours | | Security | Cable Lock Slot
Keypad Lock | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 280 W
Low Brightness: 220 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | ' / m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90% at sea level, without condensation | | Dimensions (W x H x D) | 11.1 x 3.7 x 8.7" / 283.0 x 95.0 x 222.0 mm with feet | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 13.8 x 11.5 x 5.4" |
