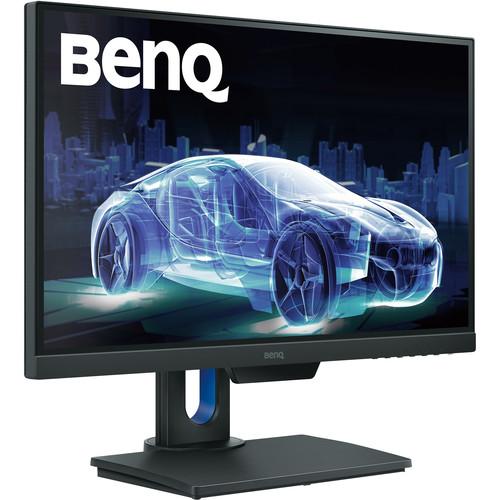

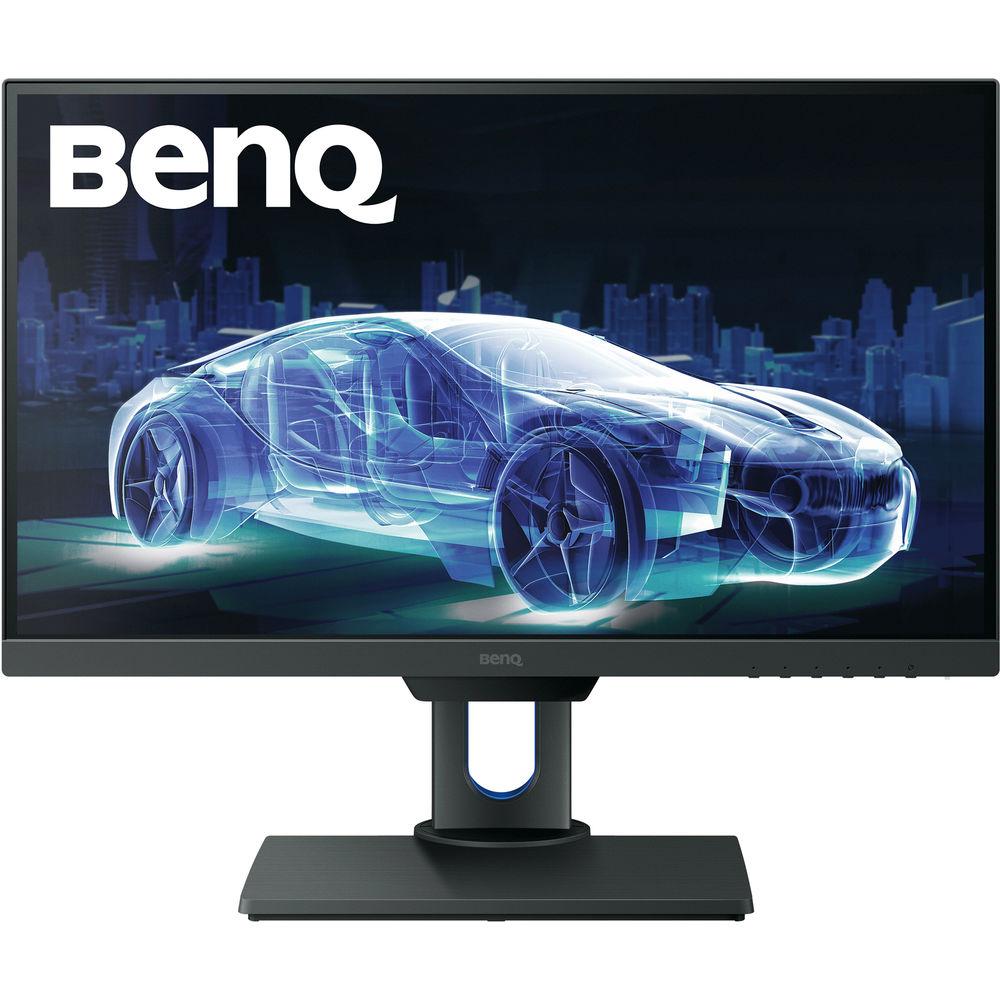

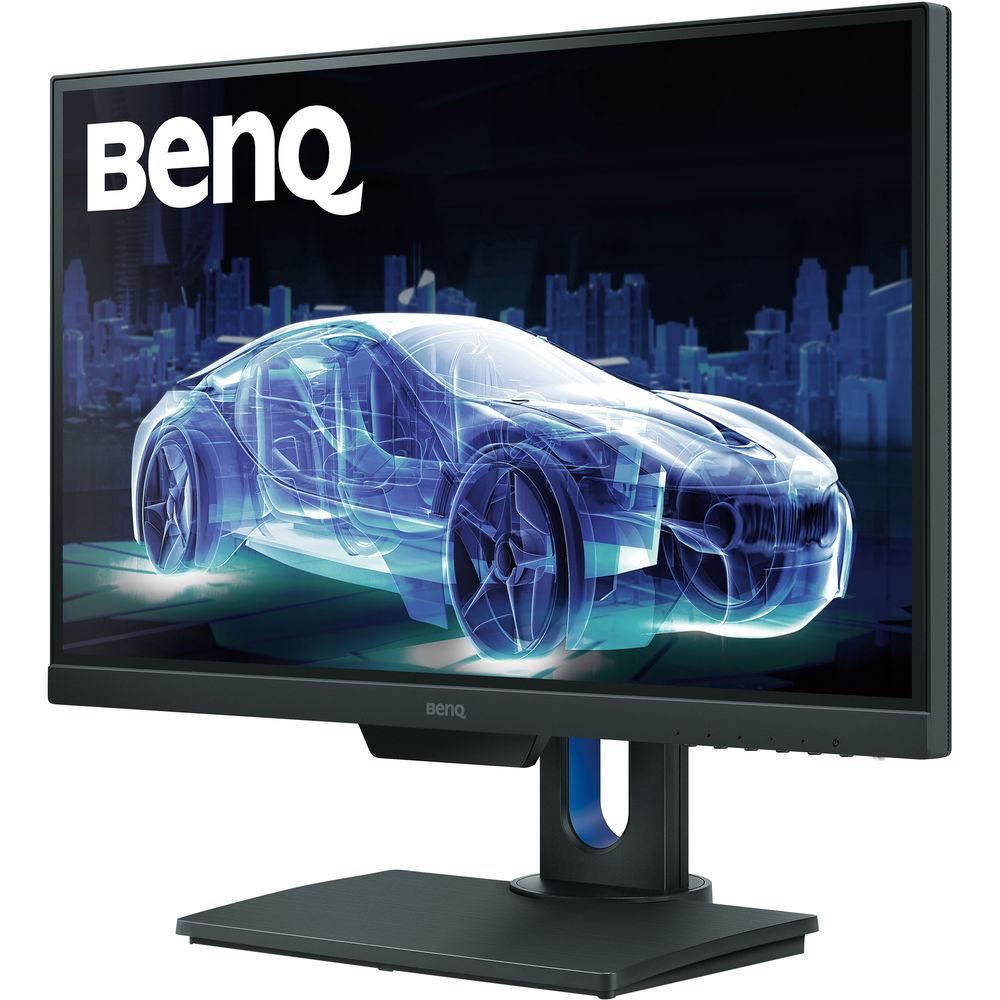

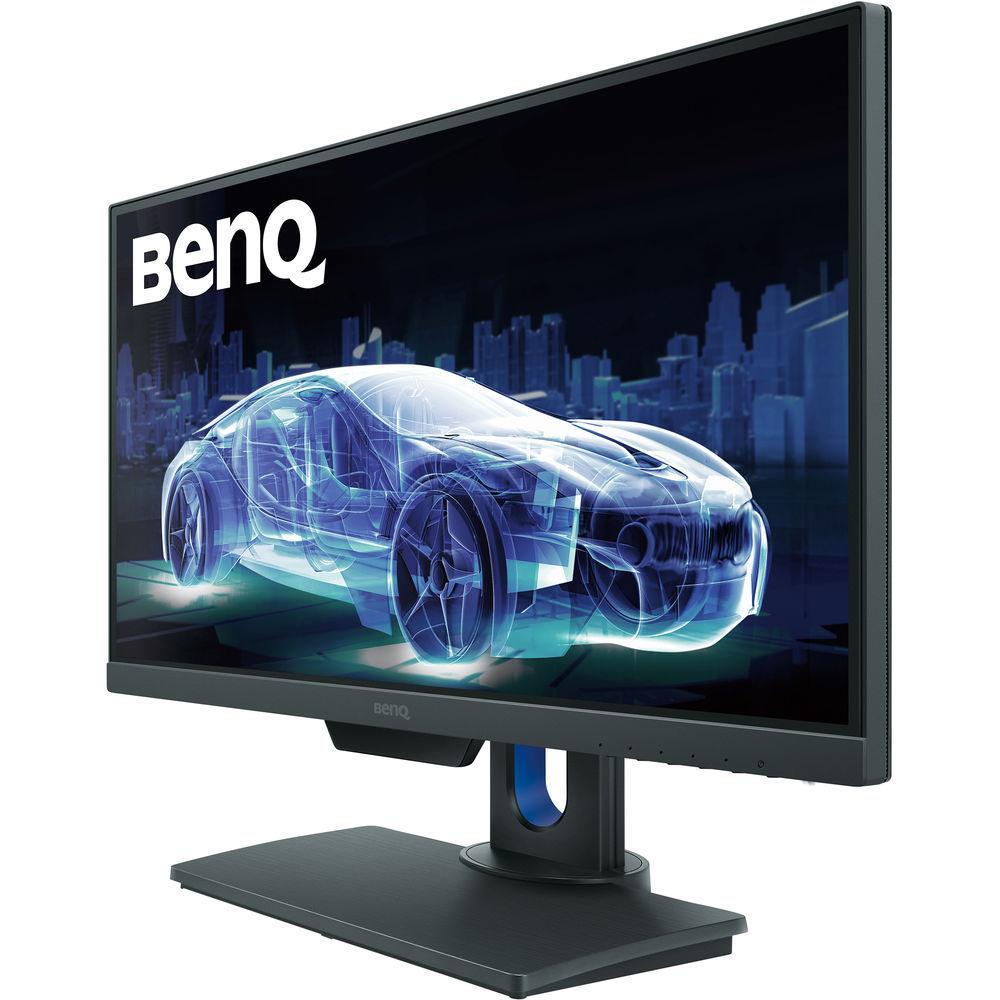

User Manual for BenQ PD2500Q 25" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the BenQ PD2500Q 25" 16:9 IPS Monitor
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ PD2500Q 25" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed for users who need accurate colors, the PD2500Q 25" 16:9 IPS Monitor from BenQ features an 8-bit color table and covers both the Rec. 709 color space and 100% of the sRGB color space, offering a wide color palette. It's built with an In-Plane Switching (IPS) panel that provides you with wide 178° viewing angles and vivid color reproduction.
For additional clarity, this display has a 2560 x 1440 QHD screen that offers four times the resolution of a standard 720p screen, so you'll be able to work on the finer details. Utilize its Darkroom, CAD/CAM, and Animation modes to assist you with your craft and adjust your desktop partition for an easier time multitasking. Connect this display to your system via HDMI, DisplayPort, or mini DisplayPort inputs and then adjust it to your viewing preference. - 2K QHD High Resolution
- The 2K QHD (2560x1440) resolution offers enhanced clarity with fine details and depth of subtle textures optimized for visually intensive work in animation, visual effects, graphics, and photos.
- Reference-Grade Color Performance
- Covering 100% of sRGB and Rec. 709 color spaces, the PD2500Q's advanced IPS wide viewing angle technology minimizes color shift. 100% sRGB color gamut accuracy adheres to industry standards in digital production, and Rec. 709 reproduces accurate resolution, frame rate, color gamut, gamma, and white point performance in high-definition video work.
- Factory Calibrated Color Accuracy
- Each PD2500Q display is individually factory-calibrated upon production to assure precise Delta-E and Gamma performance. Calibration results are validated against industry color standards to deliver a true view of original content.
Calibration eliminates slight color performance variations between individual panels of the same model. Therefore, the calibration data of each report will vary slightly from reports from other displays of the same model - Technicolor Color Certified
- The Technicolor Color Certified program is reserved for devices that satisfy the Technicolor specifications to meet the standards for color accuracy widely used in Hollywood and throughout the entertainment industries. All BenQ PD Series Designer Monitors are Technicolor Color Certified, ensuring consistent and accurate colors for impressive performance in broadcast, film, animation, and entertainment applications.

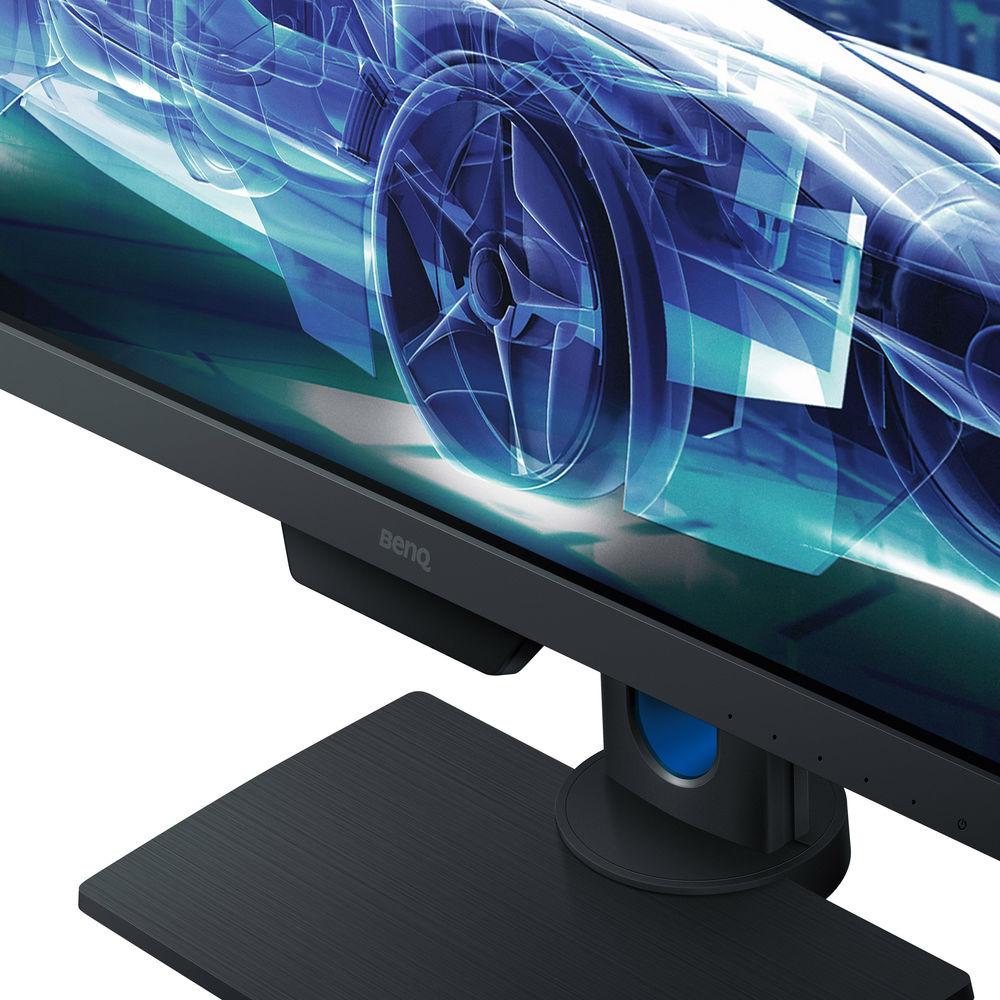

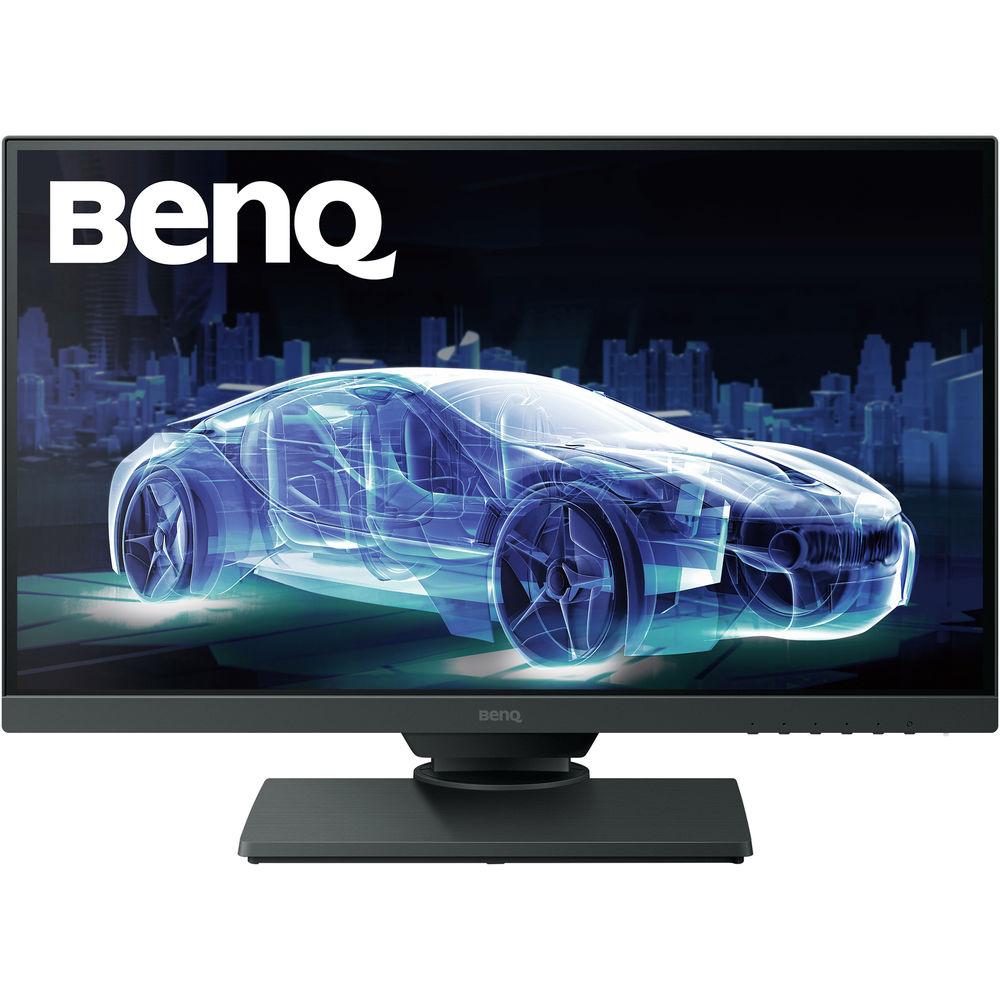

- Edge-to-Edge Design and Universal Connectivity

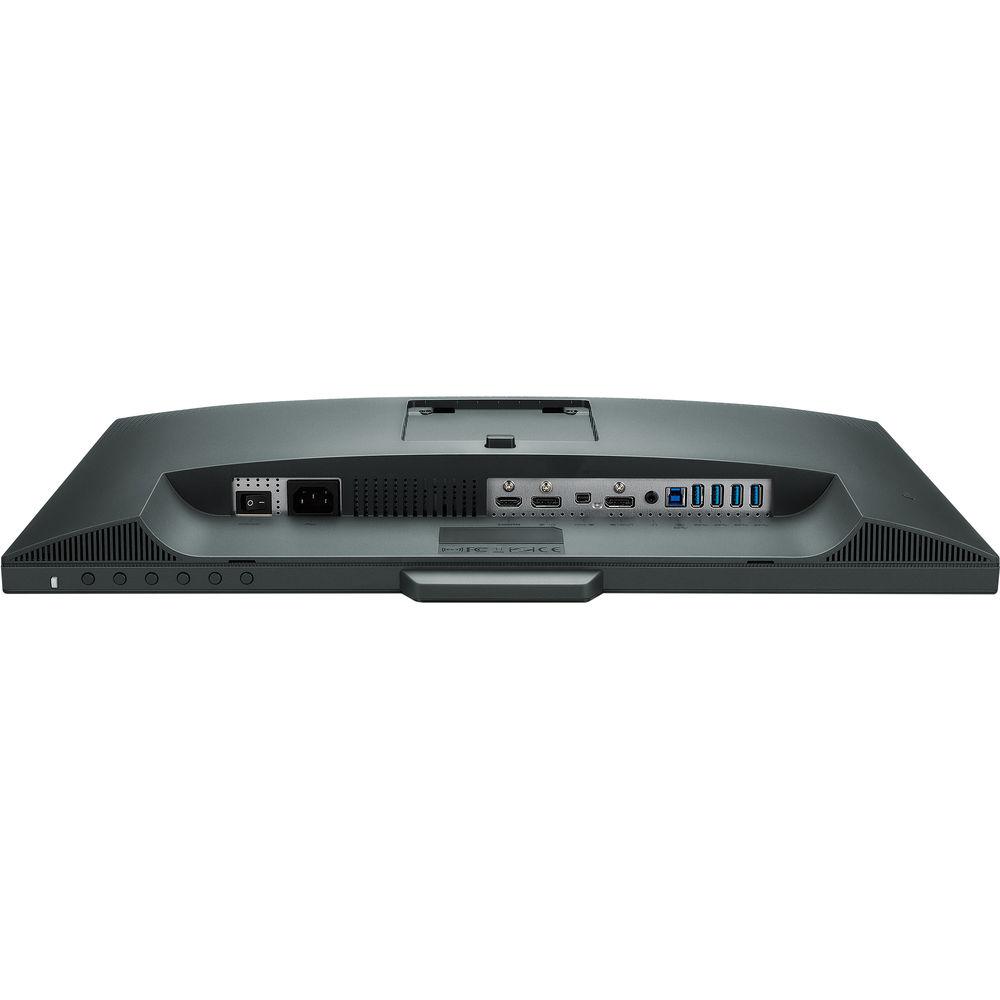

- Eliminating bulky obstructions with a 25" edge-to-edge panel and ultra slim bezels, the PD2500Q maximizes your workspace for seamless dual-monitor usage via DisplayPort daisy chaining with multi-stream transport (MST) support to extend your notebook screen across several displays. Multiple HDMI, DisplayPort, Mini DisplayPort, USB 3.0, headphone, and audio ports make the PD2500Q suitable for any Windows, Mac, or mobile source devices.
- CAD/CAM Mode
- Offering high contrast for lines and shapes in technical illustrations, CAD/CAM mode accentuates the finest details to produce enhanced display performance in Pro/E, SOLIDWORKS, AutoCAD, CATIA, or other design software.
- Animation Mode
- Animation mode enhances the brightness of dark areas without overexposing bright regions. Animation mode provides 10 levels of display brightness to bring out every subtlety clearly in any ambient lighting.
- Anti-Glare Display
- The PD2500Q's anti-glare matte finish keeps distracting reflections to a minimum for improved efficiency.
- Ergonomically Tailored

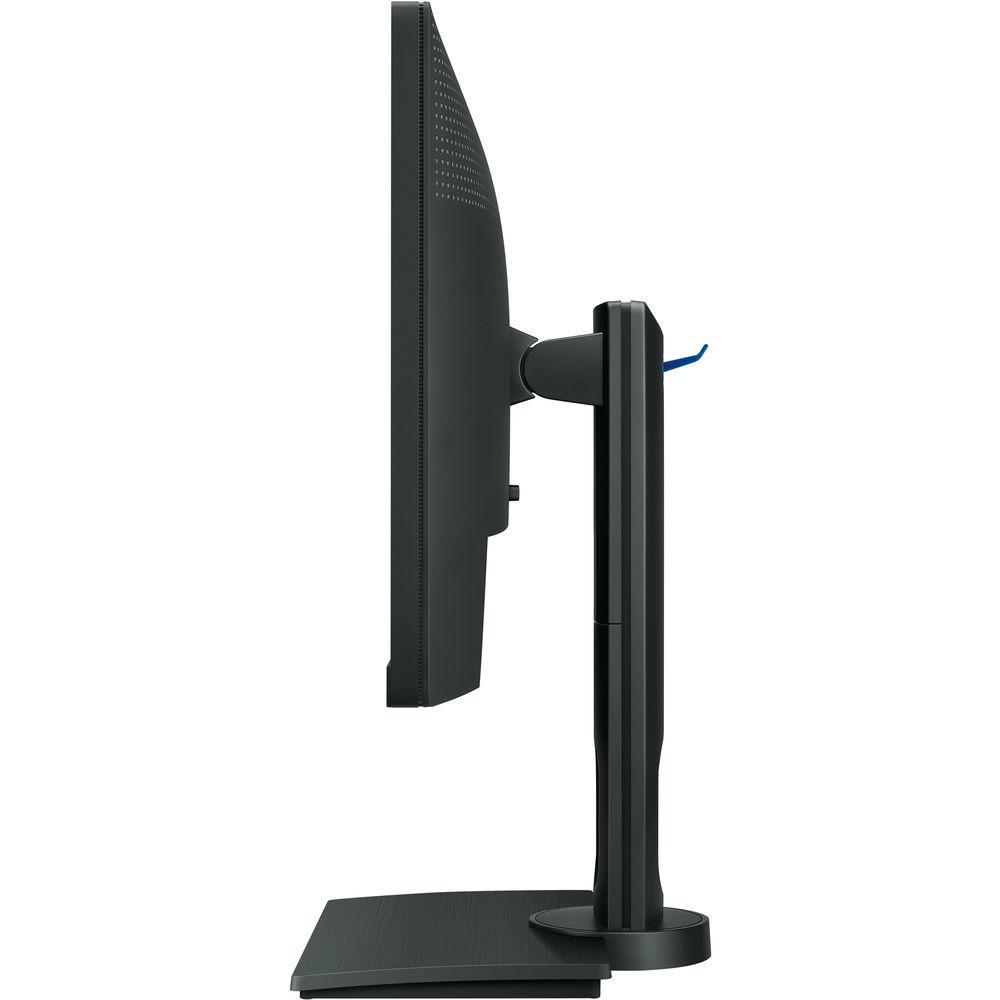

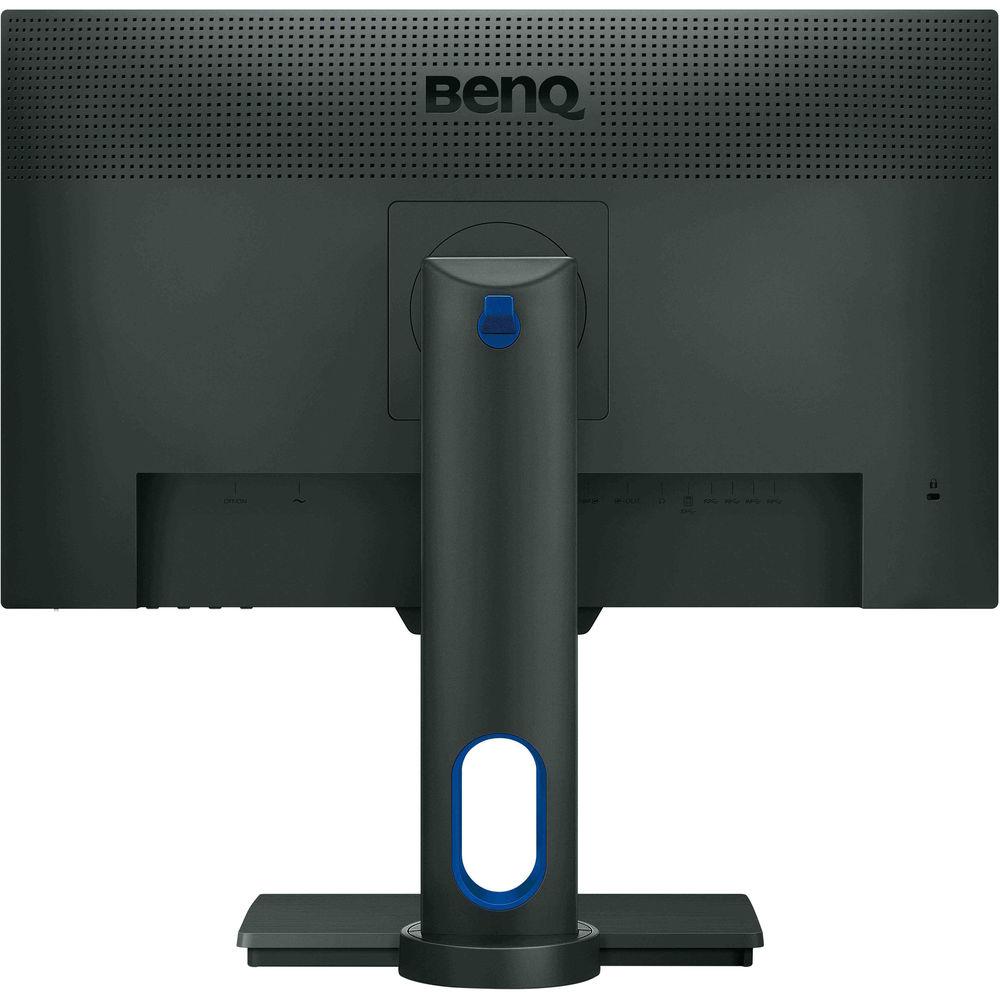

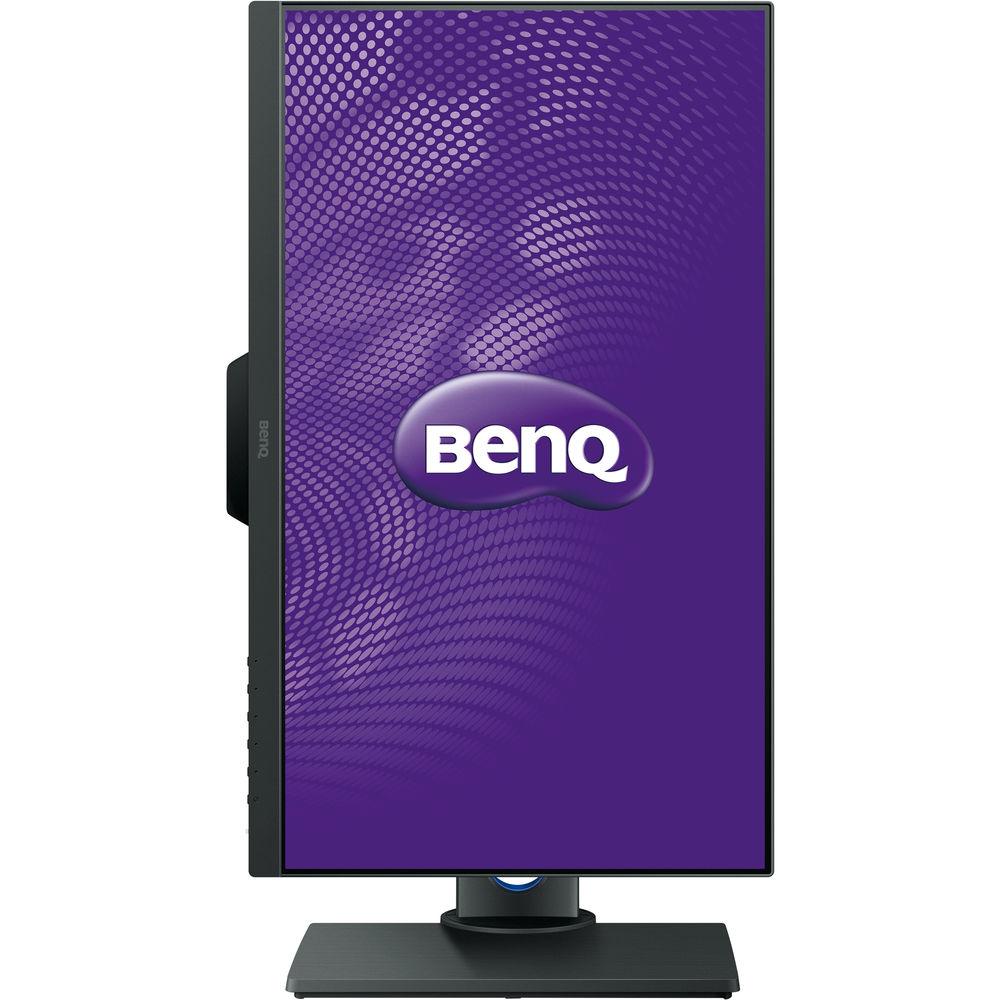

- An extensive range of height, tilt, pivot, and swivel adjustments customize your workstation for the perfect fit. When used in portrait mode, The PD2500Q's smart screen orientation sensor auto-rotates source content to display images in full context.
Display Pilot auto-rotation software requires Windows OS. - Enhanced Eye Care Technology
- Flicker-Free Technology
Exclusive BenQ Flicker-Free Technology eliminates the harmful flicker of traditional LCDs to prevent fatigue and vision damage.
Brightness Intelligence Technology
Brightness Intelligence Technology (B.I.Tech.) monitors the amount of ambient light in your viewing environment and makes automatic adjustments according to ambient lighting and intensity of on-screen content to ensure that bright scenes don't get overexposed while enhancing details in dark areas to maintain a visible level of clarity. - Additional Features
- Daisy Chain Technology - DP out (MST)
AMA
HDCP
Dynamic Power Saving (DPS)
Picture Mode
Eco Sensor
VESA Wall Mounting
Slim Bezel
AC Switch
Auto Pivot UPC: 840046037000 In the Box BenQ PD2500Q 25" 16:9 IPS Monitor Power Cord USB 3.0 Cable DisplayPort to Mini DisplayPort Cable HDMI Cable Limited 3-Year Warranty More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ PD2500Q 25" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ PD2500Q Specs | Screen Size | 25" / 63.5 cm | | Aspect Ratio | 16:9 | | Resolution | 2560 x 1440 | | Display Area (H × V) | 21.77 x 12.25" / 55.3 x 31.1 cm | | Pixel Pitch (H x V) | 0.216 mm | | Brightness | 350 cd/m² | | Static Contrast Ratio | 1000:1 | | Panel Type | In-Plane Switching (IPS) | | Viewing Angles (H/V) | 178°/178° | | Response Time | 14 ms, 4 ms (GtG) | | Display Colors | 16.7 million | | Color Gamut | Rec. 709 / 100% sRGB | | Color Tables | 8-bit | | Backlight | LED | | Regulations | EPEAT 7.0
TCO 7.0
ENERGY STAR Gold | | Horizontal Frequency | 30-90 kHz | | Vertical Frequency | 50-76 Hz | | Video Bandwidth | 250 MHz | | Height Adjustable | 5.12" / 130 mm | | Tilt | -5 to 20° | | Swivel | ±45° | | Pivot | Yes | | Color Temperature | Reddish / Normal / Bluish / user mode | | USB Ports | 4 x USB 3.0 ports | | Kensington Lock Support | Yes | | OSD Languages | 18 languages | | I/O | HDMI
DisplayPort 1.2 in
DisplayPort 1.2 out (MST)
Mini DisplayPort
Headphone jack | | Speakers | 2 x 2 W | | VESA Compatibility | Yes | | | | Power Supply | Built-in 90-264 VAC | | Power Consumption | Power Consumption (On Mode)
62 W
Power Consumption (Power Saving Mode)
< 0.5 W
Power Consumption (Off Mode)
< 0.5 W
Power Consumption (Based on ENERGY STAR)
21 W | | MTBF | 60,000 h (excludes lamp) | | Certifications | Mac compatible
Windows 7, 8, 8.1, 10 compatible | | Dimensions (H x W x D) | With Stand: 22.4 x 15.8-20.9 x 9.4" / 57 x 40.2-53.2 x 24 cm
Without Stand: 22.4 x 14.2 x 2.3" / 57 x 36 x 5.9 cm | | Weight | 15.9 lb / 7.2 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 25.0 x 23.0 x 6.5" |
