User Manual for BenQ PD2700Q 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the BenQ PD2700Q 27" 16:9 IPS Monitor
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ PD2700Q 27" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

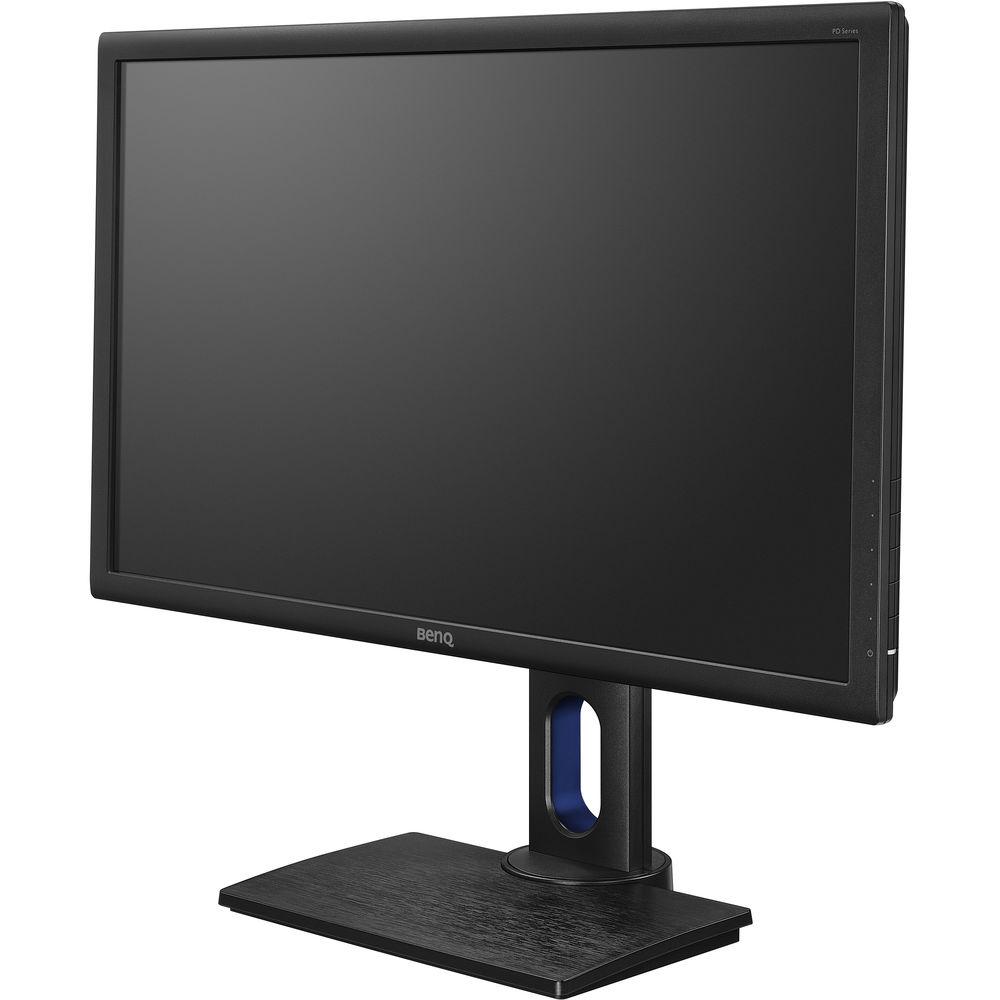

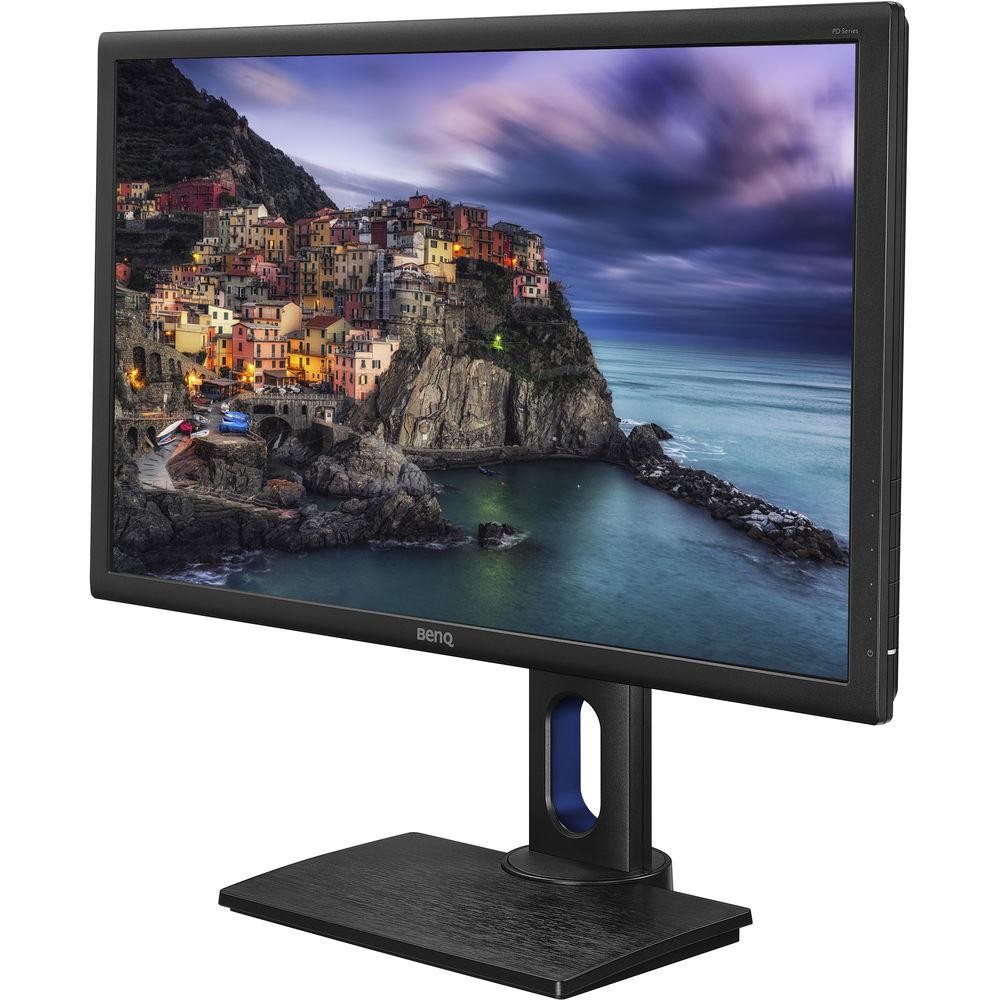

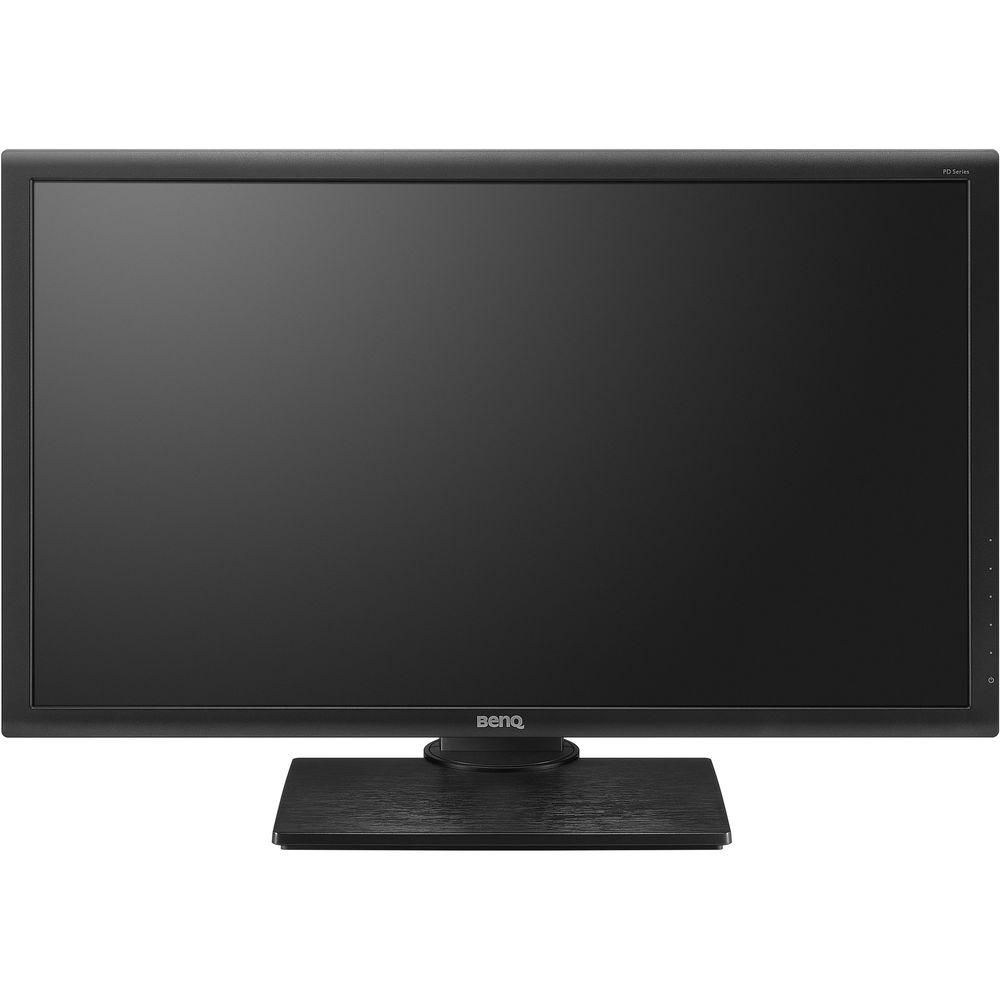

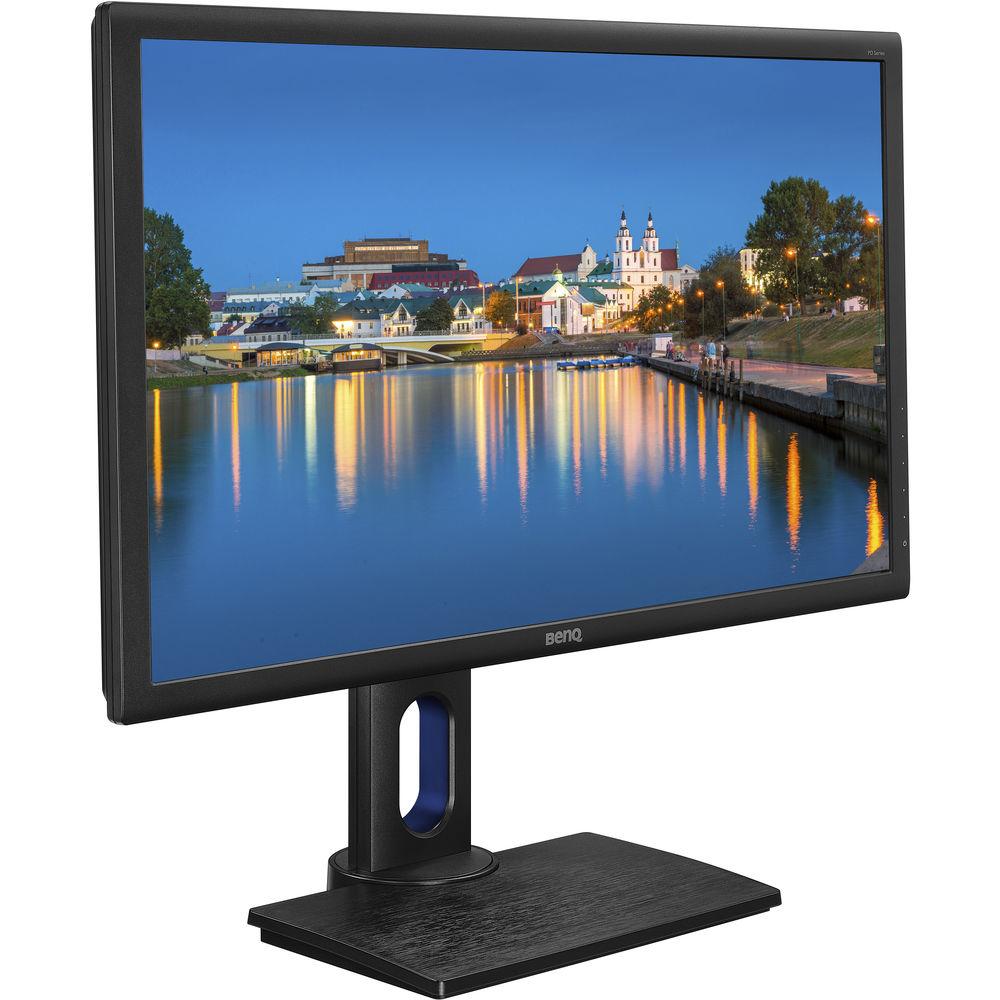

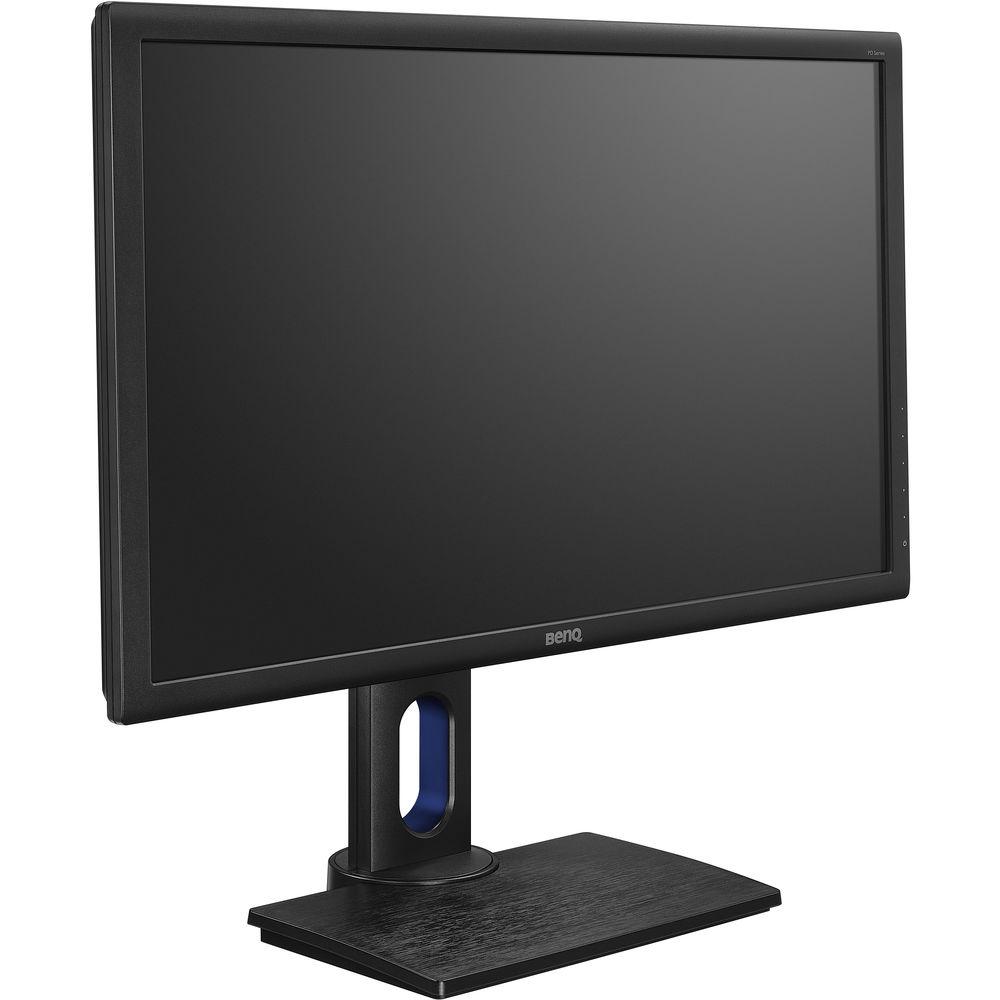

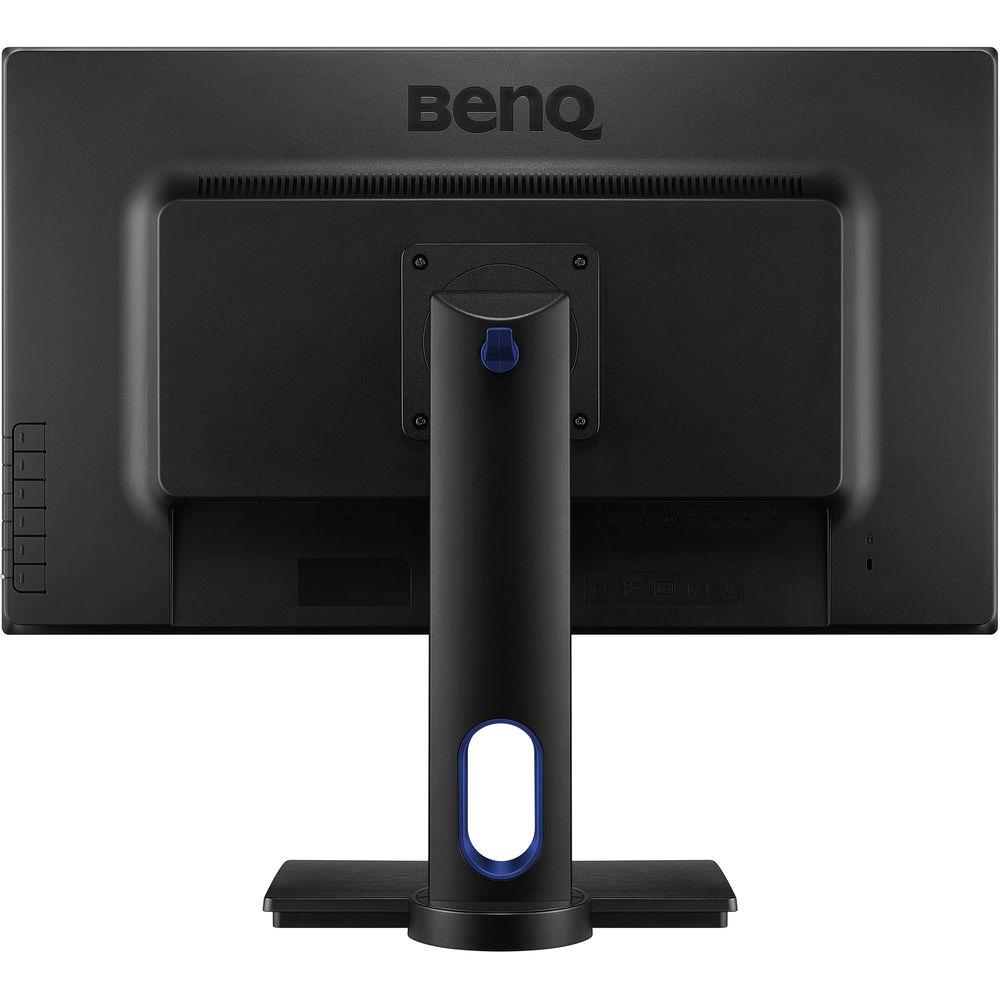

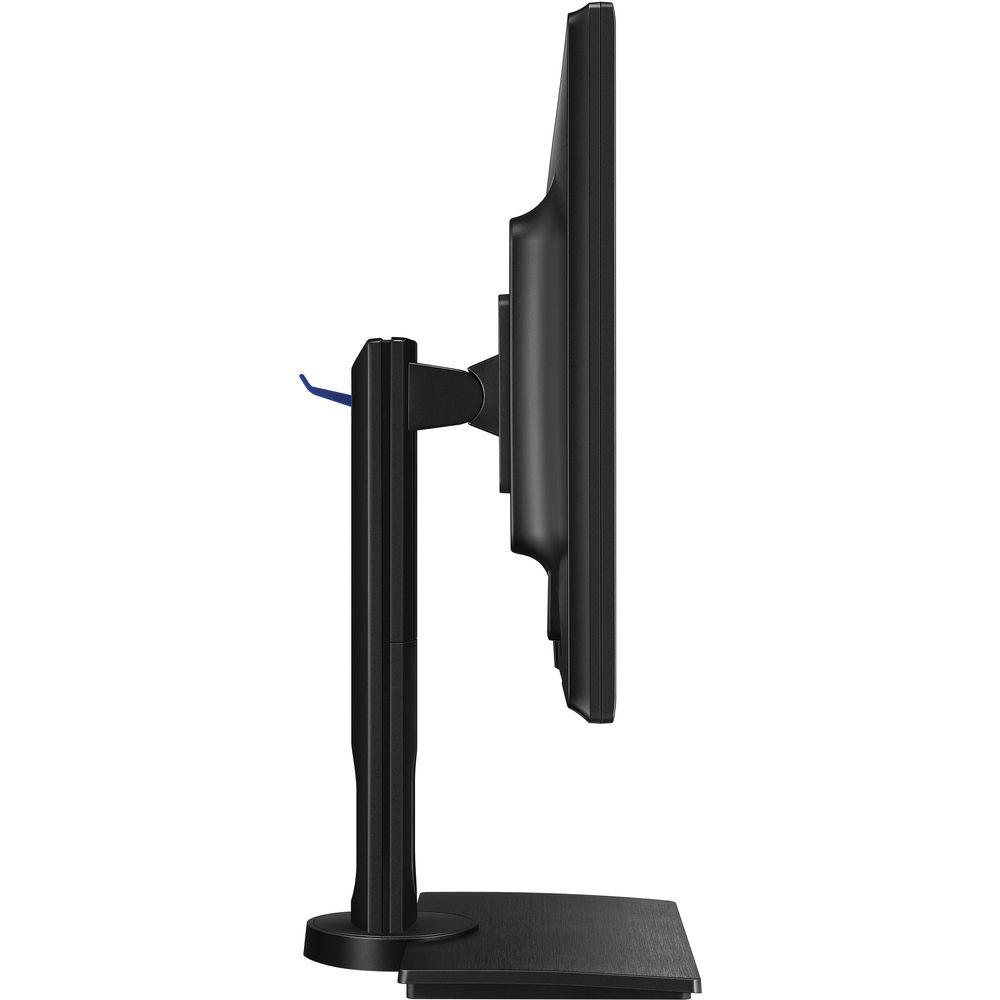

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The PD2700Q 27" 16:9 IPS Monitor from BenQ is a professional monitor designed for users who need accurate colors. It's built with an In-Plane Switching (IPS) panel that provides you with wide 178° viewing angles and vivid color reproduction. Combined with its 10-bit color support, and 100% Rec.709 and sRGB coverage, you'll be able to work with a wide and accurate color pallet. For additional clarity, this display has a 2560 x 1440 QHD screen that offers four times the resolution of a standard 720p screen so you'll be able to work on the finer details. Utilize its Darkroom, CAD/CAM, and Animation modes to assist you with your craft and adjust your desktop partition for an easier time multitasking. Connect this display to your system via HDMI or DisplayPort, and then adjust it to your viewing preference. - IPS 2K QHD, 100% Rec. 709 and sRGB, 12 ms response time, height adjustable stand, CAD/CAM mode, 10-level animation modes, desktop partition software included, HDMI/DP/miniDP, 2 x 1W speakers, Windows 7, 8/8.1, 10 compatible, 4 x color temperature modes (normal (6500K), reddish (5700K), bluish (9300K), user mode), picture mode, 15.4 lb weight
- Stunning Colors
- The PD2700Q supports a 10-bit color depth, and a 100% Rec.709 and 100% sRGB color space to bring you a wide variety of colors that are required for professional use.
- Darkroom Mode
- Darkroom mode adjusts the brightness and contrast of images to deliver clearer and sharper details.
- CAD/CAM Mode
- These modes allow for lines and shapes of technical illustrations to stand out so you won't miss any details.
- Animation Mode
- Animation mode enhances details in darker areas so you can adjust creations easily without affecting other parts.
- 10-Level Animation Mode Adjustment
- Adjustable animation mode offers ten levels of brightness for a clear viewing experience is any ambient light environment.
- Desktop Partition
- Split your display up into different sections or your desired proportions for better multitasking. Adjust your windows to sit side-by-side or however you need them.
- Eye Care
- Flicker-free technology reduces the amount of flickering to prevent harmful effects while low blue light minimizes blue light emissions. Together they prevent eye strain and fatigue after long periods of use.
UPC: 840046035495 In the Box BenQ PD2700Q 27" 16:9 IPS Monitor Power Cable HDMI Cable Mini-DisplayPort to DisplayPort Cable USB 2.0 Cable Limited 3-Year Warranty User Manual PDF 6.3mb More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ PD2700Q 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ PD2700Q Specs | | | Size | 27" | | Screen Area | 23.5 x 13.2" / 59.7 x 33.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 89 kHz | | Vertical Frequency | 50 to 76 Hz | | Color Gamut | 100% sRGB | | Response Time | 12 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2331 x 0.2331 mm | | Backlight Lifespan | 60,000 Hours | | | | Connectivity | 1 x 3.5 mm Output
1 x RJ45
1 x HDMI
1 x DisplayPort | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 28 W (Eco)
0.5 W (Standby)
58 W (Typical) | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 20° | | Lock Slot | Yes | | Dimensions (W x H x D) | 32.0 x 16.4 x 8.9" / 81.4 x 41.7 x 22.6 mm (With Stand)
25.2 x 14.9 x 2.2" / 64.1 x 37.9 x 5.6 mm (Without Stand) | | Weight | 15.2 lb / 6.9 kg | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 29.1 x 19.1 x 9.8" |
