User manual for the BenQ PD2700U DesignVue Designer 27" 16:9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

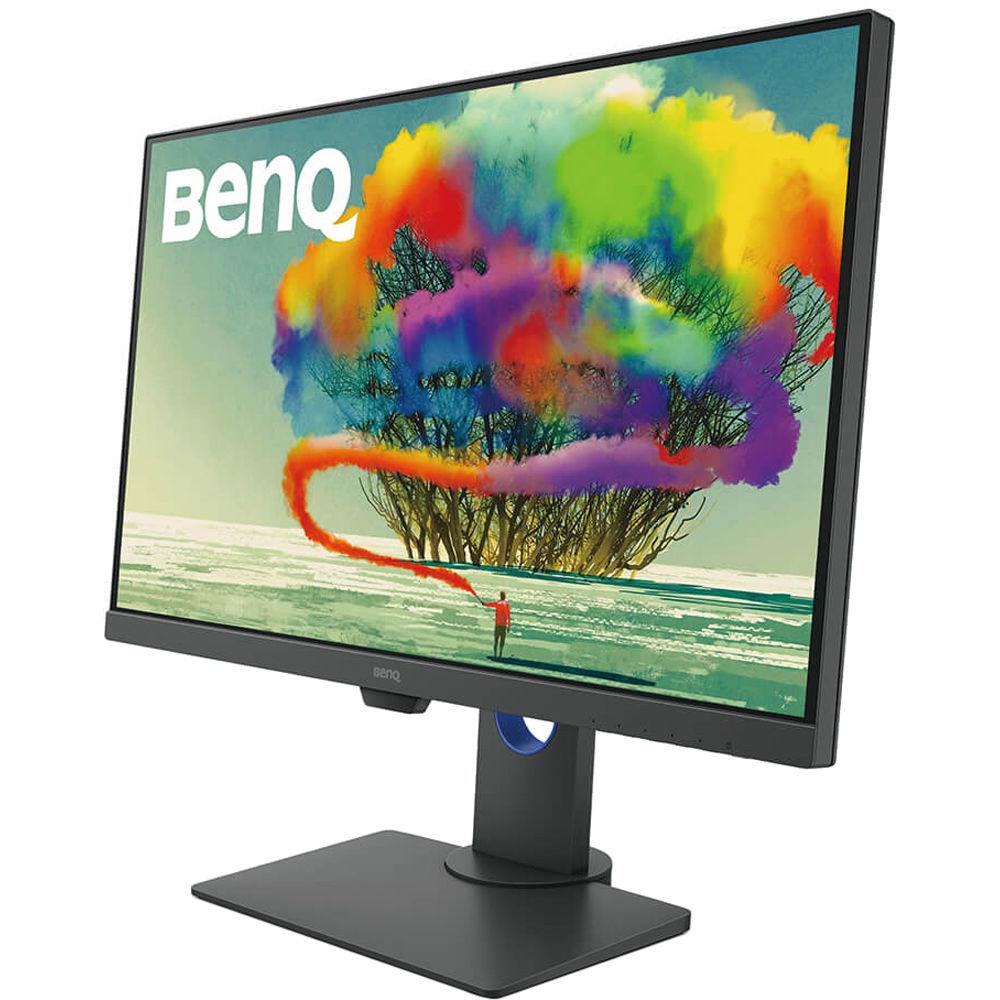

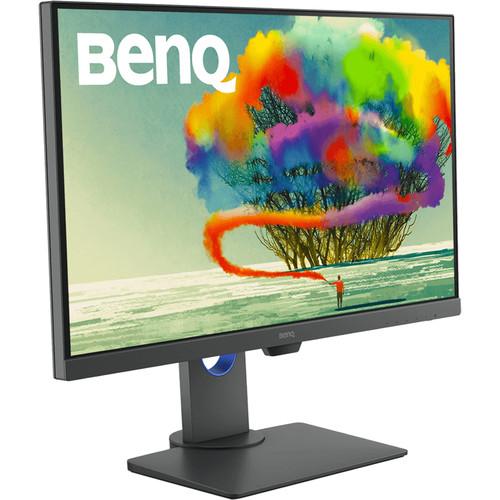

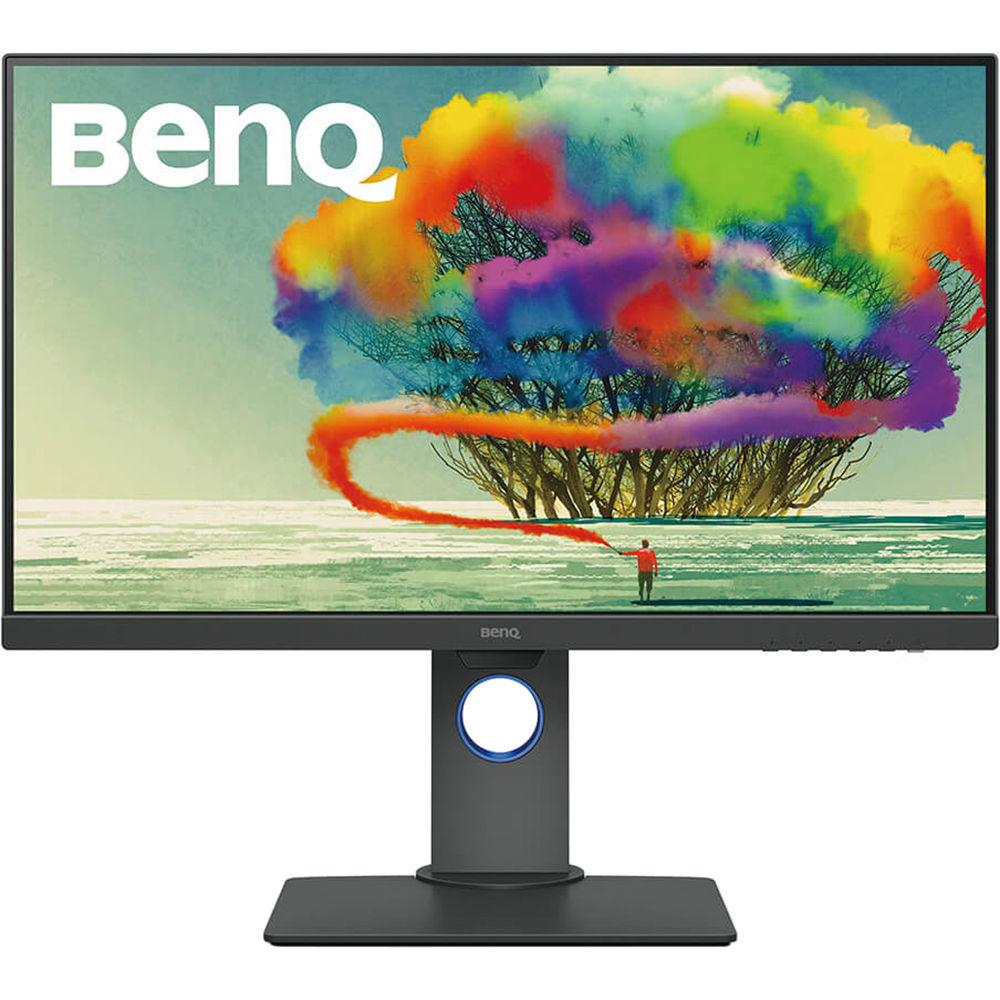

Product description BenQ Hits Reference Quality with 27-inch DesignVue PD2700U Display Read More butxyrvssbuftqfufqdffutfr The PD2700U DesignVue Designer 27" 16:9 IPS Monitor from BenQ delivers clarity and color precision, with support for 100% of the sRGB and Rec. 709 color gamuts, as well as HDR10, to help designers fulfill their ideas. Driven by BenQ's AQCOLOR technology and a UHD 4K resolution of 3840 x 2160 with a 60 Hz refresh rate, the PD2700U is coupled with three special modes - CAD/CAM, Animation, and Darkroom - each of which being tailored for different scenarios, allowing users in different fields to achieve similar results.

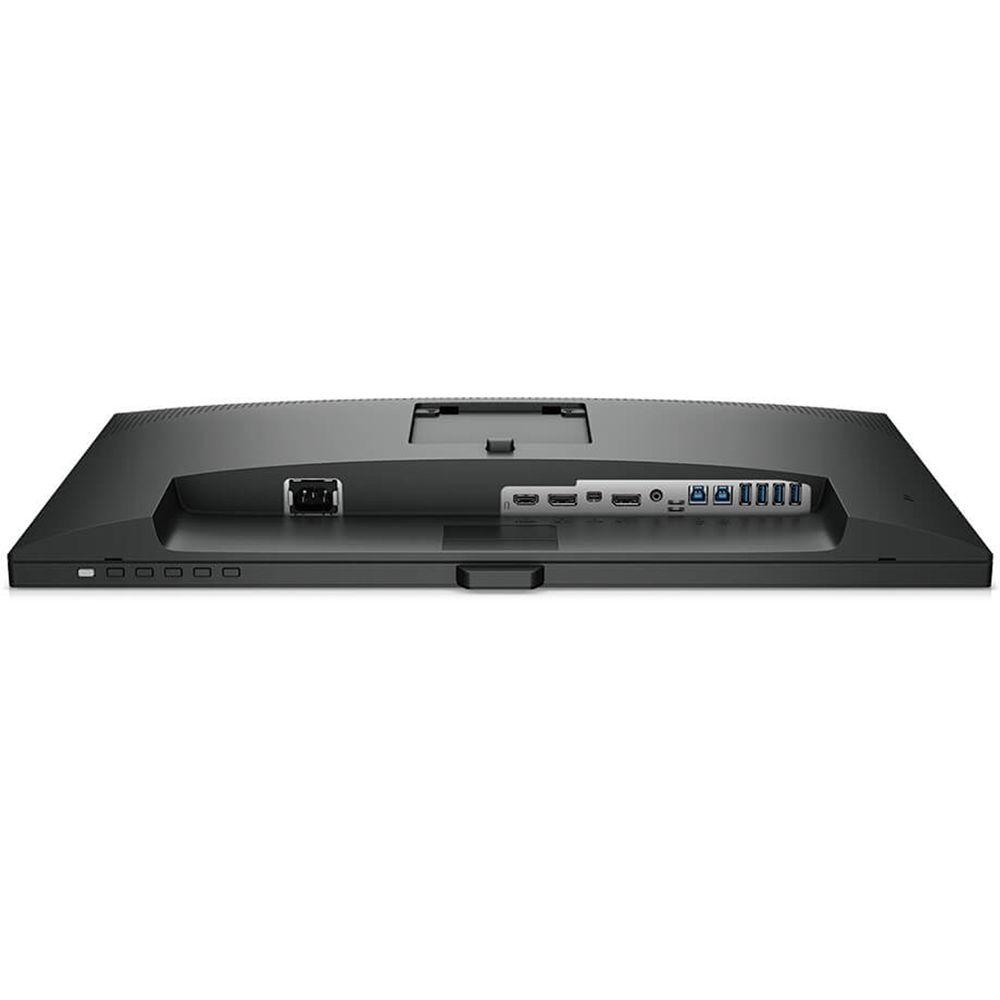

The PD2700U features In-Plane Switching (IPS) technology, an anti-glare panel coating, 10-bit support for 1.07 billion colors, a widescreen 16:9 aspect ratio, a static contrast ratio of 1300:1, a dynamic contrast ratio of 20M:1, a 350 cd/m2 brightness rating, 163 ppi, and a 5 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. There is also one HDMI 2.0 input, one DisplayPort 1.2, one Mini DisplayPort 1.2 input, and one DisplayPort output for daisy-chaining multiple displays together using MST (multi-stream transport) technology, plus four USB 3.0 Type-A and two USB 3.0 Type-B ports. Audio can be output using the dual integrated 2W speakers or the 3.5mm headphone jack.

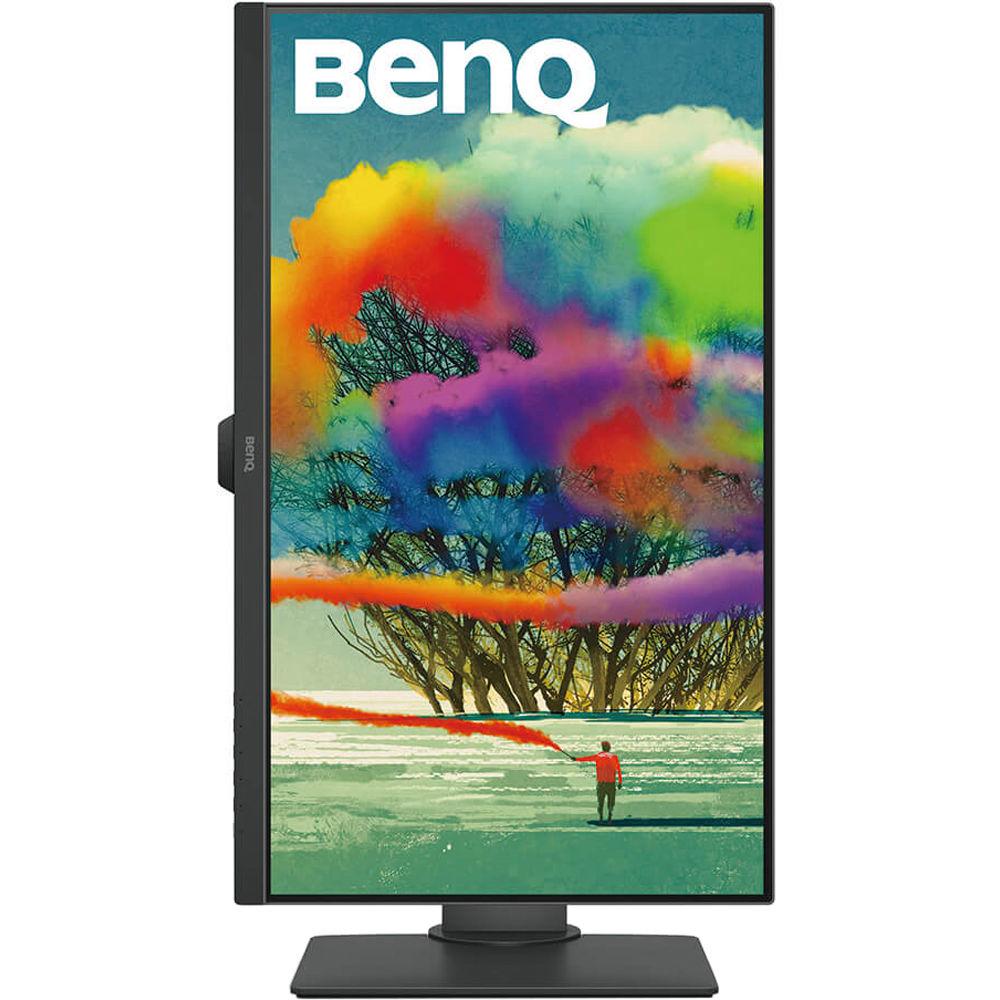

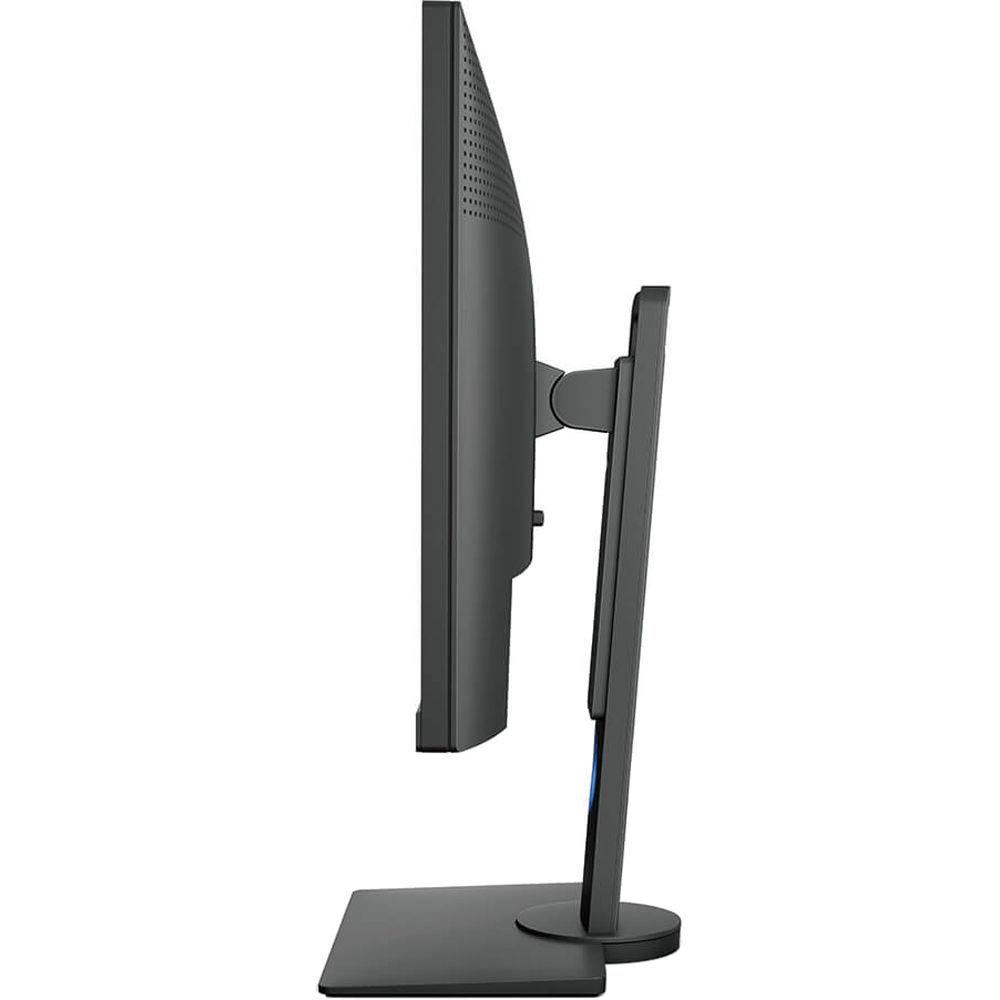

BenQ's PD2700U also supports HDCP 2.2, Picture-in-Picture, Picture-by-Picture, Flicker-Free technology, Low Blue Light technology, Brightness Intelligence technology and more. To further help improve viewing and accessibility, the PD2700U features a vertical tilt of -5 to 20°, a left/right swivel of ±45°, a clockwise/counterclockwise pivot of 90°, and a height adjustment of 5.51". It is certified for Mac, Windows 10, 8.1, 8, and 7, and SolidWorks. General Features Color Accuracy and Resolution - UHD 4K Resolution
- UHD 4K (3840 x 2160) resolution offers a great amount of clarity for fine details and depth of subtle textures optimized for visually intensive work in animation, visual effects, graphics, and photos.
AQCOLOR - True Colors Right Before You
- Devoted to meet the latest professional color standard, BenQ has developed AQCOLOR technology to uphold the concept of "Accurate Reproduction." BenQ has invited a color expert to lead the team, and also joined ICC (International Color Consortium) and ISO (International Standard Organization) to establish color-related standards and implementation.
- Reference-Grade Color Performance with 10-Bit, 100% sRGB and Rec. 709
- Covering 100% of sRGB and Rec. 709 color spaces, the PD2700U's advanced IPS wide viewing angle technology minimizes color shift to inspire greater design confidence. 100% sRGB color gamut accuracy adheres to industry standards in digital production, and Rec. 709 reproduces accurate resolution, frame rate, color gamut, gamma, and white point performance in high-definition video work.
- Professionally Factory-Calibrated for Color Accuracy
- Each BenQ Designer Monitor is individually factory-calibrated upon production to assure precise Delta-E and Gamma performance. Calibration results are validated against industry color standards to deliver the truest and most representative view of original content. Calibration eliminates slight color performance variations between individual panels of the same model. Therefore, the calibration data of each report will vary slightly from reports from other displays of the same model.
- HDR10 (ST2084) Support
- BenQ's DesignVue PD2700U is equipped with HDR10 technology to let designers preview video content's HDR effect during the editing process, helping to ensure desirable outcomes for their final works.
Simple, Functional Design for Increased Efficiency - CAD/CAM Mode
- Offering greater contrast for lines and shapes in technical illustrations, CAD/CAM mode accentuates fine details to produce increased display performance in Pro/E, SolidWorks, AutoCAD, CATIA, or other design software.
- Animation Mode
- Often problematic for designers working with intricate details in dark images, Animation Mode enhances the brightness of dark areas without overexposing bright regions. Animation mode provides 10 levels of display brightness to clearly bring out subtleties in ambient lighting.
- Darkroom Mode
- Adjusting image brightness and contrast for greater clarity and sharp details, Darkroom Mode creates improved settings for work in darkened post-processing environments.
Smart Efficiency and Productivity Enhancers - Keyboard Video Mouse (KVM) Switch
- KVM Switch functionality allows users to display and control content from two different PC systems on one screen using just one set of keyboard and mouse to save space and boost work efficiency.
- A Daisy-Chain Configuration for Greater Productivity
- The BenQ PD2700U is a daisy-chaining enabled display equipped with multi-stream transport technology (MST), allowing you to extend your notebook's screen across several displays using its DisplayPort output for a multiple monitor setup. You can appreciate the boundless views from PD2700U's edge-to-edge design with minimal bezels on all four sides.
- DualView Mode
- Improve your workflow and enhance productivity by switching on DualView to showcase designs in two modes (sRGB and CAD/CAM) side-by-side without the need for two screens.
Caring for Your Eyes - Eye-Care Technology
- BenQ's eye-care technologies help reduce eye fatigue for user comfort, enhanced productivity, and workplace safety during extended use.
- Eliminate Eye Strain in Ambient Light
- Brightness Intelligence Technology (B.I.Tech.) monitors ambient light in your viewing environment and actively adjusts screen brightness for a comfortable viewing experience.
- Low Blue Light Technology
- BenQ Low Blue Light Technology is designed to filter out harmful blue light, effectively diminishing eye fatigue and irritation.
- Flicker-Free
- Flicker-free helps eliminate flickering at all brightness levels and reduces eye fatigue effectively. Conventional LCD screens flicker at the rate of 250 times per second. Your eyes may not see the flickers but they can certainly feel them. So relieve your eyes from the uncomfortable flickering effect by switching to a BenQ flicker-free monitor.
UPC: 840046040680 In the Box BenQ PD2700U DesignVue Designer 27" 16:9 IPS Monitor Power Cord Limited 3-Year Warranty 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 butxyrvssbuftqfufqdffutfr More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ PD2700U DesignVue Designer 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ PD2700U Specs | | | Size | 27" | | Screen Area | 23.49 x 13.21" / 596.74 x 335.66 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1300:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 100% sRGB
100% Rec. 709 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Dot Pitch | 0.155 x 0.155 mm | | | | Connectivity | 1 x HDMI 2.0 Input
1 x DisplayPort 1.2 Input
1 x Mini DisplayPort 1.2 Input
1 x DisplayPort Output
4 x USB Type-A (USB 3.1 Gen 1) Input
2 x USB Type-B (USB 3.1 Gen 1) Output
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 x 2 W | | Supported Languages | Arabic
Czech
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese | | | | Power Consumption | 80 W (Typical)
30 W (Eco)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | ENERGY STAR, EPEAT GOLD, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.51" / 140 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 20° | | Dimensions (W x H x D) | 24.2 x 21.6 x 9.1" / 613.8 x 548.3 x 230.7 mm (With Stand)
24.2 x 14.5 x 2.3" / 613.8 x 367.9 x 58.8 mm (Without Stand) | | Weight | 16.98 lb / 7.7 kg (With Stand)
11.02 lb / 5.0 kg (Without Stand) | | | | Package Weight | 21.3 lb | | Box Dimensions (LxWxH) | 27.0 x 19.0 x 9.0" |
