User Manual for BenQ PD2710QC 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the BenQ PD2710QC 27" 16:9 IPS Monitor
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ PD2710QC 27" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

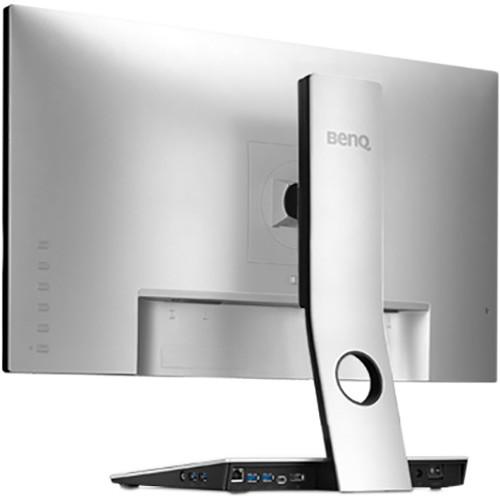

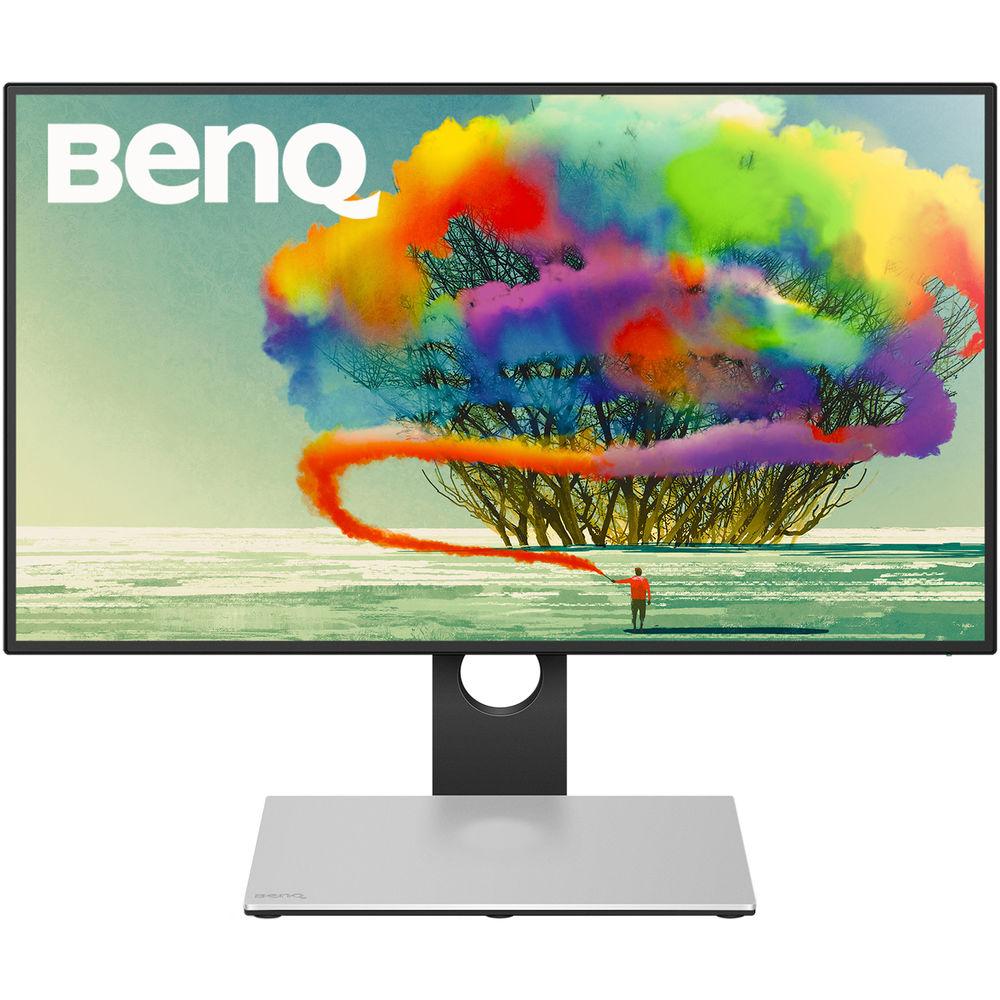

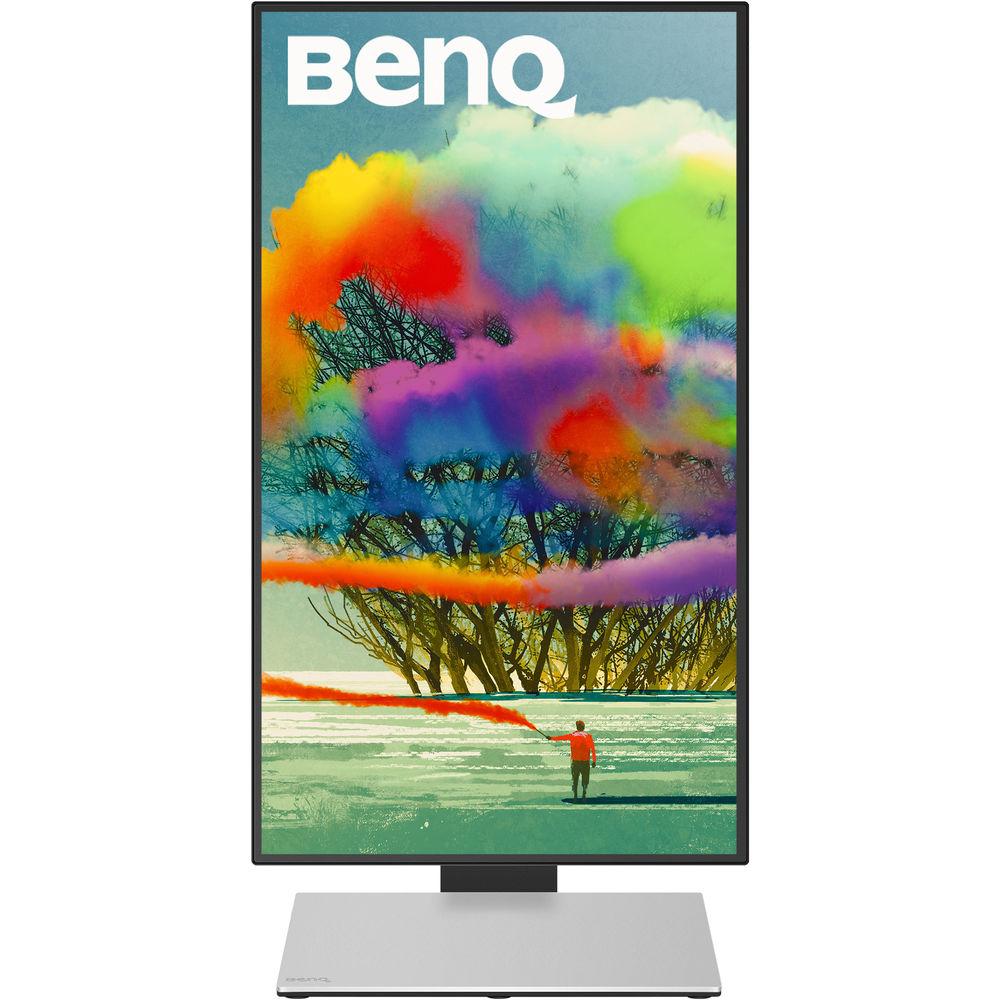

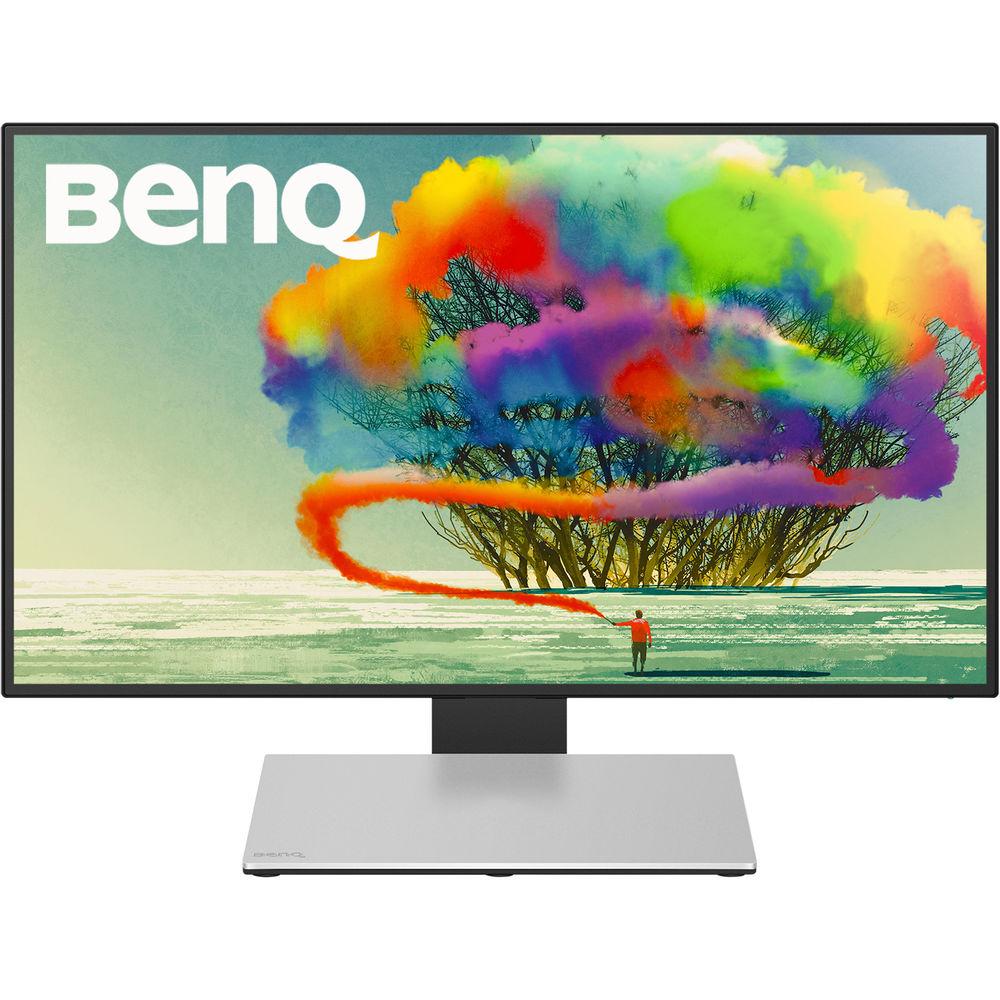

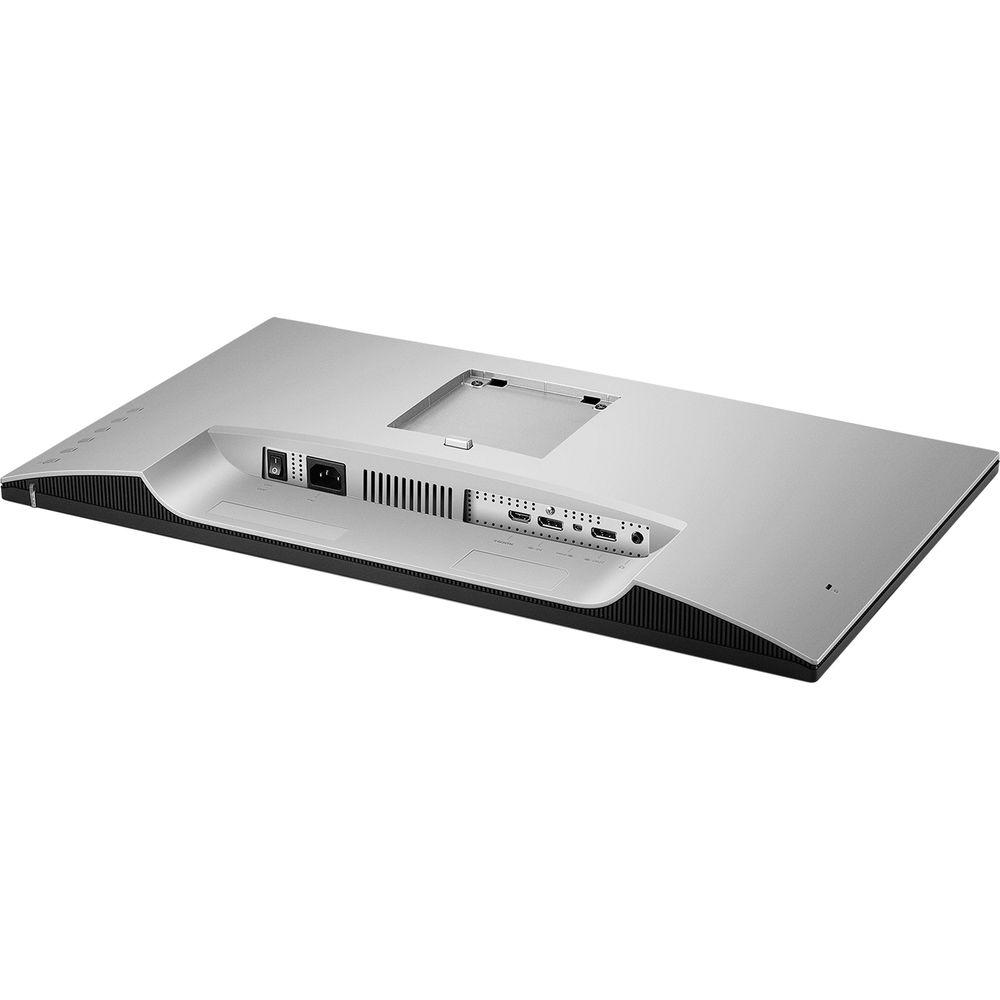

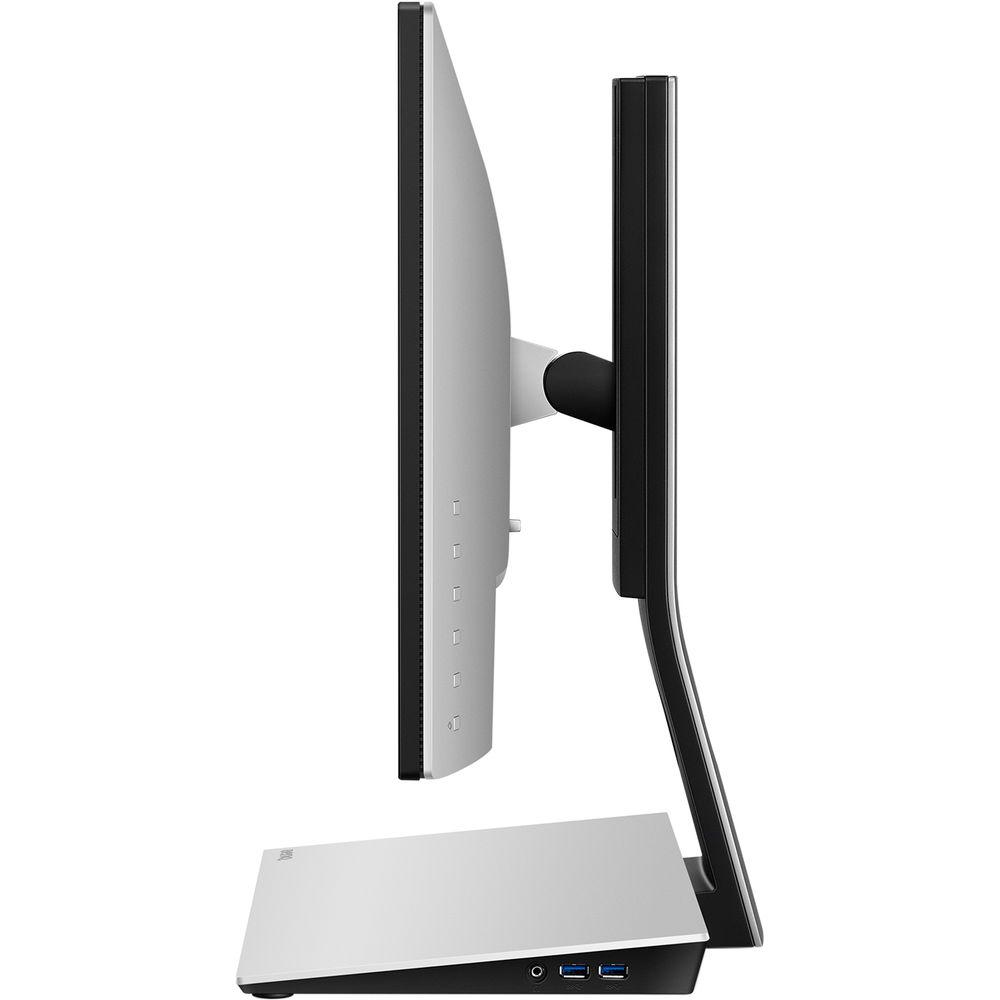

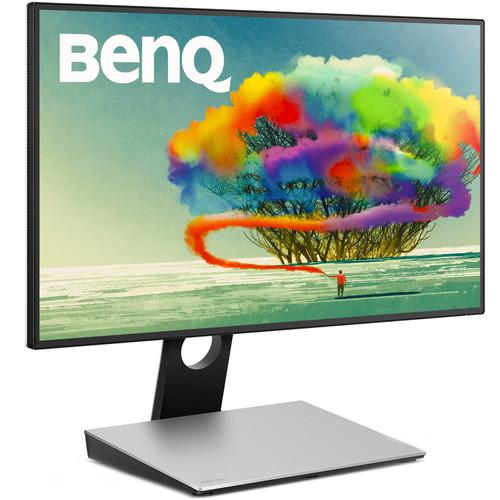

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The PD2710QC 27" 16:9 IPS Monitor from BenQ features a docking station that's meant to be used with USB Type-C equipped systems, providing them with additional connectivity and features. It has a 2560 x 1440 resolution for crisp and clear content reproduction and is built with an IPS (In-Plane Switching) panel that offers vivid colors and wide 178° viewing angles. Moreover, it has a 350 cd/m² brightness rating, a 1000:1 static contrast ratio, and covers 100% of the sRGB color gamut for brighter bright colors and darker blacks with more depth. Connect it to your system via HDMI or DisplayPort and then tilt and pivot it to your preferred viewing angles. Otherwise, you can install an optional mount, stand, or arm using the 100 x 100mm VESA mounting holes on the back. - USB Type-C Docking Station

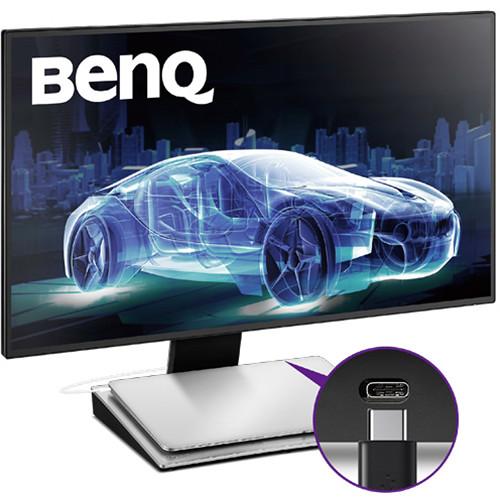

- This display features a USB Type-C docking station and provides you with additional USB ports, an Ethernet jack, USB power delivery, and even device charging up to 61W.
- 100% sRGB and Rec.709
- With 100% sRGB coverage and Rec.709, this monitor delivers consistent and accurate colors, ideal for color sensitive work.
- Daisy Chaining
- Equipped with MST (Multi-Stream Technology), this display supports daisy-chaining up to four displays so you can extend your notebook's display using a DisplayPort output.
- Display Pilot Software
- Display Pilot Software, available on Windows only, lets you split your screen into multiple windows for more convenient multitasking.
- CAD/CAM Mode
- CAD/CAM mode offers improved contrast on lines and shapes in technical illustrations for better details. It's compatible with a wide variety of CAD/CAM software such as pro/E, SOLIDWORKS, AutoCAD, CATIA, and more.
- Animation Mode
- Animation mode enhances the brightness of dark areas without overexposing bright areas for better viewing. It has 10 levels of brightness settings so you can adjust it to your preference depending on your ambient lighting.
- Darkroom Mode
- Darkroom mode optimizes the brightness and contrast of images for clear and sharp details, ideal for work in darker post-processing environments.
- Low Blue Light
- BenQ's Low Blue Light technology reduces blue light emissions to protect your eyes. It has four different settings you can switch through depending on your current application including multimedia, Web-surfing, office, and reading.
- ZeroFlicker
- ZeroFlicker reduces screen flickering so your eyes won't get tired or damaged over long periods of use.
- Anti-Glare Display
- Keep annoying glare at bay with the anti-glare, matte-finish so you can work without any distractions.
- Additional Features
-
- AC Switch
- Auto Pivot
- AMA
- HDCP
- 4 x Color Temperature Modes (Normal (6500K) / Reddish (5700K) / Bluish (9300K) / User Mode)
- Mac Compatible
- Windows 7, 8, 10 Compatible
- Display Pilot
UPC: 840046036164 In the Box BenQ PD2710QC 27" 16:9 IPS Monitor 2 x Power Cables Adapter USB Type-C Cable DisplayPort to Mini DisplayPort Cable Limited 3-Year Warranty More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ PD2710QC 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ PD2710QC Specs | Screen Size | 27" (685.8 mm) | | Aspect Ratio | 16:9 | | Resolution | 2560 x 1440 | | Display Area (H × V) | 23.96 x 13.71" (608.6 x 348.3 mm) | | Brightness | 350 cd/m2 | | Static Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Panel Type | IPS (In-Plane Switching) | | Viewing Angles (H/V) | 178°/178° | | Response Time (Tr+Tf) | 14 ms, 5 ms (GtG) | | Display Colors | 16.7 million | | Color Gamut | 100% sRGB / Rec.709 | | Color Depth | 8-bit | | Audio | 1 x headphone jack | | I/O Ports | 1 x HDMI
1 x DisplayPort 1.2 (MST)
1 x Ethernet
4 x USB 3.0 Type-A
1 x USB 3.1 Type-C | | | | Tilt | -5 to 20° | | Pivot | 90° | | Height Adjustment | 7.1" (180 mm) | | VESA Compatibility | 100 x 100 mm | | | | Power Supply | 90-264 VAC | | Power Consumption (Operating) | Base: 105 W
Head: 45 W | | Power Consumption (Standby/Sleep) | 0.5 W | | | | Dimensions | With Stand: 24.6 x 24.14 x 10.97" (624.75 x 613.8 x 278.67 mm)
Without Stand: 13.92 x 24.14 x 2.53" (353.5 x 613.8 x 64.3 mm) | | Weight | Without Stand: 9.83 lb (4.46 kg) | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 27.0 x 22.5 x 6.5" |
