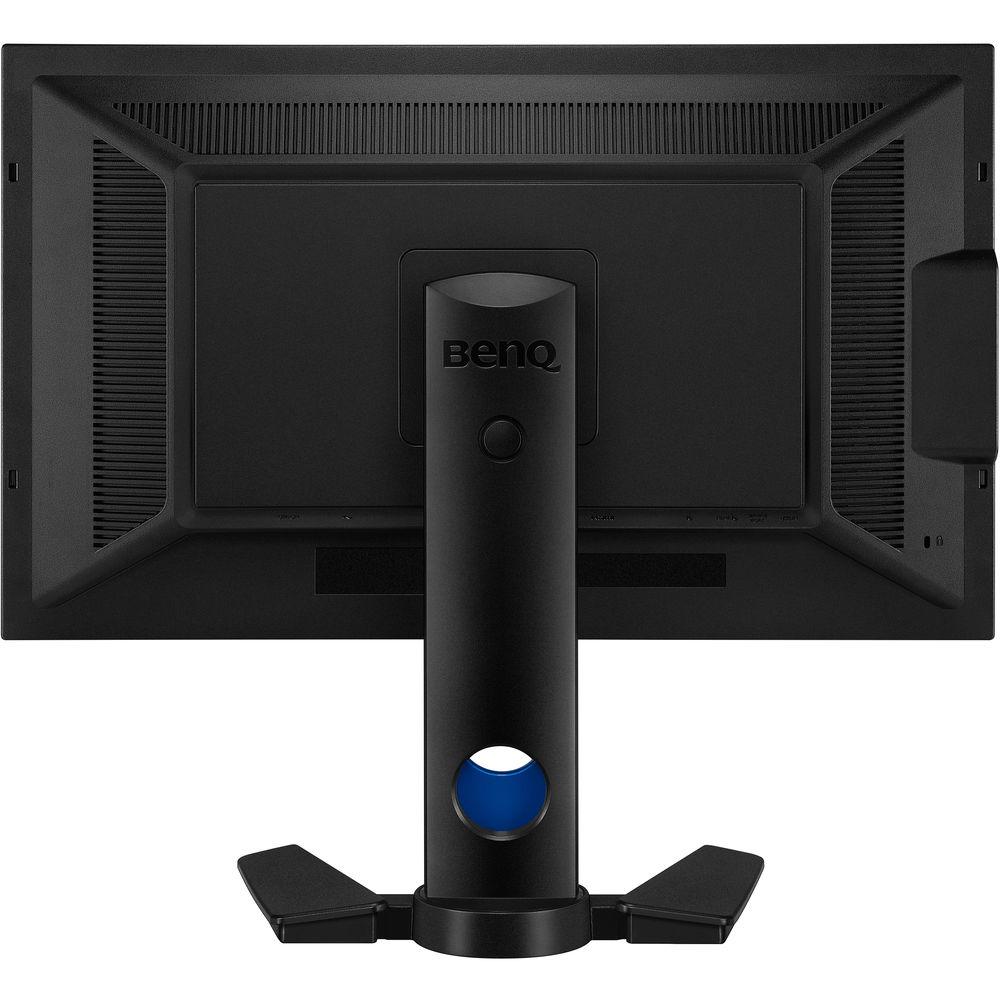

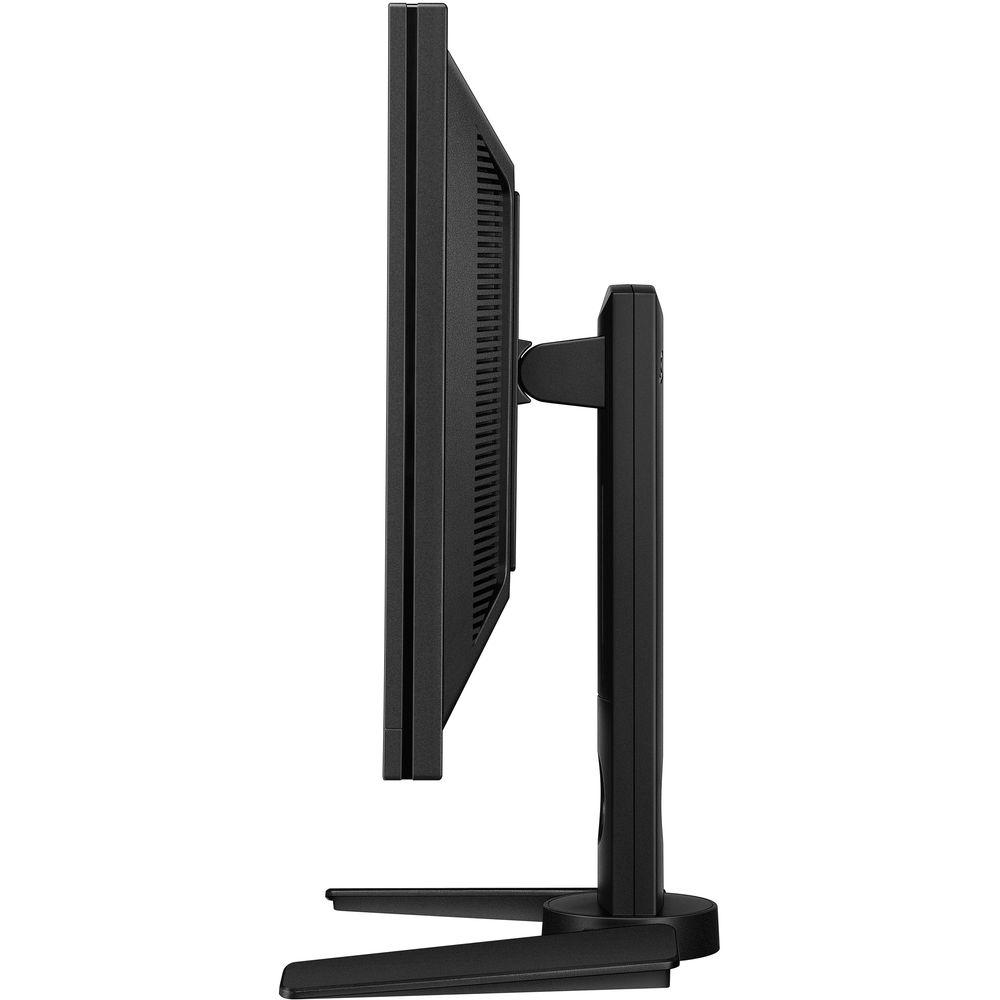

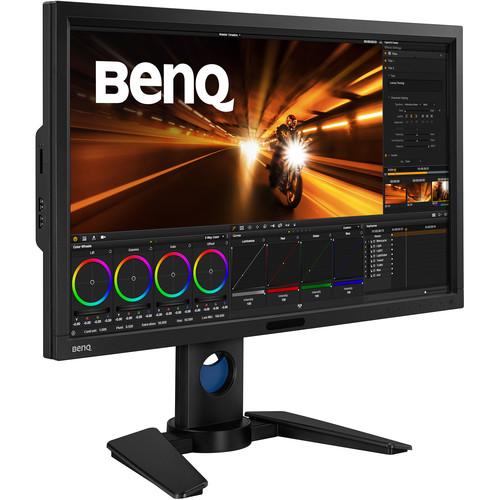

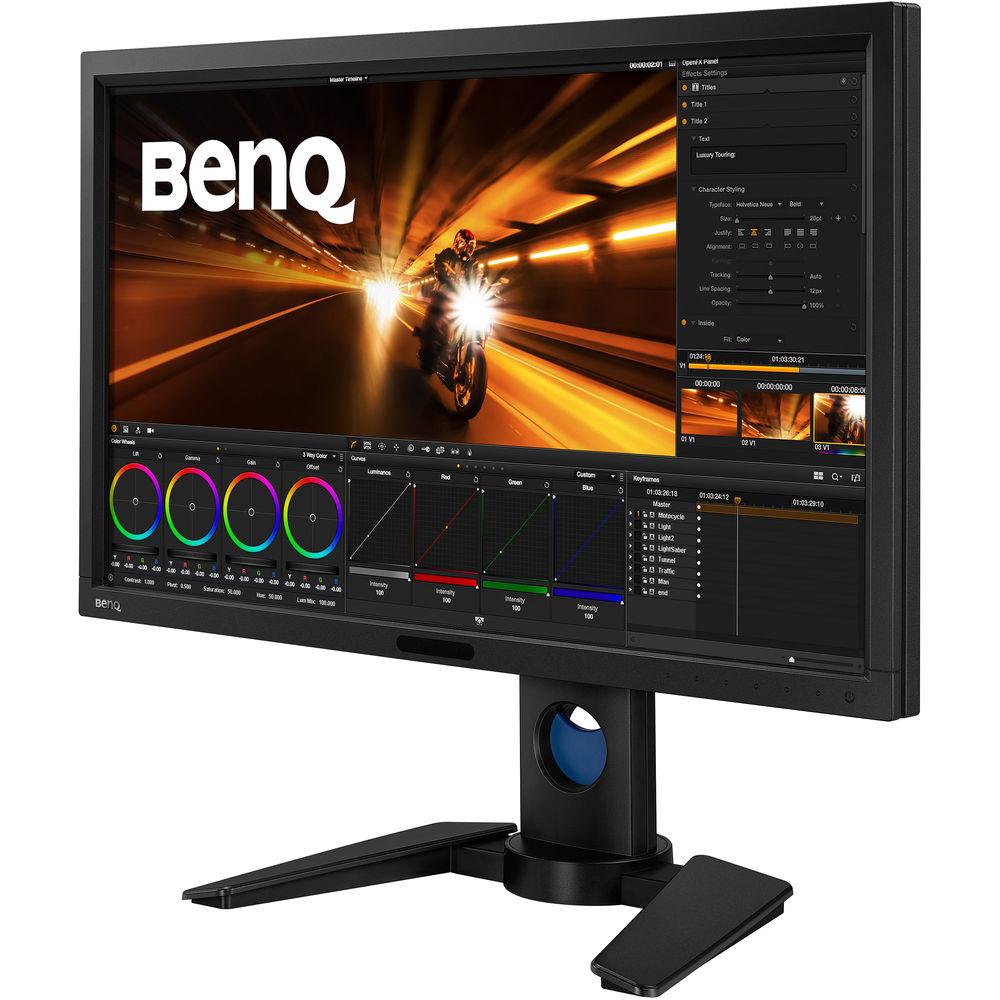

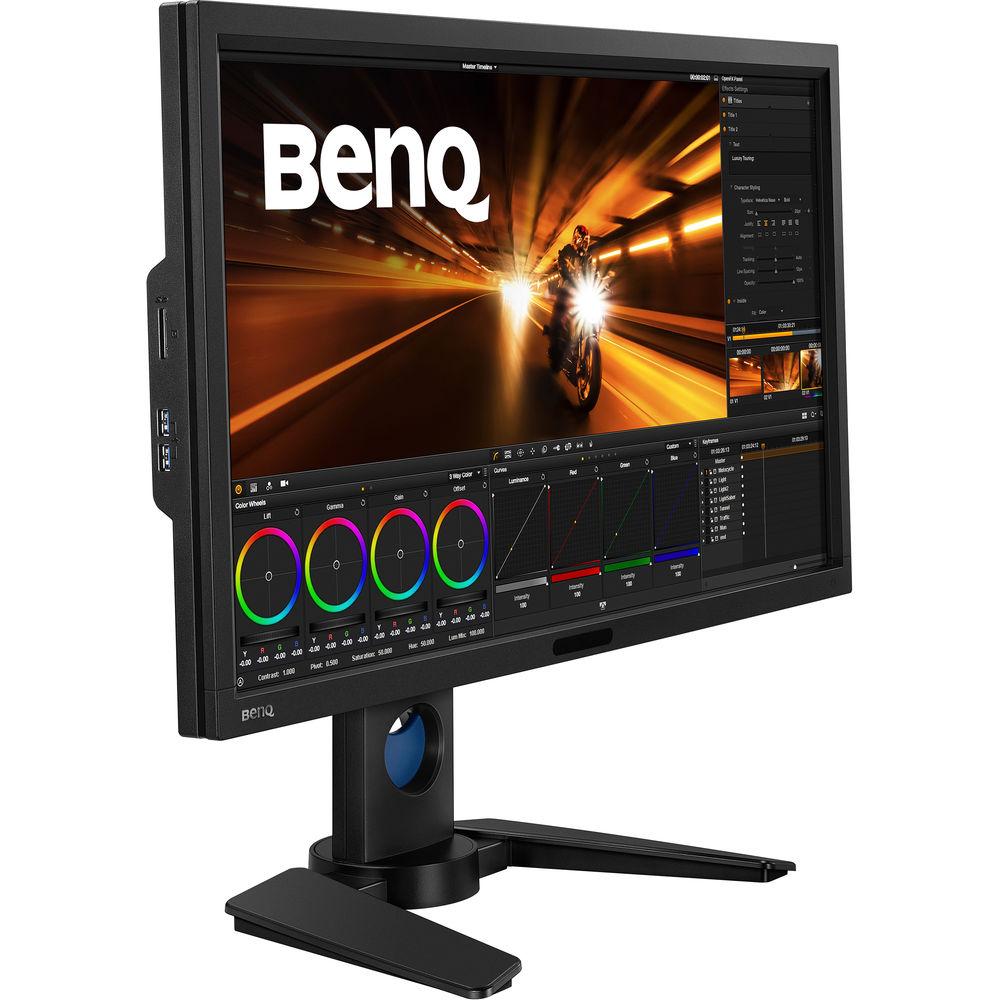

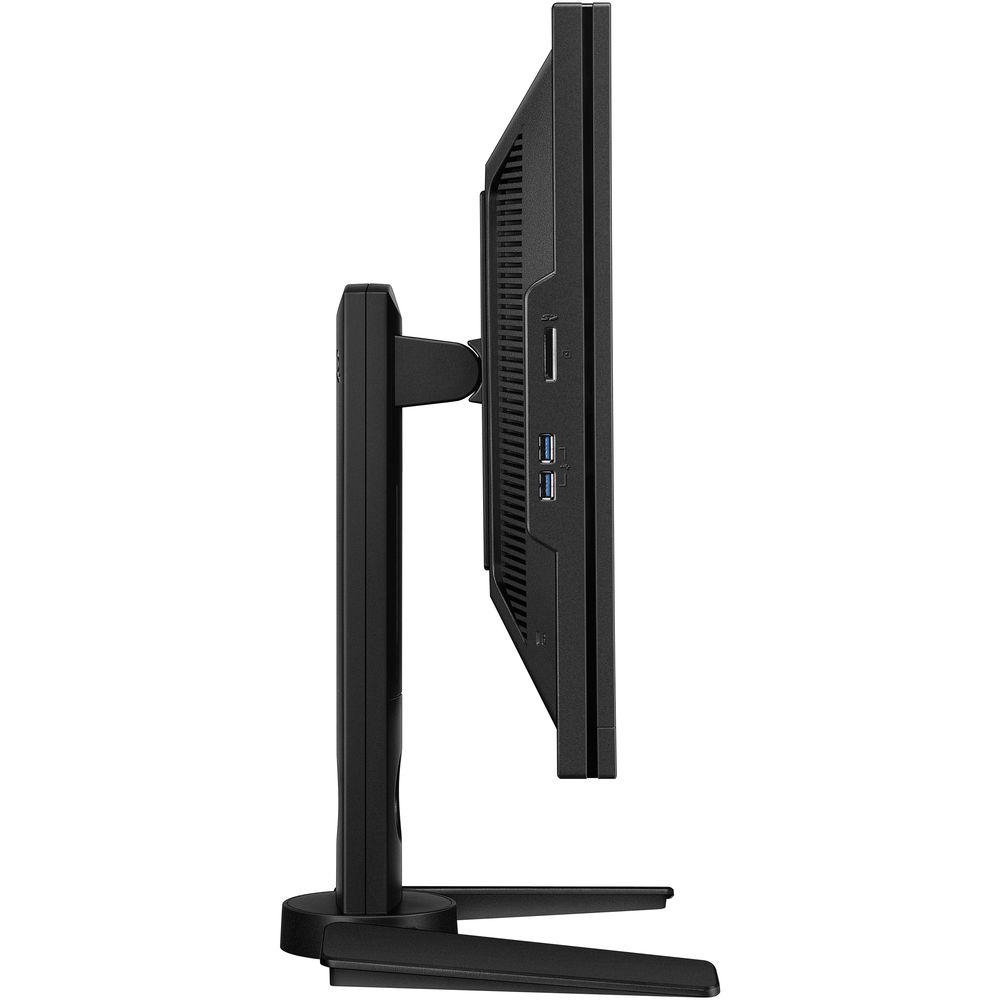

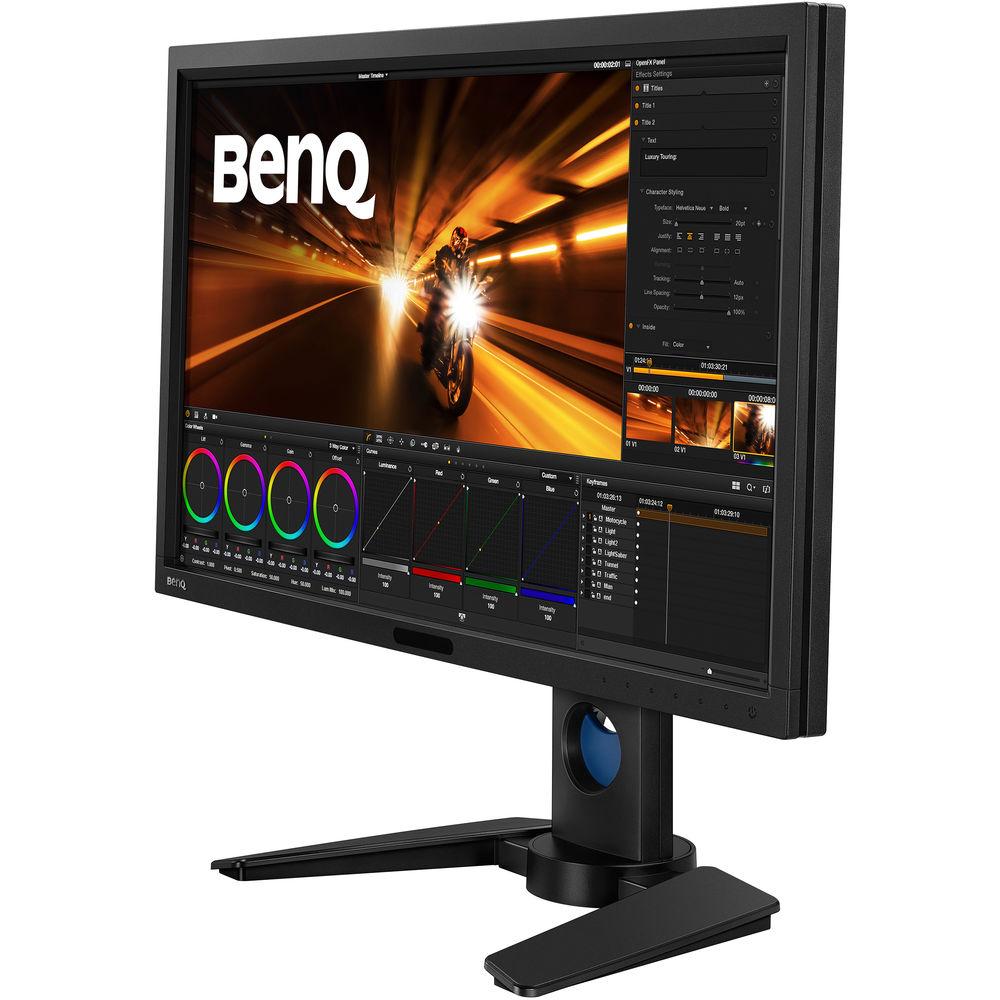

User Manual for BenQ PV270 Video Post-Production 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the BenQ PV270 Video Post-Production 27" 16:9
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ PV270 Video Post-Production 27" 16:9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

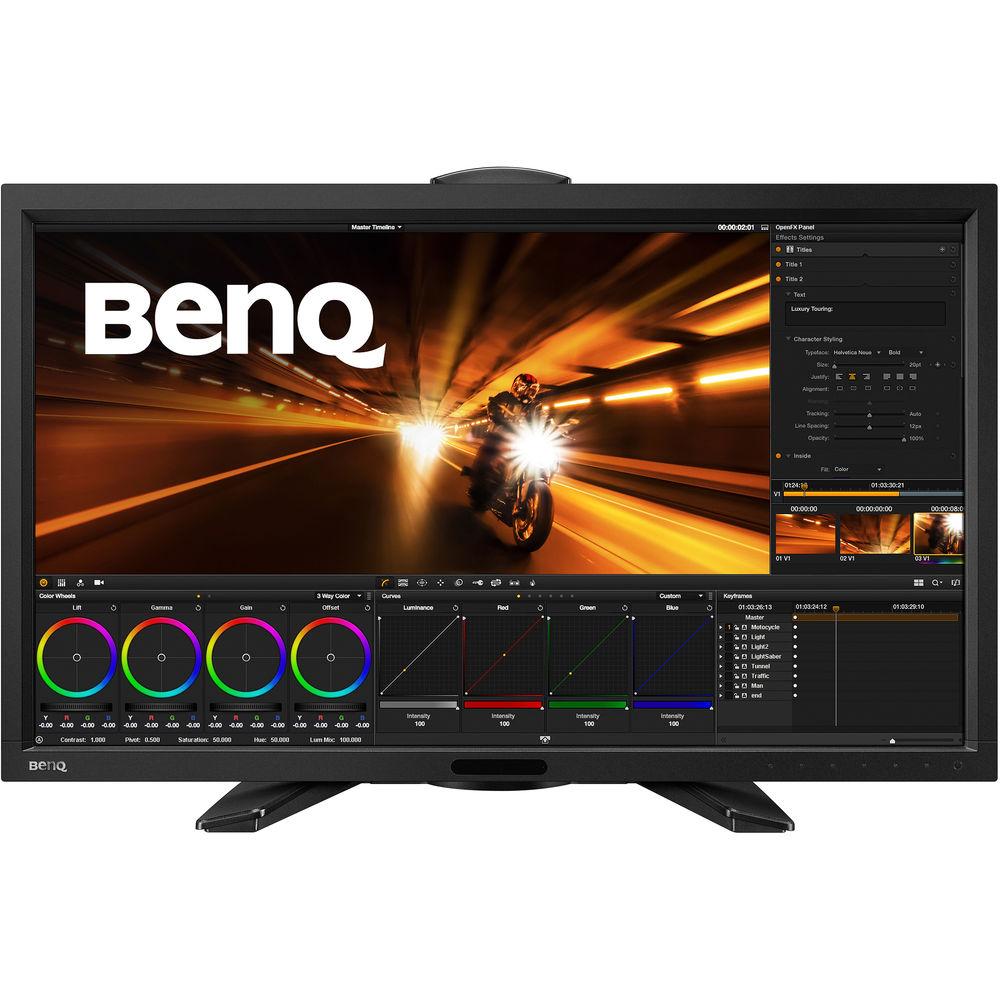

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More When color accuracy is of the utmost importance, the PV270 Video Post-Production 27" 16:9 IPS Monitor from BenQ is here with the tools needed for post-production video work. This BenQ monitor comes Technicolor Color Certified and covers 100% of the sRGB and Rec. 709 color spaces, plus 99% of the Adobe RGB and 96% of the DCI-P3 color spaces with 10-bit support for up to 1.07 billion colors. The included Palette Master Color Calibration software assists in the tweaking of the monitors color palette to ensure colors are represented more accurately, while the Brightness Uniformity function makes it so the display is equally bright from edge to edge.

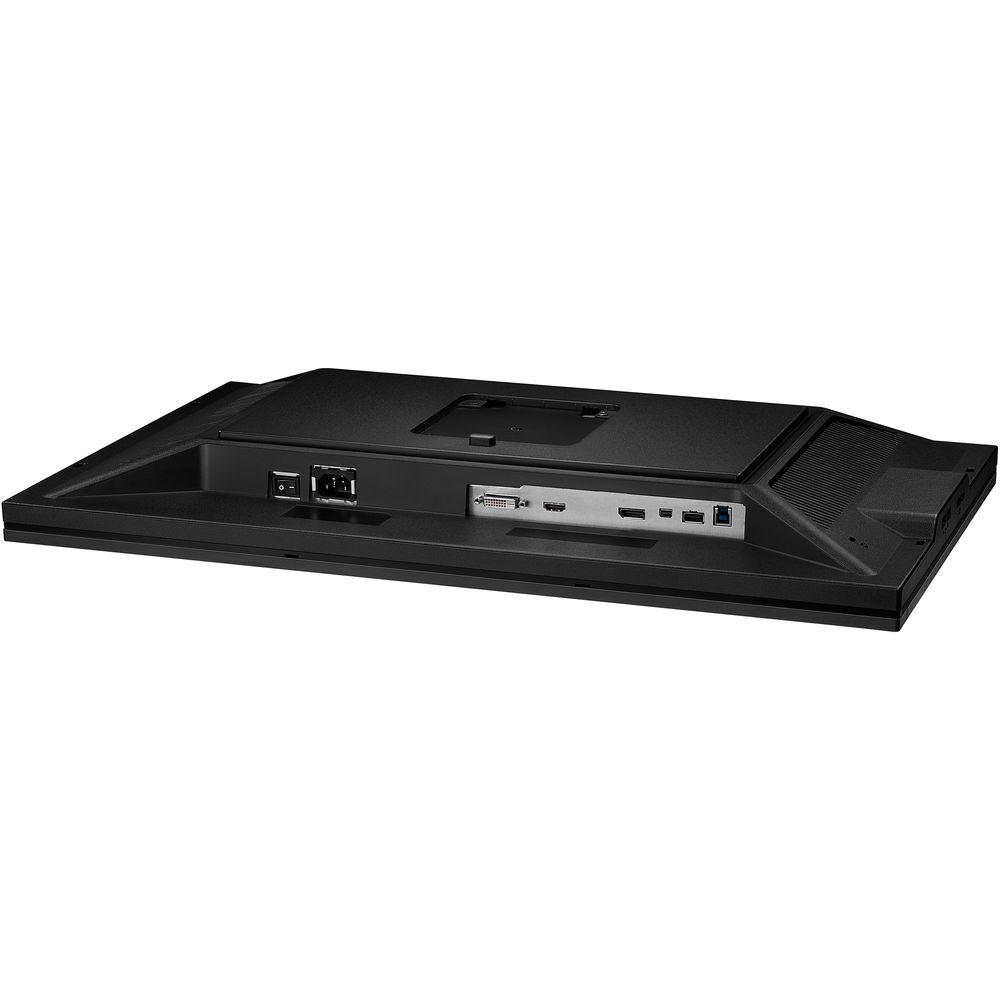

Setup and configuration of the BenQ PV270 is simple thanks to DVI, HDMI, and DisplayPort inputs, while the built-in USB 3.0 hub allows you to connect USB peripherals such as a mouse, keyboard, and hard drive directly to the monitor. Once configured, the display features a QHD 2560 x 1440 resolution along with a 1000:1 native contrast ratio for a crisp, clear picture. The IPS (In-Plane Switching) panel also supports 178° horizontal and vertical viewing angles, which greatly reduces screen distortion when viewing the display from various angles. There is also a 7-in-1 SD card reader for downloading content from you digital camera or other device. General Features - Reliable Color Throughout the Workflow
- The PV270's comprehensive and rigorous color management ensures consistent color reproduction throughout the video post-production process. From rough cut, effects addition, color correction, and composition to output, color rendition remains precisely accurate for results that perfectly match your intentions.
- 2K QHD Monitor
- The high pixel density of 2560 x 1440 (QHD) resolution delivers the crisp picture quality you expect for close reviews and detailed editing, and the spacious widescreen view provides greater comfort and productivity.
- Rec. 709 and DCI-P3 Color Gamut
- The PV270 provides 100% coverage of the sRGB and Rec. 709 standards, plus 96% of the DCI-P3 standard, ensuring output for high-definition television and digital cinema matches the colors you have defined. The PV270 also provides 99% coverage of the Adobe RGB color space designed to encompass most of the colors producible for graphic art professionals.
- 14-Bit 3D LUT and Delta E ≤ 1.5
- The 14-bit 3D look up table (LUT) improves RGB color blending accuracy, resulting in impeccable color reproduction. Precise Delta E≤1.5 in both Adobe RGB and sRGB color spaces renders the truest and most representative view of the original image.
- Hardware Calibration Produces Consistent Quality
- Hardware calibration allows you to adjust the monitor's internal image processing chip without changing the graphics card output data, keeping displayed images consistent with the original content without being affected by graphic settings.
- Palette Master Calibration Software Regulates Performance
- By using Palette Master and a calibrator, you can tune and maintain the monitor's color performance at its most optimal state. The calibrator is sold separately.
- Brightness Uniformity
- Achieved via delicate processes utilizing high-precision apparatus to meticulously fine-tune hundreds of sub-regions on the entire screen, BenQ Brightness Uniformity offers an authentic and consistent viewing experiences.
- Backlight Stability Sensor
- Advanced luminance control quickly achieves ideal brightness levels when powered on and maintains consistency during operating sessions over the display's lifetime.
- Professionally Factory Calibrated for Exacting Color Accuracy
- Each BenQ Video Post-Production Monitor is individually factory-calibrated upon production to assure precise Delta-E and Gamma performance. Achieving an average Delta E≤1.5 in both Adobe RGB, sRGB, and Rec.709 color spaces, calibration results are validated against industry color standards to deliver the truest and most representative view of original content.
- Technicolor Color Certified
- Technicolor Color Certification meets strict color standards widely used in Hollywood and entertainment industries. BenQ Video Post-Production Monitors are Technicolor Color Certified, ensuring consistent and accurate colors for impressive performance in broadcast, film, animation, and entertainment applications.
- GamutDuo
- GamutDuo enables you to view content simultaneously in different color spaces side-by-side for comparison. Switch to PIP/PBP mode to enable GamutDuo.
- Color Display Clone
- Color Display Clone eliminates guesswork to achieve accurate colors across multiple locations. A built-in color temperature sensor automatically adjusts the picture to ambient light conditions, ensuring color is rendered consistently to your target values.

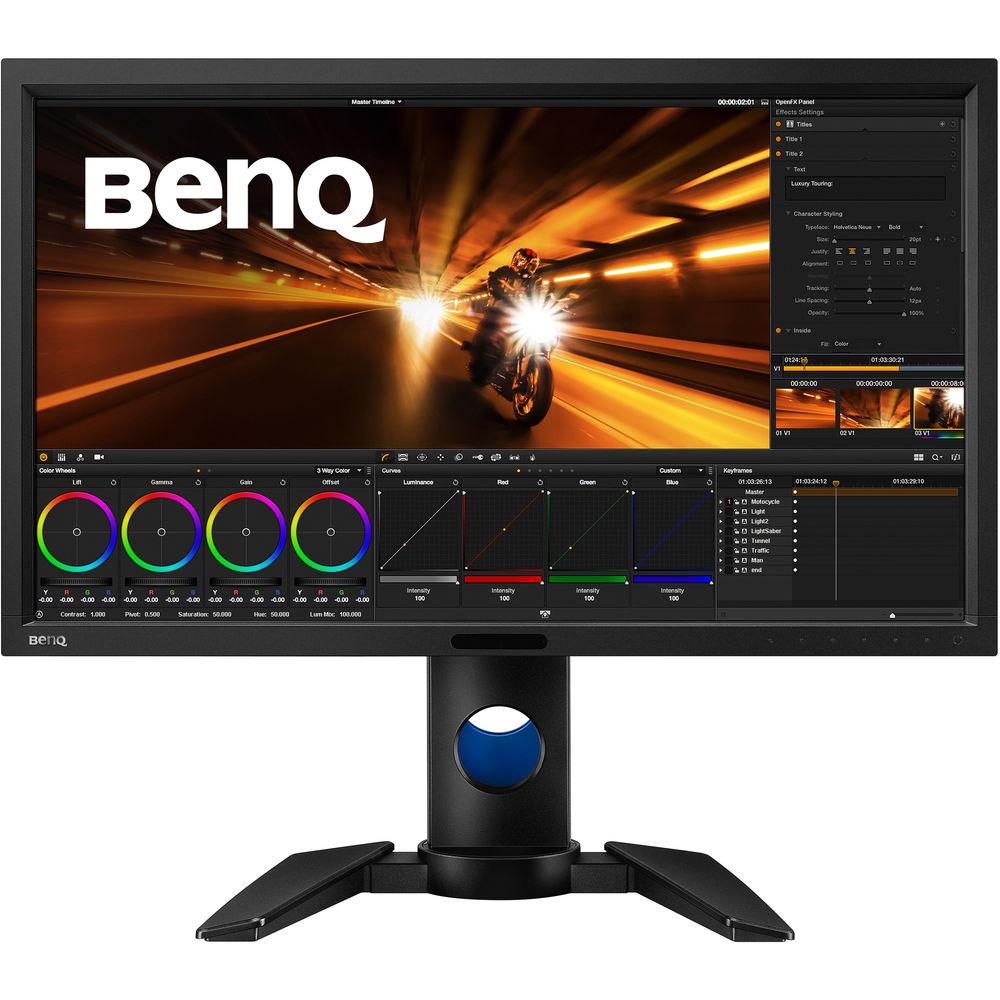

- Ergonomic Design
- Customize your workstation for the your user environment with an extensive range of height, tilt, pivot, stroke, and swivel monitor adjustments, so you can enjoy viewing pictures in their full context.
- Video Format Support
- The PV270 supports a 72 Hz refresh rate for 24p film content to be displayed at native cadence without pulldown, which can distort playback of the source video.
- Eye-Care Technology
- BenQ's eye-care technologies reduce eye fatigue for user comfort, enhanced productivity, and workplace safety during extended use.
UPC: 840046034467 In the Box BenQ PV270 Video Post-Production 27" 16:9 IPS Monitor Online Calibration Report Shading Hood DVI-DL Cable (6.0' / 1.8m) Mini DisplayPort to DisplayPort Cable (6.0' / 1.8m) USB 3.0 Cable (6.0' / 1.8m) Power Cable (6.0' / 1.8m) Limited 3-Year Warranty User Manual PDF 8mbreduxaywxsxzdfctrv More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ PV270 Video Post-Production 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ PV270 Specs | | | Size | 27" | | Screen Area | 23.5 x 13.2" / 59.7 x 33.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 89 kHz | | Vertical Frequency | 50 to 76 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 14-Bit | | HDR Compatibility | None | | Color Gamut | 100% Rec. 709
100% sRGB
99% Adobe RGB
96% DCI-P3 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Dot Pitch | 0.233 x 0.233 mm | | | | Connectivity | 1 x 3.5 mm Output
1 x USB Type-B (USB 3.1 Gen 1) Output
2 x USB Type-A (USB 3.1 Gen 1) Input
1 x DVI Input
1 x DisplayPort 1.2 Input
1 x Mini DisplayPort 1.2 Input
1 x HDMI 1.4 Input | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | None | | Supported Languages | Croatian
Czech
Dutch
English
French
German
Hungarian
Italian
Japanese
Polish
Portuguese
Romanian
Russian
Serbian
Simplified Chinese
Spanish
Swedish
Traditional Chinese | | | | Power Consumption | 73 W (Typical)
0.5 W (Eco)
0.5 W (Standby) | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | | | Height Adjustment | 5.91" / 150 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° | | Tilt Adjustment | -5 to 20° | | Lock Slot | No | | Dimensions (W x H x D) | 25.2 x 21.8 x 10.0" / 639.0 x 553.0 x 254.0 mm (With Stand)
25.2 x 15.2 x 10.0" / 639.0 x 385.0 x 254.0 mm (Without Stand) | | Weight | 19.4 lb / 8.8 kg (With Stand)
12.1 lb / 5.5 kg (Without Stand) | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 28.5 x 19.0 x 12.0" |
