Product description The SU765 WUXGA 5500-Lumen DLP Projector from BenQ is an installation projector that has a resolution of 1920 x 1200. It has a brightness of 5500 ANSI lumens and a contrast ratio of 10,000:1. This projector supports a throw ratio of 1.39-2.09:1 with a 1.5x zoom.

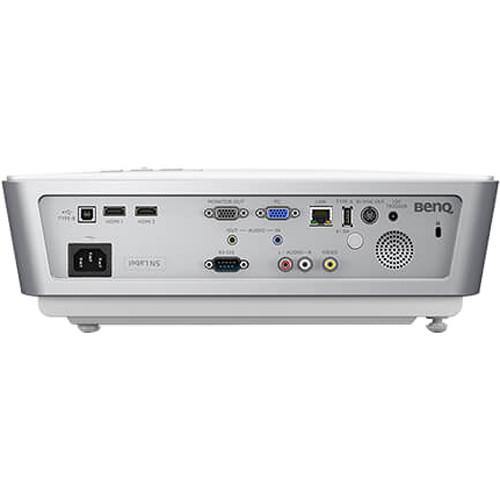

This projector features two HDMI ports, two VGA ports (one in and one out), an RCA composite video input, and a 3D sync output. There are 3.5mm audio input and output jacks along with a 5W built-in speaker. A 5.9' power cord, remote control, and two AAA batteries are included. - 5500-lumen high brightness allows presenters and participants to conduct presentations in comfortably lit medium-sized conference rooms
- Infographic mode can be used to showcase text and infographics in detail
- Vivid mode provides enhanced color performance during video or image presentations
- High fill factor sharpens images for increased clarity on black and white documents and colorful images alike while reducing eye strain

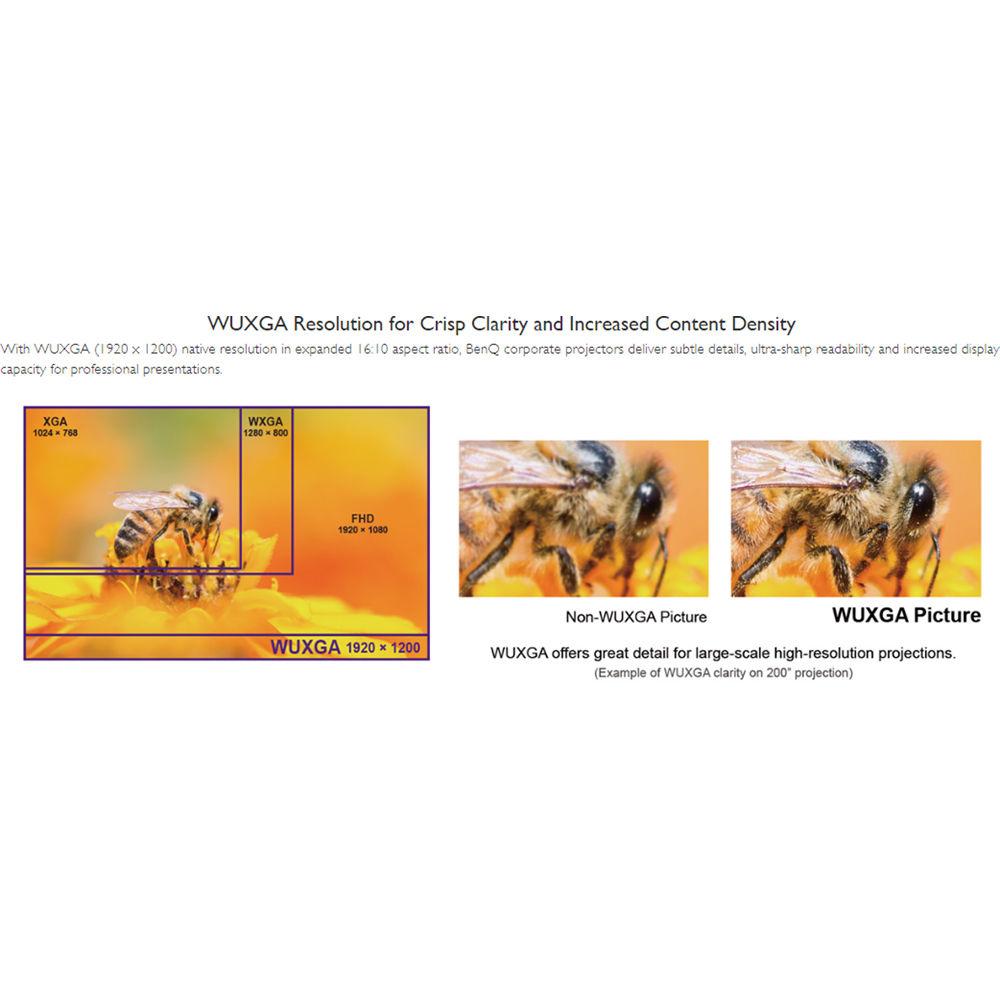

- WUXGA (1920 x 1200) native resolution in expanded 16:10 aspect ratio delivers subtle details, ultra-sharp readability, and increased display capacity
- InstaShow wireless presentation system and QCast mirror HDMI dongle available separately
- Replaces projectors mounted anywhere from 14.76 to 21.98' from the screen and projects images of 120"
- Digital image shrinking shrinks the image to 80% of the original size in 0.5% increments via OSD menu
- Lens shift enables projected images to be moved up and down within the range of 13% of screen height
- Two-dimensional keystone correction range of
|
Upload User Manual
Have you got an user manual for the BenQ SU765 5500-Lumen WUXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ SU765 Specs | | | Display System | 1-Chip 0.67" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200
Minimum: VGA - 640 x 480 | | Max Brightness | 5500 Lumens | | Offset | 108% | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 10000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential
Frame Packing
Side by Side
Top Bottom | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Vertical: 23 to 120 Hz
Horizontal: 15 to 102 Hz | | | | Focus | Fixed | | Lens | f/2.42 - 2.97 (f = 20.7 - 31.05 mm) | | Lens Shift | Vertical: + 13% | | Optical Zoom | 1.5x | | Throw Ratio | 1.39 - 2.09:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 5W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Video
1 x VGA (DE-15) Video Input
1 x Composite (RCA) Video Input
1 x 2RCA Audio Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x VGA (DE-15) Video Output
1 x 1/8" (3.5 mm) Mini Audio Output
1 x USB 2.0 (USB Type-A) Power Output
1 x USB 2.0 (USB Type-B) Control
1 x Ethernet (RJ45) LAN
1 x 12 V Trigger Control
1 x RS-232 (DE-9) Control
1 x VESA 3D Sync (3-Pin DIN) Control Output | | | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | Lamp | | Lamp Power | 330 W | | Expected Lamp Life | Full Brightness: 3000 Hours
Medium Brightness: 5000 Hours
Low Brightness: 6000 Hours | | Fan Noise | Full Brightness: 39 dB
Medium Brightness: 36 dB | | Security | Keypad Lock
Security Bar | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4.5 A | | Power Consumption | Full Brightness: 440 W
Medium Brightness: 420 W
Low Brightness: 330 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to -76°F / -20 to -60°C | | Operating Humidity | 10 - 90% | | Storage Humidity | 10 - 90% | | Dimensions (W x H x D) | 14.2 x 4.8 x 10.2" / 359.8 x 120.8 x 259.0 mm | | Weight | 8.16 lb / 3.7 kg |
