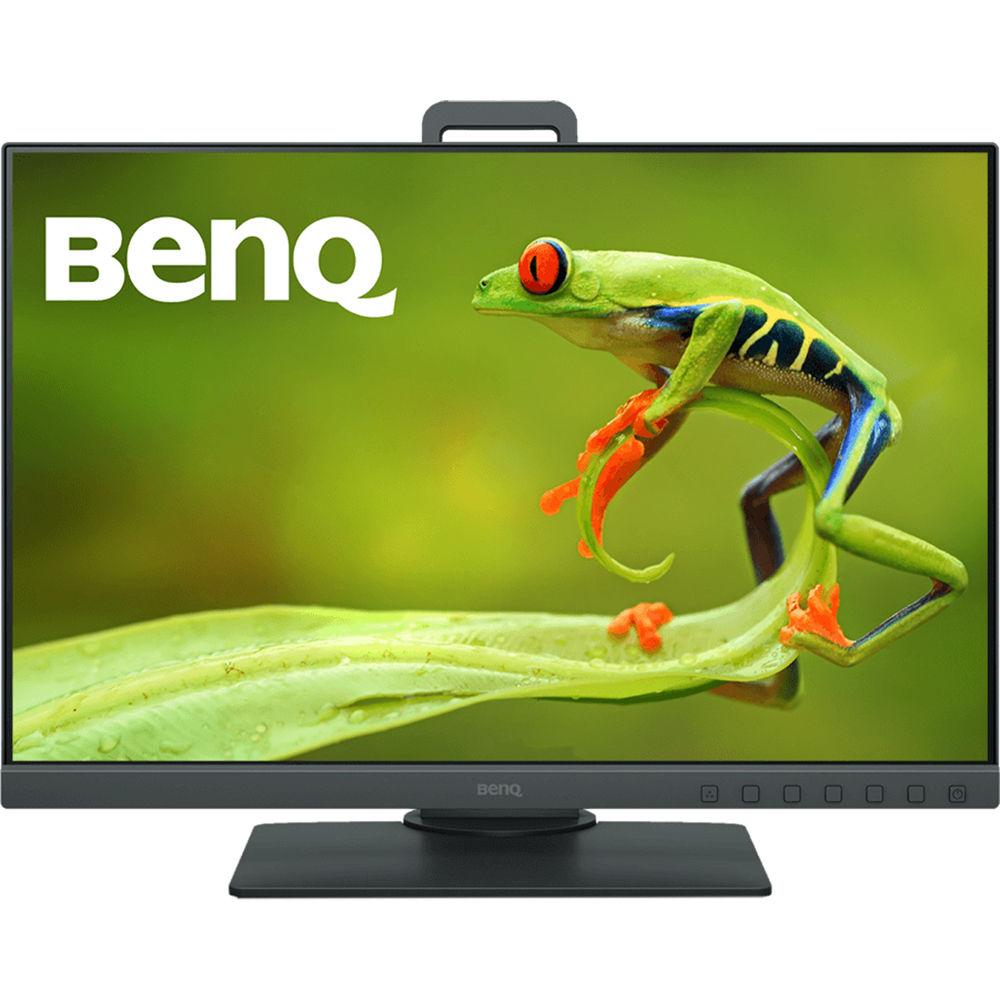

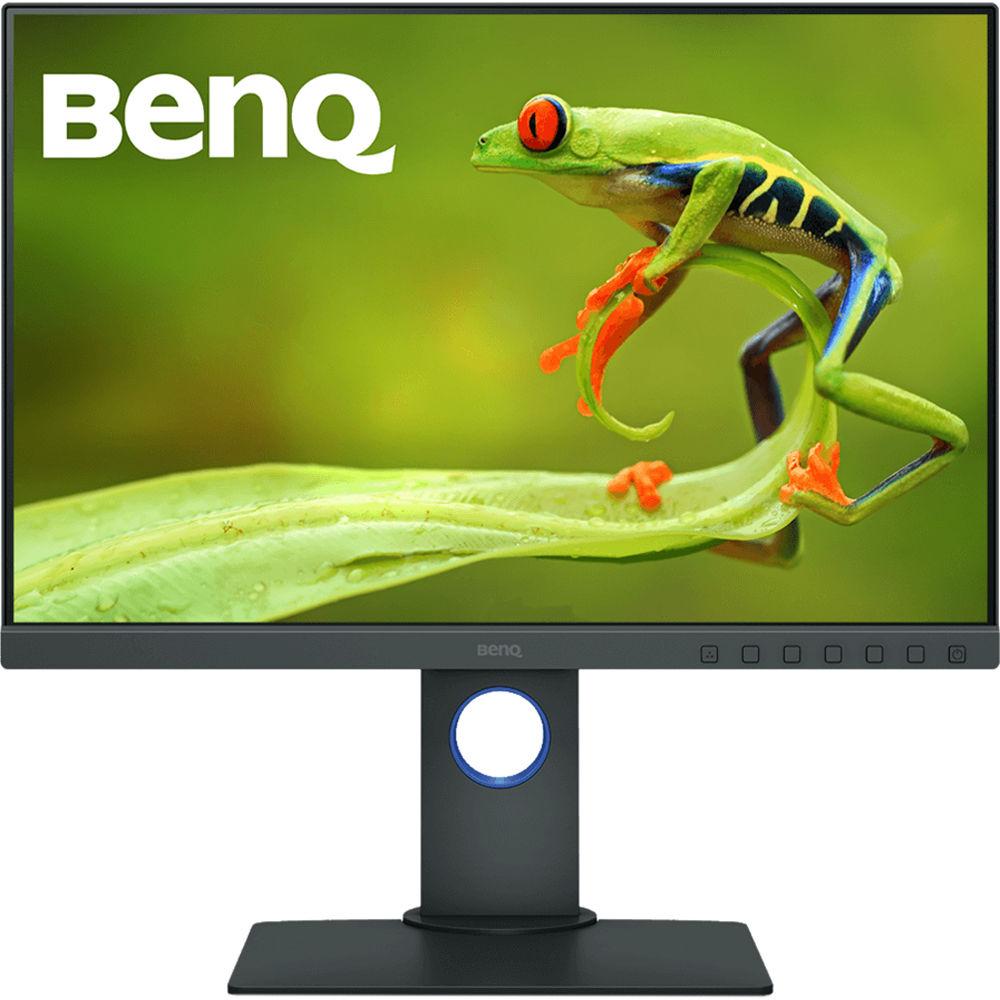

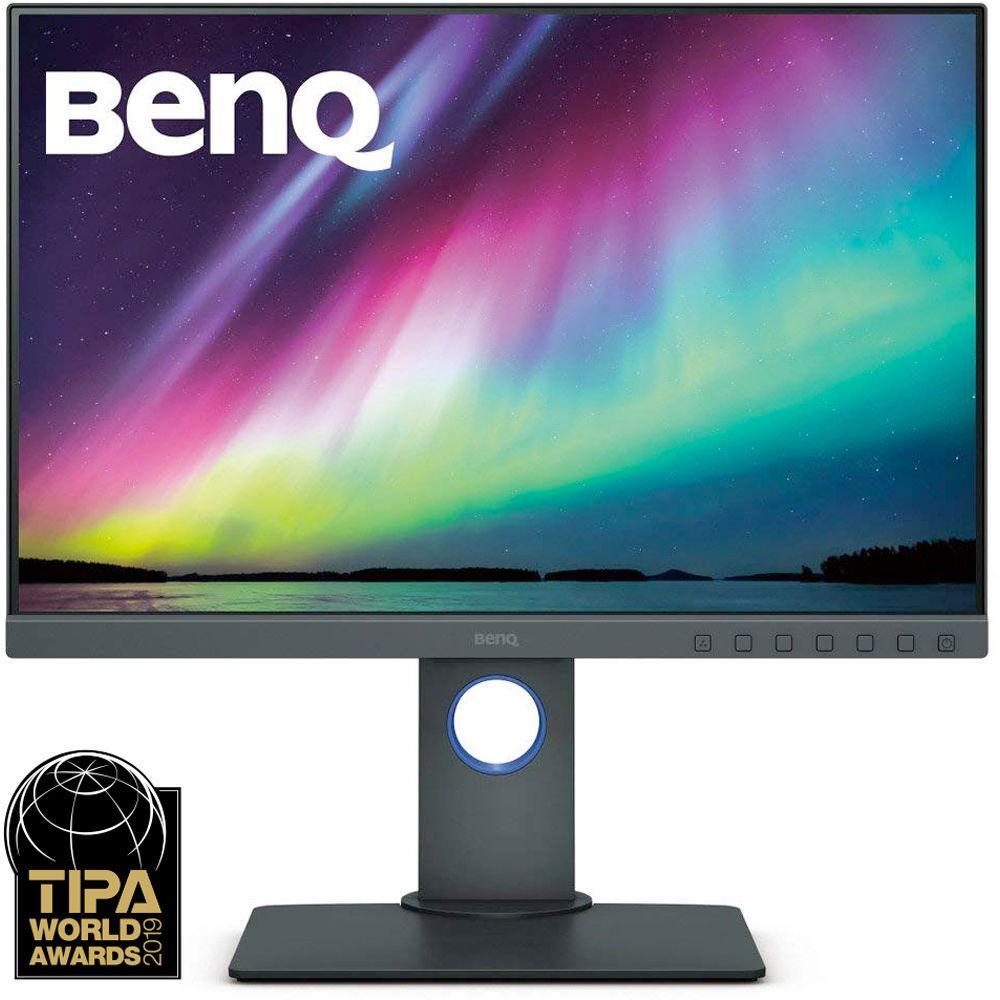

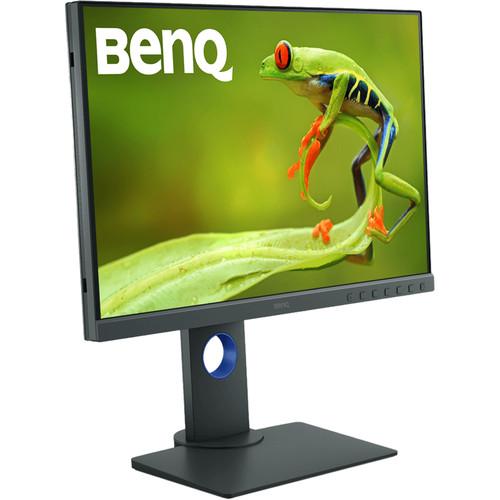

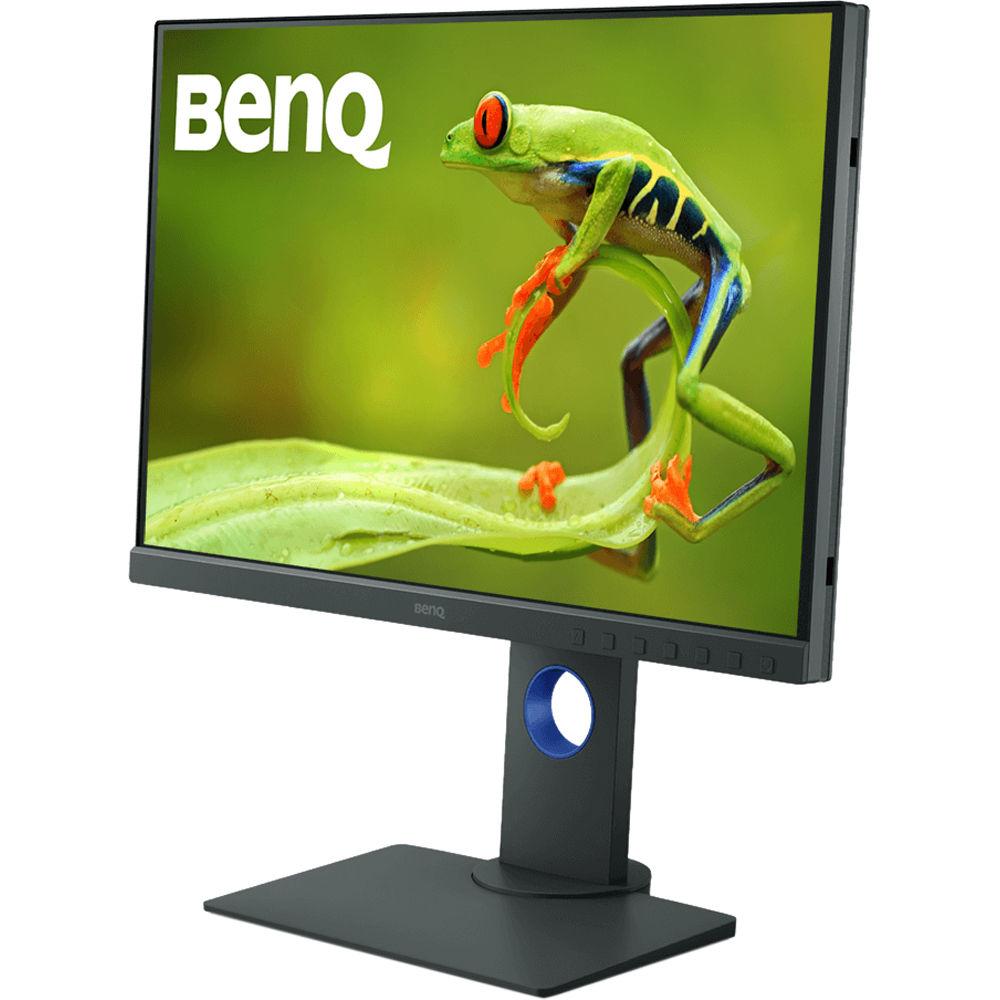

User Manual for BenQ SW240 24.1" 16:10 PhotoVue IPS Monitor Click to enlarge the picture
Contents of the user manual for the BenQ SW240 24.1" 16:10 PhotoVue IPS
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ SW240 24.1" 16:10 PhotoVue IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description BenQ Delivers Quality with SW240 Photography Monitor Read More dbrwawbbaxcztdcefvbufdbycsufbuzqrt Covering 99% of the Adobe RGB color space, the SW240 24.1" 16:10 PhotoVue IPS Monitor from BenQ provides a more color accurate viewing experience for a variety of graphic design tasks including outdoor and nature photography. In addition to covering 99% of the Adobe RGB color space, this monitor also comes equipped with a 14-bit 3D LUT and comes Delta E≤2 calibrated for true color representation. Not sure which color mode you want? The SW240 comes equipped with a dedicated hotkey making it easy to switch between black & white, sRGB, Adobe RGB, and other supported color modes.

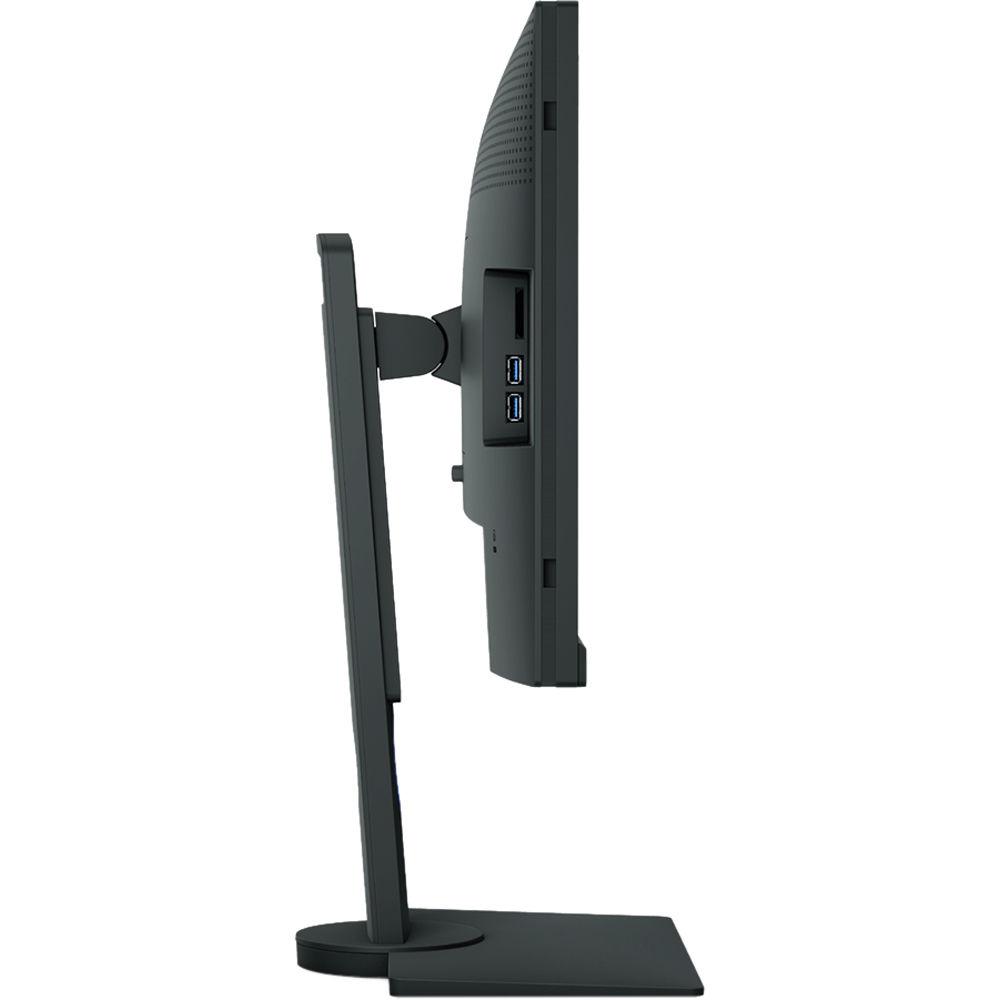

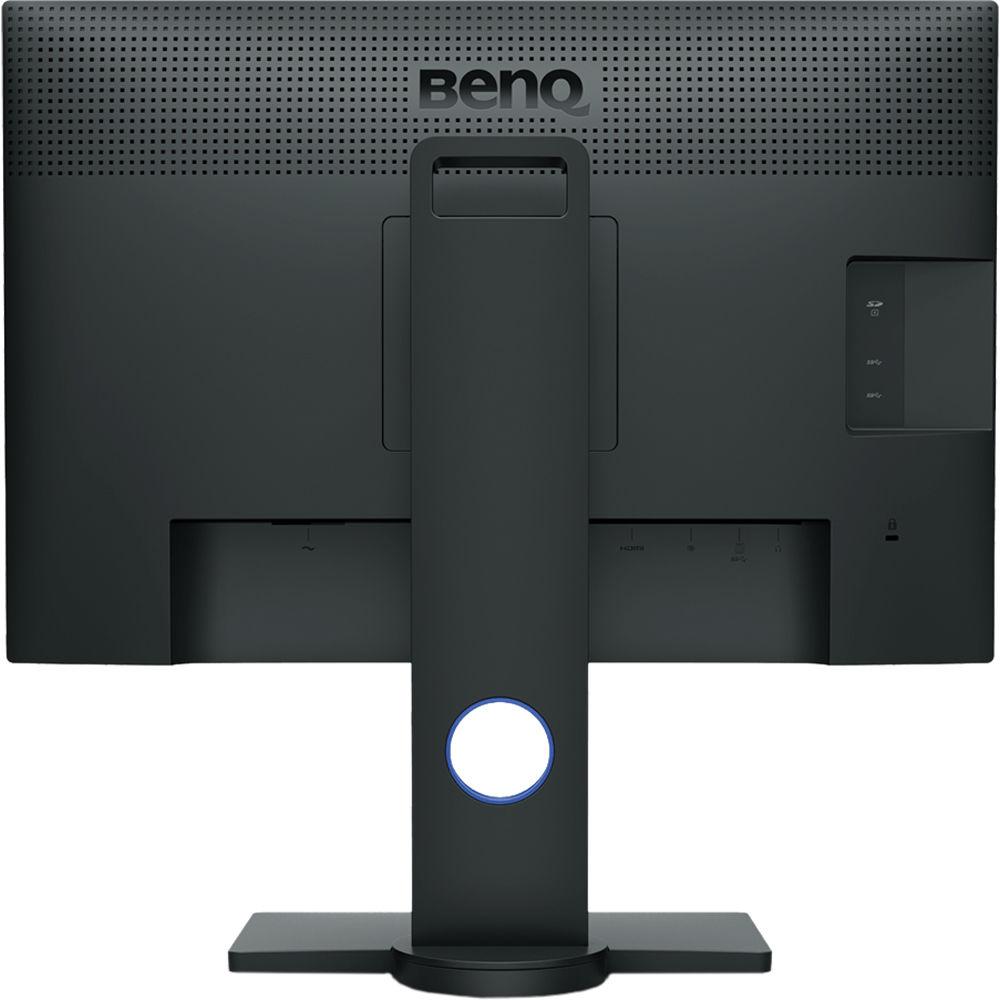

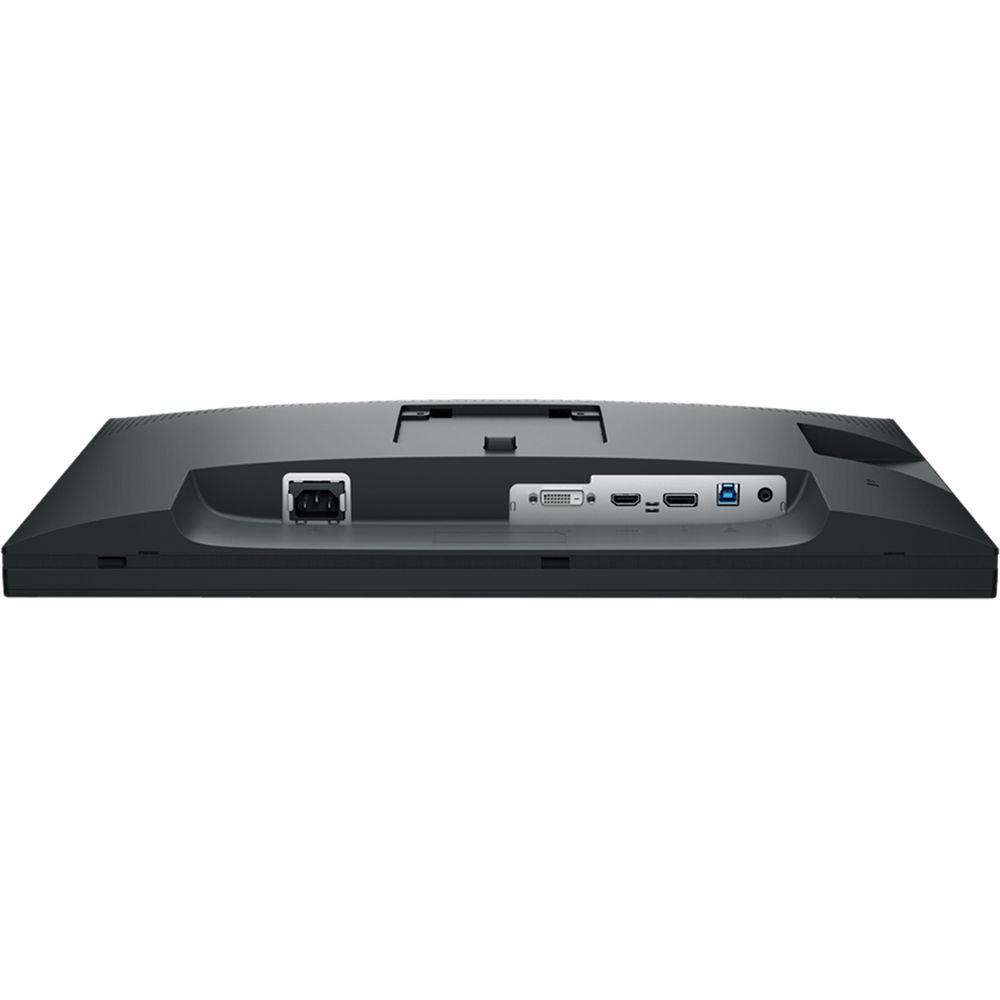

This IPS (In-Plane Switching) panel features a 1920 x 1200 resolution to provide extra screen space so you can get more done. Along with the enhanced resolution, this monitor also features a 1000:1 contrast ratio, a 250 cd/m² brightness rating, a 5 ms response time, and support for up to 1.07 billion colors. Setup is simple thanks to HDMI, DVI-DL, and DisplayPort inputs as well as a dedicated USB 3.0 hub to connect USB compatible peripherals directly to the display. Once configured, the display can be maneuvered into place by tilting, swiveling, pivoting, and adjusting the height of the display to take full advantage of the 178° horizontal and vertical viewing angles. - 99% Adobe RGB
- The Adobe RGB color space offers a greater range of color reproduction for shades of blue and green, resulting in a more realistic color representation for outdoor and nature photography.
- 10-Bit Color Display
- Enjoy smooth color gradations on a 10-bit display which shows more than one billion colors.
- 14-Bit 3D LUT and Delta E ≤ 2
- The 14-bit 3D Look Up Table (LUT) improves RGB color blending accuracy, resulting in improved color reproduction. Having Delta E≤2 in both Adobe RGB and sRGB color spaces gives you a true and representative view of the original image.
- Hardware Calibration
- Hardware calibration allows you to adjust the image processing chip in the monitor without changing the graphics card output data. It keeps images consistent with its original copies without being affected by graphic settings.
- Palette Master Element Calibration Software
- With the use of Palette Master Element and a calibrator, you can tune and maintain the color performance of the monitor at its most optimal state.
- Extra Space for Viewing Convenience
- Enjoy the extra space offered by the SW240's 24.1" 1920 x 1200 screen size with 16:10 ratio - perfect for professional photographers, or just daily usage. The SW240's slightly larger size is perfect for viewing two full A4 sized documents side by side, allowing photographers to compare the content at a glance.
- Color Mode HotKey
- The SW240's inbuilt Color Mode HotKey allows you to swiftly switch between 3 preset color modes without having to press other OSD buttons. And you can also customize your preferred preset modes based on your own personal display needs by pressing the HotKey for 5 seconds.
- Advanced Black & White Mode
- View your photos in a black and white film effect. Choose from three different black and white presets to preview your photos in before you perform actual adjustments in your photo processing program.
- Shading Hood
- A detachable shading hood is available as an optional accessory for SW240 which can effectively reduce the monitor's screen glare resulting from ambient lighting, ensuring superb color accuracy required for professional work. The shading hood can be used for both portrait and landscape orientations.
- Caring for Your Eyes
- BenQ exclusive eye-care technologies reduce eye fatigue for user comfort, enhanced productivity, and workplace safety during extended use.
- Color Modes
- • Adobe RGB
• sRGB
• Rec 709
• DCI-P3
• B&W
• Darkroom
• DICOM
• Calibration 1
• Calibration 2
• Calibration 3
• Custom 1
• Custom 2 - Additional Features
- • Hardware calibration
• Video format support
• Darkroom mode
• Black level
• Factory calibration report
• Color Temperature: 5000K, 6500K, 9300K, user mode UPC: 840046040000 In the Box BenQ SW240 24.1" 16:10 PhotoVue IPS Monitor Power Cable Mini-DisplayPort to DisplayPort Cable DVI-DL Cable USB 3.1 (Gen-1) Cable Limited 3-Year Warranty BenQ Targets Photographers with SW240 24" Adobe RGB Monitor Shawn C. Steiner 04/18/2018 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ SW240 24.1" 16:10 PhotoVue IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ SW240 Specs | | | Size | 24.1" | | Screen Area | 20.41 x 12.76" / 51.84 x 32.41 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 94 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 50 to 76 Hz | | Pixel Clock Frequency | 205 MHz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 14-Bit | | HDR Compatibility | None | | Color Gamut | 99% Adobe RGB
100% sRGB
95% DCI-P3 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 1 x DVI
1 x HDMI 1.4
1 x DisplayPort 1.2
2 x USB (USB 3.1 Gen 1) Output
1 x USB (USB 3.1 Gen 1) Input
1 x 3.5 mm Output | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | None | | Supported Languages | Arabic
Czech
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese | | | | Power Consumption | 55 W (Typical)
19.02 W (Eco)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Certifications | ENERGY STAR, as per Manufacturer | | | | Height Adjustment | 5.51" / 140 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.0 x 21.4 x 9.1" / 53.3 x 54.4 x 23.1 cm (With Stand)
21.0 x 14.0 x 2.2" / 53.3 x 35.6 x 5.6 cm (Without Stand) | | Weight | 16.75 lb / 7.6 kg (With Stand)
10.80 lb / 4.9 kg (Without Stand) | | | | Package Weight | 20.15 lb | | Box Dimensions (LxWxH) | 25.0 x 19.0 x 9.5" |
