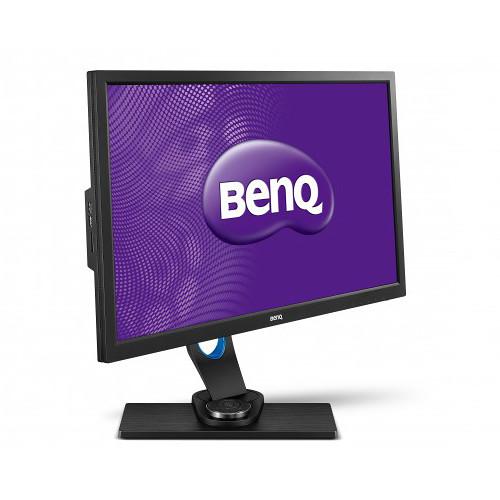

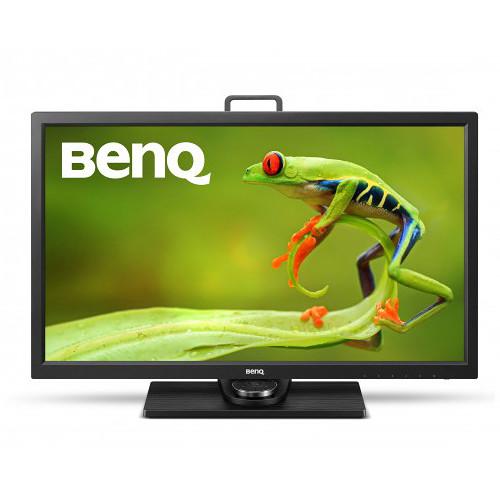

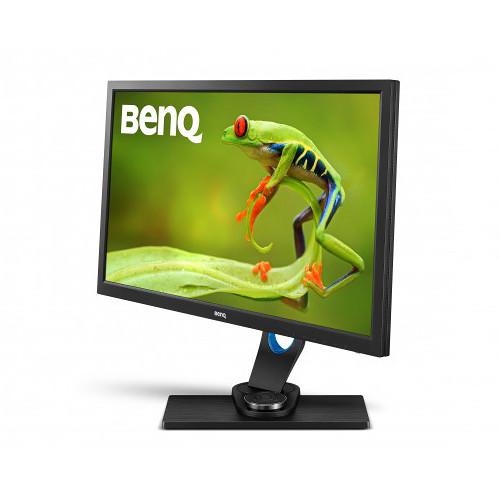

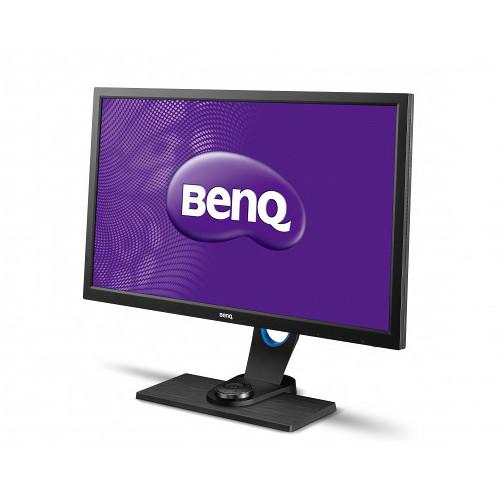

User Manual for BenQ SW2700PT 27" 16:9 Photographer IPS Monitor Click to enlarge the picture
Contents of the user manual for the BenQ SW2700PT 27" 16:9 Photographer IPS
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ SW2700PT 27" 16:9 Photographer IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|

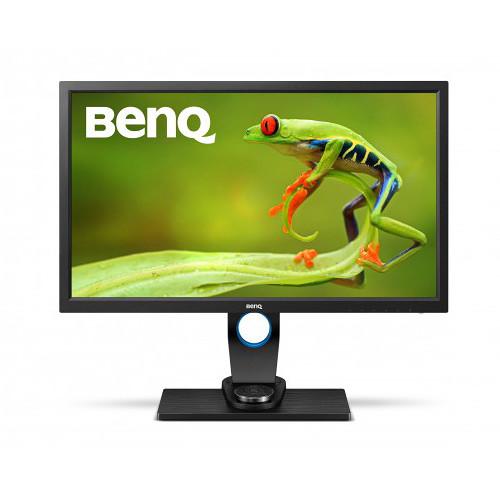

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More This SW2700PT 27" 16:9 Photographer IPS Monitor from BenQ features 99% coverage of the Adobe RGB color space and 100% coverage of the sRGB color space for more accurate color representation for various types of photography. Aiding in the enhanced color accuracy of this BenQ monitor is the ability to calibrate the internal image processing chip, eliminating the need to tweak the graphics card in most situations. You can also take advantage of proprietary calibration software to ensure your monitor maintains the color accuracy it had on day one.
The display of the SW2700PT features a 2560 x 1440 QHD resolution with 109 pixels per inch for increased clarity. In addition to the enhanced resolution, you benefit from a more dynamic picture with a 1000:1 contrast ratio, reduced lag with a 5 ms response time, and a larger color palette with support for up to 1.07 billion colors. On the back of the monitor you will find DVI-DL, HDMI 1.4, and DisplayPort 1.2 inputs for easy setup. Once set up, you can easily configure the display with intuitive OSD controls and even attach the included shading hood to help block ambient light. General Features - Adobe RGB Wide Color Space
- Preserve the colors you captured to help ensure precious moments are remembered. BenQ Photographer Monitors' IPS technology and 99% Adobe RGB color space support provide solid color performance and superwide color range.
- 2K QHD Monitor
- With an increased resolution over Full HD displays, 2K QHD resolution delivers greater clarity of fine details and textures for visually intensive work with more perceptible quality in graphics, designs, and photos that human eyes can see.
- AQCOLOR Technology
- Devoted to meet the latest professional color standard, BenQ has developed AQCOLOR technology to uphold the concept of "Accurate Reproduction." BenQ has invited a color expert to lead the team, and also actively participated in ICC (International Color Consortium) and ISO (International Standard Organization) to establish color-related standards and implementation.
- Enrich Your Palette with 99% Adobe RGB
- Fully visualize the true colors of nature. Adobe RGB color space offers a far greater range of color reproduction for shades of blue and green, resulting in a more realistic color representation for outdoor and nature photography. With 10-bit panels producing over one billion colors for natural color transitions and subtle shading, the SW2700PT renders the silky smoothest gradations.
- 14-Bit 3D LUT and Delta E ≤ 2
- The 14-bit 3D look up table (LUT) improves RGB color blending accuracy, resulting in improved color reproduction. Precise Delta E ≤ 2 in both Adobe RGB and sRGB color spaces renders a true and representative view of the original image.
- Hardware Calibration
- Hardware calibration allows you to adjust the image processing chip in the monitor without changing the graphic card output data. It keeps images consistent with its original copies without being affected by graphic settings.
- Palette Master Element Calibration Software
- With the use of Palette Master Element and a calibrator, you can tune and maintain the color performance of the monitor at its most optimal state.
- Professionally Factory Calibrated for Exacting Color Accuracy
- Each BenQ Photographer Monitor is individually factory-calibrated upon production to help assure precise Delta-E and Gamma performance. Achieving an average Delta E ≤ 2 in both Adobe RGB & sRGB color spaces, calibration results are validated against industry color standards to deliver a true and representative view of original content.
- OSD Controller
- The OSD controller is a remote controller that comes with three preset buttons, each set up with a customized display setting such as photo editing, entertainment, or web surfing. This allows you to switch between the presets without going through settings. The OSD controller also comes with a button for quick OSD navigation and setting.
- Black-and-White Mode
- With a simple click of a button, you can preview color photos in black-and-white before adding the actual effect.
- Hotkey Puck
- Hotkey Puck lets you switch between Adobe RGB, sRGB, and Black & White modes effortlessly. The buttons can also be customized to map other modes or OSD settings, such as brightness and contrast to bring added convenience to photographers.

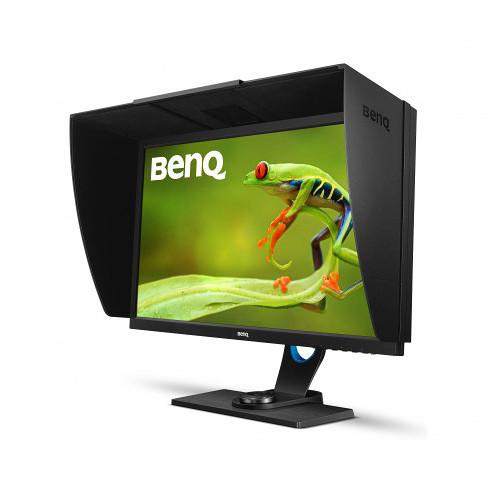

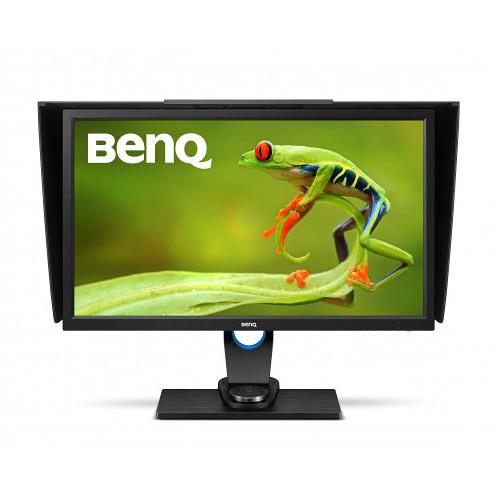

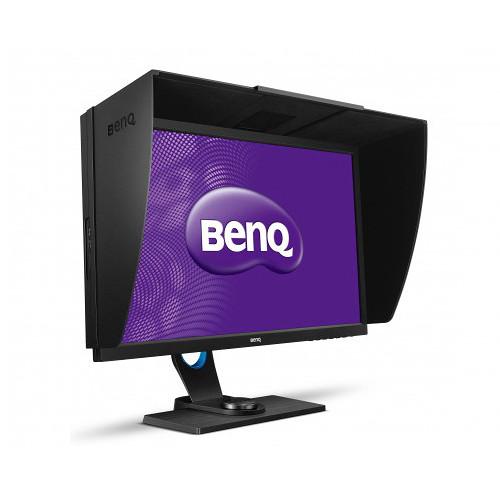

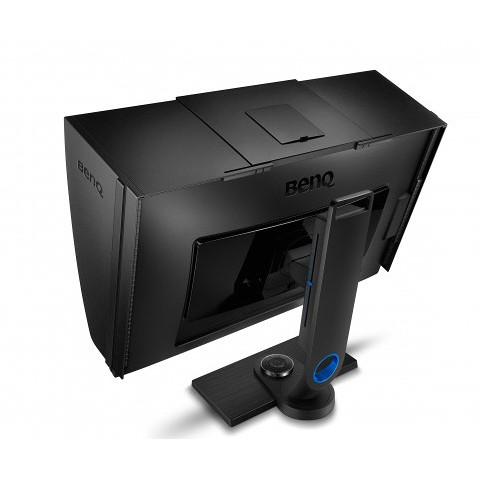

- Shading Hood

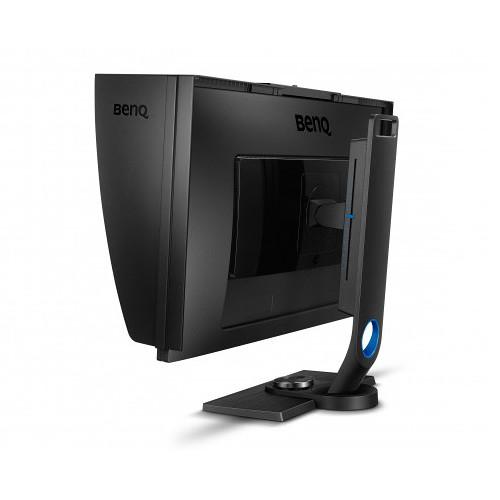

- The SW2700PT includes a detachable shading hood that effectively reduces screen glare from ambient lighting, ensuring levels of color accuracy that are required for professional work.
- Eye-Care Technology
- BenQ eye-care technologies reduce eye fatigue for user comfort, enhanced productivity, and workplace safety during extended use.
UPC: 840046032890 In the Box BenQ SW2700PT 27" 16:9 Photographer IPS Monitor Monitor Hood Monitor Stand Monitor Base Power Cord Dual-Link DVI Cable (5.9' / 1.8m) DisplayPort to Mini DisplayPort Cable (5.9' / 1.8m) USB 3.0 Cable (5.9' / 1.8m) OSD Controller Limited 3-Year Parts & Labor Warranty User Manual PDF 7.6mb More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ SW2700PT 27" 16:9 Photographer IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ SW2700PT Specs | | | Size | 27" | | Screen Area | 23.49 x 13.21" / 596.7 x 335.6 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 89 kHz | | Vertical Frequency | 50 to 76 Hz | | Look-Up Table | 14-Bit | | Color Gamut | 99% Adobe RGB
100% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2331 x 0.2331 mm | | | | Connectivity | 1 x DisplayPort 1.2
1 x HDMI 1.4
1 x DVI-D
1 x 3.5 mm Output
1 x USB Type-B Input
2 x USB Type-A (USB 3.1 Gen 1) Output | | HDCP Support | Yes, Version 1.4 | | Memory Card Slots | 1 x SDXC/MMCplus Hybrid | | Supported Languages | Croatian
Czech
Dutch
English
French
German
Hungarian
Italian
Japanese
Polish
Portuguese
Romanian
Russian
Serbian
Simplified Chinese
Spanish
Swedish
Traditional Chinese | | | | Power Consumption | 36.7 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Certifications | ENERGY STAR, as per Manufacturer | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 90° (-45 to 45°) | | Swivel Adjustment | 70° (-35 to 35°) | | Tilt Adjustment | -3.5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 25.1 x 21.8 x 15.1" / 638.8 x 553.0 x 383.4 mm (With Stand)
25.1 x 15.1 x 2.5" / 638.8 x 383.4 x 64.1 mm (Without Stand) | | Weight | 18.30 lb / 8.3 kg (With Stand)
13.01 lb / 5.9 kg (Without Stand) | | | | Package Weight | 27.2 lb | | Box Dimensions (LxWxH) | 27.5 x 20.0 x 10.5" |
