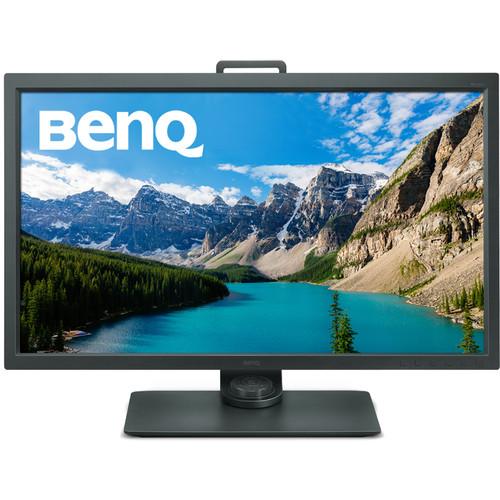

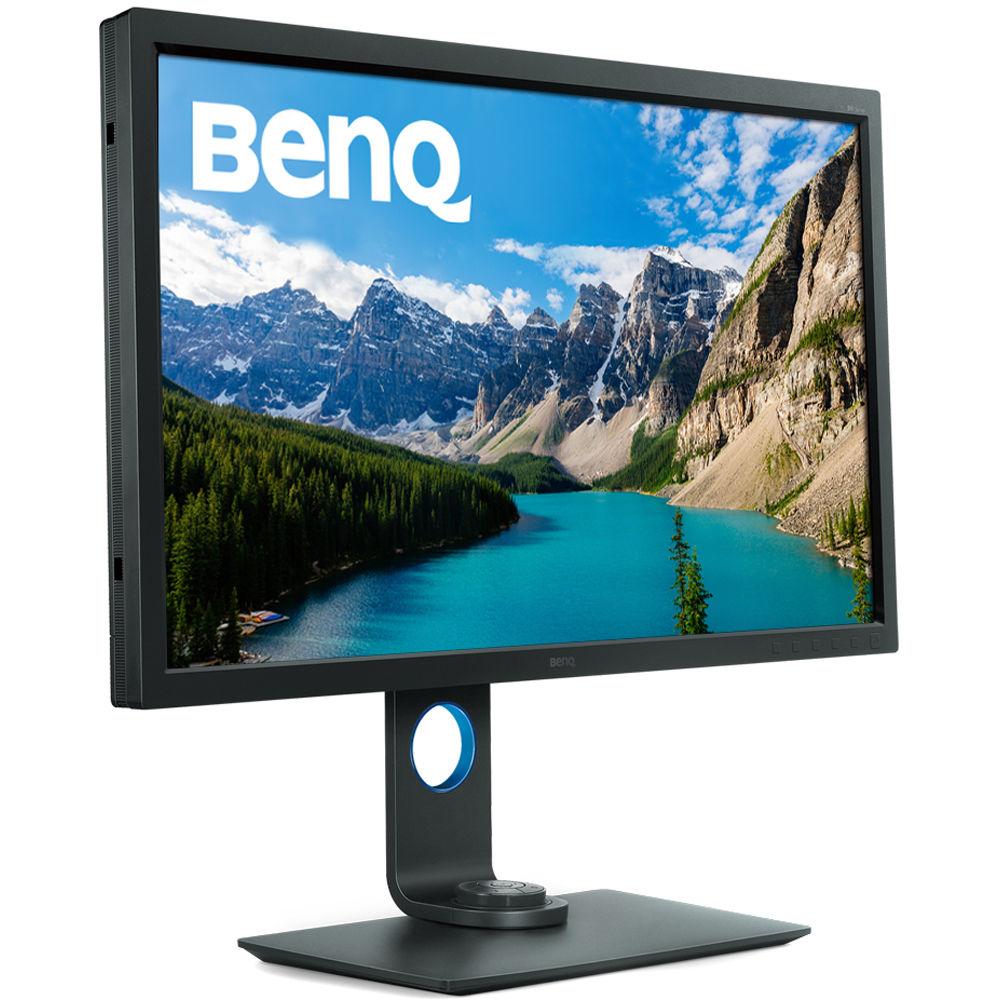

User Manual for BenQ SW320 31.5" 16:9 4K Photographer IPS Monitor Click to enlarge the picture
Contents of the user manual for the BenQ SW320 31.5" 16:9 4K Photographer
- Product category: Computer Monitors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Computer Monitors
 |
User manual for the BenQ SW320 31.5" 16:9 4K Photographer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Covering 99% of the Adobe RGB color space and 100% of the sRGB color space, the SW320 31.5" 16:9 4K Photographer IPS Monitor from BenQ is designed to offer enhanced color clarity for a more accurate color representation. In addition to enhanced color accuracy, the BenQ SW320 also features HDR10 (High Dynamic Range) for a greater range of luminosity along with brightness uniformity designed to ensure the display is equally bright from corner to corner.
Keeping colors of the monitor in check is a necessary function of any color accurate monitor and this BenQ display comes equipped with a built-in hardware calibration chip that operates on its own. As a result, colors aren't affected by the computers graphics card. Users can also use a variety of display calibration sensors, including sensors from X-Rite and Datacolor, to tweak color settings to suit the needs of various color accurate tasks.
Setup and configuration of the BenQ SW320 is simple as it comes equipped with HDMI 2.0, DisplayPort 1.4, and Mini DisplayPort 1.4 inputs. Once configured, users can take advantage of the UHD 4K 3840 x 2160 resolution along with a 1000:1 contrast ratio, 350 cd/m² brightness rating, and a 5 ms response time for a clear, dynamic picture quality. The SW320 comes with a shading hood and supports 178° horizontal and vertical viewing angles to ensure the display remains consistent from nearly any angle. General Features - 4K UHD Monitor
- With 4K Ultra HD resolution users benefit from enhanced clarity and fine details and textures for an optimal viewing and visual-intensive work experience.
- 99% Adobe RGB
- Adobe RGB color space offers a greater range of color reproduction for shades of blue and green, resulting in a more realistic color representation for outdoor and nature photography.
- 10-Bit Color Display
- Enjoy smooth color gradations on a 10-bit display, which shows more than one billion colors.
- High Dynamic Range (HDR)
- High Dynamic Range (HDR) increases the overall dynamic range between black and white so the resulting image appears closer to what your eyes see in the natural world.
Please note, to view HDR content from your device, ensure that you use the HDMI cable provided with the SW320 monitor or a High Speed HDMI Cable or Premium High Speed HDMI Certified Cable - Brightness Uniformity
- Brightness uniformity is achieved through a delicate process involving the utilization of high precision apparatus to meticulously fine-tune hundreds of sub-regions on the entire screen. It offers a more authentic and consistent viewing experience
- 14-Bit 3D LUT & Delta E ≦ 2
- The 14-bit 3D Look Up Table (LUT) improves RGB color blending accuracy, resulting in improved color reproduction. Having Delta E≤2 in both Adobe RGB and sRGB color spaces gives you the truest and most representative view of the original image.
- Hardware Calibration
- Hardware calibration allows you to adjust the image processing chip in the monitor without changing the graphics card output data. It keeps images consistent with its original copies without being affected by graphic settings.
- Palette Master Element Calibration Software
- With the use of Palette Master Element and a calibrator, you can tune and maintain the color performance of the monitor at its most optimal state.
*Supported Platforms: Win7 or above, Mac OS 10.6.8 or above
*Supported Calibrators: X-Rite i1 Display Pro / i1 Pro / i1 Pro 2 & Datacolor Spyder 4 / Spyder 5 - Advanced Black & White Mode
- View your photos in a black and white film effect. Choose from three different black and white presets to preview your photos in before you perform actual adjustments in your photo processing program.
- GamutDuo
- GamutDuo enables you to view content simultaneously in different color spaces side-by-side for added comparison. Switch to PIP/PBP mode to enable GamutDuo.

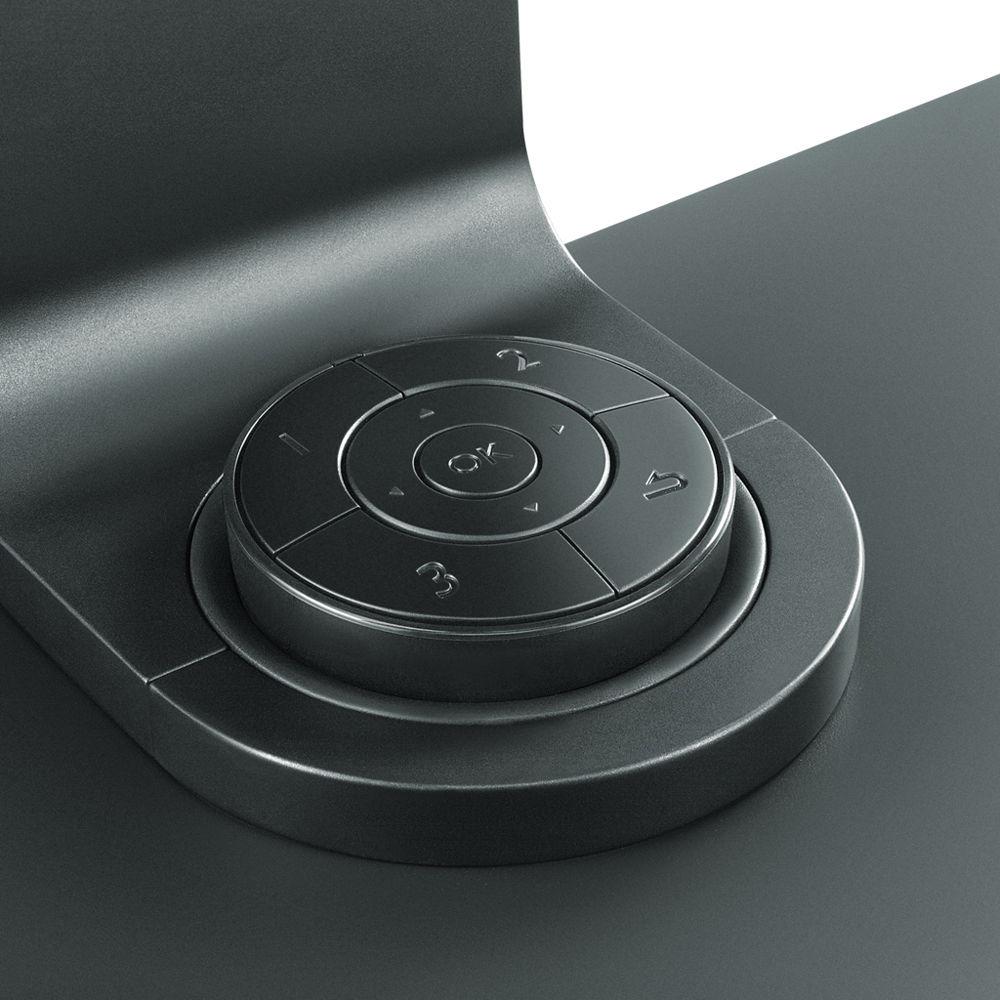

- Hotkey Puck
- The Hotkey Puck allows the user to switch between Adobe RGB mode, sRGB mode, and Black & White mode effortlessly. The buttons can also be customized to map other modes or OSD settings, such as brightness and contrast, to bring added convenience to photographers.

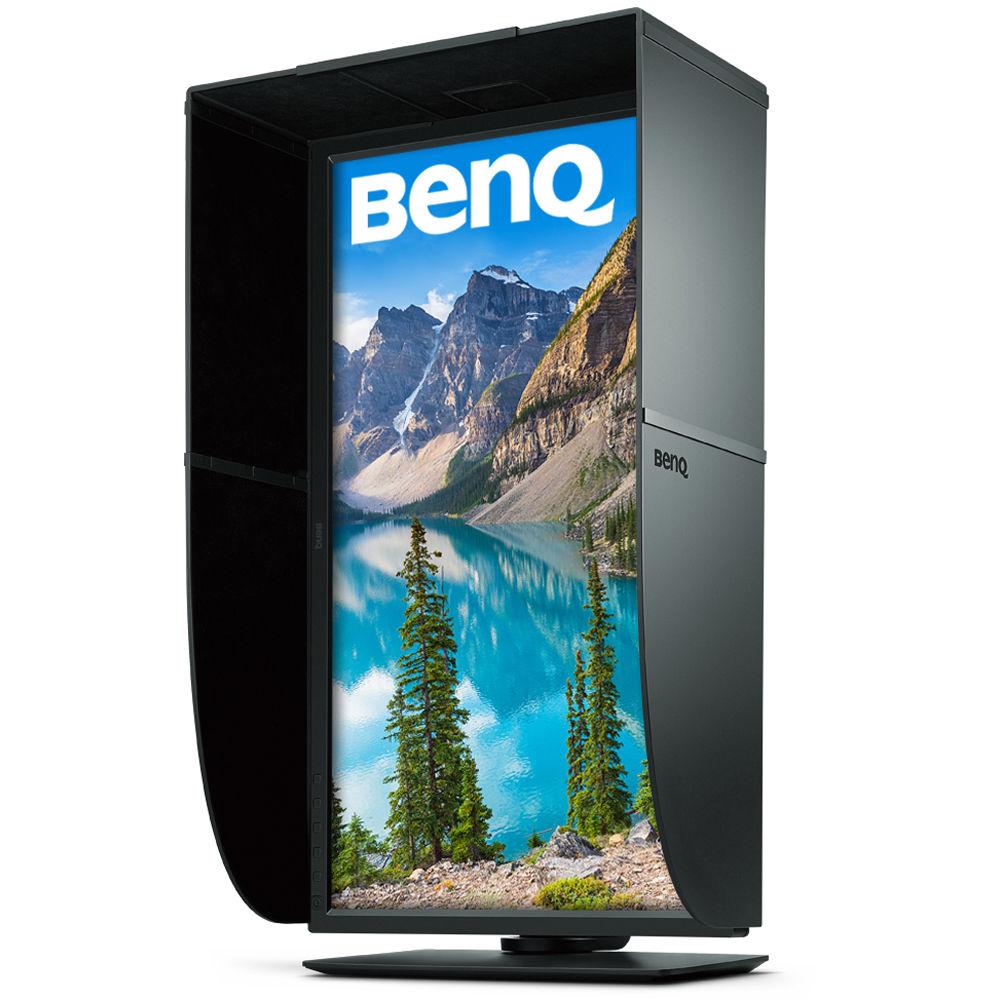

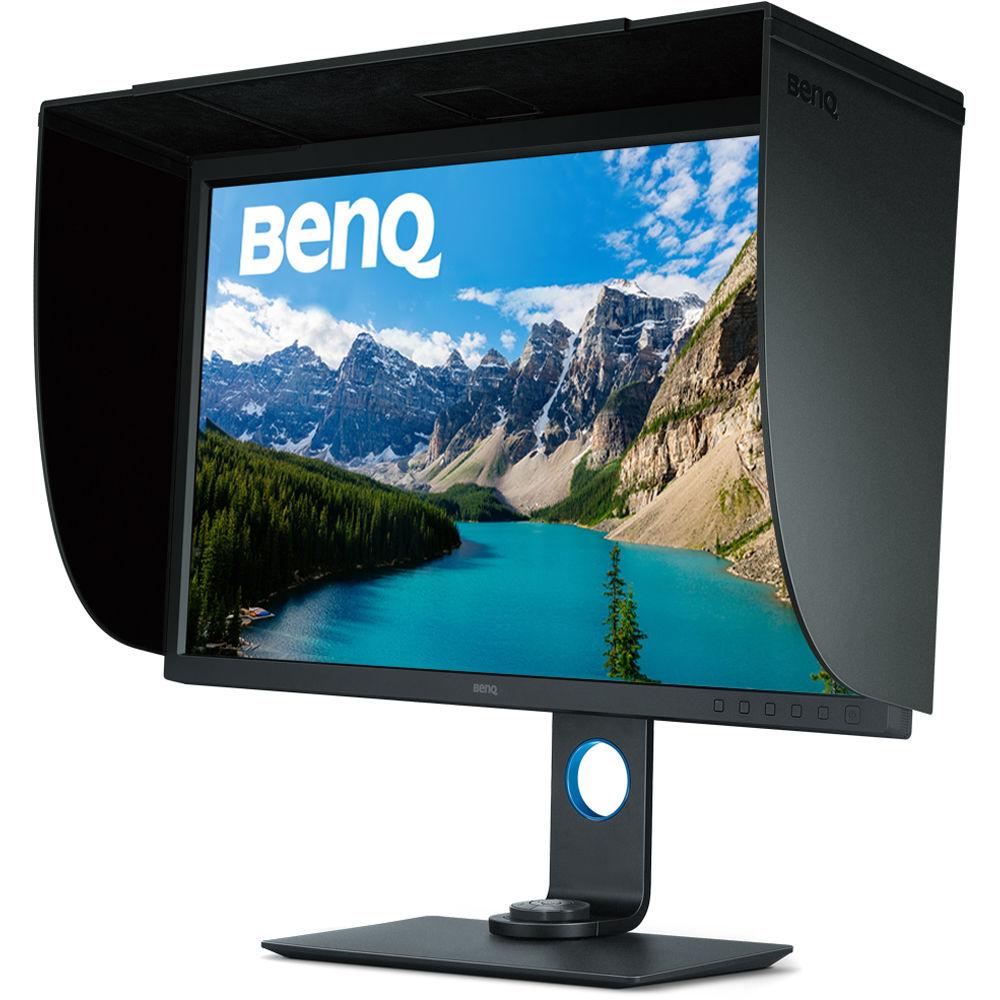

- Shading Hood
- The SW320 includes a detachable shading hood that effectively reduces the monitor's screen glare resulting from ambient lighting, ensuring superb color accuracy required for professional work. The shading hood can be used in both portrait and landscape orientations.
UPC: 840046035754 In the Box BenQ SW320 31.5" 16:9 4K Photographer IPS Monitor Mini DisplayPort to DisplayPort Cable (5.9' / 1.8m) HDMI Cable (5.9' / 1.8m) USB 3.0 Cable (5.9' / 1.8m) Power Cable (5.9' / 1.8m) Shading Hood Hotkey Puck Individual Calibration Report Limited 3-Year Parts & Labor Warranty User Manual PDF 8.2mb More info from BenQ Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ SW320 31.5" 16:9 4K Photographer IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ SW320 Specs | | | Size | 31.5" | | Screen Area | 27.48 x 15.46" / 697.92 x 392.58 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 140 ppi | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 140 kHz | | Vertical Frequency | 48 to 76 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 14-Bit | | HDR Compatibility | HDR10 | | Color Gamut | 100% sRGB
99% Adobe RGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°

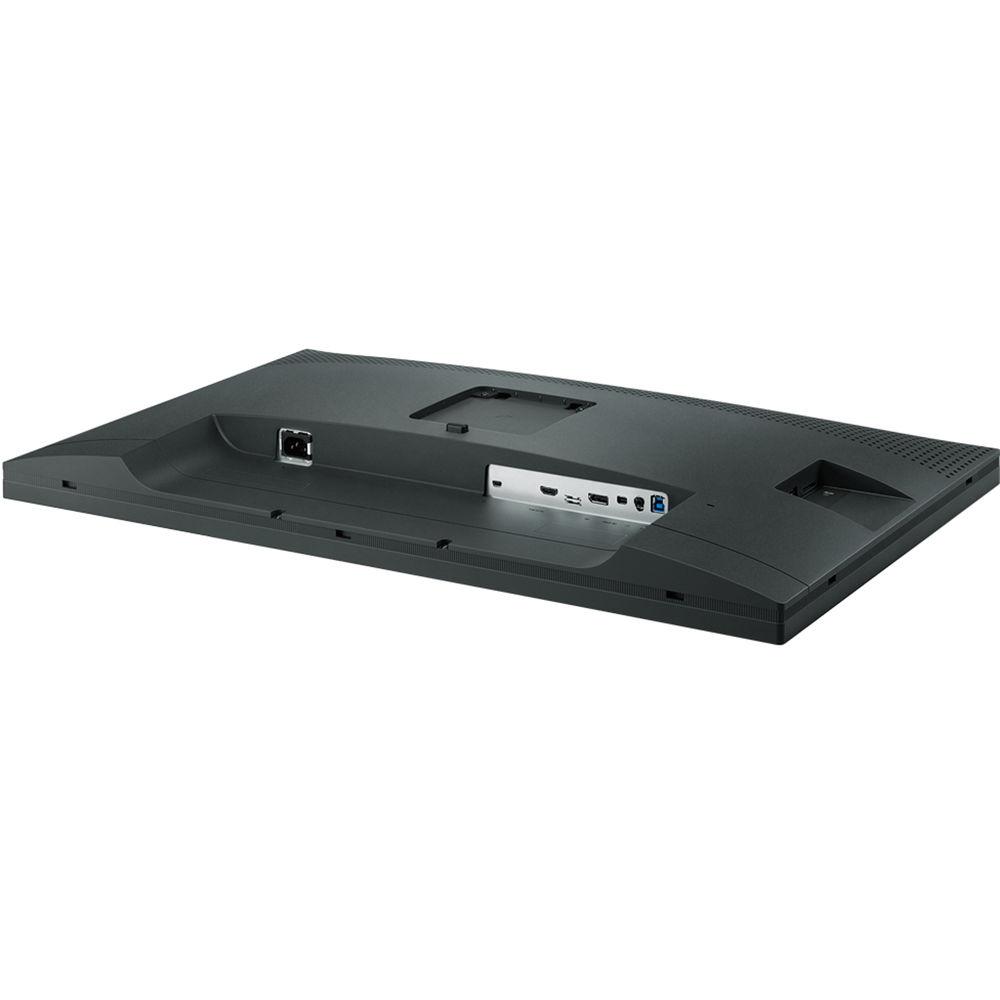

Vertical: 178° | | Dot Pitch | 0.182 x 0.182 mm | | | | Connectivity | 1 x DisplayPort 1.4
1 x Mini DisplayPort 1.4
1 x HDMI 2.0
2 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1)
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | Memory Card Slots | 1 x SDXC/MMCplus Hybrid | | Supported Languages | Arabic
Croatian
Czech
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Romanian
Russian
Serbian
Simplified Chinese
Spanish
Swedish
Traditional Chinese | | | | Power Consumption | 50 W (Typical)

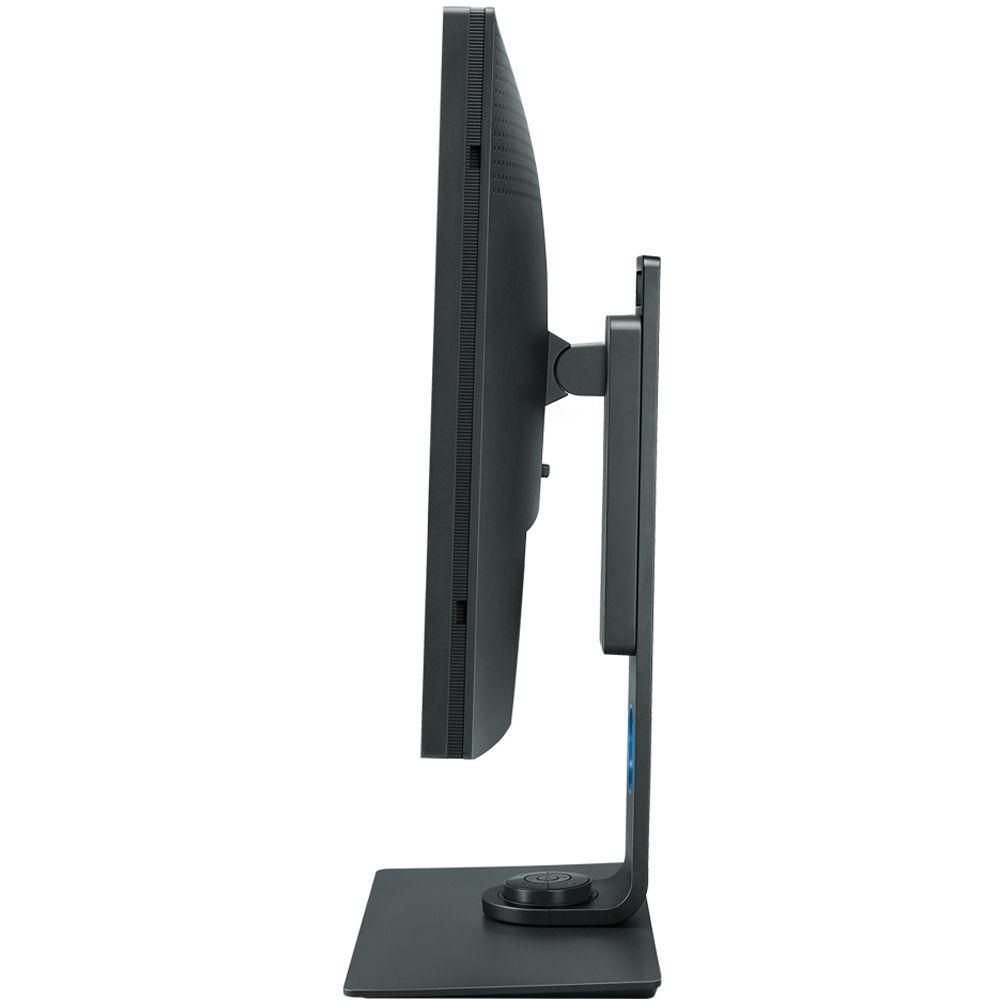

0.7 W (Standby) | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | | | Height Adjustment | 5.91" / 150 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | No | | Dimensions (W x H x D) | 29.4 x 25.7 x 8.8" / 747.2 x 652.3 x 223.6 mm (With Stand)
29.4 x 17.6 x 2.8" / 747.2 x 448.2 x 72.1 mm (Without Stand) | | Weight | 28.22 lb / 12.8 kg (With Stand)
22.7 lb / 10.3 kg (Without Stand) | | | | Package Weight | 45.5 lb | | Box Dimensions (LxWxH) | 34.2 x 23.8 x 14.6" |
