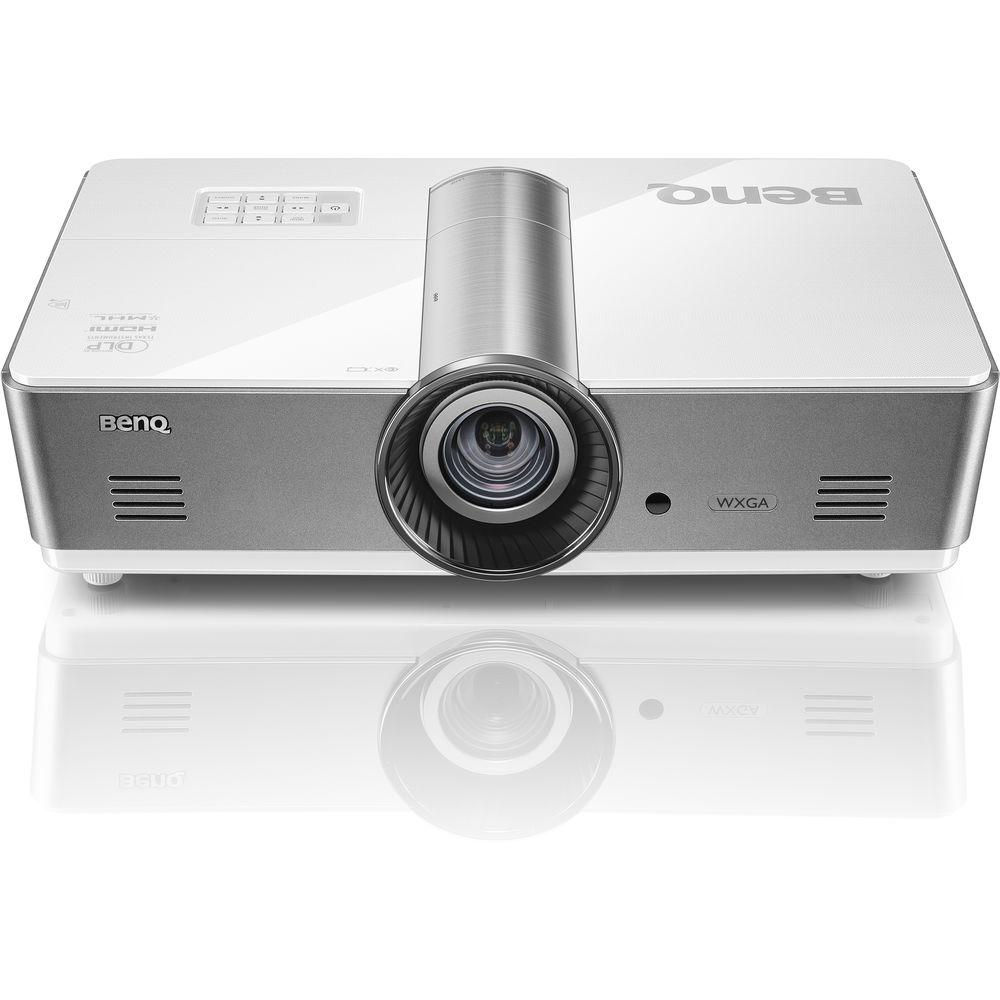

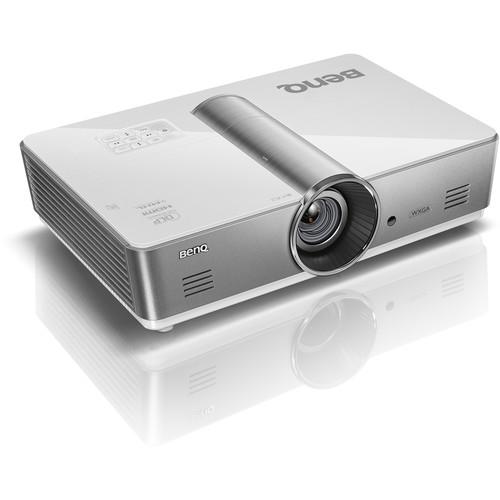

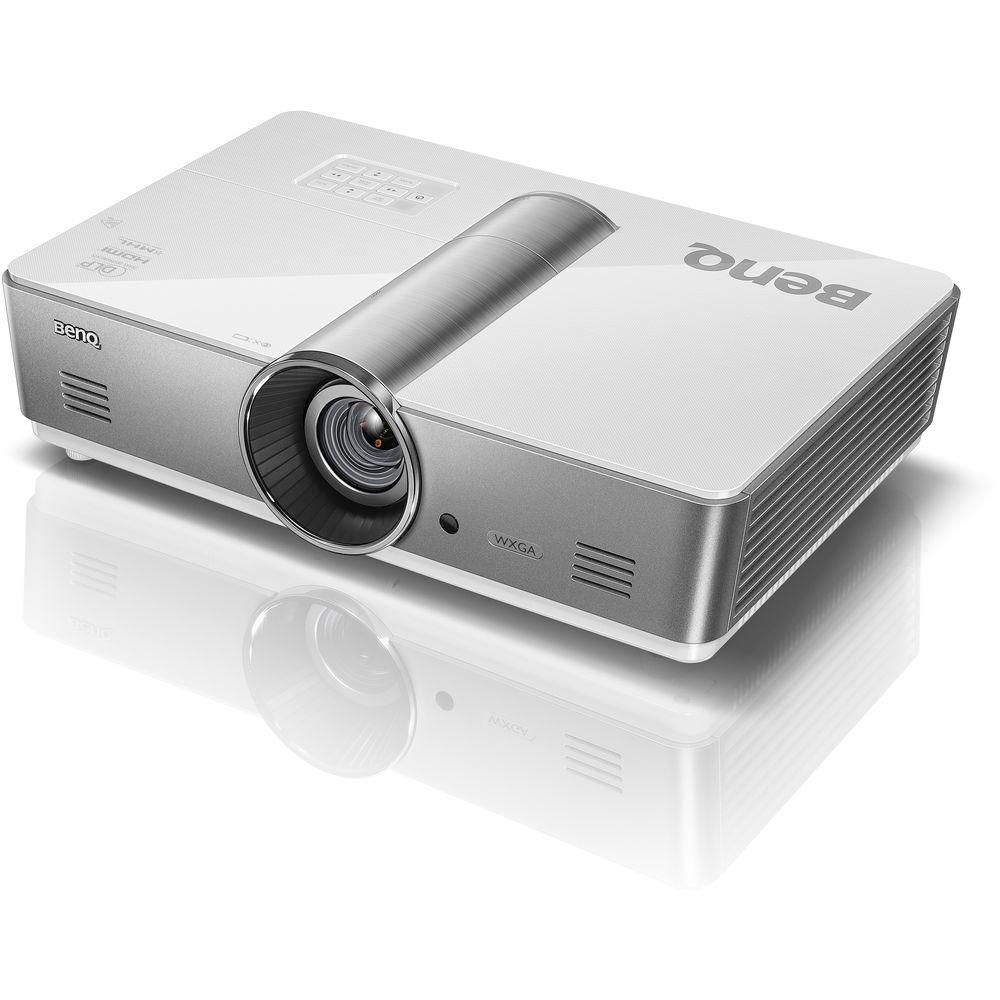

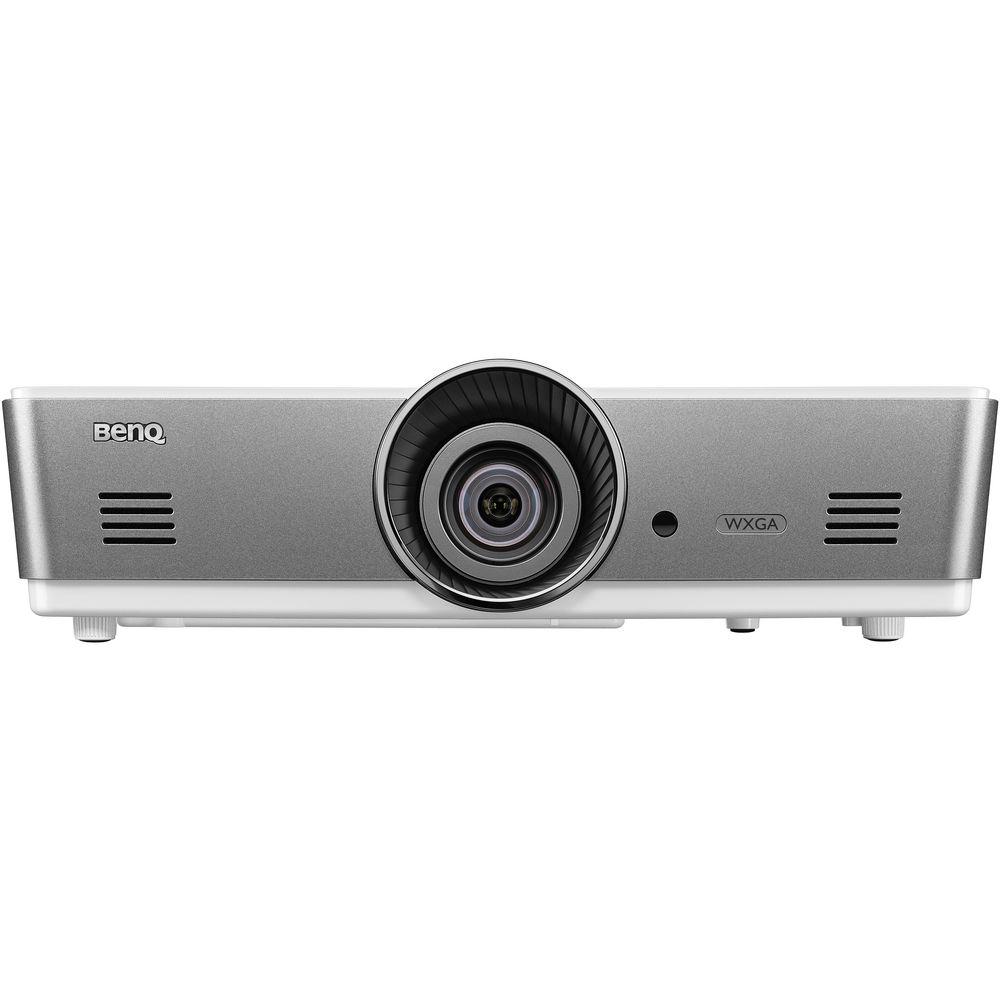

User Manual for BenQ SW921 5000-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the BenQ SW921 5000-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors BenQ
- Brand: BenQ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ Multimedia Projectors
 |
User manual for the BenQ SW921 5000-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ product will considerably shorten its lifespan!
|
Product description Designed for use in classrooms and conference rooms, the BenQ SW921 5000-Lumen WXGA DLP Projector has a native resolution of 1280 x 800 and a throw ratio ranging from 1.12 to 1.8:1. This long throw ratio makes it a viable option for larger rooms, or any situation where the projector must be set up far from the screen. It features VGA, RCA composite, S-Video, and two HDMI inputs to support most sources. One of the HDMI ports is MHL compatible for direct-wired connectivity and playback from mobile devices such as smartphones and tablets. The SW921 also has a VGA output for daisy chaining multiple projectors.
This projector has a pair of built-in 10W speakers, so external audio may not be necessary if your audience is close enough to the projector. The projector includes a VGA Cable and is controllable via Ethernet, RS-232, or the included IR remote. - Big Zoom 1.6X
- The projector's 1.6x zoom feature frees up space with a range of throw distances, giving you the flexibility of placing the projector without compromising your current decor.
- Vertical Lens Shift
- In case of any minor miscalculations during projector installation, the lens shift function can be used to adjust the position of the projected image to fit the projection screen without any sacrifice to image quality.
- Central Lens Design
- Unlike offset designs, the symmetrically centered lens design of the SW921 allows easier installation without special calculations or adjustments.
- 2D Keystone
- 2D keystone correction enhances installation flexibility by correcting the trapezoid effect via horizontal and vertical adjustments up to +/-30 degrees. With it, the projector can be placed off center and the presenter can stand in front of the screen without blocking the image. The projector can also be placed anywhere on a u-shaped tabletop without moving the table or putting a stand in the center.
- Corner Fit
- Corner fit is a flexible and convenient way to align the picture by adjusting each corner of an image independently.
- 5000 ANSI Lumens
- The high 5000-lumen brightness will allow your presentation to be viewed even in rooms where ambient light can't be controlled.
- High Contrast
- The 5000:1 contrast ratio is designed to ensure that every text, image, graph, chart, and video is projected clearly and sharply. This will help presenters to view their presentation files easily, and the audience to stay focused on the contents projected.
- LAN Control
- Designed to help IT managers perform day-to-day projector maintenance efficiently, LAN Control provides full access and control over networked projectors directly from IT workstations. The interface offers seamless support for Crestron, RoomView, and PJ-Link LAN control systems.
- Upper Lamp Door
- A quick-release lamp door offers easy lamp access without removing the projector from ceiling-mounted installations.
- MHL Connectivity
- MHL connectivity allows you to share your content from mobile devices on the big screen. Also, your device or dongle is charged while you're projecting from it, so you don't have to worry about battery life while presenting.
- Powered USB
- The USB port supplies power for wireless dongles to provide uninterrupted viewing.
- Accurate
- The SW921 produces realistic colors and vivid images by combining an interchangeable six-segment color wheel with DLP BrilliantColor Technology, achieving hard-to-match colors such as skin tones and accurate rendering of Rec.709 and sRGB standards.
- Long Lasting
- The micro-mirrors of the DLP chip and the nearly-sealed DLP engine design eliminate dust buildup and heat damage.
- Sharp Images
- The SW921 produces high sharpness for clear details and legible text by maximizing the fill ratio of individual pixels and employing SmartEco Technology.
UPC: 840046032661 In the Box BenQ SW921 5000-Lumen WXGA DLP Projector Remote Control with Battery VGA Cable Power Cord Limited 3-Year Warranty on Projector Limited 1-Year or 2000-Hour Warranty on Lamp More info from BenQ uvvutxas Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ SW921 5000-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ SW921 Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: UXGA - 1600 x 1200 | | Max Brightness | 5000 Lumens | | Offset | 105% ± 2.5% | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 5000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 24 to 120 Hz | | | | Lens | f/2.45 - 3.07 (f = 15.78 - 25.12 mm) | | Lens Shift | Vertical: + 2.5% | | Optical Zoom | 1.6x | | Throw Ratio | 1.12 - 1.8:1 | | Projection Size | 60 - 240" / 152.40 - 609.60 cm | | | | Keystone Correction | Vertical: ± 30°

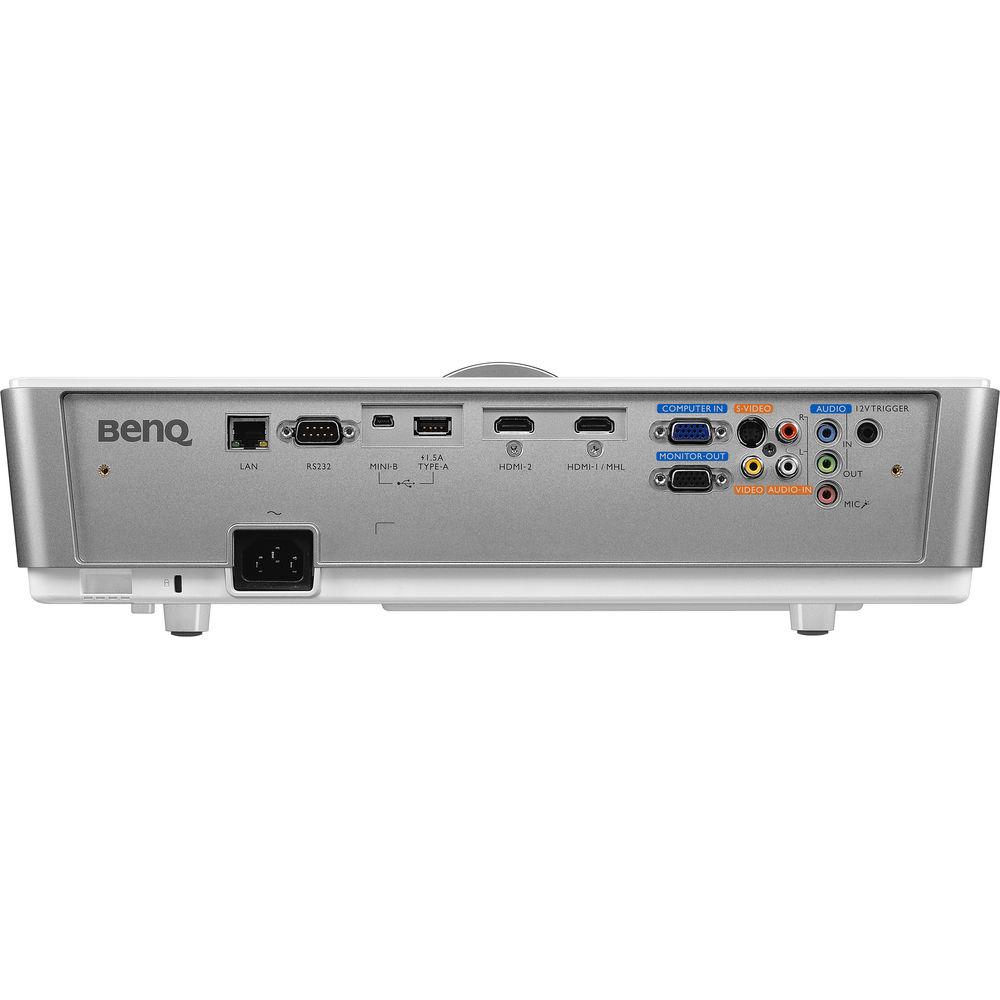

Horizontal: ± 30° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RCA Stereo (L/R) Audio (Input/Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) Control (Input)
1 x USB Type-A Female (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x 12 V Trigger Control (Output) | | | | Lamp Power | 370 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 2500 Hours | | Fan Noise | Medium Brightness: 36 dB
Low Brightness: 33 dB | | Supported Languages | Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 490 W
Standby Mode (Lamp Off): <6 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 16.2 x 4.7 x 10.5" / 411.4 x 118.4 x 267.5 mm | | Weight | 10.8 lb / 4.9 kg | | | | Package Weight | 15.55 lb | | Box Dimensions (LxWxH) | 23.0 x 15.5 x 8.5" |
