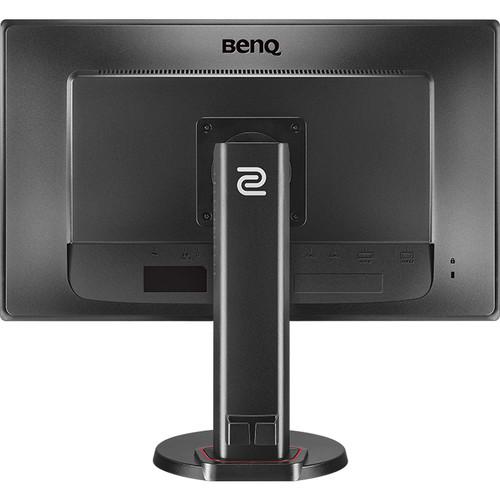

User Manual for BenQ ZOWIE RL2455TS 24" 16:9 LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the BenQ ZOWIE RL2455TS 24" 16:9 LCD
- Product category: Computer Monitors BenQ ZOWIE
- Brand: BenQ ZOWIE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ ZOWIE Computer Monitors
|
User manual for the BenQ ZOWIE RL2455TS 24" 16:9 LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ ZOWIE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ ZOWIE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ ZOWIE product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - BenQ ZOWIE RL-series Monitor - Instant Response Matters

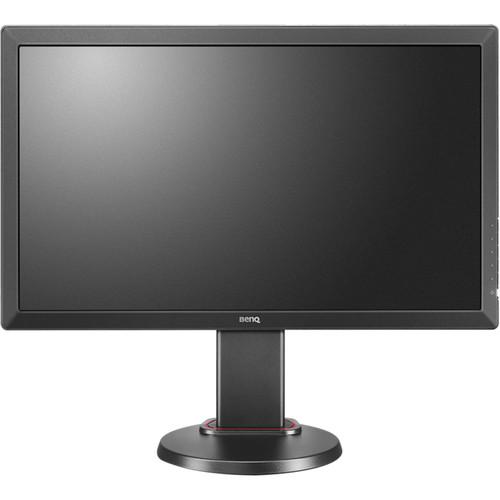

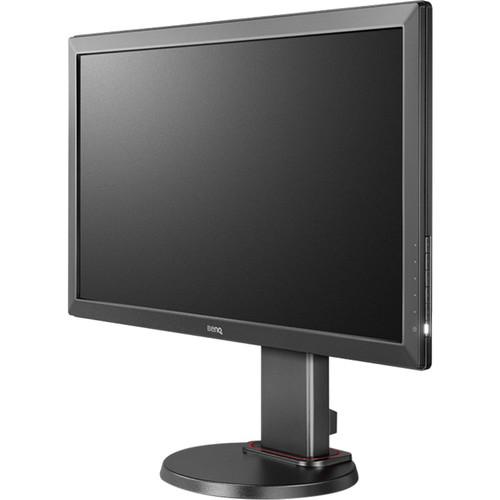

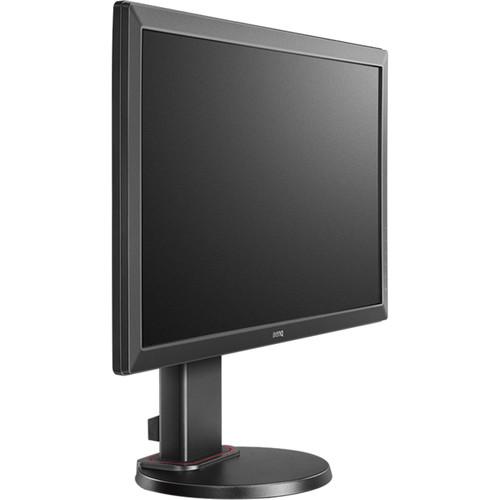

The ZOWIE RL2455TS 24" 16:9 LCD Gaming Monitor from BenQ is a gaming monitor designed for professional eSports tournaments as well as the everyday gamer. It features a Twisted Nematic (TN) panel that's able to provide a low 1 ms response time, ideal for fast-paced action scenes found in First-Person Shooters (FPS) and racing games. With a 1920 x 1080 resolution and a 75 Hz refresh rate, 60 Hz optimized for consoles, it delivers fluid Full HD entertainment. The ZOWIE RL2455TS also has a 250 cd/m² brightness rating and a 1000:1 static contrast ratio that offers darker blacks and brighter bright colors for an immersive viewing experience. Due to the brightness of the screen, there may be reflections on the bezel of some displays; however, BenQ has outfitted the RL2455TS with bezels that'll reduce reflections, so you can concentrate on the game. Connect this monitor to your system via VGA, DVI, or HDMI and then adjust it to your viewing preference. Otherwise use the 100 x 100mm VESA mounting holes on the back to install an alternate mount or stand. The RL2455TS is not only compatible with computers, but also supports game consoles such as the PS3, PS4, Xbox 360, Xbox One, Wii, and Wii U. - Color Vibrance
- Color Vibrance lets you adjust the saturation level of your display to help make picking out details easier.
- Enhanced Game Modes
- RL-series monitors are equipped with multiple game modes optimized for different scenarios such as First-Person Shooters (FPS) so you can swap to a better viewing experience at the press of a button.
- Black eQualizer
- Black eQualizer increases the visibility of dark scenes without overexposing the bright areas, so you'll be able to spot enemies hiding in the dark.

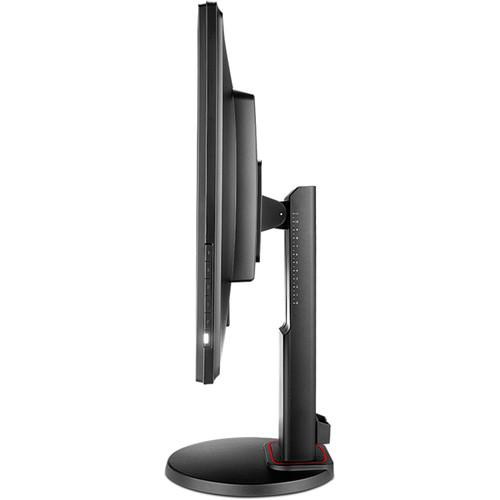

- Personalize Viewing Angles
- The Height Adjustable Stand allows you to adjust the height of the monitor to your preferred viewing angle easily, maximizing your comfort.
- Flicker-Free & Low Blue Light
- Flicker-free and low blue light technology help reduce eye strain, so you can game longer.
- Minimize Visual Distractions
- The RL series has a frame that reduces reflection from the screen, so you can keep your focus on the game.
UPC: 840046040710 In the Box BenQ ZOWIE RL2455TS 24" 16:9 LCD Gaming Monitor Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ ZOWIE RL2455TS 24" 16:9 LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ ZOWIE ZOWIE RL2455TS Specs | Size | 24" | Screen Area | 20.92 x 11.76" / 531.3 x 298.8 mm | Panel Type | TN LCD | Touchscreen | No | Resolution | 1920 x 1080 | Aspect Ratio | 16:9 | Pixels Per Inch (ppi) | 91 ppi | Maximum Brightness | 250 cd/m2 | Contrast Ratio | 1000:1 | Dynamic Contrast Ratio | 12,000,000:1 | Refresh Rate | 75 Hz | Adaptive Sync Technology | None | HDR Compatibility | None | Response Time | 1 ms (GtG) | Dot Pitch | 0.276 x 0.276 mm | | Connectivity | 1 x VGA 1 x DVI 2 x HDMI 1 x 3.5 mm Output | Built-In Speakers | Yes, 2 x 2 W | | Power Consumption | 23 W (Typical) | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | Power Adapter Type | Internal | | Height Adjustment | 4.33" / 110 mm | Rotation Adjustment | 90° | Swivel Adjustment | 90° (-45 to 45°) | Tilt Adjustment | -5 to 15° | Mounting-Hole Pattern | 100 x 100 mm | Dimensions (W x H x D) | 22.8 x 19.8 x 8.4" / 579.4 x 503.9 x 213.9 mm (With Stand) 22.8 x 13.8 x 2.5" / 579.0 x 350.0 x 63.0 mm (Without Stand) | Weight | 7.72 lb / 3.5 kg | | Package Weight | 17.25 lb | Box Dimensions (LxWxH) | 28.0 x 16.5 x 8.5" |
