User Manual for BenQ ZOWIE XL2740 27" 16:9 240 Hz LCD Monitor Click to enlarge the picture
Contents of the user manual for the BenQ ZOWIE XL2740 27" 16:9 240
- Product category: Computer Monitors BenQ ZOWIE
- Brand: BenQ ZOWIE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ ZOWIE Computer Monitors
 |
User manual for the BenQ ZOWIE XL2740 27" 16:9 240 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ ZOWIE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ ZOWIE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ ZOWIE product will considerably shorten its lifespan!
|

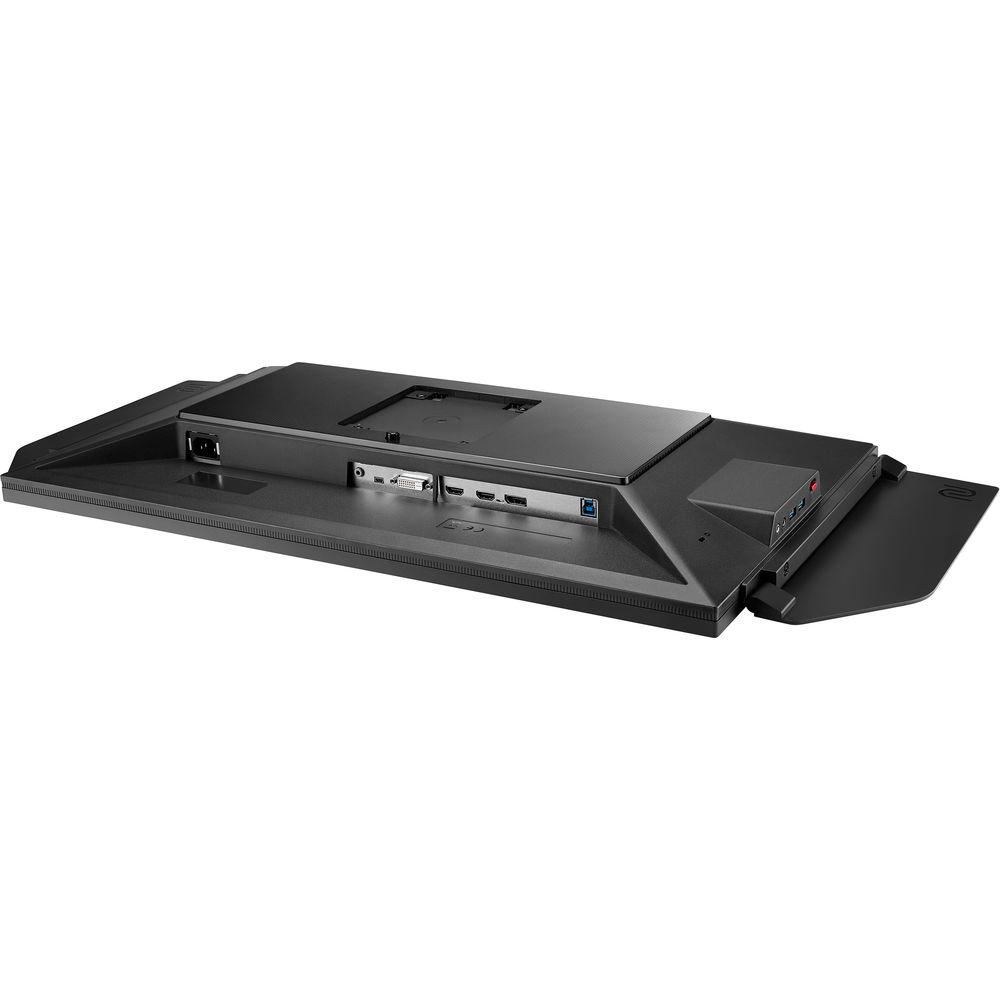

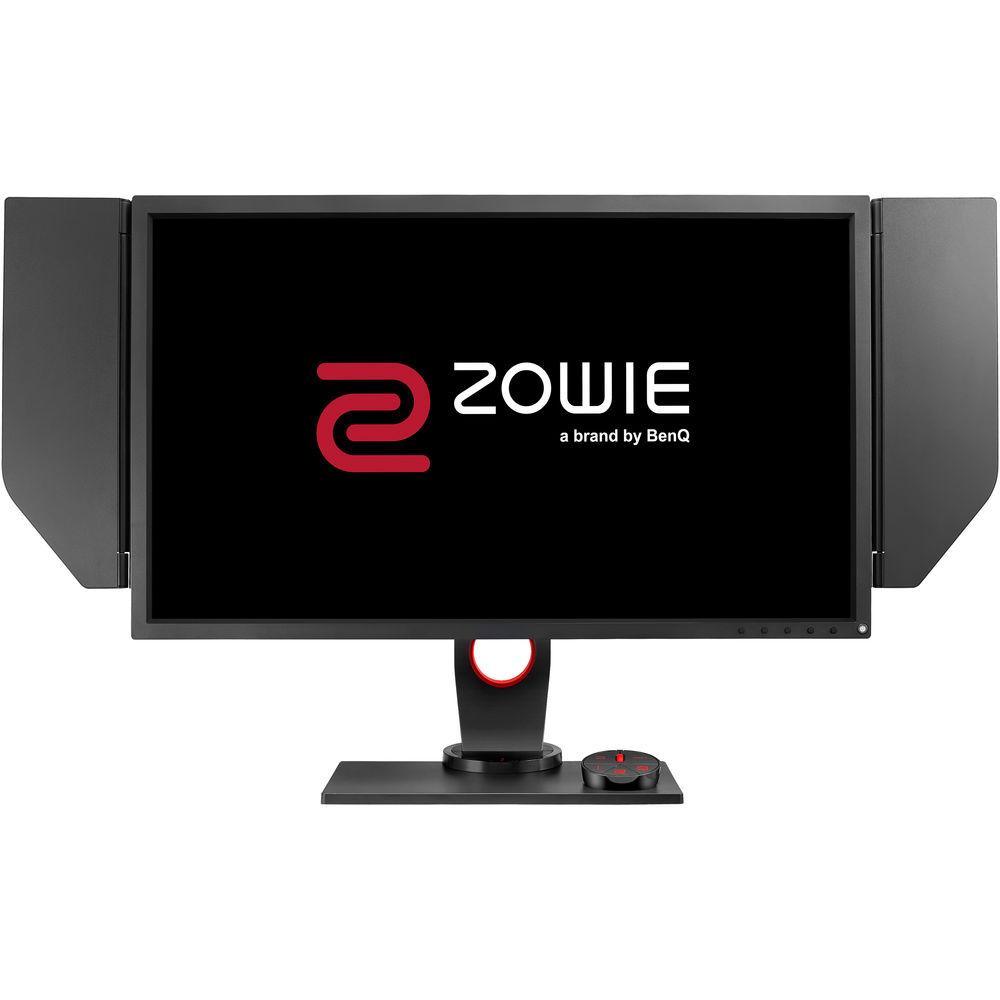

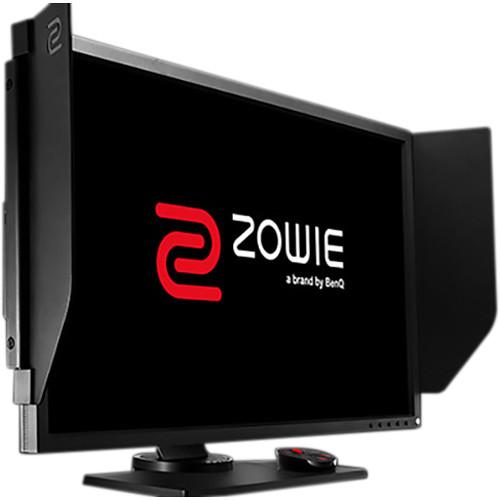

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The XL2740 27" 16:9 240 Hz LCD Monitor from BenQ is a gaming monitor designed for professional eSports tournaments as well as everyday gaming. It features a Twisted Nematic (TN) panel that provides a low 1 ms response time that is suitable for the fast-paced action scenes found in First-Person Shooters (FPS) and racing games. Furthermore, with a 1920 x 1080 resolution and a 240 Hz refresh rate, it delivers fluid Full HD entertainment. The ZOWIE XL2740 also has a 320 cd/m² brightness rating and a 1000:1 static contrast ratio that offers darker blacks and brighter bright colors for an immersive viewing experience. Due to the brightness of the screen, there may be reflections on the bezel of some displays; however, BenQ has outfitted the XL2740 with a shield and bezels that will reduce reflections so you can concentrate on the game. Connect this monitor to your system via DVI, HDMI, or DisplayPort and then adjust it to your viewing preference. Otherwise, use the 100 x 100mm VESA mounting holes on the back to install an alternate mount or stand. - 240 Hz Refresh Rate
- With a faster refresh rate, you'll be able to enjoy less blurring and screen tearing providing a more responsive gaming experience. Please note that refresh rate is not to be confused with frame rate, and having a fast refresh rate will not improve your experience unless you have a capable graphics card.

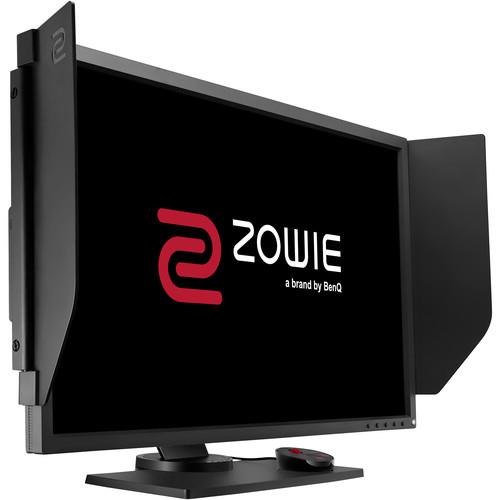

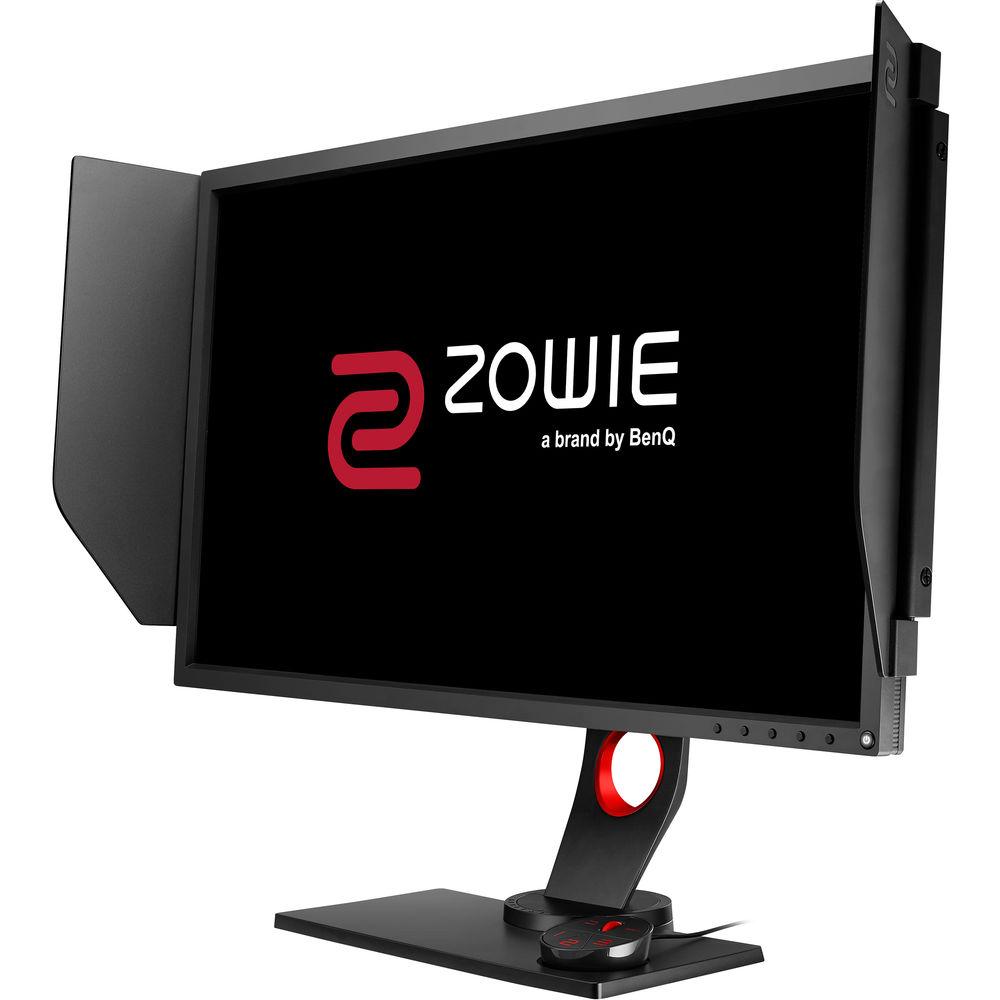

- Shield - Helps You Focus on the Game
- With the Shield, viewers benefit from adjustable angles along with a removable design that allows the Shield to adapt to various environments according to preference.

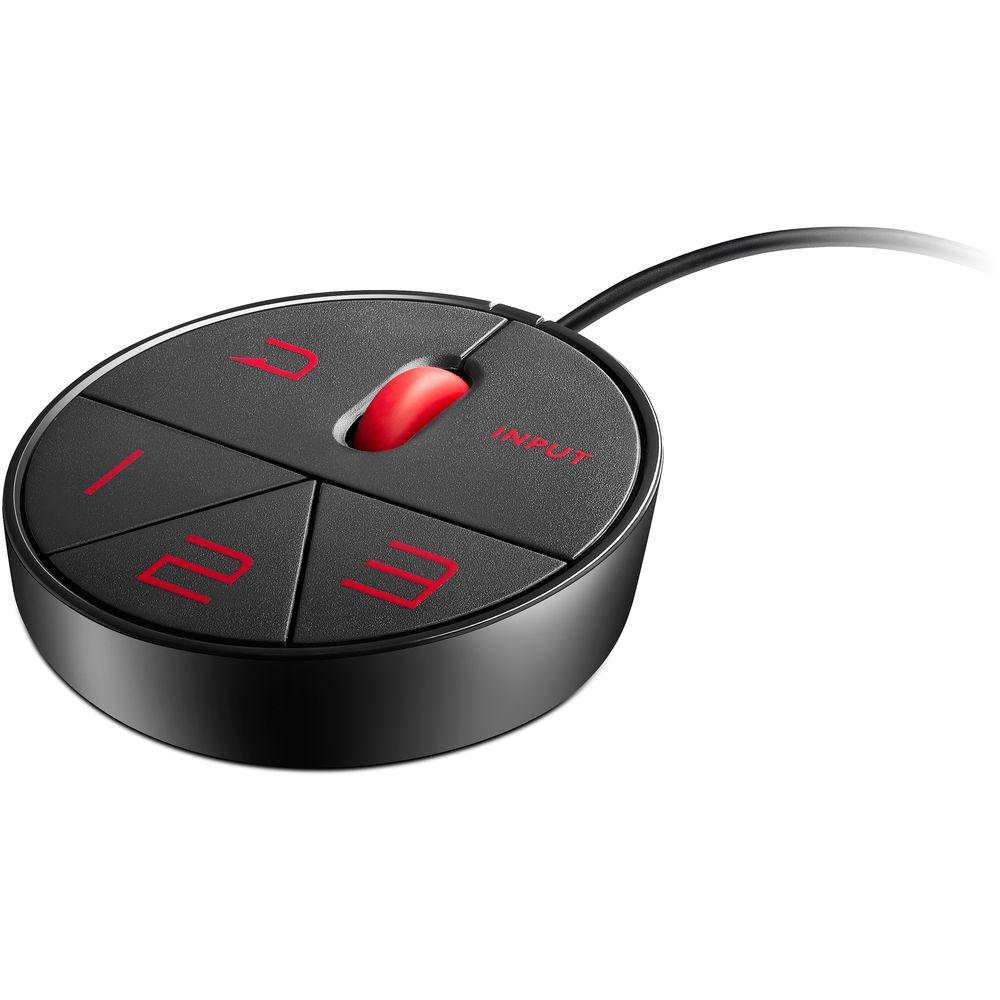

- S Switch
- The S Switch is an accessory that provides you with easy access to settings and switching between saved profiles.
- Enhanced Game Modes
- The XL-series monitors are equipped with multiple game modes optimized for different scenarios such as First-Person Shooters (FPS) so you can swap to a better viewing experience at the press of a button and Black eQualizer mode, which increases the visibility in dark scenes without overexposing bright areas.
- Optimize Gaming Precision
- Color Vibrance gives you the flexibility to easily tune preferred color tone and makes color grading more defined. With 20 levels of Color Vibrance settings, you can get specific viewing requirements and preferences for all types of gameplay.

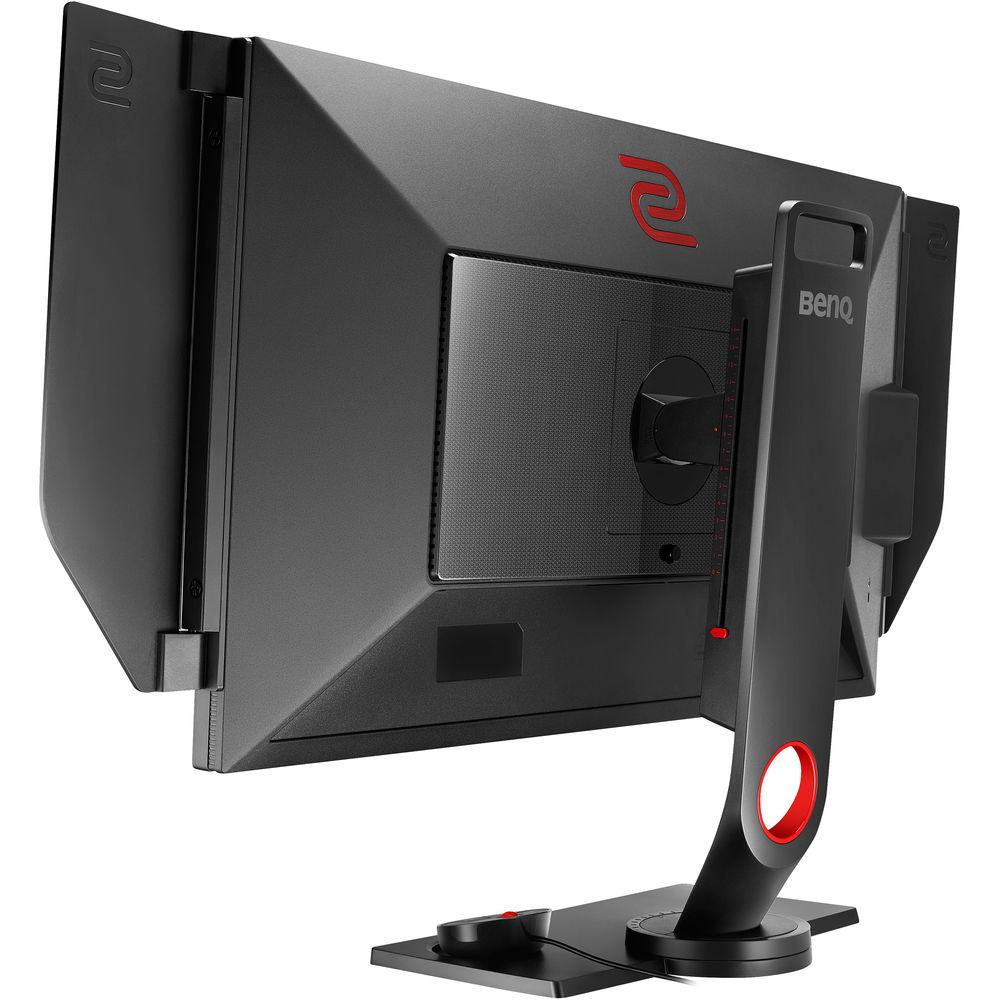

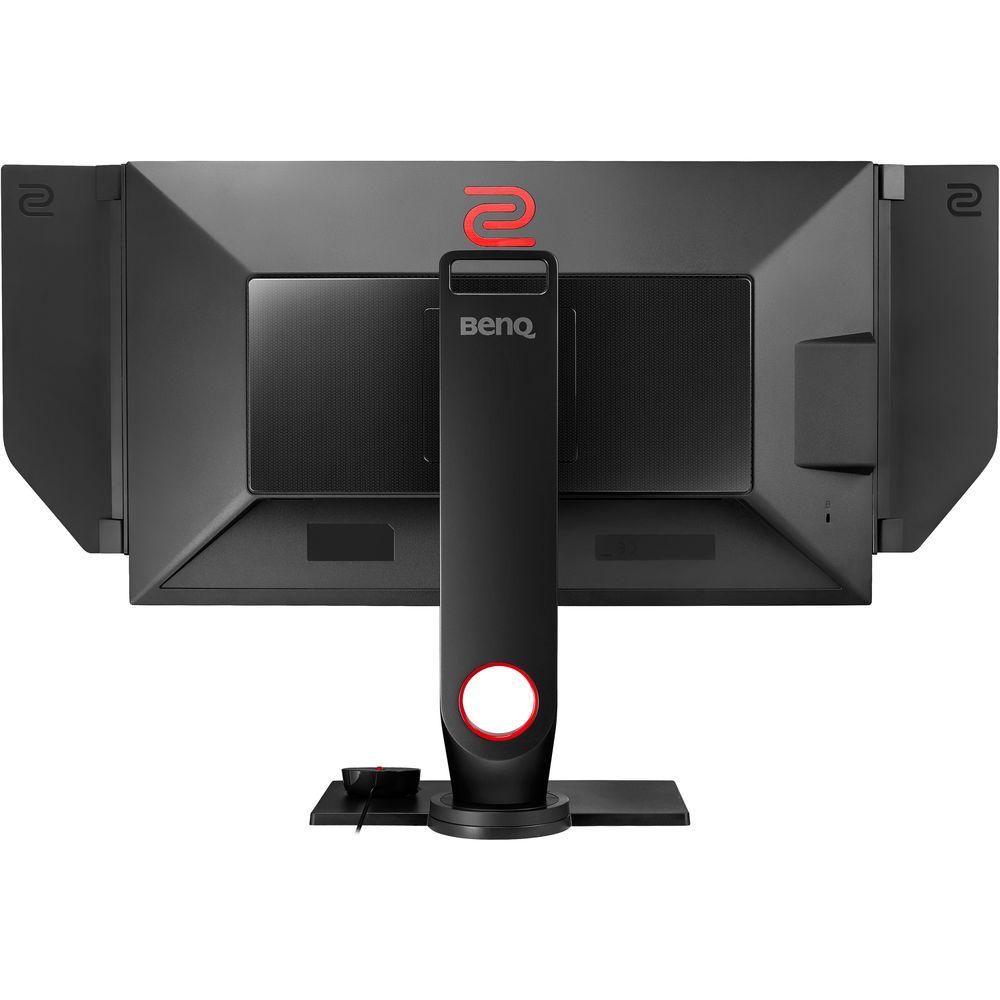

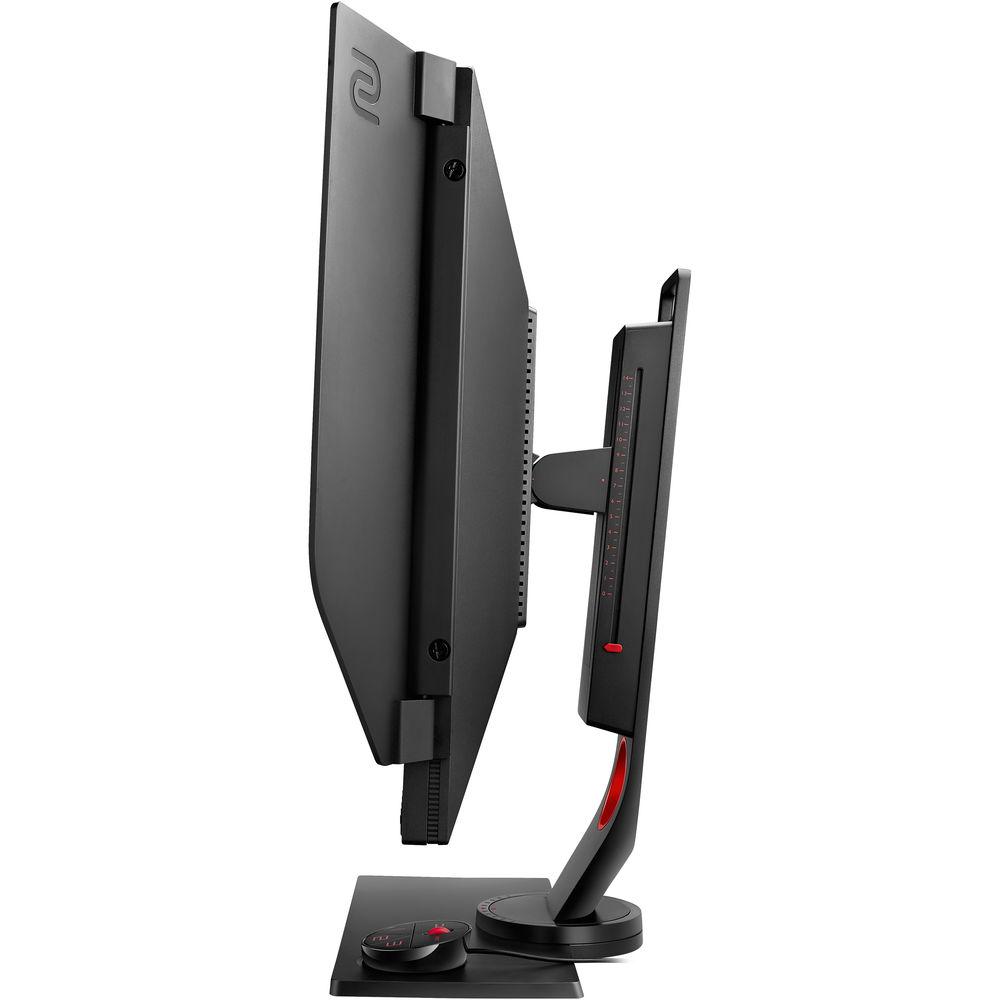

- Personalize Viewing Angles
- The height-adjustable stand can be operated with just one finger that allows you to easily obtain your preferred viewing angle, maximizing comfort.
- Flicker-Free & Low Blue Light
- Flicker-free and low blue light technology help reduce eye strain so you can game longer.
- Minimize Visual Distractions
- The XL-series has a frame that reduces reflection from the screen so you can keep your focus on the game.

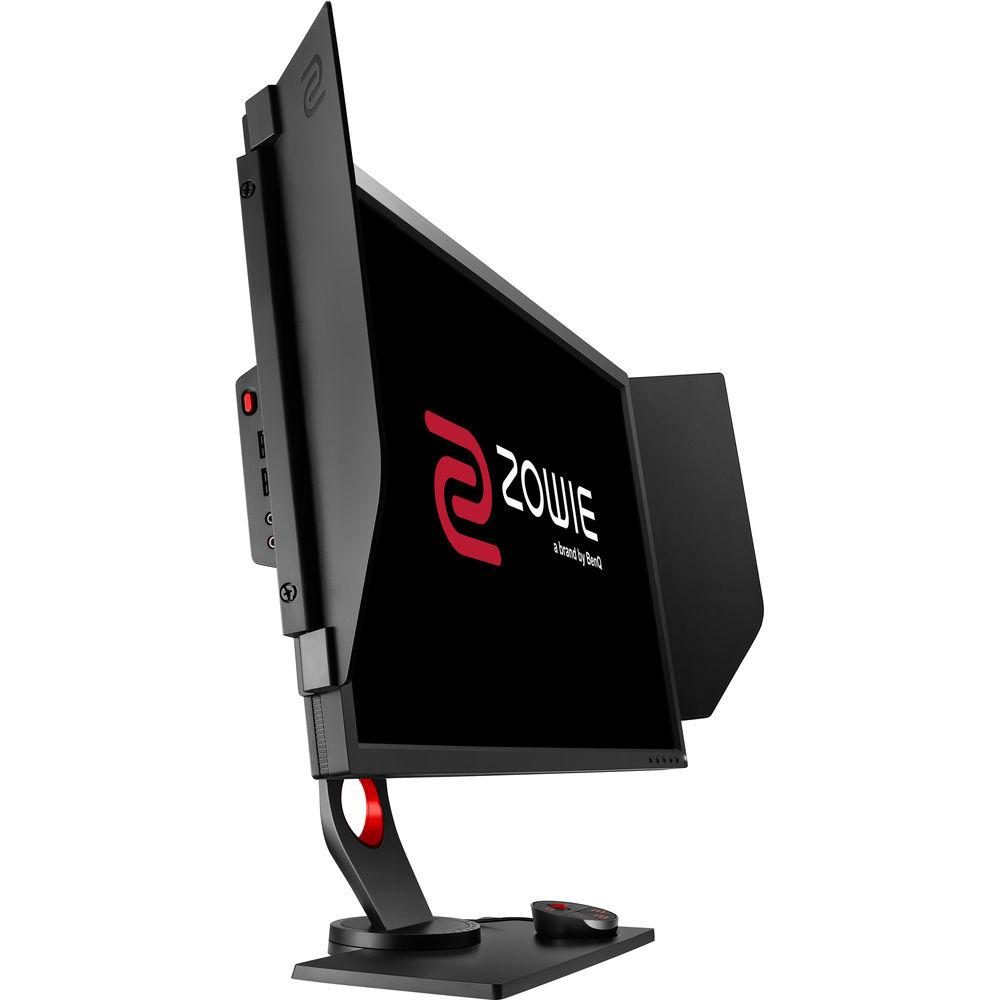

- USB Hub
- Use the built-in USB hub to charge and sync mobile devices or transfer data from external storage solutions.
UPC: 840046037536 In the Box BenQ ZOWIE XL2740 27" 16:9 240 Hz LCD Monitor Stand Stand Base S Switch Shield Limited 3-Year Warranty User Manual PDF 9.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ ZOWIE XL2740 27" 16:9 240 Hz LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenQ ZOWIE ZOWIE XL2740 Specs | Screen Size | 27" (68.6 cm) | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Refresh Rate | 240 Hz (HDMI 2.0, DP) | | Display Area (H × V) | 23.53 x 13.23" (59.76 x 33.62 cm) | | Pixel Pitch (H x V) | 0.311 x 0.311 mm | | Brightness | 320 cd/m² | | Static Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 12,000,000:1 | | Panel Type | Twisted Nematic (TN) | | Response Time (GtG) | 1 ms | | USB | 2 x USB Type-A downstream
1 x USB Type-A upstream | | Connectivity | 1 x DVI-DL
1 x HDMI 2.0
1 x HDMI 1.4
1 x DisplayPort 1.2
1 x headphone jack
1 x microphone jack | | | | VESA Compatibility | 100 x 100 mm | | Pivot | Yes, 90° | | Swivel | ±45° | | Tilt | -5 to 20° | | Height Adjustment | 5.5" (14 cm) | | | | Power Supply | Built-in, 90-264 VAC | | Power Consumption | 65 W (on) | | | | Security | Kensington lock compatible | | Dimensions (H x W x D) | With Stand: 24.9 x 22-16.5 x 8.9" (63.3 x 55.9-41.9 x 22.5 cm))
Without Stand: 24.9 x 14.7 x 2.5" (63.3 x 37.4 x 6.4 cm) | | Weight | 18.7 lb (8.5 kg) | | | | Package Weight | 27.6 lb | | Box Dimensions (LxWxH) | 29.3 x 20.0 x 8.8" |
