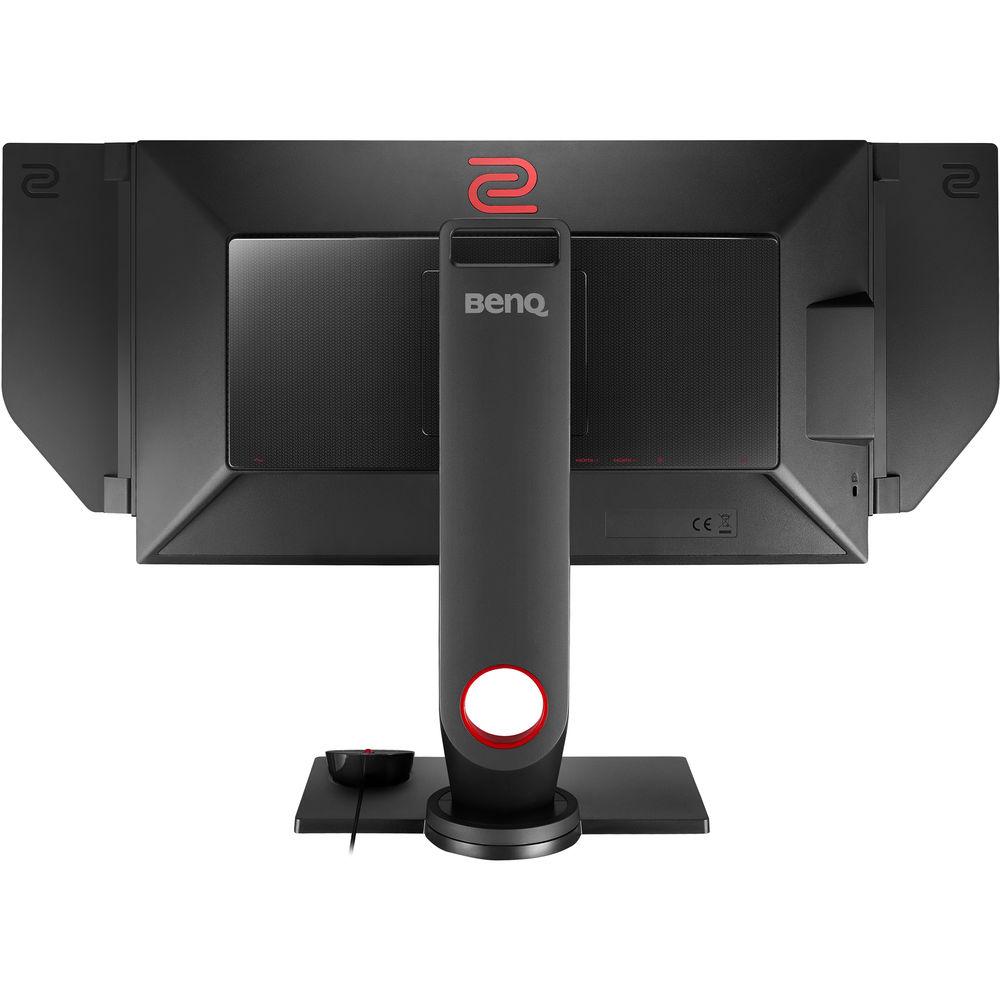

User Manual for BenQ ZOWIE Zowie XL2536 24.5" 16:9 144 Hz LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the BenQ ZOWIE Zowie XL2536 24.5" 16:9
- Product category: Computer Monitors BenQ ZOWIE
- Brand: BenQ ZOWIE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BenQ ZOWIE Computer Monitors
 |
User manual for the BenQ ZOWIE Zowie XL2536 24.5" 16:9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BenQ ZOWIE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BenQ ZOWIE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BenQ ZOWIE product will considerably shorten its lifespan!
|

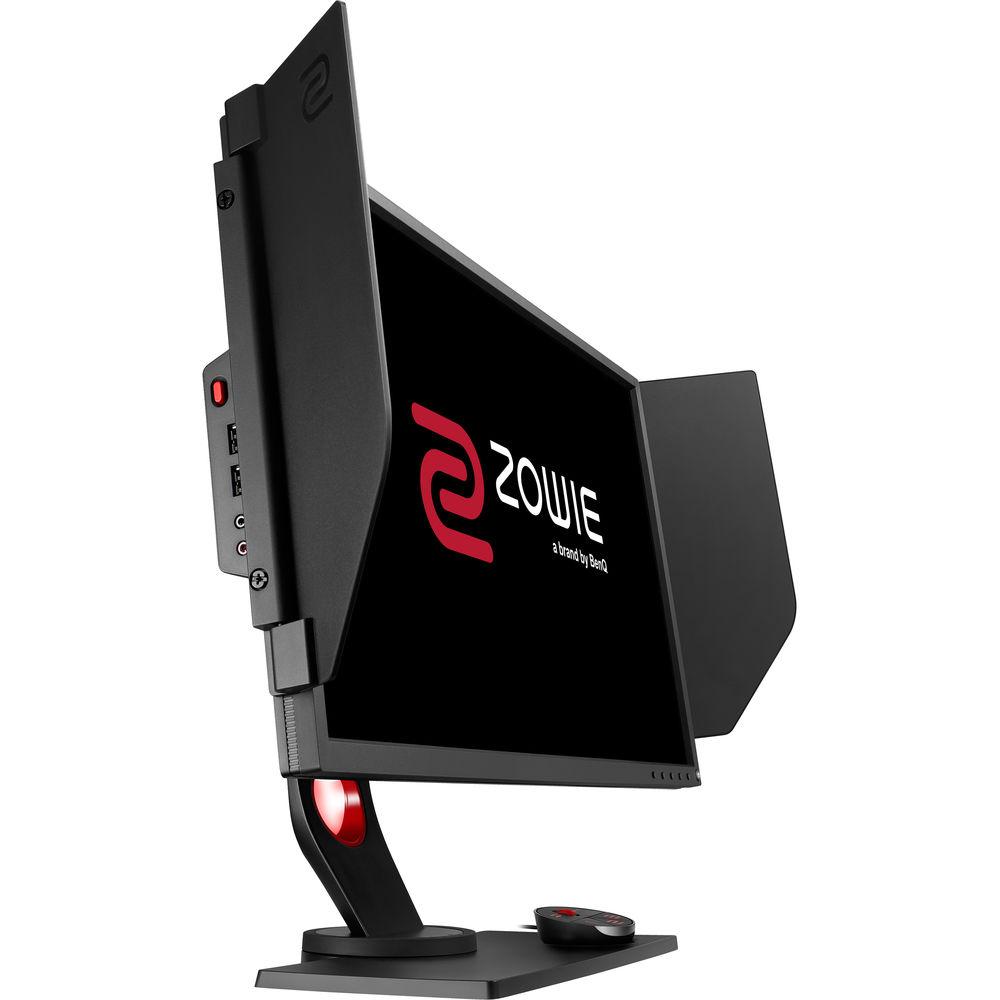

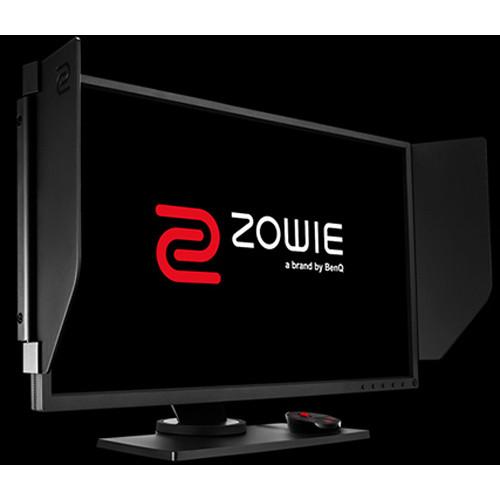

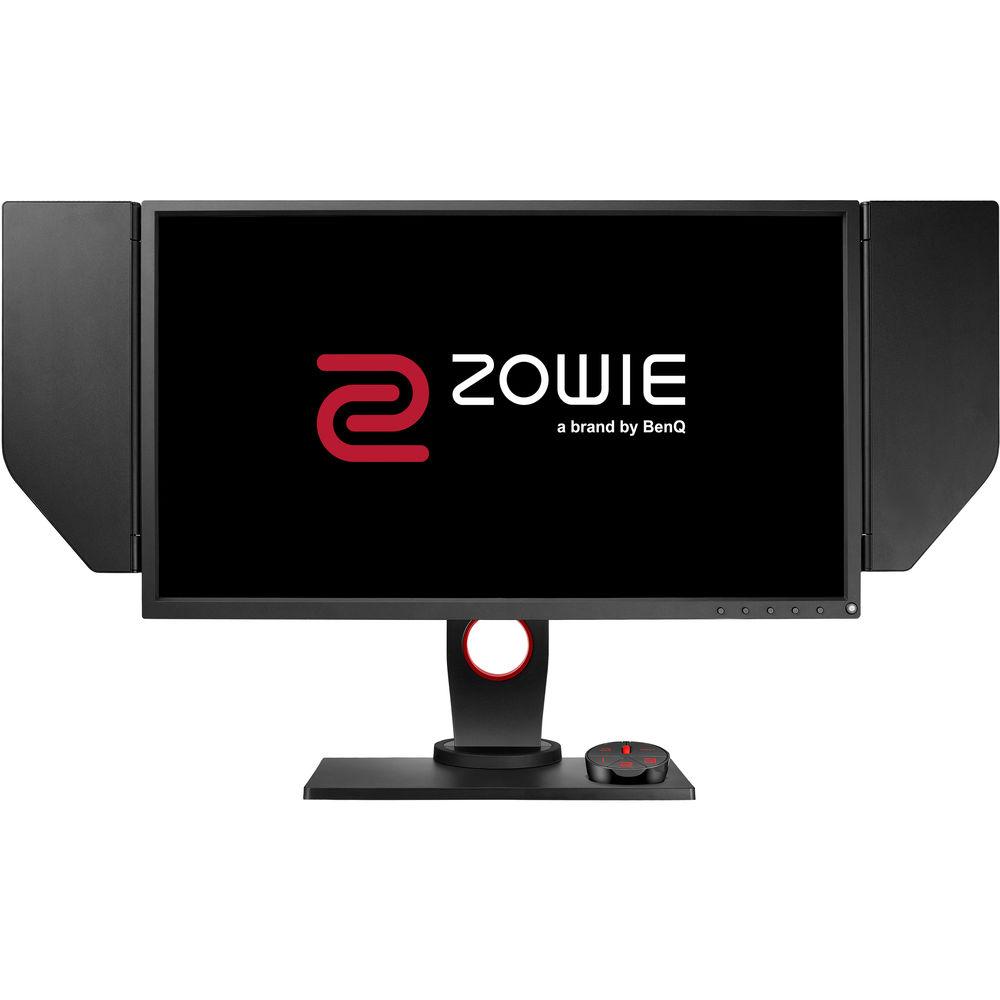

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The BenQ Zowie XL2536 24.5" 16:9 144 Hz LCD Gaming Monitor is designed to offer gamers with a fast 144 Hz refresh rate for smooth and fluid gameplay. It's built with a Twisted Nematic (TN) panel and has a 1920 x 1080 resolution, a 1000:1 static contrast ratio, a 320 cd/m² brightness rating, and a 1 ms response time. To achieve a 144 Hz refresh rate, your computer must be compatible. Connect it to your system via DVI-DL, HDMI, or DisplayPort, and then tilt, swivel, pivot, and adjust its height to your viewing preference. For your convenience, it has a built-in USB hub for your peripherals. Additionally, it comes with a S-Switch, which lets you easily manage settings, and a screen shield to help reduce distractions. - DyAc Technology
- DyAc (Dynamic Accuracy) technology helps to maintain picture quality during in-game movement for a smoother experience that lets you swiftly spot and hit targets.

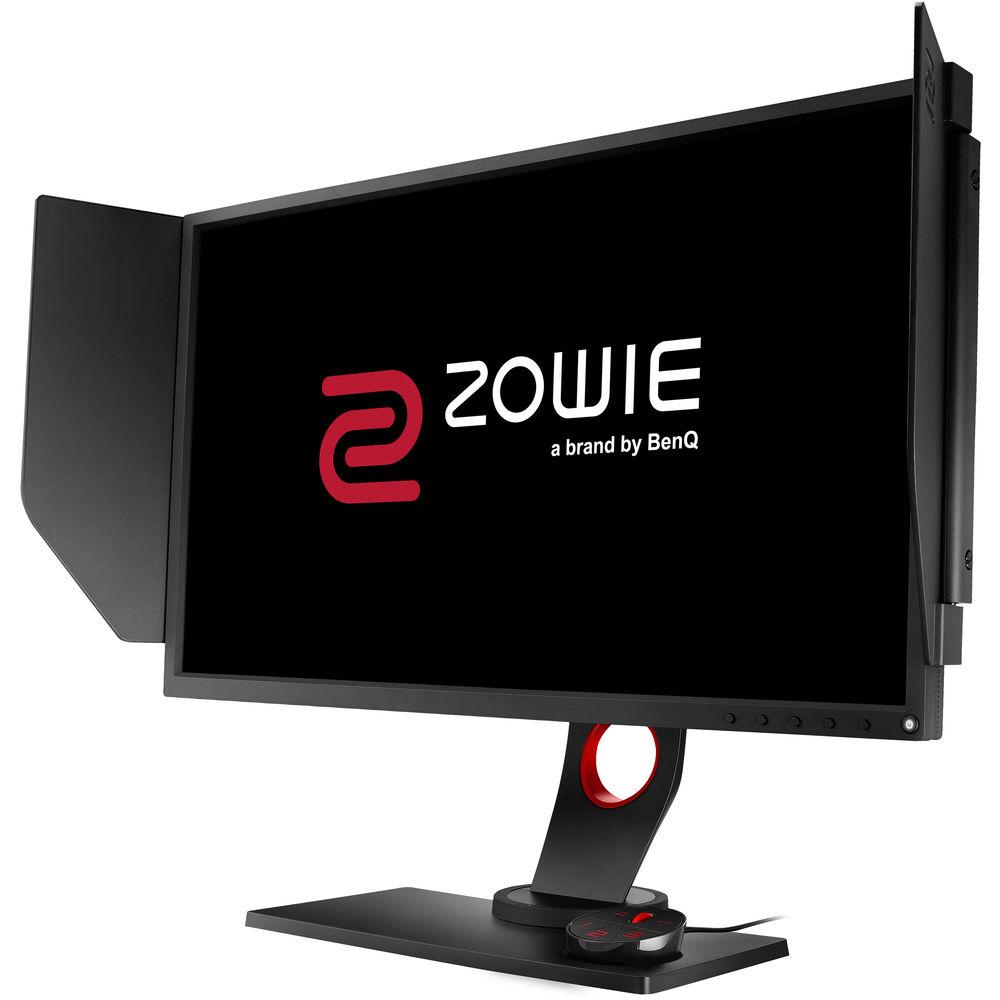

- Shield
- The included shield helps you concentrate on the game by blocking outside distractions. Its adjustable angle and removable design let you use it for various environments.
- Black eQualizer
- Black eQualizer increases the visibility of dark scenes without overexposing bright areas.
- Optimize Gaming Precision
- Adjust the display's Color Vibrance, with over 20 different levels, to find the viewing setting for your current application.
- Personalize Viewing Angles

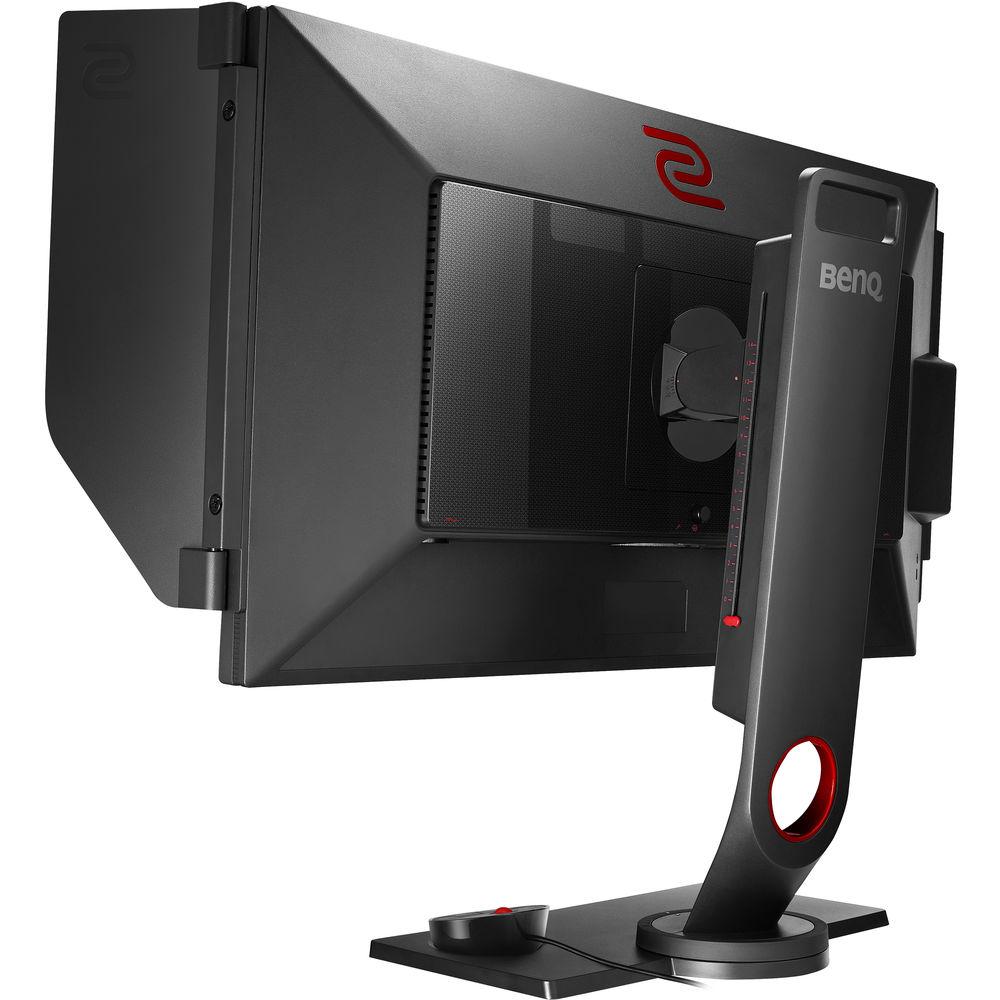

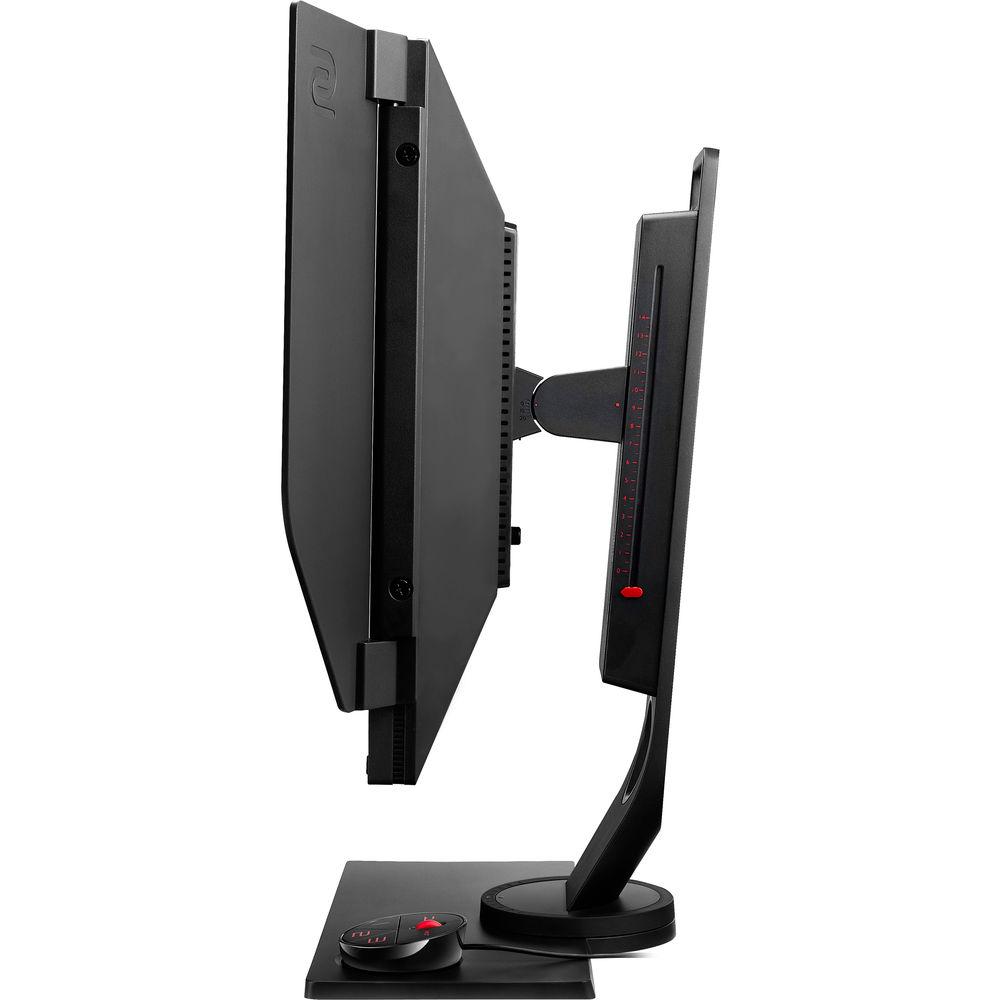

- Tilt, pivot, swivel, and adjust the height of this monitor to find the perfect fit for you.

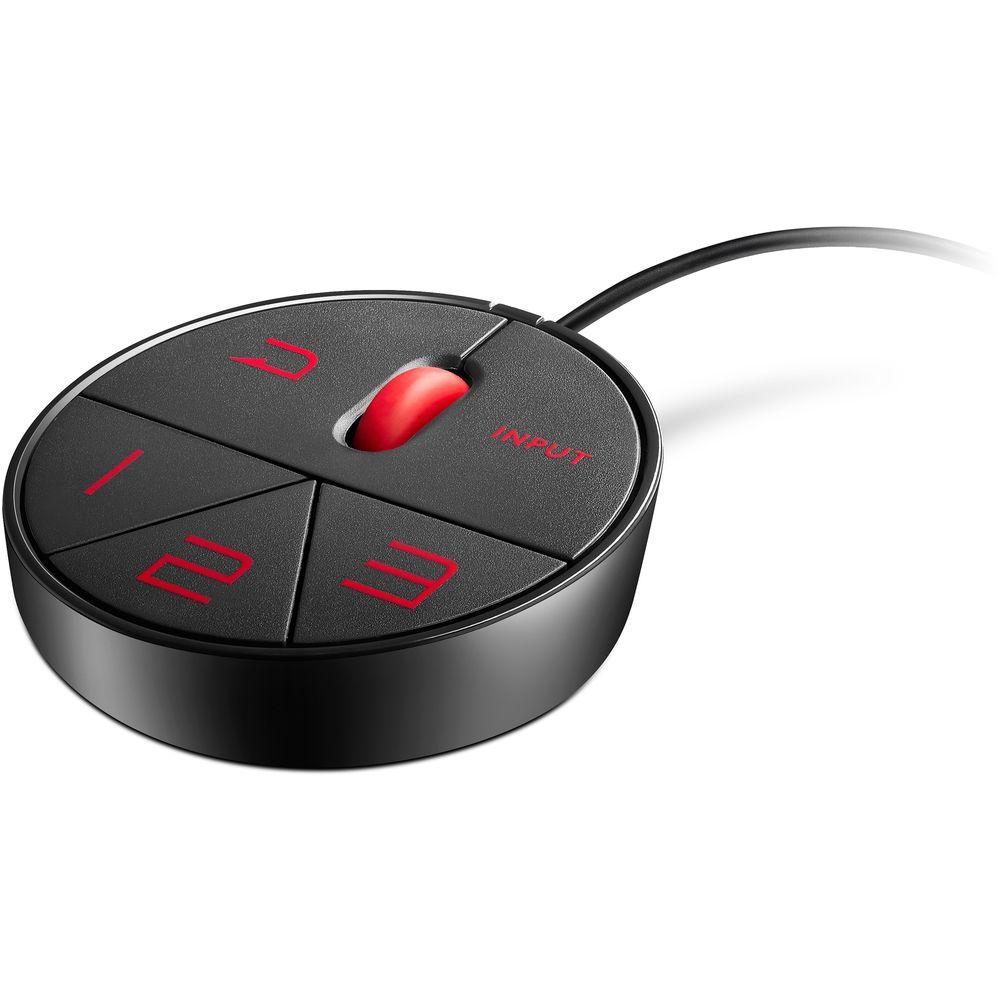

- S-Switch
- To customize the XL with different usage scenarios, the S-Switch is designed for easy access to monitor menu, switch between saved modes, and quick change between connected devices. S-Switch allows you to save and transfer three profiles with driverless design within the same model.
- Game Modes
- Switch through multiple preset game modes to find one that's ideal for your current game. Each one is specifically optimized for a certain genre such as: FPS, RTS/Moba, and so on.
- Minimize Visual Distractions
- The bezel on the monitor is designed to reduce light reflections from the screen so you can focus on your game.
- Additional Features
-
- Low Blue Light
- Flicker-Free (DyAc off)
- Kensington Lock Support
UPC: 840046036973 In the Box BenQ ZOWIE Zowie XL2536 24.5" 16:9 144 Hz LCD Gaming Monitor Power Cable Shield S-Switch Limited 3-Year Warranty User Manual PDF 9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the BenQ ZOWIE Zowie XL2536 24.5" 16:9 144 Hz LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

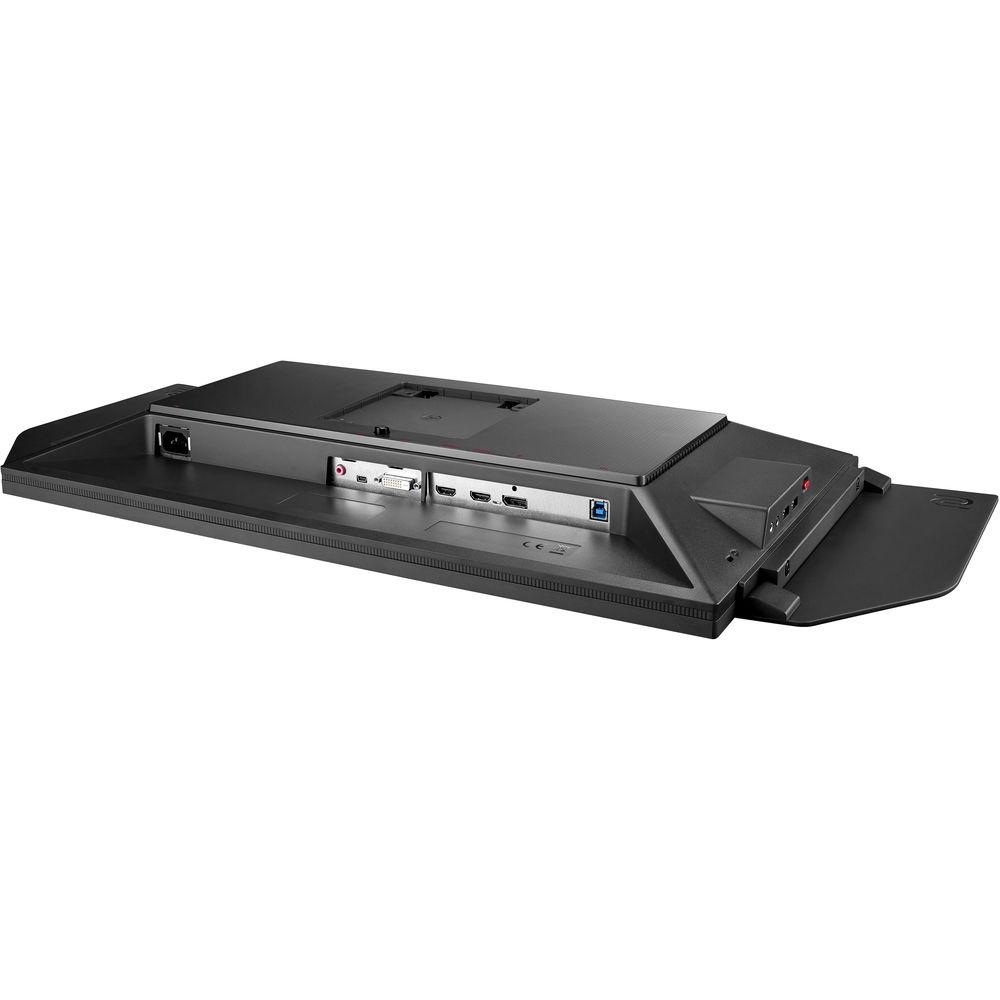

Technical parametersBenQ ZOWIE ZOWIE XL2536 Specs | Panel Size | 24.5" (62.2 cm) | | Aspect Ratio | 16:9 | | Max Resolution | 1920 x 1080 at 144 Hz (HDMI 2.0, DP, DVI-DL) | | Display Area | 24.41 x 11.91" (54.37 x 30.26 cm) | | Pixel Pitch | 0.276 mm | | Brightness | 320 cd/m² | | Static Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 12,000,000:1 | | Panel Type | TN (Twisted Nematic) | | Response Time (GtG) | 1 ms | | Connectivity | 1 x DVI-DL
2 x HDMI 2.0
1 x DisplayPort 1.2
1 x Microphone jack
1 x Headphone jack
4 x USB Type-A (3 x downstream, 1 x upstream) | | | | VESA Compatibility | 100 x 100 mm | | Pivot | 90° | | Swivel | ±45° | | Tilt | -5-20° | | Height Adjustment | 5.5" (14 cm) | | | | Power Supply | 90-264 VAC (built-in) | | Power Consumption (Active) | 50 W | | | | Dimensions (H x W x D) | 22.44 x 20.29-17.55 x 8.9" (56.99 x 51.54-44.58 x 22.6 cm) | | Weight | 16.8 lb (7.6 kg) | | | | Package Weight | 24.3 lb | | Box Dimensions (LxWxH) | 28.5 x 19.5 x 8.75" |
