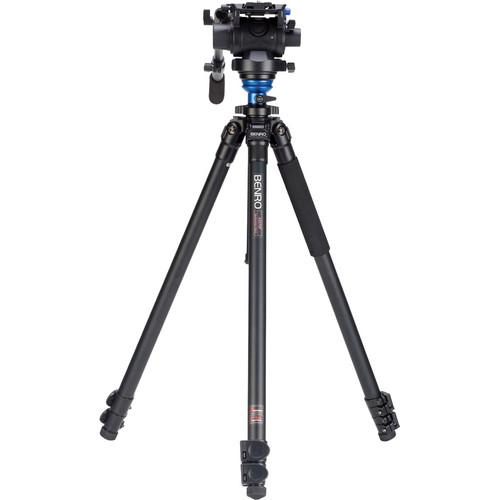

User Manual for Benro A2573FS6 S6 Video Head and AL Flip Lock Legs Kit Click to enlarge the picture
Contents of the user manual for the Benro A2573FS6 S6 Video Head and
- Product category: Tripod Systems Benro
- Brand: Benro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Benro Tripod Systems
|
User manual for the Benro A2573FS6 S6 Video Head and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Benro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Benro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Benro product will considerably shorten its lifespan!
|
Product description Benro's A2573FS6 S6 Video Head and AL Flip Lock Legs Kit offers an S6 video head combined with aluminum single-leg tube tripod legs with flip-lever leg locks. The S6 head features a posi-step counterbalance system with four settings of 0.0, 4.4, 9.9 and 13.2 lb. The S6 has 360° panning rotation and variable-tilt drag for smooth camera moves. There are separate pan and tilt lock levers for locked-off shots. It has an illuminated built-in bubble level and is designed to support cameras and camcorders weighing up to 13.2 lb. The aluminum alloy legs are complemented with cast magnesium alloy components for a sturdy camera support. - Adjustable Leg Angles
- For an extra measure of flexibility, Benro tripod legs can be independently locked into place at three different angles to enable shooting in cramped quarters, on irregular terrain, or at ground level
- Stainless-Steel Spiked or Rubber Feet
- Comes equipped with a choice of screw-in rubber feet or stainless-steel spiked feet
- Wingnut-Style Column Lock
- A wingnut-style center column locking knob allows for secure, intuitive height adjustments on the fly
- Center Column Hook
- A hook located on the bottom of the center column allows you to hang additional weight for increased stability
- QR Plate System with Safety Lock - S6
- Easy camera mounting and dismount for transport
- Interchangeable Pan Bar Handle - S6
- With angular adjustment for convenient user control
- Quick-Lock Legs with Anti-Rotation Leg System
- Tripod height can easily be set by a flip of the quick-lock leg levers, which combined with anti-rotation legs enable a fast and fumble-free setup
- Closed-Cell Foam Grip
- A thick layer of closed-cell nitrile butadiene rubber (NBR) provides a comfortable yet firm grip when carrying your tripod
- Integral Leveling Platform
- Provides fine leveling control on the vertical center column
- Pan Drag/Lock Lever - S6
- Adjusts tension and locks head on 360° pan movement
- Tilt Drag Knob with Lock Lever - S6
- Variable control drag with separate lock lever
- Posi-Step Counterbalance - S6
- Adjustable counterbalance settings in 4.4, 9.9, and 13.2 lb steps
- Built-In Bubble Level - S6
- Illuminated level allows for adjustment to prevent uneven pans (uses CR1220 battery)
- Includes 501PL-Compatible QR6 Plate
- Removable quick release plate with sliding adjustment for better camera balance
- Heavy-Duty Case and Strap
- Included for handy transport and protection of the tripod and head
In the Box Benro A2573FS6 S6 Video Head and AL Flip Lock Legs Kit Aluminum Alloy Tripod Legs S6 Video Head sdsbtffbduubqwqfrsrftfrzyseacsb 3 x Stainless-Steel Spiked Feet and Tools Deluxe Carry Case and Strap Limited 3-Year Warranty, with 2-Year Extension After Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro A2573FS6 S6 Video Head and AL Flip Lock Legs Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenro A2573F Specs | | | Load Capacity | 13.2 lb / 6 kg | | Maximum Height | 70.3" / 178.5 cm | | Maximum Height w/o Column Extended | 63.2" / 160.5 cm | | Minimum Height | N/A | | Folded Length | 31.7" / 80.5 cm | | Leveling Bubble/Illuminated | Yes/yes | | Weight | 6.9 lb / 3.2 kg | | | | Tilt Drag | Yes | | Tilt Range | +90/-75 (stepped 0-3 fluid cartridge balance) | | Tilt Lock | Yes | | Pan Range | 360° | | Pan Lock | Yes | | | | Material | Aluminum alloy | | Head Attachment Fitting | 3/8"-16 Leveling | | Leg Stages/Sections | Three sections | | Leg Lock Type | Flip lock | | Independent Leg Spread | Yes, three positions | | Spiked/Retractable Feet | Spiked feet with 3/8"-16 screw thread | | Center Brace | No | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 34.0 x 6.8 x 6.3" |
