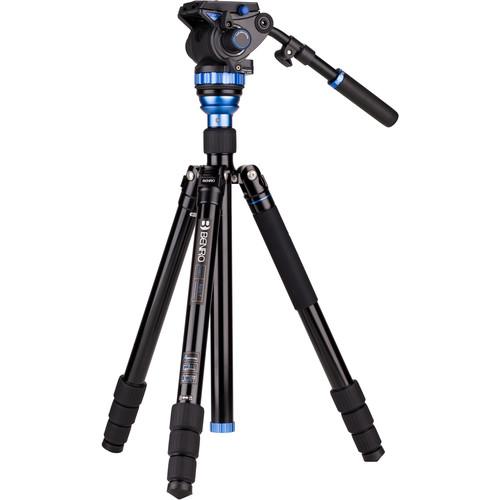

User Manual for Benro Aero 7 Travel Video Tripod Click to enlarge the picture
Contents of the user manual for the Benro Aero 7 Travel Video Tripod
- Product category: Tripod Systems Benro
- Brand: Benro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Benro Tripod Systems
 |
User manual for the Benro Aero 7 Travel Video Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Benro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Benro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Benro product will considerably shorten its lifespan!
|

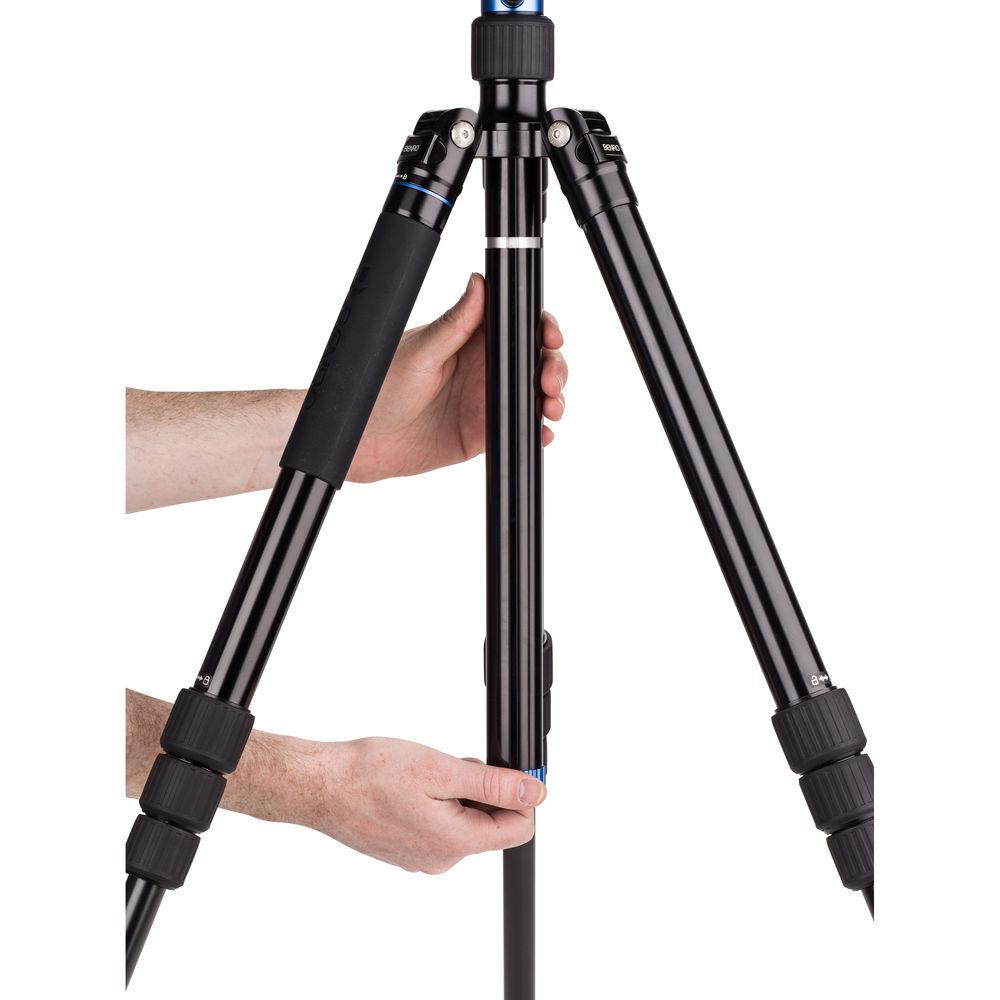

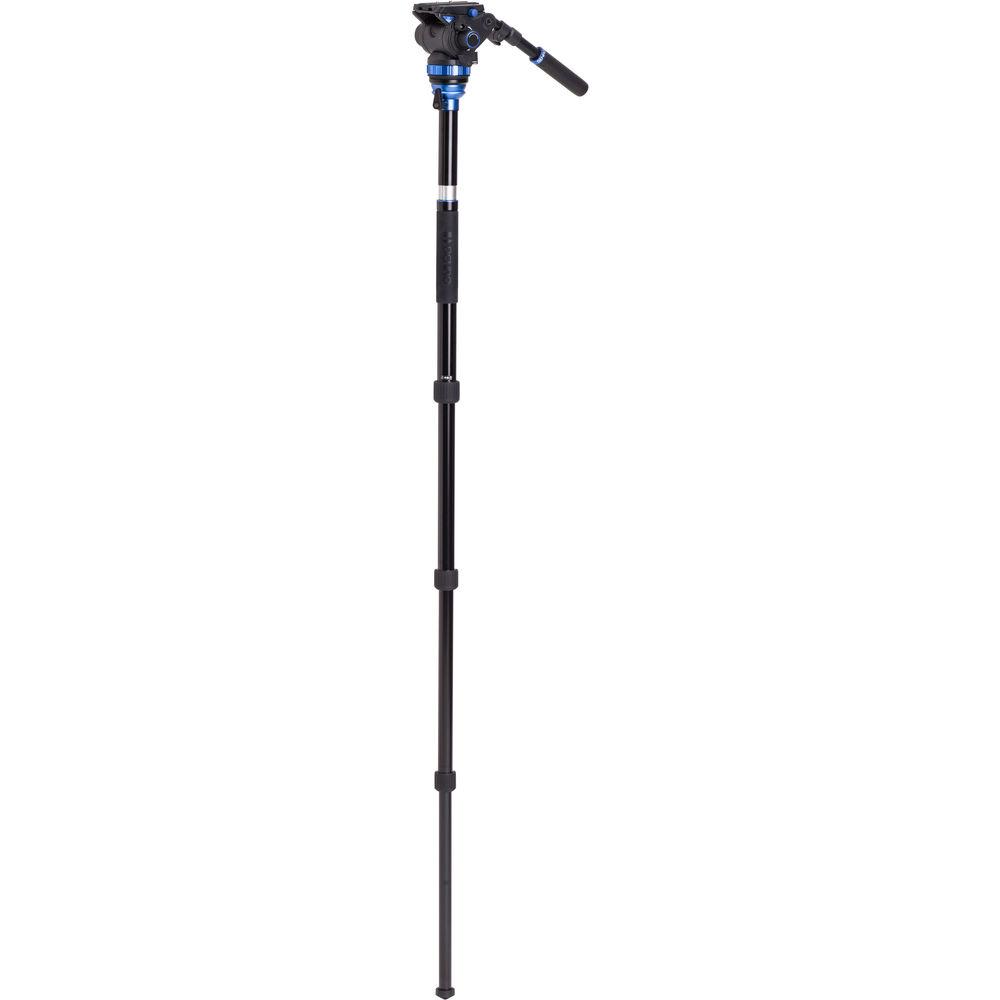

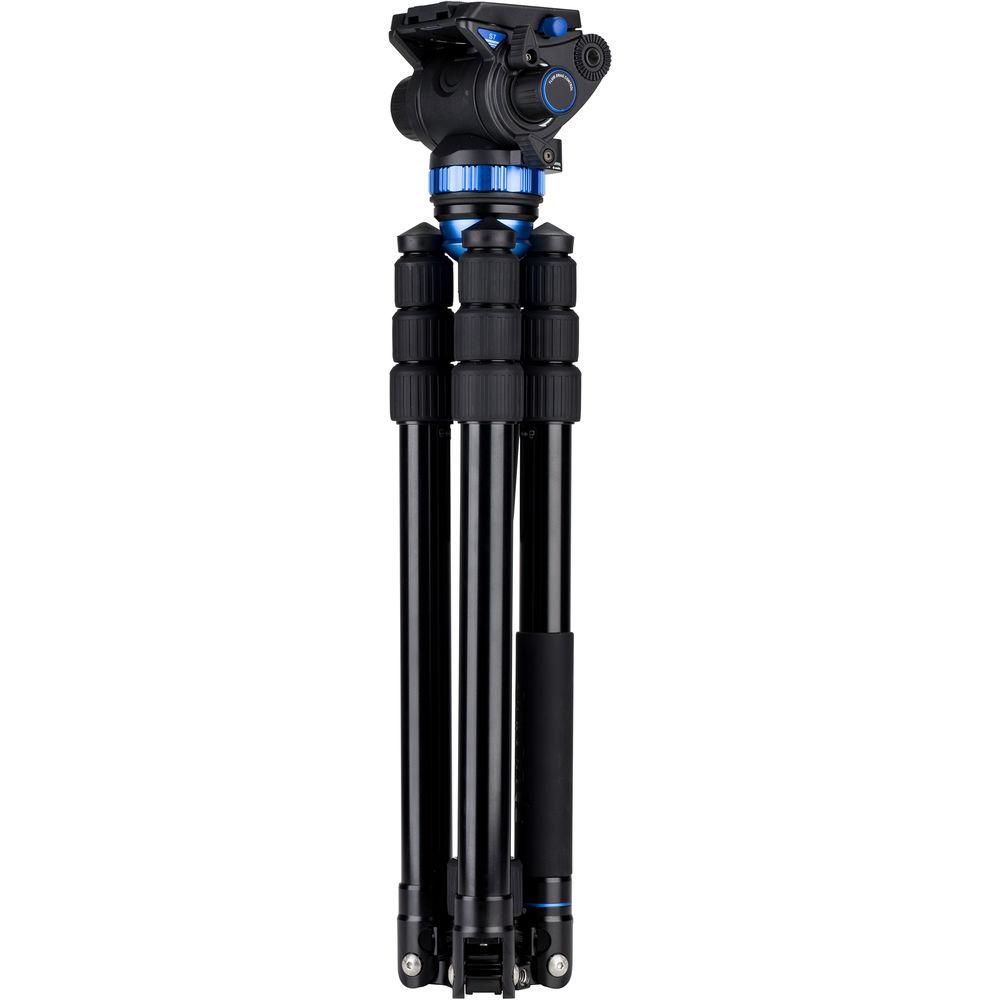

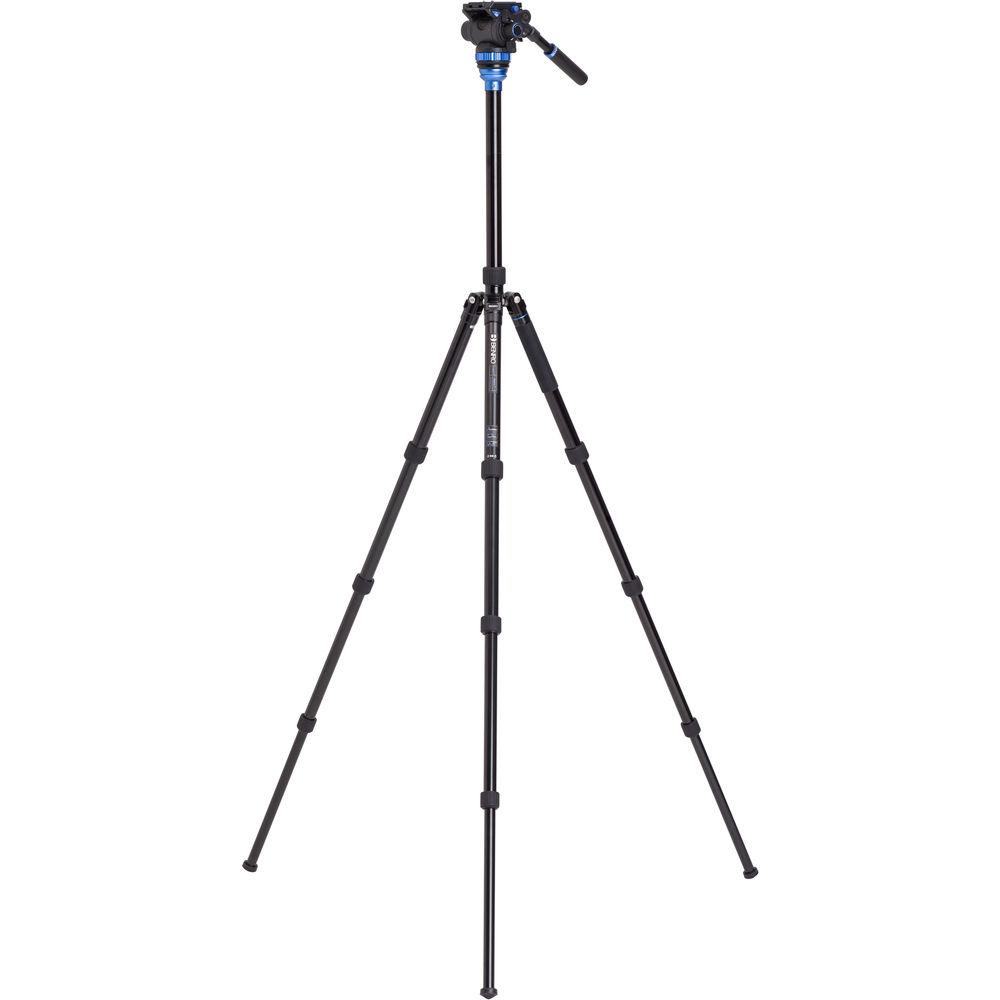

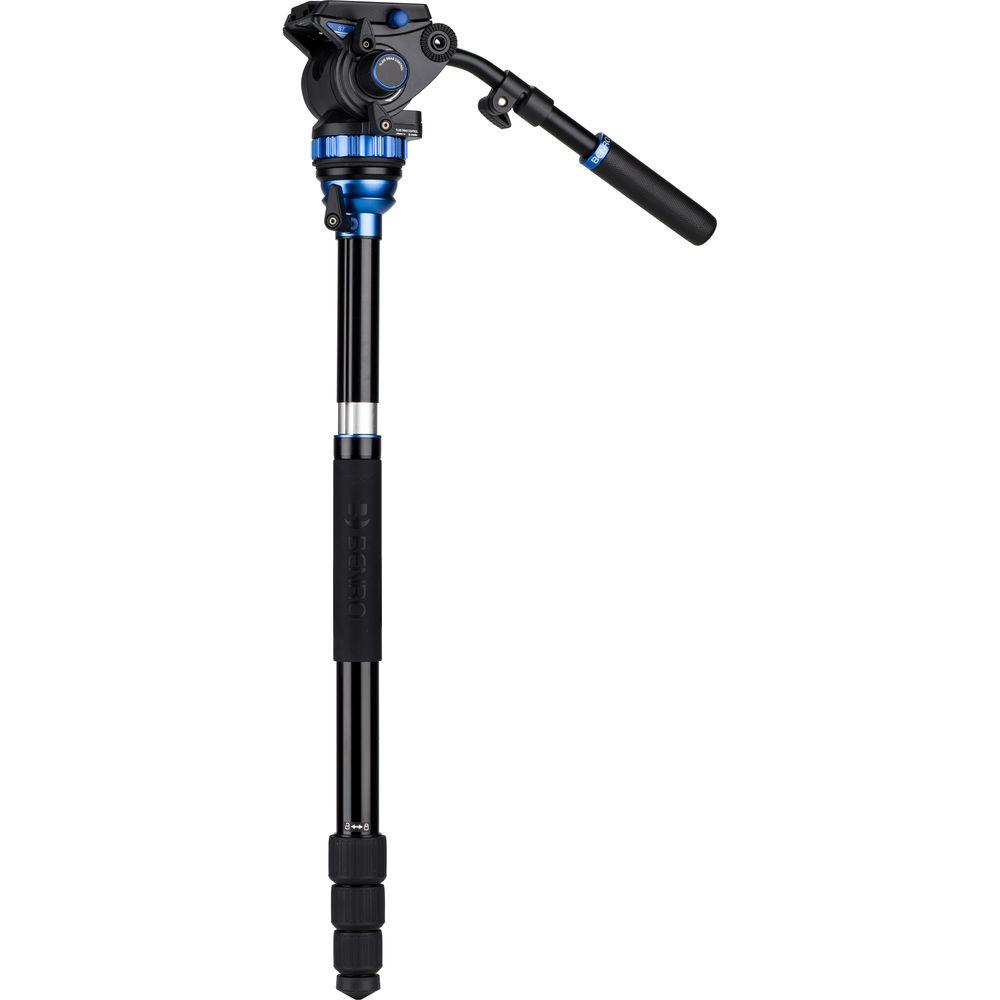

Product description The aluminum Aero 7 Travel Video Tripod from Benro is designed to support camera rigs weighing up to 15 pounds. Featuring reverse-folding legs, the tripod can be conveniently collapsed into a compact bundle for easy travelling. The center column features a built-in leveling base, enabling you to quickly level the head without adjusting the tripod legs. The center column can be used at full height or shortened for low-to-the-ground shots. One of the Aero 7's legs can be unthreaded and attached to the center column to create a fully functional video monopod.
The Aero 7 comes with a removable S7 video head, which is equipped with a 65mm flat base for attaching directly to tripods, monopods, sliders, and other camera support equipment with a 3/8"-16 threaded stud. The head features a four-step counterbalance system to help you counter the weight of your rig or heavy lens, and continuous pan/tilt drag adjustment so you can dial in the right amount of resistance for each shot. The pan and tilt locks operate independently of each other and are located on the operator's side of the head for easy access and control. The head has a tilt range of -50 to +90°, and an included carrying case enables you to carry the legs and head together for transport and storage. - Fluid Head
-
- Supports up to 15.4 lb
- 65mm flat base with 3/8"-16 thread
- Four-step (0-3) counterbalance: 0, 5, 10, and 15.4 lb
- Continuous pan drag
- Independent pan and tilt locks
- Tilt range: -50°/+90°
- Manfrotto 501/504PL compatible sliding plate
- Two 3/8"-16 accessory threads for mounting accessories, such as a monitor or recorder
- Illuminated bubble level
- Adjustable-length pan bar
- Tripod Legs
-
- Aluminum legs
- 65mm flat base with 3/8"-16 threaded stud
- Built-in leveling attachment with ±15° adjustment
- Four leg sections
- Twist-lock leg locks
In the Box Benro Aero 7 Travel Video Tripod (Aluminum) S7 Video Head cadswzzetuywawwa Aluminum Tripod Legs Carrying Case Limited 3-Year Warranty, Extendable to 5 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro Aero 7 Travel Video Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenro Aero 7 Specs | | | Load Capacity | 15.43 lb / 7 kg | | Minimum Height | 13.39" / 34 cm | | Maximum Height | Center Column Extended: 72.4" / 183.9 cm
Center Column Retracted: 58.9" / 149.6 cm
Converted to Monopod: 65.75" / 167 cm | | Leveling Adjustment | ±15° | | Closed Length | 32.87" / 83.5 cm | | Reverse Folded Length | 18.9" / 48 cm | | Base Mount Thread Size | 3/8"-16 | | Weight | 8.58 lb / 3.89 kg | | | | Load Capacity | 15.4 lb / 7 kg | | Head to Tripod Mounting Thread | 3/8"-16 | | Counterbalance | 4-Step: 0, 5, 10, 15.4 lb / 0, 2.2, 4.5, 7 kg | | Pan Drag | Continuous | | Tilt Drag | 4-step (0 to 3) fluid cartridge | | Panning Range | 360° | | Tilt Range | -50° to +90° | | Quick Release Plate | QR6 (Manfrotto 501/504PL compatible)
1/4"-20 and 3/8"-16 screws | | Accessory Mounting Threads | 2 x 3/8"-16 | | Leveling Bubble / Illuminated | Yes / yes | | Height | 4.72" / 12 cm | | Weight | 3.2 lb / 1.4 kg | | | | Compatibility | RC5/501PL (for example Manfrotto 501 fluid head) | | Dimensions | 3.62 x 1.97 x 0.39" / 91.95 x 50.04 x 9.91 mm | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 26.5 x 7.0 x 6.0" |
