Product description

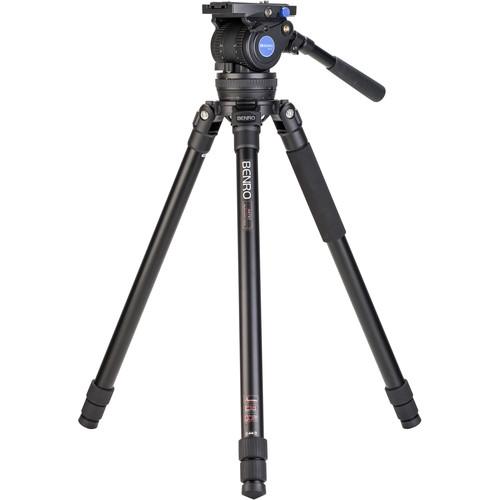

• A474T Aluminum Video Tripod (100mm Bowl) The aluminum A474T Video Tripod from Benro is a three-section video tripod with a 100mm bowl compatible with industry-standard 100mm video heads. The independently adjustable single-tube leg design makes the A474T lightweight and well-suited for shooting on uneven surfaces. An integrated bubble level allow you to set up the legs and level them before mounting your head, while each leg can be set to any of the three locking positions, eliminating the need for a spreader.

  The twist locks on the legs require only half a turn to securely lock and unlock, and the rubber feet, which are a good choice for interior work, can be unscrewed and replaced with the included set of spiked feet for added traction when working on soft surfaces such dirt or even gravel. The leg sections can be fully taken apart, which simplifies cleaning after use in rough environments. Also included is a padded carrying case with a shoulder strap.
  • The legs feature a minimum height of 6" when spread out and a maximum height of 59.4".
  • Each leg is independently adjustable in length and angle. The built-in magnesium leg angle locks obviate the need for a spreader. The individual adjustability of each leg makes this set of legs well-suited for use on uneven ground.

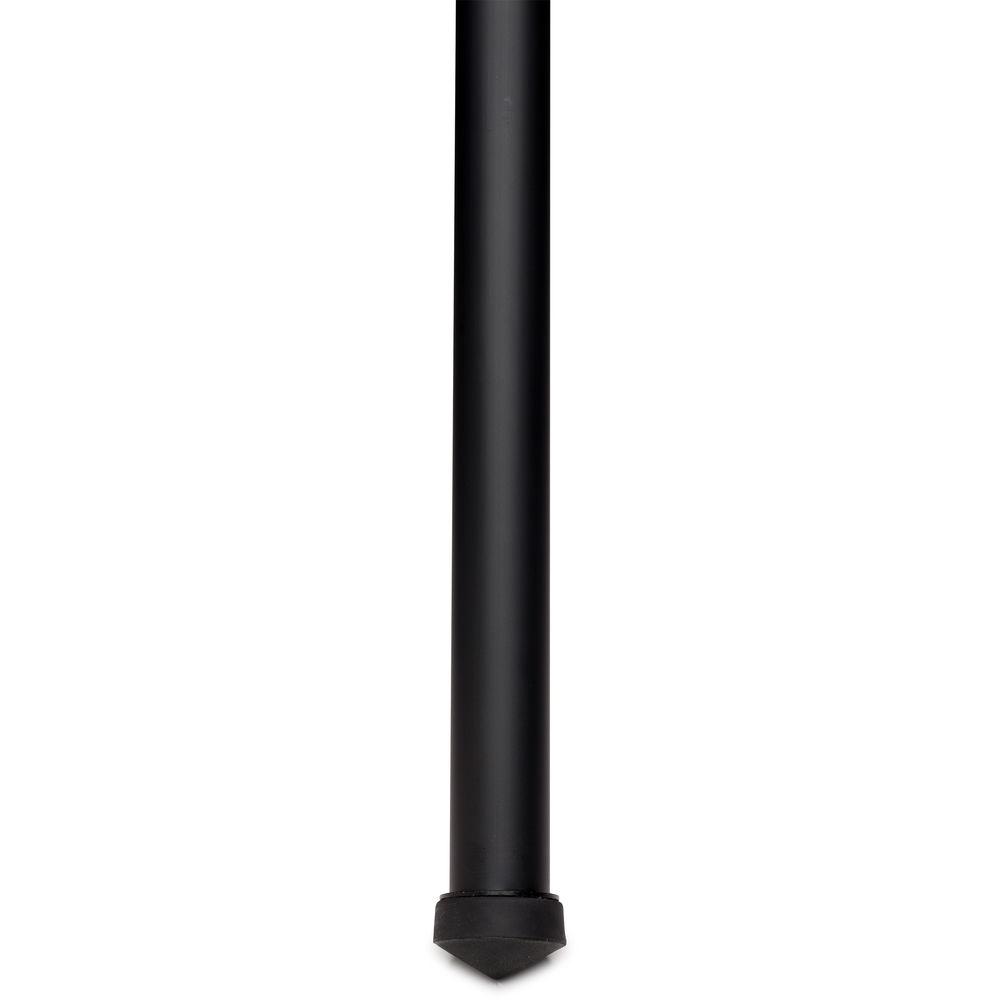

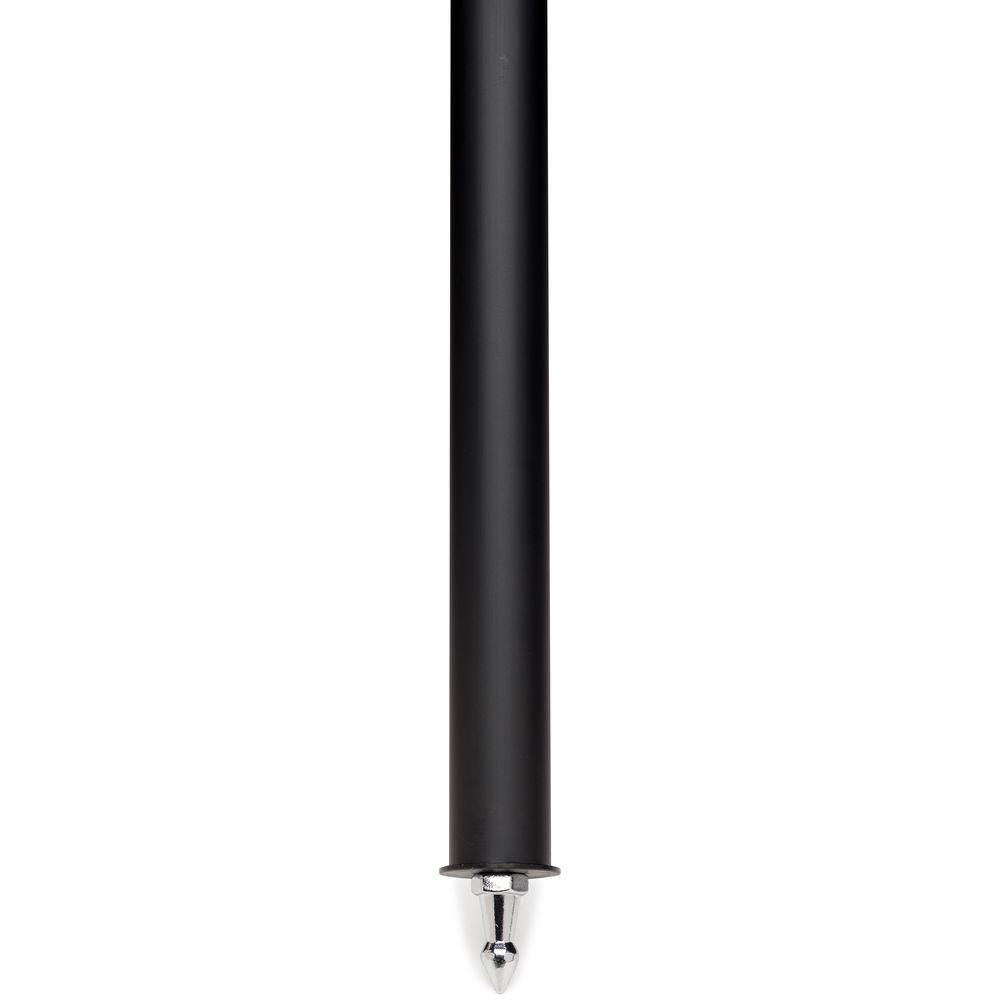

  • The rubber feet are useful on slick or delicate surfaces, and they are easily swapped out for the included spiked feet, which will provide improved purchase on soft ground.
  • The legs can be removed and separated, which allows for thorough cleaning to remove dirt and grit.
• BV10H 100mm Video Head The Benro BV10H 100mm Video Head supports cameras and accessories up to 22 pounds, and features a sliding balance plate with both a 1/4"-20 and 3/8"-16 camera tie-down screws. Incorporating a 100mm half ball fitting for quick leveling without having to adjust the legs, it provides a wide platform to support your camera.

  The BV10H fluid head features a 4-step counterbalance system with a zero setting for when you want the head to be completely free. Likewise, the pan and tilt functions feature three steps, plus a zero setting. Pan and tilt drag are independent and each function has its own lock. An integrated 3/8"-16 threaded mounting hole enables you to mount accessories directly to the head, relieving the strain of mounting them to your camera. The panhandle mounts via a rosette, and can be attached to either side of the fluid head. An integrated bubble level helps you quickly level the head.
  • Sliding balance plate is 501/504PL compatible, and includes 1/4"-20 and 3/8"-16 camera tie-down screws.
  • The pan, tilt, and counterbalance settings control are similar in function and use, for an easy learning curve and simpler operation.
  • Counterbalance settings: 0, 8.8, 13.2, 17.6, and 22 pounds.
  • Independent pan and tilt drag and locks.
  • Pan and tilt adjustments and locks are located on the left side of the head making it easy to adjust with a single hand while operating the camera.
  • Pan, tilt, and counterbalance settings are stepped and indexed, which allows you to make precise adjustments by feel.
  • The 100mm half ball can be used on tripod legs and mounting adapters with standard 100mm half-ball adapters.
  • The tilt range allows you to tilt from straight down to almost straight up.
  • The included panhandle mounts to the fluid head via a rosette. The head incorporates two rosettes, one on each side, which enables mounting the panhandle on the left or right side of the head. An additional panhandle (not included) can be mounted to the fluid head via the second rosette.

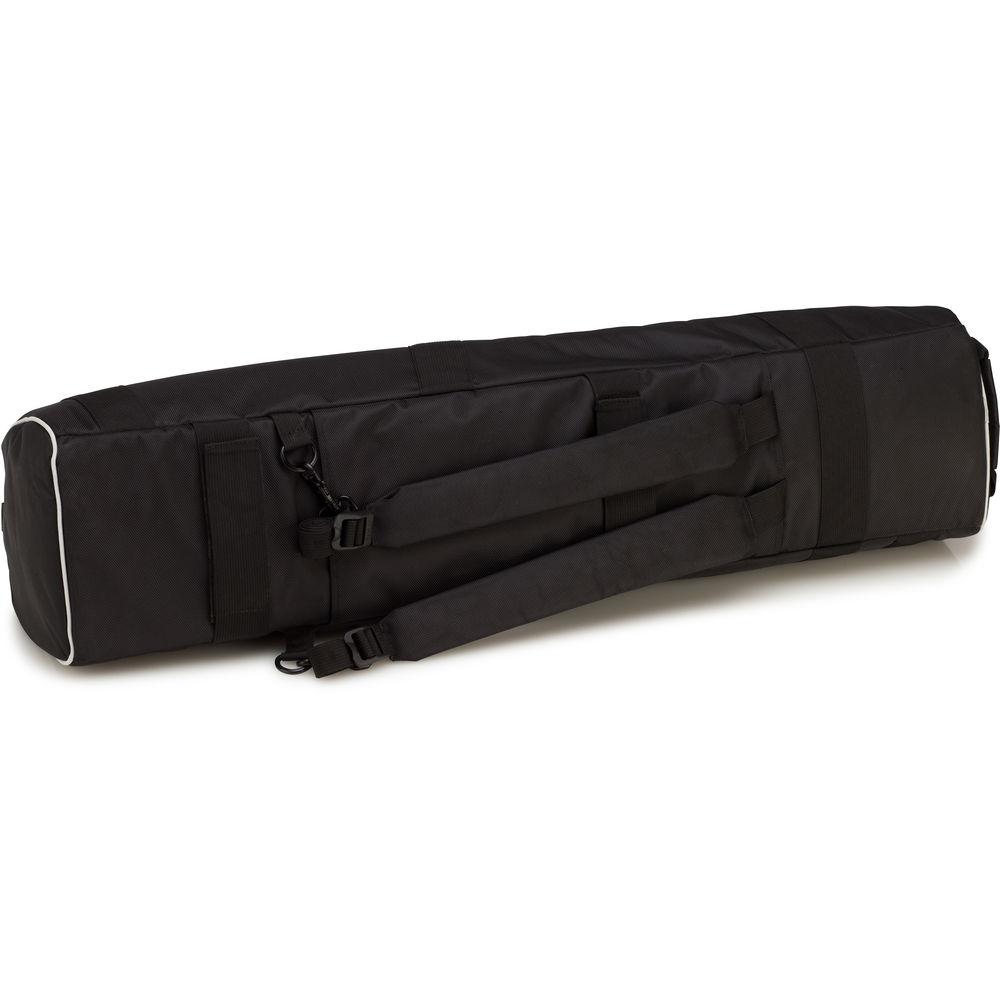

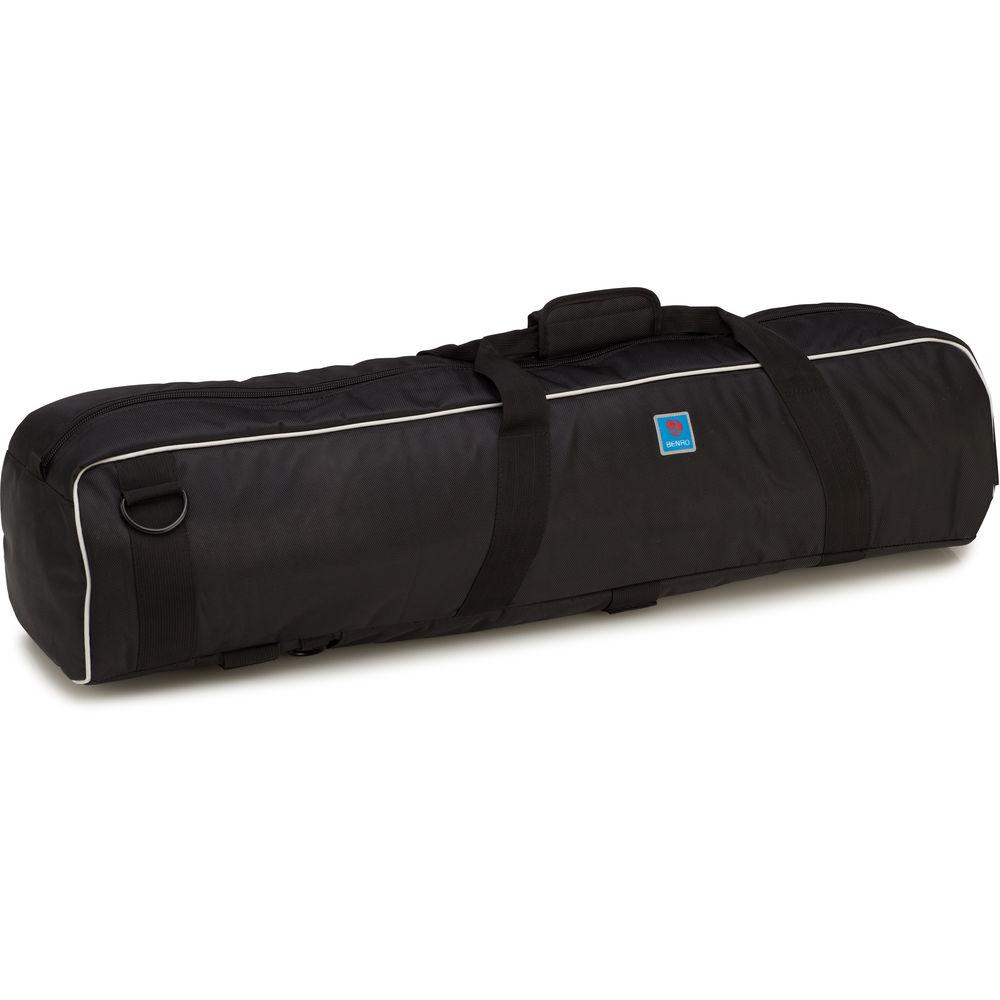

• Padded Carrying Case with Shoulder Strap

• Set of Spiked Feet

• Limited 3-Year Warranty, Extendable by 2 Years with Product Registration

• BS02 Pan Bar Handle

• QR13 Quick Release Plate

• 3/8"-16 Captive Camera Tie-Down Screw

• Limited 3-Year Warranty, Extendable by 2 Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• A474T Aluminum Video Tripod (100mm Bowl)

  Head Mount Type	100 mm Bowl
  Load Capacity	77 lb / 35 kg
  Maximum Working Height	59.4" / 150.9 cm
  Minimum Working Height	6" / 15.2 cm
  Folded Length	26" / 66 cm
  Materials	Aluminum
  Weight	9.7 lb / 4.4 kg

  Leg Lock Type	Twist Lock
  Independent Leg Spread	Yes
  Leg Sections	3
  Leg Diameter	1.4" / 36 mm
  Feet Features	Rubber, Removable, Spiked

  Box Dimensions (LxWxH)	35.5 x 7.2 x 7.2"

• BV10H 100mm Video Head

  Camera Plate Features	Sliding Balance Plate
  Camera Mounting Screw	1 x 1/4"-20 Male 1 x 3/8"-16 Male
  Plate Dimensions	5.55 x 1.96" / 14.1 x 4.98 cm

  Base Mount	100 mm Half Ball

  Drag Control	Tilt: 3-Step Plus 0 Pan: 3-Step Plus 0
  Vertical Tilt	+90 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 68 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
