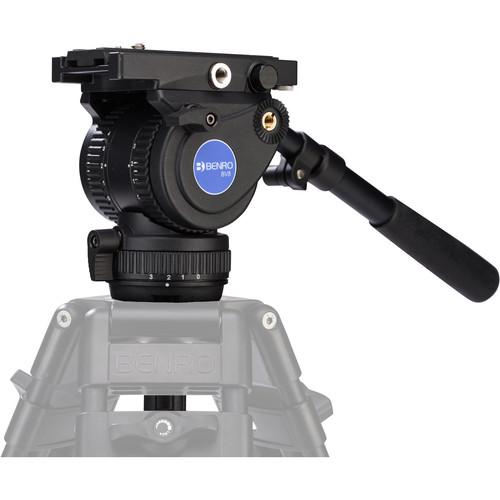

Product description The Benro BV8H 75mm Video Head supports cameras and accessories up to 17.6 pounds, and features a sliding balance plate with both a 1/4"-20 and 3/8"-16 camera tie-down screws. Incorporating a 75mm half ball fitting for quick leveling without having to adjust the legs, it provides a wide platform to support your camera.
The BV8H fluid head features a 4-step counterbalance system with a zero setting for when you want the head to be completely free. Likewise, the pan and tilt functions feature three steps, plus a zero setting. Pan and tilt drag are independent and each function has its own lock. An integrated 3/8"-16 threaded mounting hole enables you to mount accessories directly to the head, relieving the strain of mounting them to your camera. The panhandle mounts via a rosette, and can be attached to either side of the fluid head. An integrated bubble level helps you quickly level the head. - Sliding balance plate is 501/504PL compatible, and includes 1/4"-20 and 3/8"-16 camera tie-down screws.
- The pan, tilt, and counterbalance settings control are similar in function and use, for an easy learning curve and simpler operation.
- Counterbalance settings: 0, 5.5, 9.9, 14.3, and 17.6 pounds.
- Independent pan and tilt drag and locks.
- Pan and tilt adjustments and locks are located on the left side of the head making it easy to adjust with a single hand while operating the camera.
- Pan, tilt, and counterbalance settings are stepped and indexed, which allows you to make precise adjustments by feel.
- The 75mm half ball can be used on tripod legs and mounting adapters with standard 75mm half-ball adapters.
- The tilt range allows you to tilt from straight down to almost straight up.
- The included panhandle mounts to the fluid head via a rosette. The head incorporates two rosettes, one on each side, which enables mounting the panhandle on the left or right side of the head. An additional panhandle (not included) can be mounted to the fluid head via the second rosette.
In the Box Benro BV8H 75mm Video Head BS02 Pan Bar Handle QR13 Quick Release Plate 3/8"-16 Captive Camera Tie-Down Screw Limited 3-Year Warranty, Extendable by 2 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro BV8H 75mm Video Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenro BV8H Specs | | | Camera Plate Features | Sliding Balance Plate | | Camera Mounting Screw | 1 x 1/4"-20 Male
1 x 3/8"-16 Male | | Plate Dimensions | 5.55 x 1.96" / 14.1 x 4.98 cm | | | | Base Mount | 75 mm Half Ball | | | | Drag Control | Tilt: 3-Step Plus 0
Pan: 3-Step Plus 0 | | Vertical Tilt | +90
