User Manual for Benro C373F Series 3 CF Video Tripod & S8 Head Click to enlarge the picture
Contents of the user manual for the Benro C373F Series 3 CF Video
- Product category: Tripod Systems Benro
- Brand: Benro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Benro Tripod Systems
 |
User manual for the Benro C373F Series 3 CF Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Benro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Benro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Benro product will considerably shorten its lifespan!
|

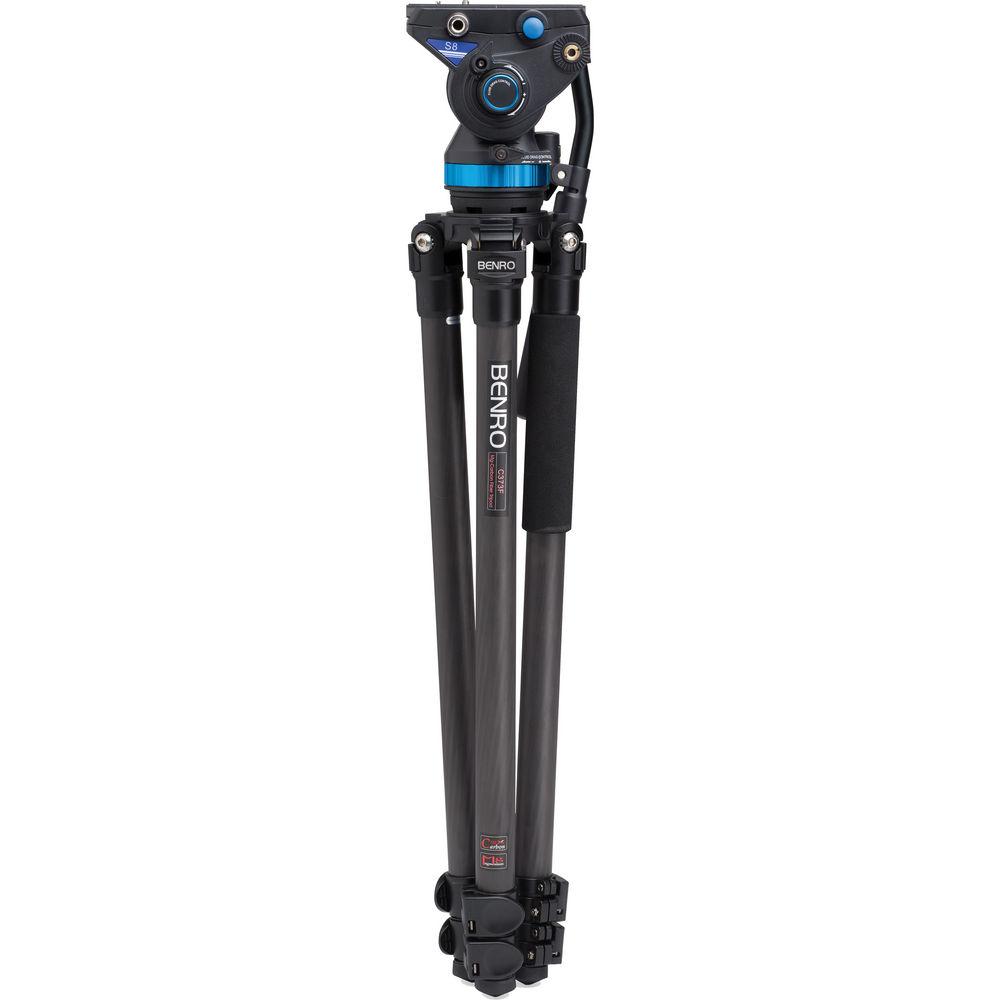

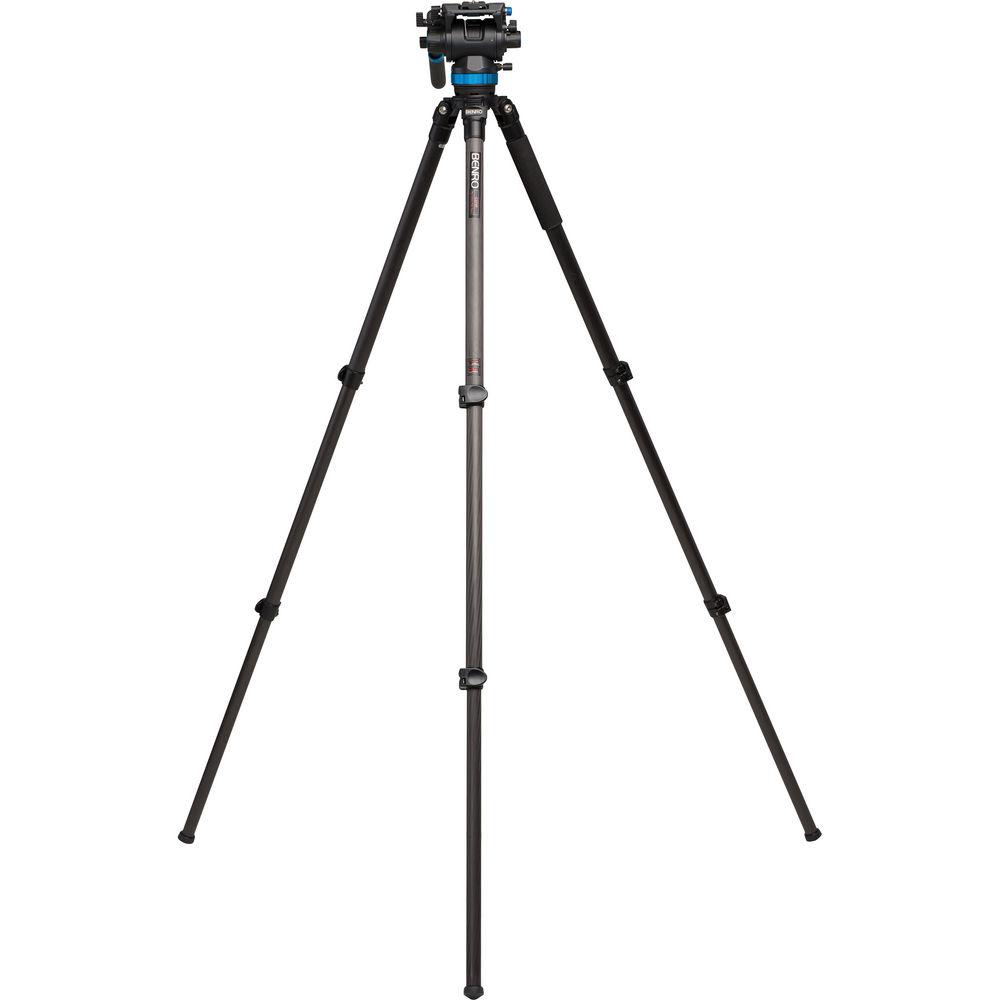

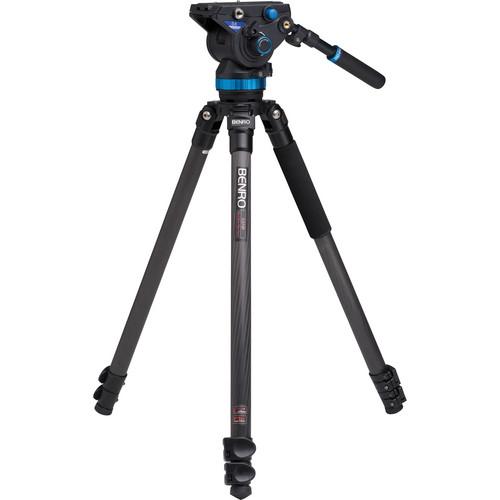

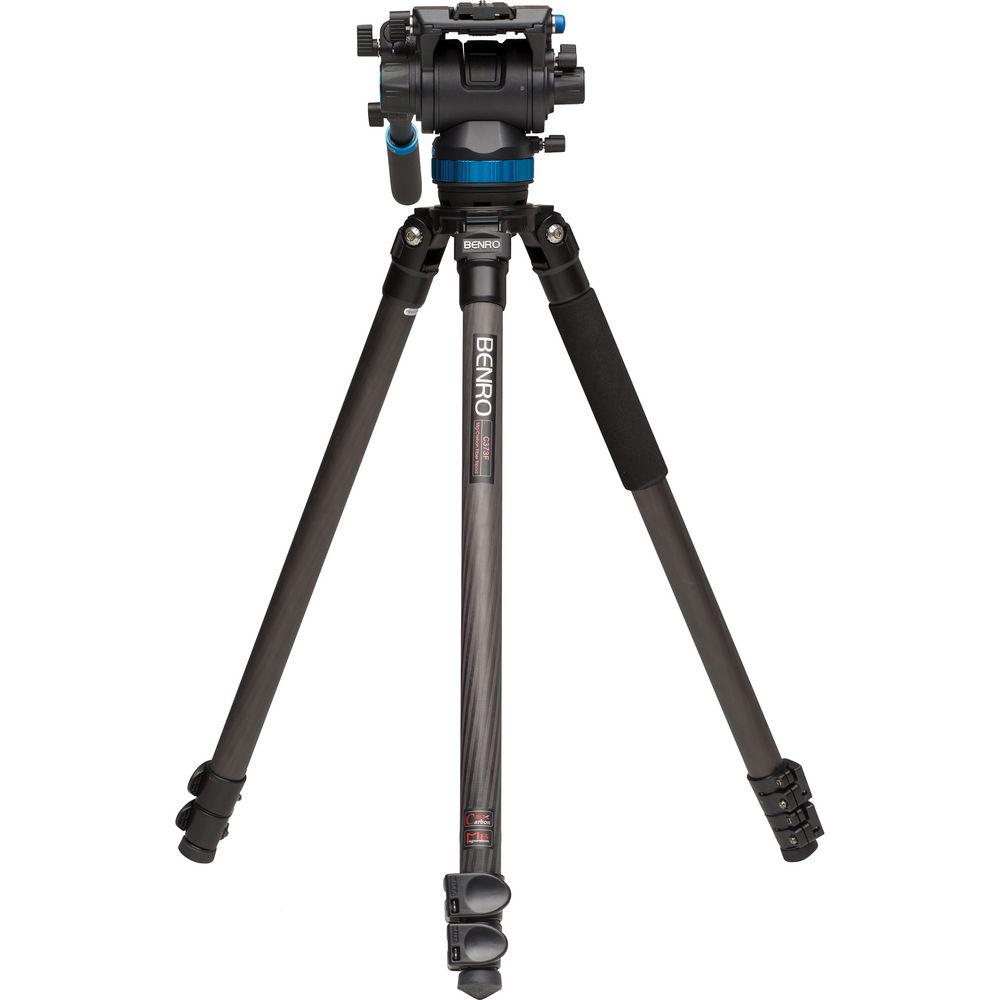

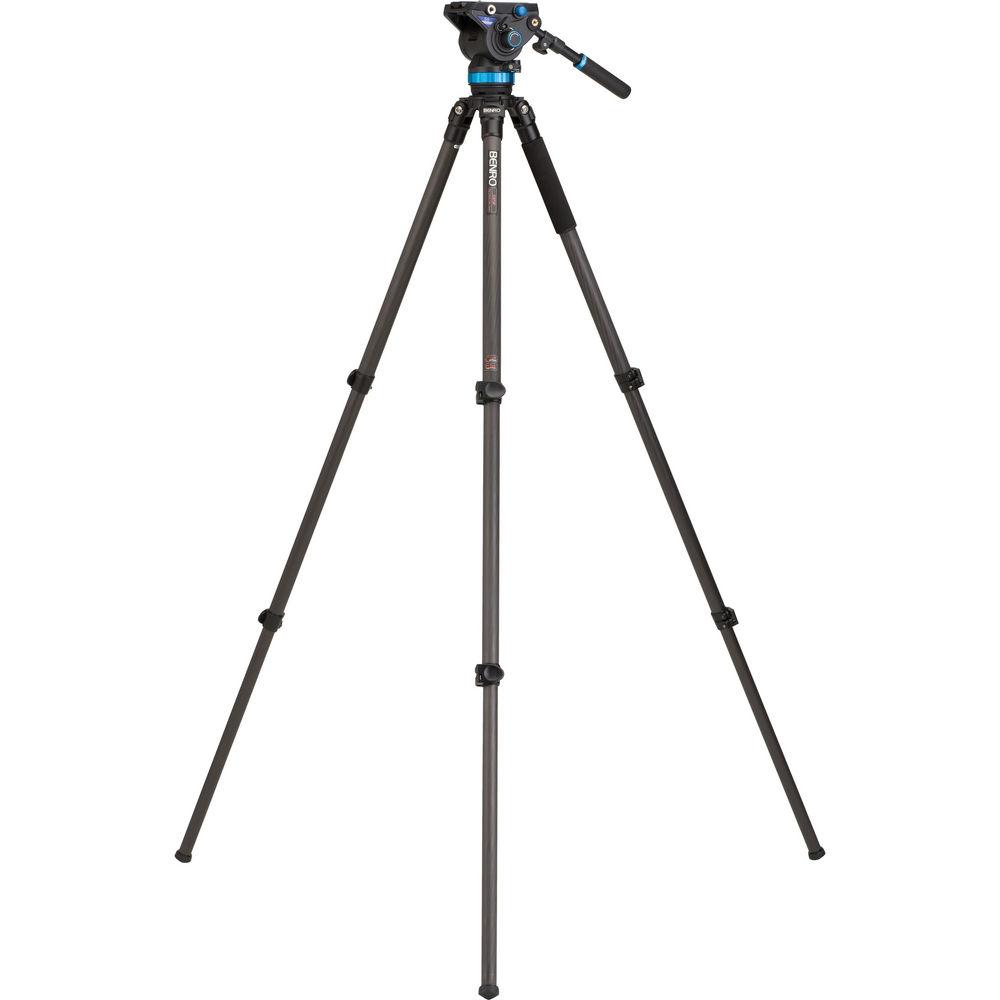

Product description The Benro C373F Series 3 CF Video Tripod & S8 Head is a lightweight tripod system featuring carbon fiber tripod legs and a flat base head supporting up to 17.5 lb. A half ball adapter is included for mounting the head on the tripod legs, but the adapter is removable so you can attach the head on sliders and other support gear via the 3/8"-16 thread on the bottom. The legs extend from 14.5 to 64", and the entire system weighs only 10 lb. Opening fully to the minimum height conveniently allows for stable low-angle shooting.

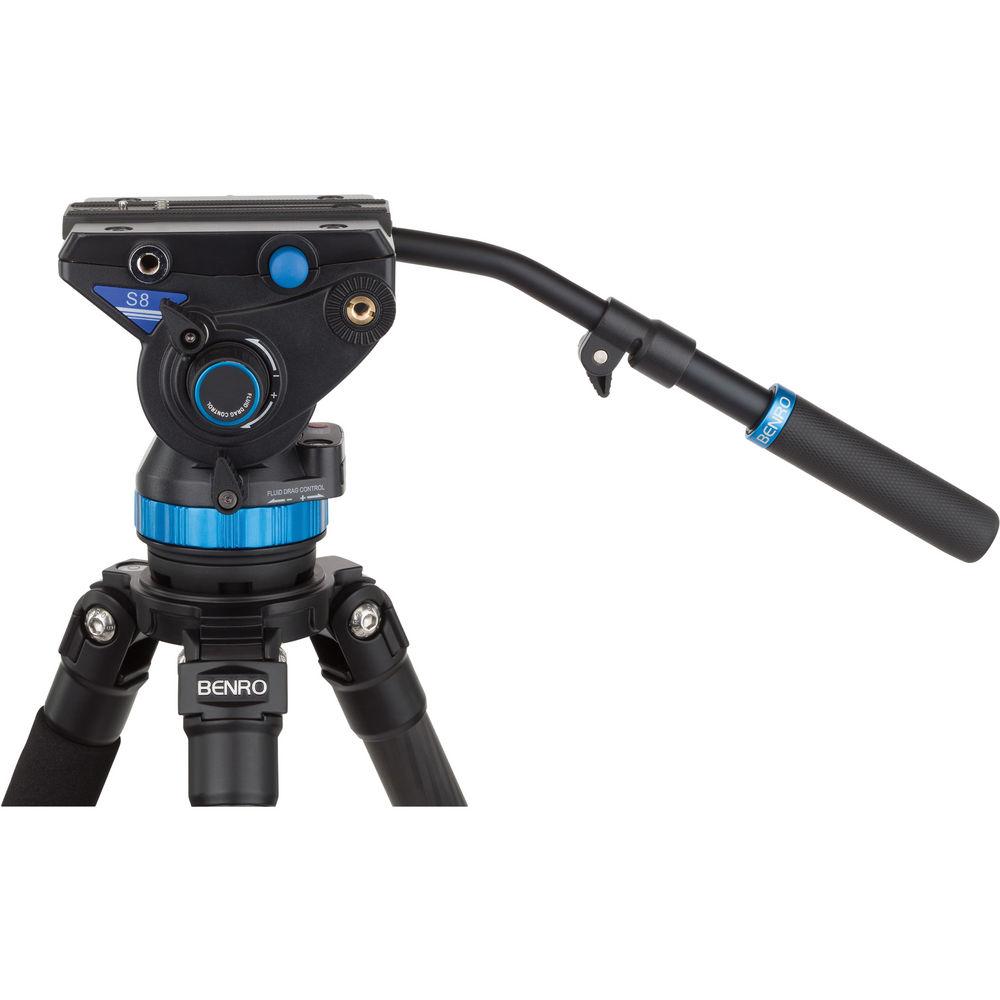

Designed to give you more precise control, the head provides stepless, continuous adjustment of both pan and tilt drag. This allows you to dial in the amount of tension you feel most comfortable with for a given shot. You can pan a full 360° and tilt forward/backward 90/70°. The head also features a four-step adjustable counterbalance that helps compensate for different-sized cameras and adapts to payloads with varying centers of gravity.

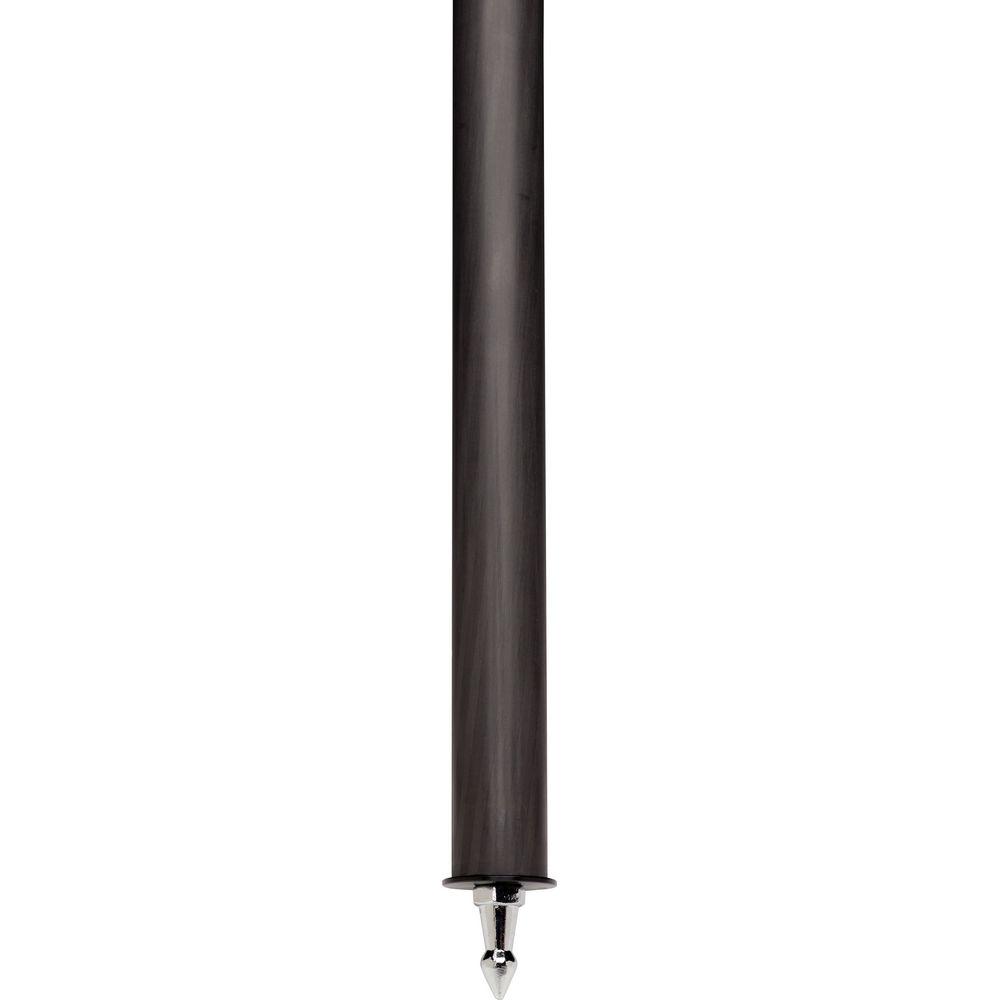

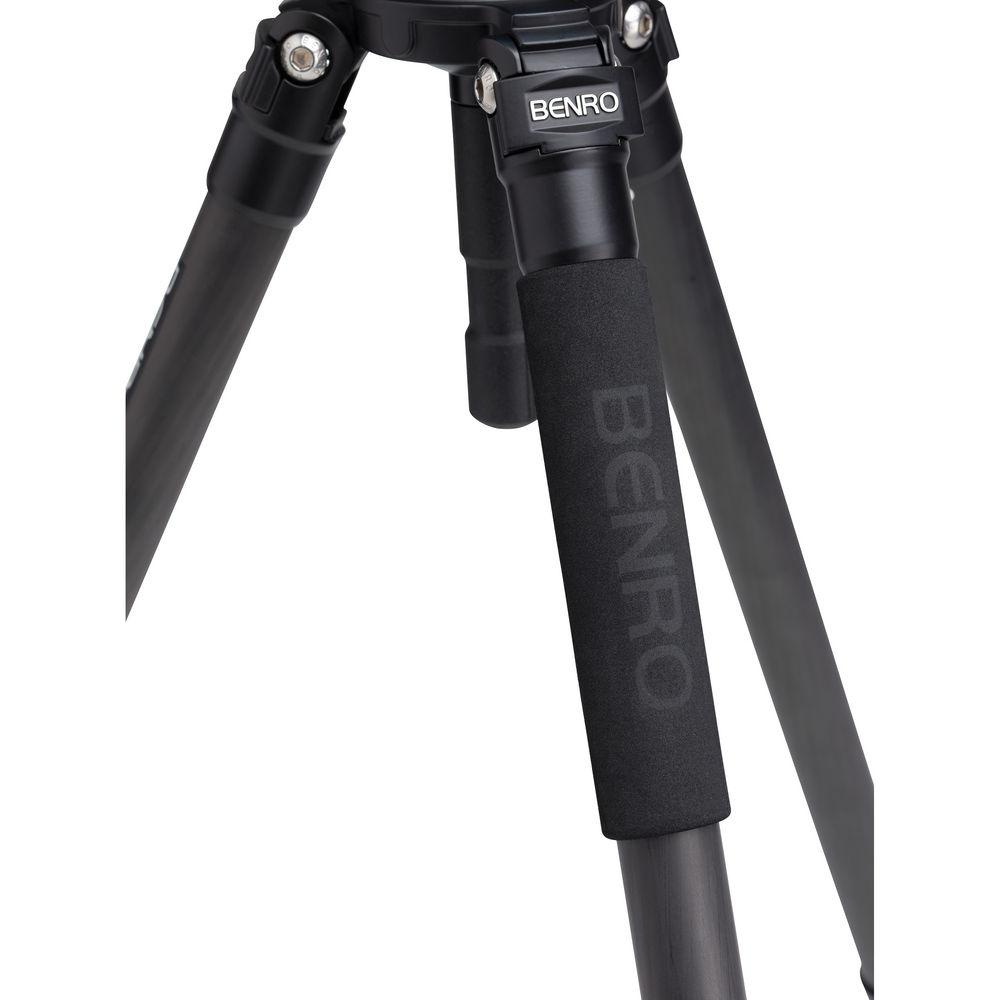

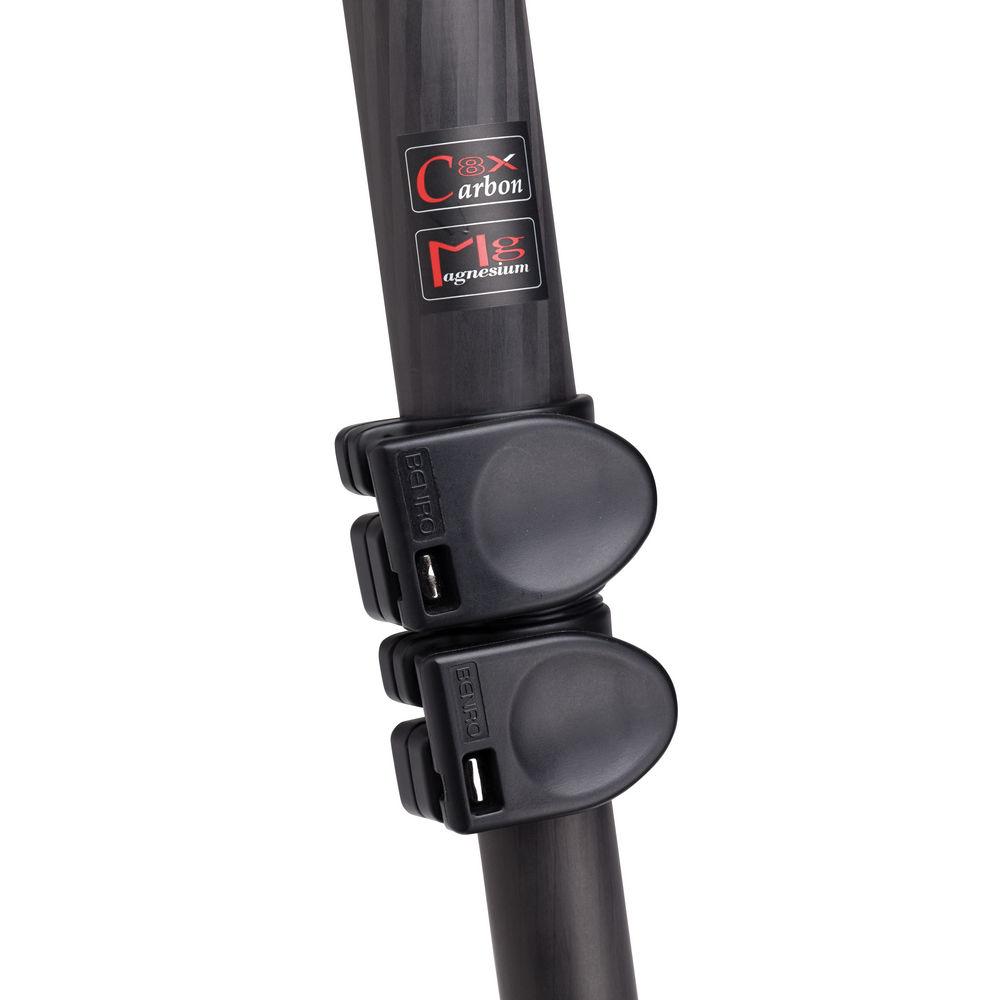

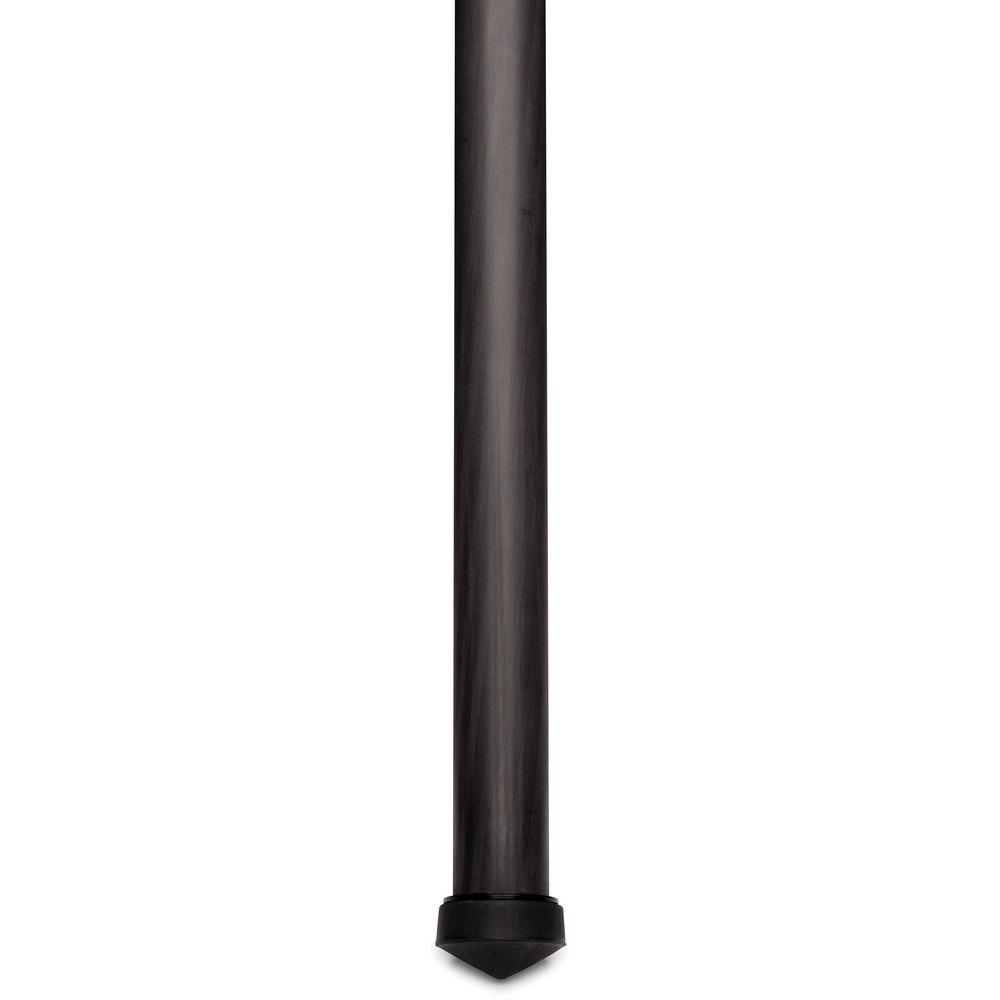

The legs have a two-stage, three-section design with three discreet stops for locking at different degrees of spread, and multi-angle flip-lever leg locks which allow each leg to be positioned independently for quick setup and uneven terrain. The legs have rubber feet, but come with stainless-steel spiked feet that can be installed for use on soft surfaces.
Both the head and legs offer a bubble level. The head also provides two 3/8"-16 accessory mounting threads for directly attaching monitor arms and other gear. A pan bar is included, and an optional second one can be attached on the other side. - Key Features
-
- Flat base head with 3/8"-16 thread
- Half ball adapter included
- Carbon fiber two-stage, three-section tripod legs
- 17.5 lb payload
- 12.5" minimum height for low-angle shooting
- 64" max height
- Stepless, continuous pan/tilt drag
- 360° panning
- 90/70° forward/backward tilting
- Four-step adjustable counterbalance
- Three-stop independent leg spread
- Independent flip-lever leg locks
- Rubber feet
- Stainless-steel spiked feet included
- Two 3/8"-16 threads on the head for mounting monitor arms and other accessories
In the Box Benro C373F Series 3 CF Video Tripod & S8 Head QR6 Slide-In Video Quick Release Plate 75HB 75mm Half Ball Adapter Pan Bar Spiked Feet Set Deluxe Carry Case Limited 3-Year Warranty, Extendable to 5 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro C373F Series 3 CF Video Tripod & S8 Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenro C373FBS8 Specs | | | Head Fitting | 75 mm bowl | | Material of Construction | Carbon fiber | | Maximum Height | 64" / 163 cm | | Minimum Height | 12.5" / 31.5 cm | | Folded Length | 31.5" / 80 cm | | Leg Sections | 3 | | Leg Lock Type | Flip-lock | | Independent Leg Spread | Yes, with 3 stops | | Feet | Rubber feet, stainless-steel spiked feet included | | Bubble Level | Yes | | Leg Diameter | Section 1: 1.3" / 3.2 cm
Section 2: 1.1" / 2.9 cm
Section 3: 1" / 2.5 cm | | | | Mount Type | Flat base with 3/8"-16 thread
Removable 75 mm half ball adapter included | | Load Capacity | 17.5 lb / 8 kg | | Counter Balance System | Stepped: 0 - 3 | | Quick Release/Wedge Plate | Benro QR6 slide-in video quick release plate | | Tilt Drag | Stepless | | Tilt Range | +90° to -70° | | Tilt Lock | Yes | | Pan Drag | Stepless | | Pan Range | 360° | | Pan Lock | Yes | | Bubble Level | Yes | | Temperature Range | -4 to 140°F / -20 to 60°C | | Height | 5.9" / 15 cm | | Weight | 5.7 lb / 2.6 kg | | | | Package Weight | 13.2 lb | | Box Dimensions (LxWxH) | 35.25 x 7.3 x 7.0" |
