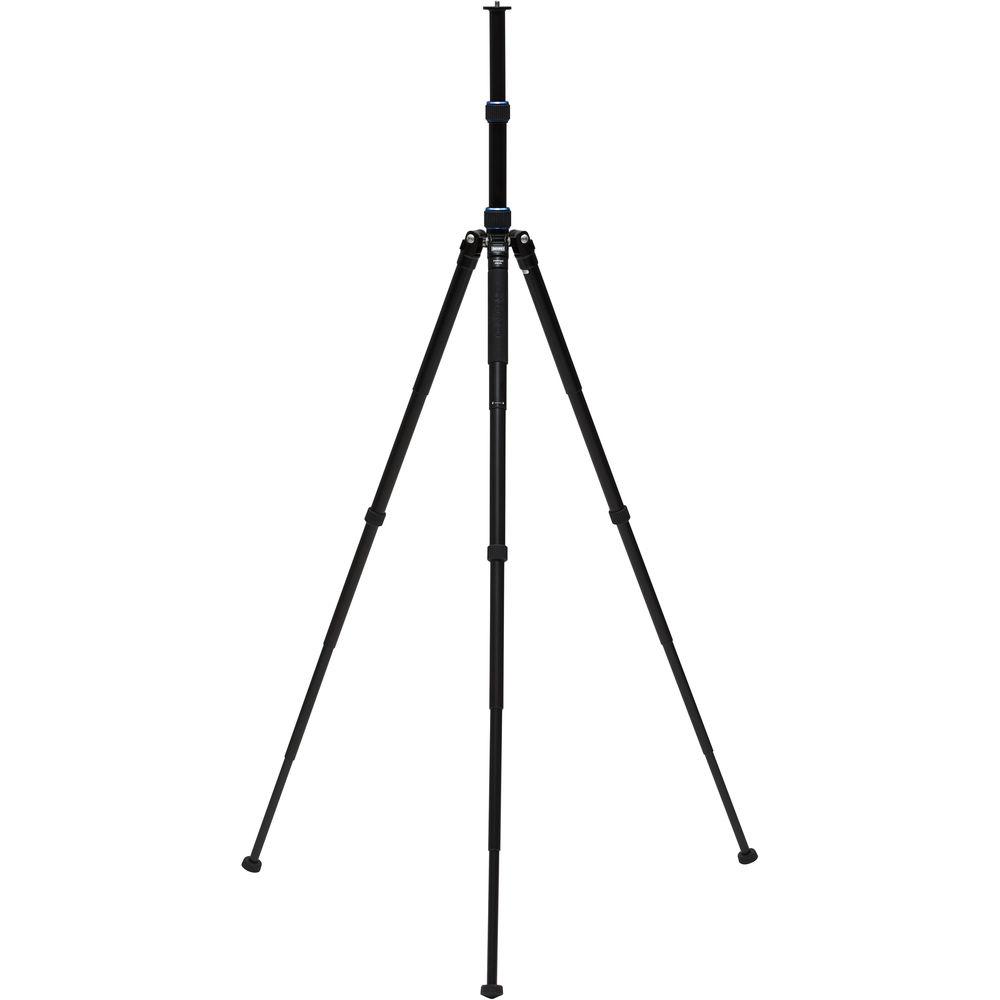

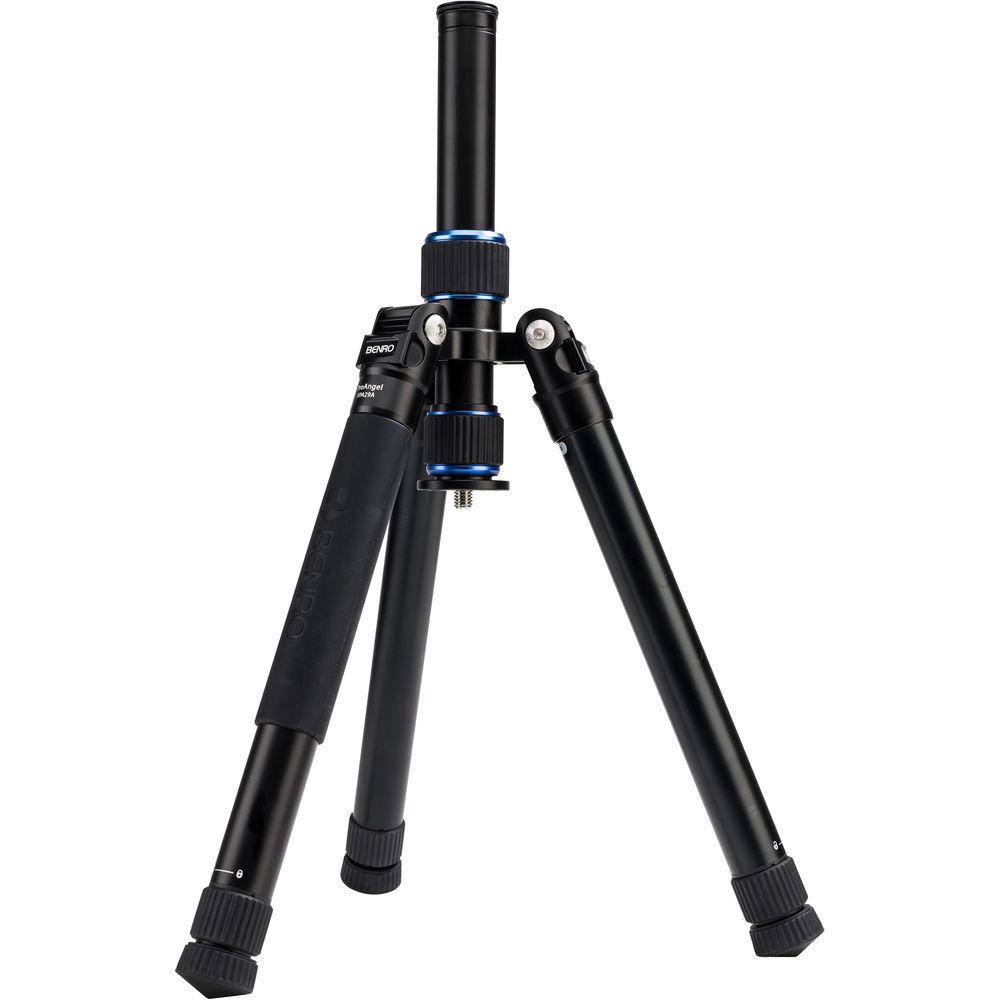

Product description Designed to conserve space during storage and transport, the FPA29A ProAngel Aluminum-Alloy #2-Series Tripod from Benro supports up to 22.0 lb and measures 13.0" long when folded. Each of this travel tripod's 5-section legs features an independent spread, a 3-position angle lock, a single half-turn twist lock for speedy deployment, and a rubber foot to enhance stability on a wide variety of surfaces. Among the legs is a push-and-pull, rapid center column with two, telescoping sections and dual twist locks that further contribute to this tripod's compact design. Together, the three legs can be spread and extended to raise the tripod from a minimum height of 9.4" to a maximum height of 46.3" or 56.9" when the center column is fully elevated.

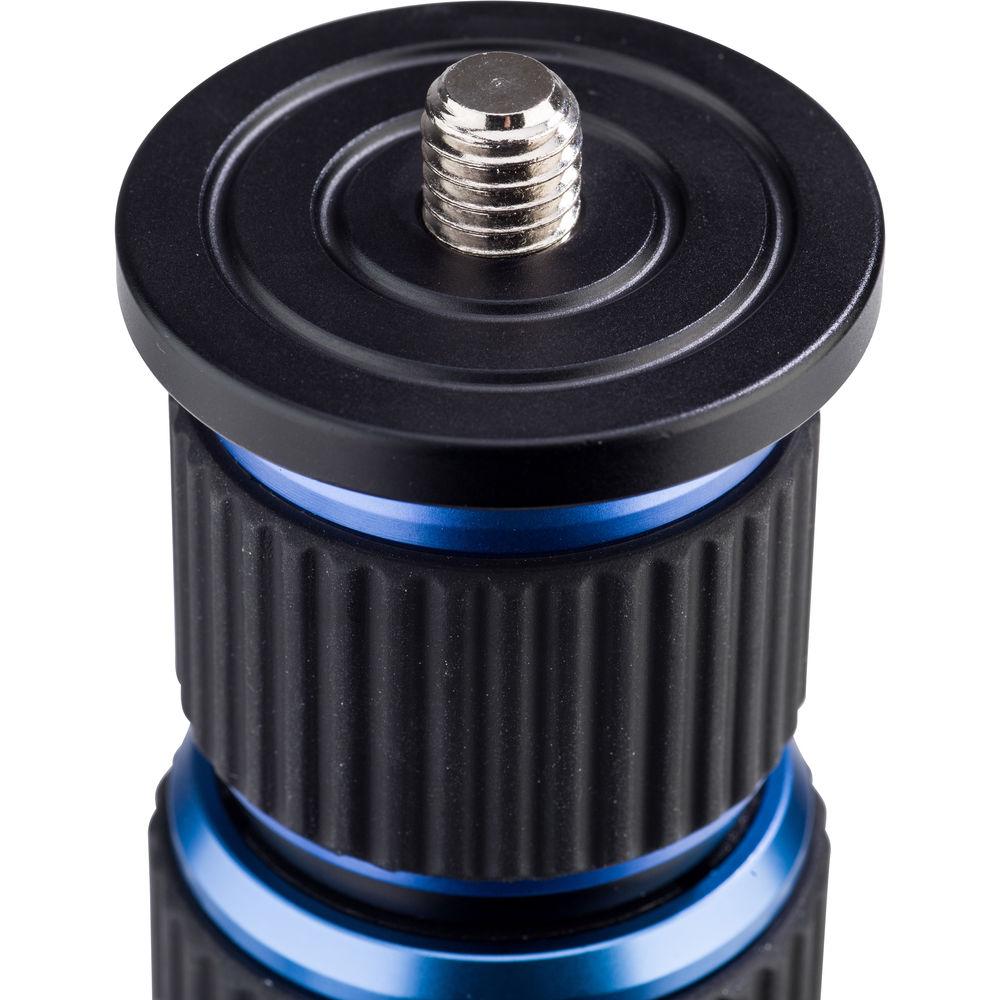

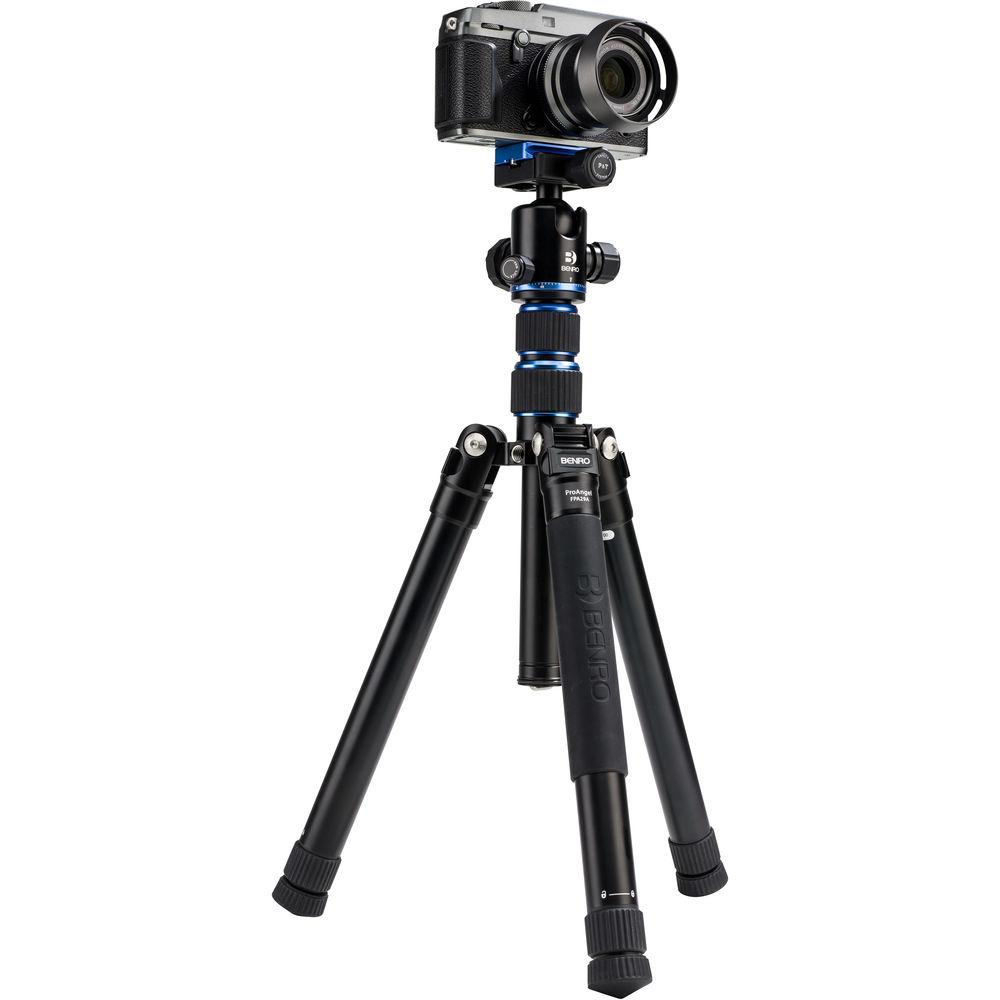

Tripod heads, cameras, lenses, or sport optics that are compatible with a 3/8"-16 mount can be connected to the top of the tripod's center column. For added versatility, the tripod's center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them.
A nylon carry bag with a zippered closure and shoulder strap is provided for storage and transport. - Use and Handling
-
- Supports up to 22.0 lb
- Push-and-pull center column with ballast hook for rapid camera, lens, or sport optic positioning
- Center column has two, telescoping sections with dual twist locks that contribute to this tripod's compact design

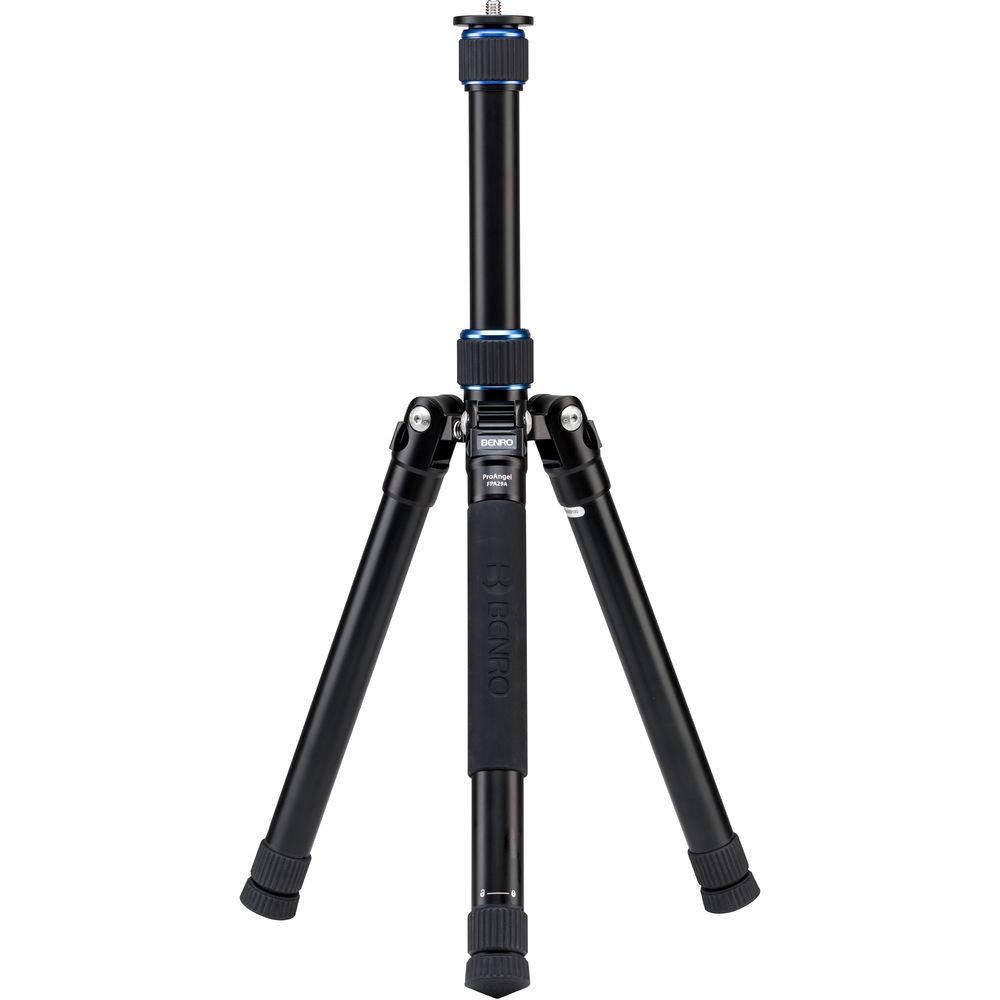

- Can be set for a minimum height of 9.4" to a maximum height of 46.3", or 56.9" with center column fully raised
- Center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them

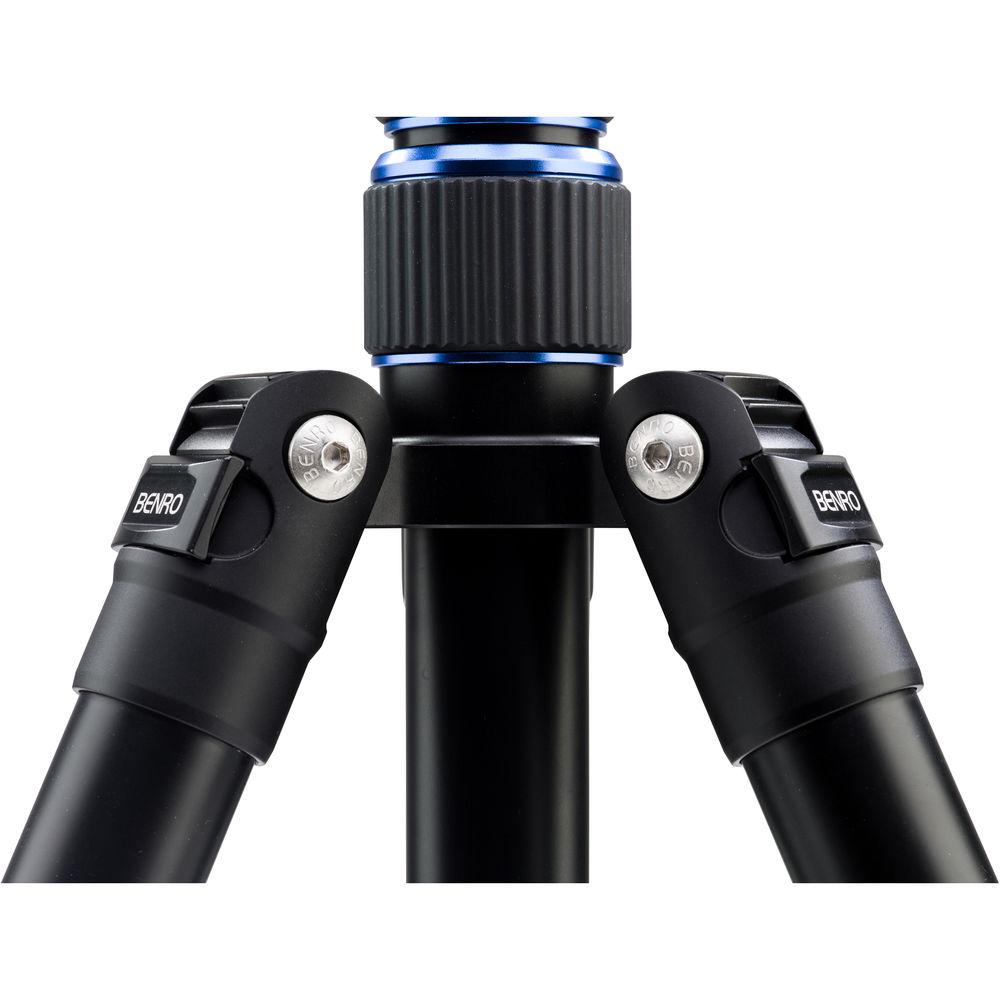

- Legs each feature 5 sections, a 3-position angle lock, a single half-turn twist lock for speedy deployment, and can be independently spread
- Legs can be locked at 23°, 55°, or 80° angles

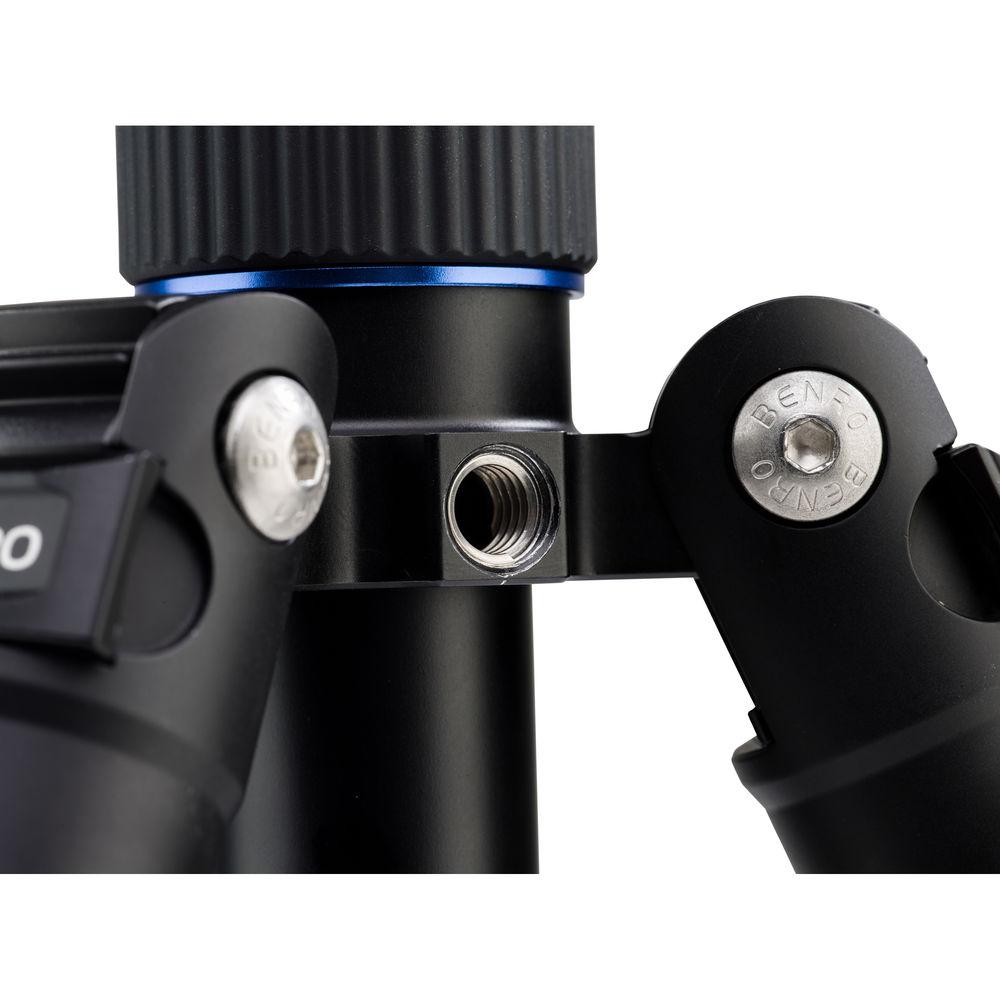

- For direct attachment of accessories that feature 3/8"-16 mounts, one 3/8"-16 female accessory thread is positioned among the legs' connecting hinges
- Rubber feet help to enhance stability on a wide variety of surfaces

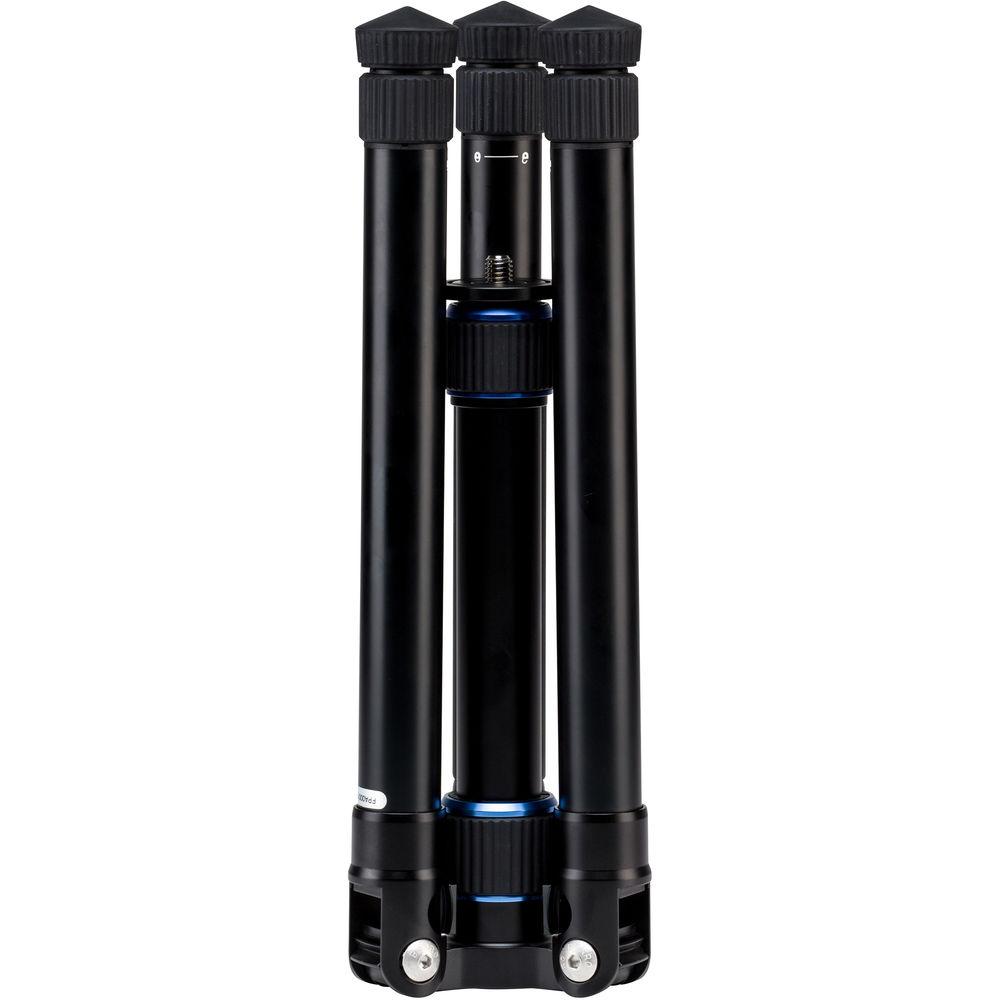

- Weighs 2.8 lb, measures 13.0" when legs are reversed 180° and folded

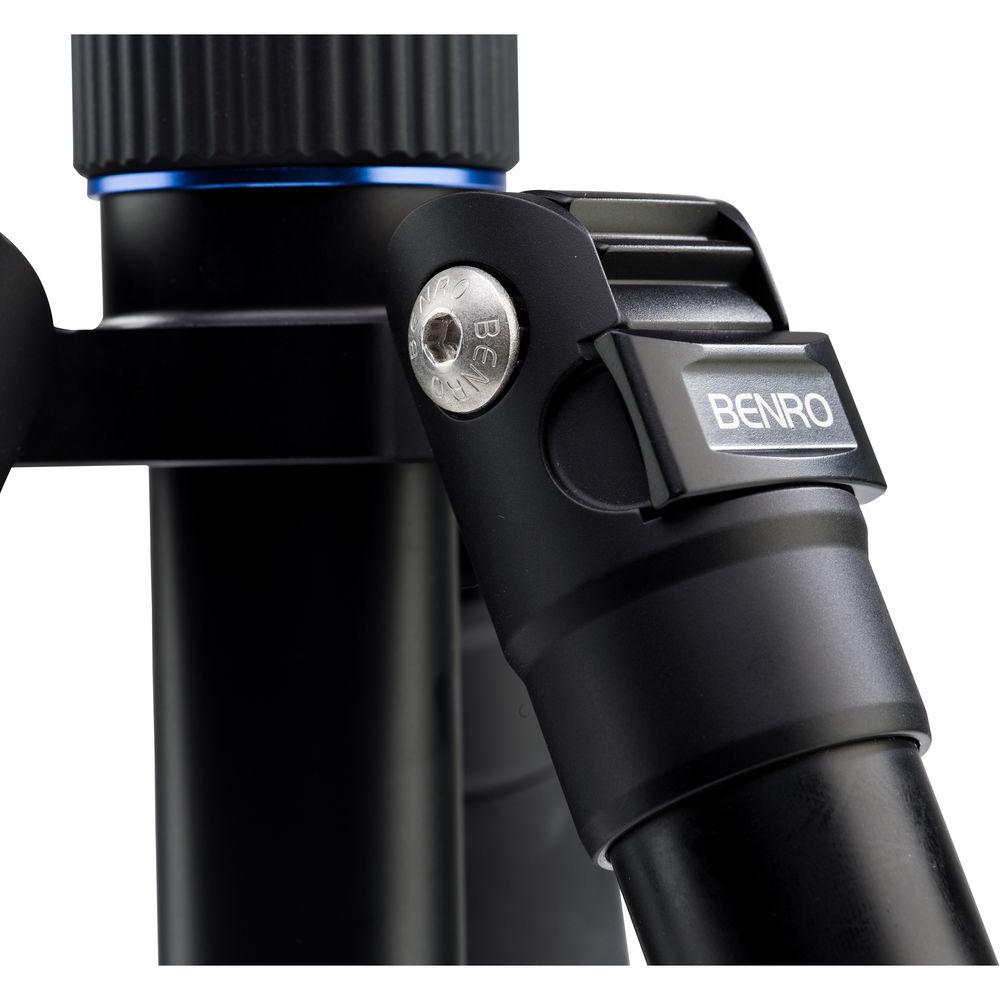

- Hex key to adjust tension on leg hinges
- Construction Details
-
- Aluminum-alloy legs
- Nylon carry bag with a zippered closure and shoulder strap is provided for storage and transport
In the Box Benro FPA29A ProAngel Aluminum-Alloy #2-Series Tripod Hex Key for Leg Hinge Screws Tripod Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro FPA29A ProAngel Aluminum-Alloy #2-Series Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenro FPA29A Specs | Load Capacity | 22.0 lb / 9.98 kg | Maximum Working Height | 56.9" / 144.5 cm | Max Height without Center Column | 46.3" / 117.60 cm | Minimum Working Height | 9.4" / 23.9 cm | Folded Length | 13.0" / 33.02 cm | Head Mount Type | 3/8"-16 Screw | Weight | 2.8 lb / 1.27 kg | Materials | Aluminum Alloy | Bubble Level | No | | Leg Lock Type | Twist Lock | Leg Positions | 3 Positions | Independent Leg Spread | Yes | Leg Sections | 5 | Feet Features | Rubber | | Center Column Features | Ballast Hook, Removable, Reversible | Center Column Sections | 2 | Center Column Extension Type | Rapid | Lateral / 90-Degree Center Column | No | | Package Weight | 4.15 lb | Box Dimensions (LxWxH) | 14.6 x 5.2 x 4.9" |
