User Manual for Benro FPA29AB1 ProAngel Aluminum-Alloy #2-Series Tripod with B1 Ball Head Click to enlarge the picture
Contents of the user manual for the Benro FPA29AB1 ProAngel Aluminum-Alloy #2-Series Tripod
- Product category: Tripods with Heads Benro
- Brand: Benro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Benro Tripods with Heads
 |
User manual for the Benro FPA29AB1 ProAngel Aluminum-Alloy #2-Series Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Benro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Benro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Benro product will considerably shorten its lifespan!
|

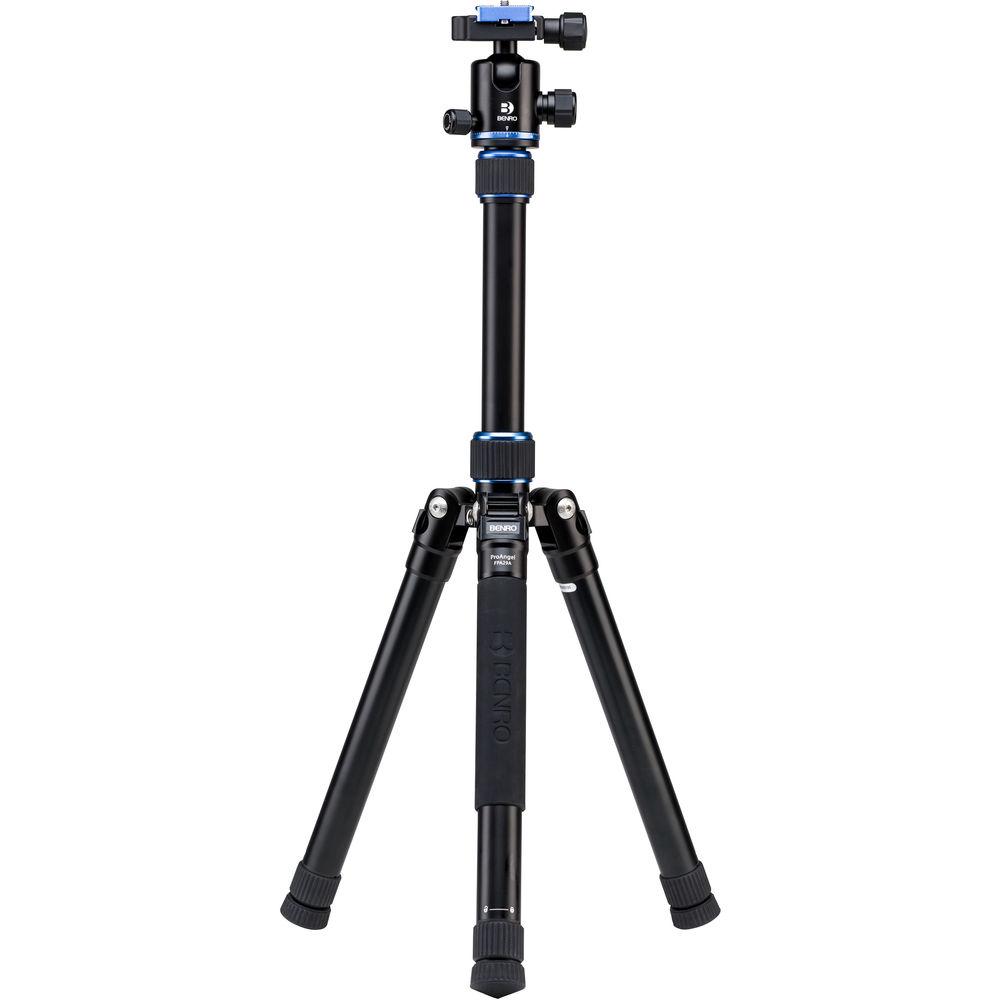

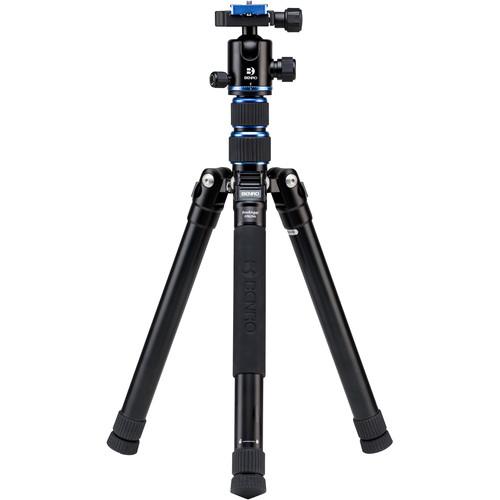

Product description Time-Lapse Tips and Tools Read More This FPA29AB1 ProAngel Aluminum-Alloy #2-Series Tripod from Benro supports up to 22.0 lb and includes a B1 Arca-type ball head with quick release plate. Designed to conserve space during storage and transport, this travel tripod measures 13.2" long when folded. Each of its 5-section legs features an independent spread, a 3-position angle lock, a single half-turn twist lock for speedy deployment, and a rubber foot to enhance stability on a wide variety of surfaces. Among the legs is a push-and-pull, rapid center column with two, telescoping sections and dual twist locks that further contribute to this tripod's compact design. Together, the three legs can be spread and extended to raise the tripod from a minimum height of 13.0" to a maximum height of 49.6" or 60.2" when the center column is fully elevated.

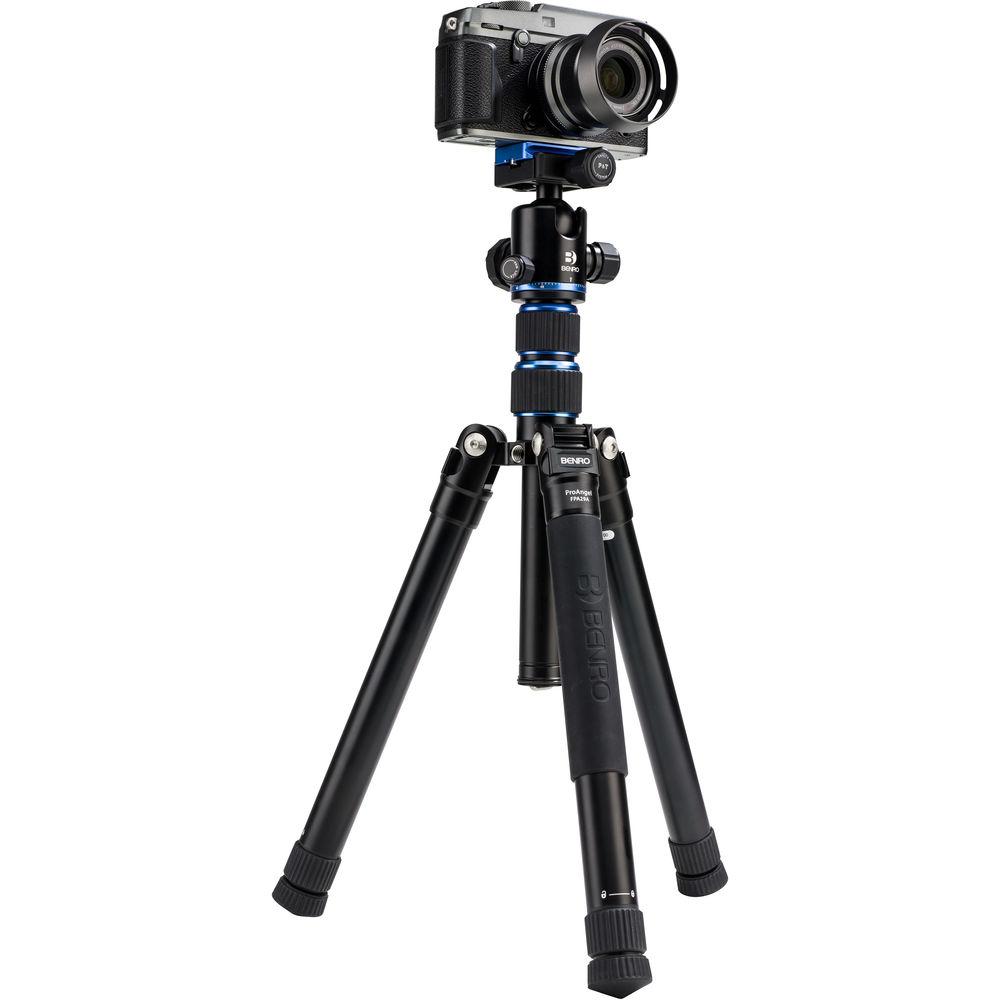

Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the included quick release plate. The quick release plate can be attached and removed from the integrated, Arca-type clamp located at the top of the B1 head's ball-and-socket joint by tightening or loosening the clamp's knurled, locking knob. This knob must be pulled before it can be turned, which serves to ensure that the clamp is opened only when intended. The top of the quick release plate features a rubberized, non-slip platform, while dual retaining screws are provided along its underside. Those retaining screws help prevent the quick release plate and an attached camera from accidentally sliding off when the clamp it is placed on is opened.

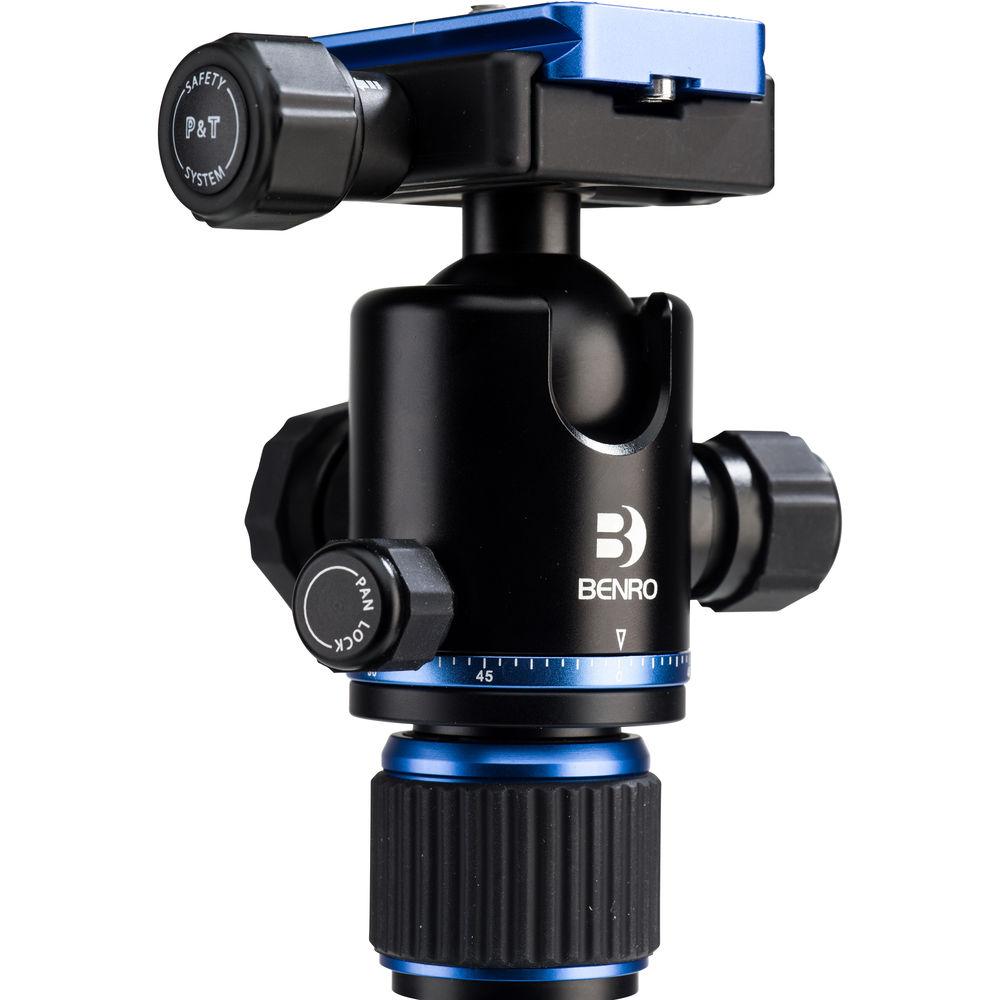

By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Variable tension can be applied to the ball-and-socket joint's movements by rotating the friction knob, which is adjacent to the primary locking knob. Toward the ball head's base is a secondary locking knob that controls the ability to rotate the head 360°. For added versatility, the tripod's center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them.
A nylon carry bag with a zippered closure and shoulder strap is provided for storage and transport. - Use and Handling
-
- Compact travel tripod with ball head
- Supports up to 22.0 lb
- Push-and-pull center column with ballast hook for rapid camera, lens, or sport optic positioning
- Center column has two, telescoping sections with dual twist locks that contribute to this tripod's compact design

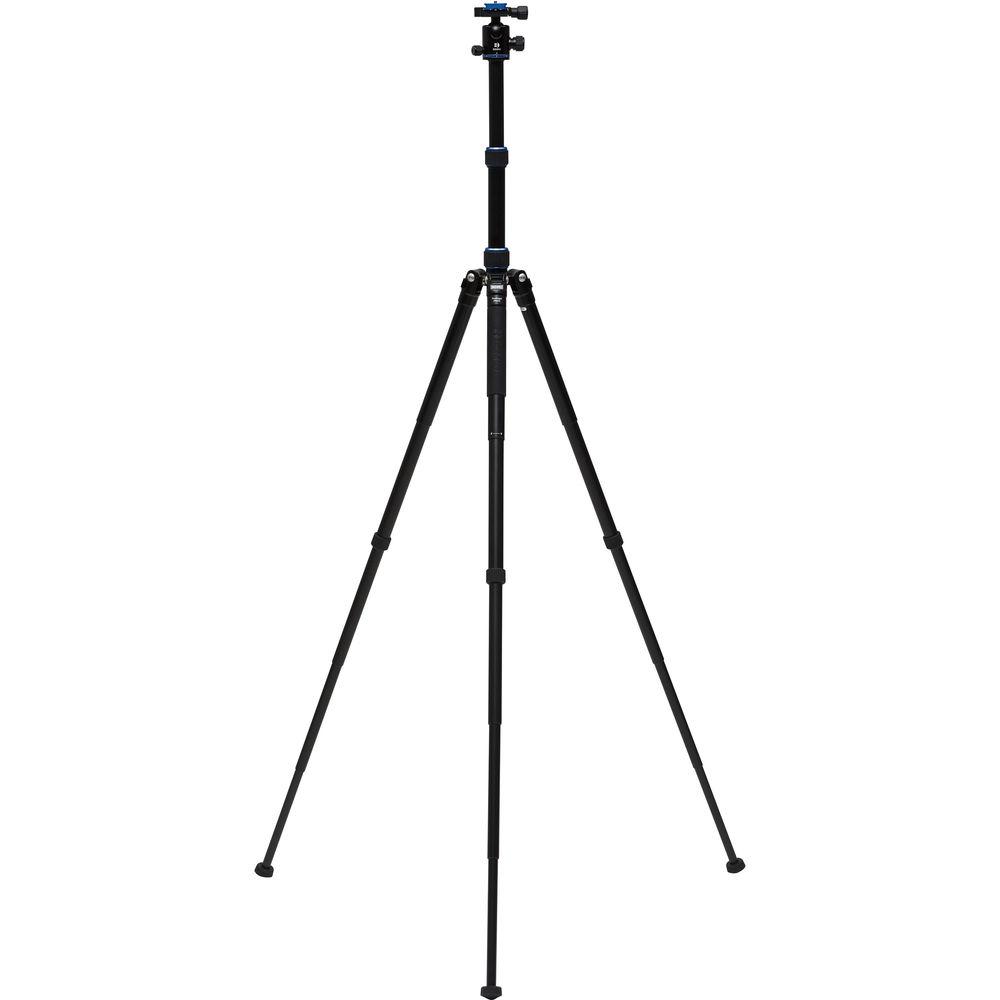

- Can be set for a minimum height of 13.0" to a maximum height of 49.6", or 60.2" with center column fully raised

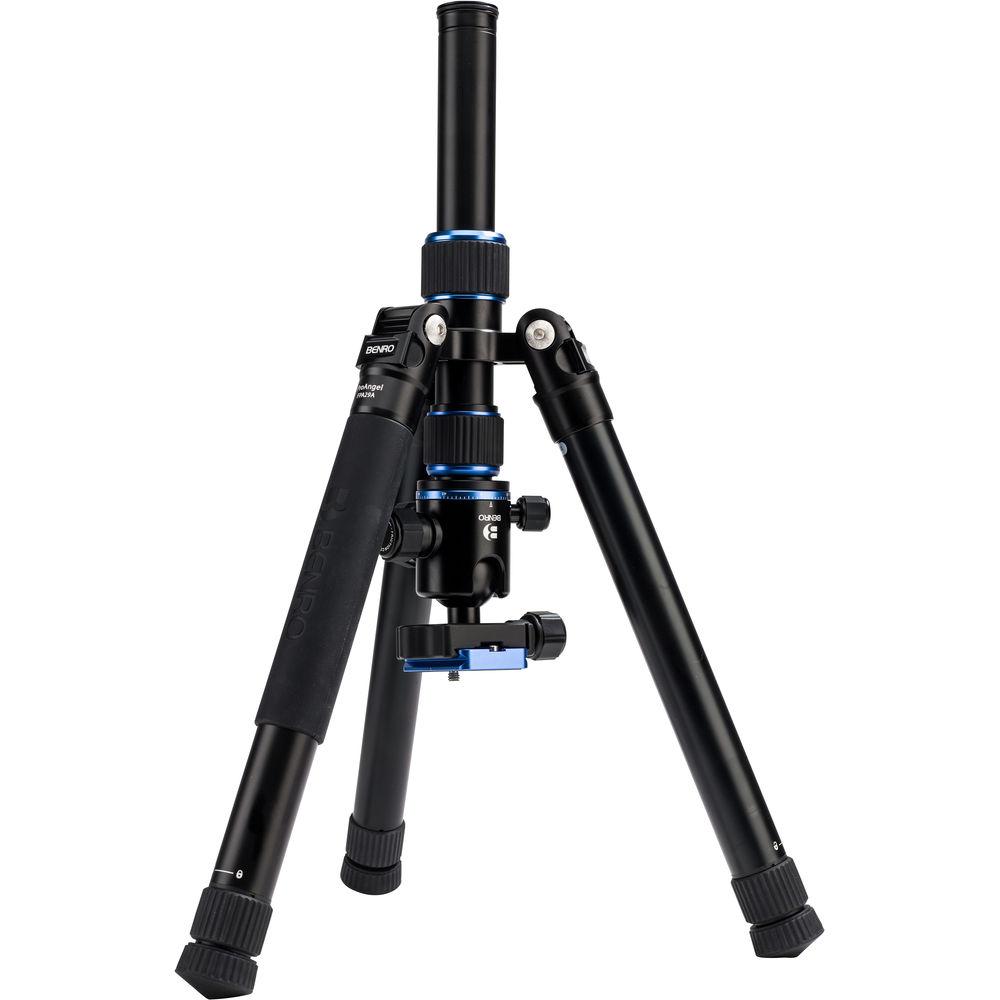

- Center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them
- Legs each feature 5 sections, a 3-position angle lock, a single half-turn twist lock for speedy deployment, and can be independently spread
- Legs can be locked at 23°, 55°, or 80° angles

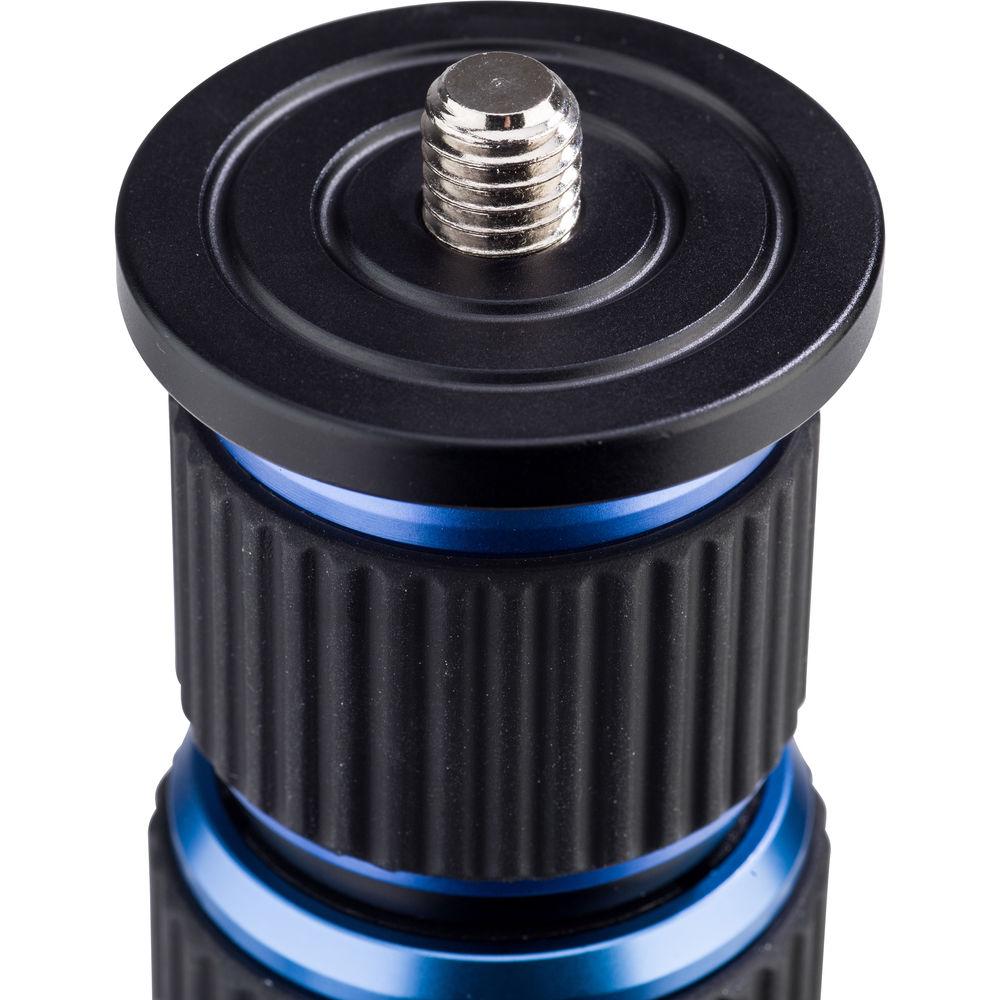

- For direct attachment of accessories that feature 3/8"-16 mounts, one 3/8"-16 female accessory thread is positioned among the legs' connecting hinges
- Rubber feet help to enhance stability on a wide variety of surfaces
- Ball head's large, primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Friction knob adjacent to primary locking knob applies variable tension to the ball-and-socket joint's movements
- Secondary ball head locking knob with knurled surface allows head to rotate 360°

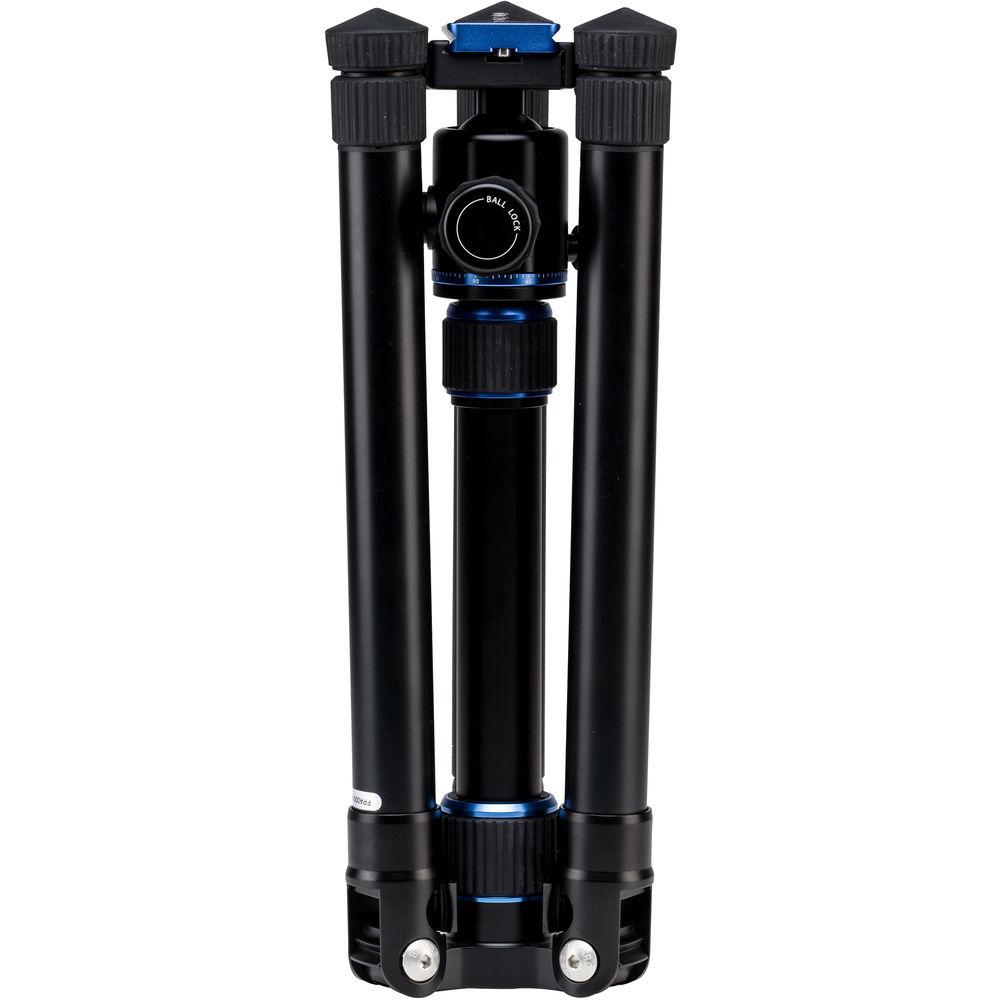

- Weighs 3.7 lb, measures 13.2" when legs are reversed 180° and folded
- Hex key to adjust tension on leg hinges
- Construction Details
-
- Aluminum-alloy legs
- Aluminum-alloy ball head with Arca-type quick release clamp and built-in bubble level

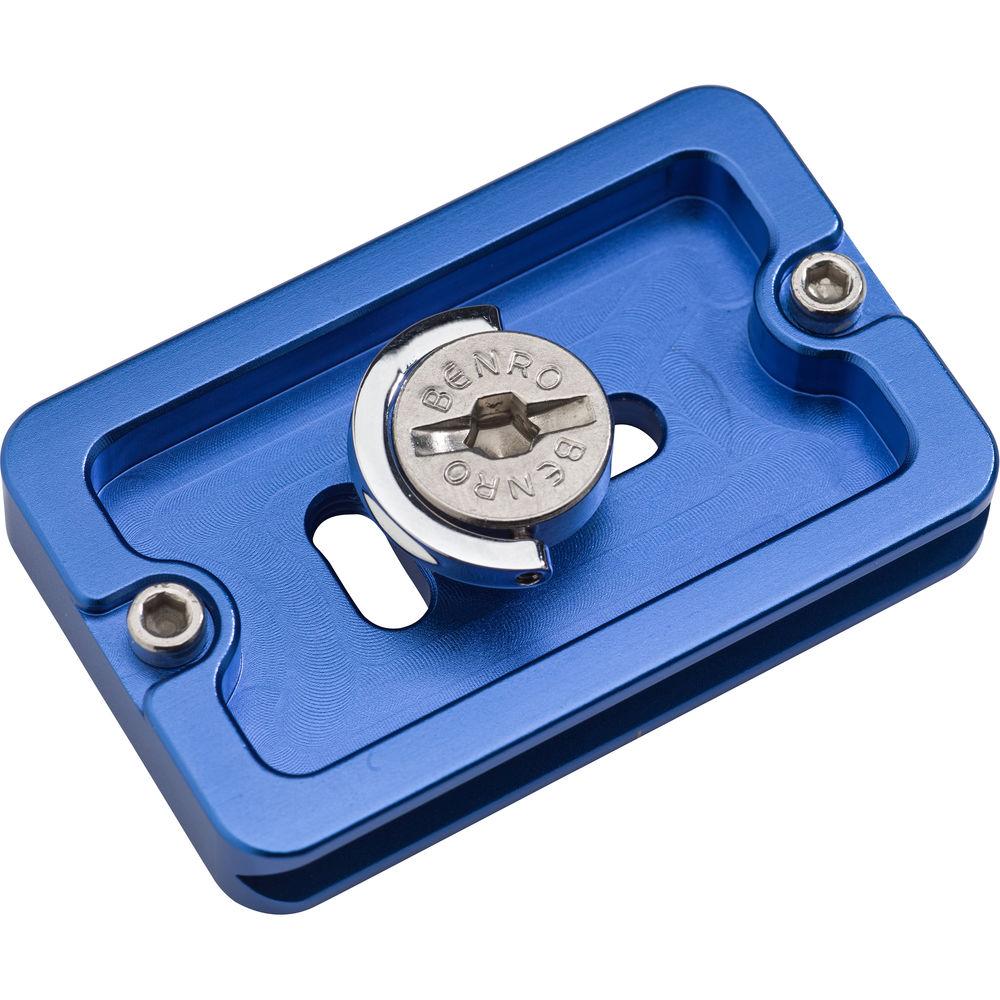

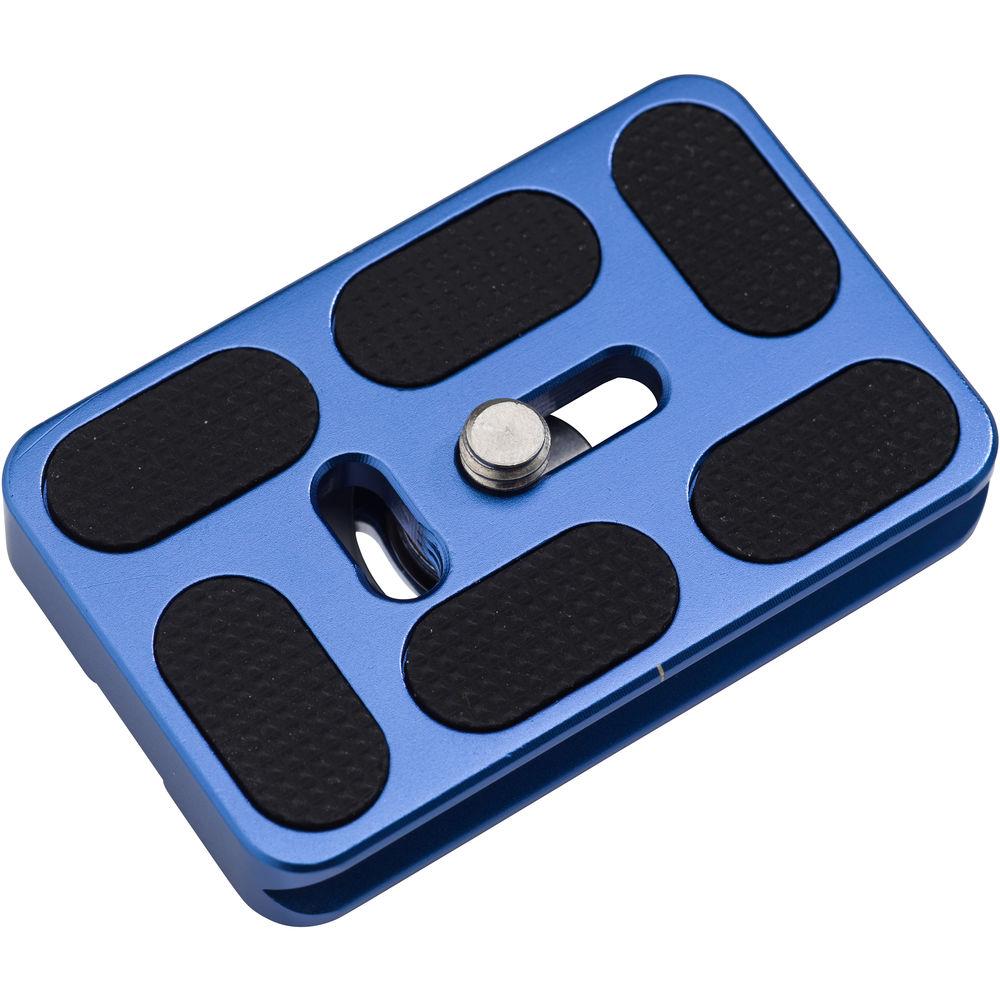

- Aluminum-alloy quick release plate with 1/4"-20 mount; rubberized, anti-slip surface; and dual retaining screws that prevent the base plate from accidentally sliding off when the clamp it is placed on is opened
- Nylon carry bag with a zippered closure and shoulder strap is provided for storage and transport
In the Box Benro FPA29AB1 ProAngel Aluminum-Alloy #2-Series Tripod with B1 Ball Head B1 Ballhead PU60 Quick Release Plate Hex Key for Leg Hinge Screws Tripod Bag Limited 3-Year Warranty Extendable to 5 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro FPA29AB1 ProAngel Aluminum-Alloy #2-Series Tripod with B1 Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenro ProAngel Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Arca-Type | | | | Load Capacity | 22 lb / 10 kg | | Maximum Working Height | 60.2" / 152.9 cm | | Max Height without Center Column | 49.6" / 126 cm | | Minimum Working Height | 13" / 33 cm | | Folded Length | 13.2" / 33.5 cm | | Materials | Aluminum Alloy | | Weight | 3.7 lb / 1.7 kg | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 5 | | | | Center Column Features | Ballast Hook, Reversible | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 14.6 x 5.0 x 5.0" |
