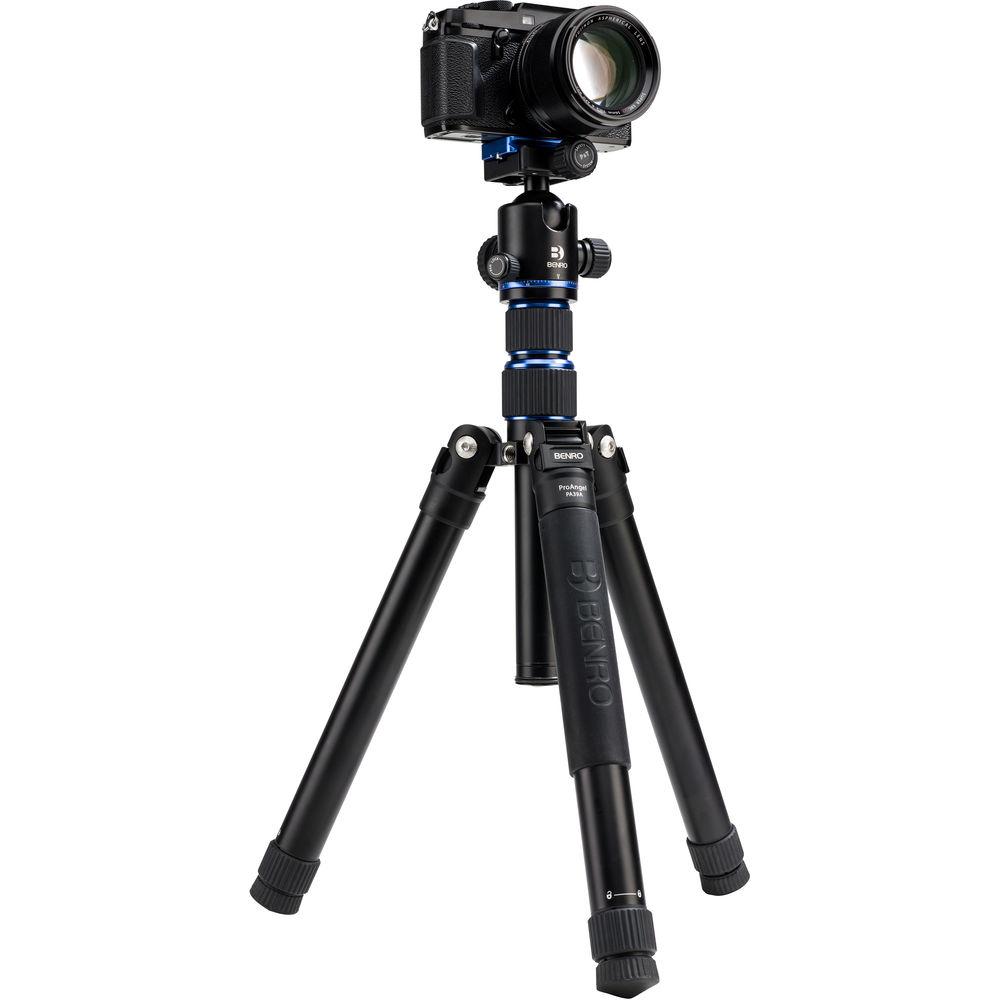

User Manual for Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head

Click to enlarge the picture
Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head Contents of the user manual for the Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod
  • Product category: Tripods with Heads Benro
  • Brand: Benro
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Benro Tripods with Heads

Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head
User manual for the Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Benro product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Benro user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Benro product will considerably shorten its lifespan!



Product description

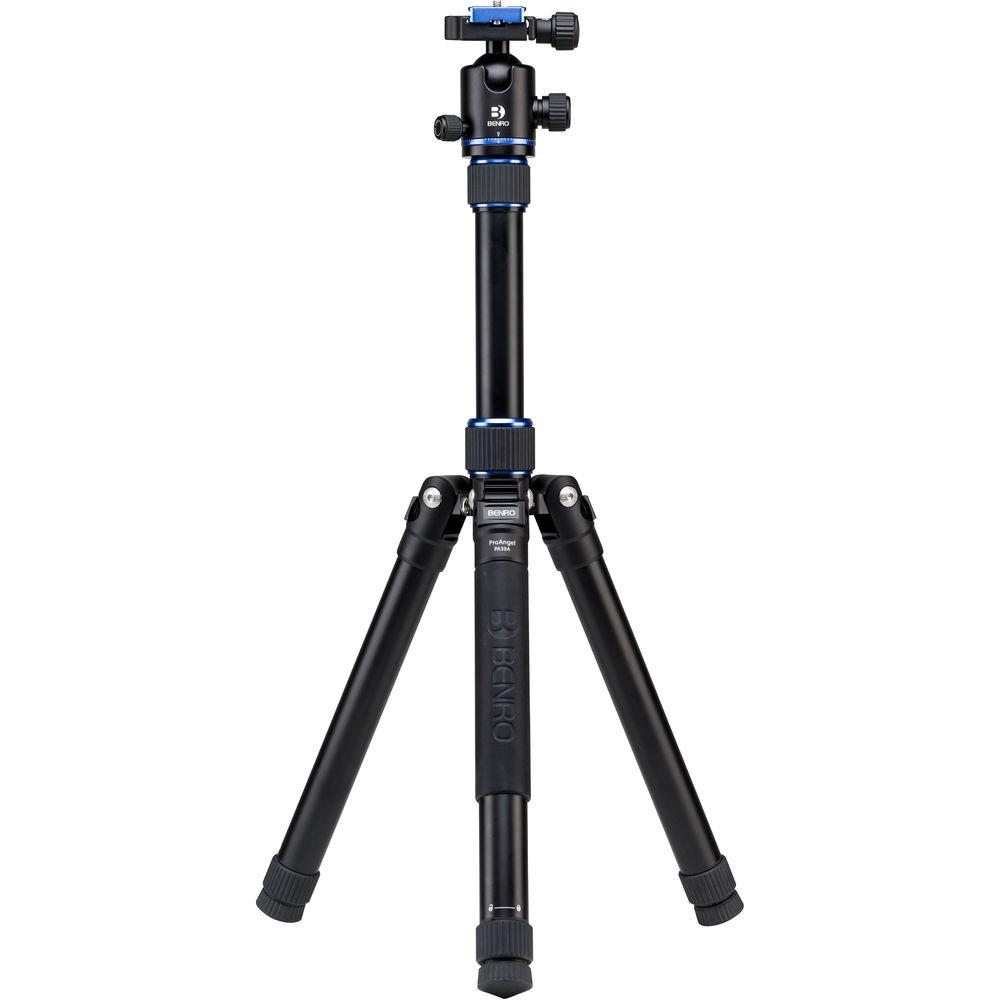

Time-Lapse Tips and Tools Read More brxqeacvfqrbsb This FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod from Benro supports up to 26.4 lb and includes a B2 Arca-type ball head with quick release plate. Designed to conserve space during storage and transport, this travel tripod measures 13.4" long when folded. Each of its 5-section legs features an independent spread, a 3-position angle lock, a single half-turn twist lock for speedy deployment, and a rubber foot to enhance stability on a wide variety of surfaces. Among the legs is a push-and-pull, rapid center column with two, telescoping sections and dual twist locks that further contribute to this tripod's compact design. Together, the three legs can be spread and extended to raise the tripod from a minimum height of 13.1" to a maximum height of 52.0" or 63.0" when the center column is fully elevated.

Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the included quick release plate. The quick release plate can be attached and removed from the integrated, Arca-type clamp located at the top of the B2 head's ball-and-socket joint by tightening or loosening the clamp's knurled, locking knob. This knob must be pulled before it can be turned, which serves to ensure that the clamp is opened only when intended. The top of the quick release plate features a rubberized, non-slip platform, while dual retaining screws are provided along its underside. Those retaining screws help prevent the quick release plate and an attached camera from accidentally sliding off when the clamp it is placed on is opened.

By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Variable tension can be applied to the ball-and-socket joint's movements by rotating the friction knob, which is adjacent to the primary locking knob. Toward the ball head's base is a secondary locking knob that controls the ability to rotate the head 360°. For added versatility, the tripod's center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them.

A nylon carry bag with a zippered closure and shoulder strap is provided for storage and transport.
    Use and Handling
    • Compact travel tripod with ball head
    • Supports up to 26.4 lb
    • Push-and-pull center column with ballast hook for rapid camera, lens, or sport optic positioning

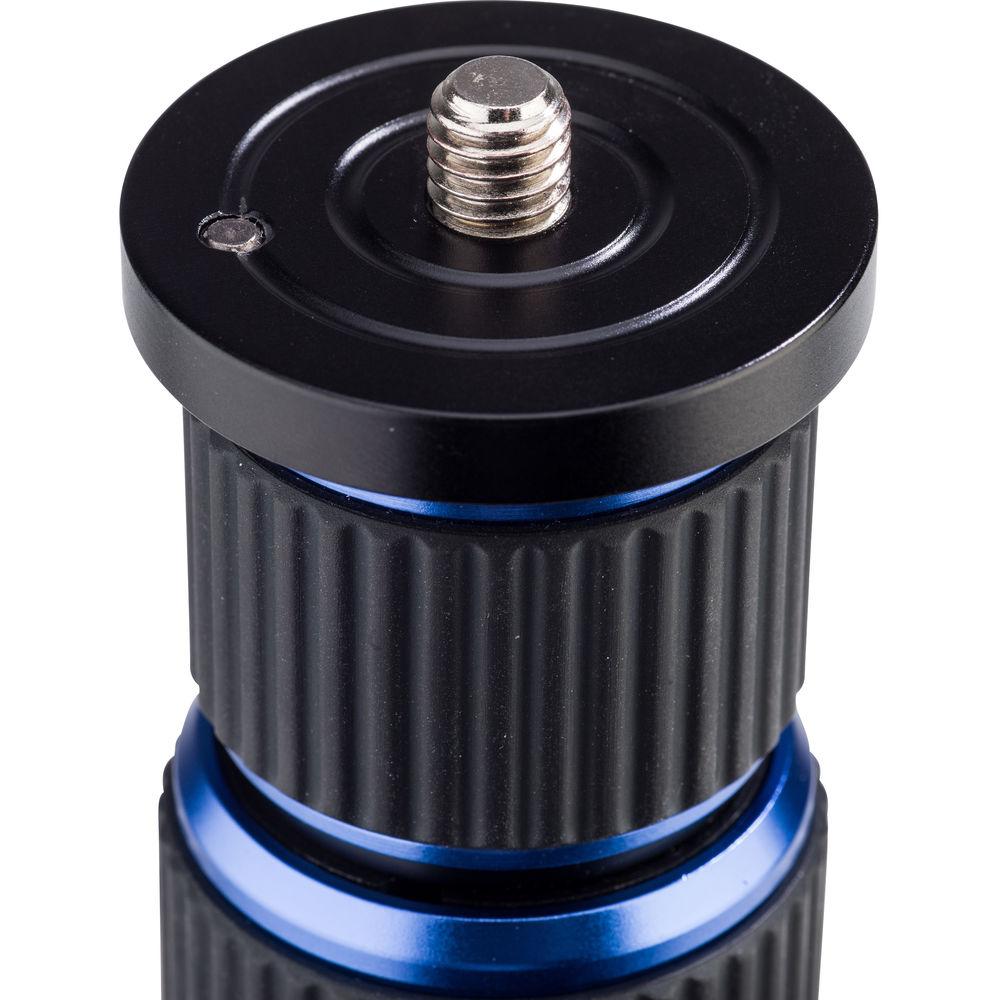

    • Center column has two, telescoping sections with dual twist locks that contribute to this tripod's compact design

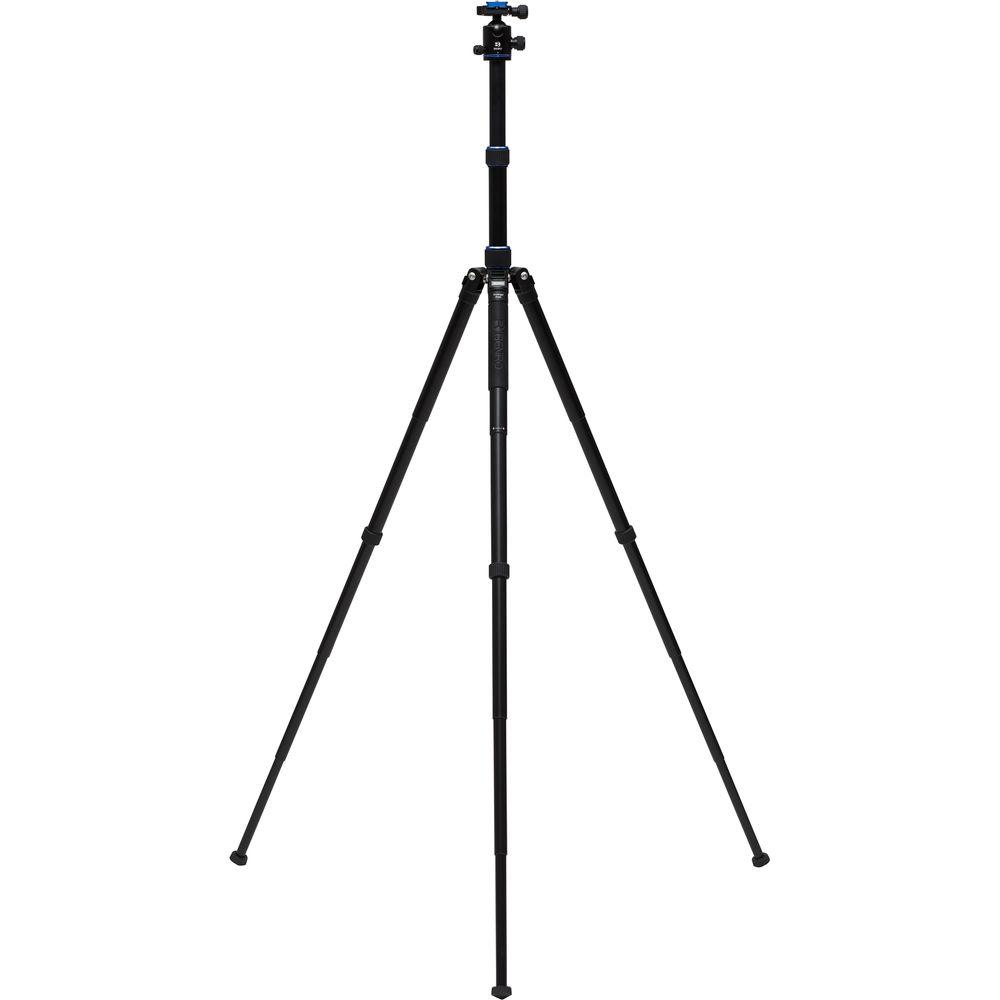

    • Can be set for a minimum height of 13.1" to a maximum height of 52.0", or 63.0" with center column fully raised

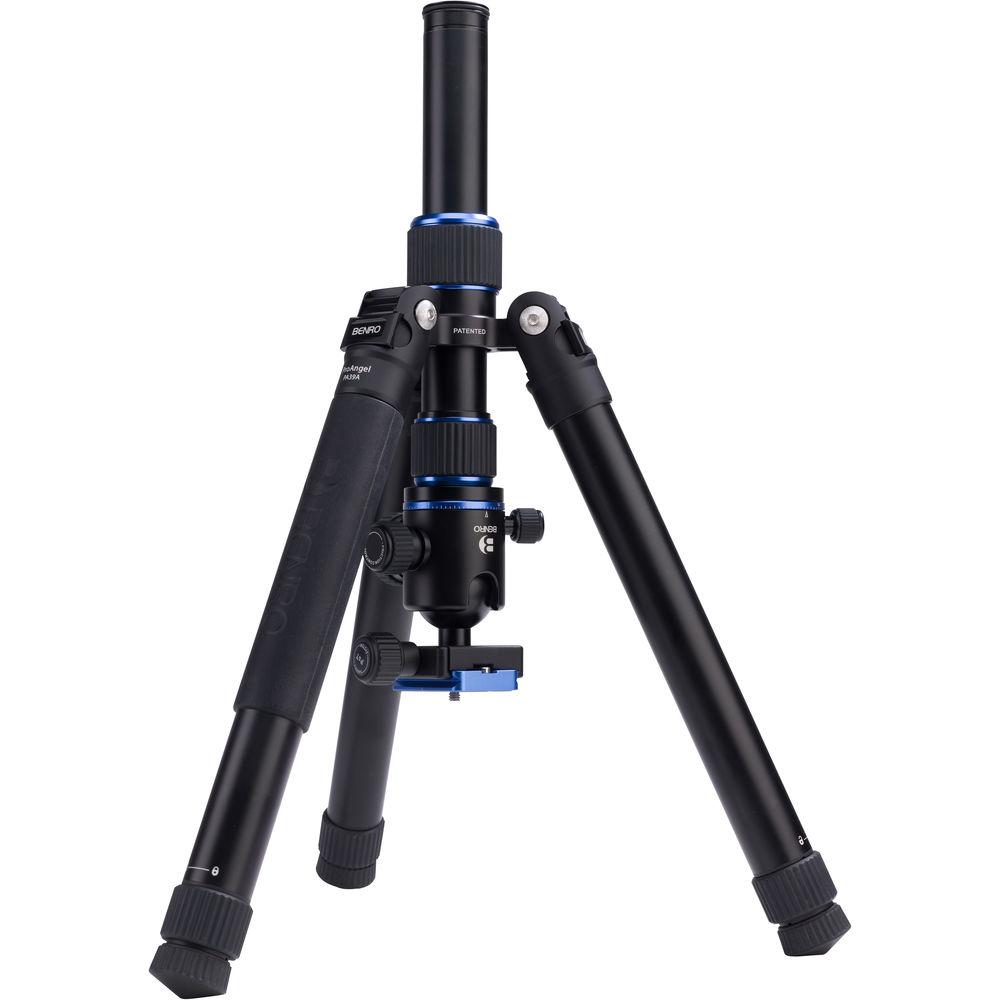

    • Center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them
    • Legs each feature 5 sections, a 3-position angle lock, a single half-turn twist lock for speedy deployment, and can be independently spread
    • Legs can be locked at 24°, 55°, or 80° angles
    • For direct attachment of accessories that feature 3/8"-16 mounts, one 3/8"-16 female accessory thread is positioned among the legs' connecting hinges
    • Rubber feet help to enhance stability on a wide variety of surfaces

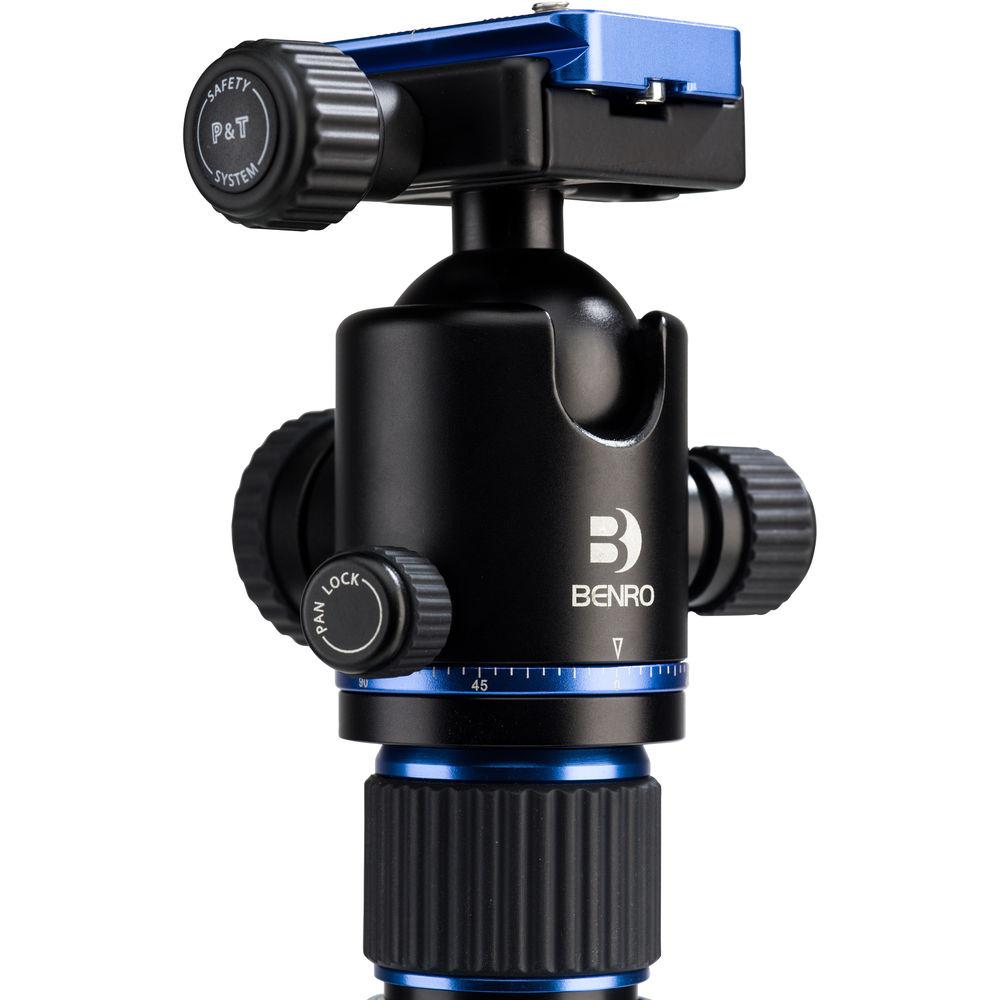

    • Ball head's large, primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Friction knob adjacent to primary locking knob applies variable tension to the ball-and-socket joint's movements
    • Secondary ball head locking knob with knurled surface allows head to rotate 360°

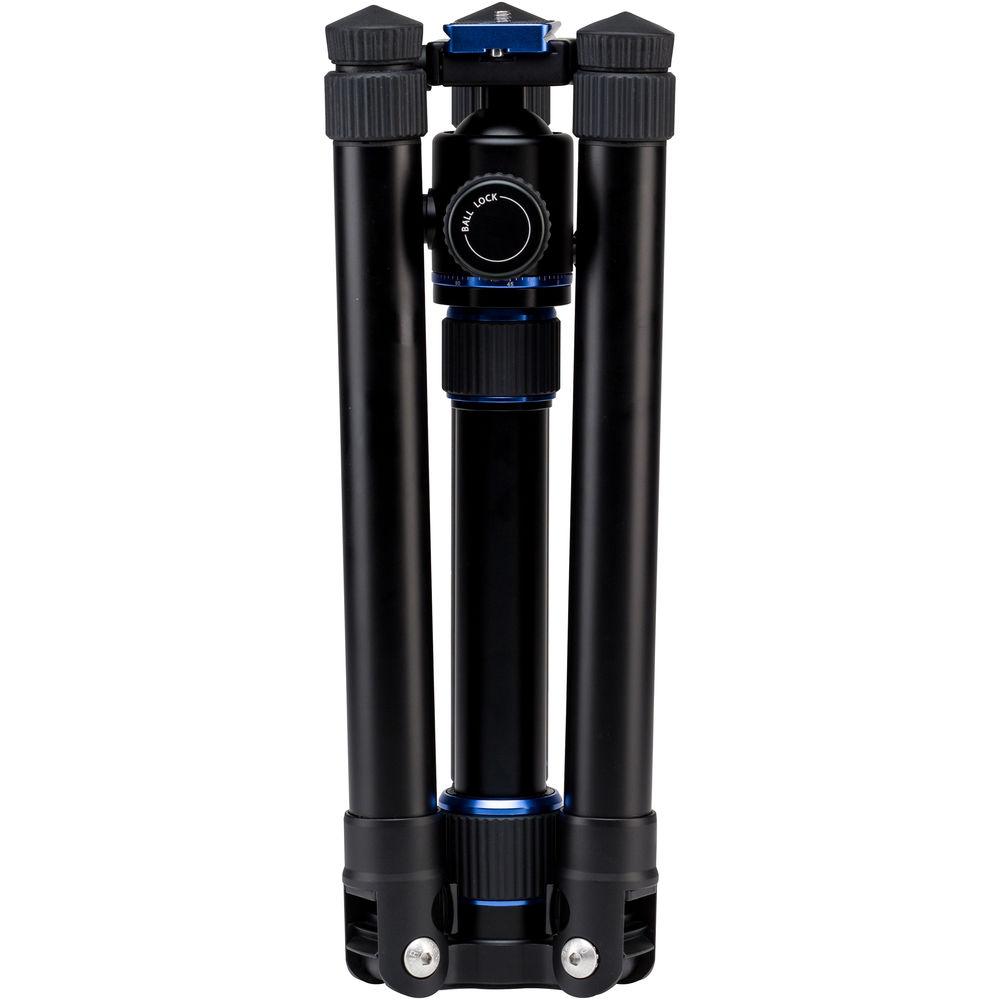

    • Weighs 4.4 lb, measures 13.4" when legs are reversed 180° and folded
    • Hex key to adjust tension on leg hinges
    Construction Details
    • Aluminum-alloy legs
    • Aluminum-alloy ball head with Arca-type quick release clamp and built-in bubble level

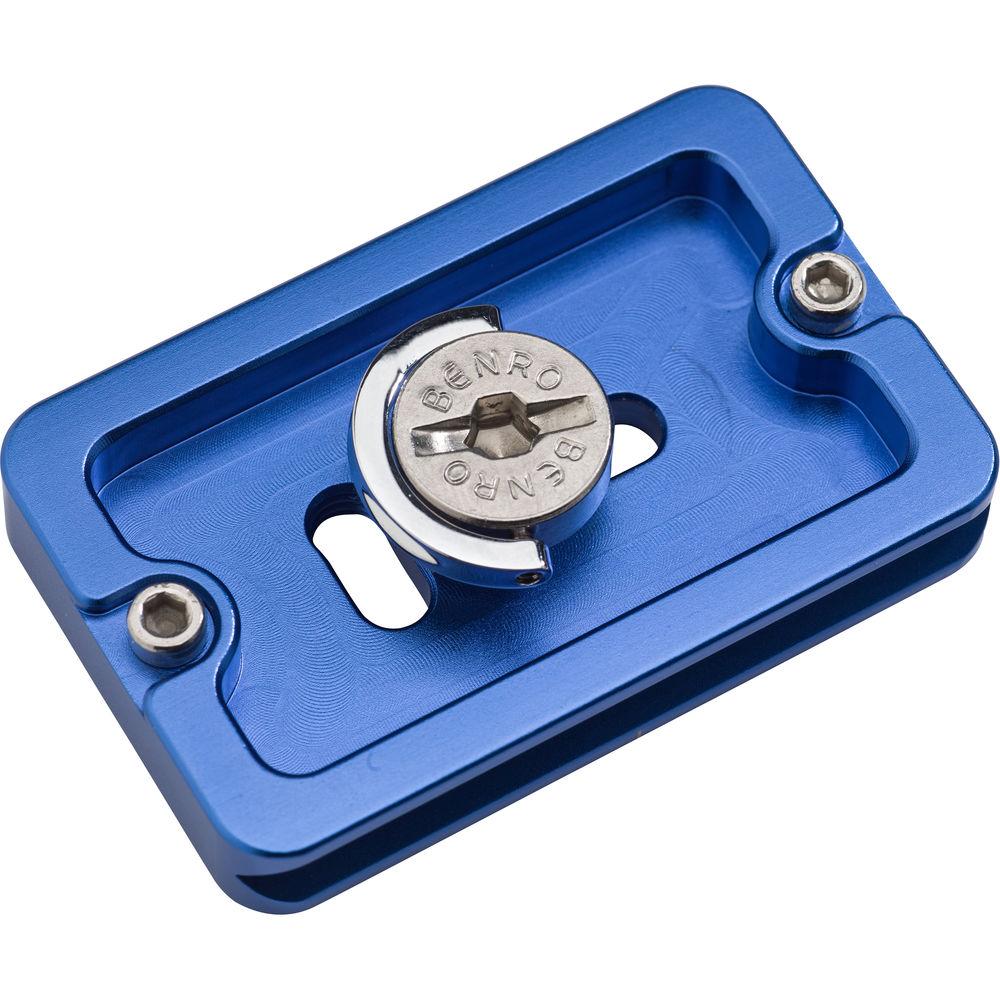

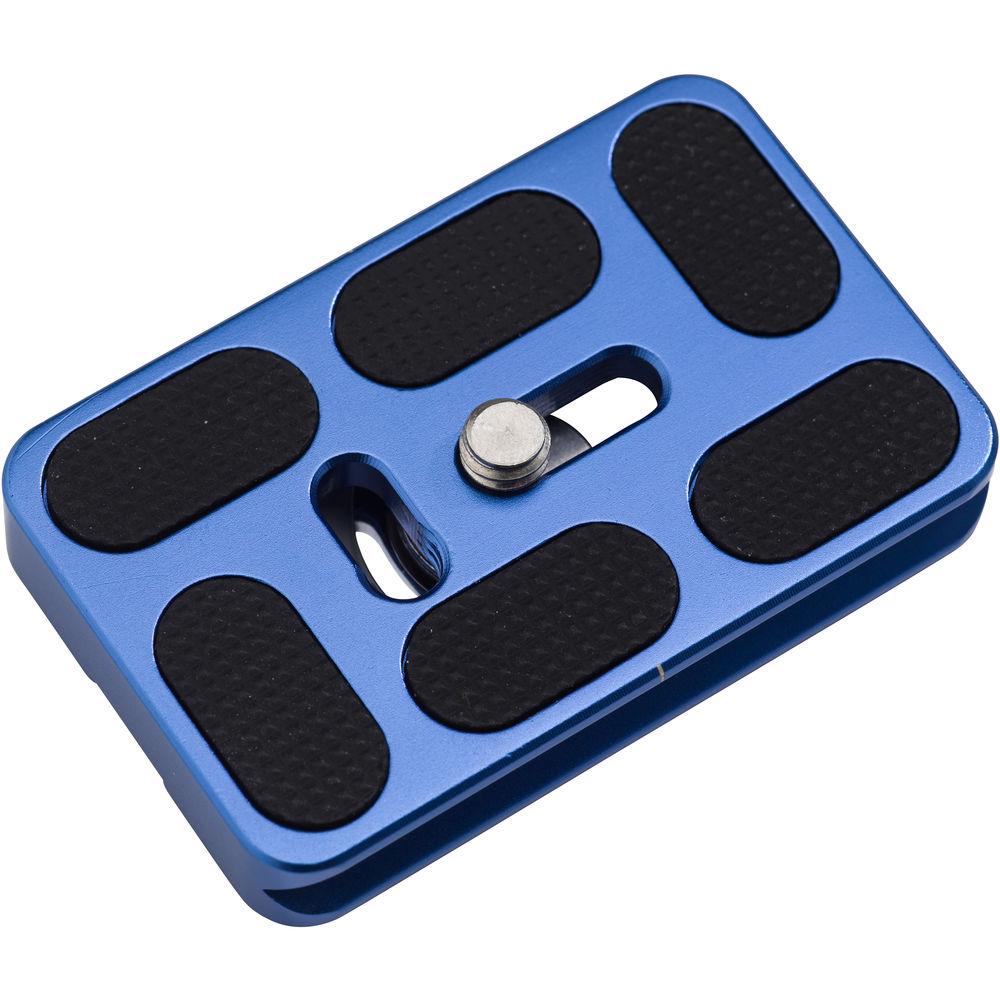

    • Aluminum-alloy quick release plate with 1/4"-20 mount; rubberized, anti-slip surface; and dual retaining screws that prevent the base plate from accidentally sliding off when the clamp it is placed on is opened
    • Nylon carry bag with a zippered closure and shoulder strap is provided for storage and transport
In the Box Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head
  • B2 Ball Head
  • PU60 Quick Release Plate
  • Hex Key for Leg Hinge Screws
  • Tripod Bag
  • Limited 3-Year Warranty Extendable to 5 Years with Product Registration
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Benro FPA39AB2 ProAngel Aluminum-Alloy #3-Series Tripod with B2 Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Benro ProAngel Specs

    Head Type Ball Head
    Base Mount 3/8"-16 Thread
    Camera Mounting Screw 1/4"-20 Male
    Quick Release Plate Type Arca-Type
    Load Capacity 26.4 lb / 12 kg
    Maximum Working Height 63" / 160 cm
    Max Height without Center Column 52" / 132.1 cm
    Minimum Working Height 13.1" / 33.3 cm
    Folded Length 13.4" / 34 cm
    Materials Aluminum Alloy
    Weight 4.4 lb / 2.0 kg
    Leg Lock Type Twist Lock
    Leg Positions 3 Positions
    Independent Leg Spread Yes
    Leg Sections 5
    Center Column Features Ballast Hook, Reversible
    Center Column Sections 2
    Center Column Extension Type Rapid
    Lateral / 90-Degree Center Column No
    Package Weight 6.0 lb
    Box Dimensions (LxWxH) 15.9 x 5.6 x 5.1"
