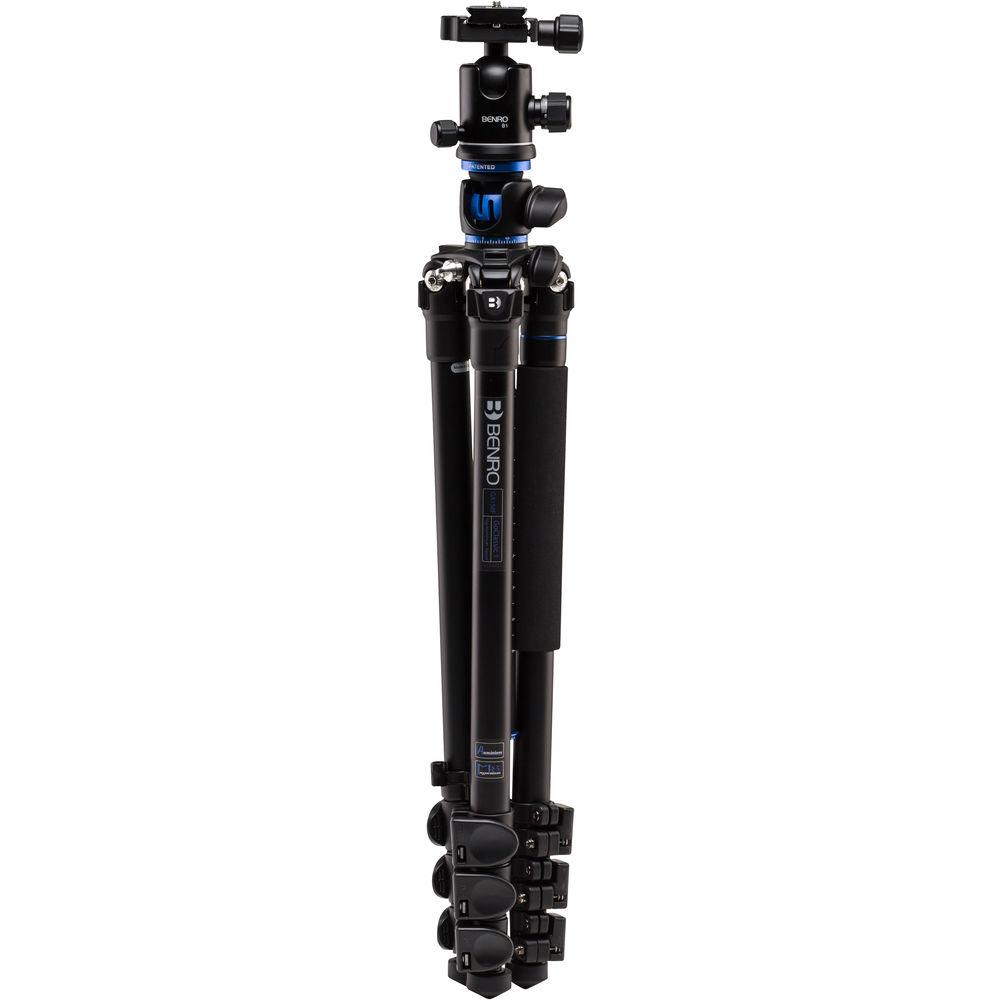

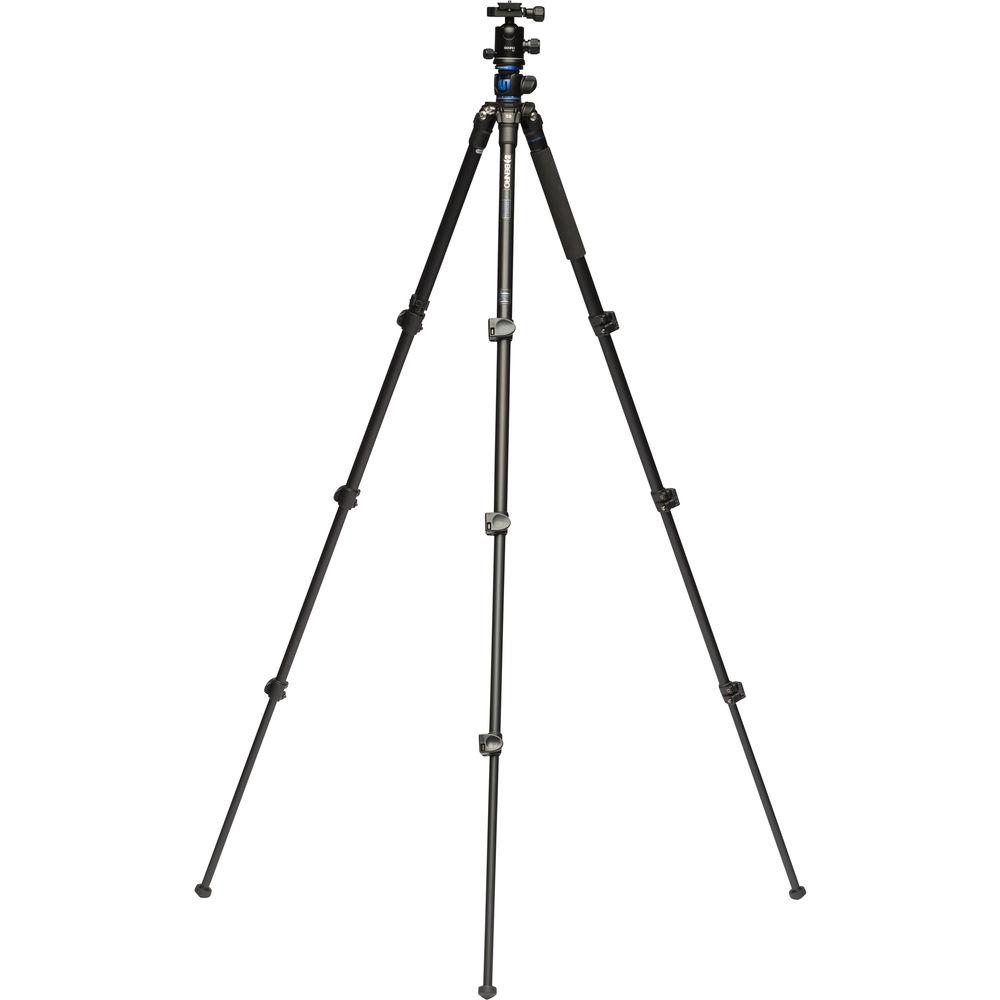

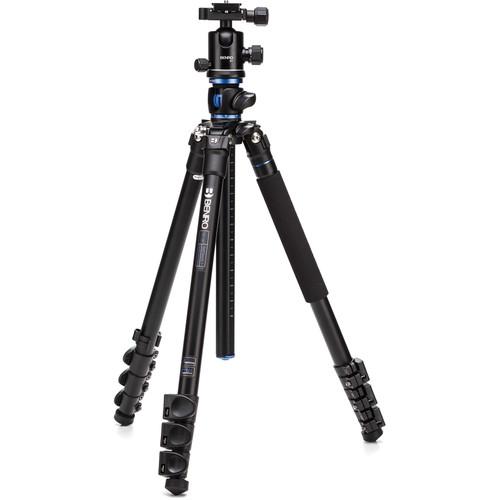

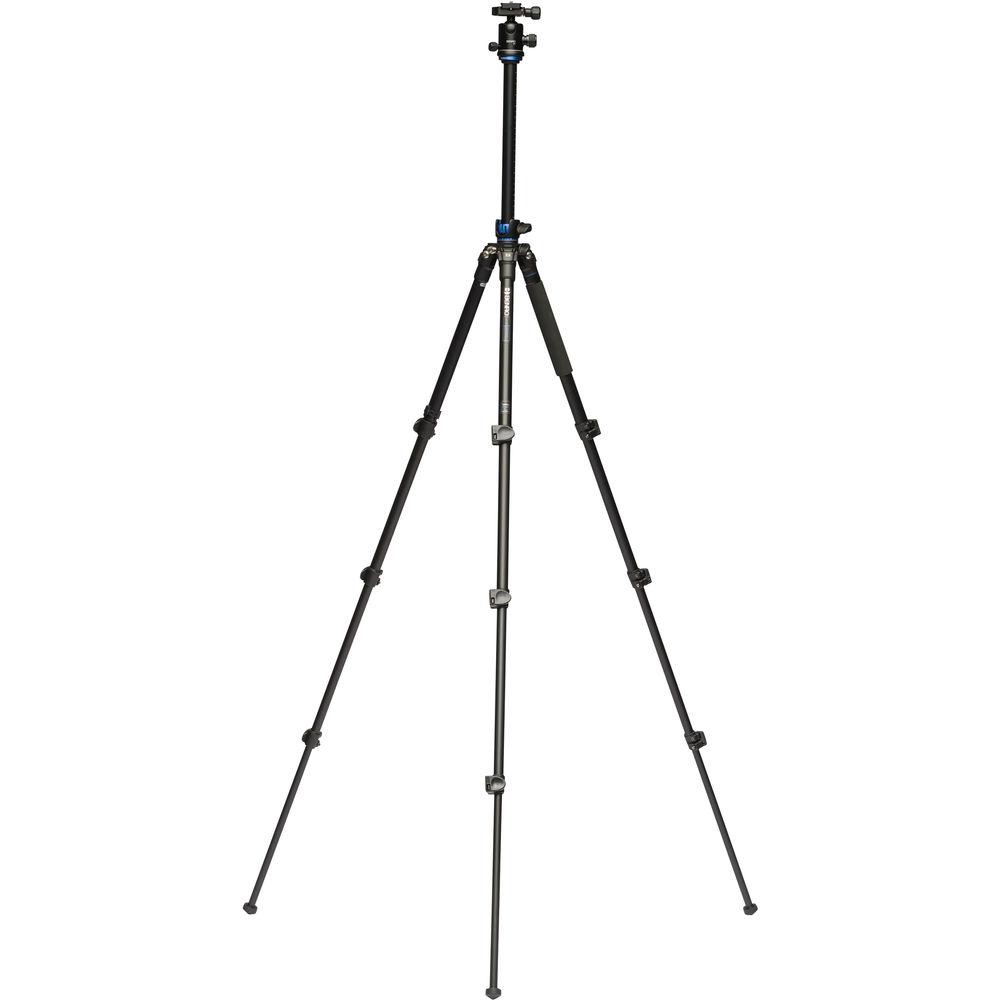

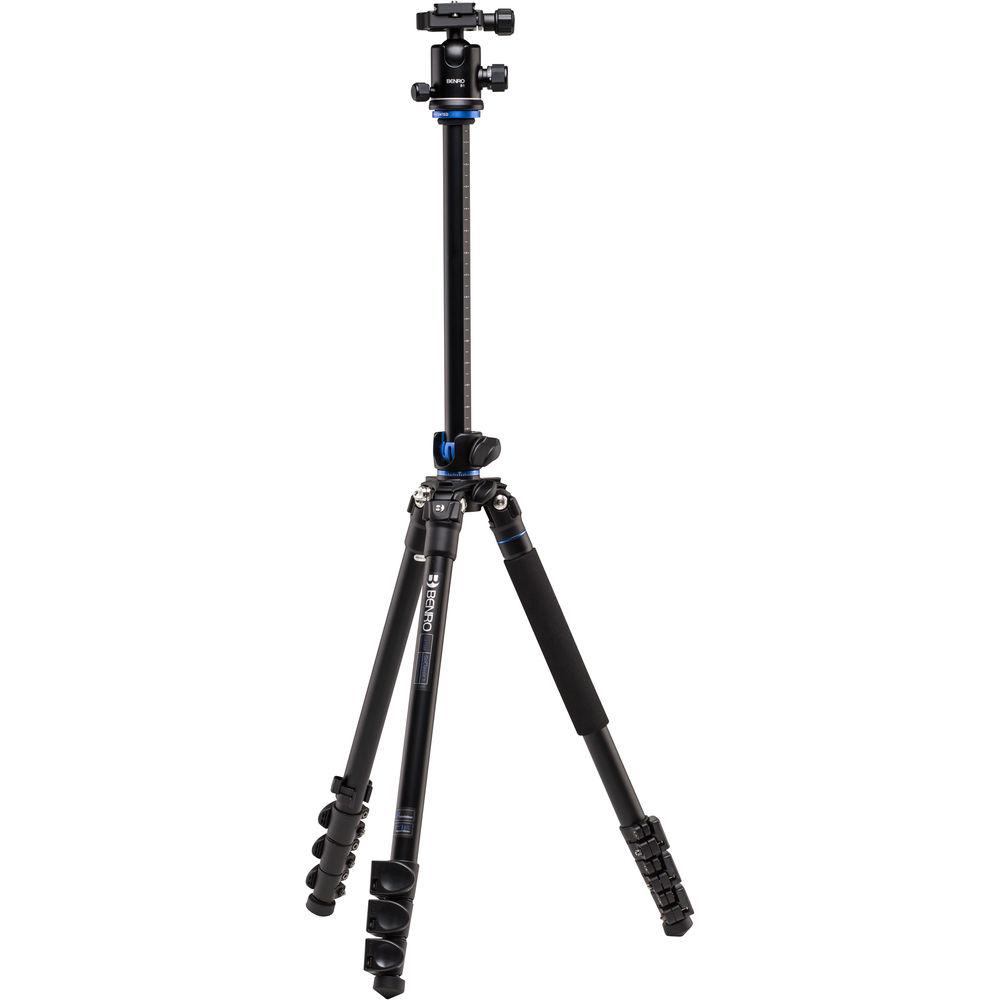

Product description Time-Lapse Tips and Tools Read More Support up to 17.6 lb with the GA158FB1 GoClassic Aluminum Tripod with B1 Ball Head from Benro. The GA158FB1 can extend from a minimum height of 14.6" up to 66.3". The 4-section legs are secured with flip locks and can be independently adjusted in both height and leg angle. The legs fold down to a length of 24.2".
The B1 Double Action Ball Head has a dual action design featuring separate knobs for the panning adjustment and ball movement. It can hold up to 26.4 lb, and weighs just 12.6 oz The quick-release clamp is Arca-type compatible, and a QR plate is included with the head. - Built-In Monopod

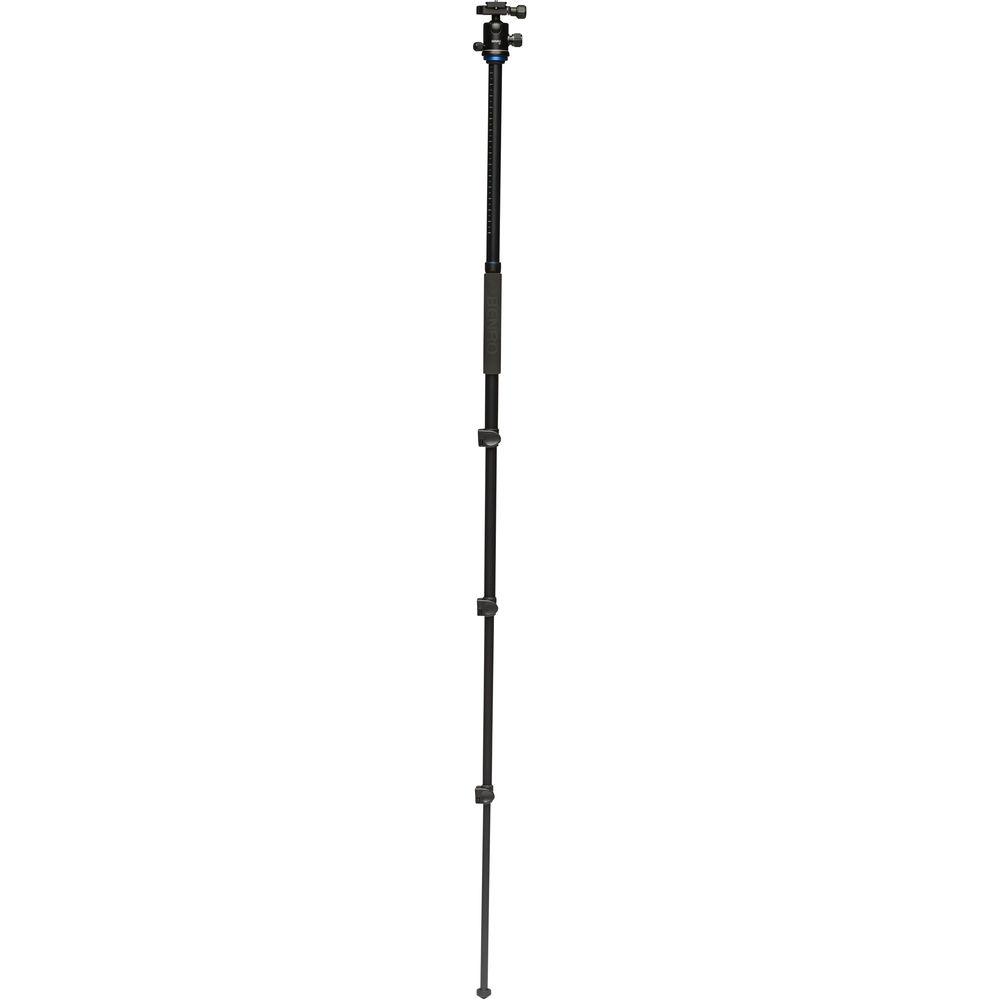

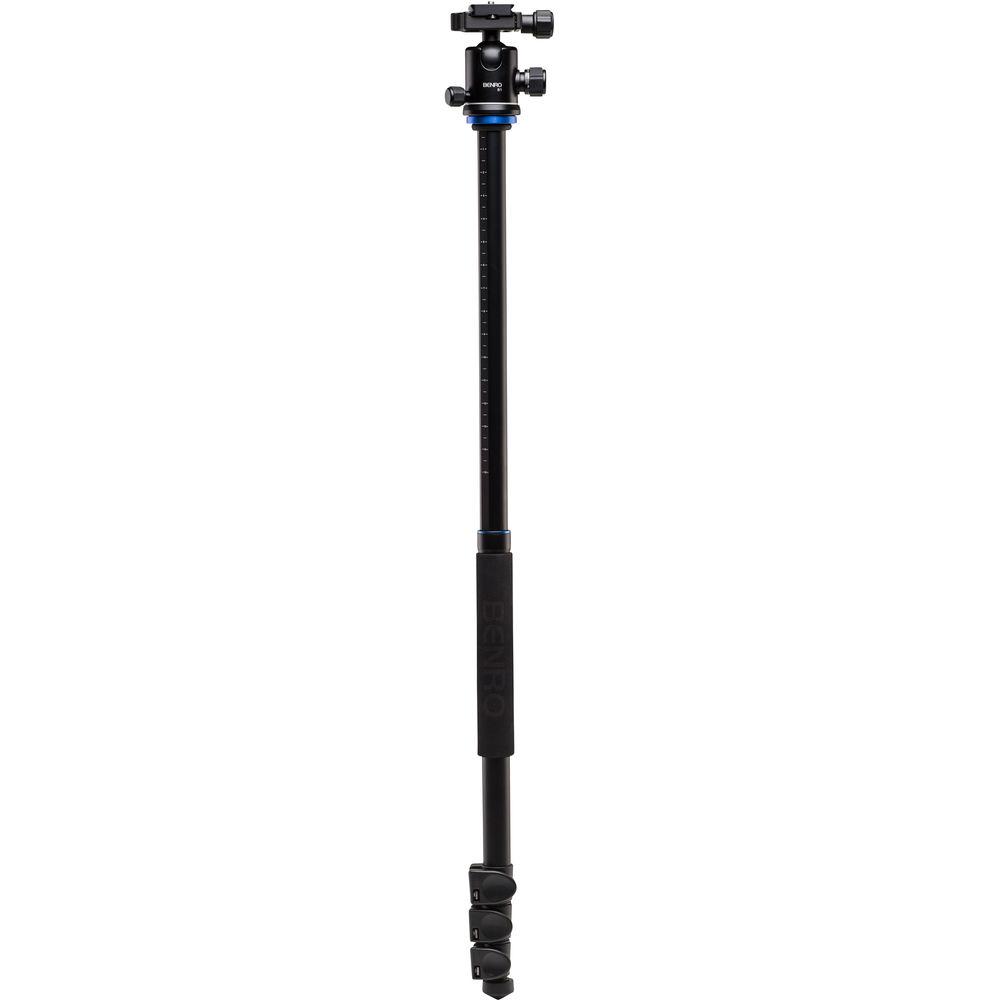

- One of the tripod's legs can be detached and paired with the center column to produce a full-size monopod.
- 90° Center Column

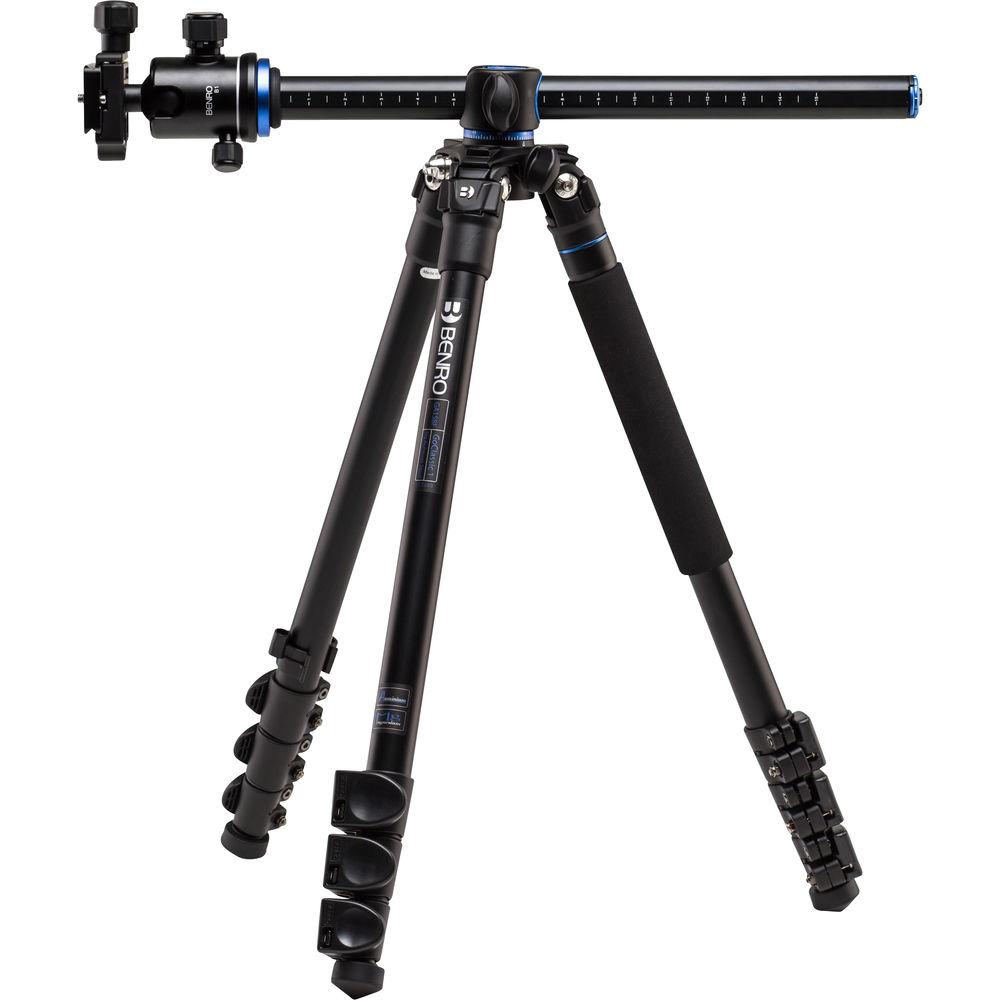

- The Quick Flip 90° center column can quickly go from vertical to horizontal without the use of any tools.
- Quick Lock Legs with Anti-Rotation Leg System
- Tripod height can easily be set by a flip of the quick lock leg levers, which combined with anti-rotation legs enable fast and fumble-free set-up.
- Rubber and Spiked Feet
- The GA158FB1 is equipped with interchangeable screw-in rubber feet and stainless steel spiked feet.
- Foam Grip

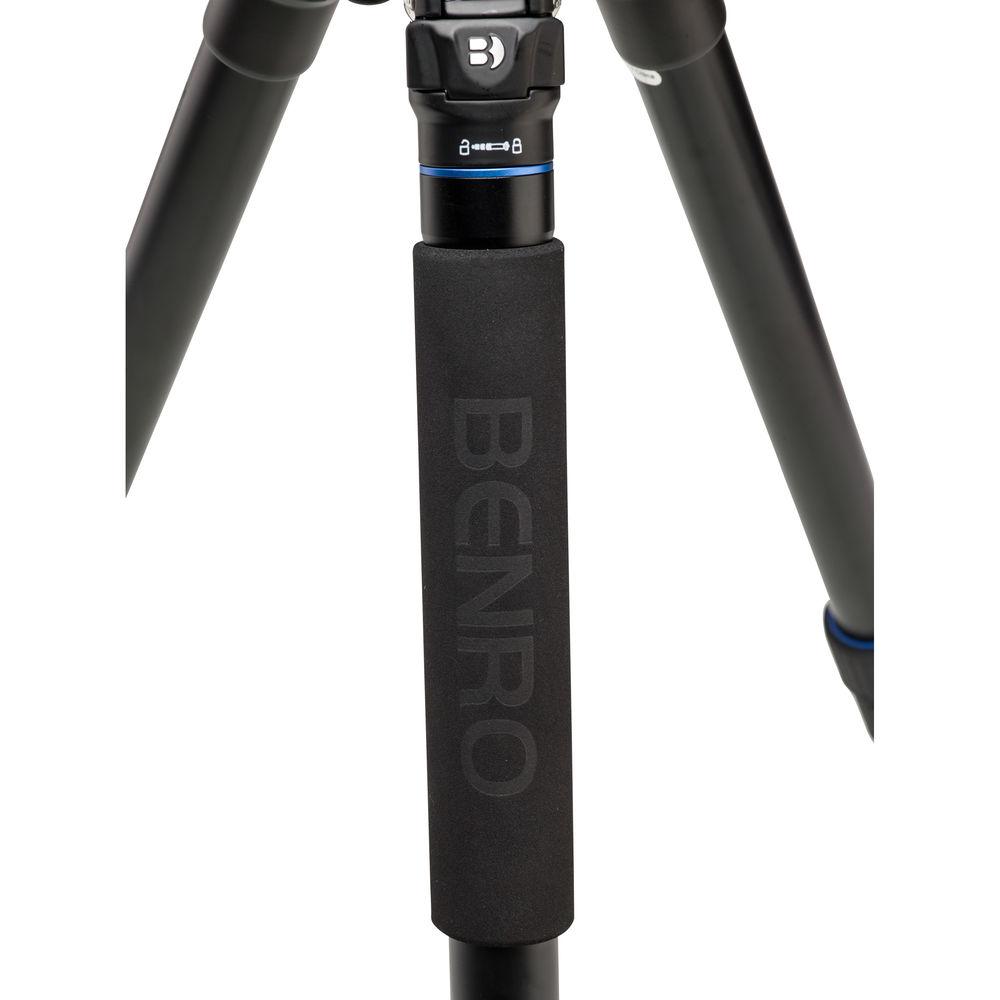

- A thick layer of closed-cell nitrile butadiene rubber (NBR) provides a comfortable grip when carrying your tripod.
- Reversible Center Column
- The center column, which features a ridge-and-groove design to eliminate unwanted column rotation, can be quickly inverted for exacting, lower angle camera positioning.
- Carrying Case
- An included durable case with a shoulder strap provides protection and transport for your tripod.
- Multi-Position Leg Angles
- The tripod legs can be independently locked into place at different angles to enable shooting in cramped quarters, on irregular surface areas, or at ground level. A short center column is included.
- SystemGo Accessories
- With the center column in the horizontal orientation and the addition of one or two GoCouplers, you can mount one or two cameras, a digital workstation, or a slider to the tripod.
In the Box Benro GA158FB1 GoClassic Aluminum Tripod with B1 Ball Head BEB1Q 3 x Spiked Feet 3 x Rubber Feet Short Center Column Carrying Case with Shoulder Strap Limited 3-Year Warranty, Extendable to 5 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro GA158FB1 GoClassic Aluminum Tripod with B1 Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenro GoClassic Specs | | | Material | Aluminum | | Load Capacity | 17.6 lb (8 kg) | | Maximum Height | Tripod: 66.3" (168.5 cm)
Monopod: 69.5" (176.5 cm) | | Maximum Height w/o Column Extended | 54.9" (139.5 cm) | | Minimum Height | 18.3" (46.5 cm) | | Folded Length | 24.2" (61.5 cm) | | Weight | 3.8 lb (1.7 kg) | | | | Center Column Type | Rapid, faceted, 90°, reversible | | Center Column Sections | 1, short center column included | | Center Brace | No | | Head Mount Thread Size | 3/8"-16 | | | | Leg Sections | 4 | | Independent Leg Spread | Yes | | Leg Lock Type | Flip | | Spiked Feet | Yes | | | | Package Weight | 7.05 lb | | Box Dimensions (LxWxH) | 27.48 x 5.118 x 4.961" |
