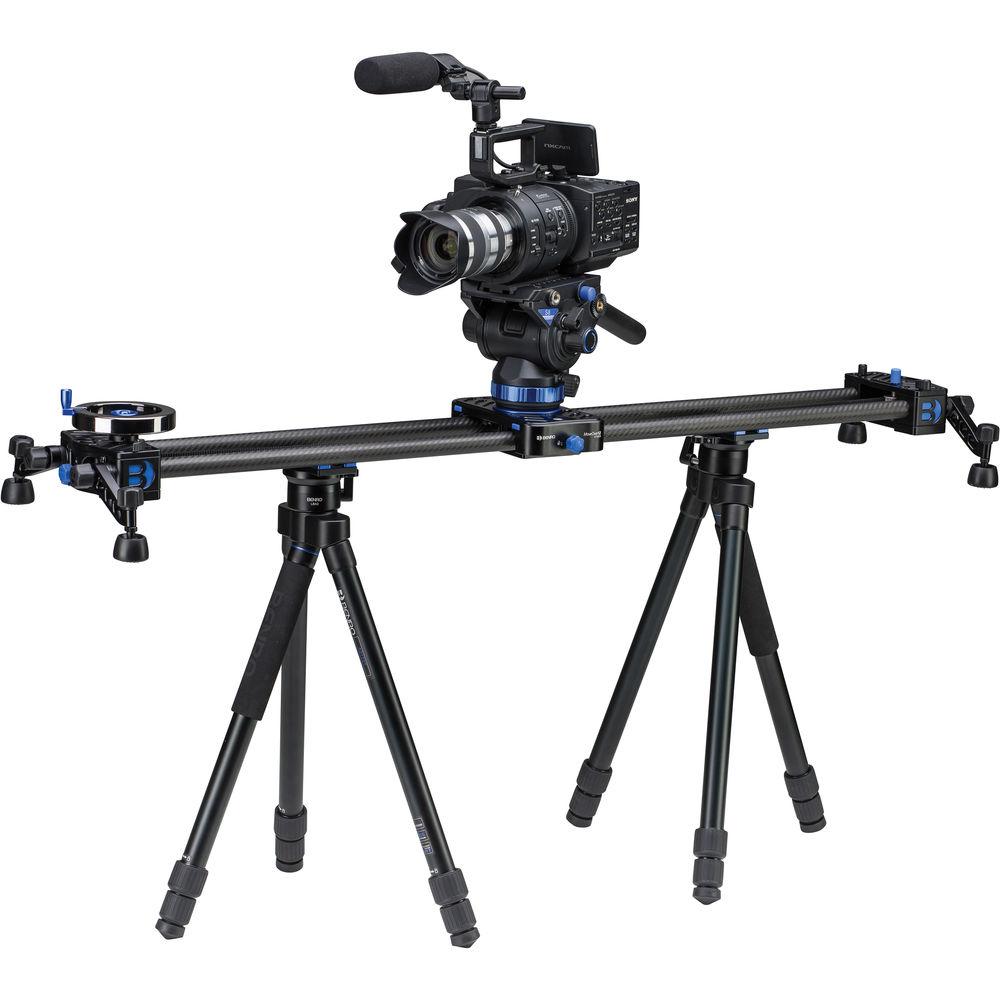

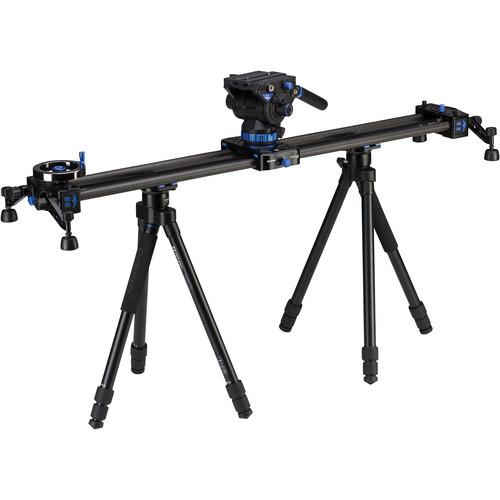

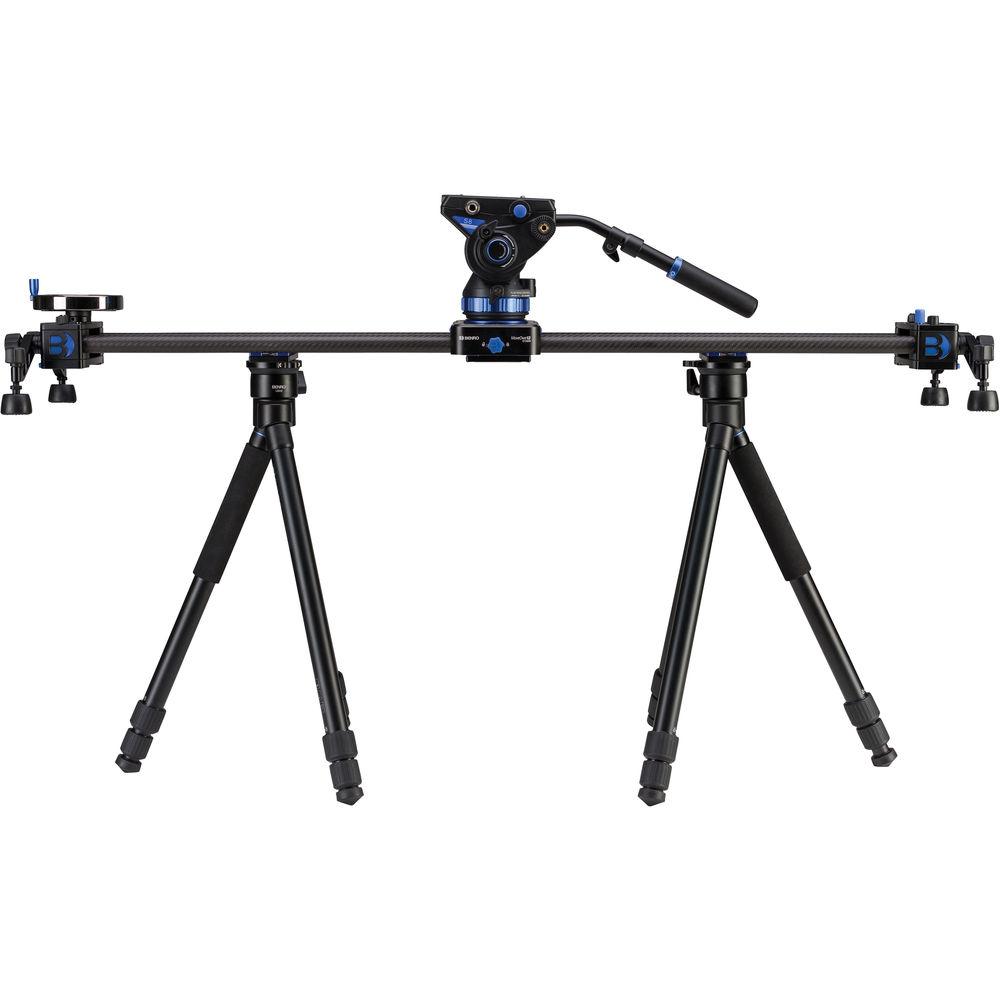

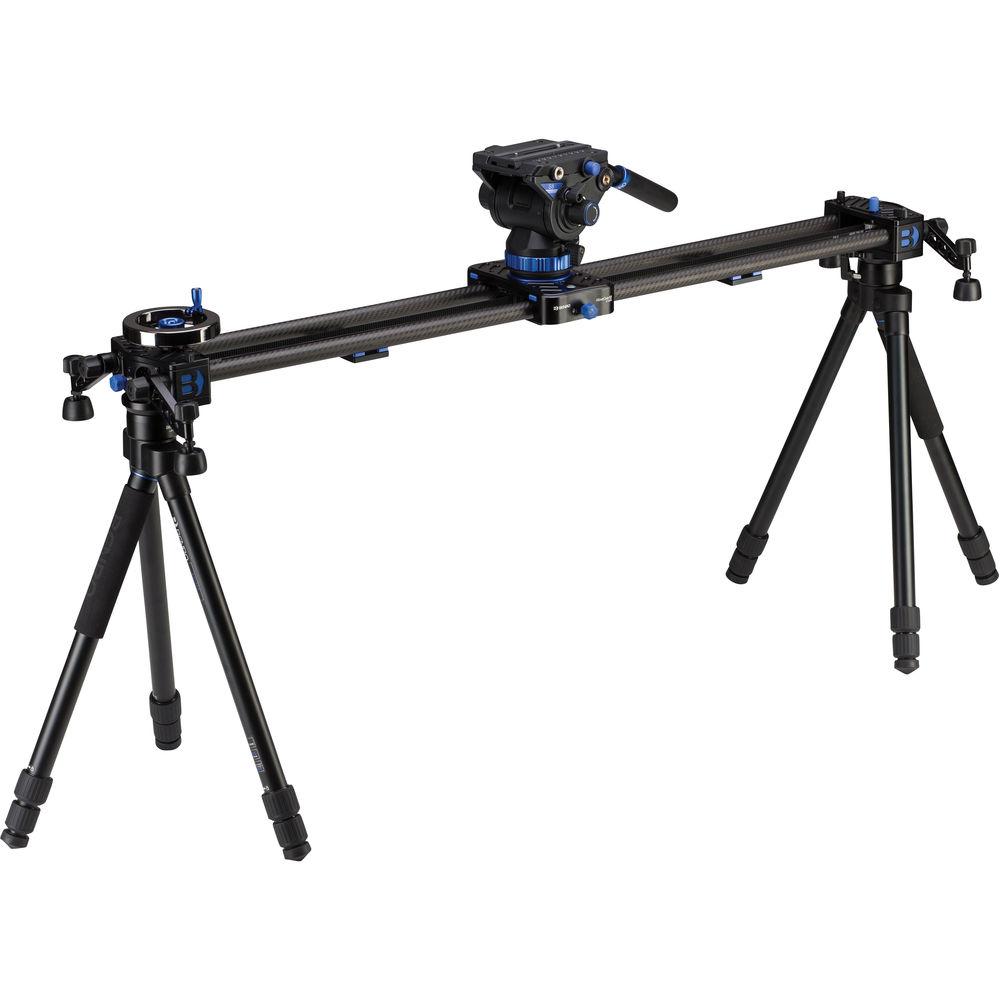

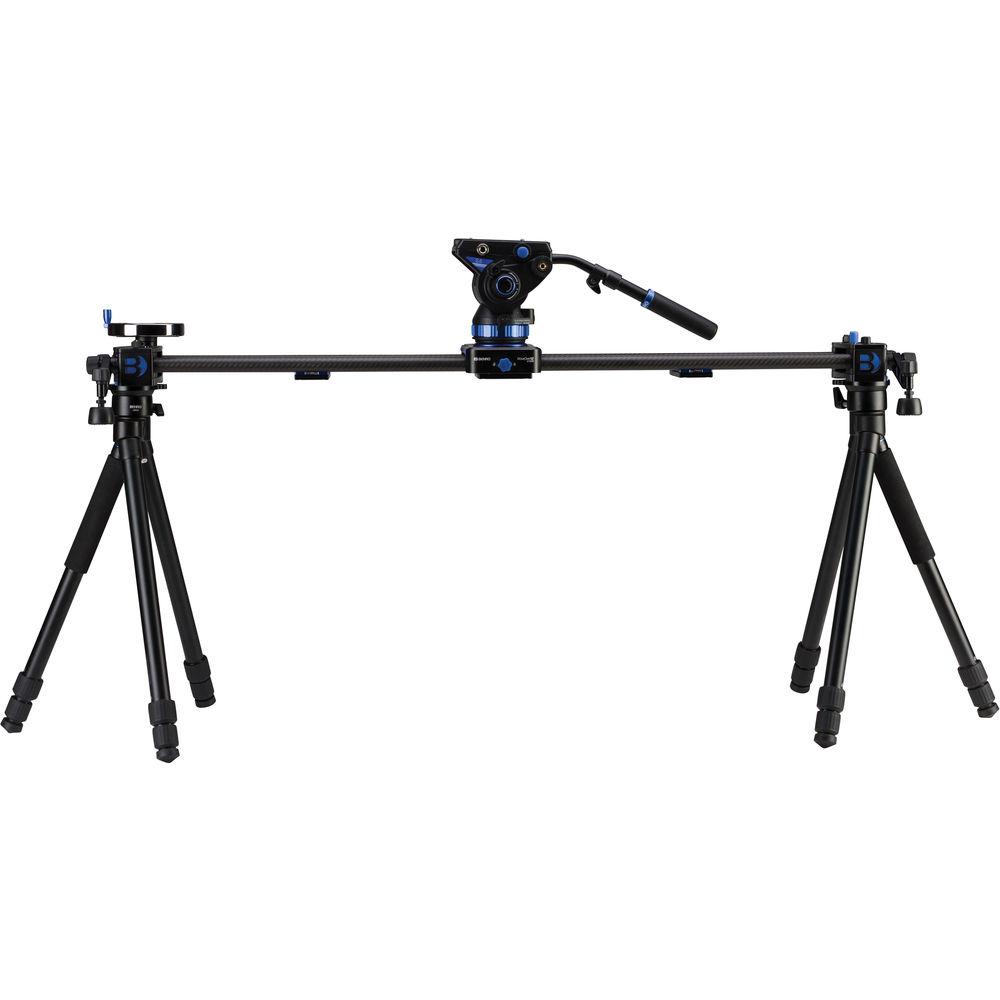

Product description The MoveOver12 Dual Carbon Rail Slider Kit from Benro features all the components you need to capture cinematic linear movement to your productions. The kit features the MoveOver12 35.4" Dual Carbon Rail Slider and pairs it with an S8 Pro Video Head and a pair of Travel Flat AL Series 2 tripods with LBA2 Leveling Bases. The entire system packs inside an included rolling case for easy storage and transport.

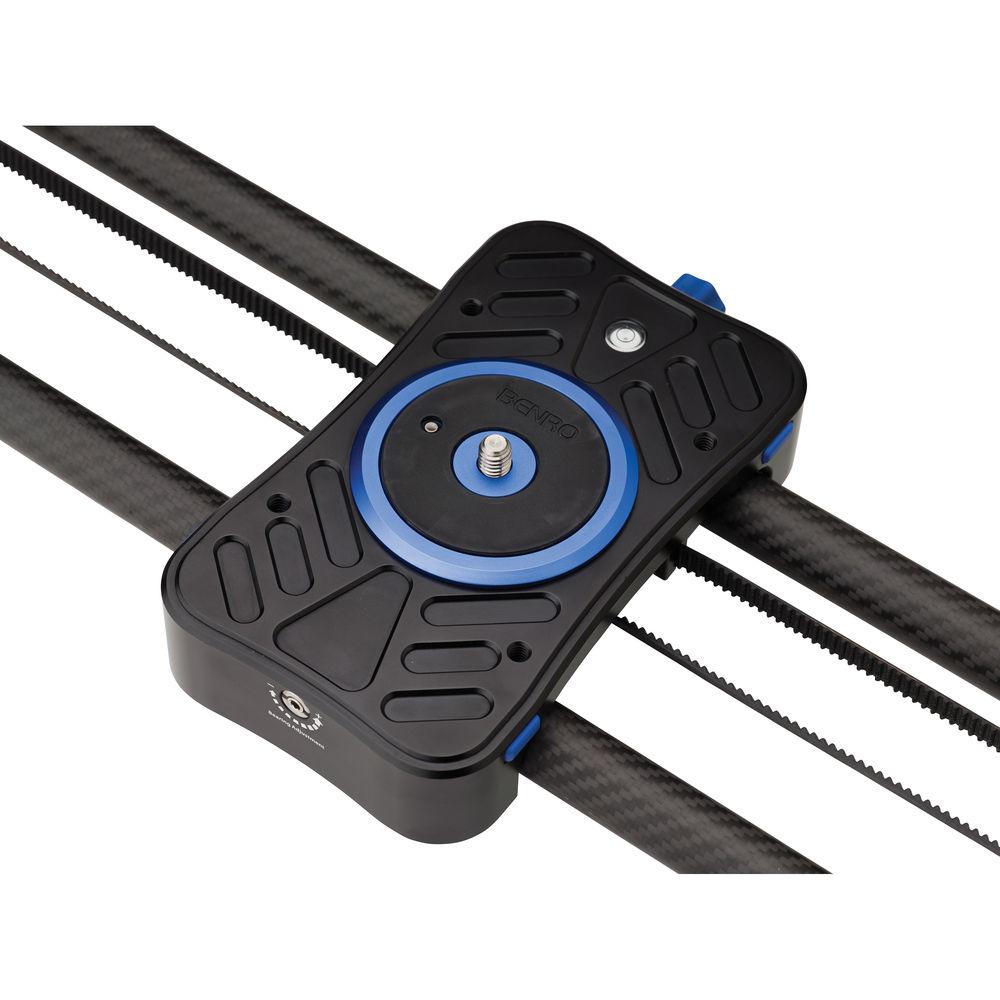

The slider carriage features four bearings that allow it to glide across a pair of 22mm carbon fiber rails for smooth and quiet operation. Additionally, the slider is equipped with a weighted flywheel and rubber track belt drive that enables precise, hand-cranked motion control and smooth ramps in and out of your slides. A fixed 3/8"-16 screw on the carriage lets you attach the included S8 Pro Video Head, which can support loads up to 17.6 pounds and features stepless pan/tilt drag and a 4-step (0 to 3) counterbalance system. The slider itself can support up to 26.5 pounds, allowing it to handle the weight of the head and attached camera.

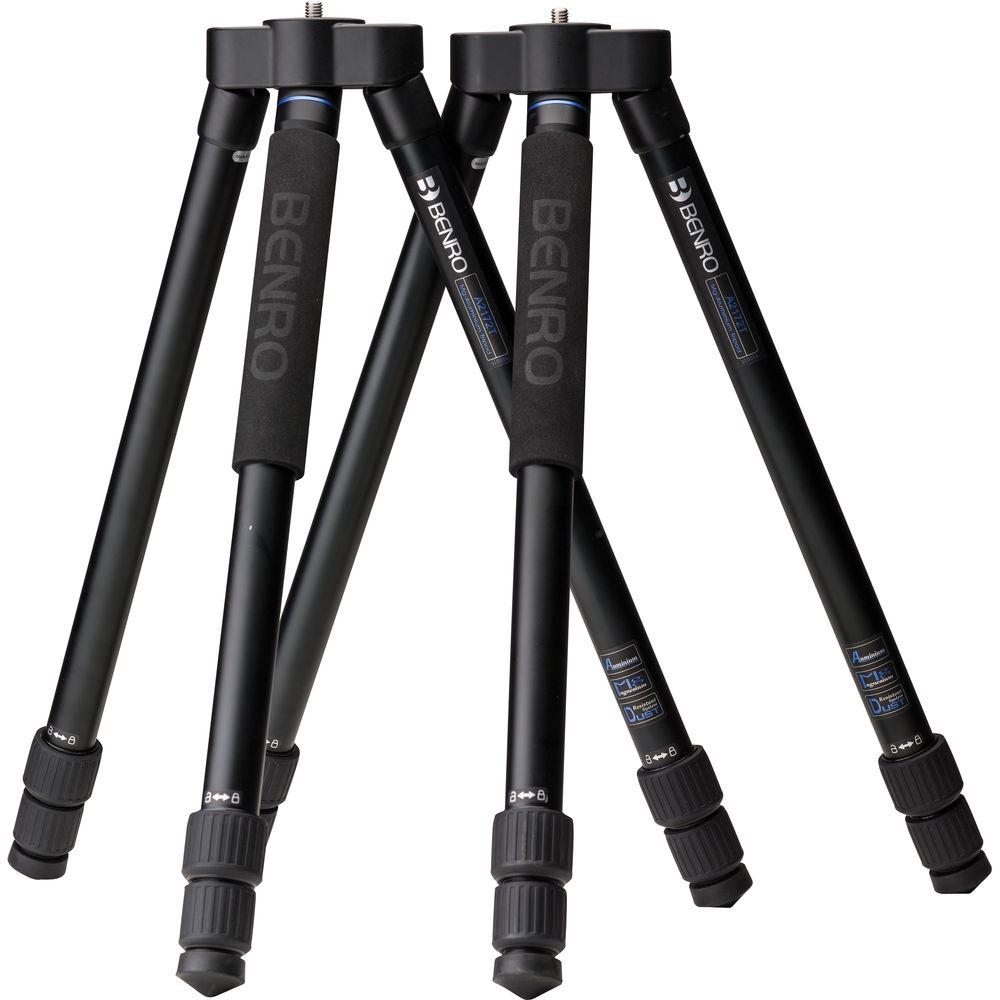

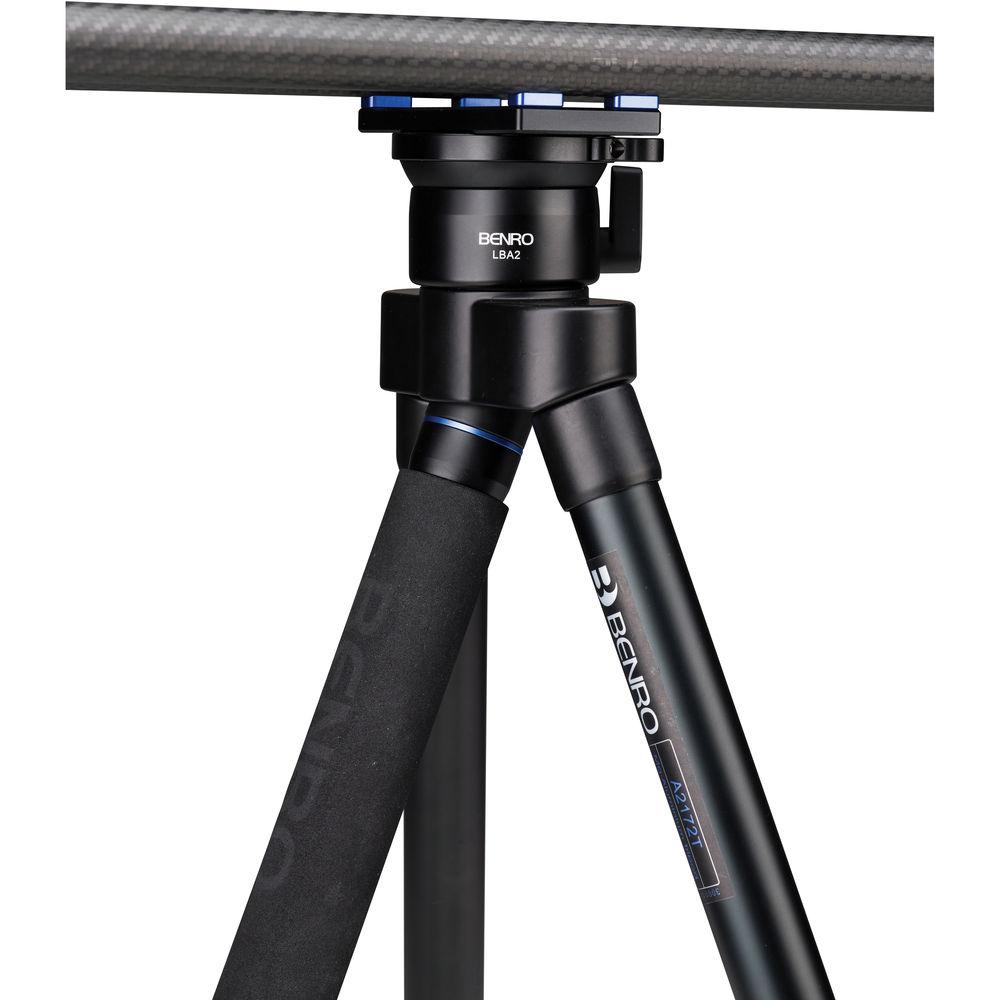

A cheese plate on the underside of the rail provides multiple 1/4"-20 and 3/8"-16 threaded holes for easy center-mounting. For heavier loads, each end block features 3/8"-16 female adapters for mounting on the two included Travel Flat aluminum tripods. The tripods offer a maximum height of 44.75" without the LBA2 leveling bases and 46.75" with them. By removing the 3/8"-16 adapters, you can also mount the slider on a pair of C-stands or light stands that have 5/8" studs. For easy leveling, each tripod comes with a leveling base that can tilt +/-15° in any direction. The slider can also be used on the ground or on a table-top thanks to its all-terrain legs and articulating rubber feet.
Please see the links below for more information on the components of this kit. - MoveOver12 35.4" Dual Carbon Rail Slider with Flywheel Supporting loads up to 26.5 pounds, Benro's MoveOver12 35.4" Dual Carbon Rail Slider lets you add cinematic linear movement to your shots with DSLR rigs or large video cameras. The carriage features four bearings that allow it to glide across a pair of 22mm carbon fiber rails for smooth and quiet operation. Additionally, the slider is equipped with a weighted flywheel and rubber track belt drive that enables precise, hand-cranked motion control and smooth ramps in and out of your slides.

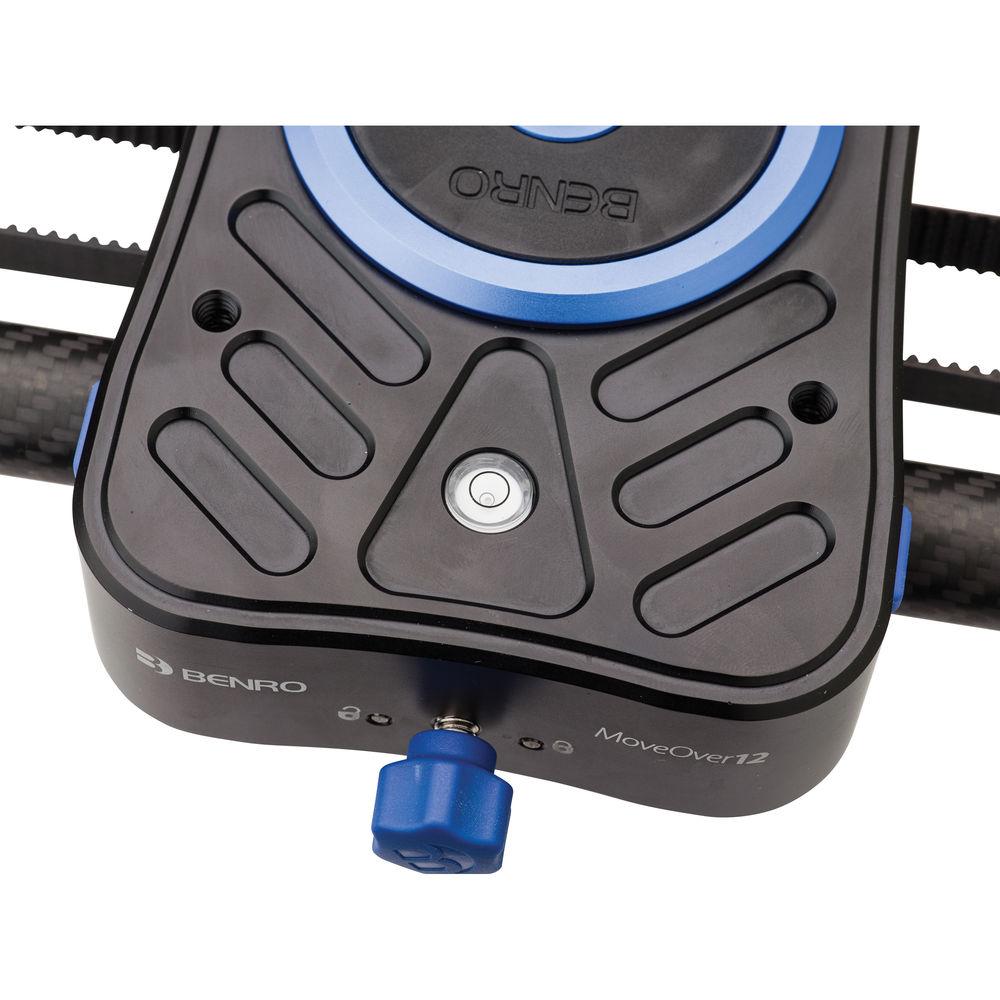

A fixed 3/8"-16 screw on the carriage is provided for attaching an optional flat base tripod head, while a cheese plate on the underside of the rail provides multiple 1/4"-20 and 3/8"-16 threaded holes for easy center-mounting. For supporting the slider on two tripods, each end block features a 3/8"-16 female adapter. By removing the adapters, the end blocks can be mounted on stands with 5/8" studs. For ground-level and tabletop use, all-terrain legs and articulating feet let you easily adjust the level of your slider. To assist with leveling, a bubble level is integrated into the carriage. When it's time to pack up and go, the slider fits into the included carry case. - Key Features
-
- Supports loads up to 26.5 lb
- 35.4" carriage travel
- 4-bearing carriage provides smooth and quiet operation
- Weighted flywheel with rubber track belt drive
- 22mm diameter carbon fiber rails
- Fixed 3/8"-16 screw for attaching an optional flat base tripod head
- Cheese plate with multiple threaded 1/4"-20 and 3/8"-16 holes for center-mounting slider
- 3/8"-16 adapters on end blocks for mounting on two tripods; adapters are removable for mounting on light stands
- Adjustable all-terrain legs and articulating rubber feet
- Built-in bubble level
- Carrying case included
- S8 Pro Video Head with Flat Base The Benro S8 Pro Video Head with Flat Base, with 3/8"-16 threaded receiver, attaches directly to tripods, monopods, sliders, and other camera support equipment with a 3/8"-16 threaded stud. It can also be adapted to 75mm bowl-type legs and hi-hats using a separately available half ball adapter.
The S8 is a two-way pan/tilt head designed for video applications, and will support cameras weighing up to 17.6 lb. Designed to give you better control, the head features stepless, continuous adjustment of both pan and tilt drag; allowing you to dial in the amount of tension you feel most comfortable with for a given shot. It can pan a full 360° as well as tilt forward (lens down) 90° and backward (lens up) 70°. To help compensate for cameras weighing different amounts, as well as adapt to payloads with varying centers of gravity, the head also features a four-step (0 - 3), adjustable counterbalance system. - The removable pan bar handle can be mounted on either side for left- or right-handed operation. A second handle can be purchased separately if you desire two-handed operation
- Sliding quick release plate can be positioned from 1.5" forward to 1.7" back of center
- Ratcheting lock levers for pan, tilt, and the quick release plate

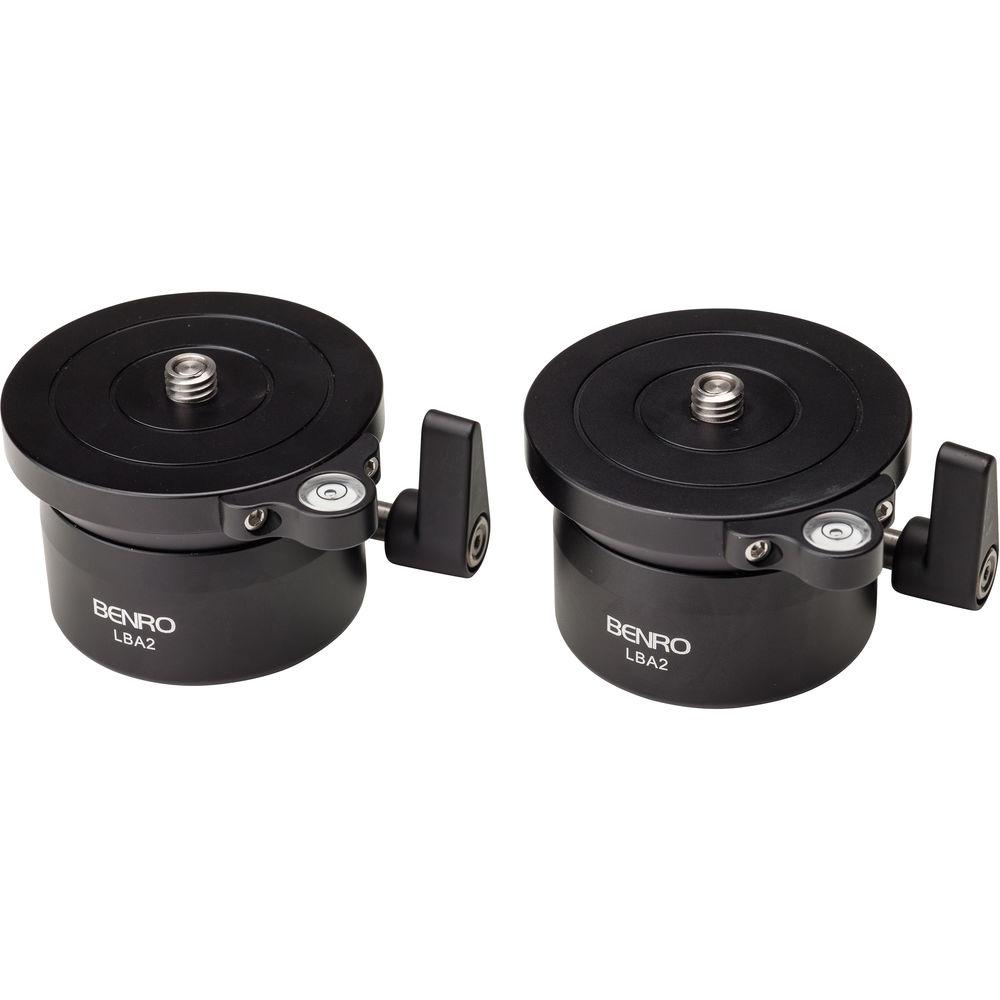

- LBA2 Leveling Base The Benro LBA2 Leveling Base is ideal for creating stitched panoramic images that require a level base for your pan head or ball head. It has a load capacity of 110 lb and can tilt +/-15° in any direction. The top of the leveling base has a spring-loaded 3/8"-16 threaded stud that can be recessed to reveal a 1/4"-20 stud, allowing you to mount a head or a camera directly to the leveling base. The bottom mount is a 3/8"-16 female thread with a 1/4"-20 bushing adapter.
In the Box Bundle Items MoveOver12 35.4" Dual Carbon Rail Slider with Flywheel fzzrbfxwvqfxzeuzfayadesexcqzursderv - Limited 3-Year Warranty, Extendable to 5 Years with Registration
S8 Pro Video Head with Flat Base - Limited 3-Year Warranty, Extendable to 5 Years with Registration
2 x LBA2 Leveling Base - Limited 3-Year Warranty, Extendable to 5 Years with Registration
Also Includes - 2 x Travel Flat AL Series 2 Tripod
Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro MoveOver12 35.4" Dual Carbon Rail Slider Kit with Video Head & Tripods in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MoveOver12 35.4" Dual Carbon Rail Slider with Flywheel
| | | Load Capacity | 26.5 lb / 12 kg | | Travel Distance | 35.4" / 90 cm | | | | Camera Mounting Screw | 3/8"-16 Male | | Tripod Mounting | 1 x 1/4"-20 Female Thread
1 x 3/8"-16 Female Thread | | Stand Receiver | 2 x 5/8" | | | | Box Dimensions (LxWxH) | 51.0 x 11.8 x 10.8" | - S8 Pro Video Head with Flat Base
| | | Camera Plate Features | Sliding Balance Plate | | Camera Plate Type | QR13 | | Camera Mounting Screw | 1 x 1/4"-20 Male
1 x 3/8"-16 Male | | | | Base Mount | 3/8"-16 Thread | | | | Drag Control | Pan: Continuous | | Vertical Tilt | +90
