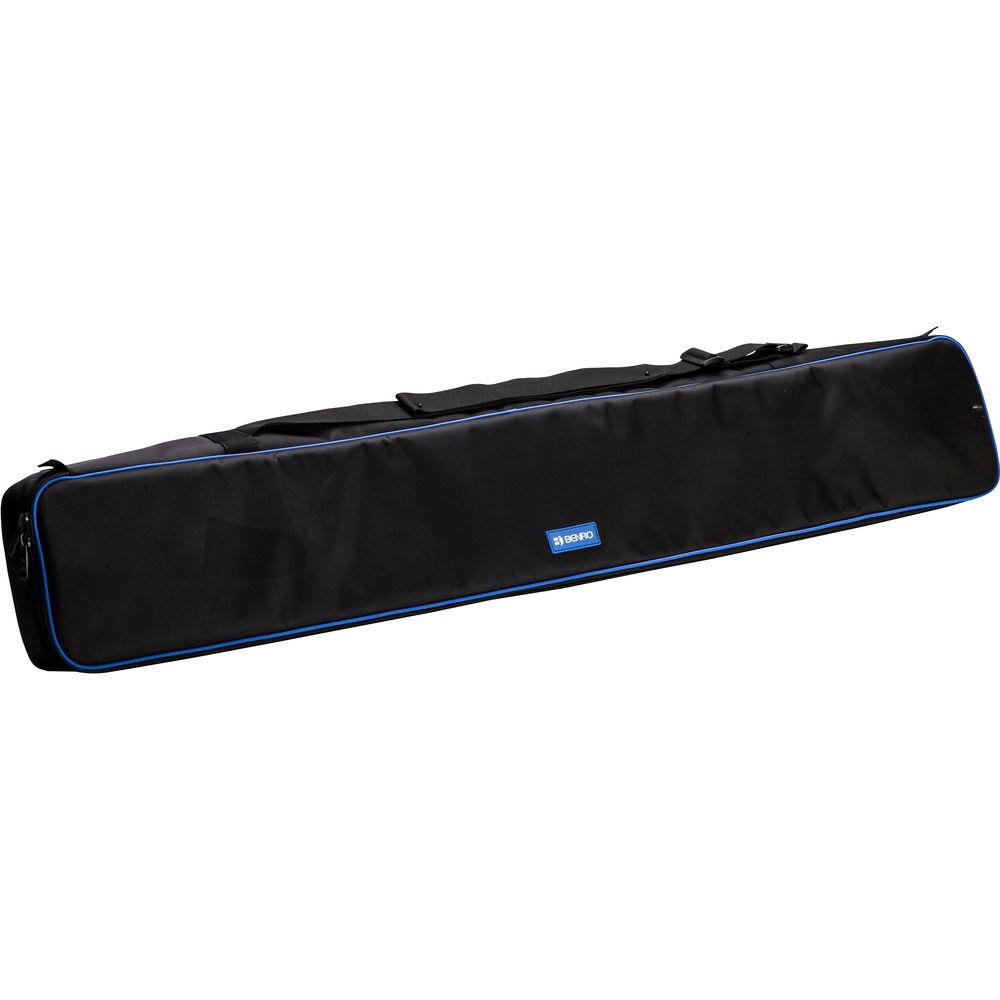

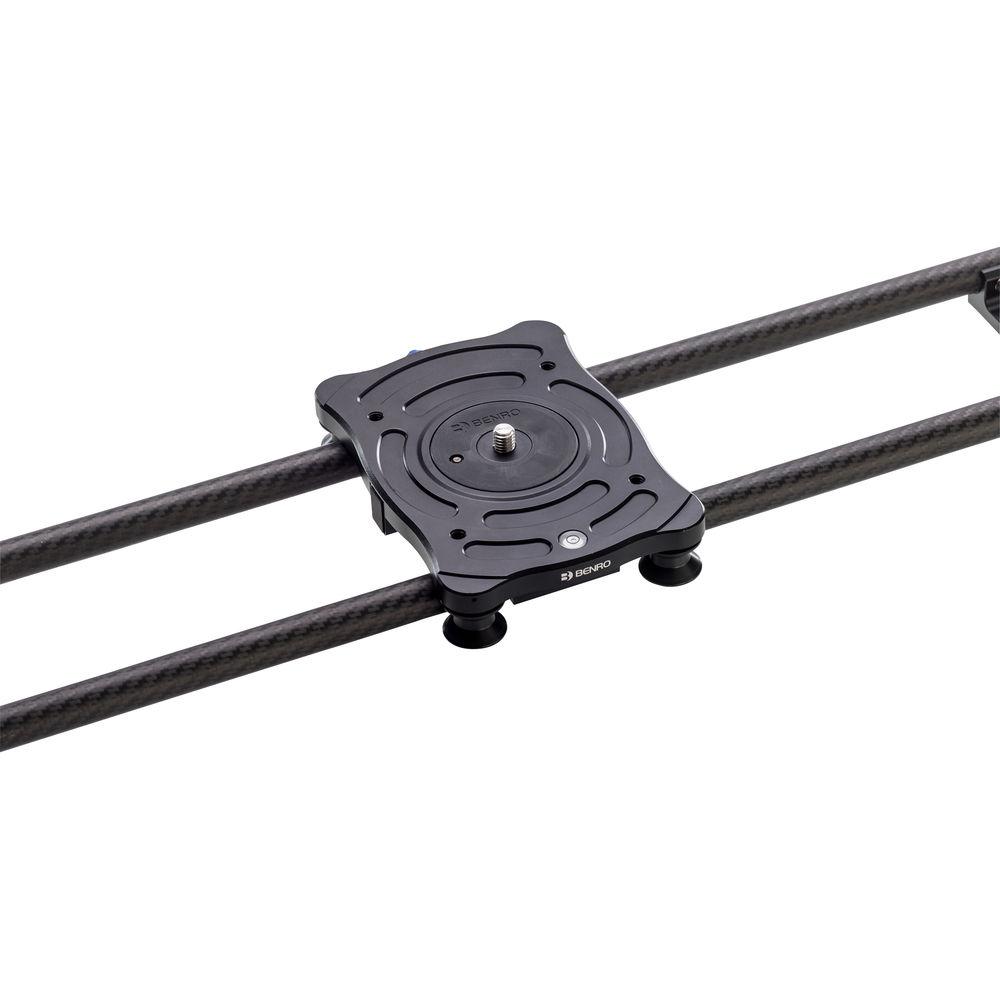

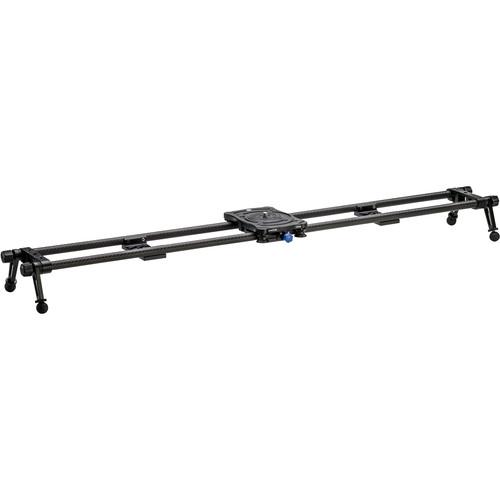

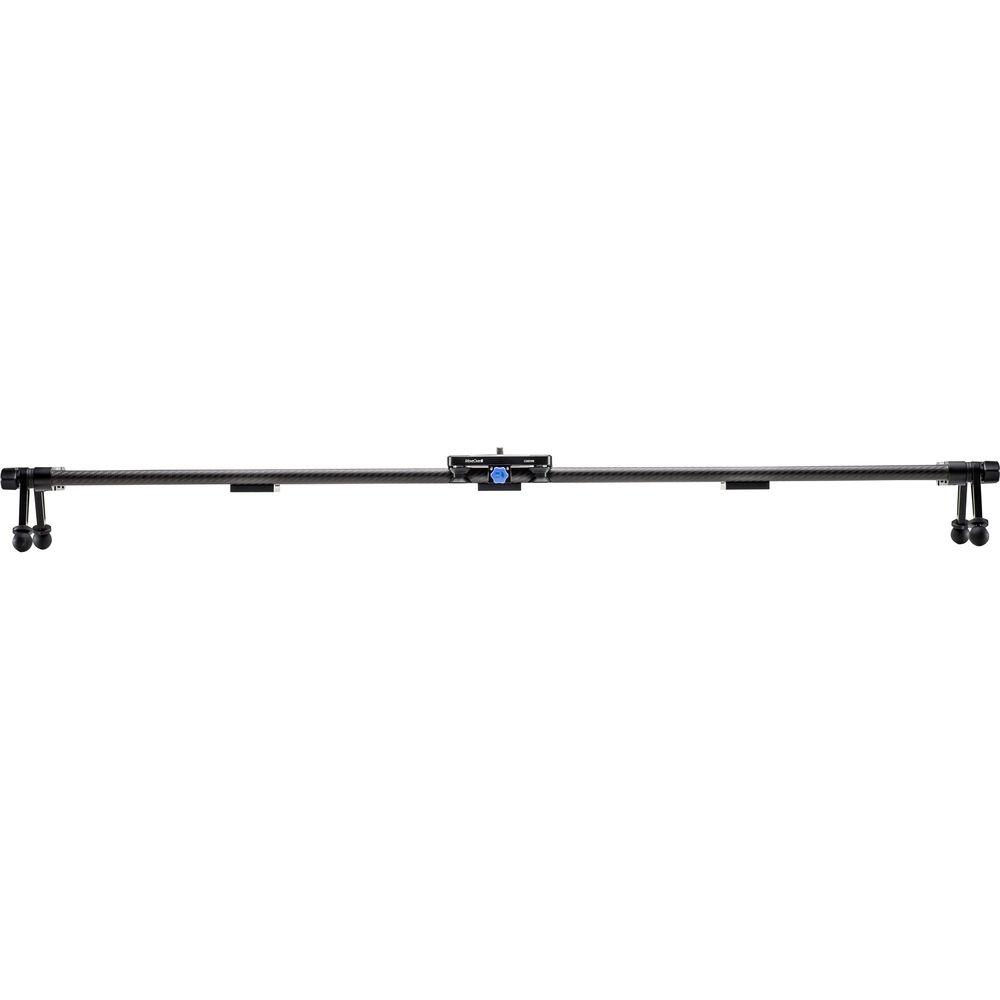

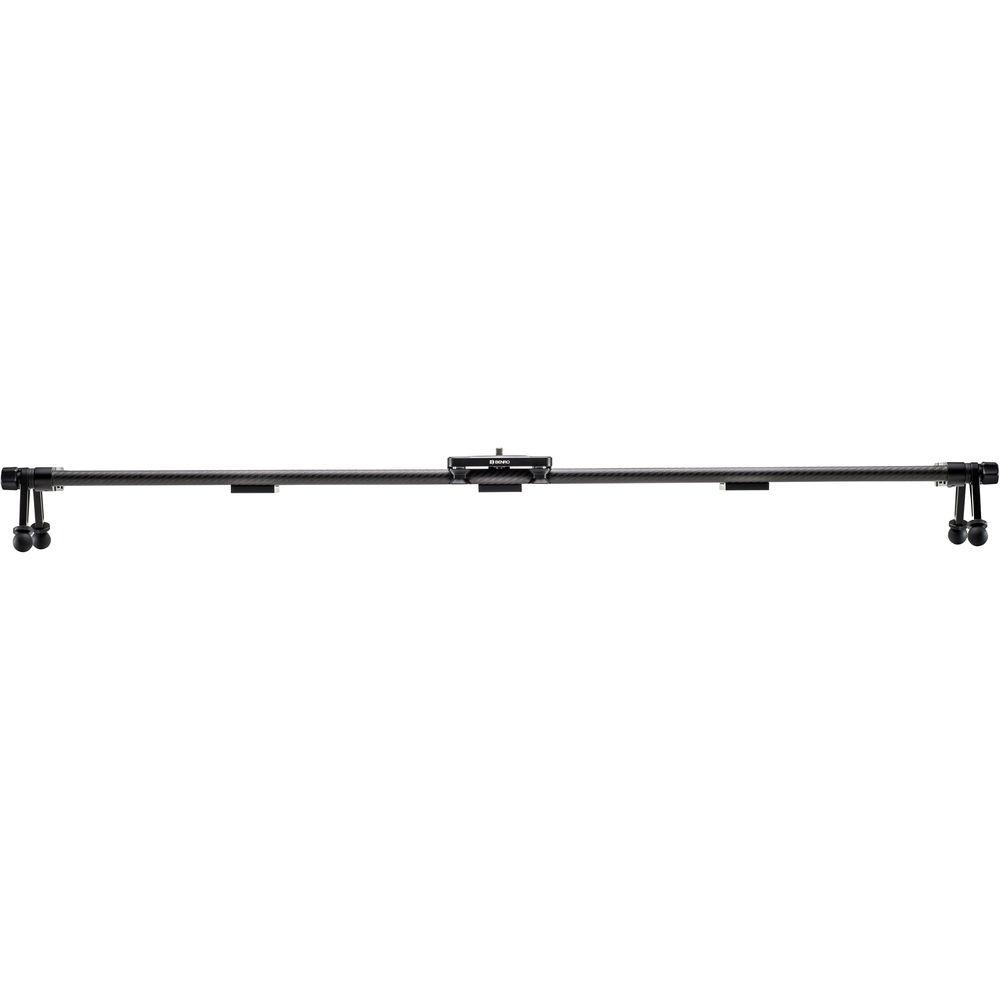

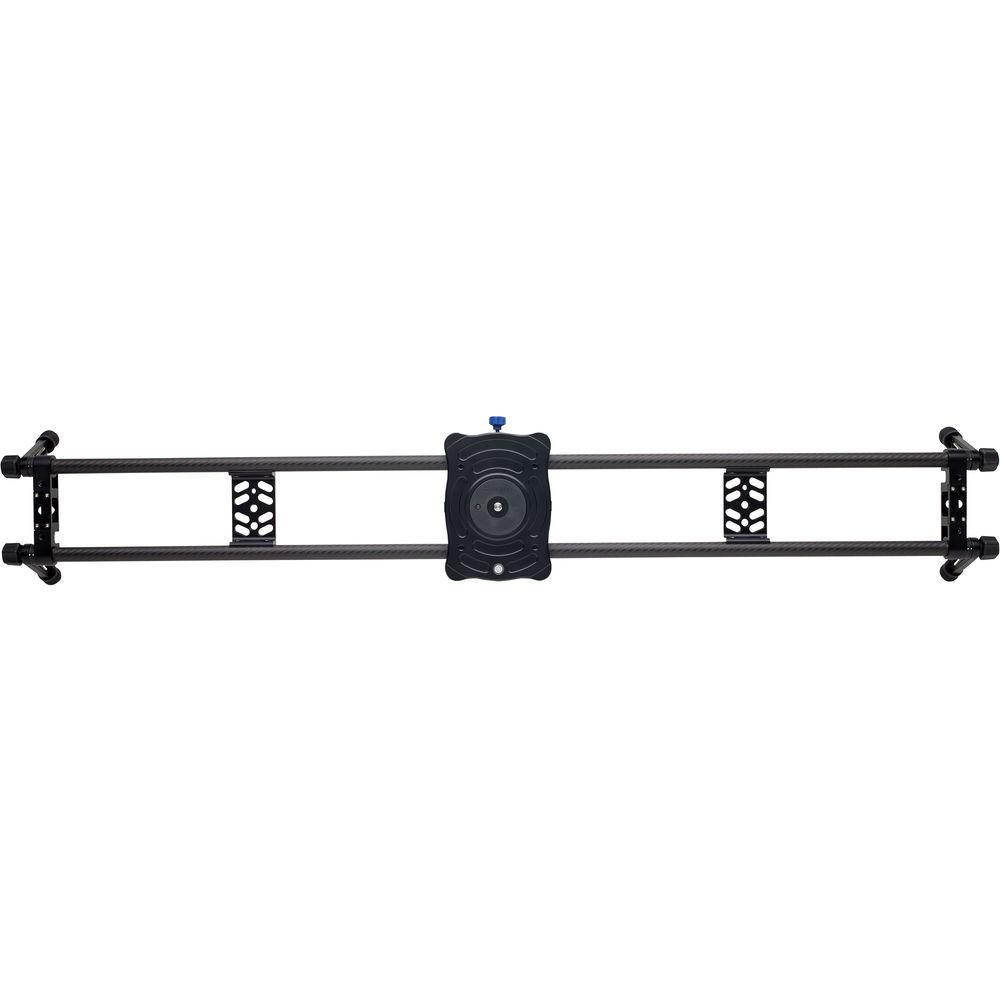

Product description This Benro MoveOver8B Carbon Fiber Slider with Case includes an aluminum slider carriage that runs on carbon fiber rails with 35.4" of actual carriage travel, and a soft carry case. The carriage features a flat mounting surface with a 3/8"-16 threaded mounting stud for mounting your flat base fluid head, and it features pre-tensioned roller bearings for a smooth glide. A built-in friction brake is controlled by a single knob, allowing you to adjust the friction on the slider, or even use it as a brake when the slider is level.

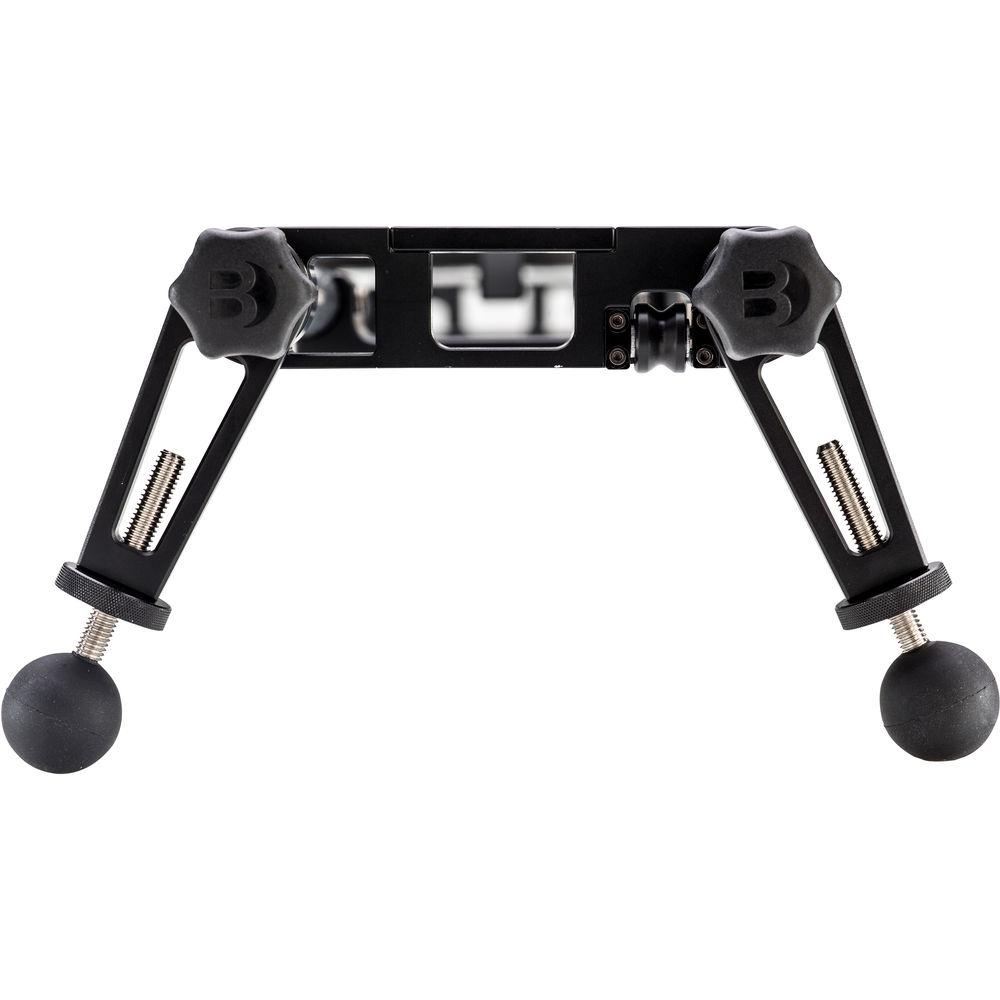

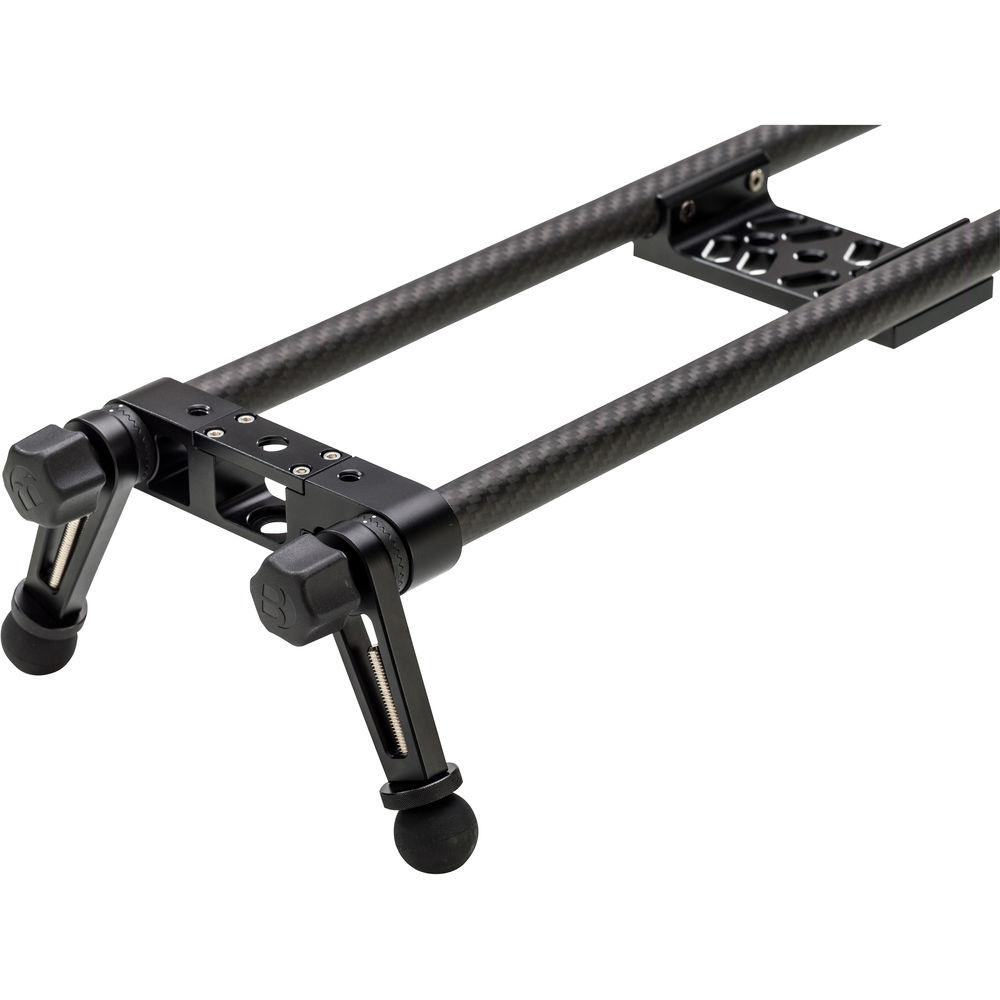

The slider features 18mm diameter carbon fiber rails and supports a total payload of up to 17.6 pounds. The slider can be mounted on a tripod or stands, or placed on a level surface. The built-in bubble level enables you to confirm that your slider is level. Each leg mounts onto the slider track ends via a rosette and can rotate throughout 360°, and each foot has approximately 4" of height adjustment for leveling. You can operate the slider on any angle from 0 to 90°, and you can even undersling the slider. - The adjustable legs can be moved throughout 360° of rotation. However, they are at their most supportive between 12 and 60°.
- The track ends allow you to mount the slider on stands using the Baby pin slot. Each track end features 1/4"-20 and 3/8"-16 threaded mounting holes.

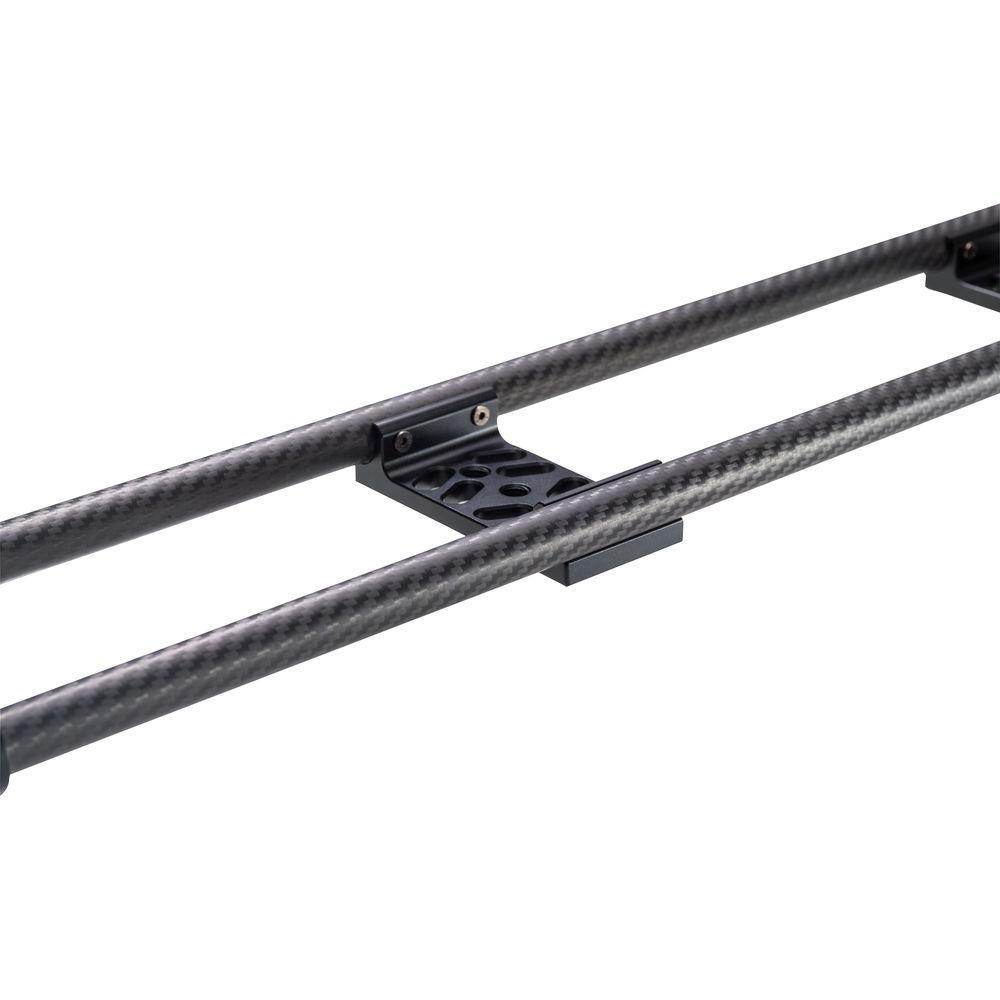

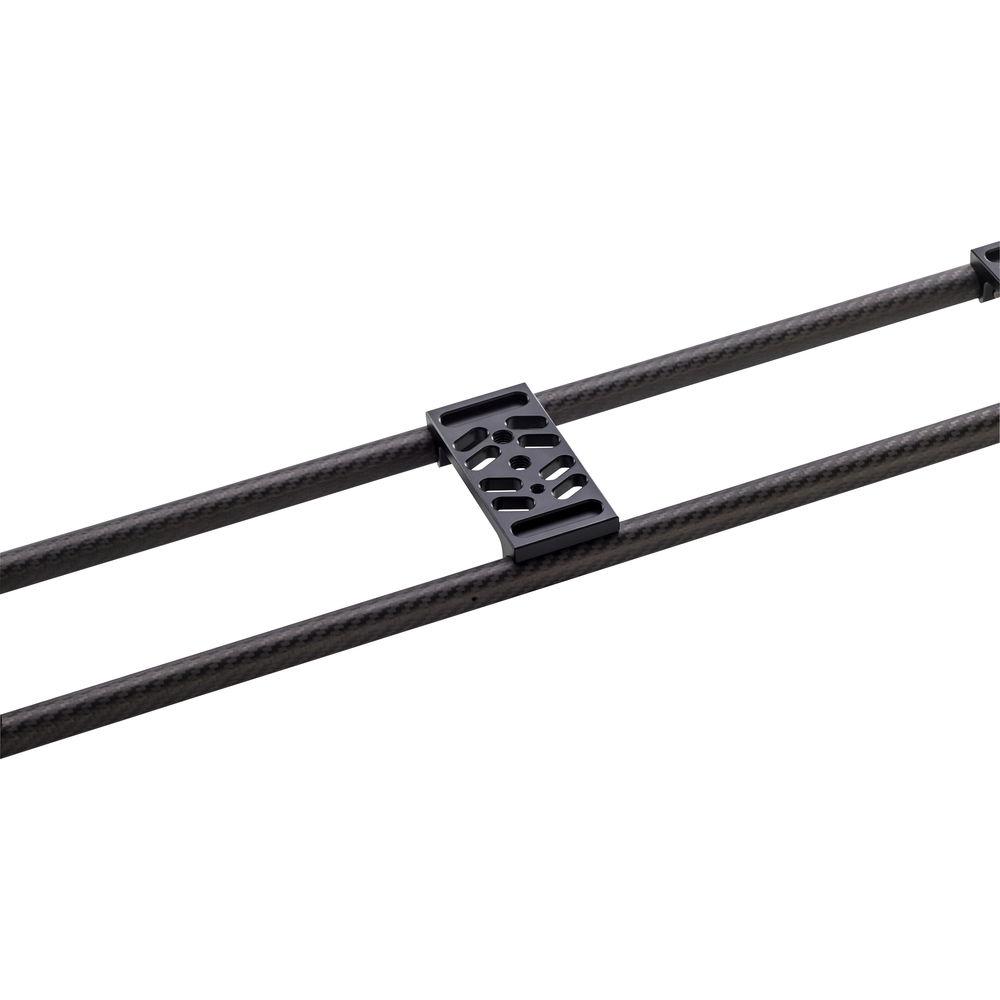

- The slider can also be mounted directly onto a tripod using the 3/8"-16 or 1/4"-20 threaded mounting hole on the attached cheese plate.
- The carriage has four 1/4"-20 threaded mounting holes for accessories.
In the Box Benro MoveOver8B Carbon Fiber Slider with Case (35.4") Limited 2-Year Warranty, Extendable by 3 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro MoveOver8B Carbon Fiber Slider with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenro Moveover8 Specs | | | Load Capacity | 17 lb / 7.71 kg | | Travel Distance | 35.4" / 0.9 m | | Bubble Level | Yes | | | | Camera Mounting Screw | 3/8"-16 Male | | Accessory Mounting | 4 x 1/4"-20 Female (Carriage)
3 x 1/4"-20 Female (Rails)
1 x 3/8"-16 Female (Rails) Two 1/4"-20 and one 3/8"16 accessory mounting threads on the top of each of the track ends, one 1/4"-20 on the underside. | | Tripod Mounting | 2 x 3/8"-16 Female Thread
1 x 1/4"-20 Female Thread | | Stand Receiver | 2 x 5/8" | | | | Diameter | 0.71" / 18 mm | | Material | Carbon Fiber | | | | Quick Release Plate Type | No Quick Release | | Dimensions | 6.5 x 4.7 x 0.5" / 166 x 119 x 13 mm | | | | Body Material | Aluminum | | Track Width | 3.94" / 100 mm | | Leg Height Adjustment | 0.00 to 3.94" / 0 to 100 mm360 | | Weight | 3.64 lb / 1.65 kg, Including Legs, Knobs | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 47.0 x 9.2 x 3.8" |
