User Manual for Benro S7 Video Tripod Kit with A373F Aluminum Legs Click to enlarge the picture
Contents of the user manual for the Benro S7 Video Tripod Kit with
- Product category: Tripod Systems Benro
- Brand: Benro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Benro Tripod Systems
 |
User manual for the Benro S7 Video Tripod Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Benro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Benro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Benro product will considerably shorten its lifespan!
|

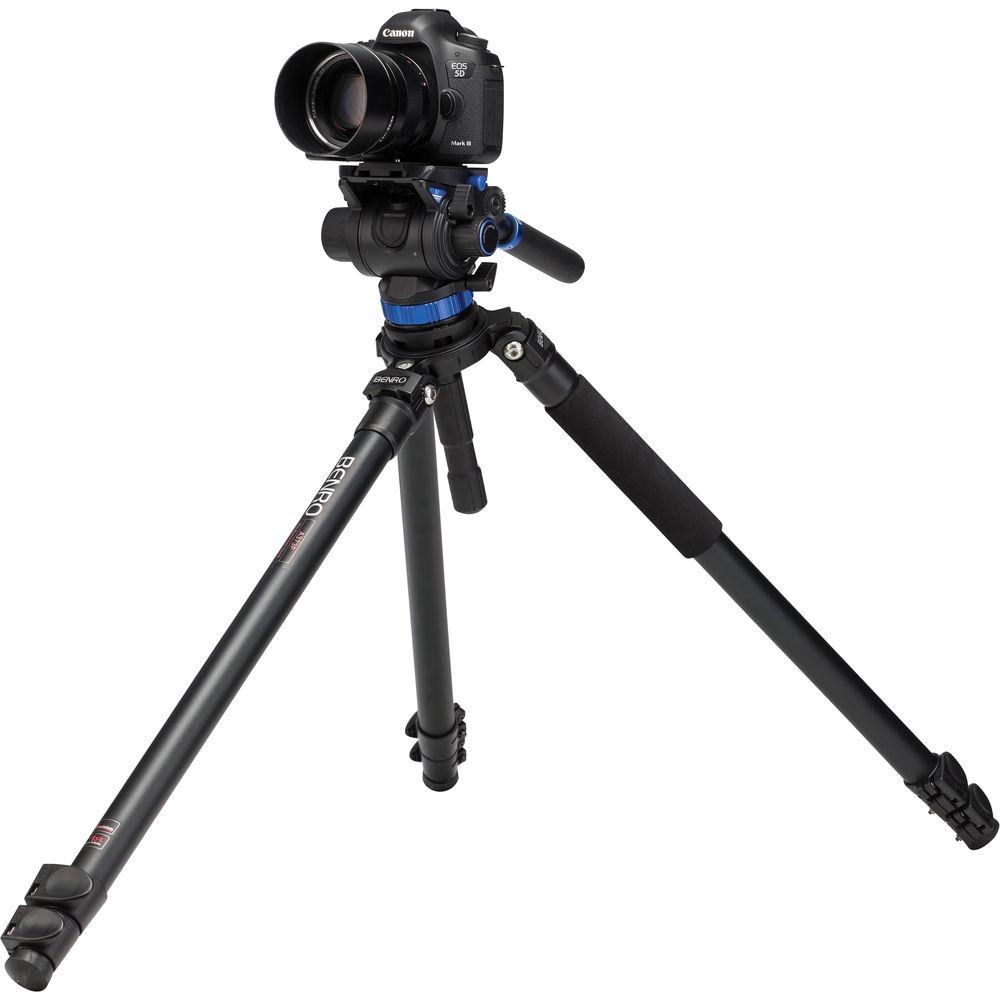

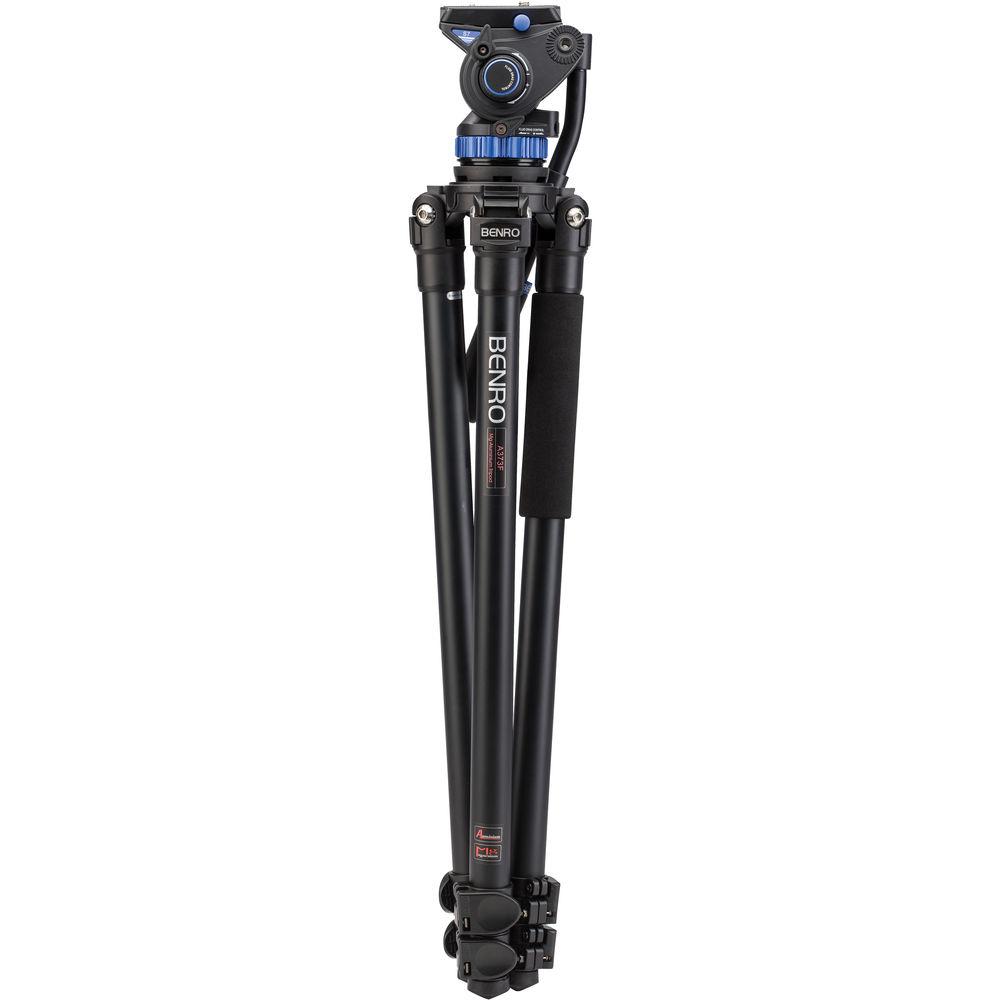

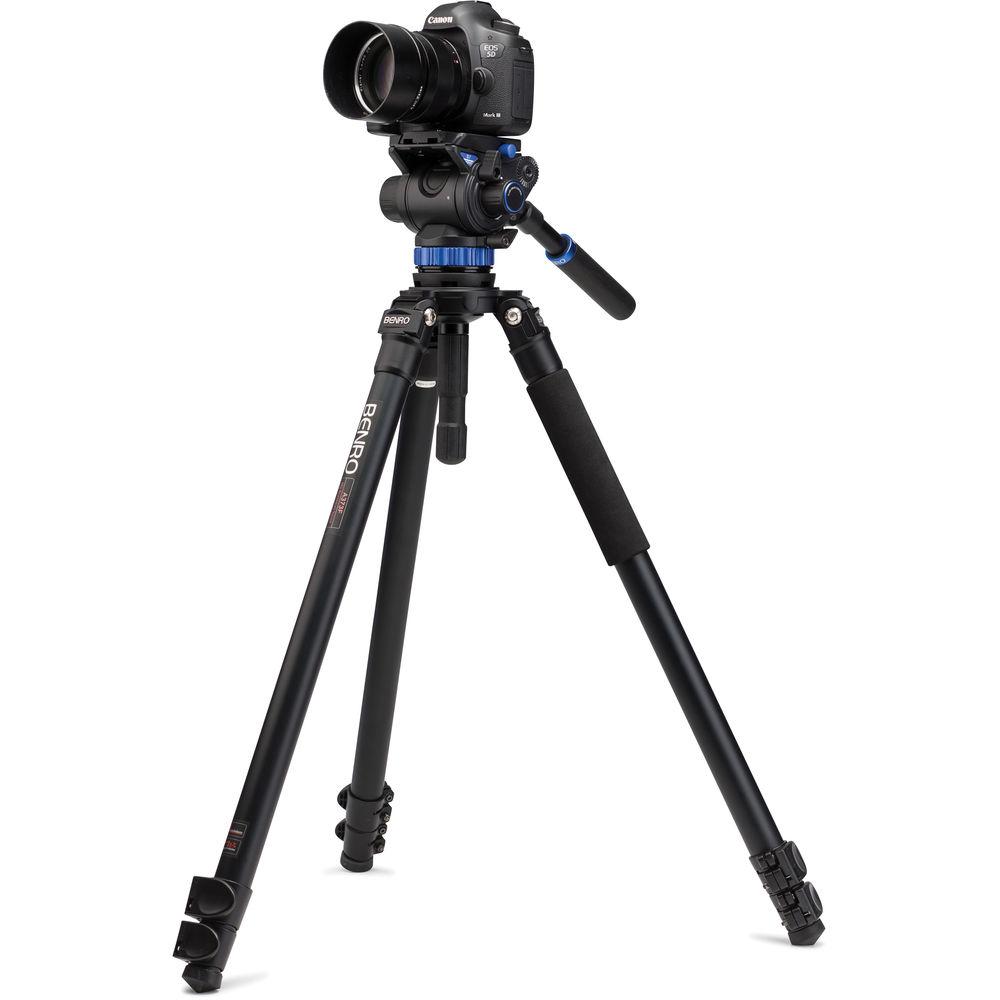

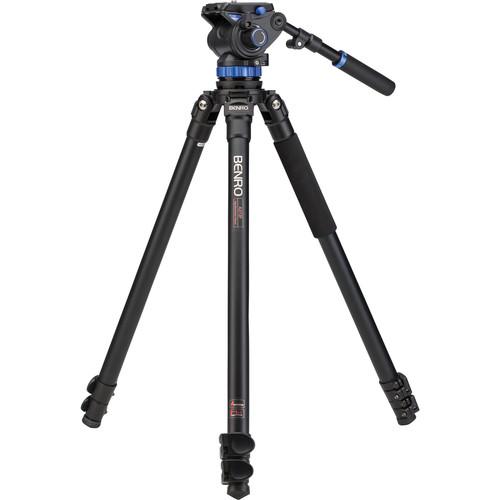

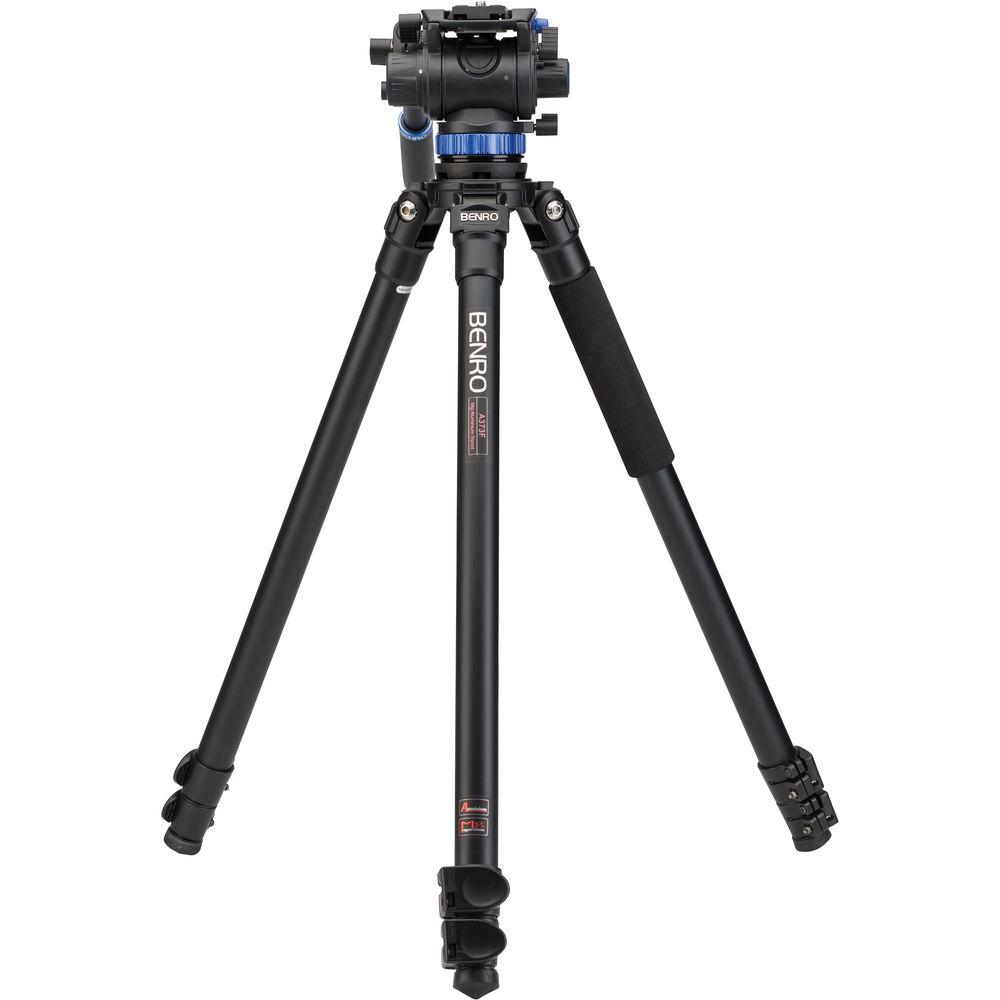

Product description The Benro S7 Tripod Kit with A373F Aluminum Legs is designed to support camera rigs weighing up to 15.4 pounds. The kit pairs the S7 video head with the 2-stage, 3-section A373F Series 3 aluminum tripod. The head attaches to the tripod using a removable 75mm bowl adapter, and attaches directly to tripods, monopods, sliders, and other camera support equipment with a 3/8"-16 threaded stud. The system has a maximum height of 63.18", a minimum height of 11.6", and weighs 8.5 pounds. A carrying case is included for convenient transport and storage.

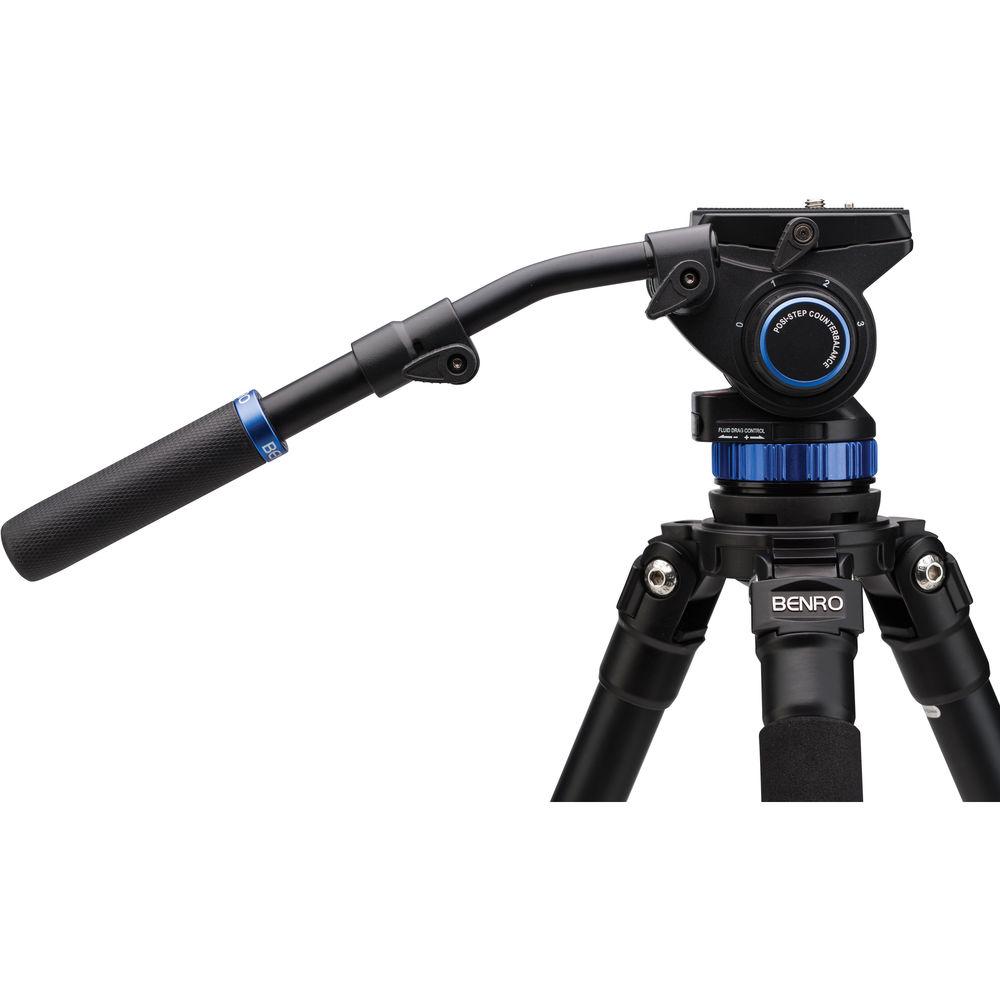

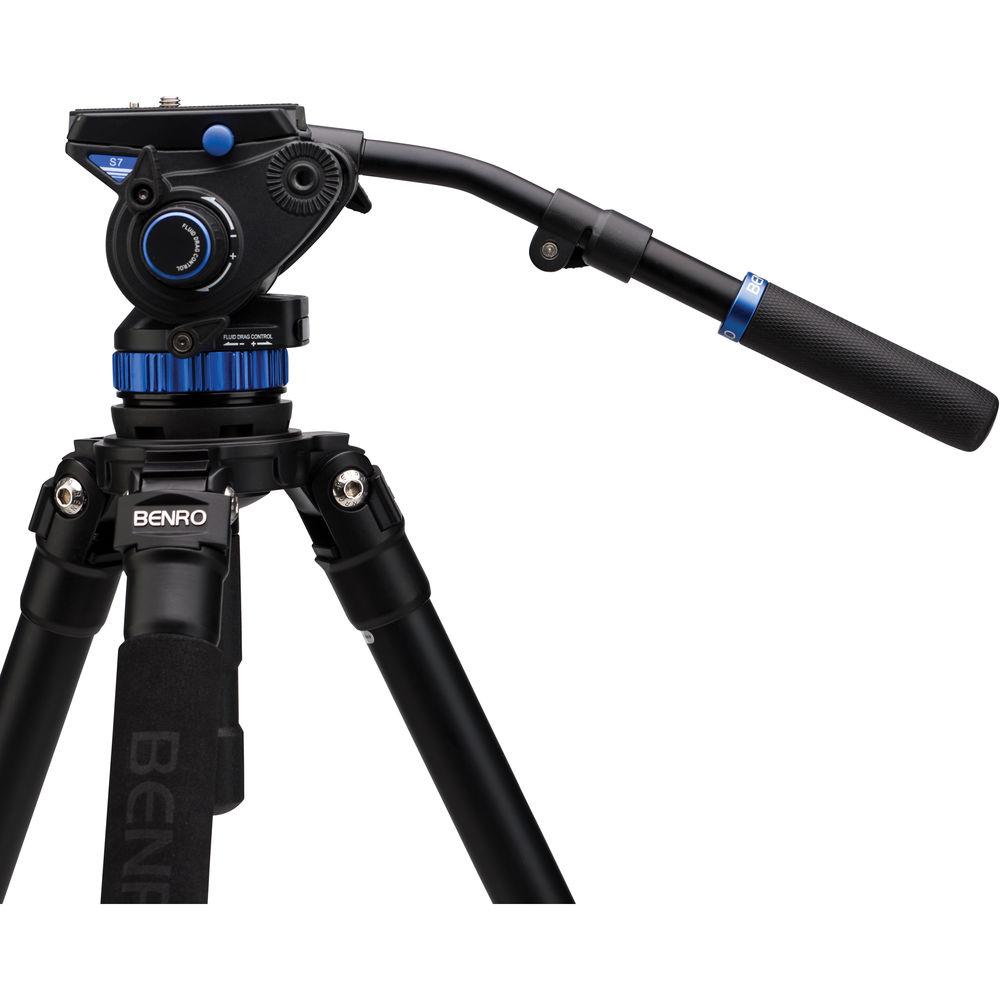

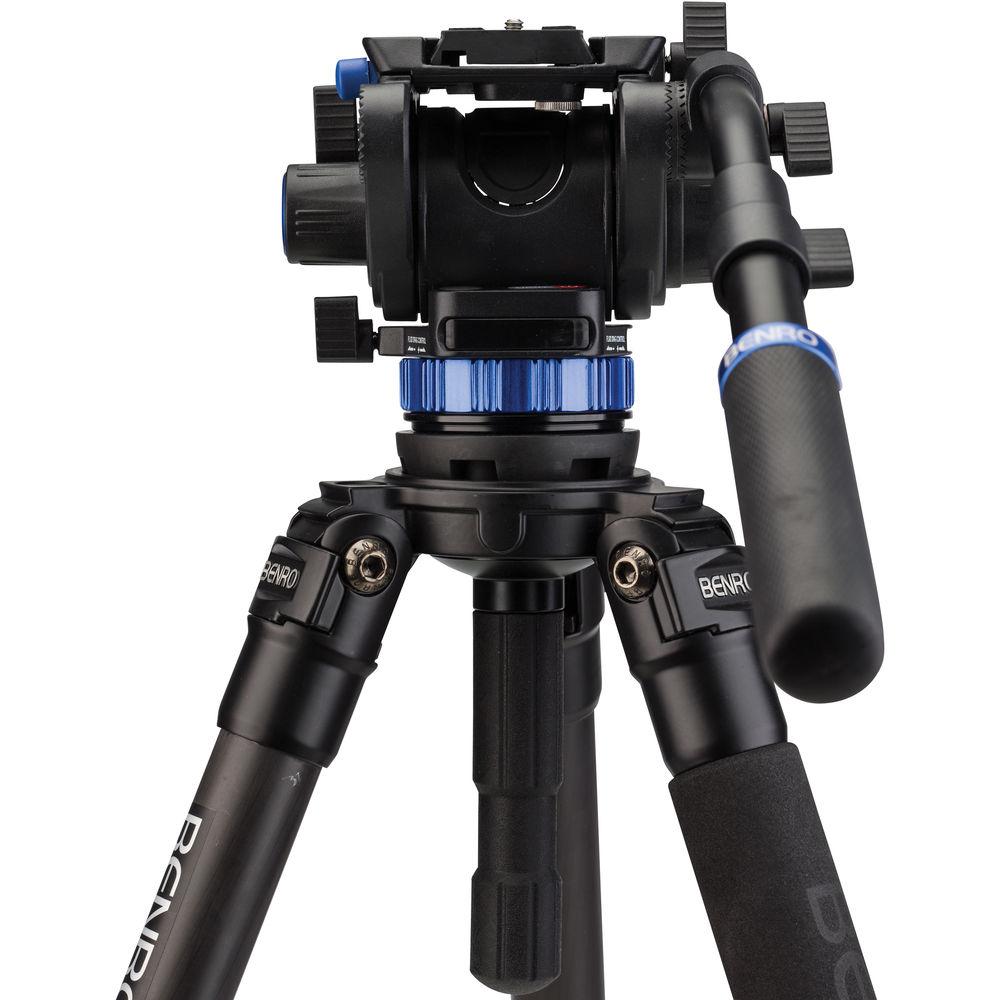

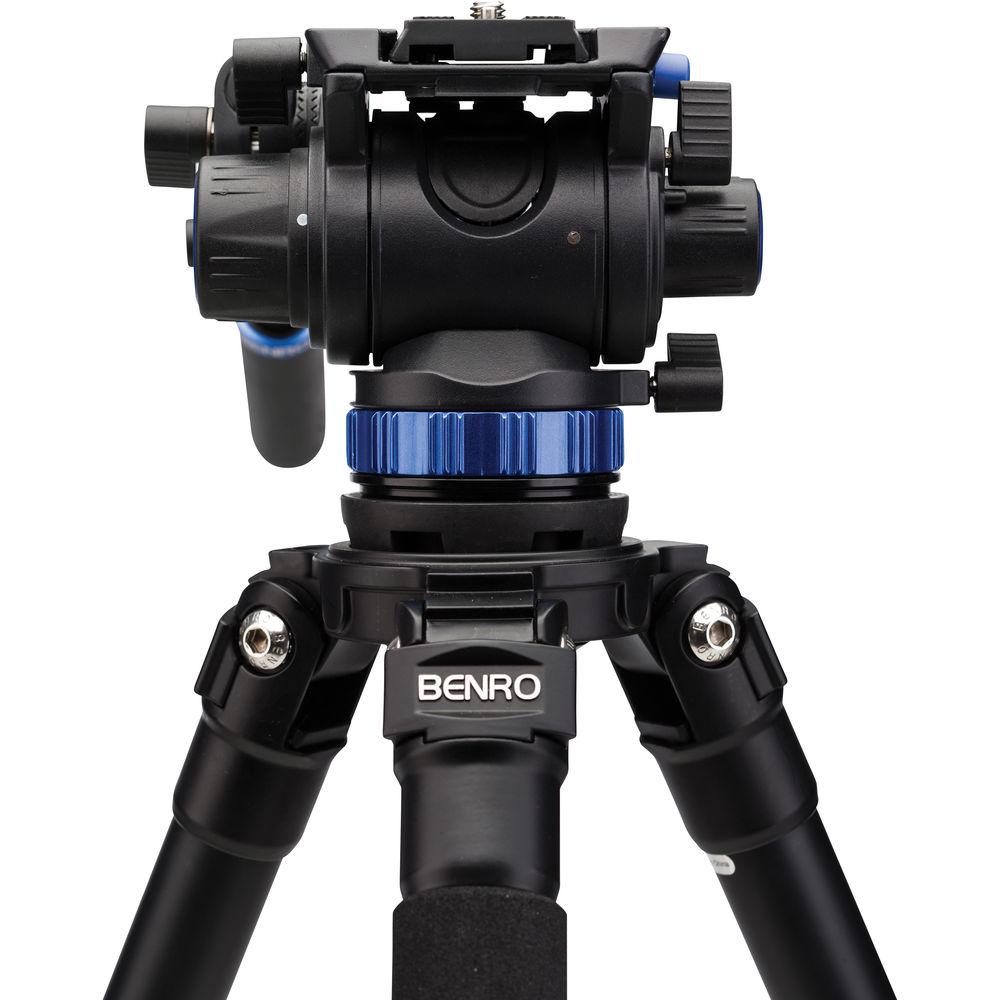

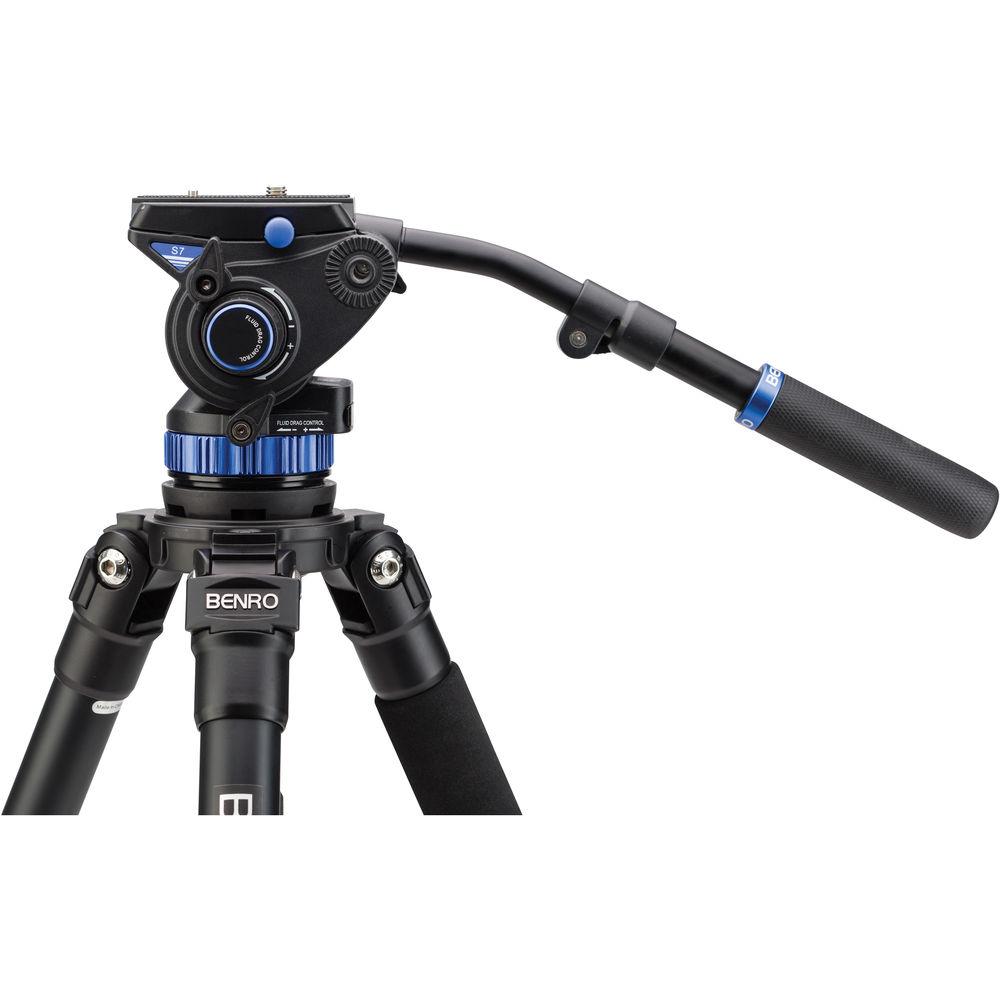

The head features a 4-step counterbalance system to counter the weight of your camera or heavy lens, and continuous pan drag adjustment so you can dial in the right amount of tension for each shot. The pan and tilt locks operate independently of each other and are located on the operator side of the head for easy access and control. The head has a tilt range of -50° to +90°. Your camera attaches to the S7 head via an included Manfrotto 501/504PL compatible sliding quick release plate. Also included is an adjustable-length pan bar handle which can be mounted on either side of the head. Additional features include an illuminated bubble level and two 3/8"-16 threads for attaching optional accessories such as a monitor or recorder.
The A3573F Series 3 aluminum tripod legs features a 2-stage design, with three sections that are secured using flip-lock levers. The legs feature a spreader-less design with three discreet stops for locking them at different degrees of spread. In addition, they can be opened fully for low-angle shooting. For a secure grip on virtually any surface, the tripod has screw-in rubber feet can be easily swapped out with included spiked feet. - Head
-
- Supports up to 15.4 lb
- 65mm flat base with 3/8"-16 thread
- 75mm half ball
- 4-step (0-3) counterbalance: 0, 5, 10, and 15.4 lb
- Continuous pan drag
- Independent pan and tilt locks
- Tilt Range: -50°/+90°
- Manfrotto 501/504PL compatible sliding plate
- Two 3/8"-16 accessory threads for mounting accessories, such as monitor or recorder
- Illuminated bubble level
- Adjustable-length pan bar
- Legs
-
- 2-stage, 3-section aluminum tripod with 75mm bowl fitting
- Flip lock levers
- Three leg angles
- Screw-in rubber and spiked feet
- Maximum height: 63.18" (with S7 head attached)
- Minimum height: 11.6" (with S7 head attached)
In the Box Benro S7 Video Tripod Kit with A373F Aluminum Legs A373F Aluminum Tripod S7 Video Head 75mm Half Ball Adapter 3 x Spiked Foot Carrying Case Limited 3-Year Warranty, Extendable to 5 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro S7 Video Tripod Kit with A373F Aluminum Legs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBenro S7 Specs | | | Load Capacity | 15.4 lb / 7 kg | | Maximum Height | 63.18 in / 160.5 cm | | Minimum Height | 11.6" / 29.5 cm | | Weight | 8.5 lb / 3.87 kg | | | | Load Capacity | 15.4 lb / 7 kg | | Head to Tripod Mounting Thread | 3/8"-16 thread (75 mm half ball adapter included) | | Counterbalance Steps | 4-step: 0 lb / 0 kg, 5.0 lb / 2.2 kg, 10 lb / 4.5 kg, 15.4 lb / 7 kg | | Pan Drag | Continuous | | Tilt Drag | 4-step (0 to 3) fluid cartridge | | Panning Range | 360° | | Tilt Range | -50° to +90° | | Quick Release Plate | QR6 (Manfrotto 501/504PL compatible)
1/4"-20 and 3/8"-16 cameras screws | | Accessory Mounting Threads | 2 x 3/8"-16 | | Leveling Bubble / Illuminated | Yes / yes | | Height | 4.72" / 12 cm | | Weight | 3.2 lb / 1.4 kg | | | | Material | Aluminum | | Bowl Diameter | 75 mm | | Leg Stages / Sections | 2 / 3 | | Leg Lock Type | Flip lock | | | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 35.0 x 7.1 x 7.0" |
