Product description

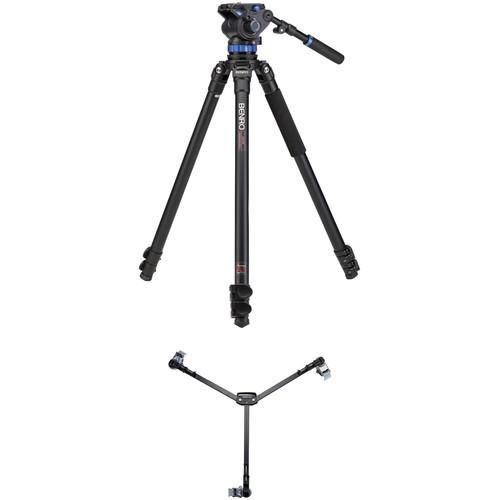

• Benro S7 Video Tripod Kit with A373F Aluminum Legs The Benro S7 Tripod Kit with A373F Aluminum Legs is designed to support camera rigs weighing up to 15.4 pounds. The kit pairs the S7 video head with the 2-stage, 3-section A373F Series 3 aluminum tripod. The head attaches to the tripod using a removable 75mm bowl adapter, and attaches directly to tripods, monopods, sliders, and other camera support equipment with a 3/8"-16 threaded stud. The system has a maximum height of 63.18", a minimum height of 11.6", and weighs 8.5 pounds. A carrying case is included for convenient transport and storage.

  The head features a 4-step counterbalance system to counter the weight of your camera or heavy lens, and continuous pan drag adjustment so you can dial in the right amount of tension for each shot. The pan and tilt locks operate independently of each other and are located on the operator side of the head for easy access and control. The head has a tilt range of -50° to +90°. Your camera attaches to the S7 head via an included Manfrotto 501/504PL compatible sliding quick release plate. Also included is an adjustable-length pan bar handle which can be mounted on either side of the head. Additional features include an illuminated bubble level and two 3/8"-16 threads for attaching optional accessories such as a monitor or recorder.

  The A3573F Series 3 aluminum tripod legs features a 2-stage design, with three sections that are secured using flip-lock levers. The legs feature a spreader-less design with three discreet stops for locking them at different degrees of spread. In addition, they can be opened fully for low-angle shooting. For a secure grip on virtually any surface, the tripod has screw-in rubber feet can be easily swapped out with included spiked feet.
  Head
  • • Supports up to 15.4 lb
    • 65mm flat base with 3/8"-16 thread
    • 75mm half ball
    • 4-step (0-3) counterbalance: 0, 5, 10, and 15.4 lb
    • Continuous pan drag
    • Independent pan and tilt locks
    • Tilt Range: -50°/+90°
    • Manfrotto 501/504PL compatible sliding plate
    • Two 3/8"-16 accessory threads for mounting accessories, such as monitor or recorder
    • Illuminated bubble level
    • Adjustable-length pan bar
  Legs
  • • 2-stage, 3-section aluminum tripod with 75mm bowl fitting
    • Flip lock levers
    • Three leg angles
    • Screw-in rubber and spiked feet
    • Maximum height: 63.18" (with S7 head attached)
    • Minimum height: 11.6" (with S7 head attached)
• Benro DL06 Tripod Dolly Compatible with select Benro photo and video tripods, the Benro DL06 Tripod Dolly allows you to easily move your tripod across the floor to quickly reposition the camera. It features three casters and independent wheel locks that prevent the wheels from both rotating and rolling. Three large rubber feet with 3/8"-16 threads are included to accommodate smaller tripods when securing the dolly. The dolly has a footprint of 33.5" when in use, folds up to 21" in length for compact transport, and features a built-in carry handle.
  Compatibility
  • Photo tripods: Travel Angel, Adventure, Mach3
    Video tripods: KH25N, KH26NL, Aero2, Aero 4, A373F, C373F

• S7 Video Tripod Kit with A373F Aluminum Legs cbbcbrcsxauddrttqwb
• A373F Aluminum Tripod
• S7 Video Head
• 75mm Half Ball Adapter
• 3 x Spiked Foot
• Carrying Case
• Limited 3-Year Warranty, Extendable to 5 Years with Registration

• DL06 Tripod Dolly

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Benro S7 Video Tripod Kit with A373F Aluminum Legs

  Load Capacity	15.4 lb / 7 kg
  Maximum Height	63.18 in / 160.5 cm
  Minimum Height	11.6" / 29.5 cm
  Weight	8.5 lb / 3.87 kg

  Load Capacity	15.4 lb / 7 kg
  Head to Tripod Mounting Thread	3/8"-16 thread (75 mm half ball adapter included)
  Counterbalance Steps	4-step: 0 lb / 0 kg, 5.0 lb / 2.2 kg, 10 lb / 4.5 kg, 15.4 lb / 7 kg
  Pan Drag	Continuous
  Tilt Drag	4-step (0 to 3) fluid cartridge
  Panning Range	360°
  Tilt Range	-50° to +90°
  Quick Release Plate	QR6 (Manfrotto 501/504PL compatible) 1/4"-20 and 3/8"-16 cameras screws
  Accessory Mounting Threads	2 x 3/8"-16
  Leveling Bubble / Illuminated	Yes / yes
  Height	4.72" / 12 cm
  Weight	3.2 lb / 1.4 kg

  Material	Aluminum
  Bowl Diameter	75 mm
  Leg Stages / Sections	2 / 3
  Leg Lock Type	Flip lock

  Box Dimensions (LxWxH)	35.0 x 7.1 x 7.0"

• Benro DL06 Tripod Dolly

  Working Diameter	33.5" / 85.1 cm
  Folded Length	21.3" / 54 cm

  Box Dimensions (LxWxH)	22.2 x 7.1 x 6.5"
