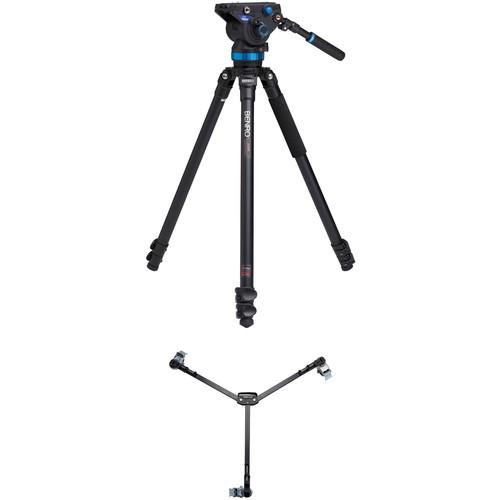

Product description Supporting camera rigs weighing up to 17.5 pounds, the S8 Video Tripod Kit with A373F Legs and DL06 Tripod Dolly from B&H bundles the Benro S8 video head, the two-stage A373F Series 3 aluminum tripod, and the Benro DL06 tripod dolly. Use this kit's components to securely position your camcorder, DSLR, or mirrorless camera for locked-off shots, panning and/or tilting, or smooth dolly moves. - Benro A373F Series 3 AL Video Tripod & S8 Head The Benro A373F Series 3 AL Video Tripod & S8 Head is a lightweight tripod system featuring aluminum tripod legs and a flat base head supporting up to 17.5 lb. A half ball adapter is included for mounting the head on the tripod legs, but the adapter is removable so you can attach the head on sliders and other support gear via a 3/8"-16 thread on the bottom. The legs extend from 14.5 to 64", and the entire system weighs only 11 lb. Opening fully to the minimum height conveniently allows for stable, low-angle shooting.
Designed to give you more precise control, the head provides stepless, continuous adjustment of both pan and tilt drag. This allows you to dial in the amount of tension you feel most comfortable with for a given shot. You can pan a full 360° and tilt forward/backward 90/70°. The head also features a four-step adjustable counterbalance that helps compensate for different-sized cameras and adapts to payloads with varying centers of gravity.
The legs have a two-stage, three-section design with three discreet stops for locking at different degrees of spread, and multi-angle, flip-lever leg locks which allow each leg to be positioned independently for quick setup and uneven terrain. The legs have rubber feet, but come with stainless-steel spiked feet that can be installed for use on soft surfaces.
Both the head and legs offer a bubble level. The head also provides two 3/8"-16 accessory mounting threads for directly attaching monitor arms and other gear. A pan bar is included, and an optional second one can be attached on the other side. - Key Features
-
- Flat base head with 3/8"-16 thread
- Half ball adapter included
- Aluminum two-stage, three-section tripod legs
- 17.5 lb payload
- 12.5" minimum height for low-angle shooting
- 64" max height
- Stepless, continuous pan/tilt drag
- 360° panning
- 90/70° forward/backward tilting
- Four-step adjustable counterbalance
- Three-stop independent leg spread
- Independent flip-lever leg locks
- Rubber feet
- Stainless-steel spiked feet included
- Two 3/8"-16 threads on the head for mounting monitor arms and other accessories
- Benro DL06 Tripod Dolly Compatible with select Benro photo and video tripods, the Benro DL06 Tripod Dolly allows you to easily move your tripod across the floor to quickly reposition the camera. It features three casters and independent wheel locks that prevent the wheels from both rotating and rolling. Three large rubber feet with 3/8"-16 threads are included to accommodate smaller tripods when securing the dolly. The dolly has a footprint of 33.5" when in use, folds up to 21" in length for compact transport, and features a built-in carry handle.
- Compatibility
- Photo tripods: Travel Angel, Adventure, Mach3
Video tripods: KH25N, KH26NL, Aero2, Aero 4, A373F, C373F In the Box - A373F Series 3 AL Video Tripod & S8 Head vvdfufuvuuwrxwqxfwucsdfwdrswwwsxyw
- QR13 Quick Release Plate
- 75HB 75mm Half Ball Adapter
- Pan Bar
- Spiked Feet Set
- Deluxe Carry Case
- Limited 3-Year Warranty, Extendable to 5 Years with Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro S8 Video Tripod Kit with A373F Legs and DL06 Tripod Dolly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Benro A373F Series 3 AL Video Tripod & S8 Head
| | | Head Fitting | 75 mm bowl | | Material of Construction | Aluminum | | Maximum Height | 64" / 163 cm | | Minimum Height | 12.5" / 31.5 cm | | Folded Length | 31.5" / 80 cm | | Leg Sections | 3 | | Leg Lock Type | Flip-lock | | Independent Leg Spread | Yes, with 3 stops | | Feet | Rubber feet, stainless-steel spiked feet included | | Bubble Level | Yes | | Leg Diameter | Section 1: 1.3" / 3.2 cm
Section 2: 1.1" / 2.9 cm
Section 3: 1" / 2.5 cm | | | | Mount Type | Flat base with 3/8"-16 thread
Removable 75 mm half ball adapter included | | Load Capacity | 17.5 lb / 8 kg | | Counter Balance System | Stepped: 0 - 3 | | Quick Release/Wedge Plate | Benro QR13 quick release plate | | Tilt Drag | Stepless | | Tilt Range | +90° to -70° | | Tilt Lock | Yes | | Pan Drag | Stepless | | Pan Range | 360° | | Pan Lock | Yes | | Bubble Level | Illuminated | | Temperature Range | -4 to 140°F / -20 to 60°C | | Height | 5.9" / 15 cm | | Weight | 5.7 lb / 2.6 kg | | | | Box Dimensions (LxWxH) | 38.0 x 8.0 x 7.0" | - Benro DL06 Tripod Dolly
| Working Diameter | 33.5" / 85.1 cm | | Folded Length | 21.3" / 54 cm | | | | Box Dimensions (LxWxH) | 22.2 x 7.1 x 6.5" |
