Product description

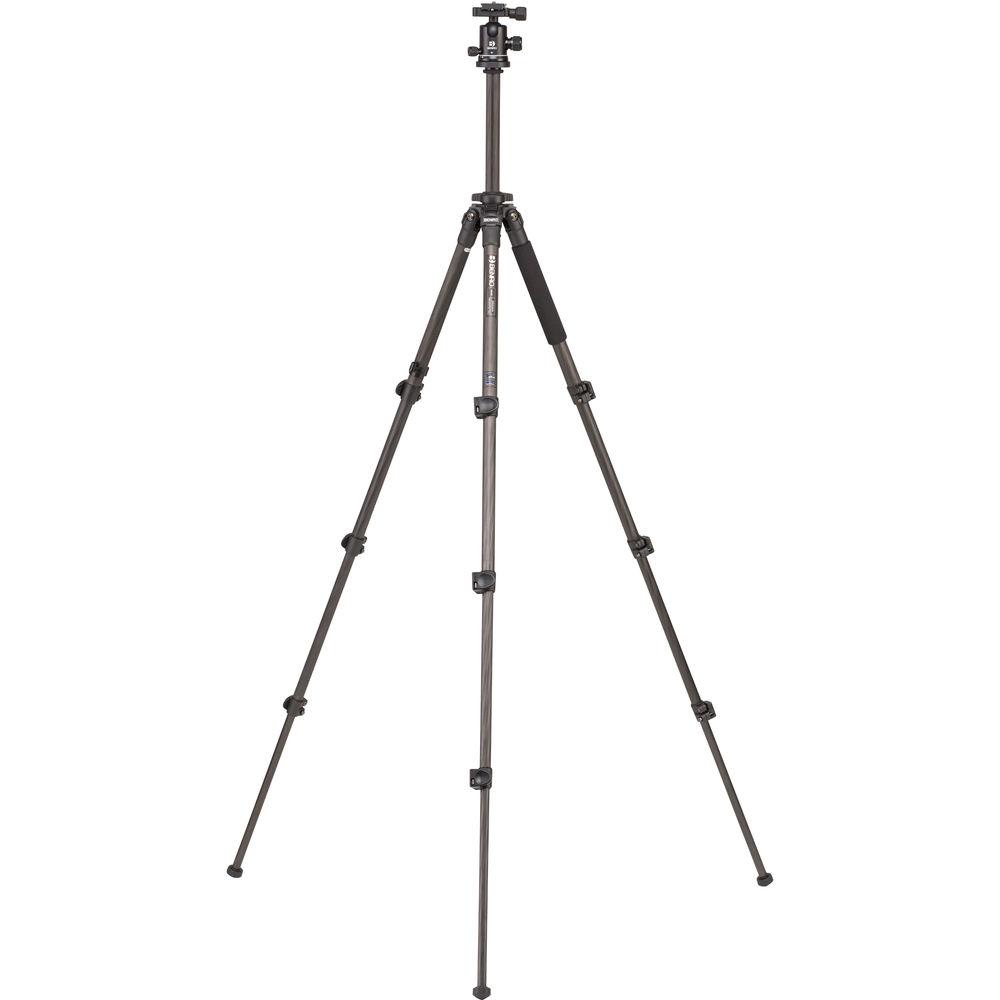

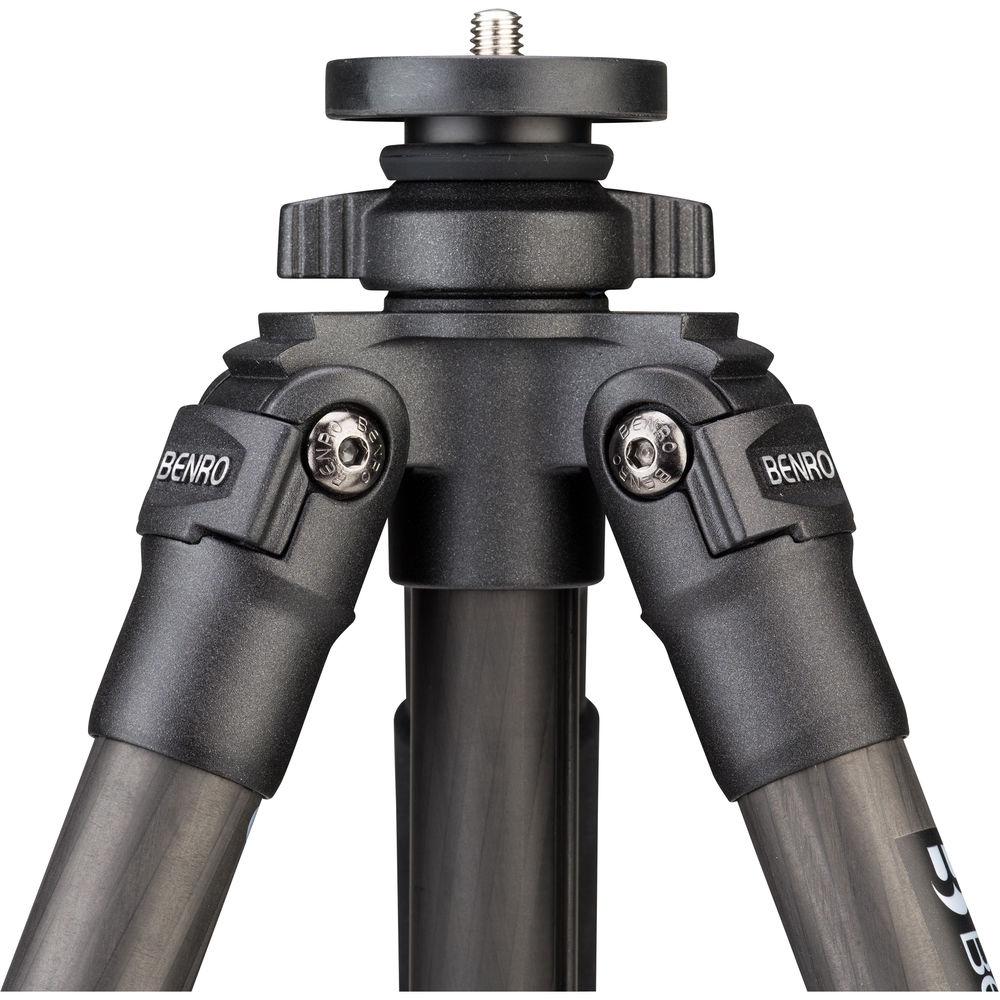

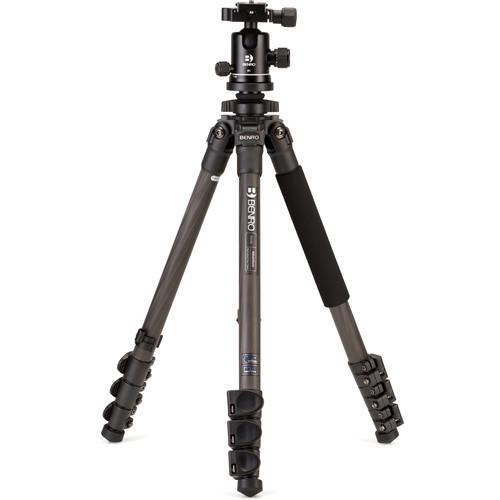

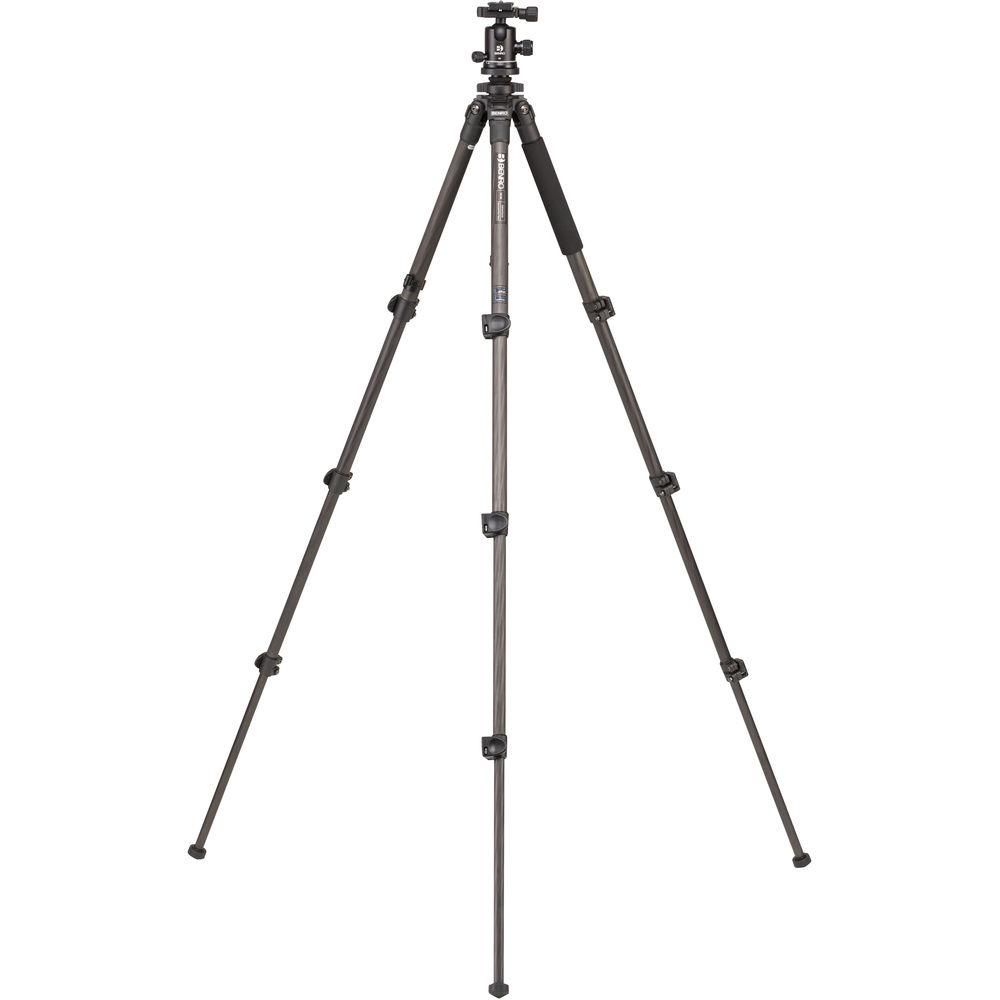

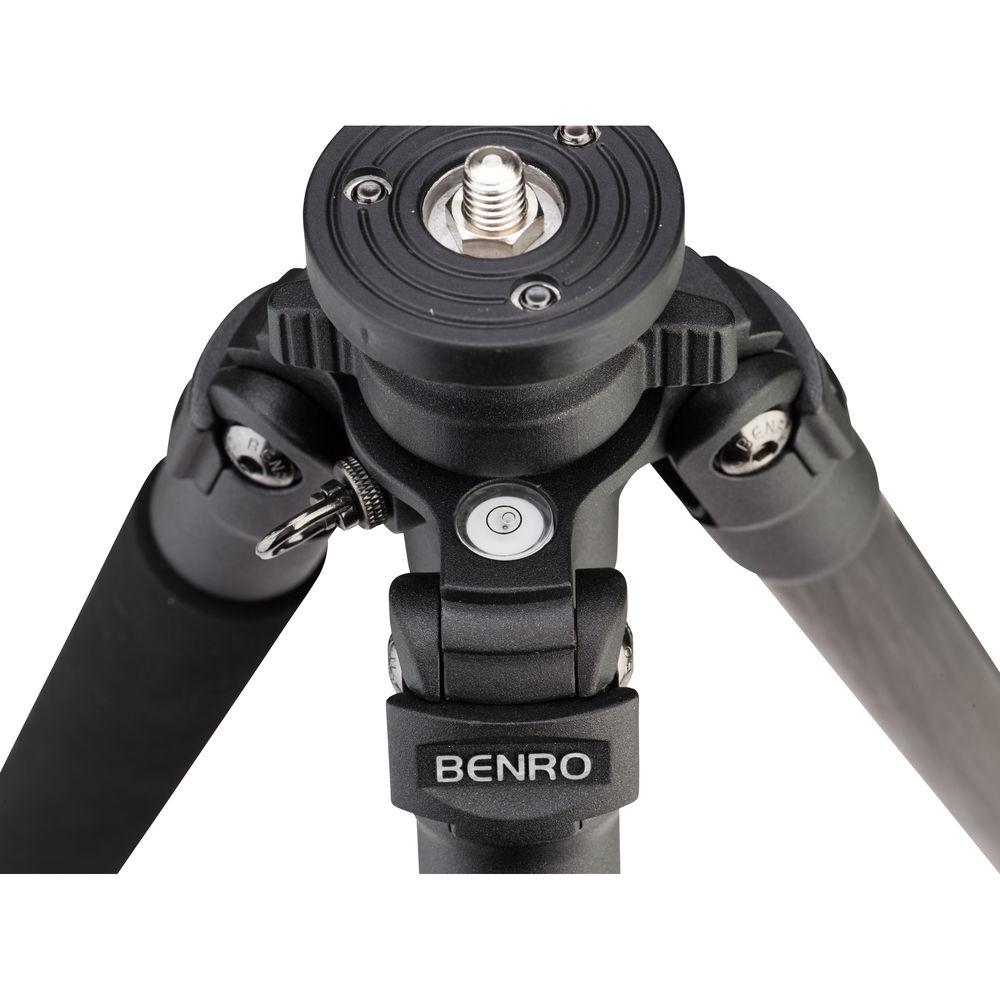

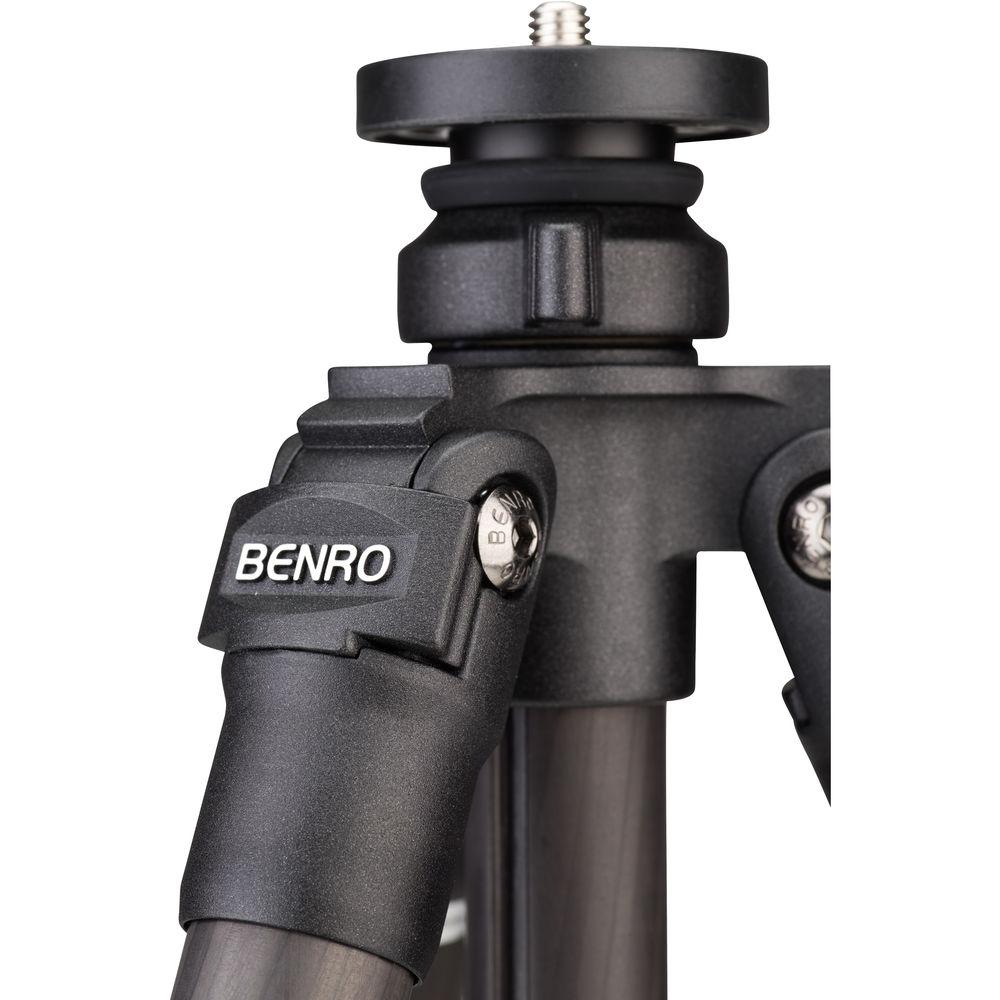

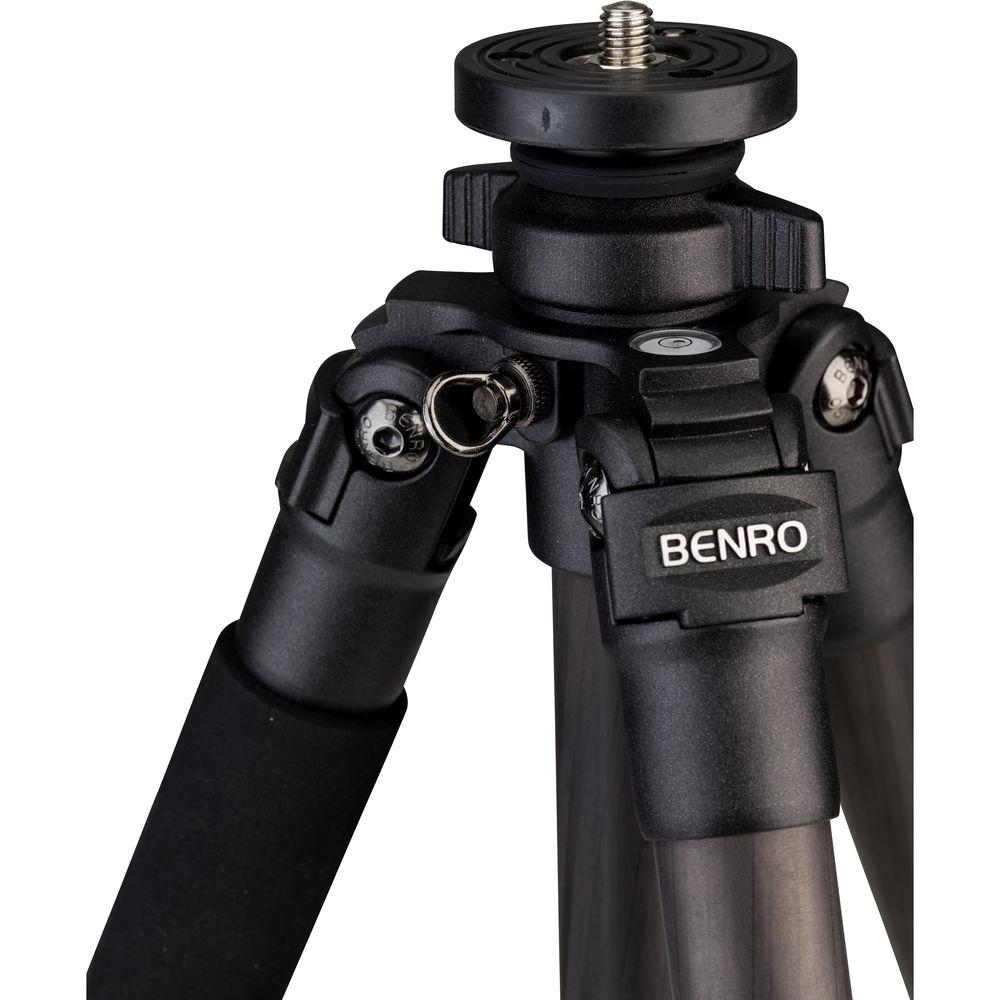

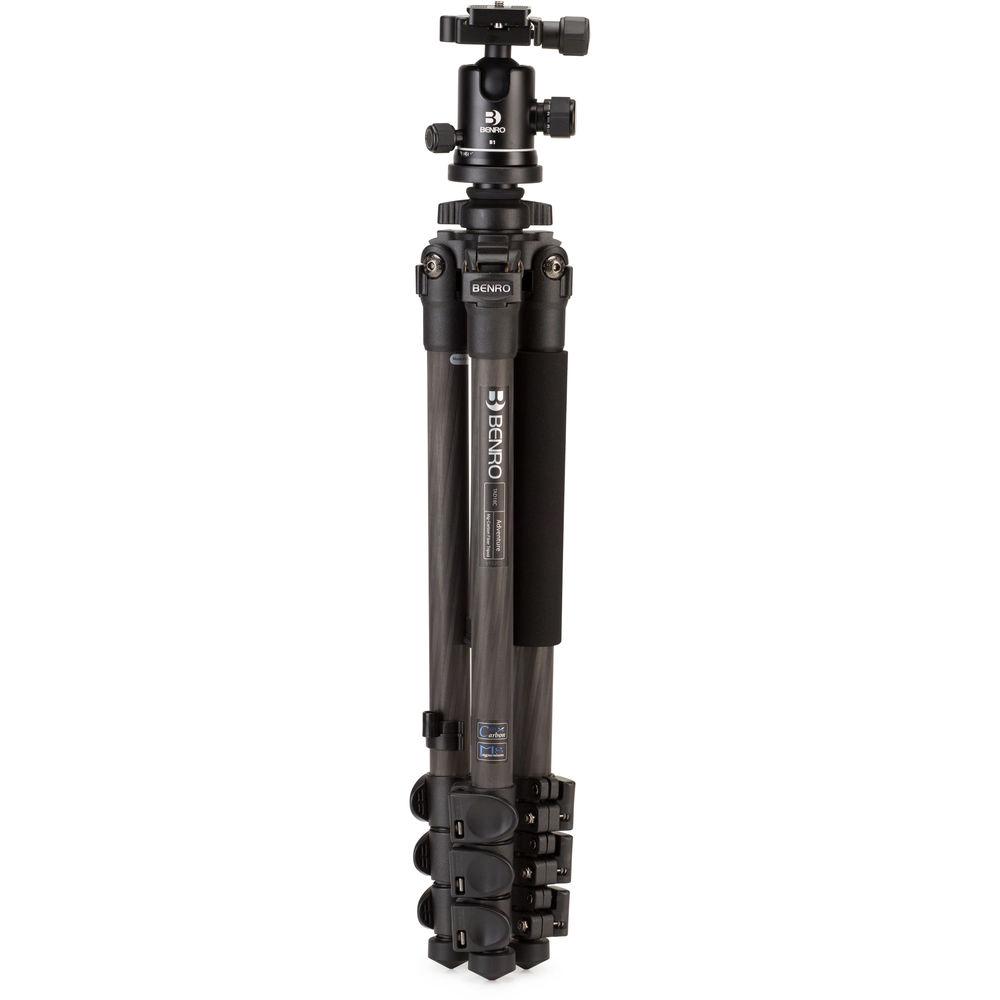

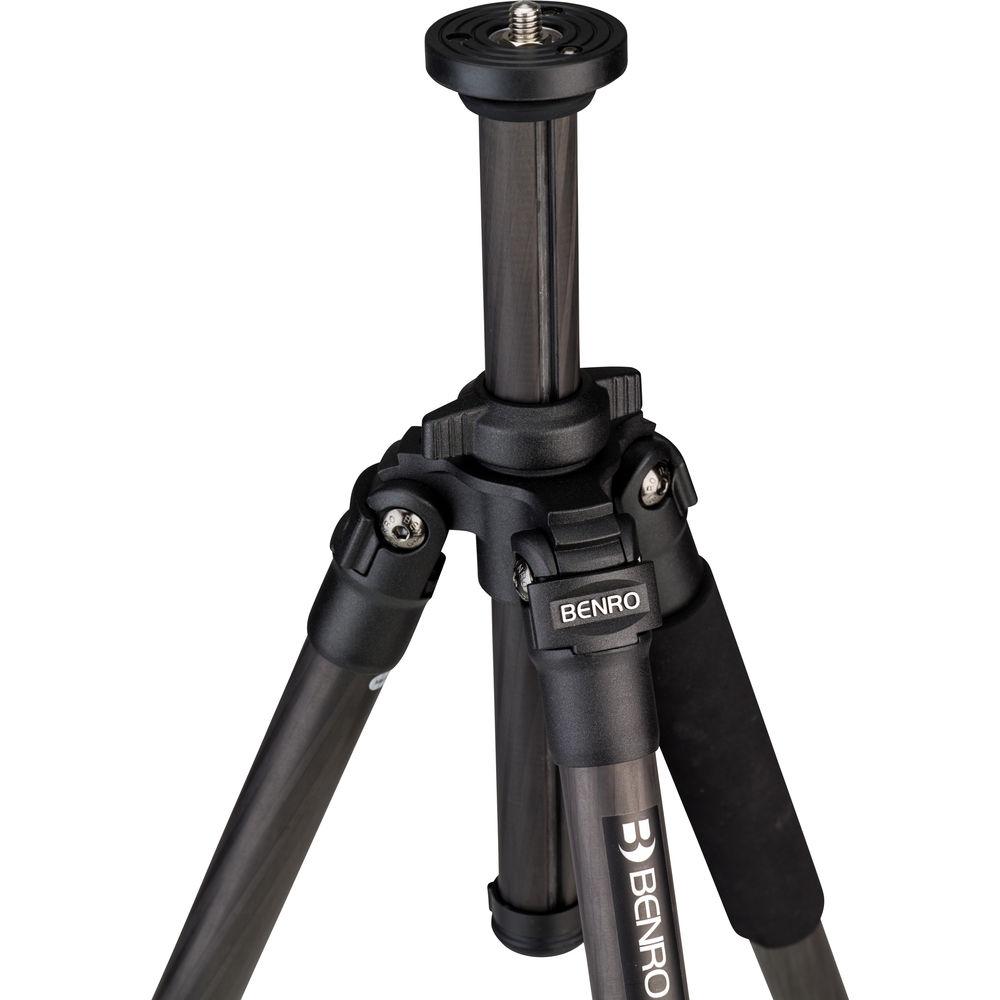

• TAD18C Series 1 Adventure Carbon Fiber Tripod The TAD18C Series 1 Adventure Carbon Fiber Tripod from Benro supports up to 17.6 lb, weighs 2.6 lb, extends up to 56.5", and folds down to 19.3". Its 4-section legs use flip lock levers for adjusting the height of each leg. A foam grip on one of the legs enables you to securely hold the tripod and protects your hand during cold weather. A 3/8"-16 thread on top of the tripod allows you to attach any compatible tripod head of your choice. A carrying case with a shoulder strap is included to protect the tripod during transport.
• B1 Double Action Ballhead A member in good standing of Benro's new generation of B Series professional ballheads, the B1 Double Action Ballhead uses magnesium alloy components for better performance and lighter weight. The B1 has a dual action design featuring separate drag adjustment and lock knobs. It can handle weights up to 26.4 lbs (12 kg), and only tips the scales at 14.1 oz (400 g) itself.
  • Professional ballhead designed for use in harsh environments
  • Long, precise friction adjustment, combined with a strong locking mechanism
  • Accurate panoramas can be easily orchestrated using the graduated panning scale for accurate image alignment
  • An ideal match for Benro series 1 or 2 tripods
  • Arca-type quick release adapter
  • Includes anodized aluminum PU-60 quick release plate (50 x 38mm) with rubber upper surfaces, safety stop screws to prevent accidentally falling out of loosened clamp, and a standard 1/4"-20 camera/lens screw with a 5/32" head for superior torque

• Carrying Case with Shoulder Strap

• Limited 3-Year Warranty Extendable to 5 Years with Product Registration

• PU-60 Quick Release Plate

• Limited 3-Year Warranty

Also Includes

• Limited 3-Year Warranty Extendable to 5 Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• TAD18C Series 1 Adventure Carbon Fiber Tripod

  Load Capacity	17.6 lb / 8 kg
  Maximum Working Height	56.5" / 143.5 cm
  Max Height without Center Column	48.8" / 124 cm
  Minimum Working Height	11.6" / 29.5 cm
  Folded Length	19.3" / 49 cm
  Head Mount Type	3/8"-16 Screw
  Weight	2.6 lb / 1.2 kg
  Materials	Carbon Fiber

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	4

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	No

  Box Dimensions (LxWxH)	24.5 x 4.3 x 4.2"

• B1 Double Action Ballhead

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Quick Release Plate Type	Arca-Type, PU-60
  Load Capacity	26.4 lb / 12 kg
  Number of Bubble Levels	1
  Friction Control	Yes
  Independent Pan Lock	Yes

  Vertical Tilt
