Benro TAD38CB3 Series 3 Adventure Carbon

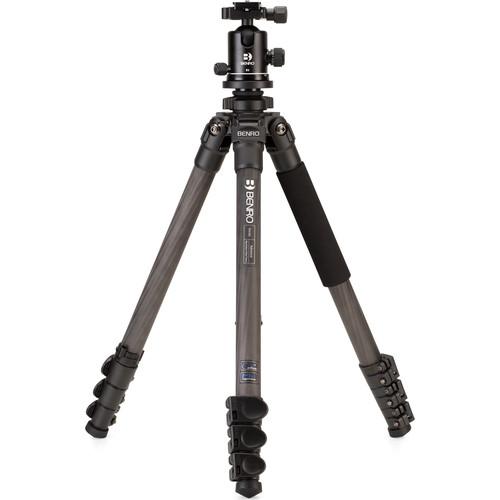

User Manual for Benro TAD38CB3 Series 3 Adventure Carbon Fiber Tripod with B3 Ball Head

• Product category: Tripods with Heads Benro
• Brand: Benro
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Benro Tripods with Heads

Product description

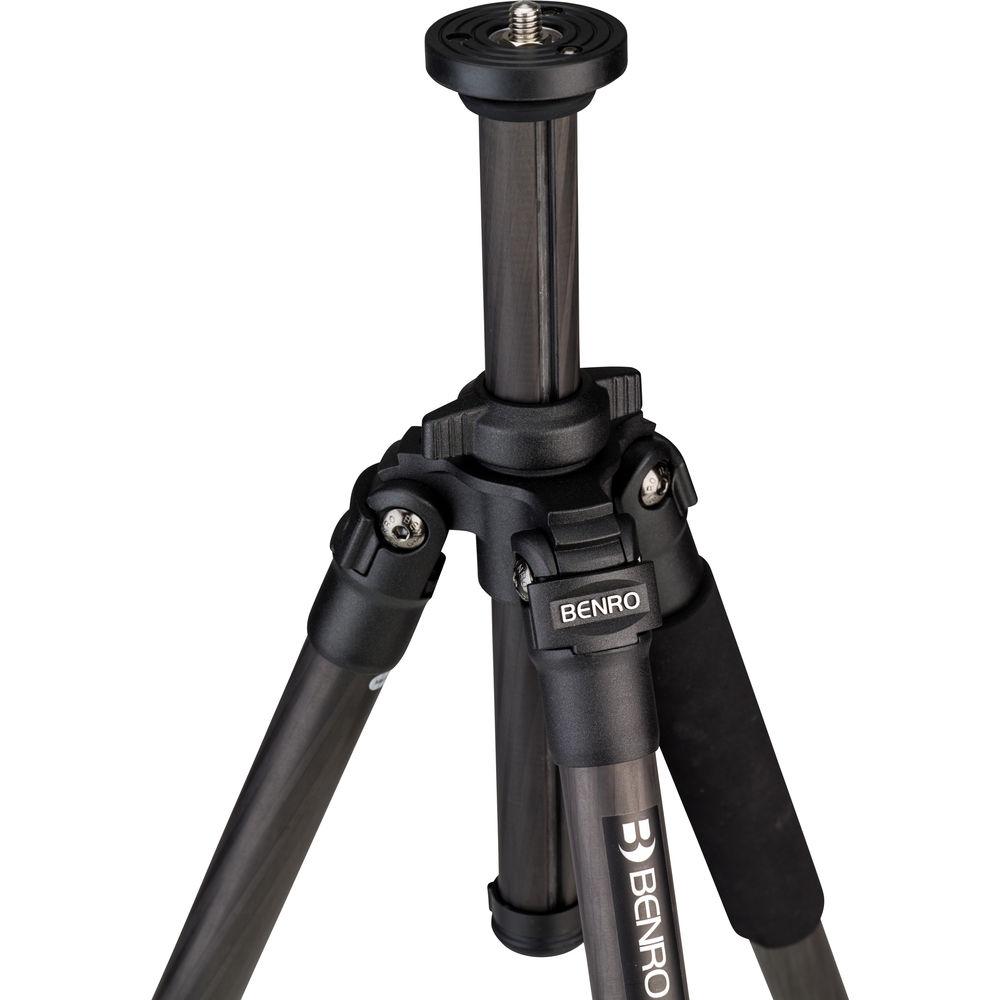

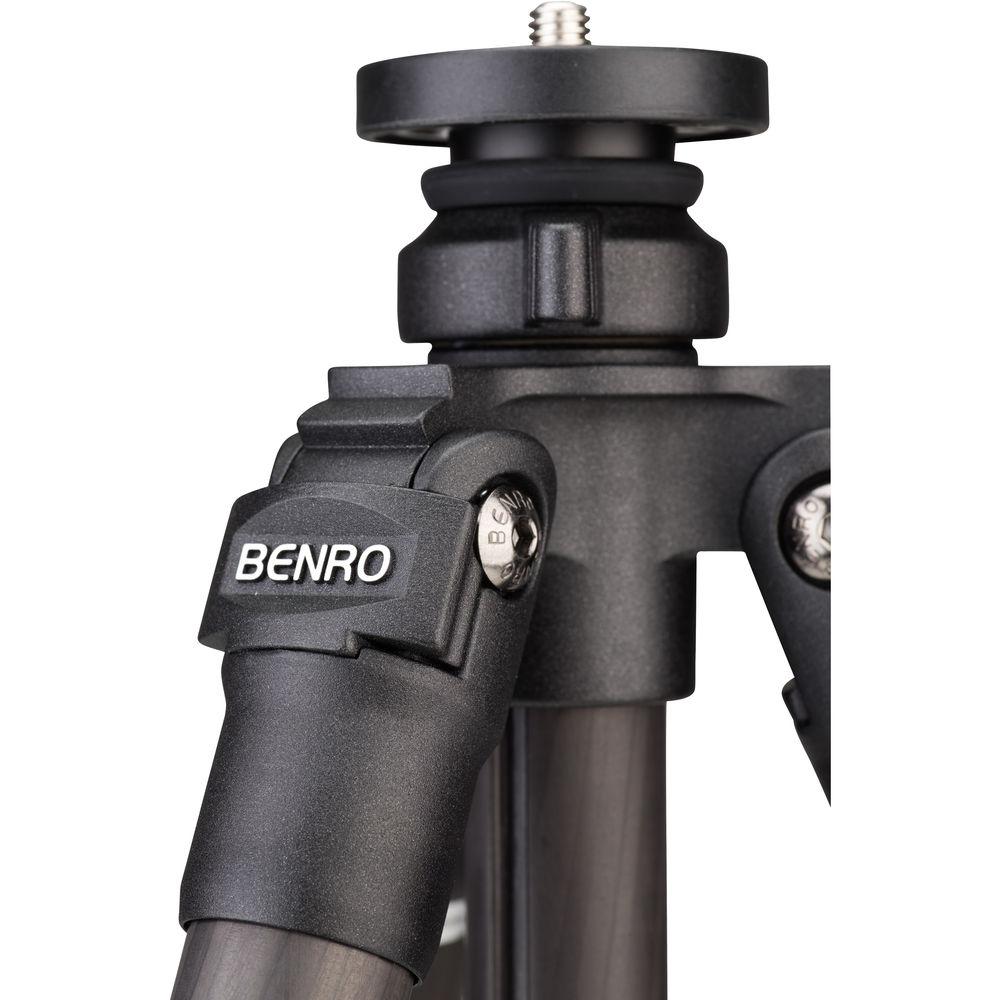

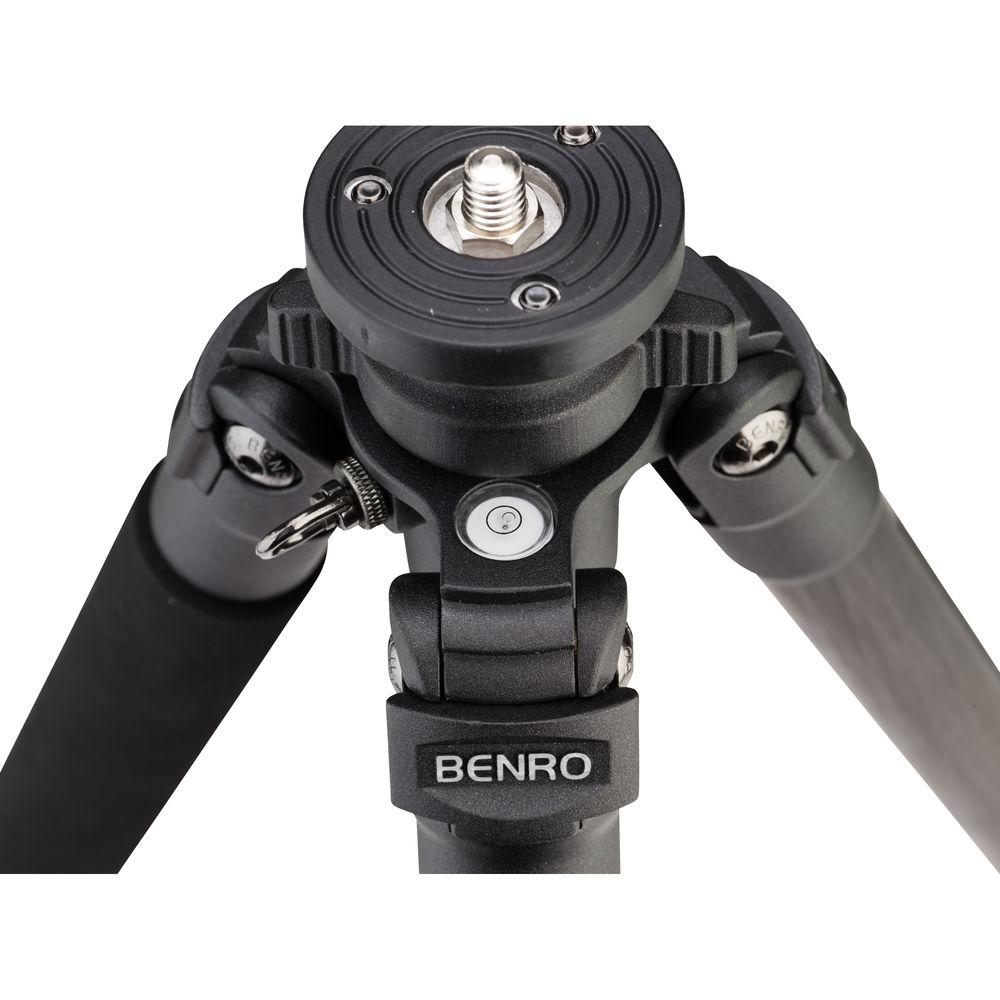

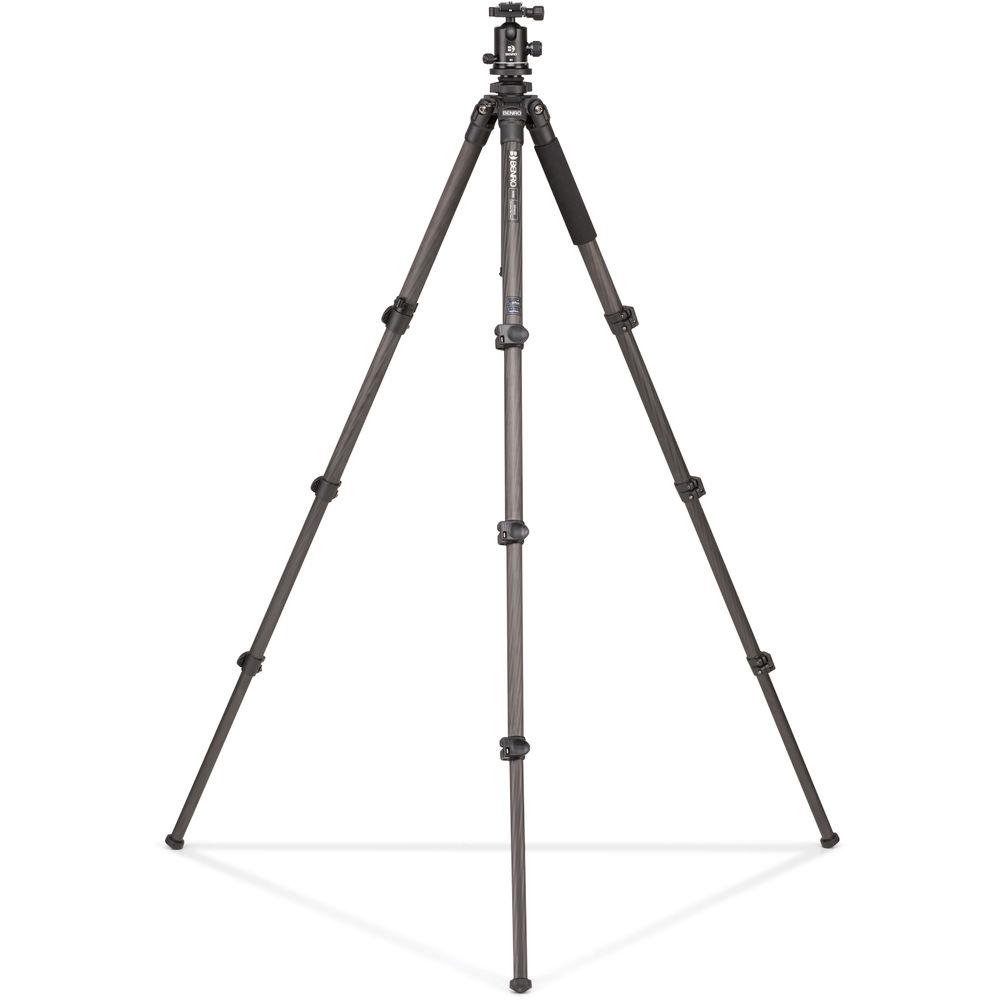

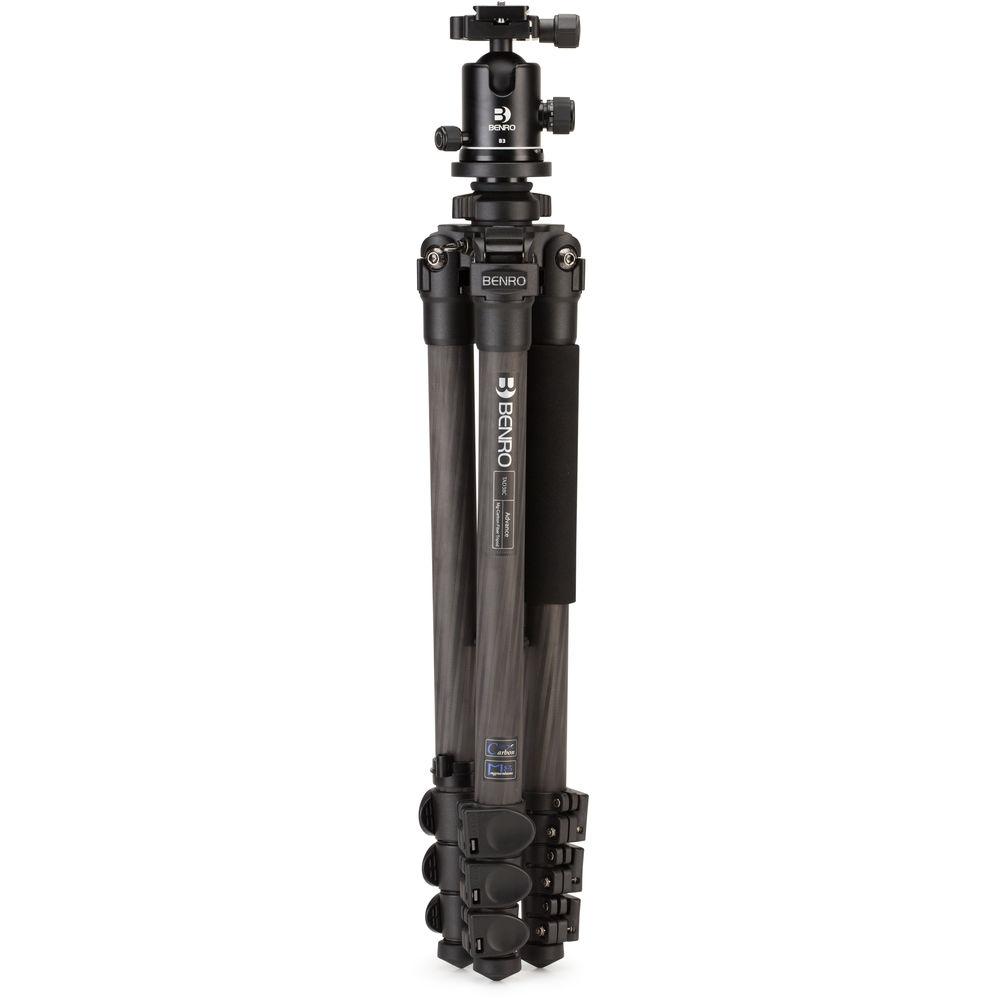

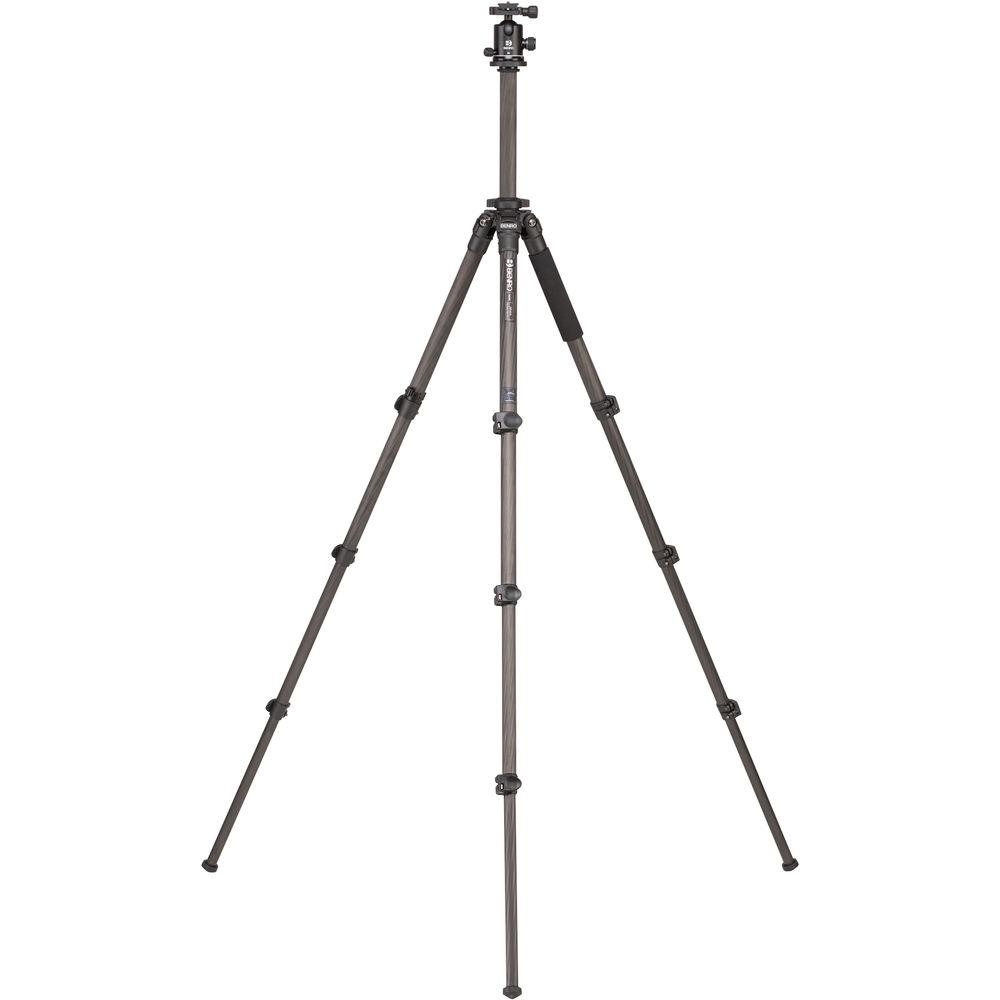

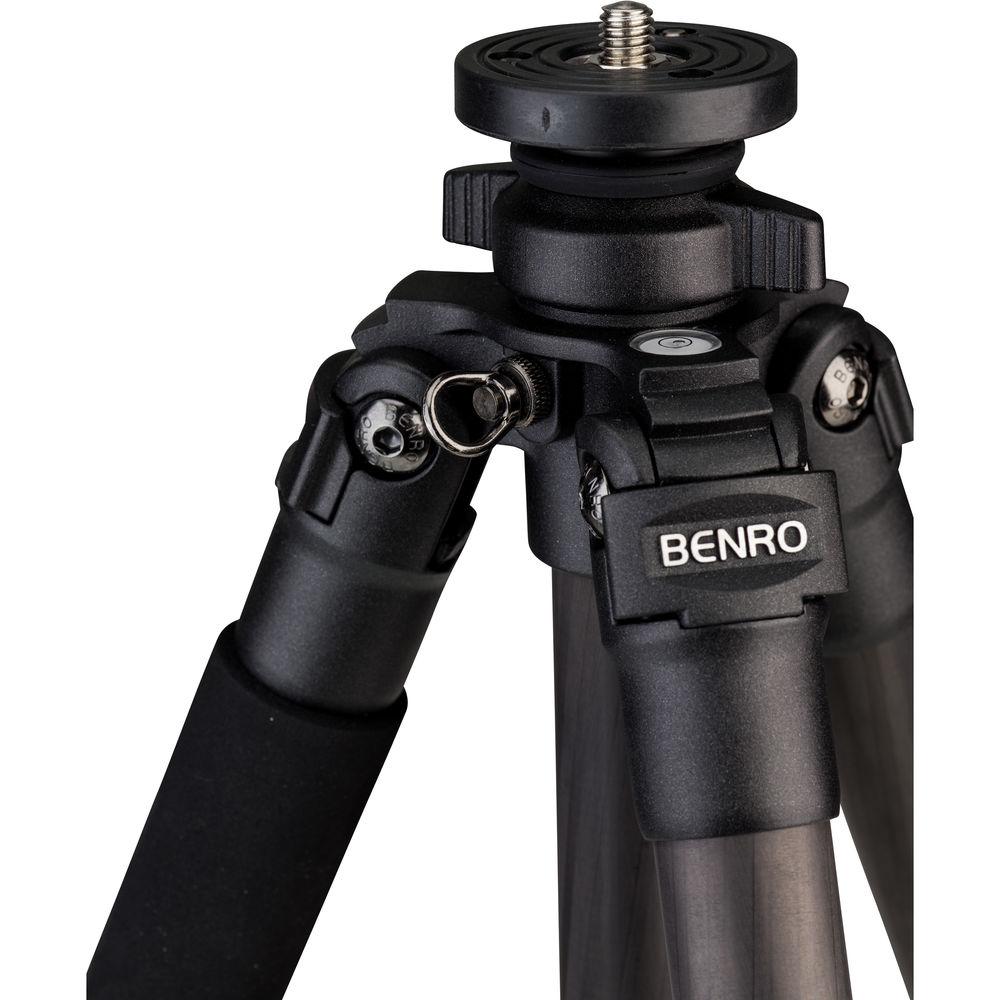

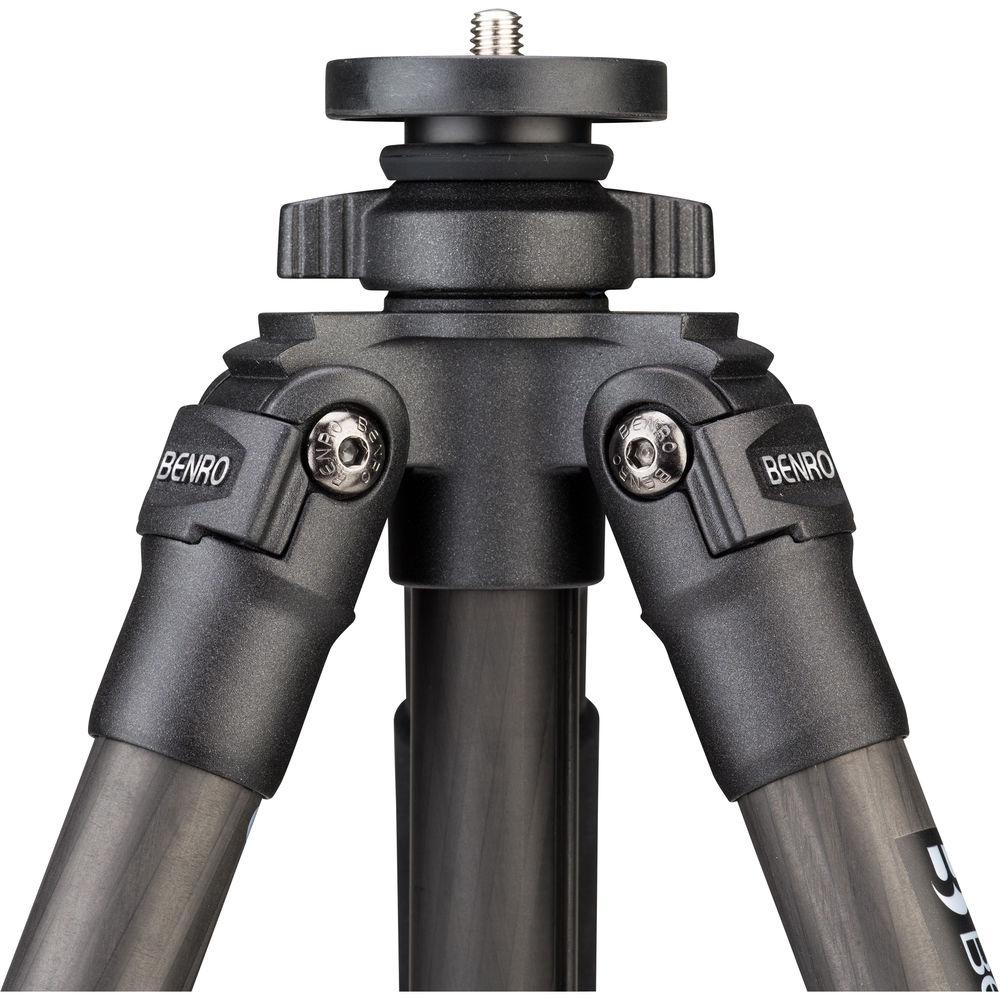

• TAD38C Series 3 Adventure Carbon Fiber Tripod The TAD38C Series 3 Adventure Carbon Fiber Tripod from Benro supports up to 30.9 lb, weighs 4.1 lb, extends up to 62.2", and folds down to 22.2". Its 4-section legs use flip lock levers for adjusting the height of each leg. A foam grip on one of the legs enables you to securely hold the tripod and protects your hand during cold weather. A 3/8"-16 thread on top of the tripod allows you to attach any compatible tripod head of your choice. A carrying case with a shoulder strap is included to protect the tripod during transport.
• B3 Triple Action Ball Head A member in good standing of Benro's new generation of B Series professional ball heads, the B3 Triple Action Ball Head uses magnesium-alloy components for better performance and lighter weight. The B3 has a triple action design featuring panning and locking knobs, and, a long, precise friction adjustment. Also, the head has a graduated panning scale, and an Arca-type QR adapter with a PU-70 QR plate. It can handle weights up to 39.7 lb, and only tips the scales at 1.5 lb itself.
  • Professional ballhead designed for use in harsh environments
  • Long, precise friction adjustment, combined with a strong locking mechanism
  • Accurate panoramas can be easily orchestrated using the 360° graduated panning scale for accurate image alignment
  • Arca-type quick release adapter
  • Includes anodized aluminum PU-70 quick release plate (50 x 38mm) with rubber upper surfaces, safety stop screws to prevent accidentally falling out of loosened clamp, and a standard 1/4"-20 camera/lens screw with a 5/32" head for superior torque

• Carrying Case with Shoulder Strap

• Limited 3-Year Warranty Extendable to 5 Years with Product Registration

• PU-70 Quick Release Plate

• Limited 3-Year Warranty

Also Includes

• Limited 3-Year Warranty Extendable to 5 Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• TAD38C Series 3 Adventure Carbon Fiber Tripod

  Load Capacity	30.9 lb / 14 kg
  Maximum Working Height	62.2" / 158 cm
  Max Height without Center Column	53.3" / 135.4 cm
  Minimum Working Height	13.4" / 34 cm
  Folded Length	22.2" / 56.4 cm
  Head Mount Type	3/8"-16 Screw
  Weight	4.1 lb / 1.9 kg
  Materials	Carbon Fiber

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	4

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	No

  Box Dimensions (LxWxH)	28.4 x 5.1 x 5.0"

• B3 Triple Action Ball Head

  Head Type	Ball Head
  Base Mount	3/8"-16 Female
  Quick Release Plate Type	Arca-Type, PU-60
  Load Capacity	39.68 lb / 18 kg
  Number of Bubble Levels	1
  Friction Control	Yes
  Independent Pan Lock	Yes

  Vertical Tilt
