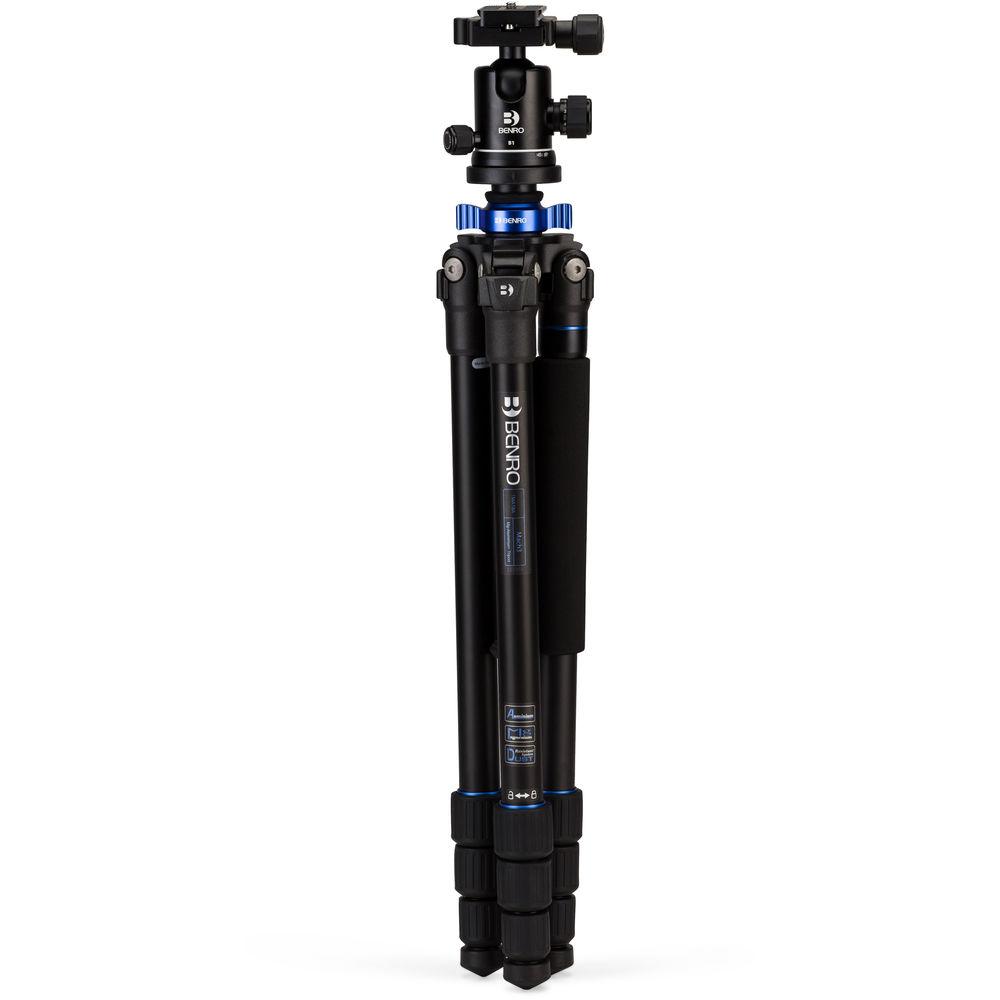

User Manual for Benro TMA18AB1 Series 1 Mach3 Aluminum Tripod with B1 Ball Head Click to enlarge the picture
Contents of the user manual for the Benro TMA18AB1 Series 1 Mach3 Aluminum
- Product category: Tripods with Heads Benro
- Brand: Benro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Benro Tripods with Heads
 |
User manual for the Benro TMA18AB1 Series 1 Mach3 Aluminum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Benro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Benro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Benro product will considerably shorten its lifespan!
|

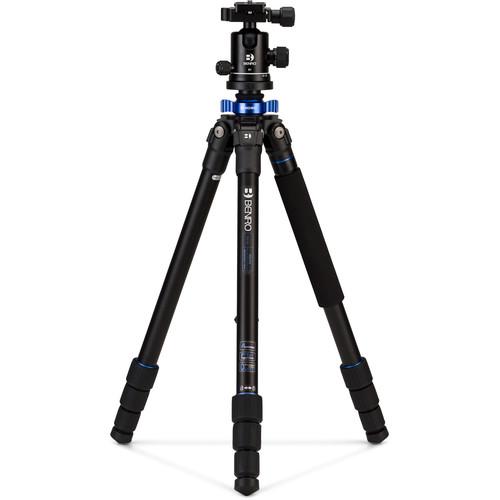

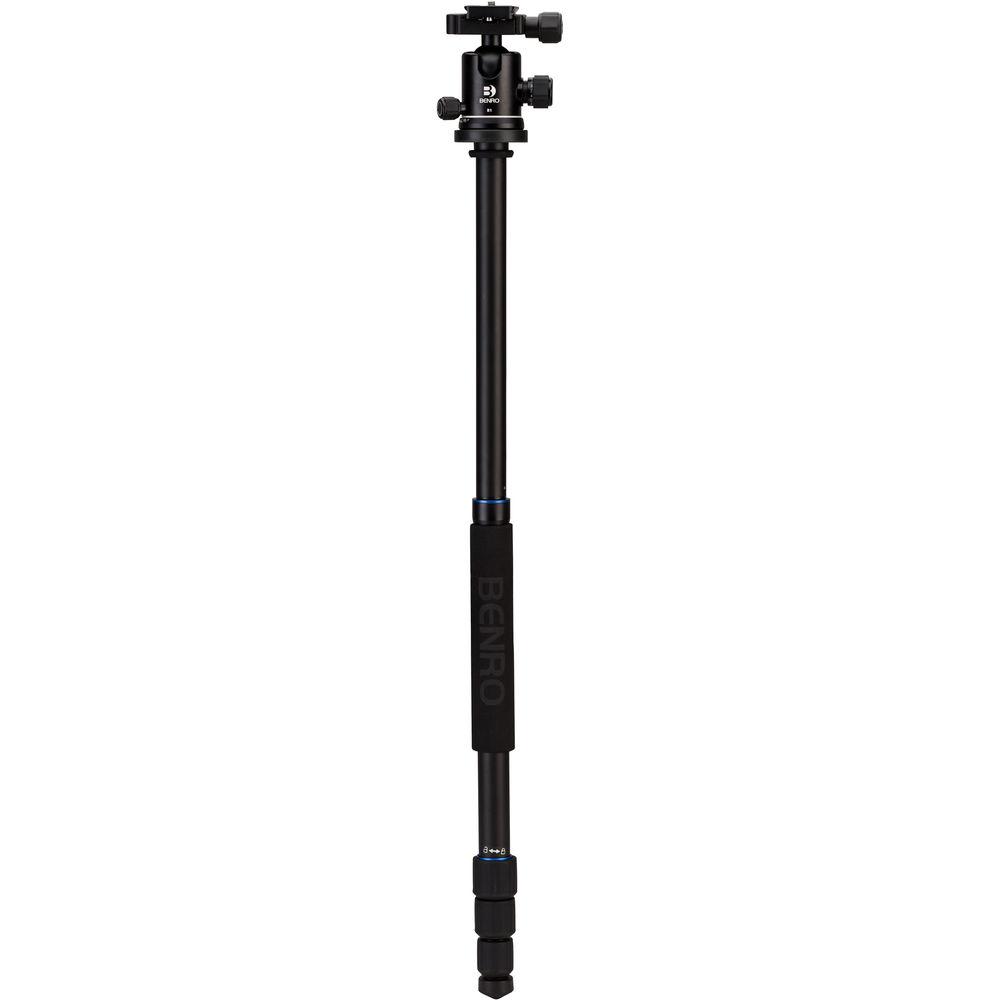

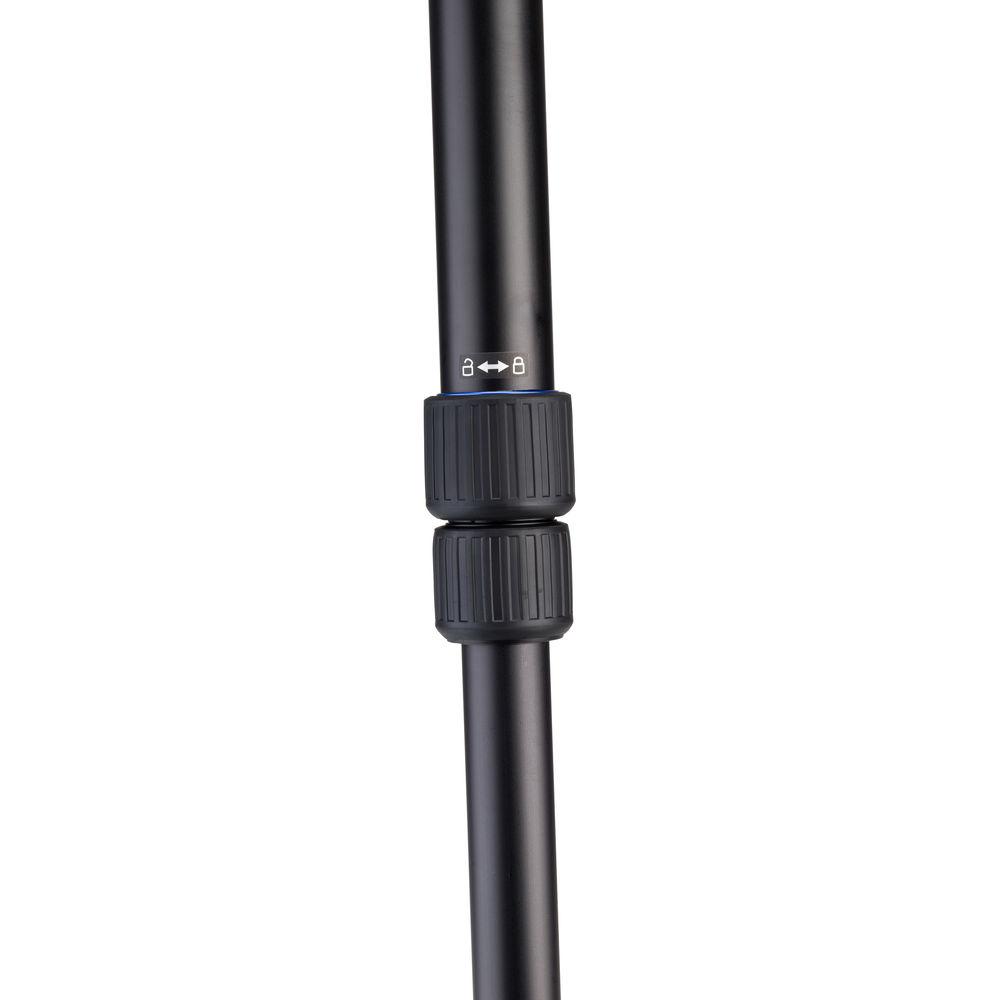

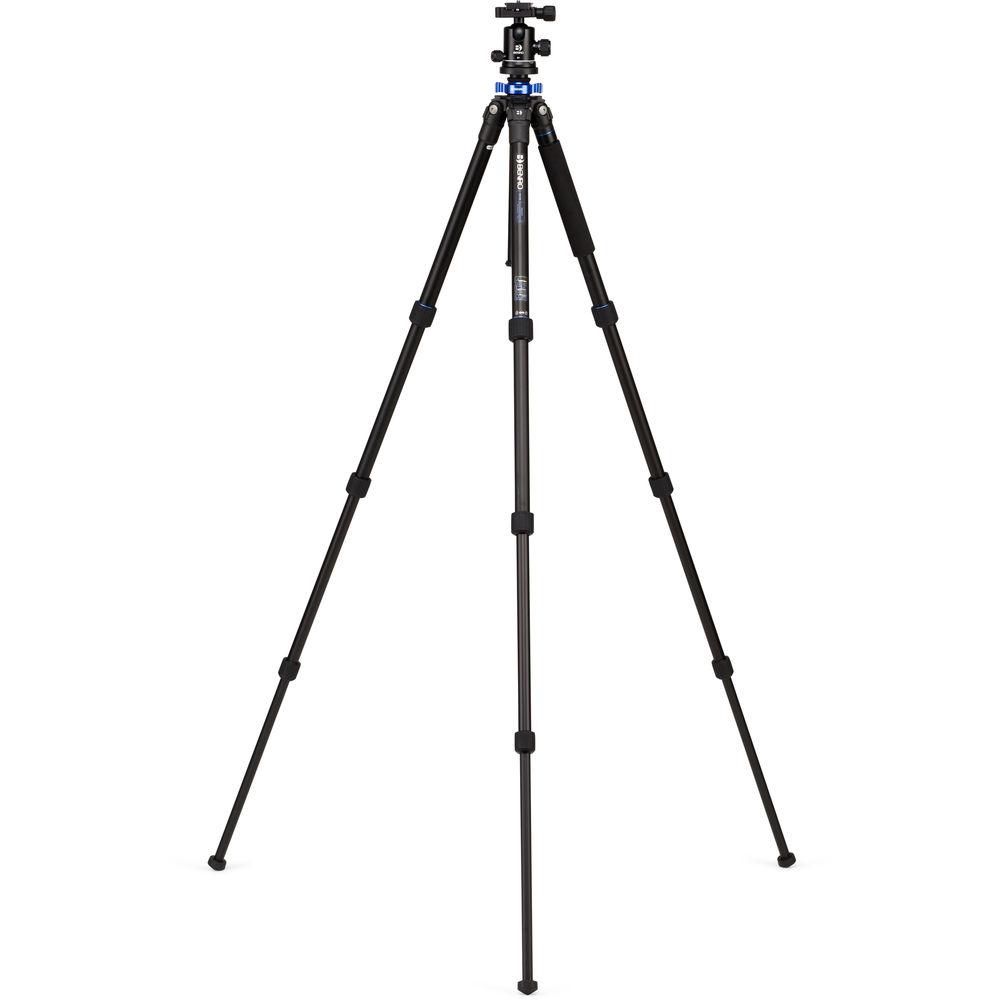

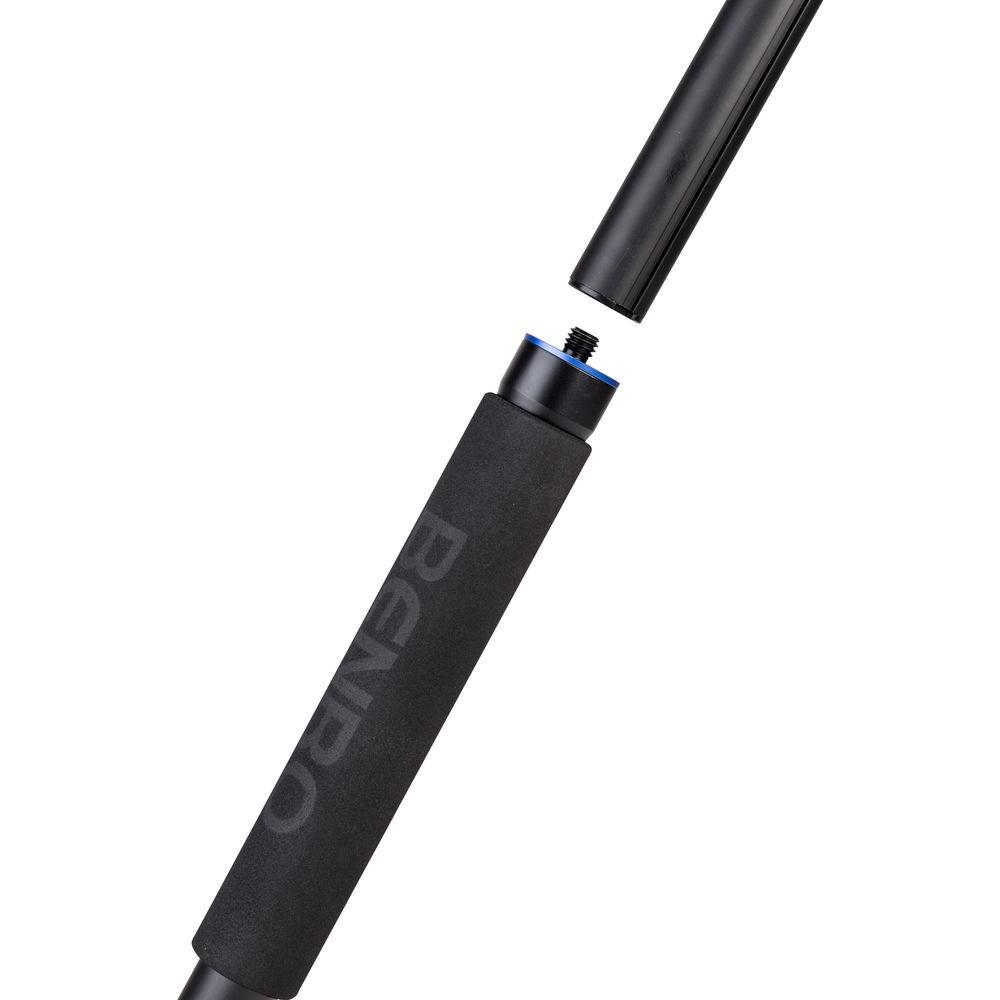

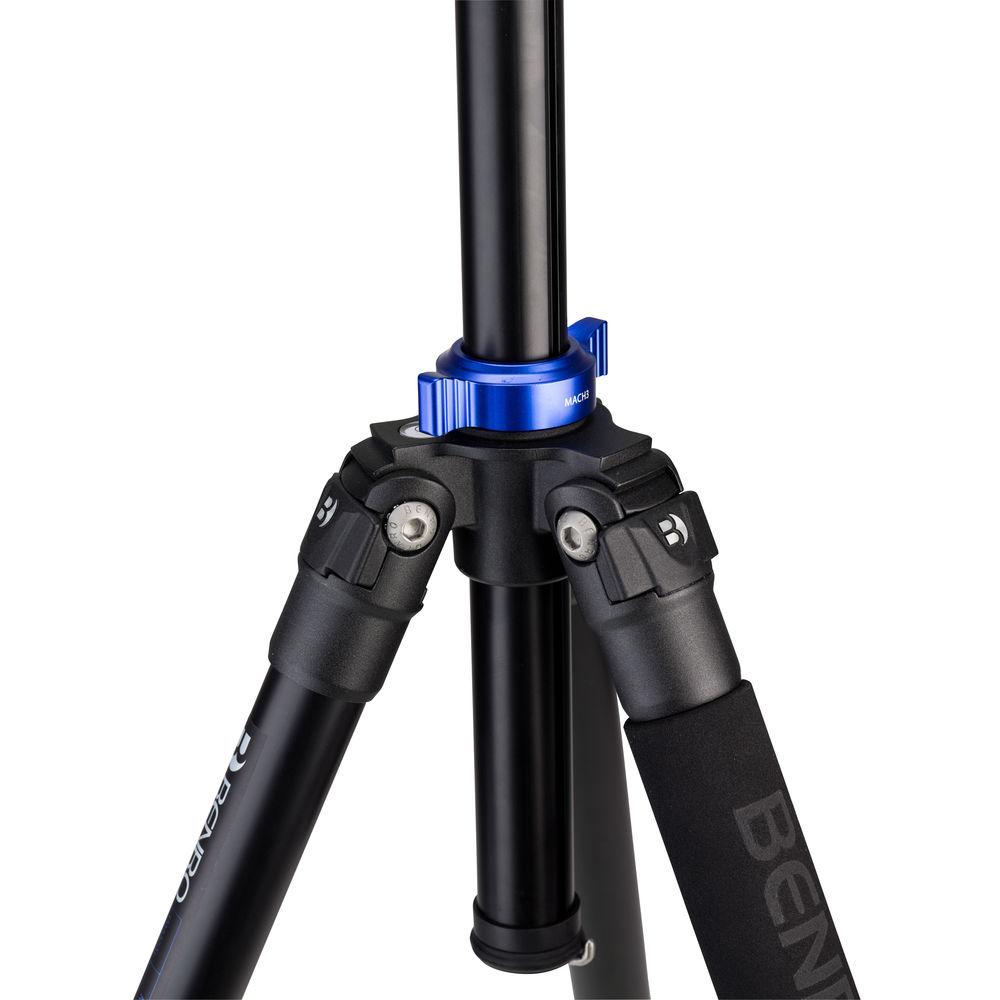

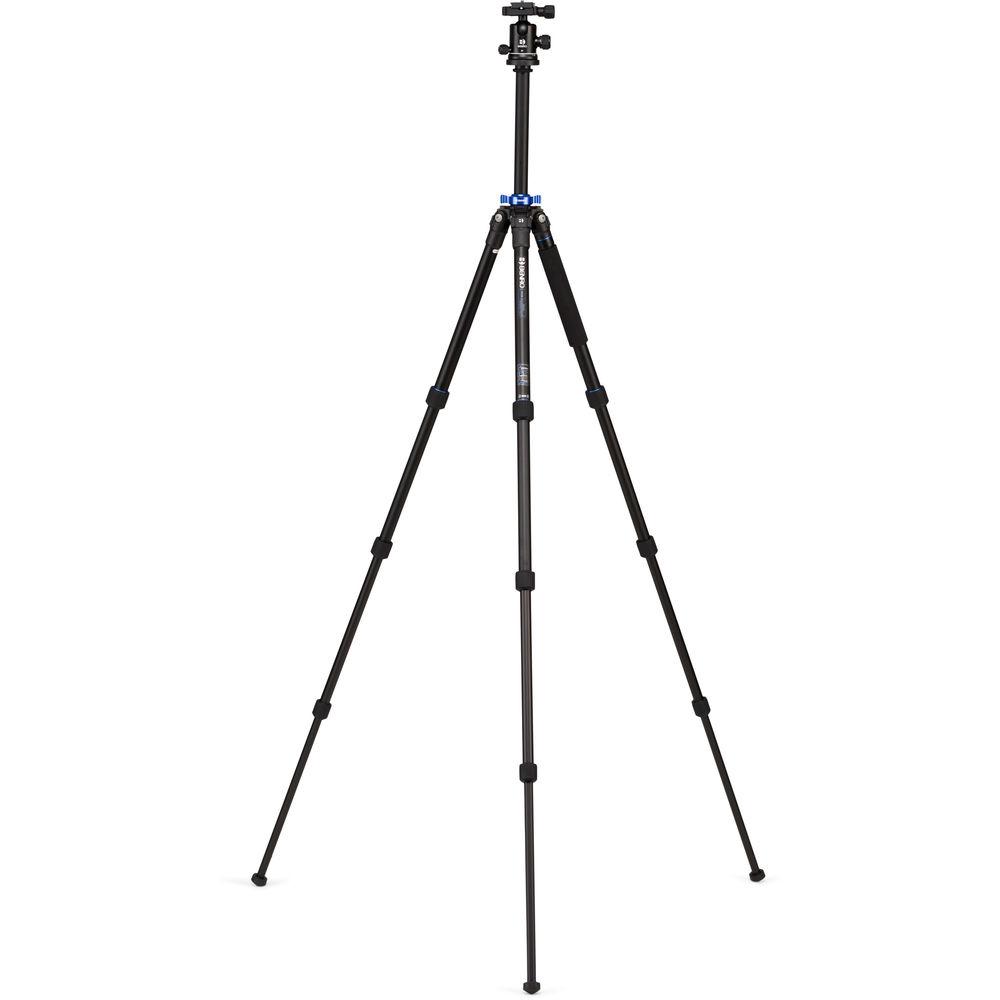

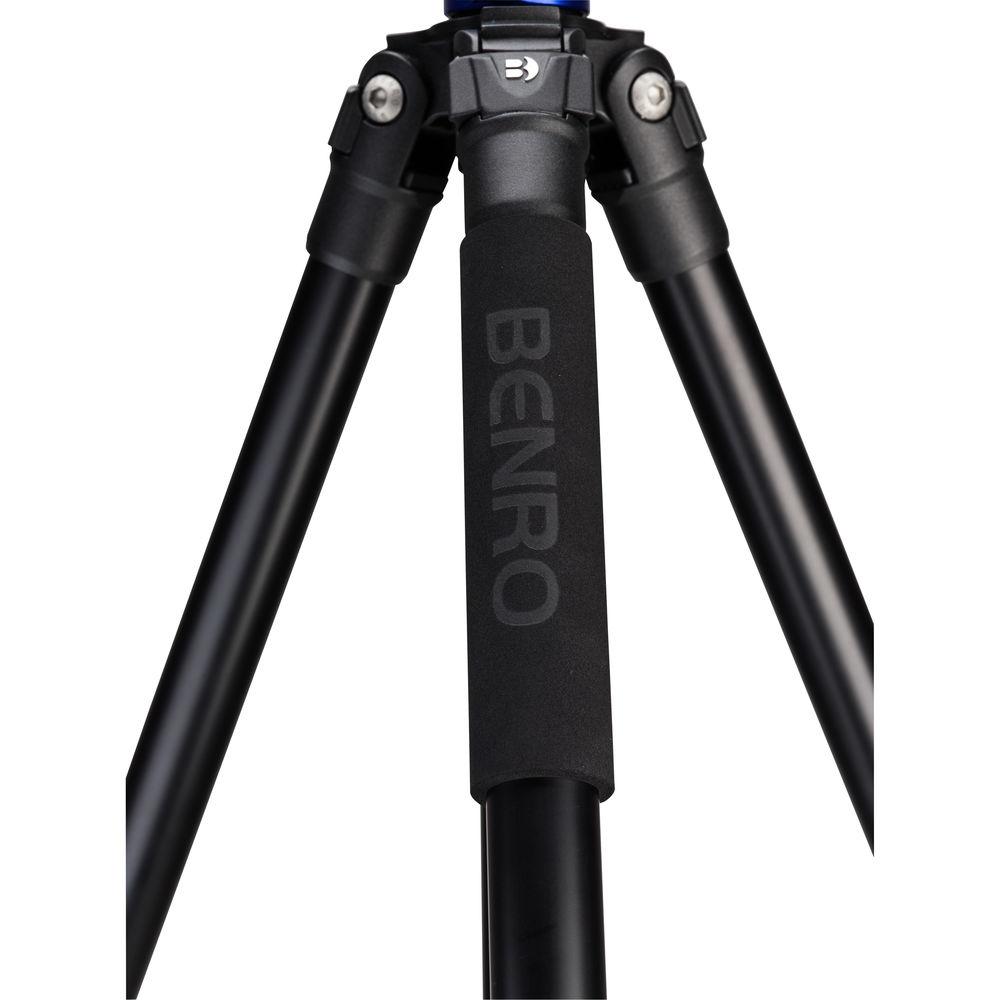

Product description Time-Lapse Tips and Tools Read More Support up to 17.6 lb worth of gear with the TMA18AB1 Series 1 Mach3 Aluminum Tripod with B1 Ball Head from Benro. The 4-section legs are secured via twist locks and extend to a maximum height of 60.6". The center column can be replaced with the included short column to allow the tripod to reach a minimum height of 15.6". One of the legs unscrews from the tripod, attaches to the center column, and with the addition of an optional head converts to a monopod. The rubber feet can be swapped out for metal spikes so that the tripod can be used on hard surfaces, such as ice, or soft surfaces, like carpeting or a lawn. A ballast hook on the center column allows for the addition of stabilizing weight, and the included carrying case protects the tripod during transport.
Included with the tripod is a B1 ball head, which has separate locks for the ball movement and 360° panning, as well as friction control to adjust drag. The head features an Arca-type compatible clamp and includes a quick-release plate for fast camera attachment and removal. - TMA18A Series 1 Mach3 Aluminum Tripod Support up to 17.6 lb worth of gear with the TMA18A Series 1 Mach3 Aluminum Tripod from Benro. Made from aluminum, the 4-section legs are secured via twist locks and extend to a maximum height of 56.9". The center column can be replaced with the included short column to allow the tripod to reach a minimum height of 11.8". One of the legs unscrews from the tripod, attaches to the center column, and with the addition of an optional head converts to a monopod. The rubber feet can be swapped out for metal spikes so that the tripod can be used on hard surfaces, such as ice, or soft surfaces, like carpeting or a lawn. A ballast hook on the center column allows for the addition of stabilizing weight, and the included carrying case protects the tripod during transport. A 3/8"-16 threaded stud on the mounting platform lets you attach a head of your choice.
- B1 Double Action Ballhead A member in good standing of Benro's new generation of B Series professional ballheads, the B1 Double Action Ballhead uses magnesium alloy components for better performance and lighter weight. The B1 has a dual action design featuring separate drag adjustment and lock knobs. It can handle weights up to 26.4 lbs (12 kg), and only tips the scales at 14.1 oz (400 g) itself.
- Professional ballhead designed for use in harsh environments
- Long, precise friction adjustment, combined with a strong locking mechanism
- Accurate panoramas can be easily orchestrated using the graduated panning scale for accurate image alignment
- An ideal match for Benro series 1 or 2 tripods
- Arca-type quick release adapter
- Includes anodized aluminum PU-60 quick release plate (50 x 38mm) with rubber upper surfaces, safety stop screws to prevent accidentally falling out of loosened clamp, and a standard 1/4"-20 camera/lens screw with a 5/32" head for superior torque
In the Box Bundle Items TMA18A Series 1 Mach3 Aluminum Tripod wrvfrscrdcudxtzdxtrtbxr - Limited 3-Year Warranty Extendable to 5 Years with Product Registration
B1 Double Action Ballhead - PU-60 Quick Release Plate
Also Includes Brochure PDF 7.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Benro TMA18AB1 Series 1 Mach3 Aluminum Tripod with B1 Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TMA18A Series 1 Mach3 Aluminum Tripod
| | | Load Capacity | 17.6 lb / 8 kg | | Maximum Working Height | 56.9" / 144.5 cm | | Max Height without Center Column | 49.2" / 125 cm | | Minimum Working Height | 11.8" / 30 cm | | Folded Length | 19.5" / 49.5 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 3.2 lb / 1.5 kg | | Materials | Aluminum Alloy | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Feet Features | Spiked, Retractable | | | | Center Column Features | Removable | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 27.2 x 5.7 x 5.0" | - B1 Double Action Ballhead
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type, PU-60 | | Load Capacity | 26.4 lb / 12 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Vertical Tilt | -45
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
