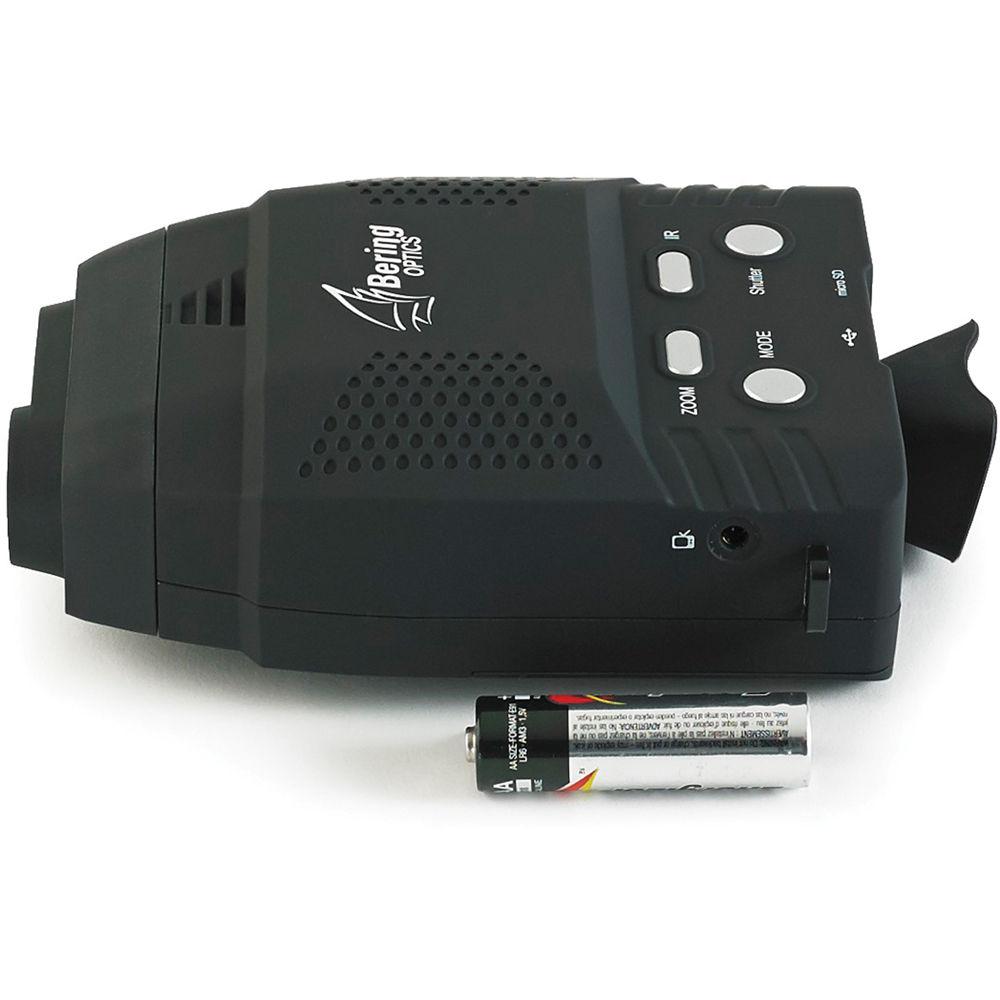

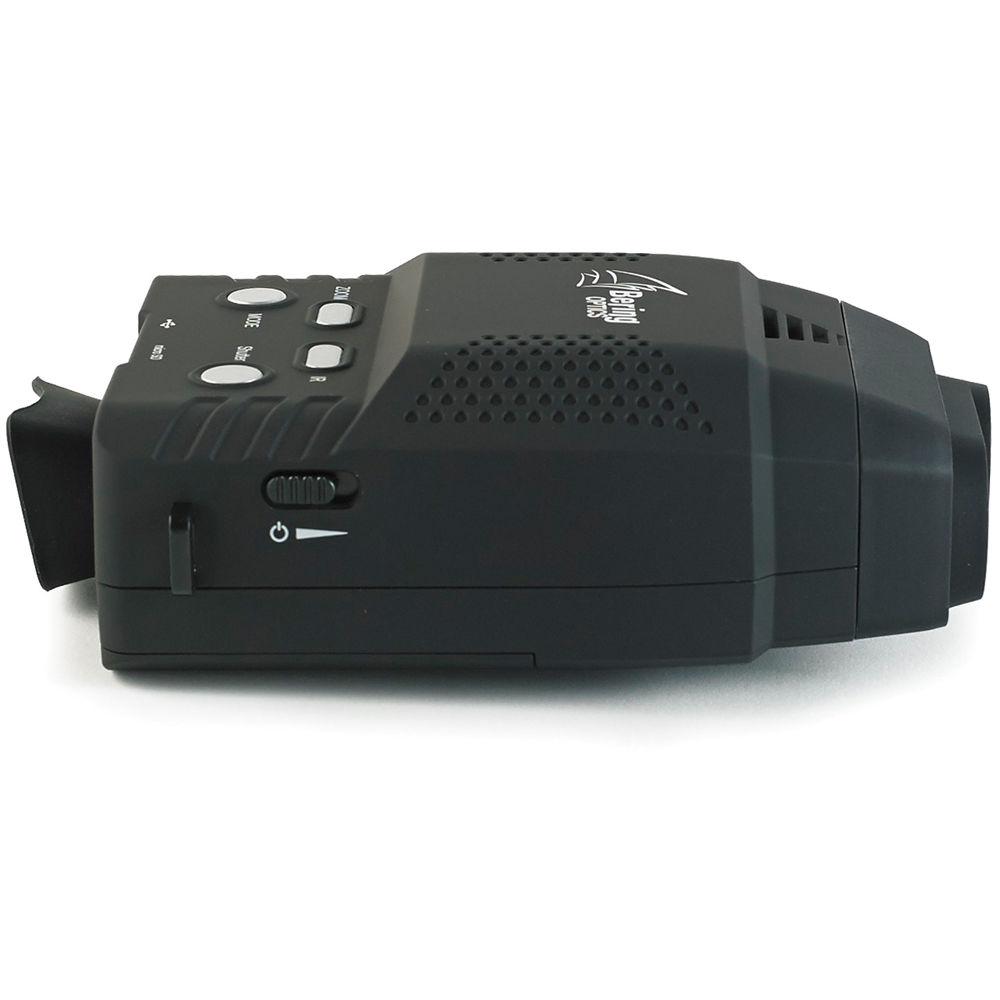

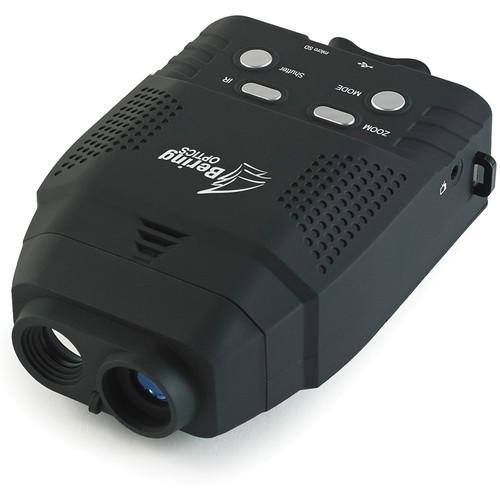

User Manual for Bering Optics 1-2x15 Urban Patrol Digital Night Vision Camera Click to enlarge the picture
Contents of the user manual for the Bering Optics 1-2x15 Urban Patrol Digital
- Product category: NV Monoculars & Multi-Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics NV Monoculars & Multi-Systems
 |
User manual for the Bering Optics 1-2x15 Urban Patrol Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|
Product description The 1-2x15 Urban Patrol Digital Night Vision Camera from Bering Optics is a compact and lightweight digital night vision camera with capability for recording videos to a microSD memory card or your PC via a mini-USB port. The optical system features a 15mm objective, a 14° angle of view, 1x optical zoom, 2x digital zoom, and a minimum focus of 3.3'. Unlike the intensifier tubes, the CMOS sensor is resistant to damage from bright light and you don't have to worry about guarding it from accidental exposure to daylight. The sensor also features a resolution of 640x480 pixels, a 1/5" format, and together with LCD display, provides color images. You can observe the night scene using 320x240 pixel color LCD display, store your data to the included 2GB microSD card or a PC, or use a video output port with a bigger screen or a recording device. While the TV output is in NTSC or PAL format with an option for 60 or 50 Hz frequency, the digital videos are recorded in MPEG-4. If there is not enough of natural infrared illumination at night, you can use a built-in infrared illuminator with seven brightness levels to improve your target's visibility.
The housing is water resistant and has a rubberized covering for a comfortable and secure grip. The menu buttons are located on the top and arranged so that they can be conveniently reached with your fingertips. Also included with this night vision device are a mini-USB cable, a TV output cable, a carry case, a neck strap, and a lens tissue. - Sensor and Illumination
-
- CMOS sensor provides resistance to bright light
- Sensor Resolution: 640x480 pixels
- Sensor Format: 1/5"
- Built-in infrared illuminator with seven illumination levels
- Display and Video Output
-
- Display type: LCD
- Display resolution: 320 x 240 pixels
- Records videos and images
- TV output: NTSC and PAL
- TV output frequency: 60 or 50 Hz
- Video recording format: MPEG-4
- Storage
-
- Integrated microSD slot
- 2GB microSD card included
- Mini-USB port
- TV and mini-USB cables are included
- Optical Performance
-
- Objective lens diameter: 15mm
- Angle of view: 14°
- Optical magnification: 1x
- Digital zoom: 2x
- Close focus: 3.3'
- Use and Handling
-
- Menu buttons: zoom, IR, mode, and shutter
- Capable of 24 hour surveillance
- Image brightness control
- Construction Details
-
- Contoured rubberized covering provides a comfortable non-slip grip
- Top panel menu buttons on the top allow easy handheld operation
- Rubberized eyecup
UPC: 850432003540 In the Box Bering Optics 1-2x15 Urban Patrol Digital Night Vision Camera - Carry Case
- Mini-USB Cable
- AV Cable
- 2GB microSD Card
- Neck Strap
- Lens Tissue
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 1-2x15 Urban Patrol Digital Night Vision Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE18015 Specs | Sensor Type | 1/5" CMOS sensor
640x480 pixels | | Display | LCD, 320x240 pixels | | TV Output | NTSC, PAL
60 / 50 Hz | | Video Recording Format | H.264 (MPEG-4) | | Memory Storage | microSD
Mini-USB port | | Illumination | Built-in infrared illuminator
850nm | | Magnification | Optical: 1x
Digital: 2x | | Lens | 15mm | | Field of View (H x V x D) | Angular: 14°
Linear: 74' @ 100 yd (24 @ 100 m) | | Minimum Focus Distance | 1.1 yd (1 m) | | Battery / Runtime | 4 x AA / IR-On: 2hr, IR-Off: 5 hr max | | Operating Temperature | 14 to 104°F (-10 to 40°C) | | Weatherproofing | Rated IPX4, resistant to splashing water | | Dimensions | 5.3 x 3.6 x 1.9" (134 x 92 x 47 mm) | | Weight | 8.8 oz (250 g) | | | | Package Weight | 1.255 lb | | Box Dimensions (LxWxH) | 9.0 x 9.0 x 5.35" |
