User Manual for Bering Optics 1-4x24 Hunting Telescoping Sight Click to enlarge the picture
Contents of the user manual for the Bering Optics 1-4x24 Hunting Telescoping Sight
- Product category: Riflescopes Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Riflescopes
 |
User manual for the Bering Optics 1-4x24 Hunting Telescoping Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

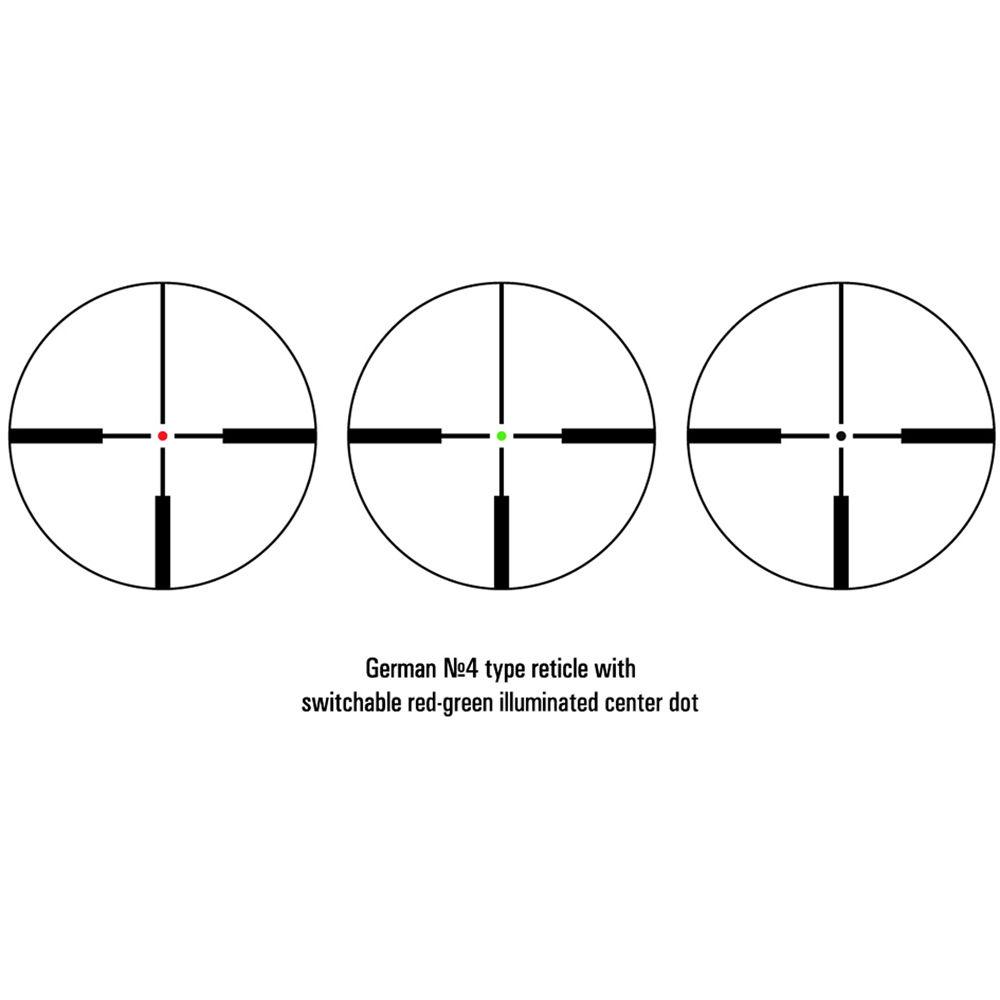

Product description Bering Optics' 1-4x24 Hunting Telescoping Sight is a durable optic featuring high-transmission fully multi-coated lenses and an illuminated German 4 Reticle. The lenses are covered with full multi-coatings to deliver a high transmission of light. Located in the second focal plane is the illuminated German 4 Reticle, which features three posts, a medium crosshair, and an illuminated target dot in the center. The center dot is black when the illumination is "Off" but can have adjustable red or green illumination.

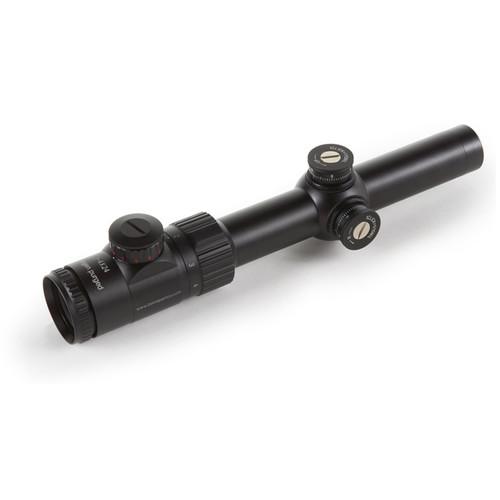

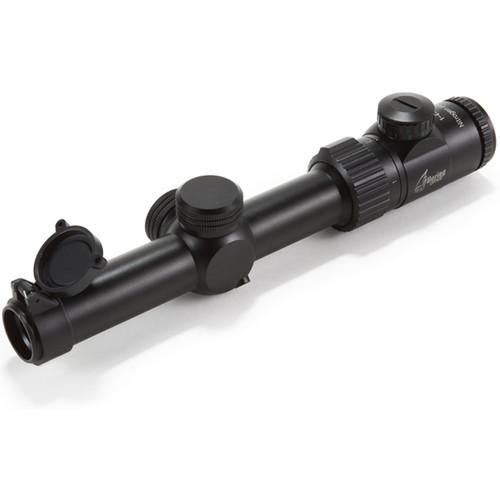

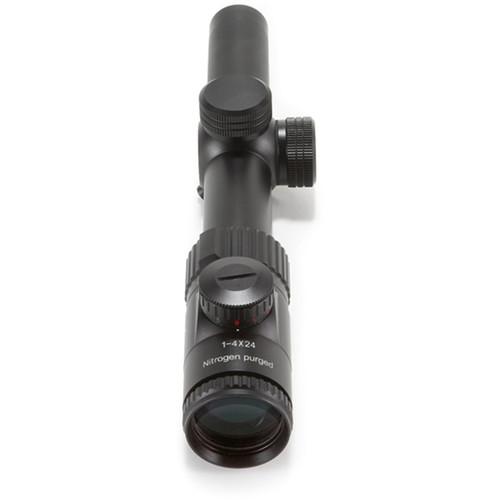

The housing is made of high-quality aluminum and offers a waterproof (O-ring sealed) and a fogproof (nitrogen-purged) performance. It has a single-piece 30mm maintube, capped turrets with resettable zeroes, and a fast focus eyepiece with a low-profile lever for one finger operation. - Red-Green German 4 Reticle
-
- 2nd focal plane
- Three bold posts and a crosshair
- Red or green illumination for center dot
- 5 discrete brightness settings
- Optical Performance
-
- Fully multi-coated
- Magnification: 1 - 4x
- Objective lens: 24mm
- FOV: 105 - 27' at 100 yd
- Eye relief: 3.4"
- Use and Handling
-
- 1/10 MRAD impact point correction
- 32 MRAD windage and elevation
- Construction Details
-
- 30mm single-piece maintube
- High-quality aluminum
- Capped windage/elevation turrets with adjustable zero settings
- Flip-up lens caps included
- Graduated reticle illumination knob on eyepiece
- Fast-focus eyepiece with low profile zoom lever
- Fogproof by nitrogen purging
- Waterproof, sealed with O-rings
- Impact-resistant

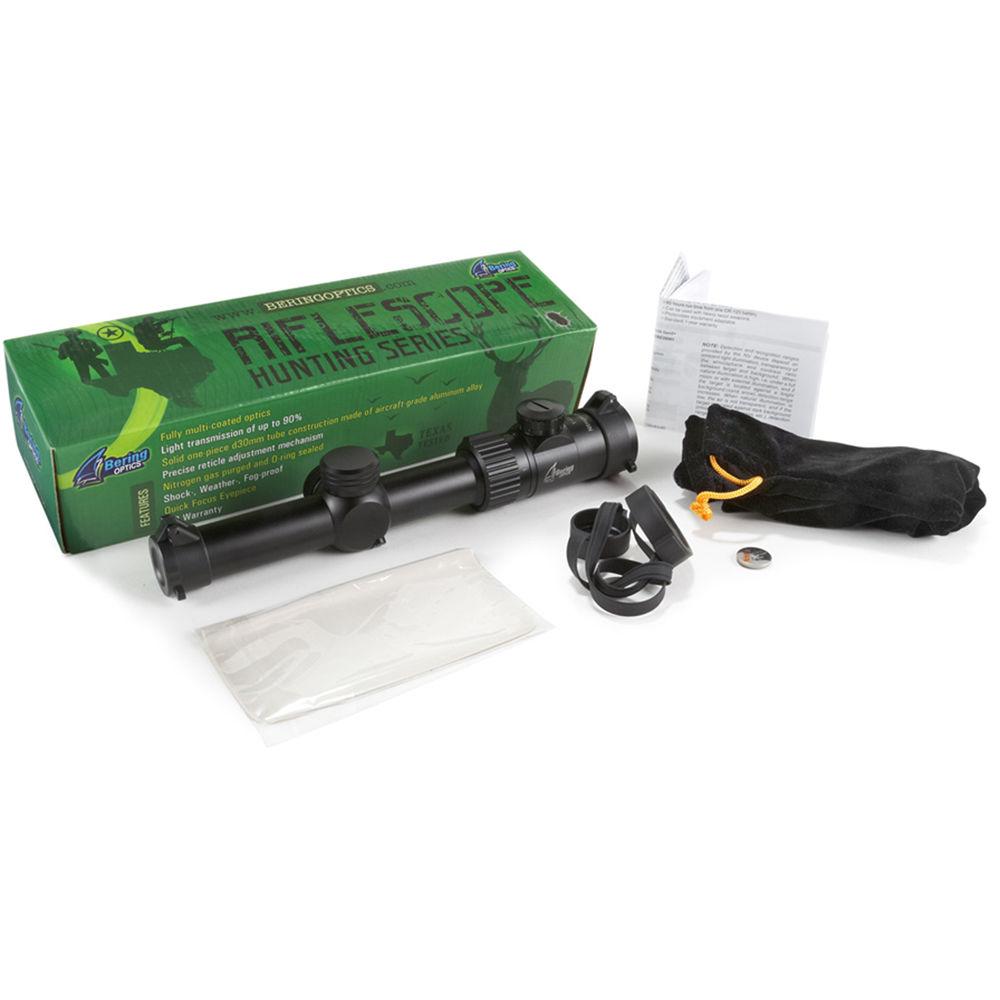

UPC: 850432003694 In the Box Bering Optics 1-4x24 Hunting Telescoping Sight (Red-Green German 4 Reticle, Matte Black) - Flip-Up Lens Covers
- CR-2032 Battery
- Pouch
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 1-4x24 Hunting Telescoping Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE55424 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 105' @ 100 yd / 35 m @ 100 m
4x: 27' @ 100 yd / 9 m @ 100 m | | Exit Pupil Diameter | 6 mm | | Eye Relief | 3.4" / 86 mm | | Diopter Correction | -2.0 to +2.0 | | | | Reticle Type | German #4 Reticle (Second Focal Plane) | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 32 MRAD | | Elevation Adjustment | 32 MRAD | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Operating Humidity | 98% | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 400 Hours | | Dimensions | Length: 10.8" / 275 mm | | Weight | 15.9 oz / 450 g (with Battery, with Lens Caps) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
