User Manual for Bering Optics 1-7x24 RATR Tactical Riflescope Click to enlarge the picture
Contents of the user manual for the Bering Optics 1-7x24 RATR Tactical Riflescope
- Product category: Riflescopes Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Riflescopes
 |
User manual for the Bering Optics 1-7x24 RATR Tactical Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

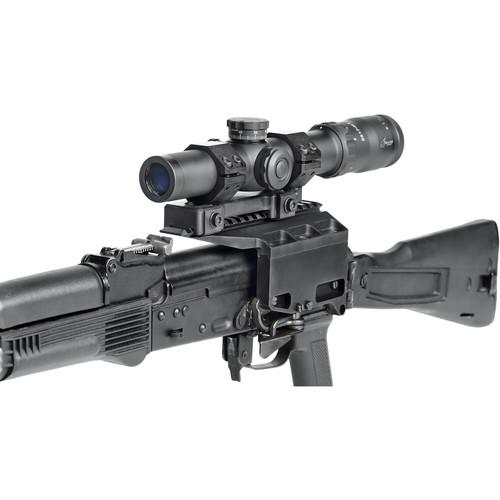

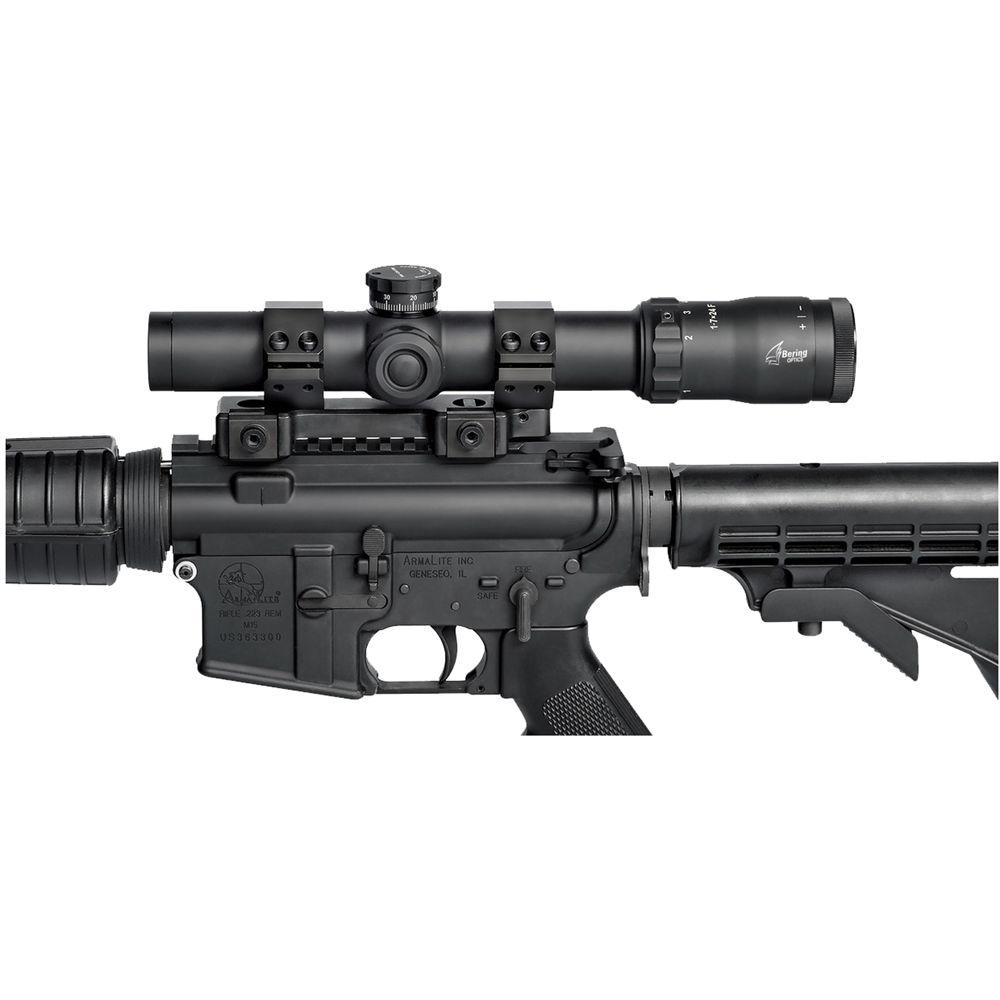

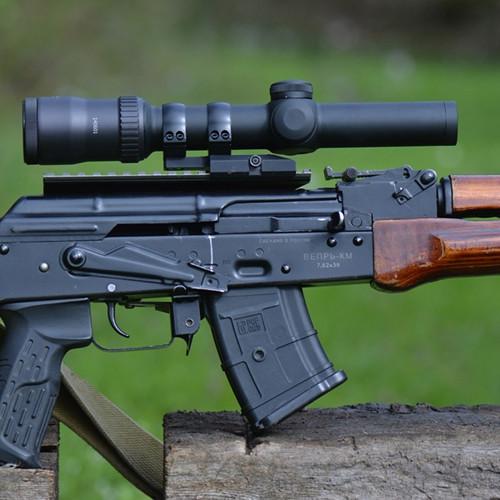

Product description Own the field with the Bering Optics 1-7x24 RATR Tactical Riflescope. This telescopic sight combines a high-definition (HD), low-distortion 1-7x fully multi-coated optical system with the strength of a 34mm 7005-T6 aluminum maintube. At the core of this scope is the illuminated 1st focal plane Tactical Milling Reticle (TMR). The first focal plane location lets the reticle scale up and down proportionately with your target as you zoom in and out and allows you to read correct ballistic and wind measurements without doing any additional math. While its outline features four posts and a crosshair densely populated with stadia and an illuminated target circle, the adjustable illumination of the target circle helps you match the reticle's brightness to external lighting conditions and can be dimmed sufficiently for use with night vision devices. For making additional corrections of trajectories, the external (finger-operated) turrets provide 15 Mil range for windage, 30 Mil range for elevation, and 0.2 Mil increments.
To ensure flawless operation in harsh conditions, the riflescope is outfitted with a rugged 7005-T6 aluminum alloy housing. It is nitrogen-filled fogproof and O-ring sealed waterproof and can withstand .375 H&H Magnum recoils. For a secure non-slip grip in any conditions, the dials have coarse knurling. - Optical Performance
-
- 1 - 7x zoom magnification
- 24mm objective diameter
- High-definition (HD), low-distortion optical glass
- 19.7 - 3.0° angular field of view
- 9.7 - 3.4 mm exit pupil
- Parallax-free at 164 yd
- Use and Handling
-
- 0.2 Mil impact point correction
- 30 Mil elevation adjustment range
- 15 Mil windage adjustment range
- +3 to -2 diopter adjustment
- Construction Details
-
- 7005-T6 aluminum construction
- 34mm single-piece maintube
- Exposed, finger-operated turrets
- Nitrogen-filled and O-ring sealed
- Can withstand .375 H&H Magnum recoils
- Waterproof and fogproof

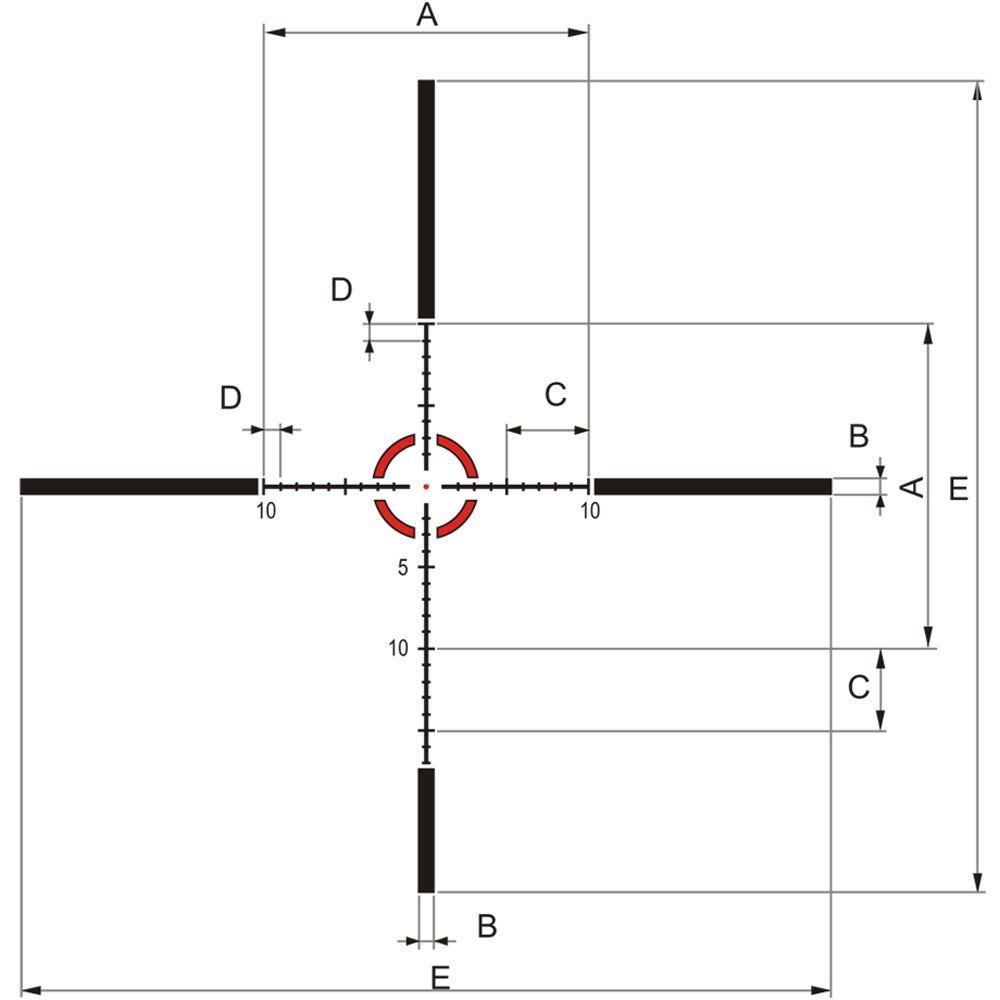

- TMR: Tactical Milling Reticle
-
- Four thin posts
- Thin milling crosshair
- Target circle: red with illumination on; black without illumination
- Compatible with night vision devices at low illumination settings
In the Box Bering Optics 1-7x24 RATR Tactical Riflescope (TMR Illuminated Reticle, Matte Black) - CR2032 Battery
- Allen Key
- Lens Caps
- Soft Carry Pouch
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 1-7x24 RATR Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE57724 MRAD Specs | | | Magnification | 1 to 7x | | Objective Lens Diameter | 24 mm | | Exit Pupil Diameter | 1x: 9.7 mm
7x: 3.4 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -2.0 to +3.0 | | | | Reticle Type | TMR Reticle (First Focal Plane) | | | | Filter Thread | M25 x 0.75 | | Impact Point Correction | 0.2 MIL per Click | | Windage Adjustment | 8 MIL | | Elevation Adjustment | 15 MIL | | Parallax Correction | Yes, 164 yd / 150 m | | | | Water Resistance | IP67 | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -40 to 122°F / -40 to 50°C | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Battery Runtime | 100 Hours (Maximum) | | Material | Aluminum | | Dimensions | Length: 11.8" / 30 cm
Height: 2.8" / 7.2 cm
Width: 2.4" / 6.2 cm | | Weight | 19.4 oz / 550 g |
