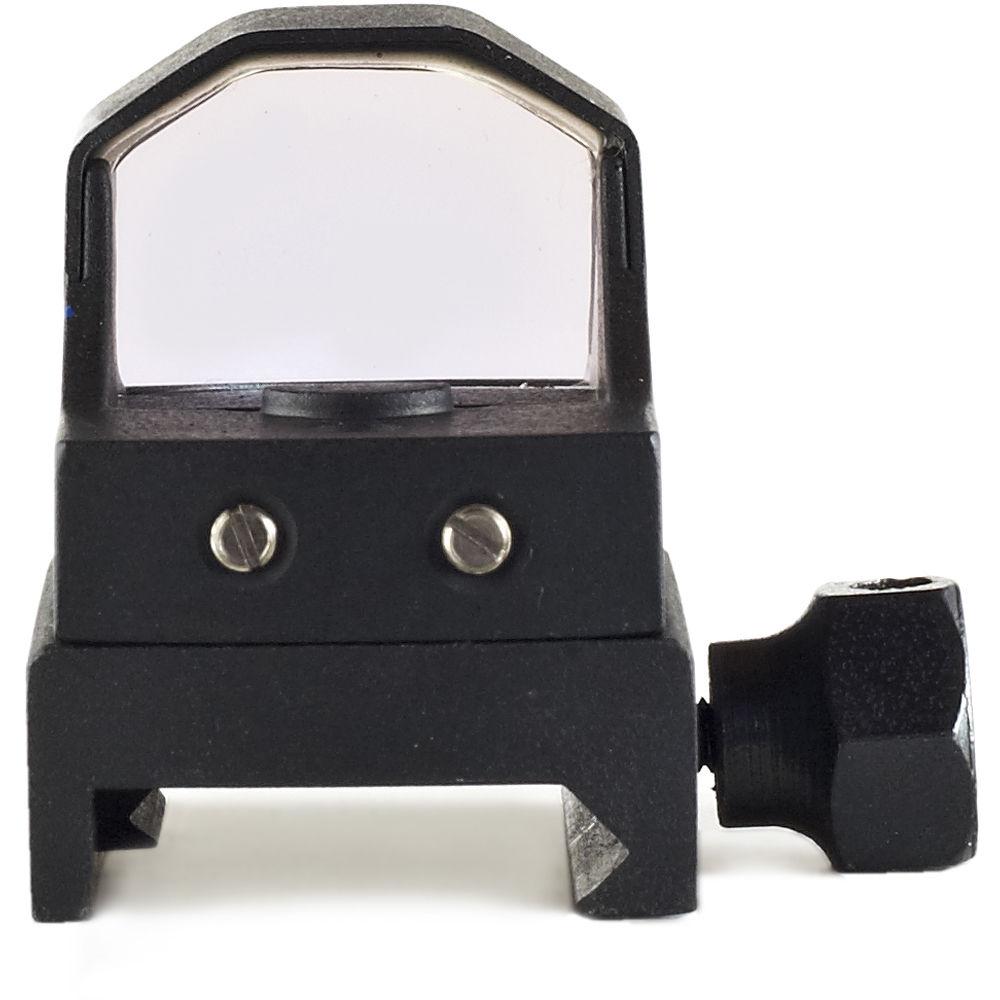

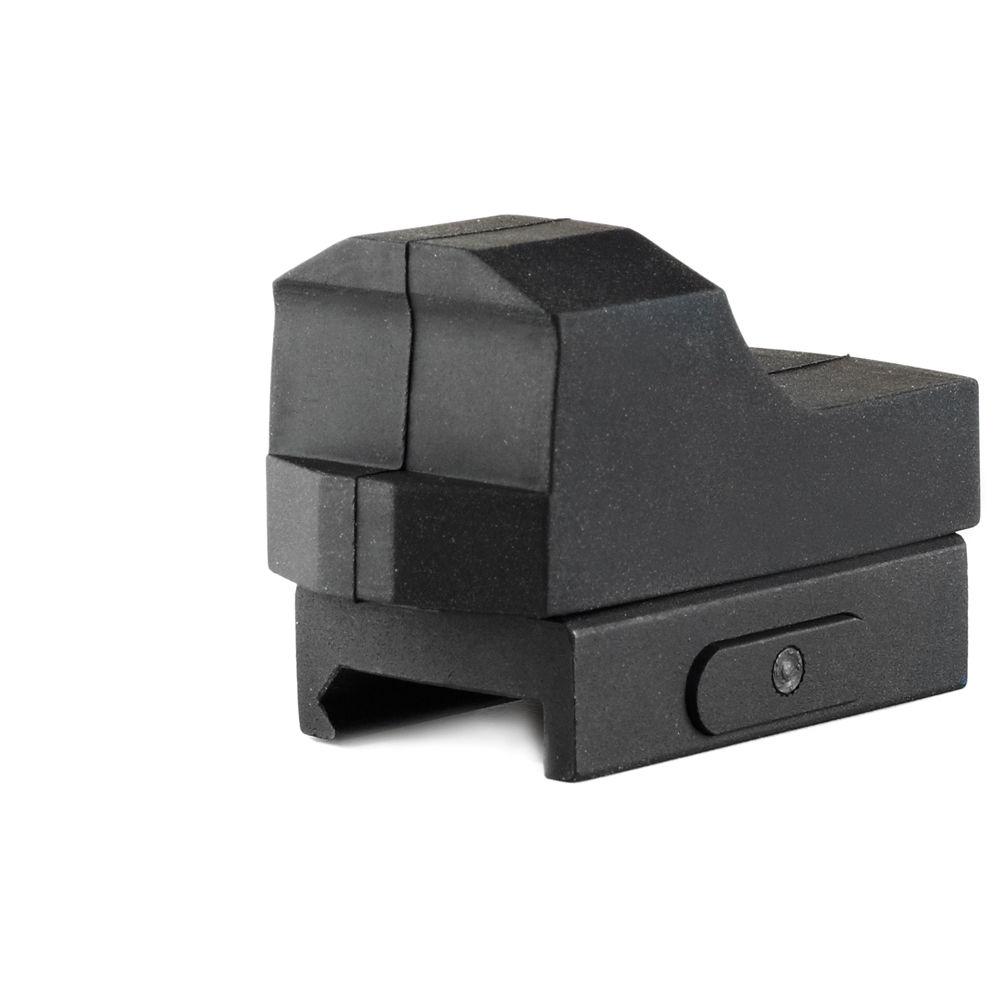

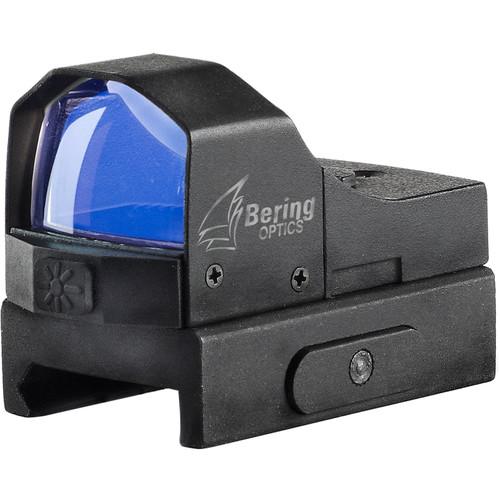

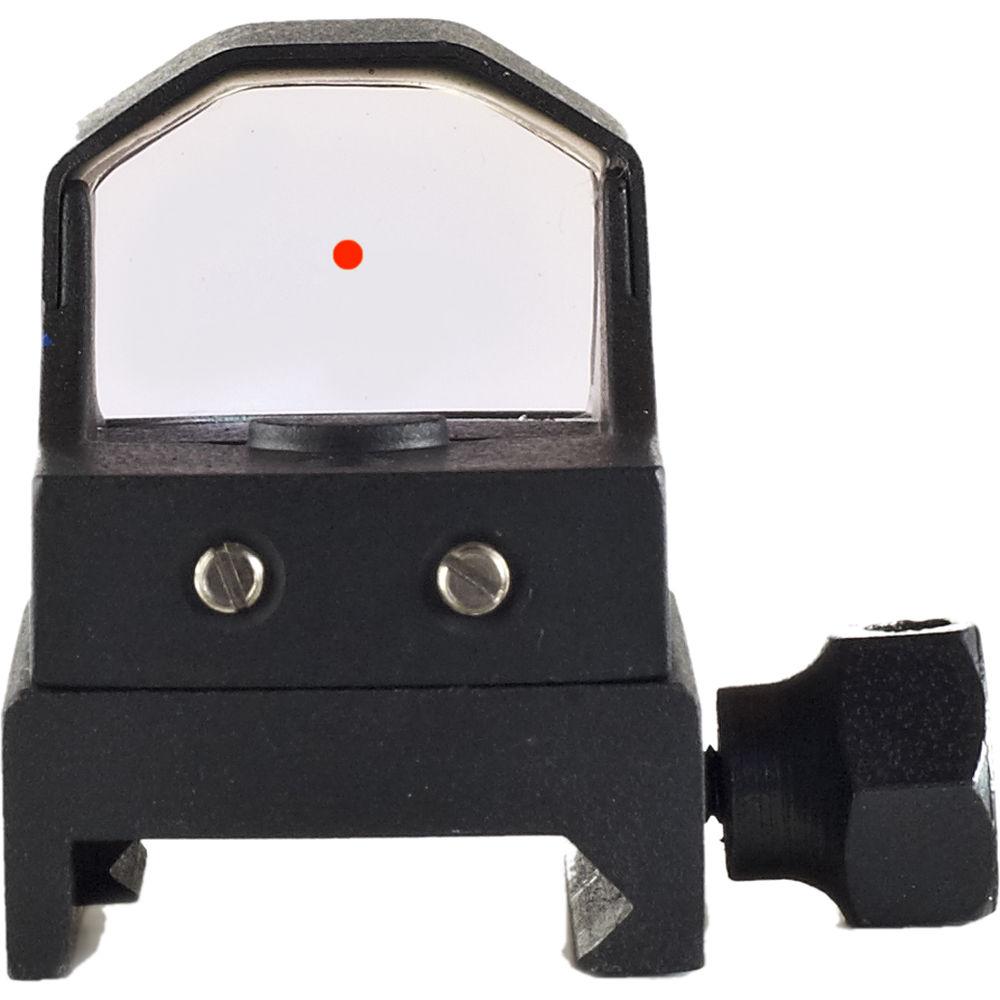

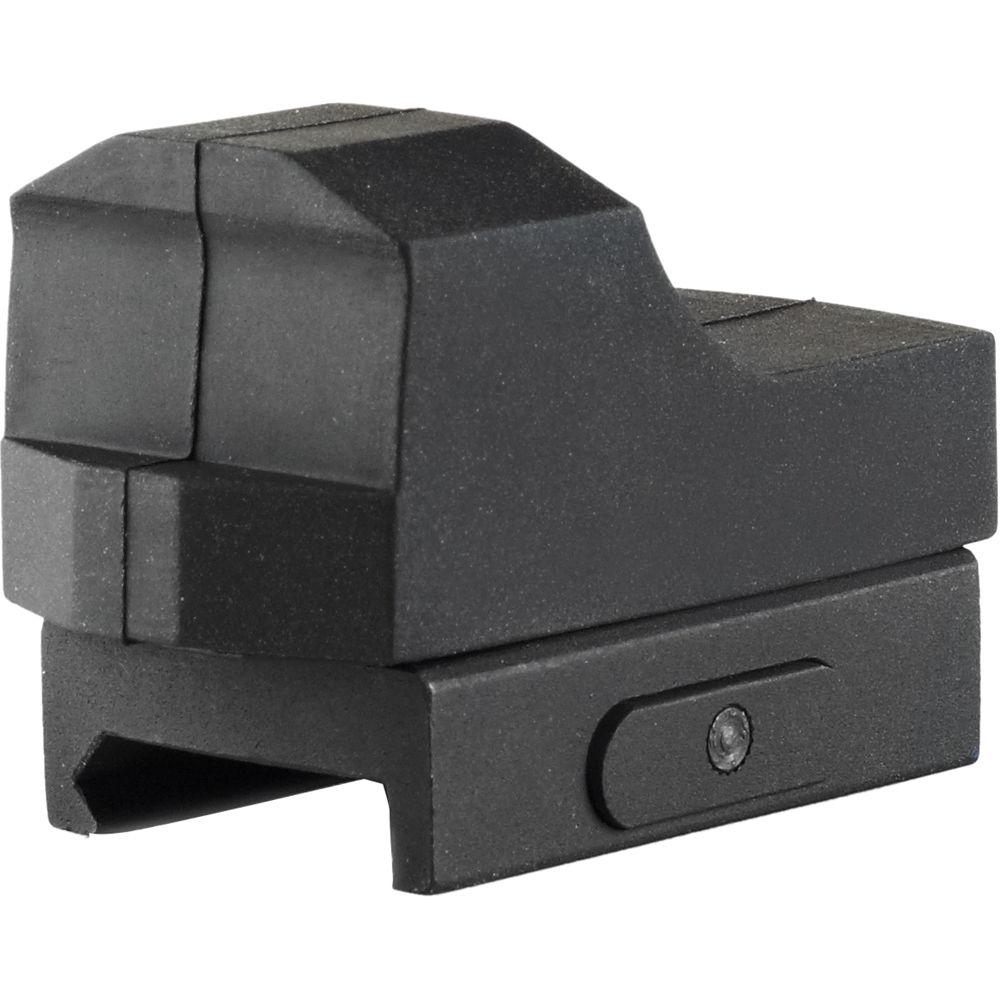

Product description The 1x Rubicon Reflex Sight from Bering Optics is a lightweight and compact sight with a 3 MOA red dot reticle. It is designed to be used with both eyes open so you can maintain peripheral vision and depth of perception for a close range shooting. The red dot reticle is parallax-free at 50 yards and has five brightness settings. The brightness is controlled manually by pressing the on-off button and the level that was last used is stored in memory. The optics features a 1x magnification, multiple layers of anti-glare coatings, a 5.7° angle of view, and an unlimited eye relief. The sight also features a 143 MOA windage and elevation adjustment range.
The housing is made from aluminum with a matte black finish and features a shock-resistant weather-resistant construction. The mount is compatible with most Picatinny or Weaver style rails and has a built-in thumbscrew for a fast and easy attachment. Also included with this sight are one CR2032 battery, one Allen wrench, a screwdriver and a wheel for windage and elevation adjustments, and a rubber protective cover. - Reticle
-
- Red dot reticle: 3 MOA
- Five brightness levels
- 143 MOA adjustment range
- Parallax-free at 50 yd
- Optical Performance
-
- Magnification: 1x
- Angular field of view: 5.7°
- Multicoated optics
- Unlimited eye relief
- Construction
-
- Lightweight and compact aluminum construction
- Compatible with Picatinny or Weaver style rails
- Thumbscrew helps quick connection to the rail
UPC: 850432003458 In the Box Bering Optics 1x Rubicon Reflex Sight (Red Dot) - Rubber Protective Cover
- Allen Wrench
- Windage & Elevation Adjustment Wheel
- Screwdriver for Windage & Elevation Adjustments
- CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 1x Rubicon Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics Rubicon Specs | | | Reticle | 3 MOA Dot | | Reticle Color | Red | | Power Source | 1 x CR2032 | | Sight Window Dimensions | 0.9 x 0.6" / 23 x 16 mm | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Field of View | 33' @ 100 yd / 11 m @ 100 m | | Minimum Focus Distance | 1.5' / .5 m | | | | Windage Adjustment | 143 MOA | | Elevation Adjustment | 143 MOA | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | | | Water Resistance | IPX4 | | Dimensions | L: 2.0 x W: 1.5 x H: 1.4" / L: 5.1 x W: 3.8 x H: 3.6 cm | | Weight | 2.5 oz / 70.9 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.7 x 4.2 x 2.1" |
