User Manual for Bering Optics 1x22 PVS-7BE Elite 3rd Gen Thin Film Night Vision Bi-Ocular & Headgear Kit Click to enlarge the picture
Contents of the user manual for the Bering Optics 1x22 PVS-7BE Elite 3rd
- Product category: Night Vision Bi-Oculars Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Night Vision Bi-Oculars
 |
User manual for the Bering Optics 1x22 PVS-7BE Elite 3rd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

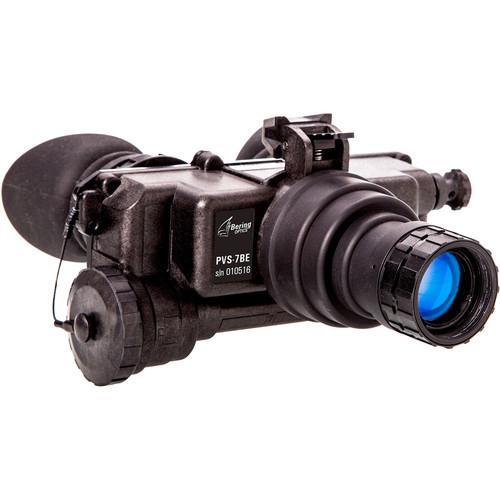

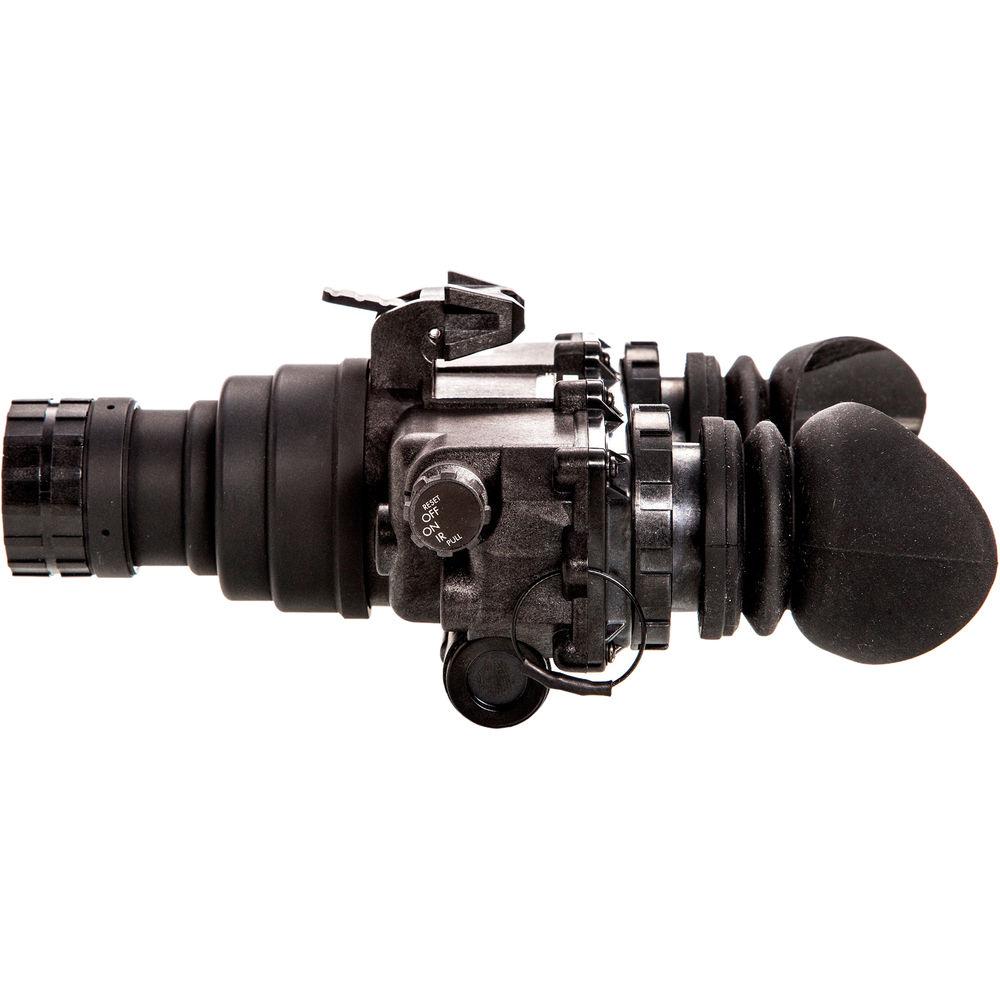

Product description Bering Optics' 1x22 PVS-7BE Elite 3rd Gen$ {WPN} Night Vision Bi-Ocular & Headgear Kit offers a versatile, compact, and rugged night vision device that can be used handheld, mounted to a helmet, or worn with the included headgear. It features a 3rd generation thin film intensifier tube and has an autogated power supply. This third generation device offers a great advantage over second generation tubes in terms of greater sensitivity and higher gain. The gain control of this tube type is manual, which allows an operator to have a full control of the trade-off between amount of detail and image brightness. To maximize image brightness in nearly-total darkness, the device carries a built-in infrared illuminator that casts extra infrared light on your targets. To add convenience and stealth for tactical applications, the device offers an activation status indicator and an automatic off function when you turn it up or take of off your headgear. The 1x lens system, upgradable to higher magnifications with optional lenses, offers a wide 40° field of view and an ultra-short minimal focusing distance of 10".
The housing is made of lightweight and impact-resistant polymer, offers fogproof and waterproof performance, and provides protection from adverse conditions and extreme temperatures. To prevent a spill-over of light from the intensifier tube, and to provide a comfortable cushion between your eyes and the eyepieces, the eyepieces offer wide winged rubber eyecups. The body is ergonomic, has knurled adjustment rings, and has a 1/4"-20 socket for mounting the device on a tripod. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Night Vision Features
-
- 3rd generation
- 64-72 lp/mm resolution
- Produces green images
- Thin film microchannel plate
- Manual gain allows precise control of image brightness of detail
- IR illuminator casts extra infrared light on targets for visibility in nearly-total darkness
- Optical Performance
-
- 1x magnification
- 40° angular field of view
- 26mm, f/1.2 lens system
- 10" minimum focus distance

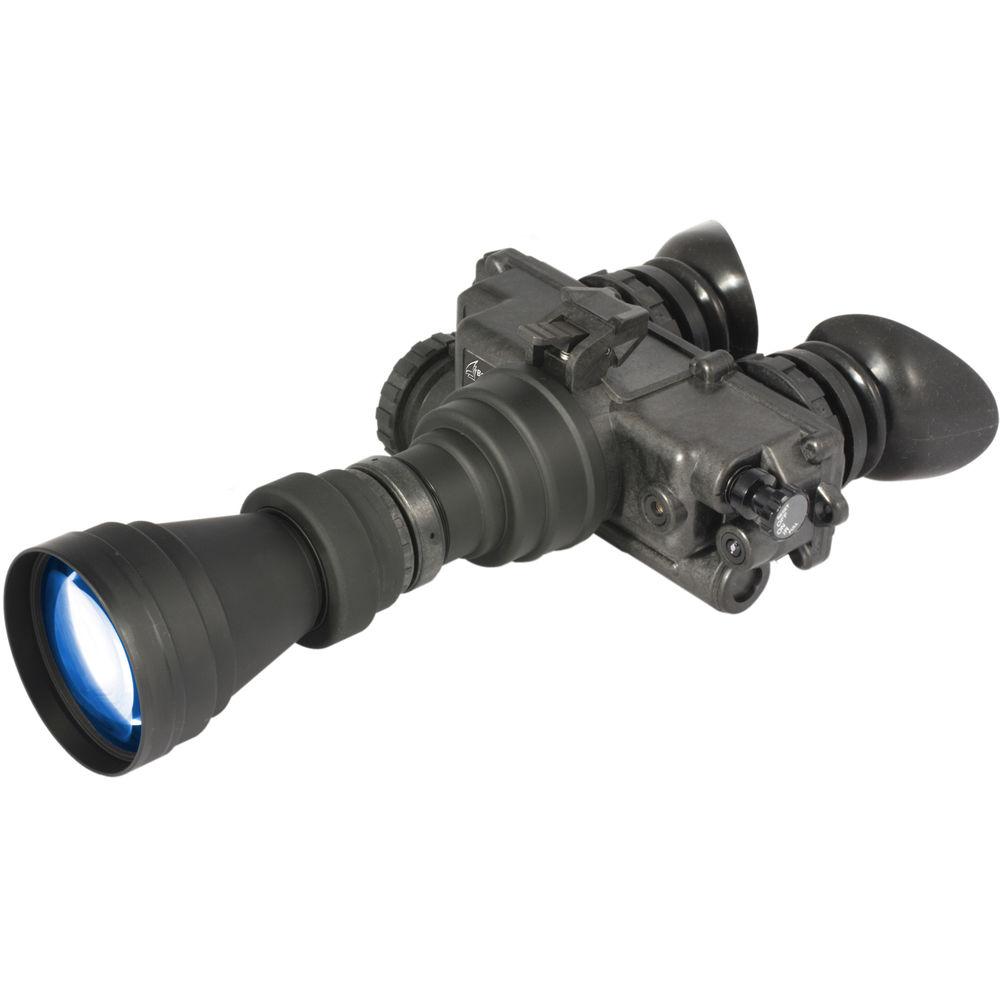

- Compatible with optional 3x-10x zoom objectives
- 15mm eye relief
- +2 to -6 dioptric adjustment
- Use and Handling
-
- Automatic brightness control
- Bright source protection
- Low-battery and IR-on indicators
- Auto-off function when in upright position
- Construction Details
-
- Impact-resistant polymer body
- Adjustable headgear assembly included
- Compatible with select optional helmets
- Sacrificial window protects the objective lens
- A set of extra brow pads are included
- Knurled adjusters

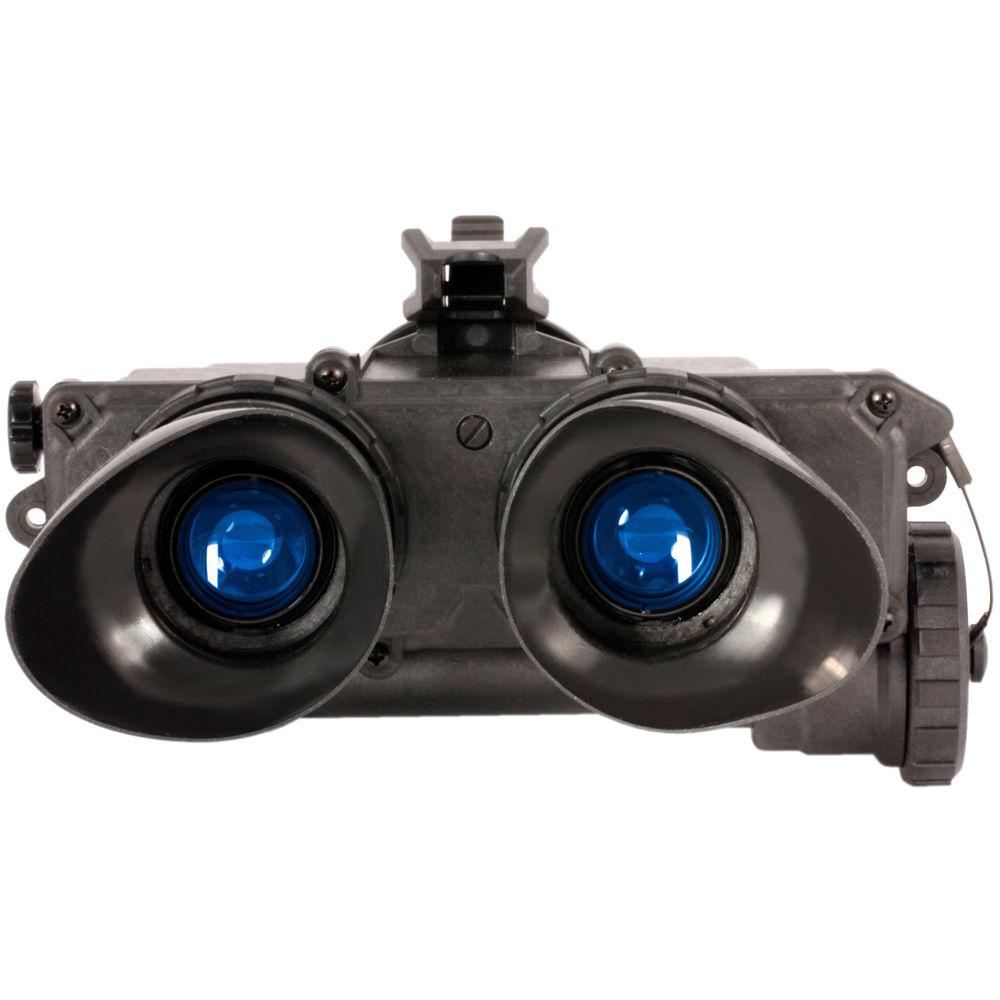

- Wide rubber eyecups
- Waterproof

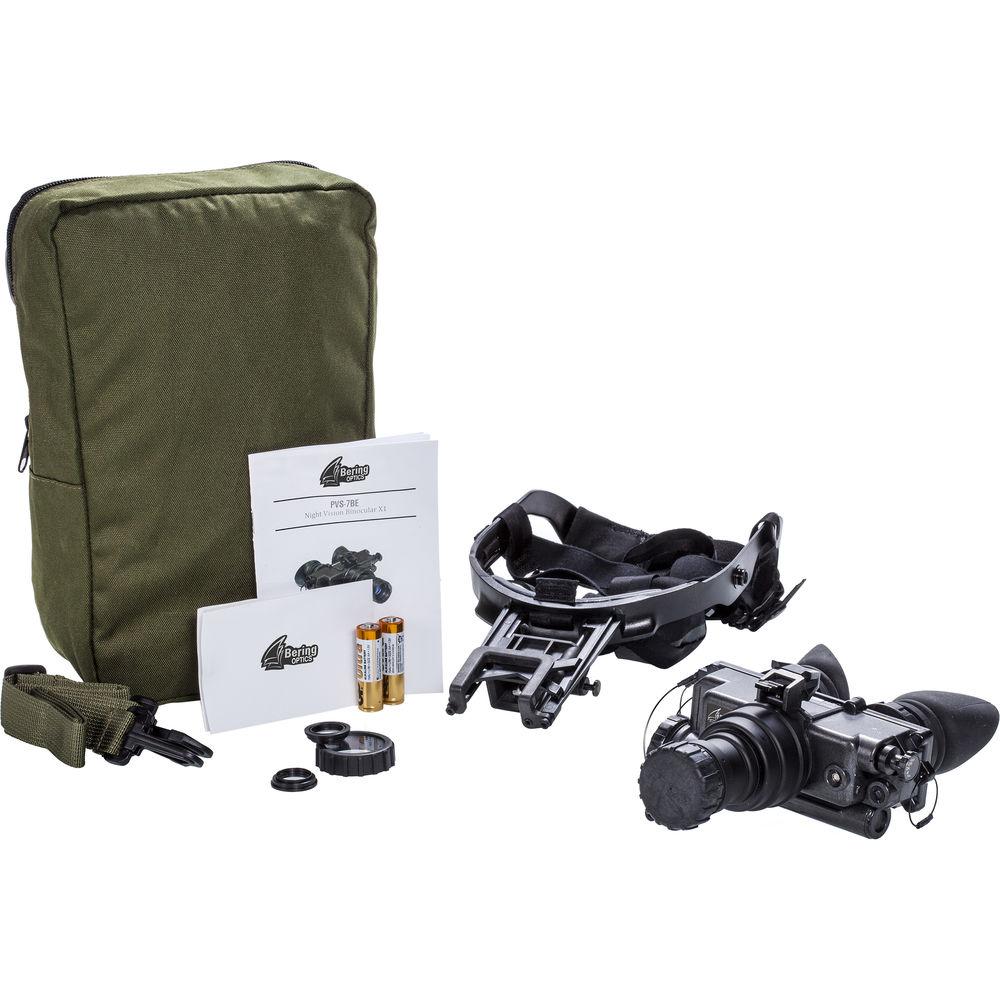

UPC: 850432003489 In the Box Bering Optics 1x22 PVS-7BE Elite 3rd Gen Thin Film Night Vision Bi-Ocular & Headgear Kit - Headgear Assembly
- Set of Extra Brow Pads
- 2 x AA Batteries
- Sacrificial Window
- 2 x Demist Shields
- Soft Case with Shoulder Strap
- 2 x Rubber Eyecups
- Neck Cord
- Lens Cover
- Lens Cloth
- Limited Lifetime Warranty
- Limited 3-Year Warranty on Intensifier Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 1x22 PVS-7BE Elite 3rd Gen Thin Film Night Vision Bi-Ocular & Headgear Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics PVS-7BE Specs | Intensifier Tube | 3rd generation tube
Thin film microchannel plate
Manual gain control
Snr: 1:27 | | Magnification | 1x | | Angle/Field of View | 40° | | Linear Field of View | 2093.1' @ 1000 yd / 698 @ 1000 m | | Lens System | 26 mm, f/1.2 | | Minimum Focus Distance | 10" (25 cm) to infinity | | Eye Relief | 15 mm | | Dioptric Correction | +2 to -6 | | Interpupillary Distance | 2.2 - 2.8' / 55 - 71 mm | | Battery / Runtime | 2 x AA batteries / 60 h | | Weatherproofing | Waterproof and nitrogen-purged fogproof | | Humidity | Up to 98% | | Temperature Ranges | -59 to 131°F / -51 to 55°C | | Dimensions | 7.7 x 6.2 x 3.5" / 195 x 157 x 88 mm | | Weight | With Headgear: 17.6 oz / 500 g
With Headgear: 23.3 oz / 660 g |
