User Manual for Bering Optics 1x26 Polaris Gen I Night Vision Monocular with Headgear Click to enlarge the picture
Contents of the user manual for the Bering Optics 1x26 Polaris Gen I
- Product category: NV Monoculars & Multi-Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics NV Monoculars & Multi-Systems
|
User manual for the Bering Optics 1x26 Polaris Gen I contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

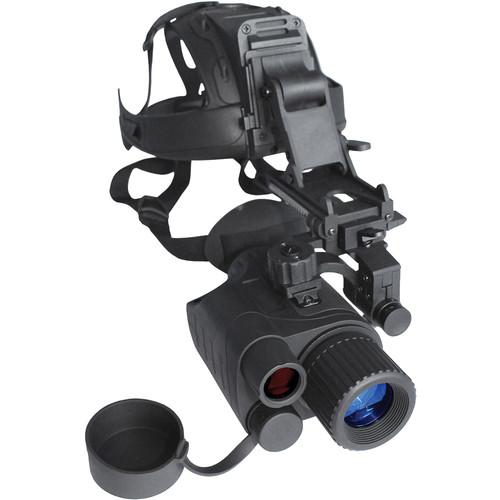

Product description The 1x26 Polaris Gen I Night Vision Monocular from Bering Optics is a close to mid-range night vision device (NVD) that comes with flip-up headgear that enables hands-free viewing. This NVD is equipped with an integrated infrared illuminator capable of illuminating a subject at a distance of 27 yd. This configuration of the Polaris monocular has an unmagnified f/1.2 lens system that provides a wide angle of view and transmits adequate light for moonlit observations.The included flip-up headgear has adjustable straps for a custom fit and padding for added comfort. The flip-up headgear adapter makes hands-free use and flip-up storage quick and easy; a dovetail rail on the monocular is useful for dismounting the NVD for handheld viewing. The IR illuminator is controlled by a dedicated button that allows it to be activated without taking your eye off the visual scene.Additionally, this NVD is capable of focusing within ten inches. The Polaris monocular's first generation intensifier tube is protected against bright light damage by circuitry that deactivates the NVD when excessive light levels are detected. An IPX4-compliant, water-sealed housing makes the Polaris NVD ready to perform in light rain, high humidity, and even freezing temperatures. UPC: 850432003014 In the Box Bering Optics 1x26 Polaris Gen I Night Vision Monocular with Headgear Headgear Headgear Adapter Wrist Strap Carrying Case Lens Cap Limited Lifetime Warranty Limited 2-Year Warranty for Intensifier Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 1x26 Polaris Gen I Night Vision Monocular with Headgear in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics Polaris Specs | Intensifier Tube | Gen I | | Magnification | 1.0x | | Objective Lens Diameter | 26 mm | | Field of View | 123 ft (37.5 m) at 100 yd | | Angle of View | Not specified by manufacturer | | Lens System | 39 mm f/1.2 | | Minimum Focus Distance | 9" (23 cm) | | Exit Pupil | Not specified by manufacturer | | Eye Relief | 12 mm | | Dioptric Correction | ±4 | | Infrared Illuminator | 25mW 850nm | | Power Supply | (1) CR123 battery | | Runtime | Up to 20 hours of continuous operation (60 hours without IR illuminator) | | Weatherproofing | IPX4 | | Humidity Tolerance | 93% | | Operating Temperature | -22 to 113°F (-30 to 45°C) | | Dimensions | 6.1 x 3.1 x 2.4" (16 x 8 x 6 cm) | | Weight | 12.4 oz (386 g) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 12.0 x 9.0 x 4.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
