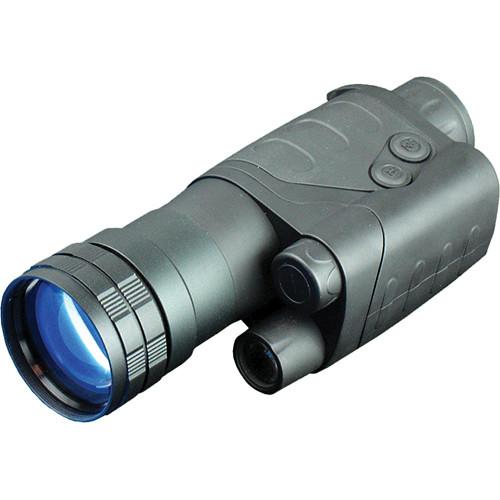

User Manual for Bering Optics 2.5x40 Polaris Gen I Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Bering Optics 2.5x40 Polaris Gen I
- Product category: NV Monoculars & Multi-Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics NV Monoculars & Multi-Systems
|
User manual for the Bering Optics 2.5x40 Polaris Gen I contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|
Product description The 2.5x40 Polaris Gen I Night Vision Monocular from Bering Optics is a handheld optic useful for close-range observations in low light conditions or complete darkness. This night vision device (NVD) is equipped with an integrated infrared illuminator that is capable of illuminating a subject at a distance of 27 yd. The IR illuminator is controlled by a dedicated button, allowing the illuminator to be activated without taking your eye off the visual scene.This configuration of the Polaris monocular has 2.5x magnification and f/1.2 light gathering ability. Additionally, this NVD is capable of focusing to within five feet. The Polaris monocular's image intensifier tube is protected from bright light damage by circuitry that deactivates the NVD when it detects excessive light levels. An IPX4-compliant, water-sealed housing makes the Polaris NVD ready to perform in light rain, high humidity, and even freezing temperatures. In the Box Bering Optics 2.5x40 Polaris Gen I Night Vision Monocular Carrying Case Lens Cap Lens Cloth Limited Lifetime Warranty Limited 2-Year Warranty for Intensifier Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 2.5x40 Polaris Gen I Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics Polaris Specs | Intensifier Tube | Gen I | | Magnification | 2.5x | | Objective Lens Diameter | 40 mm | | Field of View | 81 ft (24.7 m) at 100 yd | | Angle of View | 18° | | Lens System | 59 mm f/1.2 | | Minimum Focus Distance | 4.5 ft (1.5 m) | | Exit Pupil | 6 mm | | Eye Relief | 12 mm | | Dioptric Correction | ±4 | | Infrared Illuminator | 25mW 850nm | | Power Supply | (1) CR123 battery | | Runtime | Up to 20 hours of continuous operation (60 hours without IR illuminator) | | Weatherproofing | IPX4 | | Humidity Tolerance | 93% | | Operating Temperature | -22 to 113°F (-30 to 45°C) | | Dimensions | 7.1 x 3.1 x 2.4" (18 x 8 x 6 cm) | | Weight | 15.2 oz (430 g) |
