User Manual for Bering Optics 2.6x44 eXact Precision Gen I Night Vision Monocular Kit Click to enlarge the picture
Contents of the user manual for the Bering Optics 2.6x44 eXact Precision Gen
- Product category: NV Monoculars & Multi-Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics NV Monoculars & Multi-Systems
 |
User manual for the Bering Optics 2.6x44 eXact Precision Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

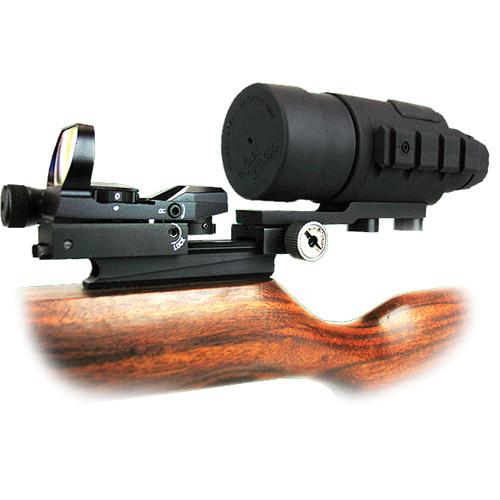

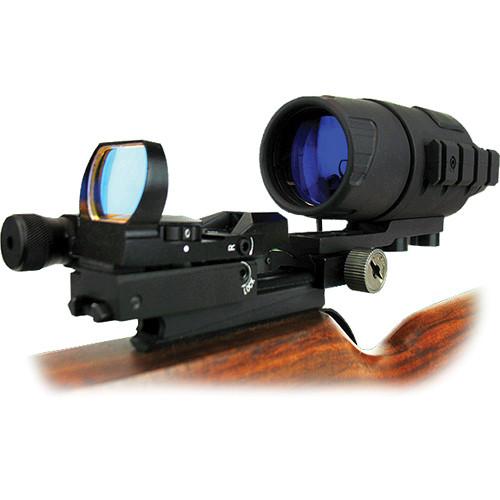

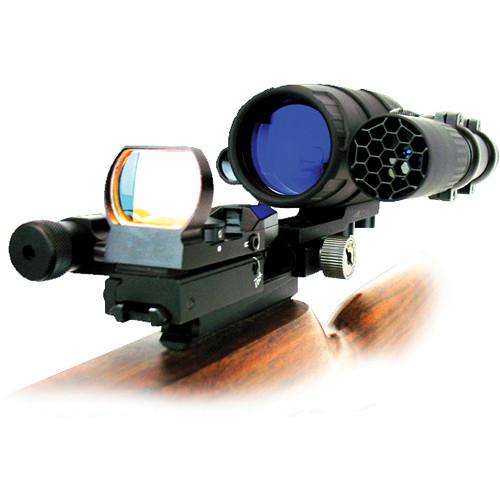

Product description The 2.6x44 eXact Precision Gen I Night Vision Monocular Kit from Bering Optics is a close-range optic for handheld or recreational shooting use in low light or complete darkness. This NVD is equipped with a Gen 1 intensifier tube that produces 35 lp/mm resolution and features automatic cut-off circuitry that protects the tube and operator's eye by deactivating the NVD upon detecting excessive light levels. An included weapon mount allows this NVD to clamp onto a Weaver rail for cowitnessing with reflex or iron sights.The eXact Precision lens system has 2.6x magnification and f/1.2 light gathering ability that enables adequate light transmission for effective targeting under moonlight. Additionally, this lens system has a wide 20° angle of view and a manual focus objective that can be focused to within five feet. For indoor use or when operating under heavy cloud cover, the monocular's built-in 25mW infrared illuminator is capable of lighting a subject up to 55 yd away. An accessory side rail supports an additional tactical accessory, such as a long-range IR illuminator or laser aiming device. An IPX4-compliant, water-sealed housing makes the eXact Precision NVD ready to perform in light rain, high humidity, and even freezing temperatures. - Image Intensifier
-
- Gen 1 intensifier tube
- 35lp/mm typical resolution
- Automatic high-light cut-off
- Optical Performance
-
- 2.6x magnification, 44mm objective
- 59mm f/1.2 lens system
- Fully multicoated optics
- 20° angle of view
- 15mm eye relief
- Use and Handling
-
- 25mW 850nm infrared illuminator
- Weaver accessory side rail
- Dual 1/4" tripod sockets
- Construction Details
-
- IPX4 water-resistant housing
- Rated to operate in 93% humidity
- -22 to 113° operating temperature
- 14.9 oz weight
UPC: 850432003052 In the Box Bering Optics 2.6x44 eXact Precision Gen I Night Vision Monocular Kit Weaver Rail Mount Eyeguard Limited Lifetime Warranty Limited 2-Year Warranty for Intensifier Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 2.6x44 eXact Precision Gen I Night Vision Monocular Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics eXact Specs | Intensifier Tube | Gen 1 | | Resolution | Not specified by manufacturer | | Magnification | 2.6x | | Objective Lens Diameter | 44 mm | | Field of View | 100 ft (30.5 m) at 100 yd | | Angle of View | 20° | | Lens System | 59 mm f/1.2 | | Minimum Focus Distance | 5 ft (1.5 m) | | Eye Relief | 15 mm | | Exit Pupil | 6 mm | | Dioptric Correction | ±4 | | Infrared Illuminator | 25mW 850nm | | Power Supply | (2) AA batteries | | Runtime | Up to 70 hours of continuous operation (without IR illuminator) | | Weatherproofing | IPX4 | | Humidity Tolerance | 93% | | Operating Temperature | -22 to 113°F (-30 to 45°C) | | Dimensions | 7.1 x 3.9 x 2.6" (18 x 10 x 6 cm) | | Weight | 14.9 oz (422 g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 8.8 x 4.4 x 3.1" |
