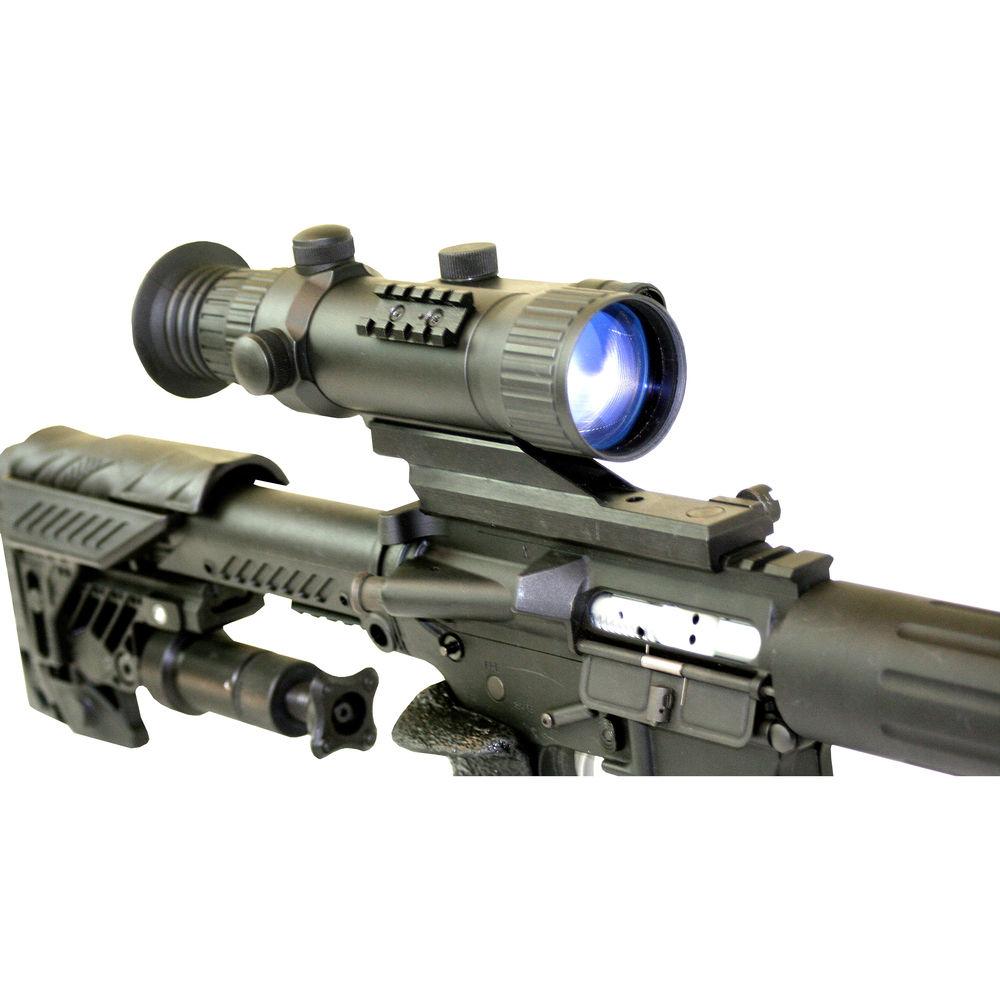

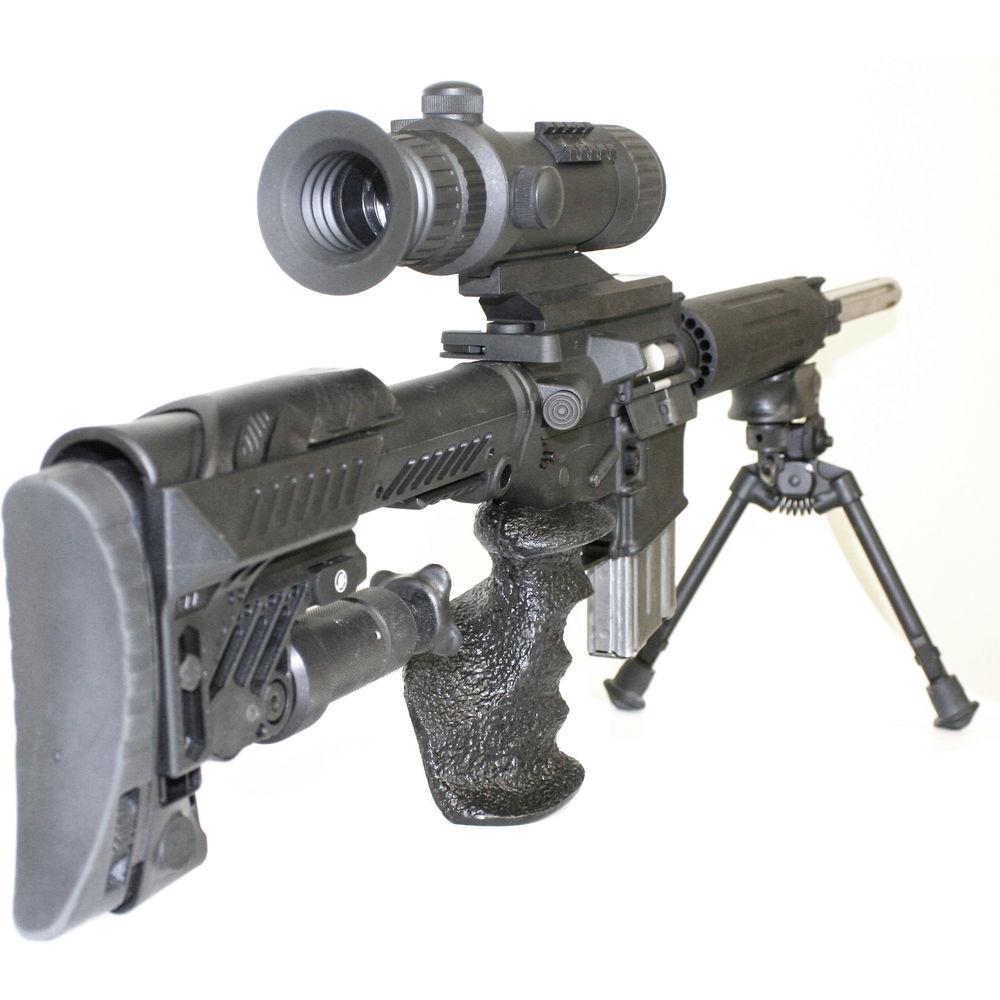

User Manual for Bering Optics 3x50 Avenger Gen II Night Vision Weapon Sight Click to enlarge the picture
Contents of the user manual for the Bering Optics 3x50 Avenger Gen II
- Product category: Night Vision Riflescopes Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Night Vision Riflescopes
 |
User manual for the Bering Optics 3x50 Avenger Gen II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|
Product description The 3x50 Avenger Gen II Night Vision Weapon Sight from Bering Optics is a close to mid-range optic for tactical use in low light or complete darkness. This NVD is equipped with a Gen 2+ intensifier tube that is capable of up to 64 lp/mm resolution, delivering more definition and contrast than previous generation image intensifiers. Automatic Brightness Control maintains the image brightness at an optimal level and produces relatively constant image quality in dynamic light conditions. A red-illuminated floating Mil Dot reticle offers enhanced contrast against the green night vision image and assists the shooter with range and holdover estimation.This configuration of the Avenger weapon-mounted optic has 3x magnification and f/1.5 light gathering ability, enabling adequate light transmission for effective targeting under moonlight. For indoor use or when operating under heavy cloud cover, the Avenger's built-in 25mW infrared illuminator is capable of lighting a subject up to 55 yd away. This NVD also has a manual focus objective capable of focusing to within 10 yd and an accessory side rail that supports an additional tactical accessory, such as a long-range IR illuminator or laser aiming device. An IPX4-compliant, water-sealed housing makes the Avenger NVD ready to perform in light rain, high humidity, and even freezing temperatures. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Image Intensifier
-
- Gen 2+ intensifier tube
- 57lp/mm typical resolution, 64lp/mm maximum
- Automatic Brightness Control
- Optical Performance
-
- 3x magnification, 50mm objective
- 80mm f/1.5 lens system
- 13° angle of view
- 50mm eye relief
- Illuminated red-on-green floating Mil Dot reticle
- Use and Handling
-
- 25mW 850nm infrared illuminator
- 1/8 MOA windage and elevation adjustments
- 72 MOA windage and elevation adjustment range
- Picatinny / Weaver accessory side rail
- In-view low-battery indicator
- Adjustable reticle brightness
- Construction Details
-
- IPX4 water-resistant housing
- Rated to operate in 98% humidity
- -22 to 122° operating temperature
- Shock-resistant construction
- Vertically positioned battery housing
- 33.5 oz weight
In the Box Bering Optics 3x50 Avenger Gen II Night Vision Weapon Sight (Mil Dot) Carrying Case Rubber Eyecup Lens Cap Lens Cloth Limited Lifetime Warranty Limited 2-Year Warranty for Intensifier Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 3x50 Avenger Gen II Night Vision Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics Avenger Specs | Intensifier Tube | Gen 2+ | | Photocathode Type | S25 | | Resolution | 57 lp/mm (typical) | | Mean Time Before Failure | 10,000 hr | | Magnification | 3.0x | | Objective Lens Diameter | 50 mm | | Angle of View | 13° | | Lens System | 80 mm f/1.5 | | Minimum Focus Distance | 26 ft (8 m) | | Eye Relief | 50 mm | | Exit Pupil | 12 mm | | Dioptric Correction | ±4 | | Infrared Illuminator | 25mW 850nm | | Reticle | Mil Dot | | Windage/Elevation Adjustment | 1/8 MOA | | Maximum Windage/Elevation Adjustment | ±36 MOA | | Power Supply | (1) CR123 battery | | Runtime | Up to 72 hours of continuous operation (without IR illuminator) | | Weatherproofing | IPX4 | | Humidity Tolerance | 98% | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Dimensions | 8.6 x 4.2 x 3.1" (22 x 11 x 8 cm) | | Weight | 33.5 oz (950 g) |
