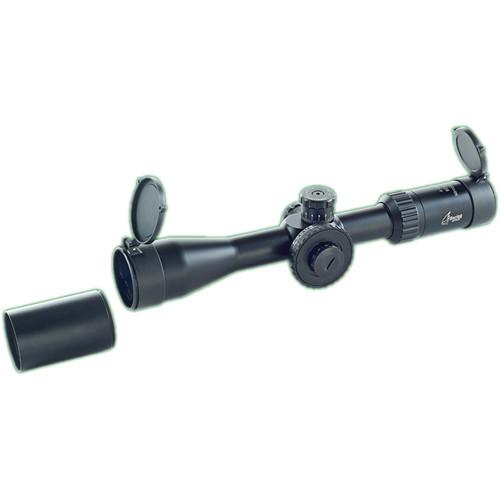

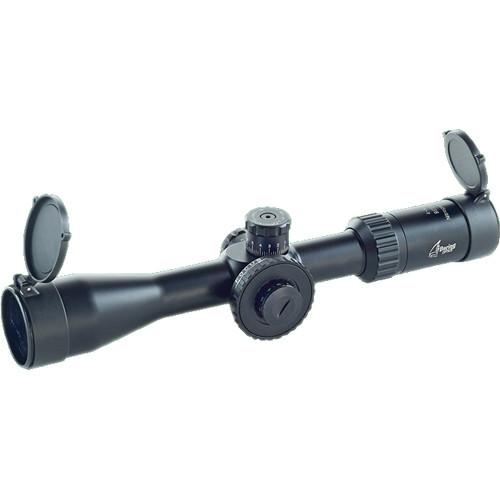

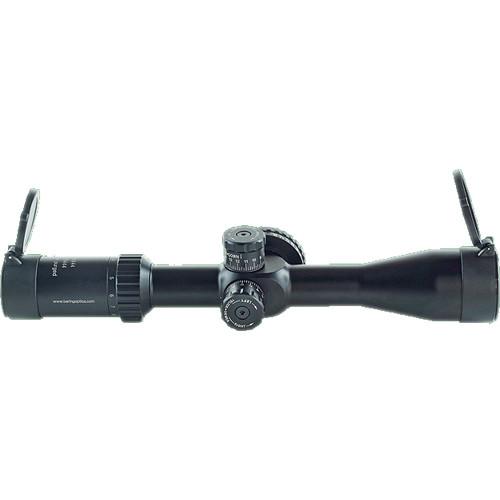

User Manual for Bering Optics 4-14x44 Ace Riflescope Click to enlarge the picture
Contents of the user manual for the Bering Optics 4-14x44 Ace Riflescope
- Product category: Riflescopes Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Riflescopes
 |
User manual for the Bering Optics 4-14x44 Ace Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|
Product description Made for short-to-medium-range shooting, the 4-14x44 Ace Riflescope from Bering Optics offers 4-14x magnification and a fast focus eyepiece to provide you with fast and accurate target acquisition. It also features a Mil-Dot Reticle with an illuminated crosshair, and an adjustable side focus knob for correcting parallax from 10 yards to infinity. The reticle has two illumination colors: red or green, but can also display a black pattern without illumination. With a wide 44mm objective lens and fully multi-coated optics, your scope is suited well for most lighting conditions, even twilight. To help account for wind and ballistics, it offers 60 MOA windage and elevation adjustment ranges with a 1/4 MOA impact point correction. For your convenience, the scope also provides a 3.7-3.1" eye relief.
The matte black aluminum housing is lightweight, durable, water-resistant, and fogproof. It offers a 30mm maintube, tactical-style finger-operated knurled turrets, side focus parallax, and a fast focus eyepiece. Among many included accessories are flip-up lens caps for protecting optics from dirt, debris, or moisture. - Illuminated Mil-Dot Reticle
-
- 2nd focal plane
- Fine extended crosshair with no posts
- Red and green illumination
- Black non-illuminated pattern
- Five adjustable brightness settings
- Parallax-free from 10 yards to infinity
- Optical Performance
-
- Fully multi-coated lenses
- 44mm objective lens
- Linear field of view: 25.8-9' @ 100 yd
- Eye relief: 3.7-3.1"
- Use and Handling
-
- 60 MOA windage and elevation adjustments
- 1/4 MOA impact point correction
- Construction Details
-
- 30mm diameter maintube
- Aluminum housing with matte black finish
- Knurled knobs, objective and eyepiece adjustment rings
- Capped, finer-operated turrets
- Resettable to zero
- Locking
- Fast focus eyepiece
- Nitrogen-purged fogproof
- Water and shock-resistant
- Flip-up lens caps included
UPC: 850432003618 In the Box Bering Optics 4-14x44 Ace Riflescope (Red-Green-Black Illuminated Mil-Dot Reticle, Matte Black) - Parallax Adjuster Wheel
- 2 x Flip-Up Lens Caps
- Allen Wrench
- Lens Cloth
- CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 4-14x44 Ace Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE55444 Specs | | | Magnification | 4 to 14x | | Objective Lens Diameter | 44 mm | | Field of View | 4x: 25.8' @ 100 yd / 8.6 m @ 100 m
14x: 9' @ 100 yd / 3 m @ 100 m | | Exit Pupil Diameter | 4x: 11 mm
14x: 3 mm | | Eye Relief | 3.1 to 3.7" / 78 to 95 mm | | Diopter Correction | -3.0 to +3.0 | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Brightness Settings | Adjustable Brightness (5 Levels) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | IPX4 | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Operating Humidity | 93% | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 300 Hours | | Dimensions | Length: 13.2" / 33.5 cm
Mount Length: 5.7" / 14.4 cm
Height: 3.5" / 8.9 cm
Width: 2.4" / 6.1 cm | | Weight | 24 oz / 680 g | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 16.0 x 4.8 x 3.9" |
