User Manual for Bering Optics 4x66 D-750 Elite 3rd Gen Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Bering Optics 4x66 D-750 Elite 3rd
- Product category: Night Vision Riflescopes Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Night Vision Riflescopes
 |
User manual for the Bering Optics 4x66 D-750 Elite 3rd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

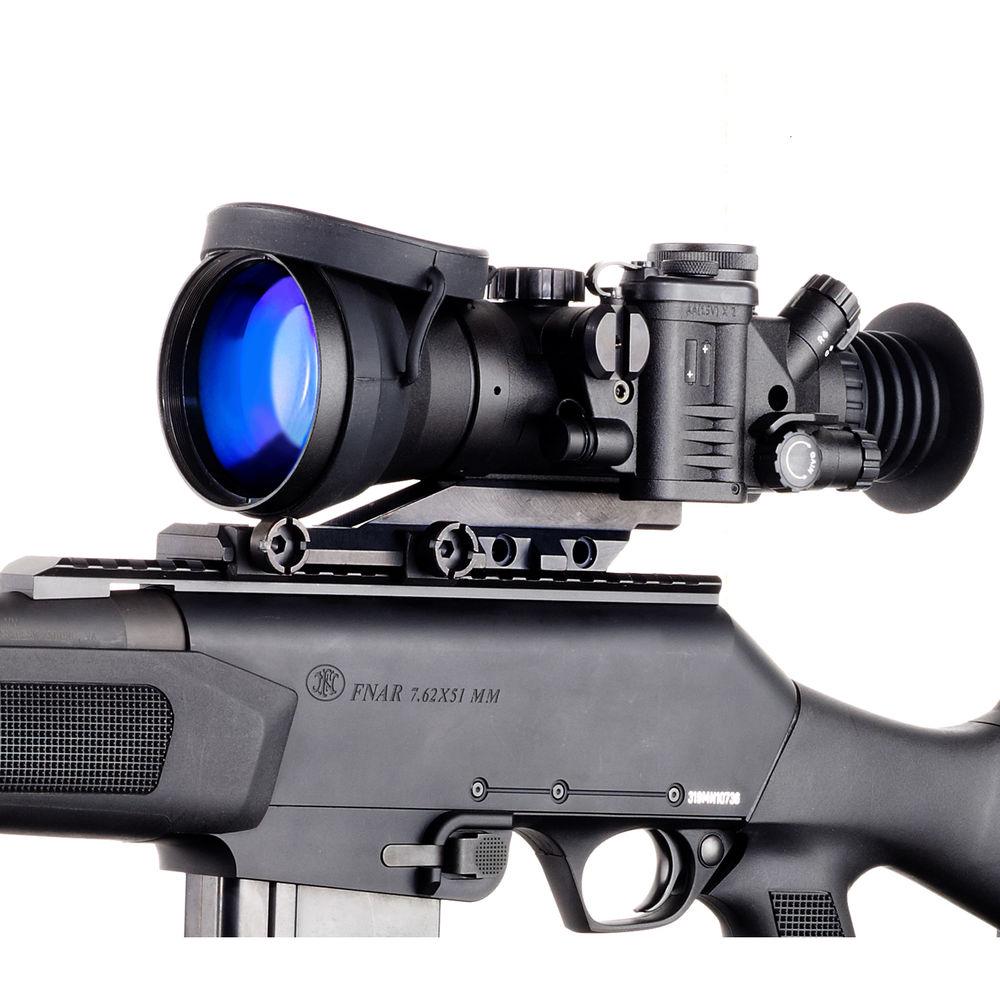

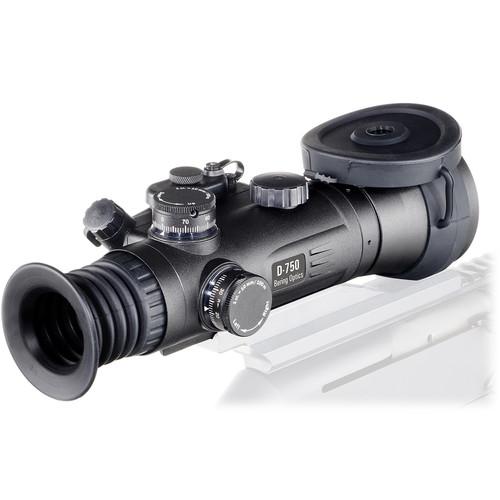

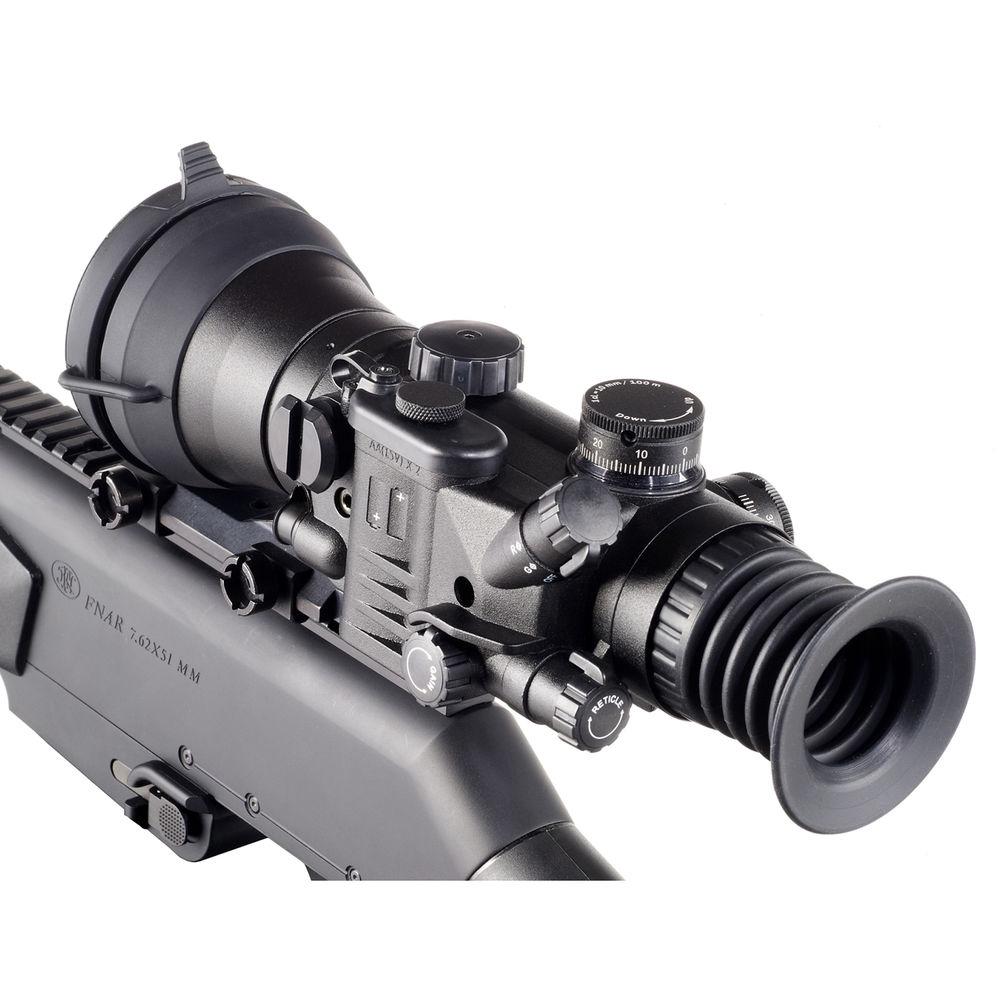

Product description Bering Optics' 4x66 D-750 Elite 3rd Gen White Phosphor Night Vision Riflescope is a versatile and robust night vision riflescope that offers outstanding performance. It features a 3rd generation filmless autogated intensifier tube with resolution of 64-72 lp/mm and a manual gain. While the filmless microchannel plate increases signal-to-noise ratio and efficiency of the intensifier, the autogating greatly improves sensitivity in low light and varying lighting conditions, protects against bright light burnout, and extends life. The gain control of this tube type is manual one, which allows an operator to have a full control of the tradeoff between amount of detail and image brightness.
The optical system offers high-definition multi-coated lenses that deliver improved detail, resolution, image clarity, and brightness. The 100mm f/1.5 objective lens offers a wide aperture for collecting more light at night, enhancing visibility. Enable operation in total darkness by providing additional illumination for your targets when using this night vision device with an optional infrared illuminator. To help you get a precision shot, this night vision optic is equipped with a red-yellow mil-dot reticle with adjustable brightness.
The polymer housing is lightweight, impact resistant, waterproof, and fogproof and has a special valve for adding nitrogen to ensure years of fogproof service. For attachment to your firearm, this device provides a Weaver-style mount. Also included are a carrying pouch with a strap, protective lens cap, and two AA batteries. - Image Intensifier
-
- 3rd generation
- 64-72 lp/mm resolution
- Manual gain control allows adjusting brightness or detail
- Autogating allows operation in varying light conditions and extends tube's life
- Filmless microchannel plate improves signal-to-noise ratio
- Optical Performance
-
- 4x magnification
- High-definition (HD) optical glass offers greater image detail and clarity
- Multiple anti-reflection coatings improve transmission and resolution
- 9° angular field of view
- 100mm, f/1.5 lens system
- 21' minimum focus distance
- 2" eye relief
- Reticle
-
- Red-yellow Mil-Dot reticle
- Variable brightness
- Use and Handling
-
- 0.6cm impact point correction
- Windage and elevation adjustments
- +3 to -4 to dioptric adjustment
- Construction Details
-
- Polyamide-molded housing
- Infrared illuminator mount
- Finger-operated exposed elevation adjustment
- Graduated windage and elevation knobs
- Tethered objective cover
- Picatinny/Weaver mount
- Wide rubber eyecup
- Waterproof and fogproof
- Nitrogen refill valve
- Shock resistant
In the Box Bering Optics 4x66 D-750 Elite 3rd Gen Night Vision Riflescope (Filmless, Red-Yellow Mil-Dot Reticle) - Protective Carry Pouch
- Objective Lens Cap
- Weaver Rail Mount
- 2 x AA Batteries
- Lens Tissue
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 4x66 D-750 Elite 3rd Gen Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics D-750 Elite Specs | Reticle | Red-yellow Mil-Dot reticle
Adjustable brightness | | Intensifier Tube | 3rd generation
Filmless microchannel plate
Autogated supply
Manual gain | | Resolution | 64-72 lp/mm | | Magnification | 4x | | Angular Field of View | 9° | | Lens System | 100mm, f/1.5 | | Minimum Focus Distance | 21' / 6.4 m | | Eye Relief | 2" / 50 mm | | Dioptric Correction | +3 to -4 | | Impact Point Correction | 0.25 MOA / 0.6 cm at 100 m | | Infrared Illuminator | Optional | | Battery / Runtime | 2 x AA batteries / 120 hours | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Waterproofing | Waterproof and fogproof, rated IPX67
Humidity: Up to 98% | | Dimensions | 9.3 x 3.8 x 3.1" / 23.5 x 9.7 x 7.8 cm | | Weight | 32.0 oz / 910.0 g |
