User Manual for Bering Optics 5-20x56 Sniper Tactical Riflescope Click to enlarge the picture
Contents of the user manual for the Bering Optics 5-20x56 Sniper Tactical Riflescope
- Product category: Riflescopes Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Riflescopes
 |
User manual for the Bering Optics 5-20x56 Sniper Tactical Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

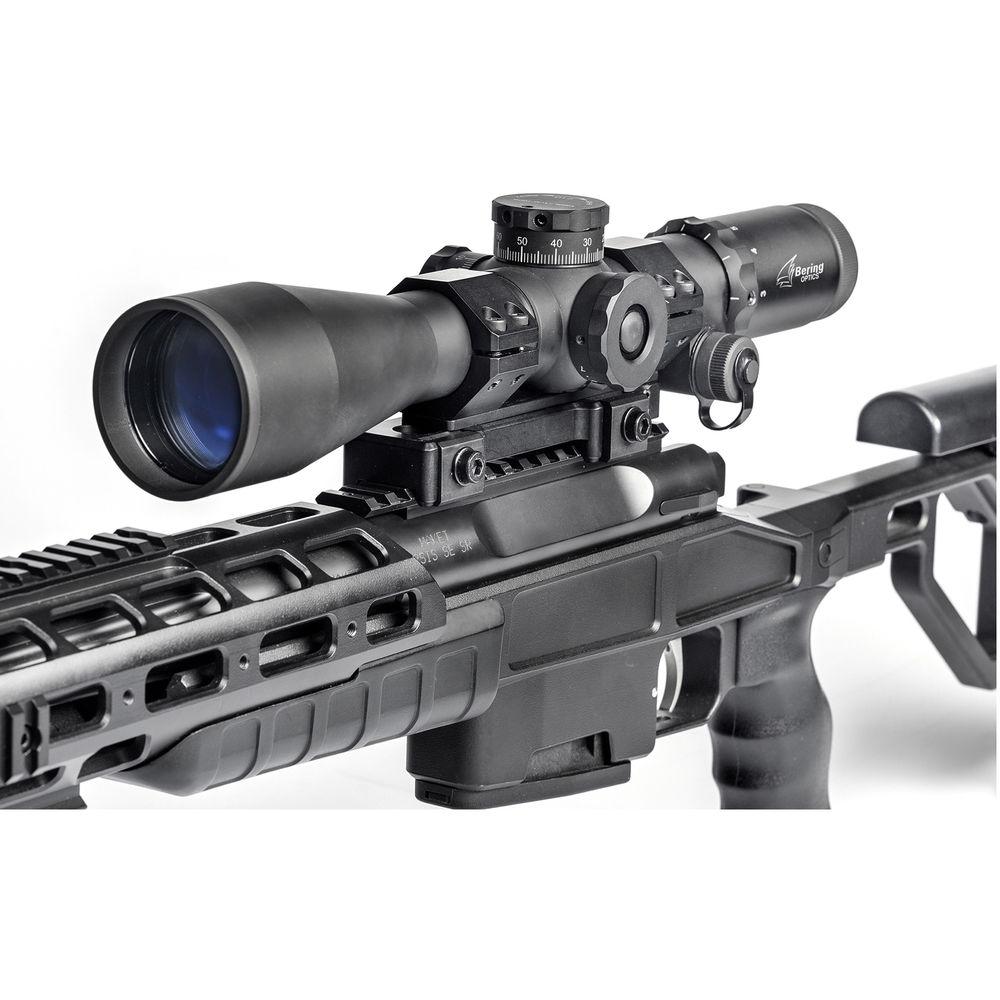

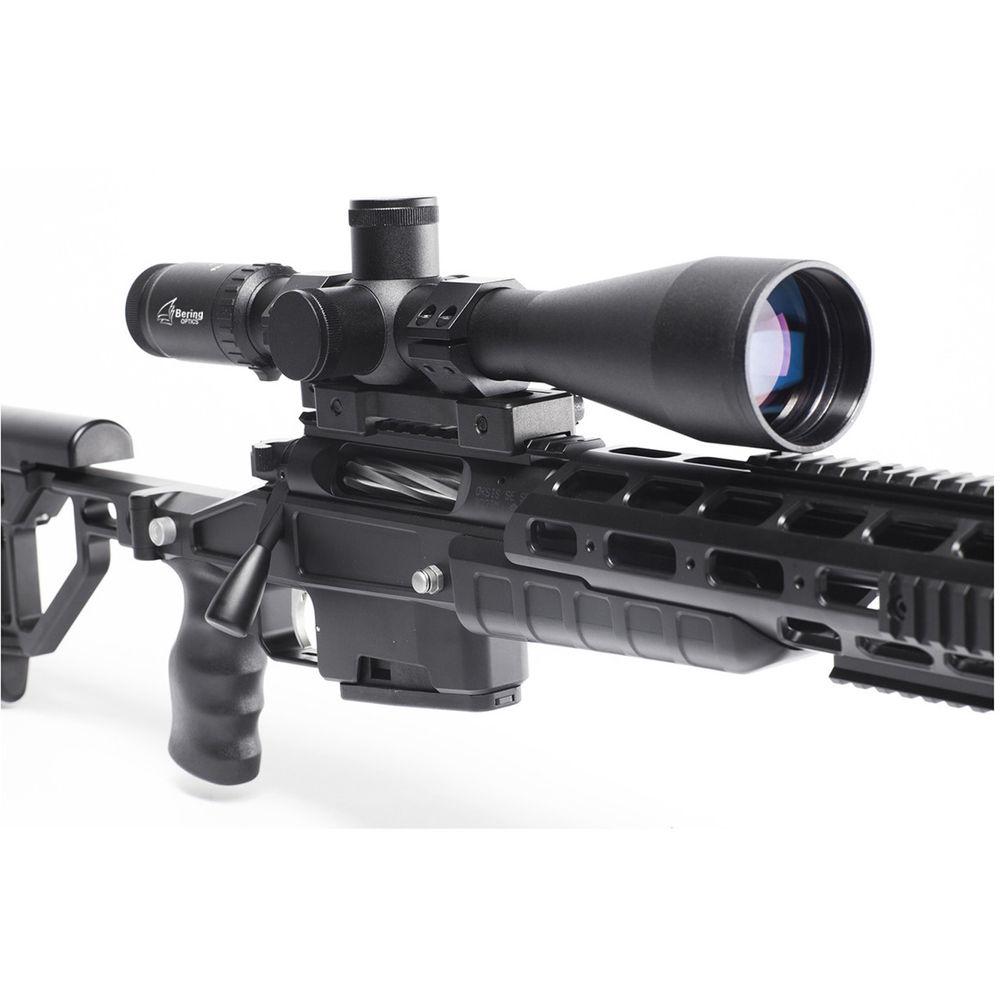

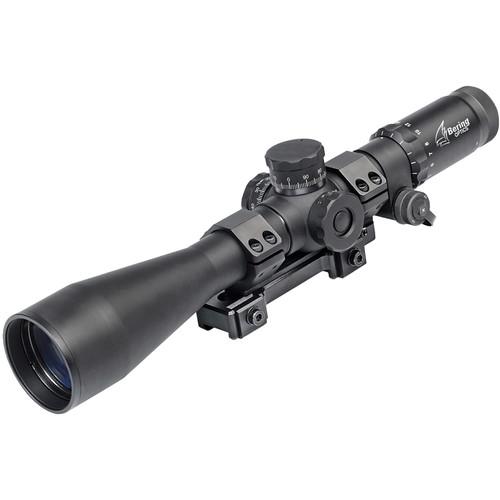

Product description Get on target with the Bering Optics 5-20x56 Sniper Tactical Riflescope. This tactical-style mid-range telescopic sight packs bright and clear, low-distortion optics into a super-strong 7005-T6 aluminum alloy housing with a 34mm maintube. Other highlights of the fully multi-coated optical system are its low-distortion performance throughout the zooming range and an extra-wide 56mm objective lens, capably scoping the most light in low-light conditions and delivering the brightest images possible. At the core of the optical system, Bering placed a 1st focal plane Tactical Milling Reticle (TMR) with an anti-canting sensor and adjustable brightness. Its pattern features four medium posts and a thin milling crosshair. For illumination, the reticle uses one AA battery and starts to blink when you cant your equipment by more than 1 degree. It also can perform free of parallax, thanks to the built-in side focus parallax corrector.
To follow you anywhere, the scope is outfitted with a strong and durable 7005-T6 housing that is waterproof, fogproof, and recoil resistant to 0.5 BMG. - Optical Performance
-
- 5 - 20x magnification
- Extra-wide 56mm objective lens
- 21.3 - 5.1' at 100 yd linear field of view
- Fully multi-coated optics
- Low-distortion optics
- 19.7' minimum focus
- 11.2 - 2.8 mm exit pupil
- Use and Handling
-
- 0.1-Mil impact point correction
- 32-Mil elevation range
- 10-Mil windage range
- Low-battery indicator
- Construction Details
-
- 7005-T6 aluminum alloy
- Exposed finger-operated turrets
- Waterproof and recoil resistant to .50 BMG
- Accommodates one AA battery

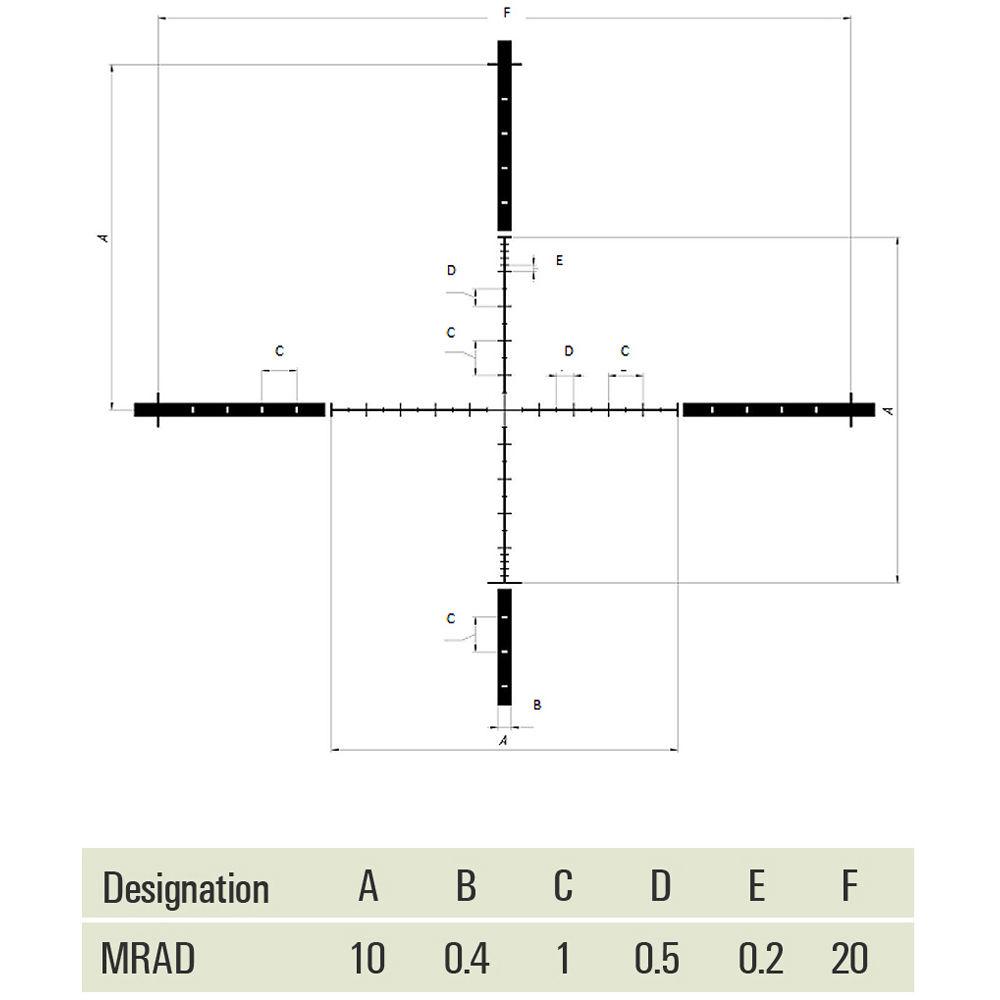

- TMR Illuminated Reticle
-
- 1st focal plane
- Four medium posts
- Thin milling crosshair with Mil-based stadia
- Anti-canting sensor: Reticle blinks when scope is canted by 1°
In the Box Bering Optics 5-20x56 Sniper Tactical Riflescope (TMR Illuminated Reticle, Matte Black) - AA Battery
- 2 x Lens Caps
- Carry Pouch
- Allen Key
- Lens Tissue
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 5-20x56 Sniper Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE57056 MRAD Specs | | | Magnification | 5 to 20x | | Objective Lens Diameter | 56 mm | | Field of View | 5x: 21.3' @ 100 yd / 7.1 m @ 100 m
20x: 5.1' @ 100 yd / 1.7 m @ 100 m | | Exit Pupil Diameter | 5x: 11.2 mm
20x: 2.8 mm | | Eye Relief | 4.1" / 105 mm | | | | Reticle Type | TMR Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 10 MIL | | Elevation Adjustment | 32 MIL | | Parallax Correction | Yes, 19.7' / 6 m to Infinity | | | | Water Resistance | IP67 | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 34 mm | | Battery | 1 x AA | | Battery Runtime | 240 Hours (Maximum) | | Material | Aluminum | | Dimensions | Length: 15.6" / 39.5 cm
Height: 3.4" / 8.7 cm
Width: 3.3" / 8.4 cm | | Weight | 30.5 oz / 865 g |
