User Manual for Bering Optics 6x83 Avenger 2nd Generation NV Riflescope Click to enlarge the picture
Contents of the user manual for the Bering Optics 6x83 Avenger 2nd Generation
- Product category: Night Vision Riflescopes Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Night Vision Riflescopes
|
User manual for the Bering Optics 6x83 Avenger 2nd Generation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

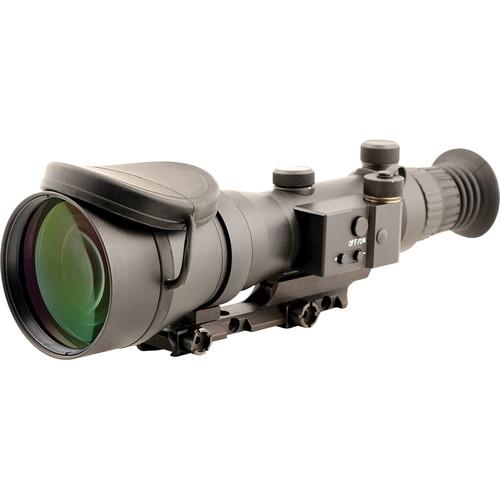

Product description The 6x83 Avenger 2nd Generation Night Vision Riflescope from Bering Optics provides you with a detection range of 550 yards and features a 2nd generation intensifier tube with resolution of 62-64 lp/mm, a 83mm f/2 lens system with multiple layers of anti-glare coatings, a 6.2° angular field of view, a 25 yd minimum focus, a 50mm eye relief, and +4 to -4 dioptric adjustment. It also features a red Mil-Dot reticle with adjustable brightness. When compared to 1st generation tubes, this 2nd generation intensifier tube offers significant improvements in image resolution, brightness and provides softer tones of green. If you encounter a very bright scene or a sudden flash of bright light that may damage your tube, the bright light cut-off function will automatically turn off your device. To help you account for wind drift and ballistic bullet drop, there are windage and elevations adjustments with 1/2 MOA impact point correction. The riflescope runs on one CR123 battery for a maximum of 72 hours.
The aluminum housing is lightweight, water and recoil resistant. It allows mounting this night vision riflescope to a barrel via an integrated Weaver mount. A battery compartment cap, a diopter ring, and windage and elevation adjustment knobs are knurled to ensure comfortable slip-free adjustments even when wearing gloves. The included objective lens cover is tethered to the housing to prevent loss. The wide compressible rubber eye cup covers the entire orbit of the eye to prevent leakage of green intensifier light and to help protect your eye from the recoil. Also included with this NVD, are a carrying bag and a lens tissue. - Intensifier Tube and Illuminator
-
- Detection range of 550 yd
- Intensifier tube: 2nd generation
- Resolution: 62-64 lp/mm
- Bright light cut-off
- Reticle
-
- Red Mil-Dot
- Adjustable brightness
- Optical Performance
-
- Magnification: 6x
- Lens system: 83mm f/2
- Angular field of view: 6.2°
- Minimum focus distance: 25 yd
- Eye relief: 50 mm
- Diopter adjustment: +4 to -4
- Construction Details
-
- Lightweight and durable aluminum housing
- Knurled diopter ring and adjustment knobs
- Integrated Weaver rail mount for mounting to a barrel
- Objective lens cup is tethered to the housing
- Wide rubber eyecup
- Recoil resistant
- Water resistant
UPC: 850432003328 In the Box Bering Optics 6x83 Avenger 2nd Generation NV Riflescope (Red Mil-Dot Reticle) - Lens Cap
- Carry Bag
- Lens Tissue
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 6x83 Avenger 2nd Generation NV Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE16690 Specs | Intensifier Tube | 2nd generation
Resolution: 62-64 lp/mm | | Magnification | 6x | | Detection Range | 550 yd (500 m) | | Angle/Field of View | 6.2° | | Lens System | 83mm f/2 | | Minimum Focus Distance | 25 yd (23 m) | | Impact Point Correction | 1/2 MOA per click | | Eye Relief | 2" (50 mm) | | Dioptric Correction | -4 to +4 | | Battery / Runtime | 1 x CR123 / 72 hr max | | Weatherproofing | Rated IPX4, resistant to splashing water
98% humidity rating | | Temperature Ranges | -22 to 122°F (-30 to 50°C) | | Mount | Weaver rail mount | | Material | Housing: aluminum | | Dimensions | 14 x 4.1 x 4" (355 x 105 x 98 mm) | | Weight | 3.2 lb (1.4 kg) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
