User Manual for Bering Optics 7x60 HiPo Digital Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Bering Optics 7x60 HiPo Digital Night
- Product category: NV Monoculars & Multi-Systems Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics NV Monoculars & Multi-Systems
 |
User manual for the Bering Optics 7x60 HiPo Digital Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

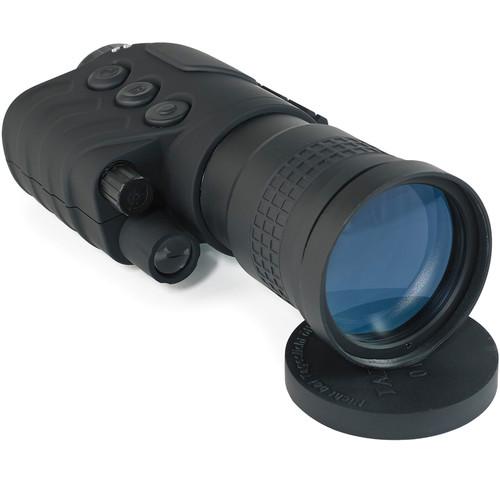

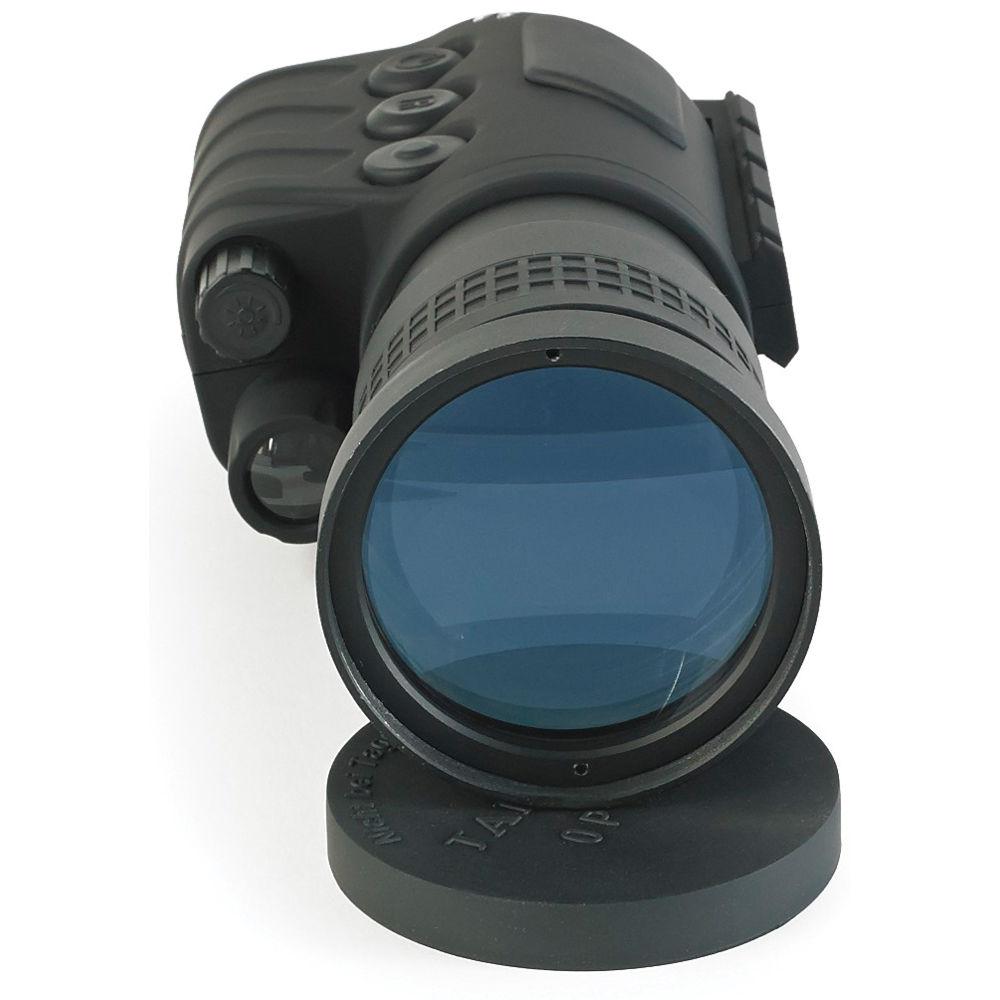

Product description The 7x60 HiPo Digital Night Vision Monocular from Bering Optics features a digital CCD sensor that is completely resistant to bright light and has an unlimited lifetime. The fully multicoated optics offer a notable 7x magnification that will keep image jitter low when you use this NVD as a handheld device. If the ambient infrared from the moon and the stars doesn't provide enough illumination, you can use a built-in infrared light to ensure your target's visibility. With 75mW of output power and variable brightness, the light source should add sufficient brightens to your targets. To offer you a comfortable viewing experience, the monocular also has adjustable display brightness and can provide images in green or black-and-white color.
To ensure comfortable handheld operation, the body is contoured and has a rubberized covering for a non-slip grip. The menu buttons are arranged within easy reach of your fingertips. If you want to keep your hands-free or will be outside for a very long time, you can mount this device to a tripod via two 1/4"-20 sockets. To mount additional accessories, use the built-in Picatinny or Weaver style rail. Also, included with the monocular are a front lens cap, a lens tissue, and a carrying case. - Optical Performance
-
- Fully multicoated optics provide superior light transmission
- Magnification: 7x
- Objective diameter: 60mm
- Focal Length: 84mm
- Angular field of view: 3.7°
- Minimum focus 1.1 yd
- Sensor and Built-in IR Illuminator
-
- 1/3" CCD sensor
- Adjustable sensor brightness allows to accommodate for varying ambient infrared illumination
- 75mW infrared illuminator provides additional target illumination
- Adjustable illumination brightness
- Use and Handling
-
- Low battery indicator
- Green or black-and-white display output modes
- Battery status indicator
- Construction
-
- Tripod adaptable with two 1/4"-20 sockets
- Comfortable contoured housing with rubberized covering for a sure grip

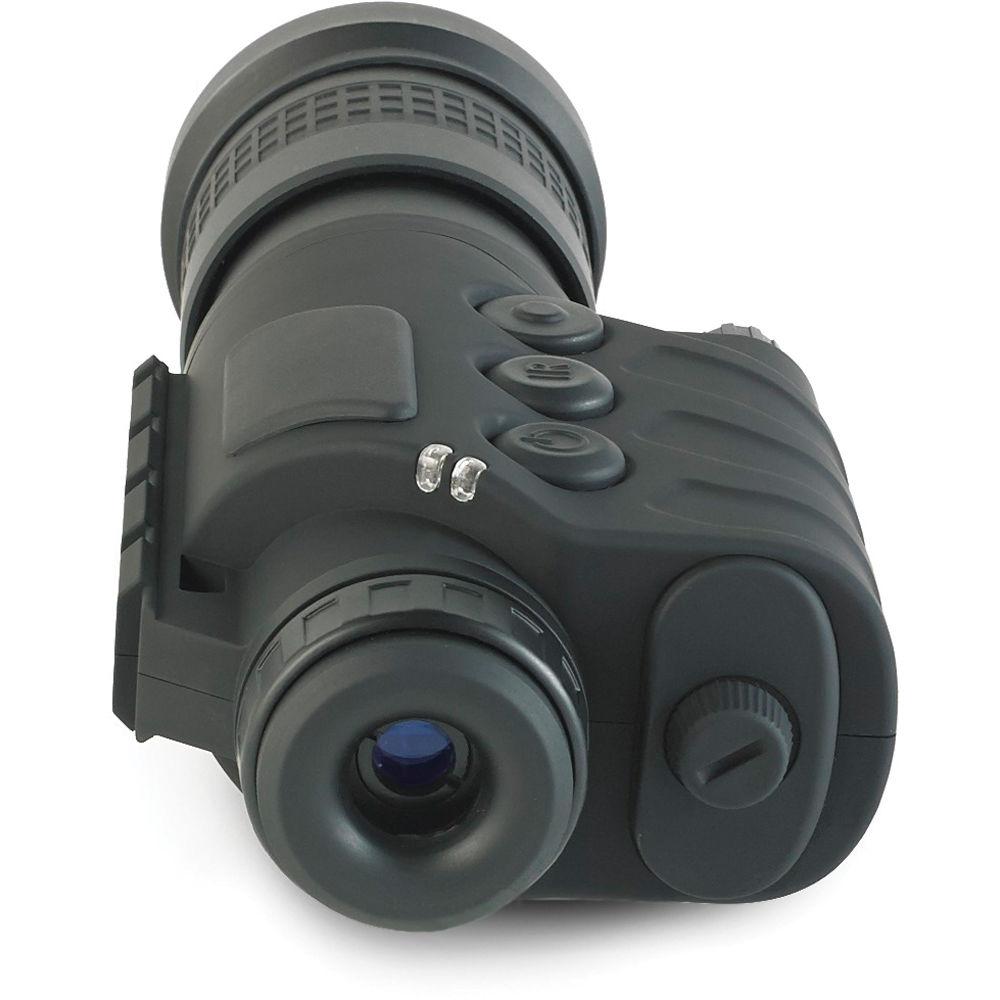

- Picatinny or Weaver style rail for mounting accessories located at the top
- Rubber eyecup prevents external light and allows comfortable viewing
- Weather resistant, rated IPX4
UPC: 850432003274 In the Box Bering Optics 7x60 HiPo Digital Night Vision Monocular - Front Lens Cap
- Carry Case
- Lens Tissue
- Limited Lifetime Warranty on Optics and Mechanics
- Limited 2-Year Warranty on Electronics
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics 7x60 HiPo Digital Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BE18760 Specs | Sensor | 1/3" CCD | | Magnification | 7x | | Angle/Field of View | Angular: 3.7°
Linear: 39' @ 100 yd (13 @ 100 m) | | Lens System | 60mm f/1.4 | | Minimum Focus Distance | 1.1 yd (1 m) | | Eye Relief | 0.47" (12 mm) | | Dioptric Correction | +4 to -4 | | Infrared Illuminator | Built-in

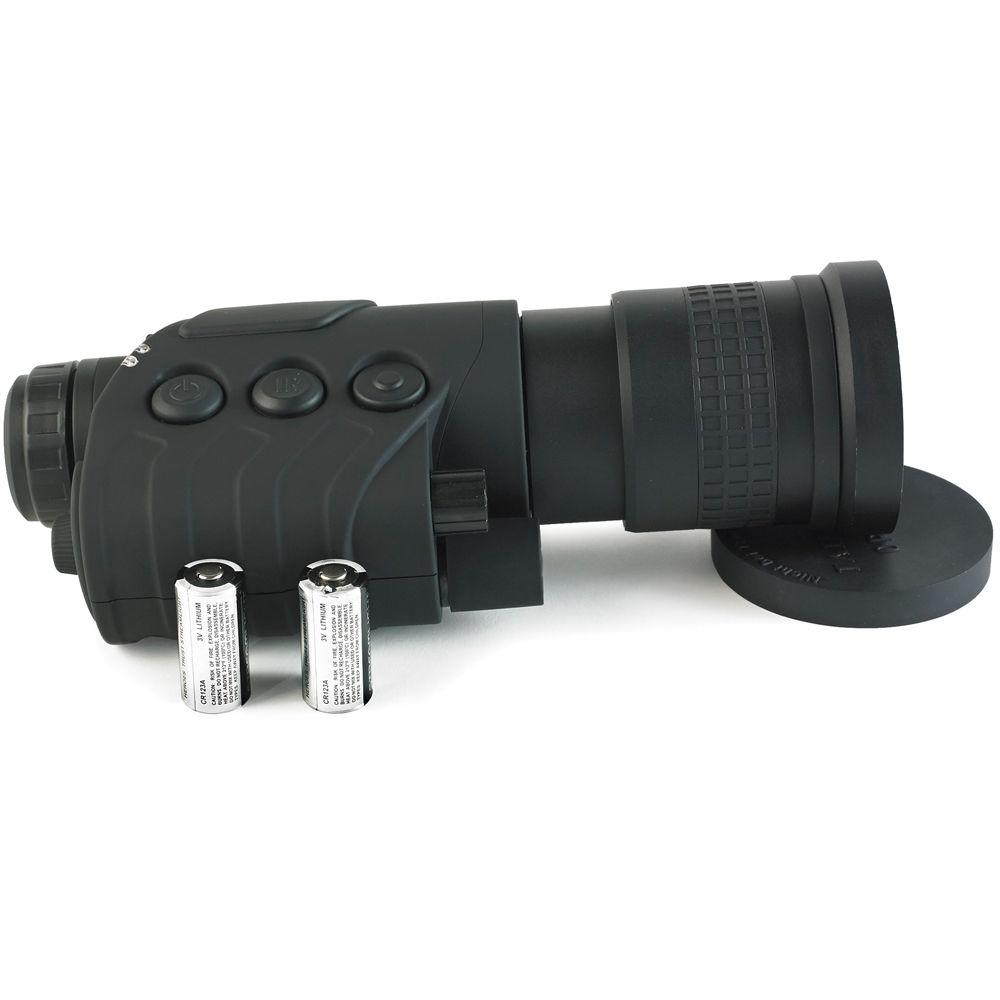

75 mW | | Battery / Runtime | 2 x CR123 / 7 hr max | | Weatherproofing | IPX4, resistant against splashing water | | Operating Temperature | 14 to 95°F (- 10 to 35°C) | | Tripod Compatibility | 2 x 1/4"-20 sockets | | Material | Housing: painted ABS plastic
Lens housing: anodized aluminum | | Humidity | 91% | | Dimensions | 10.5 x 4 x 2.8" (267 x 101 x 71 mm) | | Weight | 23 oz (652 g) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 9.8 x 5.4 x 3.4" |
