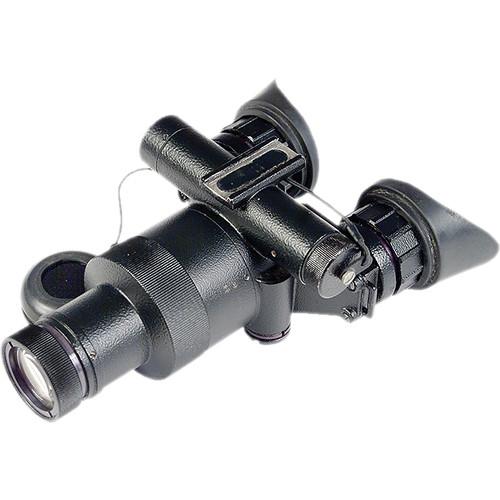

User Manual for Bering Optics ALLY-7B Gen II Night Vision Biocular with Head Gear Click to enlarge the picture
Contents of the user manual for the Bering Optics ALLY-7B Gen II Night
- Product category: Night Vision Bi-Oculars Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Night Vision Bi-Oculars
|
User manual for the Bering Optics ALLY-7B Gen II Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|
Product description The ALLY-7B Gen II Night Vision Biocular from Bering Optics is a close-range night vision device (NVD) that comes with flip-up headgear for hands-free viewing. This NVD has a bi-ocular design and is equipped with an integrated infrared illuminator capable of illuminating a subject at close range. A Gen 2+ intensifier tube endows the ALLY-7B with resolution superior to those of previous generation NVDs, and it also features Automatic Brightness Control, which maintains the image brightness at an optimal level and produces relatively constant image quality in dynamic light conditions.A 40° angle of view and manual focus objective make the ALLY-7B help the operator maintain awareness of their surroundings, and a 10-inch close focus capability is useful for map reading and other close-up tasks. The included flip-up headgear has adjustable straps for a custom fit and padding for added comfort. The flip-up headgear adapter makes hands-free use and flip-up storage quick and easy; a dovetail rail atop the housing allows the biocular to be dismounted in situations when handholding the optic is more practical. An IPX5 waterproof housing makes the ALLY-7B NVD ready to perform in heavy rain, high humidity, and freezing temperatures. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Image Intensifier
-
- Gen 2 intensifier tube
- 45-56lp/mm resolution
- 18:1 typical signal-to-noise ratio
- Automatic brightness control
- Optical Performance
-
- 1x magnification
- 24mm objective
- 40° angle of view
- 10" close focus distance
- Dual ocular design
- Use and Handling
-
- Flip-up head gear
- Built-in infrared illuminator
- In-view IR activation and low-battery indicators
- Angled rubber eyecups reduce green light splash
- Construction Details
-
- Aerospace aluminum housing
- IPX5 waterproof, rated up to 98% humidity
- -22 to 113° operating temperature
- 17.4 oz weight
In the Box Bering Optics ALLY-7B Gen II Night Vision Biocular with Head Gear Headgear Headgear Adapter Carrying Case Limited Lifetime Warranty Limited 2-Year Warranty on Intensifier Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics ALLY-7B Gen II Night Vision Biocular with Head Gear in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics ALLY-7B Specs | Intensifier Tube | Gen 2 | | Resolution | 45 - 56 lp/mm | | Signal to Noise Ratio | 18:1 | | Magnification | 1.0x | | Objective Lens Diameter | 24 mm | | Angle of View | 40° | | Minimum Focus Distance | 10" (25 cm) | | Exit Pupil | Not specified by manufacturer | | Dioptric Correction | ±4 | | Infrared Illuminator | Yes | | Power Supply | (1) CR123 battery | | Runtime | Approximately 20 hours of continuous operation (without IR illuminator) | | Weatherproofing | IPX5 | | Humidity Tolerance | 98% | | Operating Temperature | -22 to 113°F (-30 to 45°C) | | Dimensions | 6.7 x 4 x 2.5" (17 x 10 x 6 cm) | | Weight | 17.4 oz (450 g) |
