User Manual for Bering Optics BEAST-R 2-8x50 Thermal Weapon Sight Click to enlarge the picture
Contents of the user manual for the Bering Optics BEAST-R 2-8x50 Thermal Weapon
- Product category: Thermal Scopes Bering Optics
- Brand: Bering Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bering Optics Thermal Scopes
 |
User manual for the Bering Optics BEAST-R 2-8x50 Thermal Weapon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bering Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bering Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bering Optics product will considerably shorten its lifespan!
|

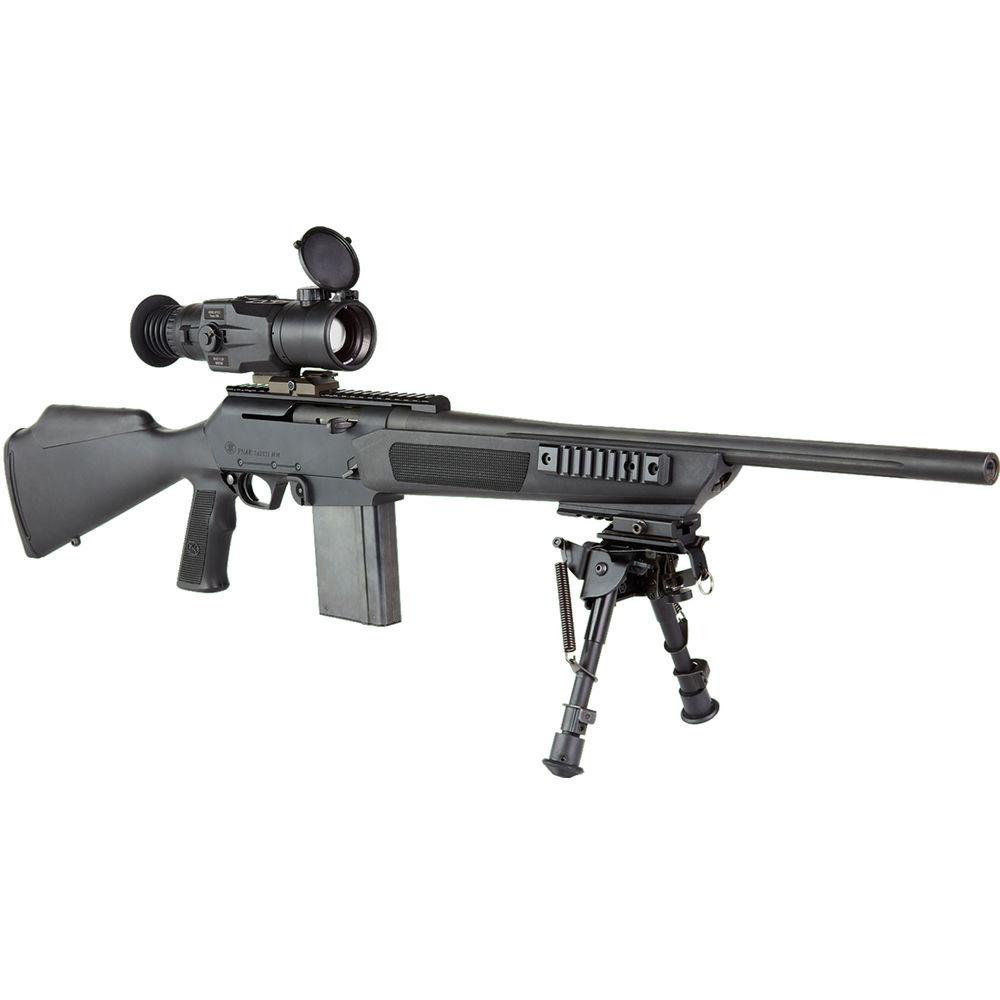

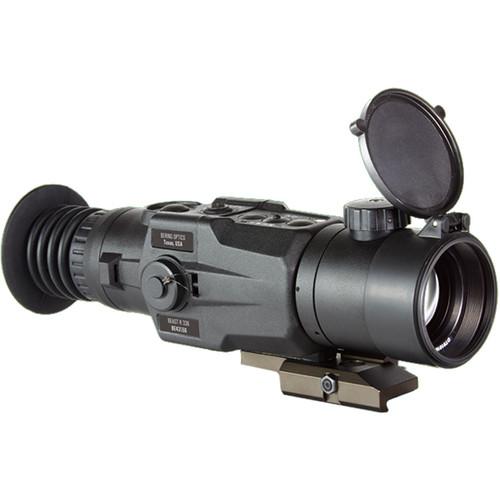

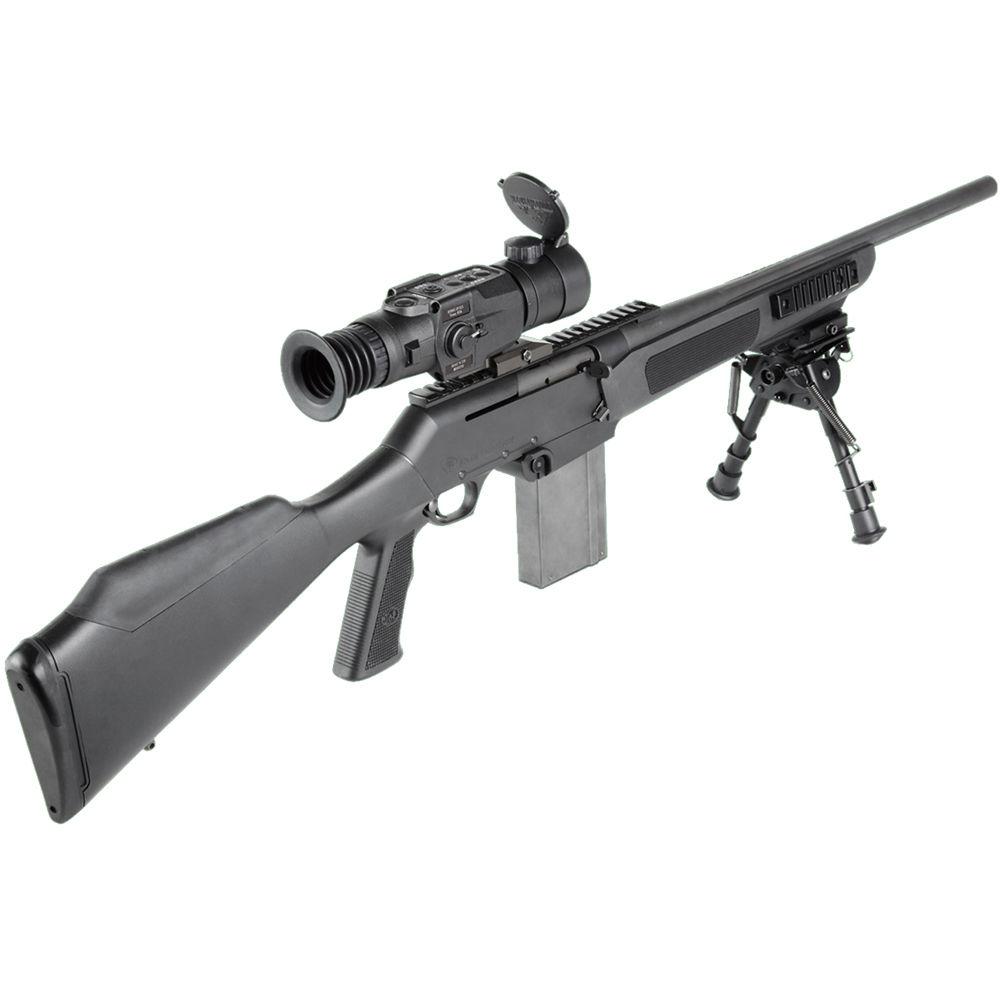

Product description Raid the night with the Bering Optics BEAST-R 2-8x50 Thermal Weapon Sight. To deliver a thermal profile of your surroundings, this sight combines a high-resolution FLIR 336 x 256 thermal sensor with an 800 x 600 AMOLED SVGA color display. Together with the germanium 50mm, f/1.2 lens system and built-in electronics they deliver crisp and bright color images (at a 30 Hz refresh rate) of things normally invisible to the naked eye using thermal imagery. It also enables you to see through fog, smoke, and light foliage. To emphasize certain image details, you can also enhance the images with white hot, black hot, or colored polarities.
Among its useful features, most notable are internal focusing with a minimum range of 33', 8x maximum magnification, two digital reticles (Mil-Dot and Crosshair), 50mm eye relief, a built-in QR Weaver rail mount, and a video-out port for recording. To follow you anywhere, the sight features a durable waterproof polymer housing, rated IP67. For protecting the objective lens from dirt, it has a built-in flip-up lens cap, and to protect your face from impact it offers a wide rubber eyecup. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Thermal Sensor & Display
-
- 336 x 256 thermal sensor
- 17µm pixel pitch
- <50 mk thermal sensitivity
- 30 Hz image refresh rate
- Display
-
- 800 x 600 AMOLED SVGA display
- Manual display brightness adjustment
- Automatic or manual shutter image calibration
- White hot, black hot, and colored hot image polarities
- Switchable Mil-Dot and Crosshair reticles with five color options
- Mean Point of Impact correction function
- Optical Performance
-
- 2x optical magnification
- 2x, 4x digital zoom
- 8x maximum total magnification with digital zoom
- 50mm, f/1.2 lens system
- 33' minimum focus distance
- Precision internal focusing
- 50mm eye relief
- Use and Handling
-
- Windage and elevation adjustments with 3.4cm (at 100m) IPC
- Battery status indicator
- RCA video-out port
- Diopter adjustment: +3 to -4
- Construction Details
-
- Polymer construction
- Wide rubber eyecup
- Quick release Weaver rail mount
- IP67-rated, waterproof
- Built-in flip-up lens cap
In the Box Bering Optics BEAST-R 2-8x50 Thermal Weapon Sight (30 Hz, Matte Black) - Flip-Up Objective Lens Cap
- Quick Release Weaver Rail Mount
- Tactical Hard Case
- 2 x CR123 Batteries
- 1.5' RCA Video Cable
- Rubber Eyecup
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bering Optics BEAST-R 2-8x50 Thermal Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBering Optics BEAST-R 336 Specs | Sensor | 336 x 256 FLIR thermal core
7.5-13.5
